| Chassis |
| Spartan® K2 raised-rail chassis |
| Engine |
| Cummins® L9 turbocharged 450 HP engine with 1,250 lb.-ft. torque at 1,400 RPM |
| Transmission |
| Allison® 3,000 MH 6-speed transmission |
| Radiator |
| Side-mounted, parallel-airflow radiator |
| Alternator |
| 170 amp alternator |
| Engine Block Heater |
| 1,000W engine block heater |
| Engine Brake |
| Three-stage engine brake |
| Front Suspension |
| Independent front suspension (IFS) |
| Front Axle |
| Reyco® Granning® front axle - 17,000 lb. rating |
| Rear Axle |
| Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P) |
| Tag Axle |
| Tag axle with one-touch manual air dump - 12,000 lb. rating (N/A 40P) |
| Braking System |
| ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 40P) |
| Rear Axle Ratio |
| 4.88 rear axle ratio (4.78 on 40P) |
| Tires |
| Michelin® X Coach Z 295/80R22.5 tires |
| Shocks |
| Bilstein® 46mm shocks |
| Tire Pressure Monitoring |
| Tire pressure monitoring system (TPMS) with temperature monitoring |
| Leveling System |
| Equalizer™ hydraulic automatic coach leveling |
| Air Connection |
| Remote air connection |
| Chassis Battery |
| (2) 12V chassis batteries |
| Fuel Tank |
| 150 gal. fuel tank with dual fills (100 gal. on 40P) |
| DEF Tank |
| 15 gal. DEF tank with dual fills (single fill on 40P, 44D, 44R) |
| Tow Air Brake System |
| Spartan® Safe Haul™ tow vehicle air brake system |
| Hitch |
| 15,000 lb. hitch with 7-pin plug (10,000 lb. hitch on 40P) |
| Roof |
| 4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then one-piece fiberglass |
| Walls |
| 2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16) |
| Floor |
| 2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped with 3/4 in. 7-ply plywood decking (R-33) |
| Frame |
| X-Bridge™ bracing welded into chassis frame |
| Slideouts |
| Entegra-exclusive Relia-Torque flush-mounted 12V slideout system |
| Heating System |
| Aqua-Hot® 400D hydronic water and heating system with in-floor heat throughout |
| Generator |
| Onan® 10,000W diesel generator, with automatic start, on slide-out tray |
| Inverter |
| 3,000W pure sine wave inverter |
| Batteries |
| (2) L16 AGM batteries (6V/390 amp hrs. ea.) |
| Solar |
| (2) 200W solar panels |
| Electrical Hookup |
| 50 amp power cord on electric powered reel |
| Transfer Switch |
| Smart automatic transfer switch with surge protection |
| Air Conditioning |
| (3) 15,000 BTU A/C units with heat pumps and condensation drain system |
| Heated Tanks |
| Aqua-Hot® heated basement storage |
| Black Tank Management |
| Sani-Con® macerator holding tank dump system with manual gate valves and manual backup |
| Tank Flush |
| Black holding tank sprayer |
| Water Filtration |
| City and tank water filtration system |
| Water Hose w/ Electric Reel |
| Water hose with electric reel |
| Front/Rear Cap |
| Insulated front and rear caps (R-24) |
| Engine Door |
| Power rear engine door with manual override |
| Patio Awnings |
| Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights |
| Door Awning |
| Girard® power entrance door awning with LED lights |
| Slideout Awnings |
| Girard® Ultra slideout awnings |
| Window Awnings |
| Girard® window awnings |
| Windows |
| Frameless, dual-pane, tinted, safety-glass windows |
| Keypad |
| Lit grab handle with doorbell and keypad system for keyless entry |
| Entertainment |
| 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL® radio and speakers with USB port and receptacle |
| Mirrors |
| Chrome, heated, remote-control, side-view mirrors with two-position memory settings |
| Exterior |
| Diamond Shield™ front protective film mask |
| Headlights |
| Automatic LED low beam headlights, halogen high beam headlights and fog lights |
| Daytime Running Lights |
| Daytime running lights |
| LED Lights |
| LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights |
| Accent Lights |
| LED accent lights under passenger slideout rooms |
| Lights |
| Porch light and motion sensor security lights |

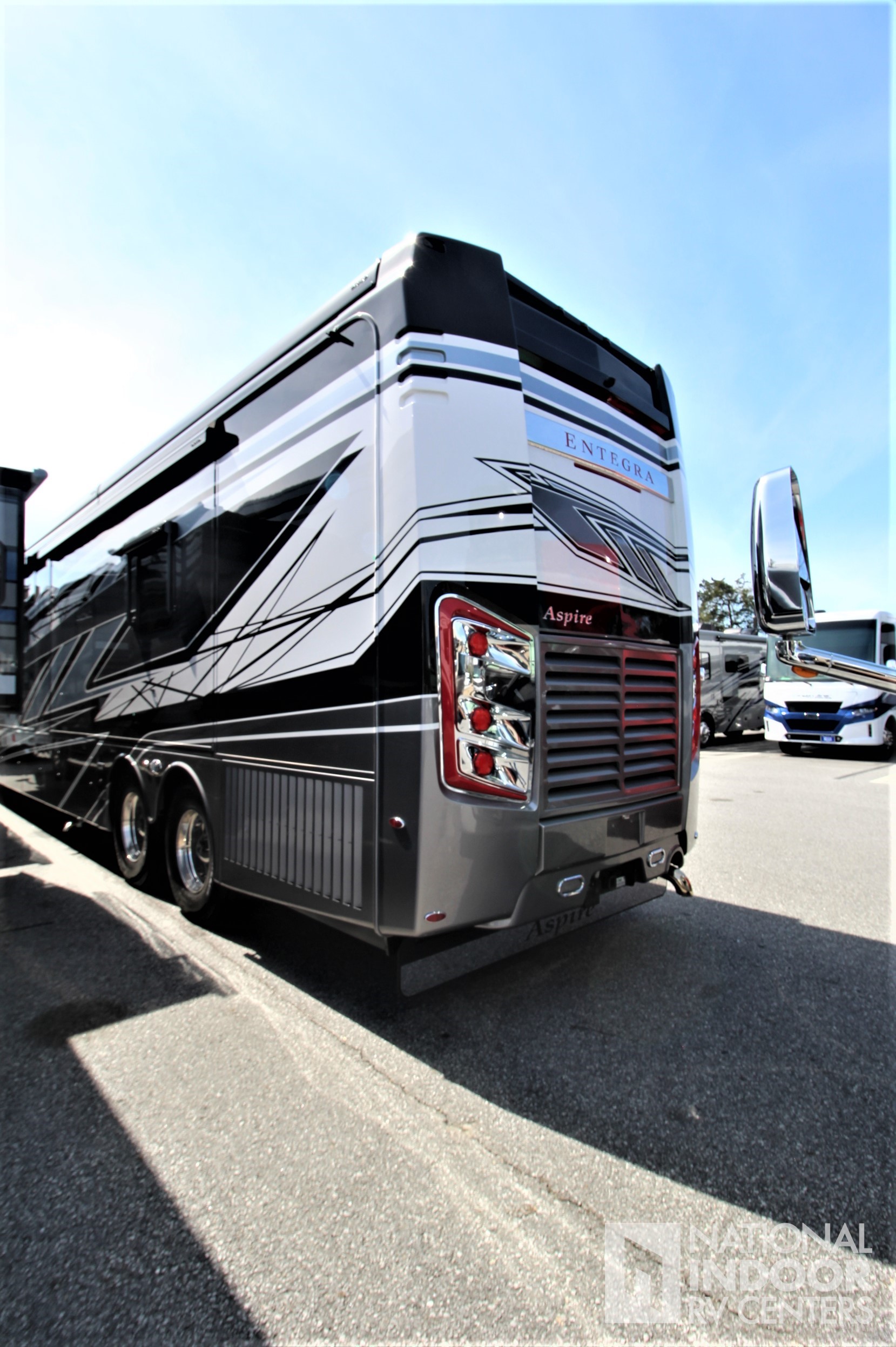

| Rear Mudflap |

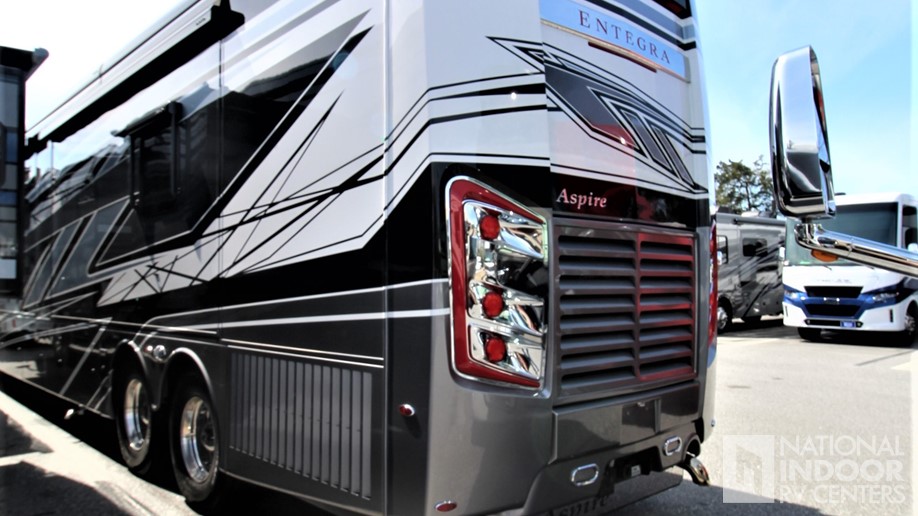

| Mudflap with chrome “Aspire” nameplate |
| Satellite Dish - US |
| Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option |
| Satellite Dish - CA |
| Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option |
| TV Antenna |
| Winegard® Rayzar Z1 TV antenna |
| Wi-Fi |
| Winegard® WiFiRanger™ Wi-Fi extender |
| Utility Center |
| Heated exterior utility center with 5 in. LED SeeLeveL™ tank monitoring panel |
| Cargo Features |
| Push-button, power-unlatching baggage doors with LED indicator light; Slideout basement storage tray |

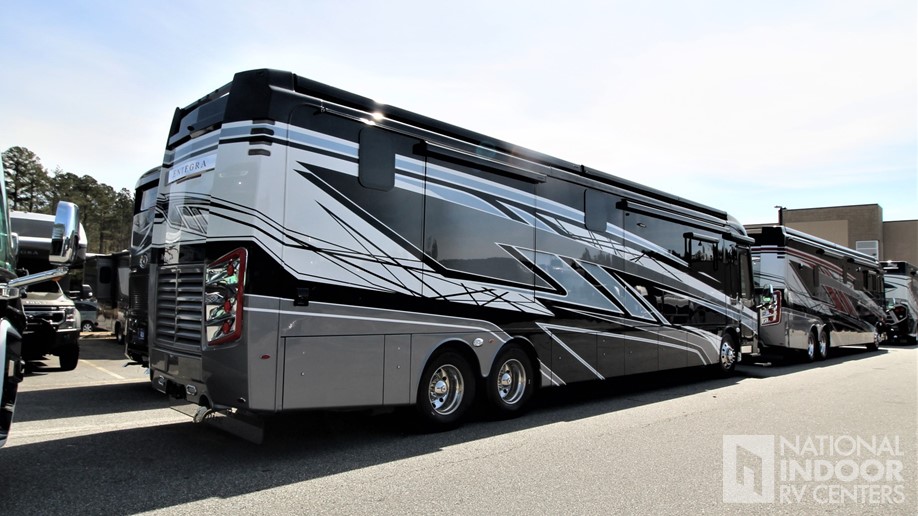

| Paint |
| Sikkens custom full-body paint |
| Entrance Door |
| Removable screen on entry door |
| Additional Amenities |
| Bergstrom dual-zone HVAC system; Dual USB port and one 12V socket for charging |
| Dash |
| Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument cluster, 360° camera system or GPS navigation |
| Cameras |
| Ramco 360° HD digital camera system |
| Infotainment System(s) |
| Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution |
| Side Consoles |
| 4.3 in. infotainment control touchscreen in passenger console |
| Driving Features |
| E-Z Steer™ adjustable power steering assist |
| Steering Wheel |
| Steering wheel with integrated controls for screen selection, instrument cluster navigation, media source slection, cruise, wipers and Bluetooth® phone functionality |
| Steering Column |
| Manual tilt and telescoping steering column |
| Sound System |
| JBL® premium audio 5-speaker sound system with amplifier, speakers and DVC subwoofer |
| Antenna |
| All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system |
| Windshield |
| Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers |

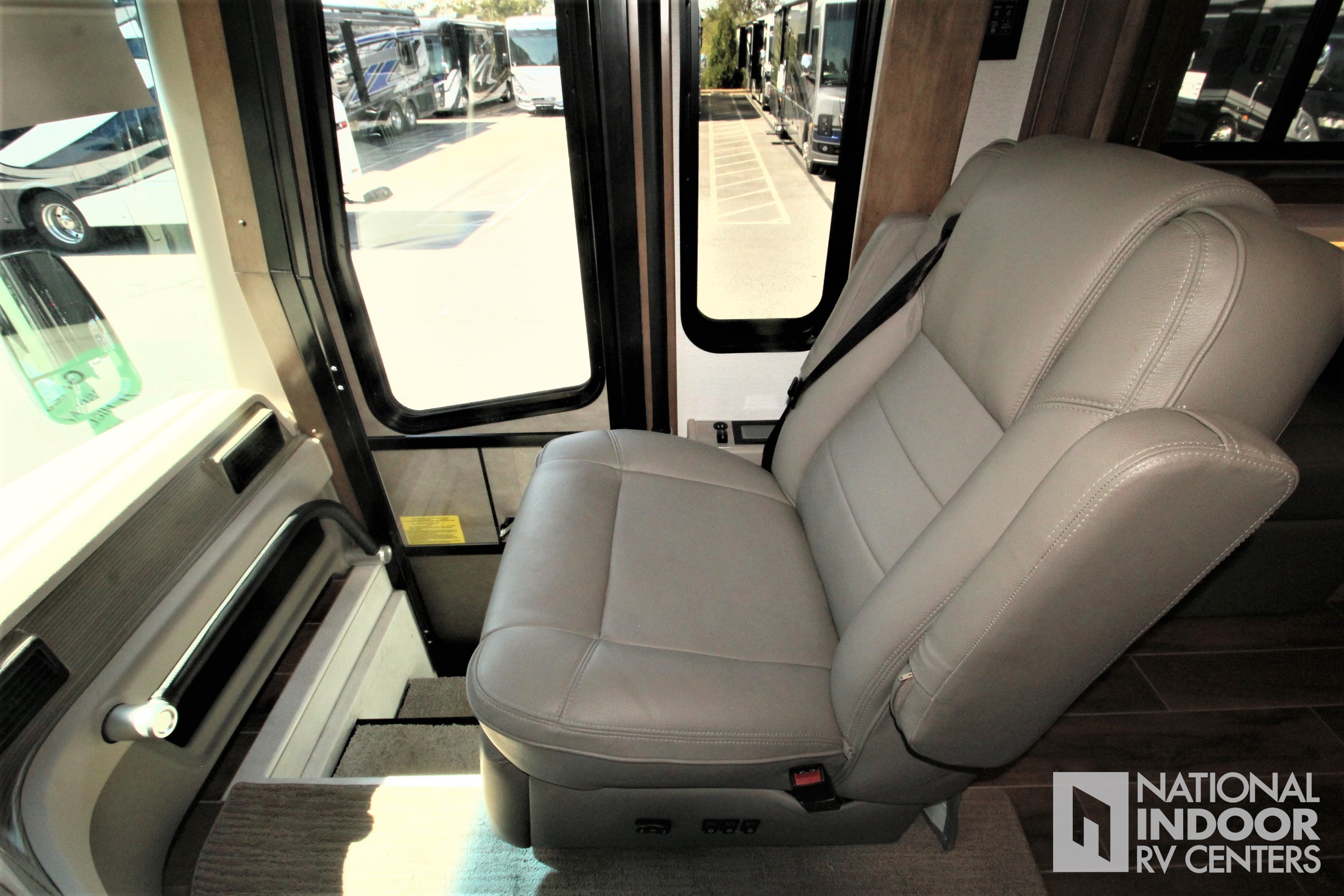

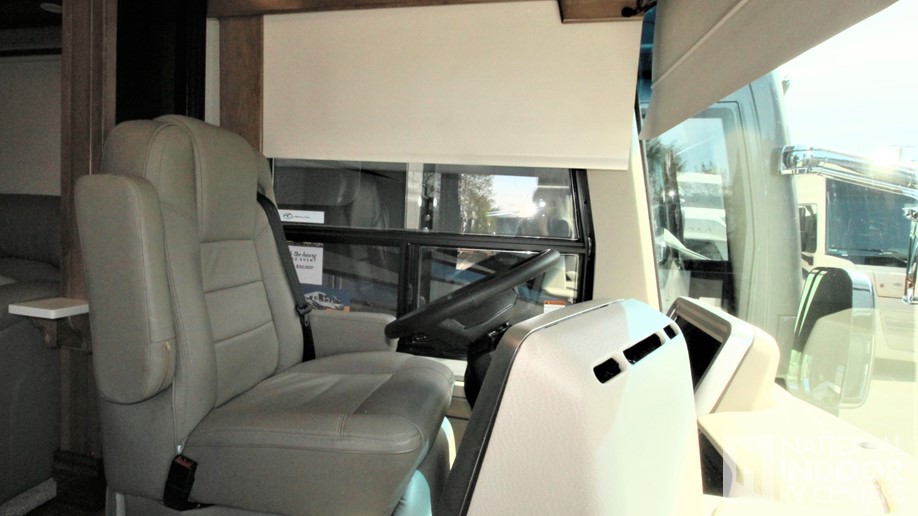

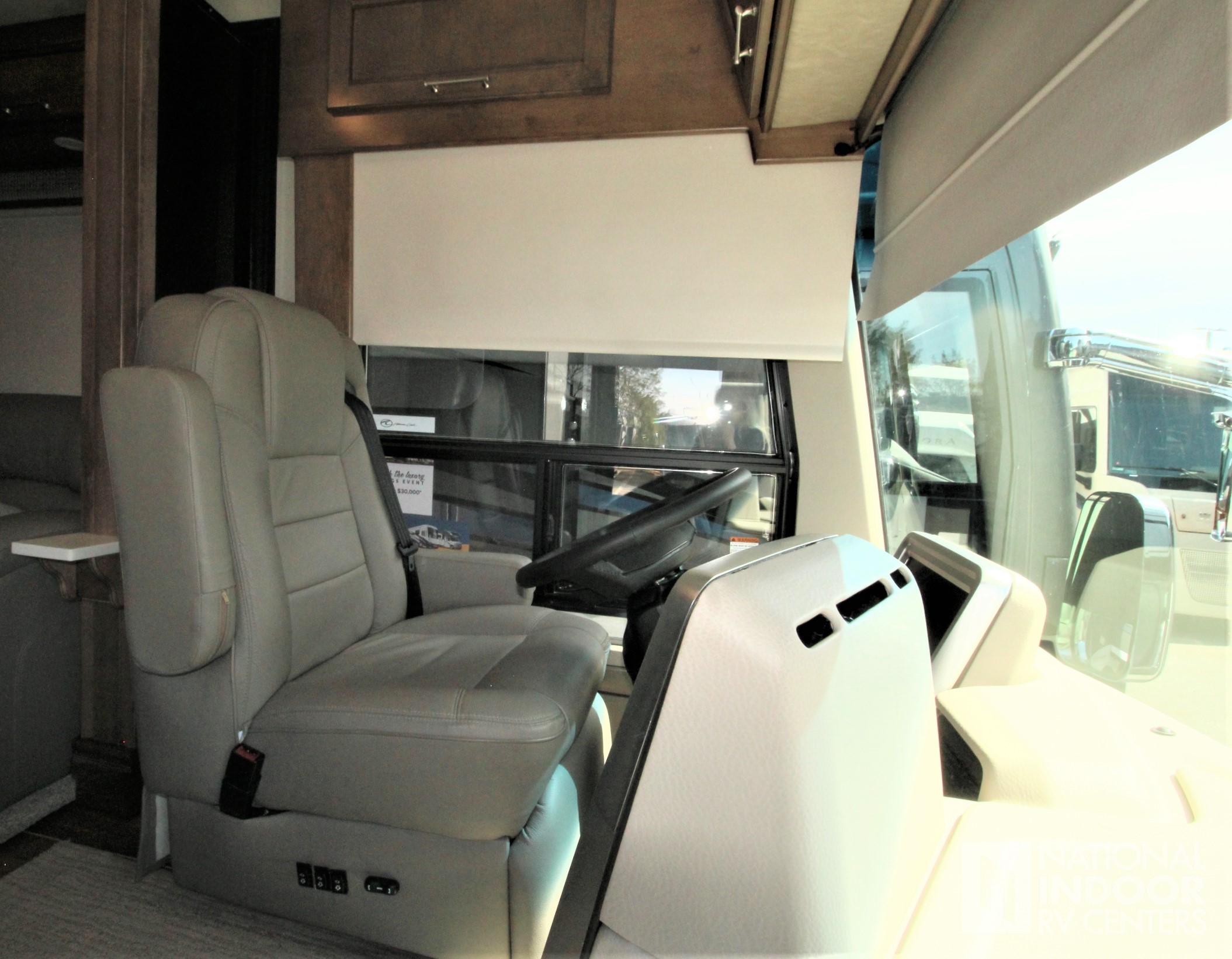

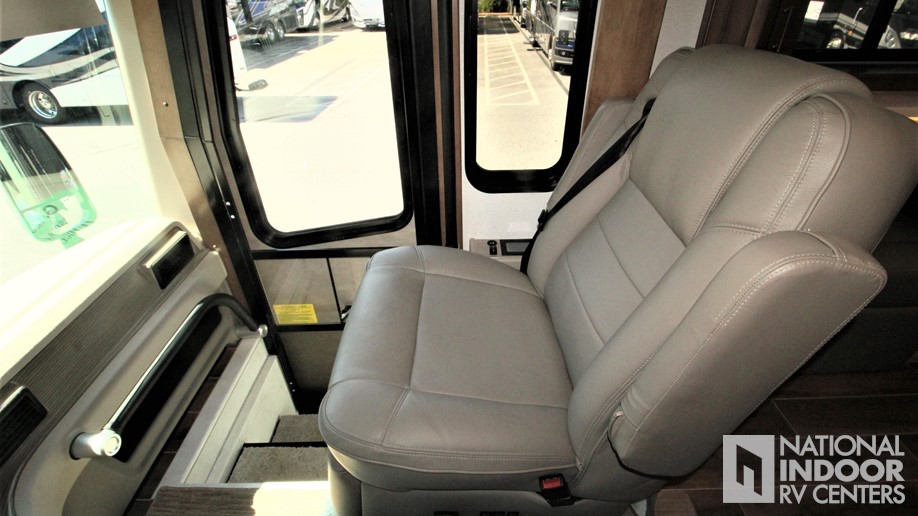

| Driver / Passenger Seats |
| Leather driver and passenger seats with powered 6-way adjustment, lumbar and footrest functions |
| Power Features |
| Powered flush stepwell cover |
| Pedals |
| Powered adjustable brake and accelerator pedals |
| Visors & Privacy Shade |
| Powered front sun visors and privacy shades |
| Television - Front Overhead |
| 32 in. Samsung® LED 1080P Smart TV in front overhead |
| Command Center |
| Firefly multiplex system with 10 in. VegaTouch touchscreen for complete integration of coach controls (mobile app available) |
| Television - Living Room |
| 50 in. Samsung® 4K UHD Smart TV |
| Sound - Living Room |
| Bose® sound bar with subwoofer and universal remote control |
| DVD Systems |
| Sony® Blu-ray™ player |

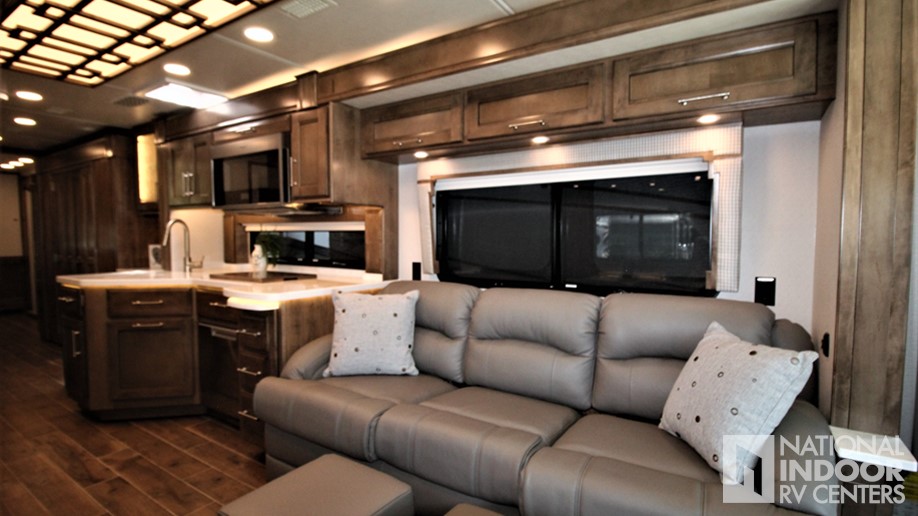

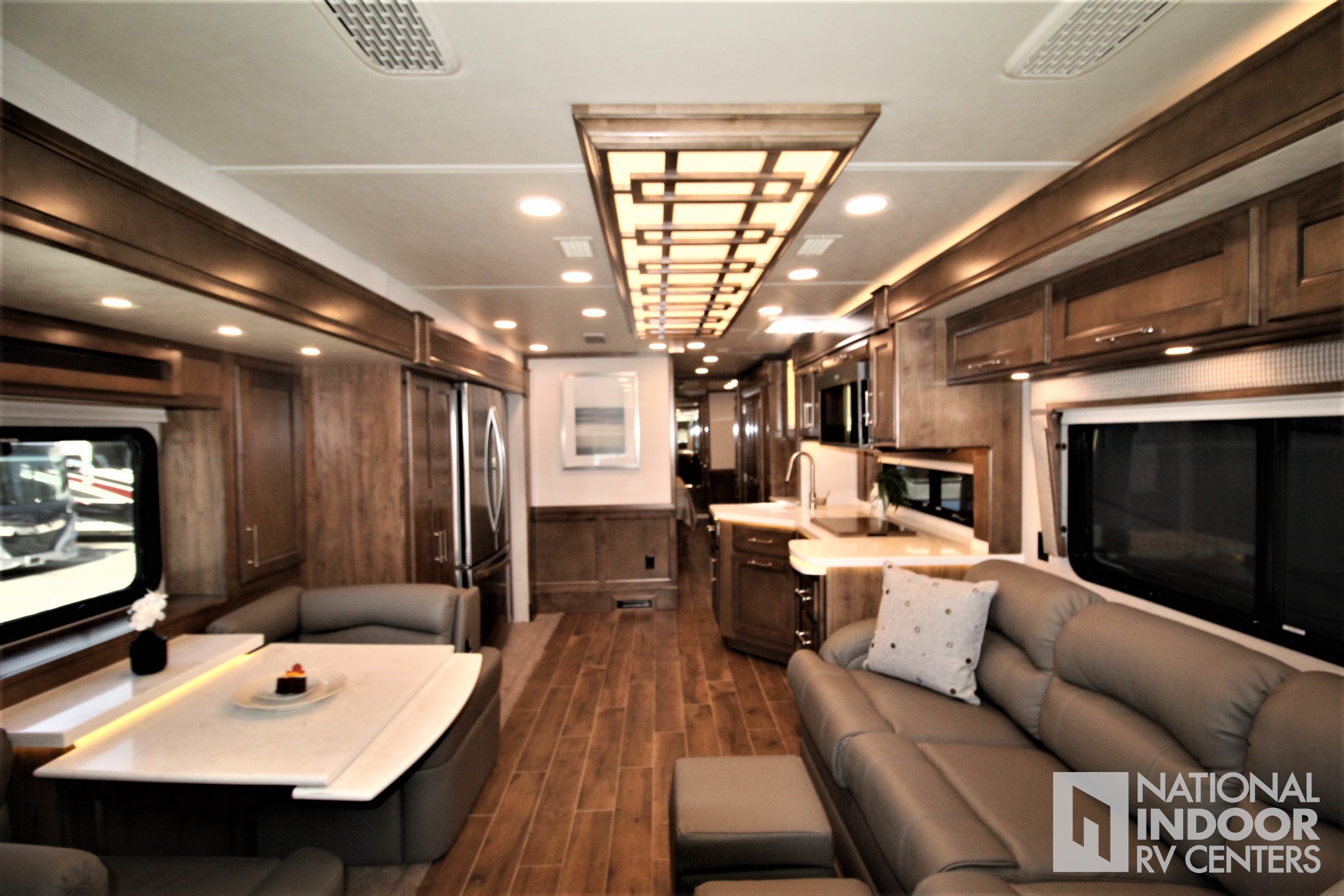

| Furniture |
| Premium leather Crown Compass furniture |
| Flooring |
| Hand-laid porcelain tiled floors |
| Lighting |
| LED interior lighting |
| Ceiling |
| Decorative ceiling feature with integrated accent lighting |
| Window Treatments |
| Manual solar day shades and blackout night shades |
| Central Vacuuming System |
| Central vacuum system |
| Interior Doors |
| Aire-Secure™ travel locks for all pocket doors |

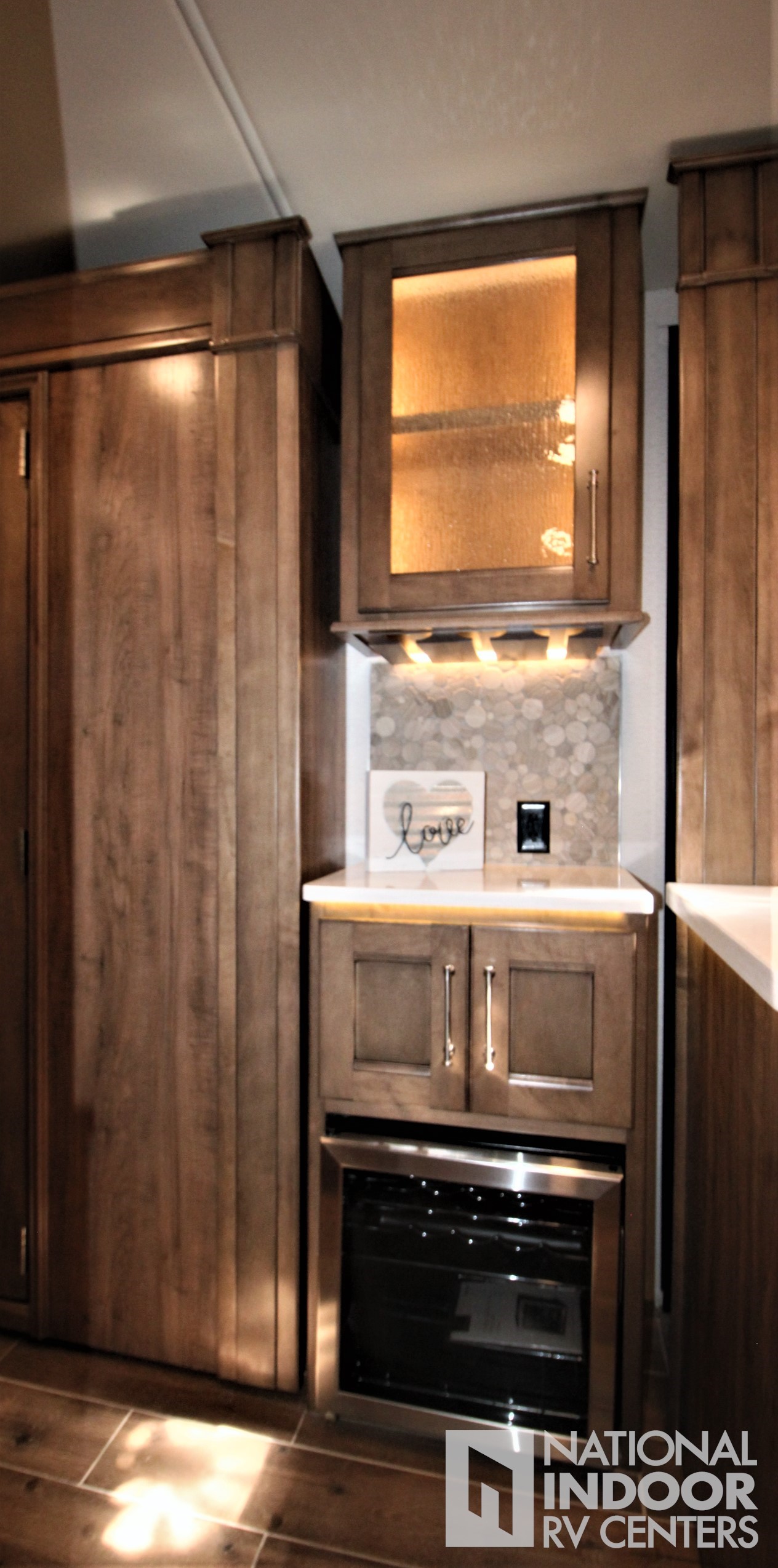

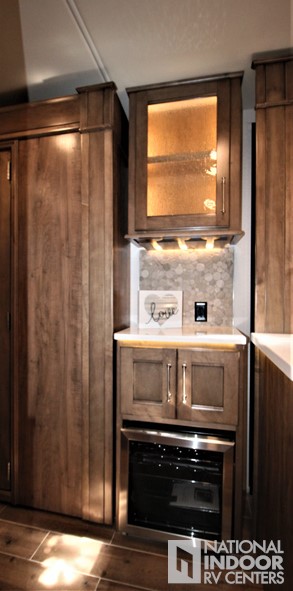

| Bar |
| Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only) |

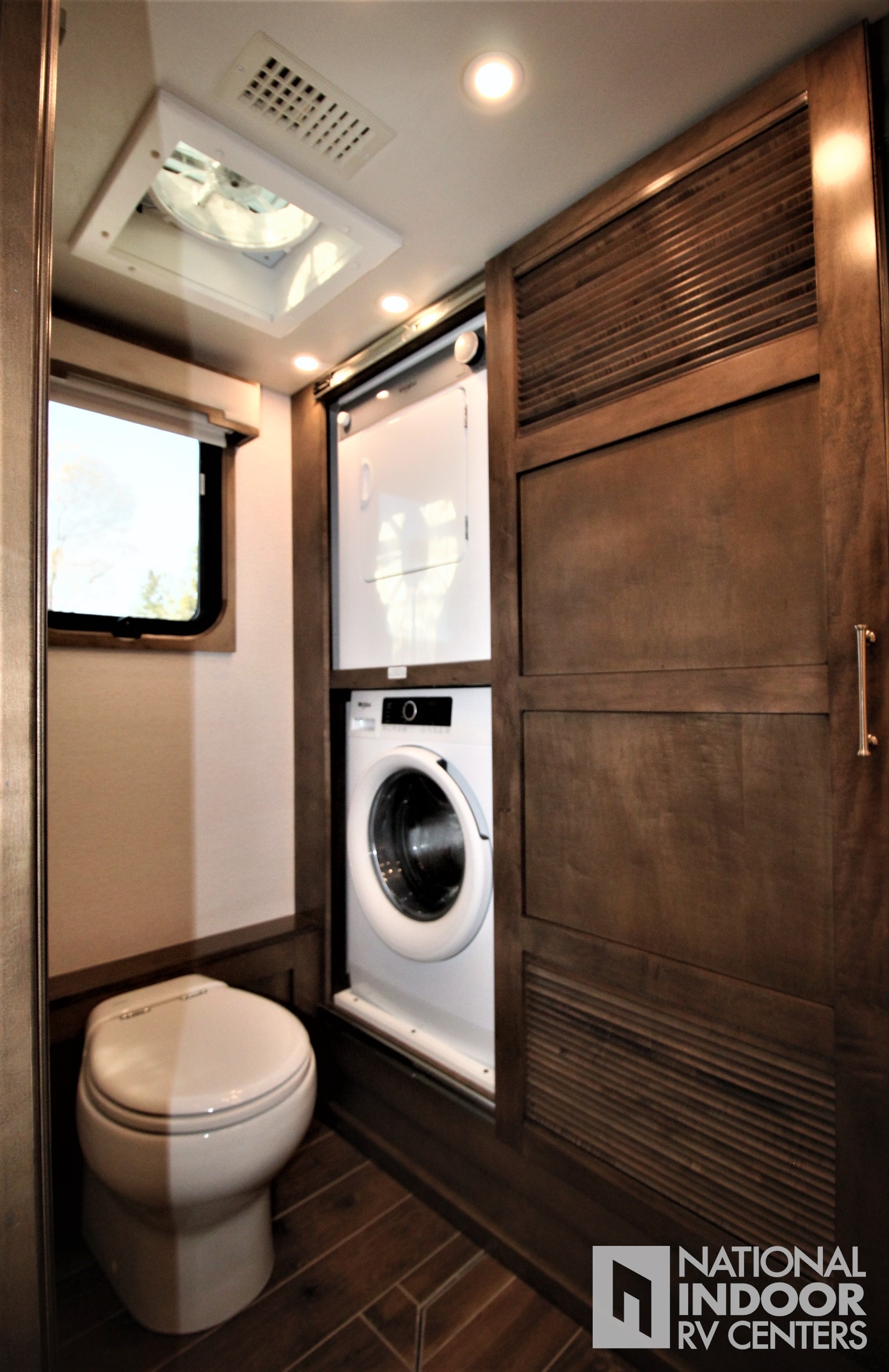

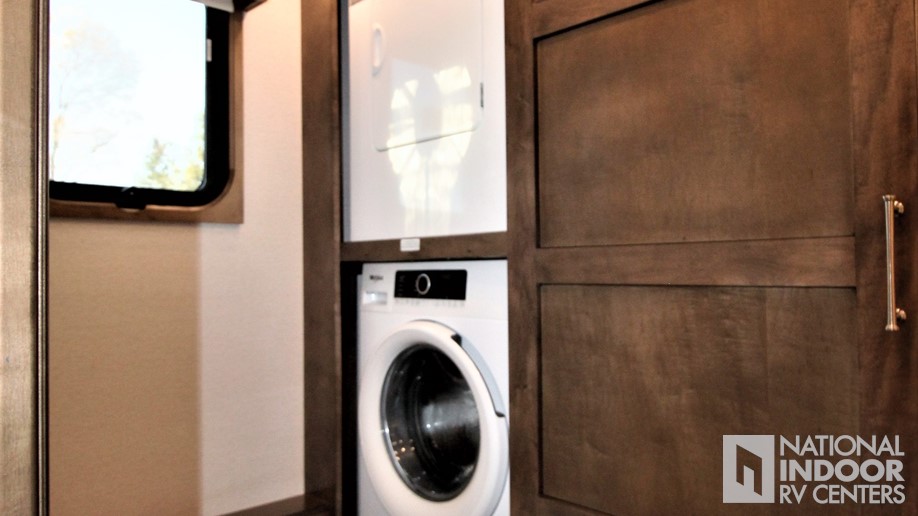

| Washer/Dryer |
| Separate washer and dryer |
| Backsplash |
| Window with push out lever operation and screen |

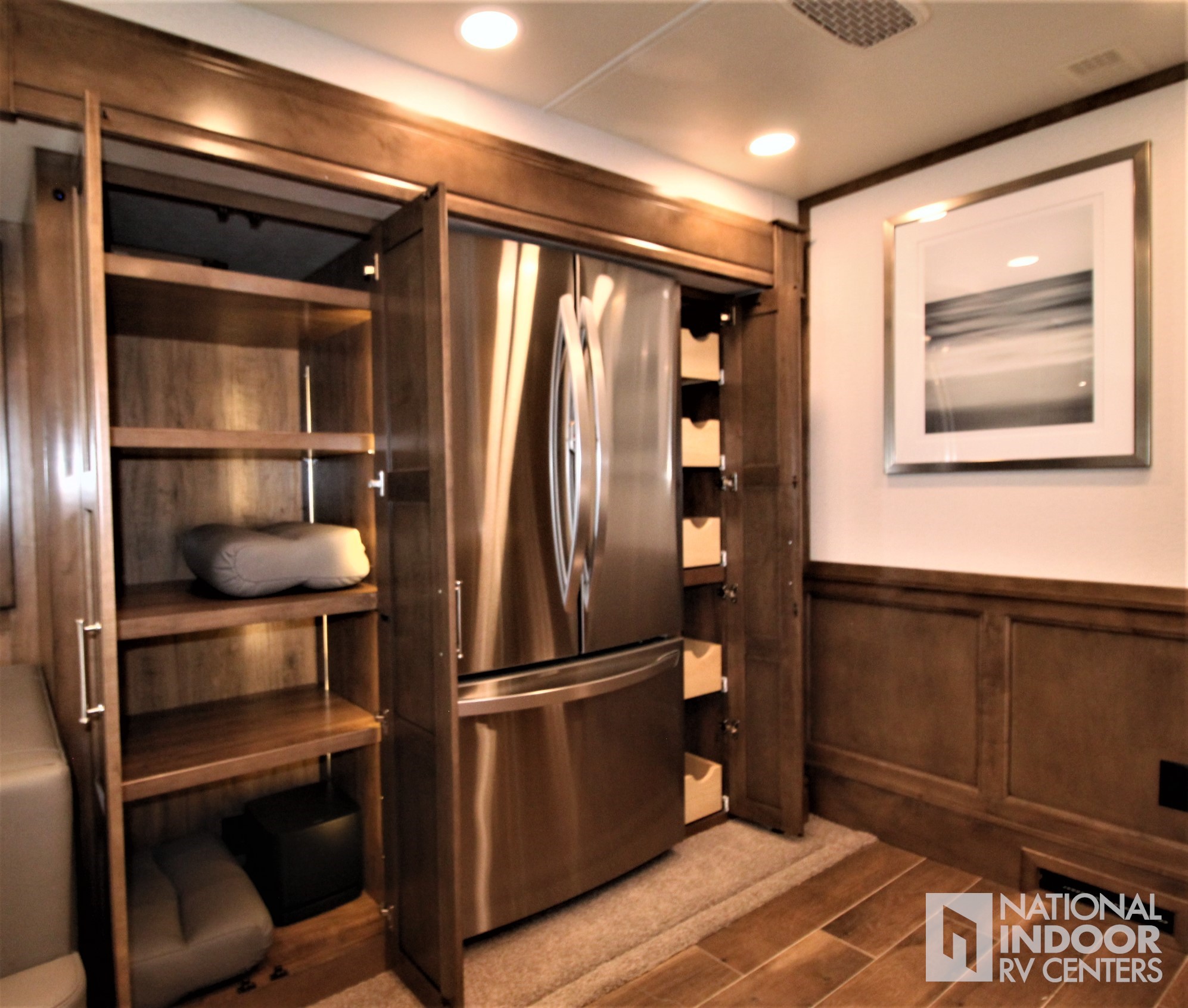

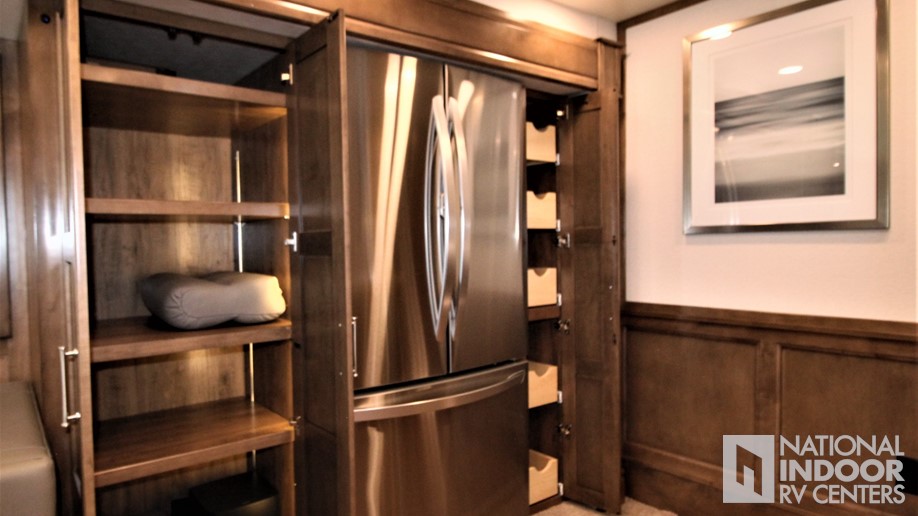

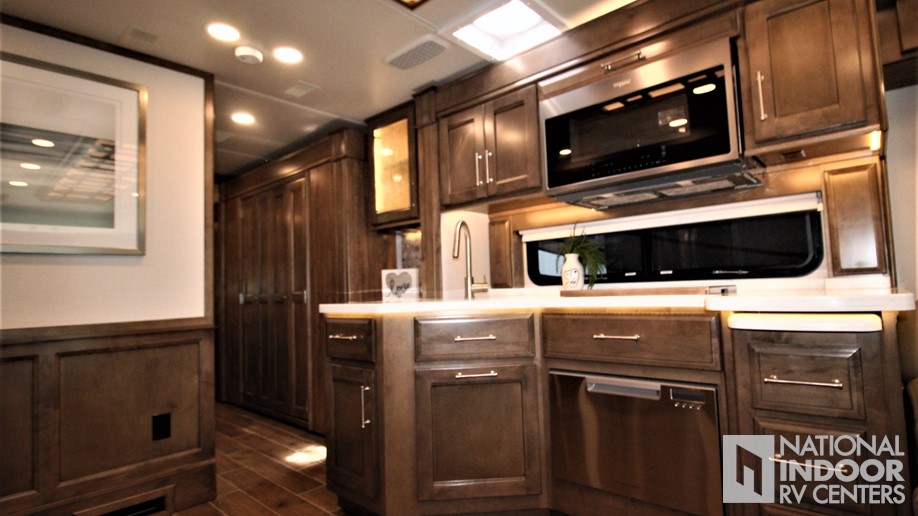

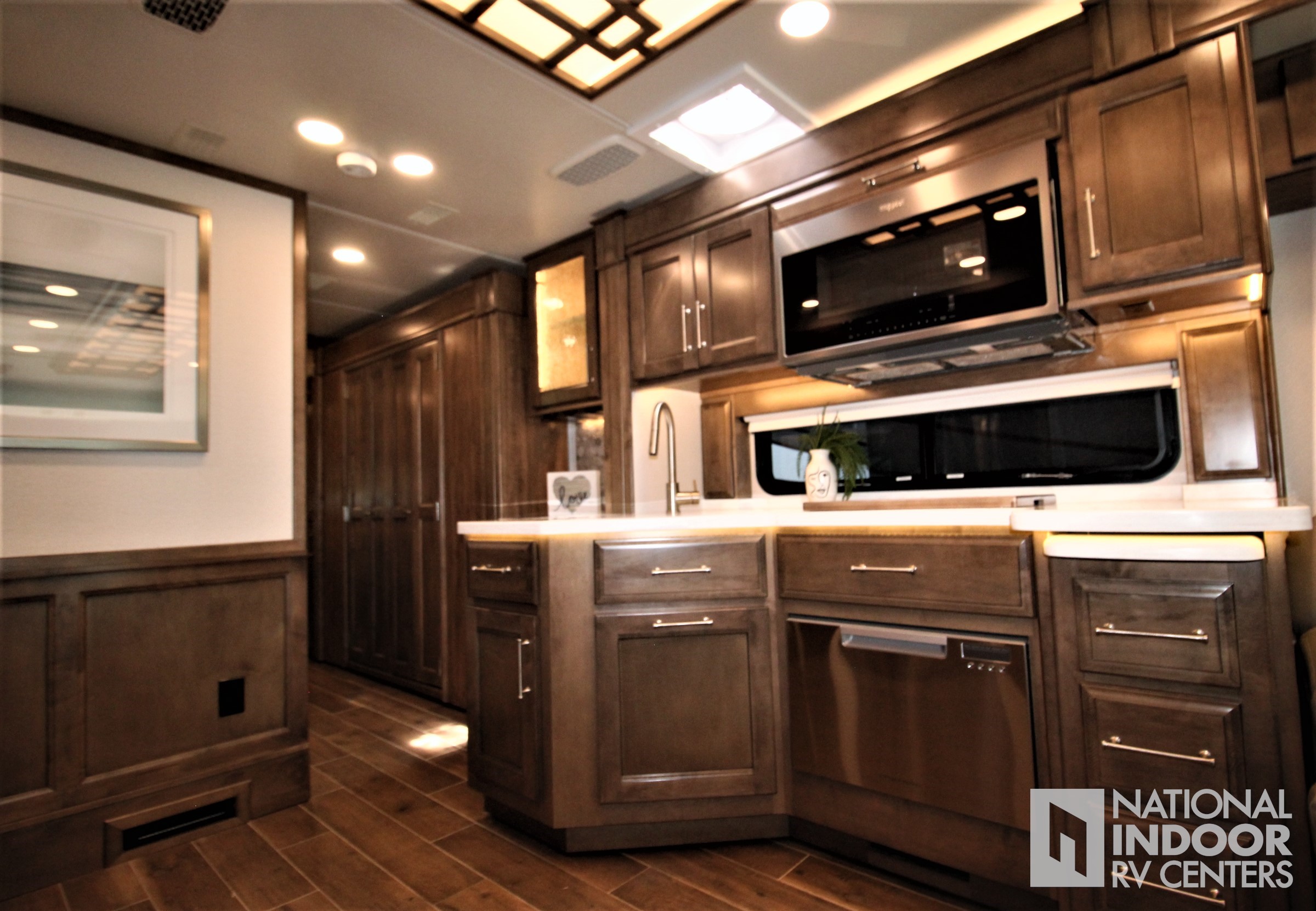

| Refrigerator |
| Stainless steel residential refrigerator with ice maker and water dispenser |

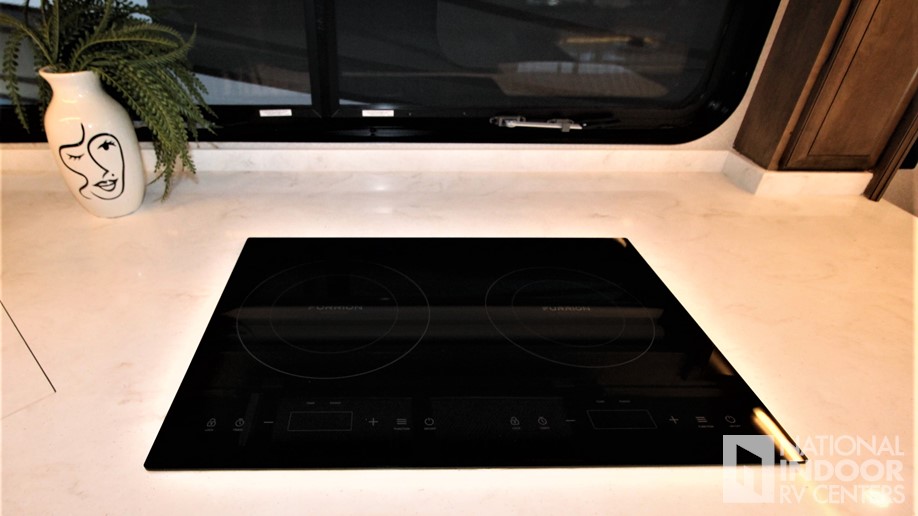

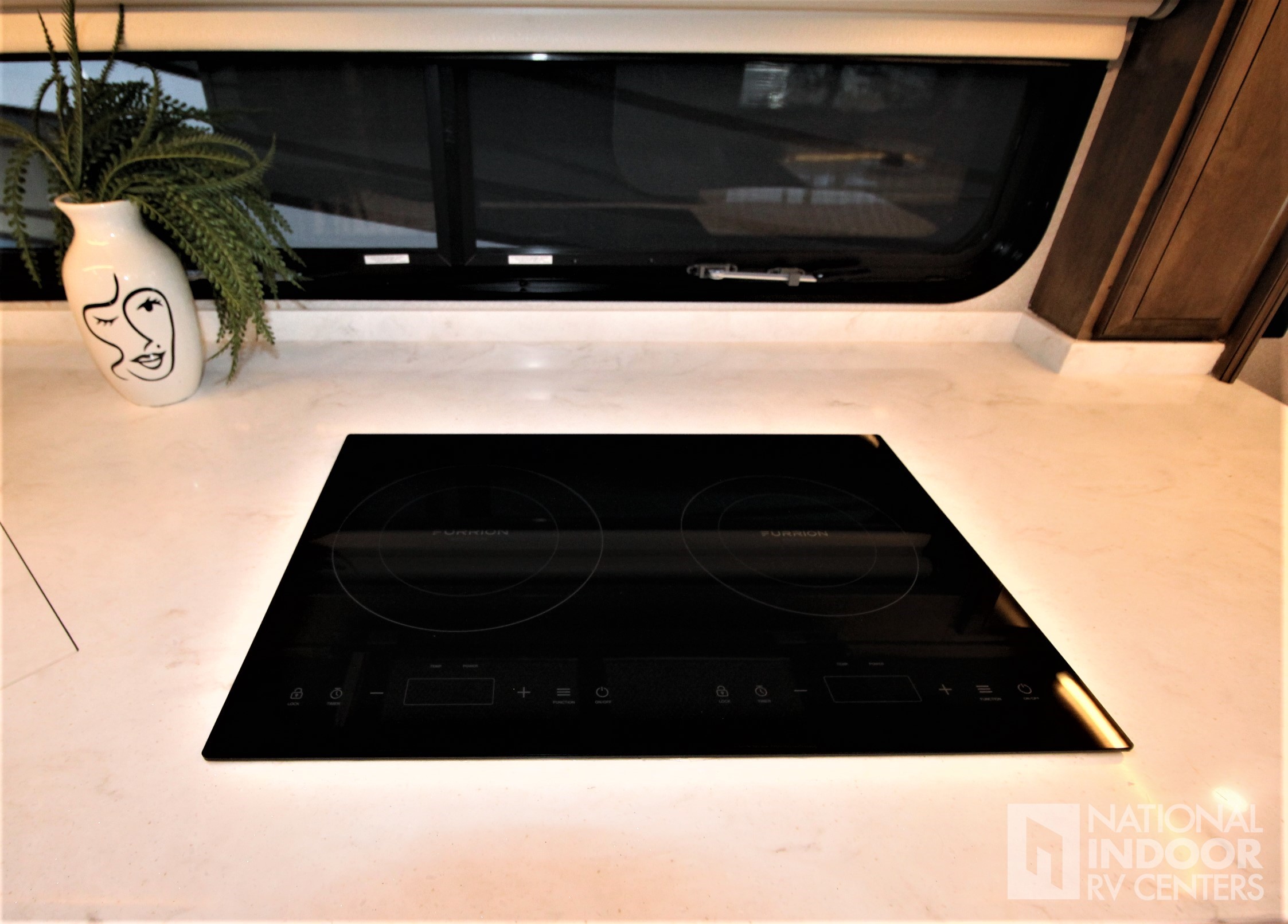

| Cooktop |
| Induction cooktop with matching wood cover |
| Microwave |
| 1.9 cu. ft. convection microwave oven |

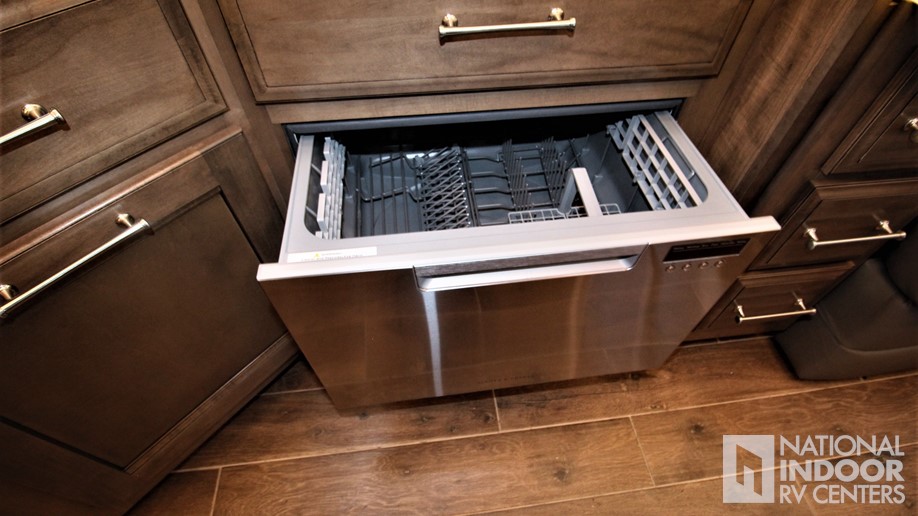

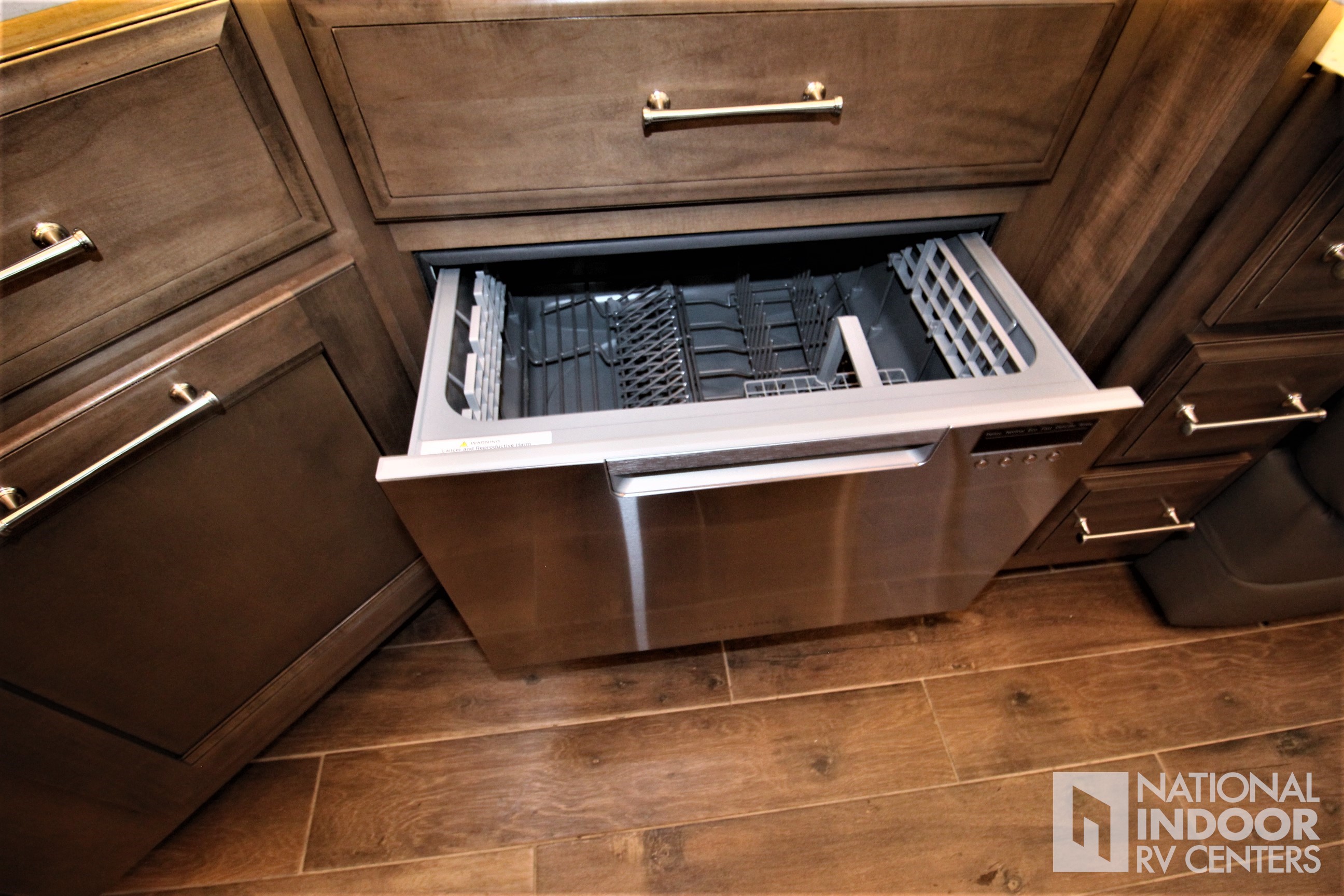

| Dishwasher |
| Fisher & Paykel dishwasher |
| Countertops |
| Solid-surface countertops with dimmable LED accent lighting |

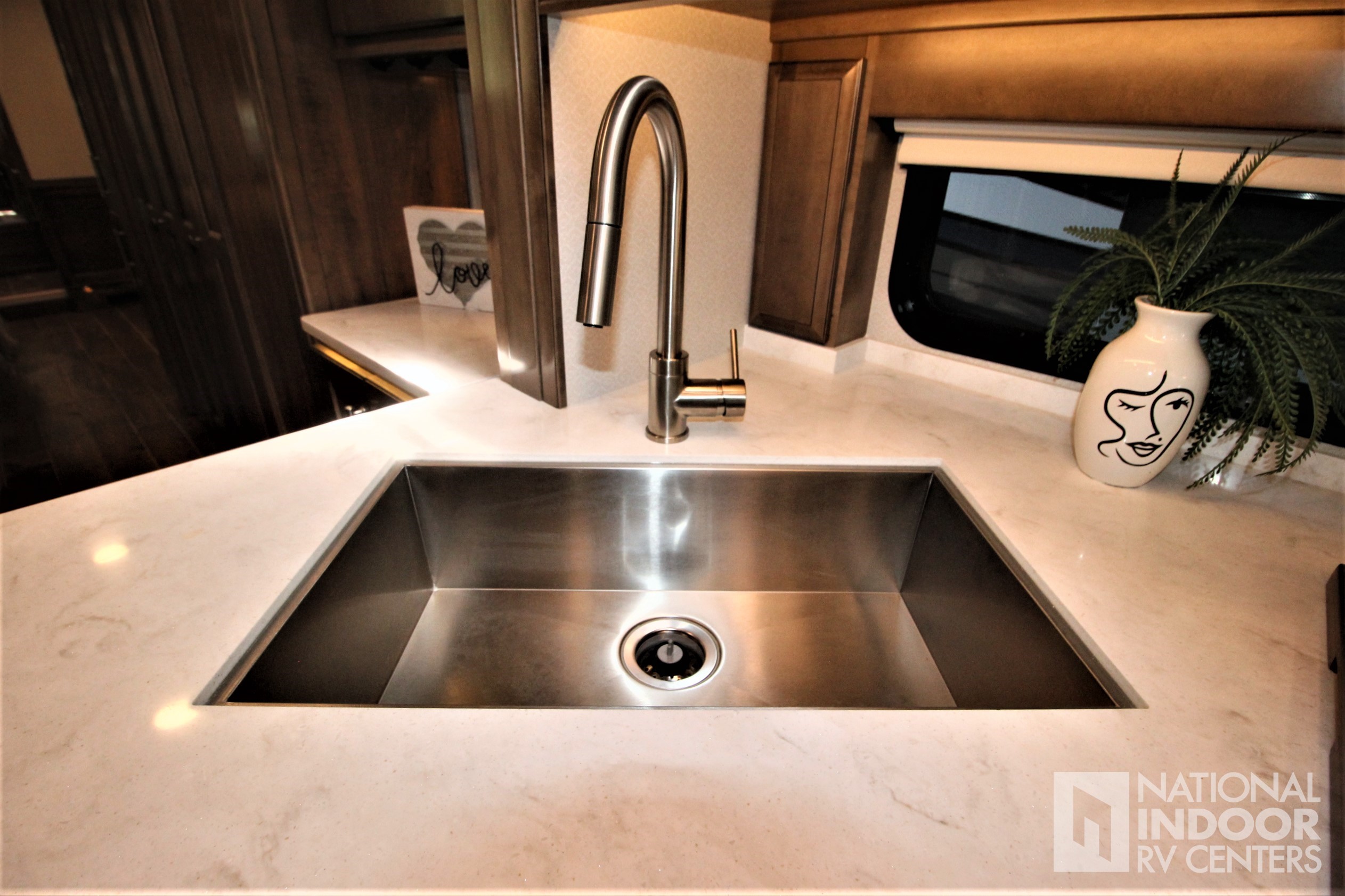

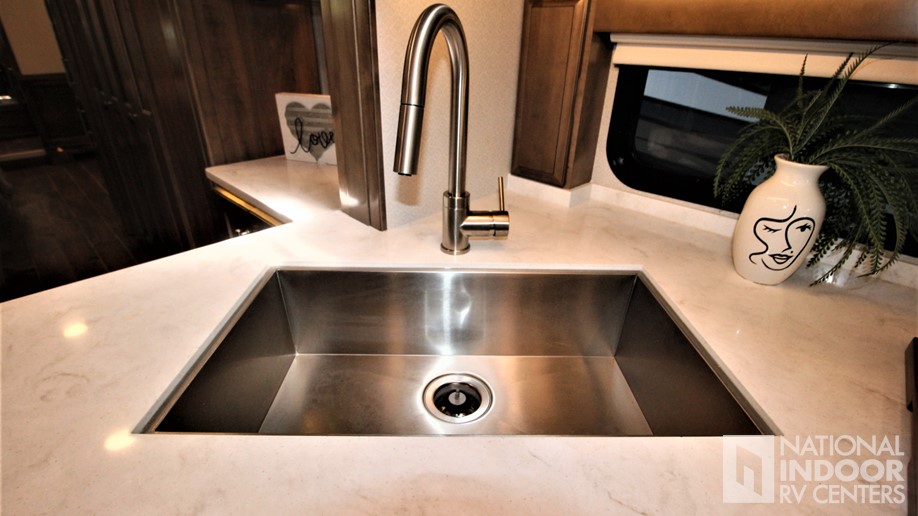

| Sink |
| Stainless steel sink |
| Vent |
| Maxxair® power vent exhaust fan with intake and touch screen control |

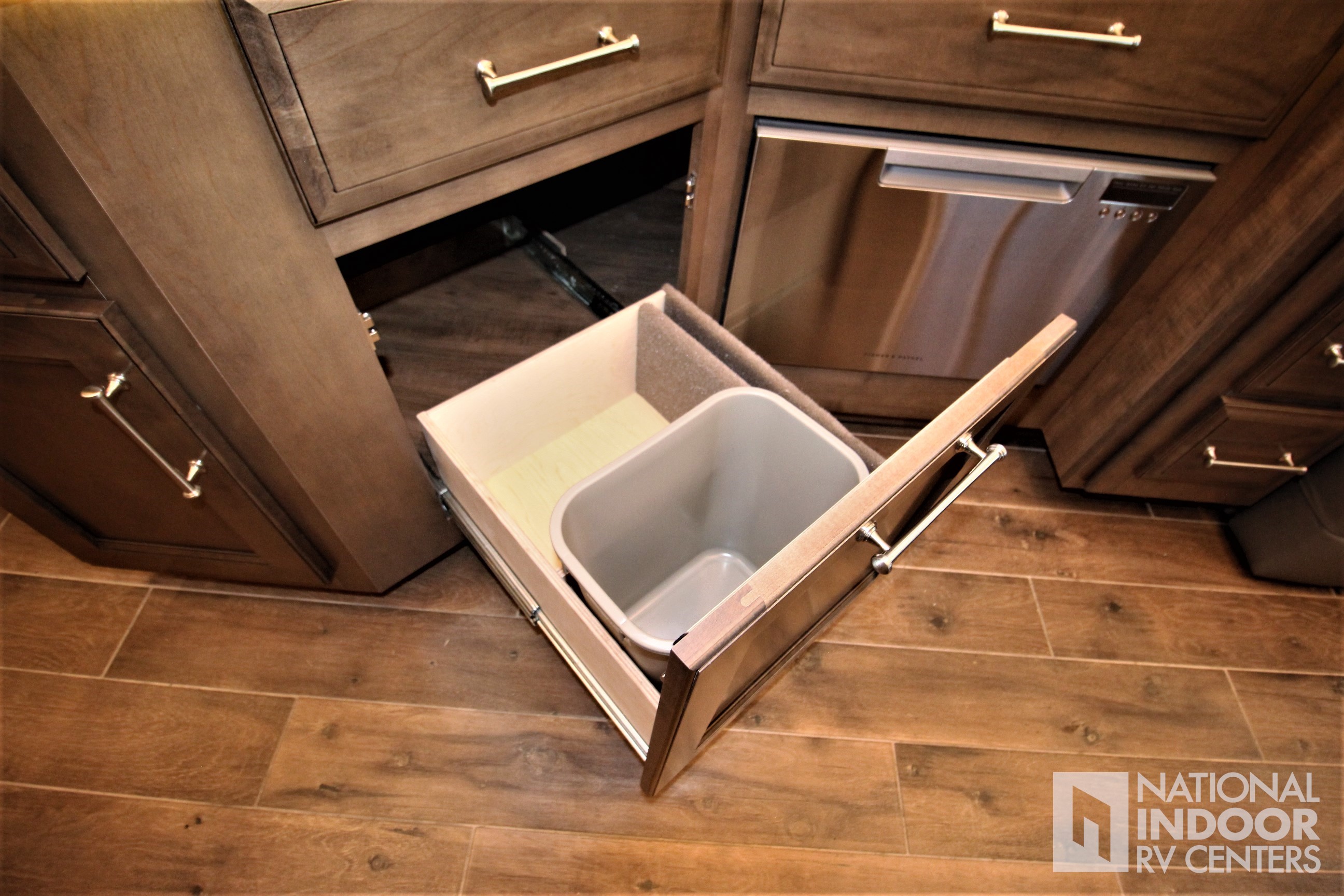

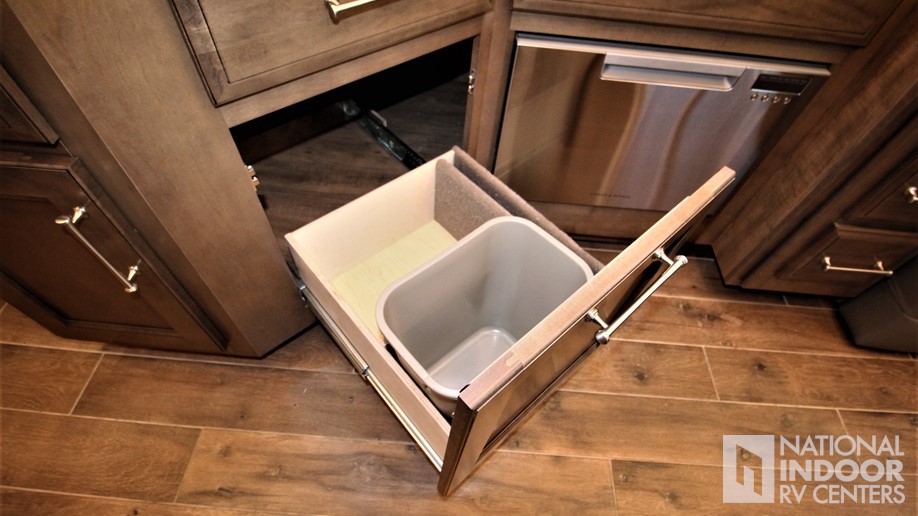

| Waste Basket |
| Large, deep drawer for waste basket with easy access trash chute (trash chute not available on 40P, 44D, 44R) |
| Storage |
| Slide-out storage tray(s) in overhead cabinet |

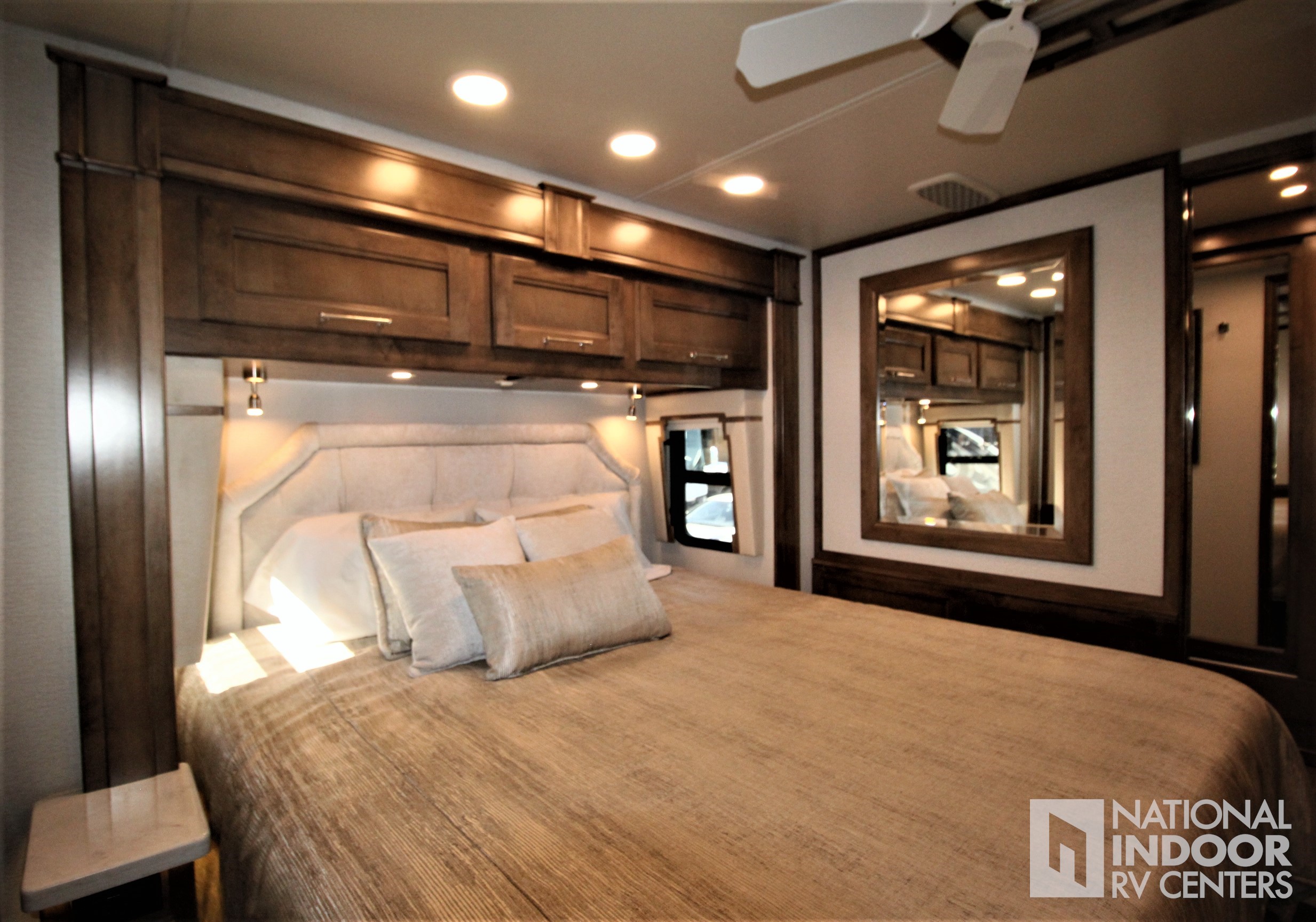

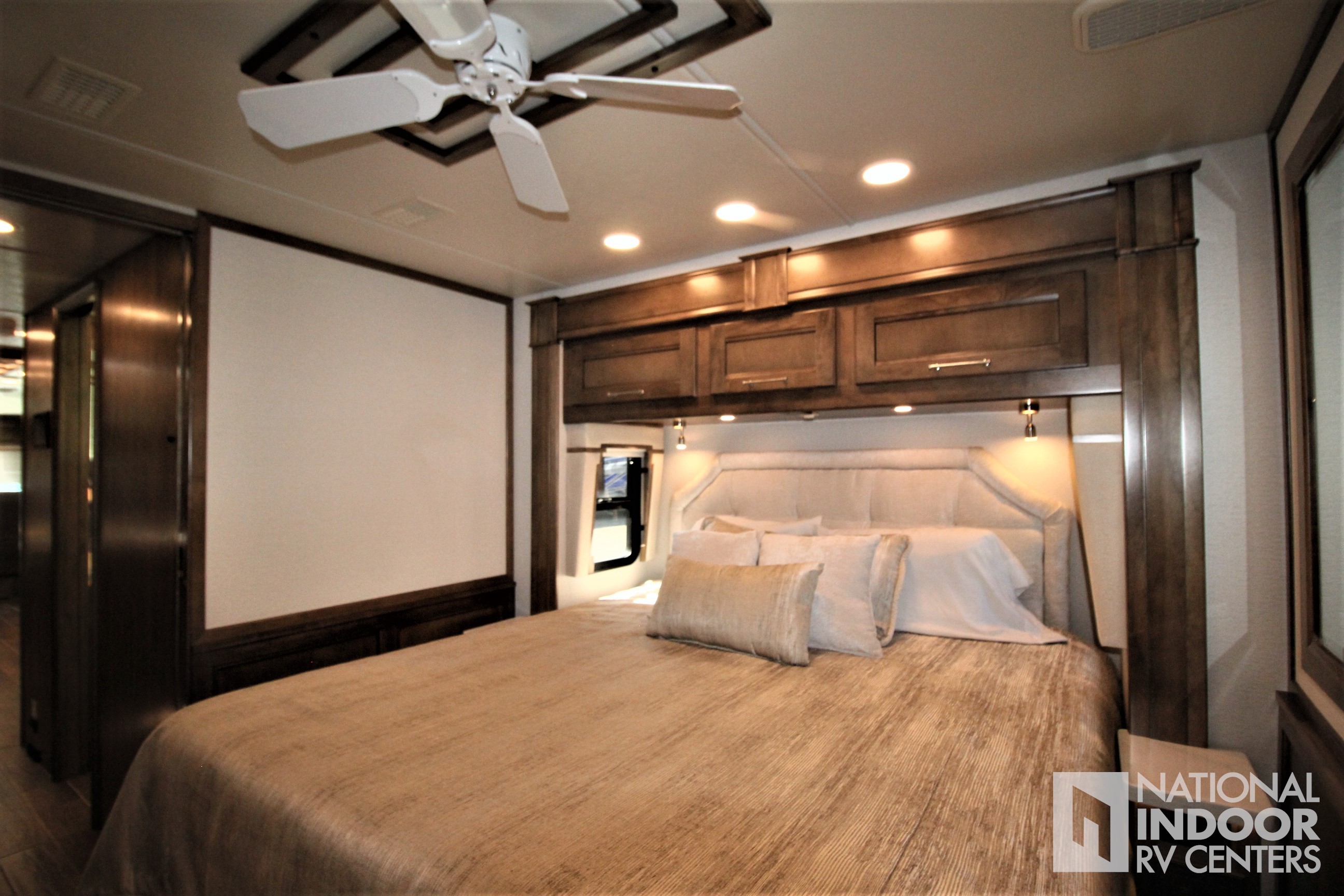

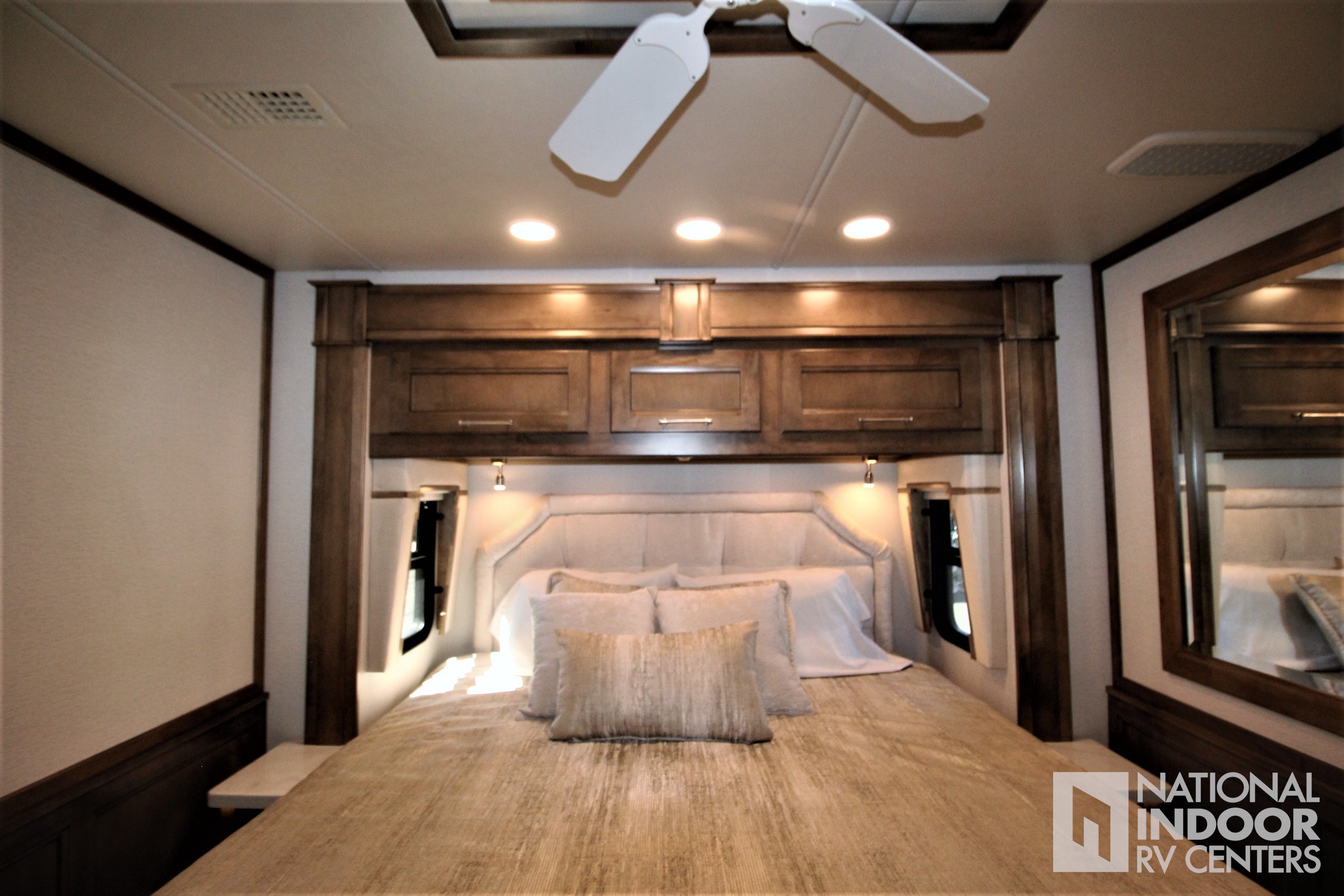

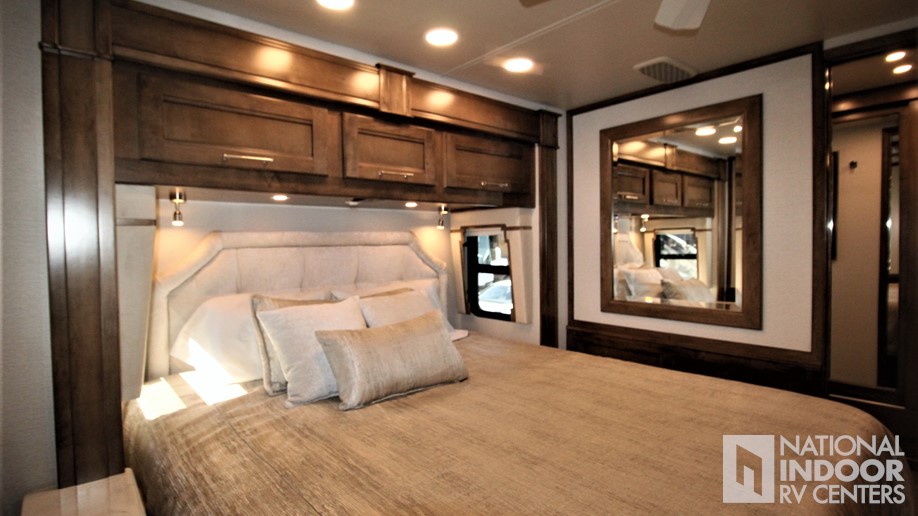

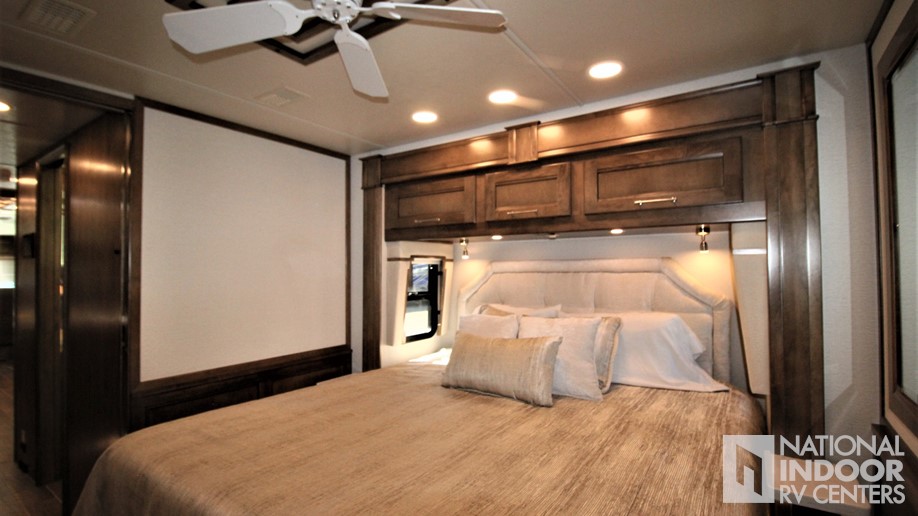

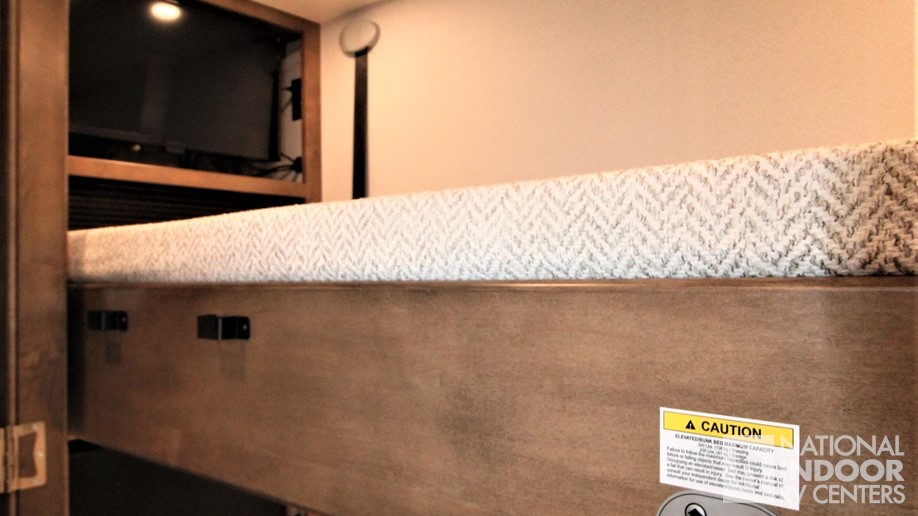

| Bed |
| King-size gel memory-foam mattress |

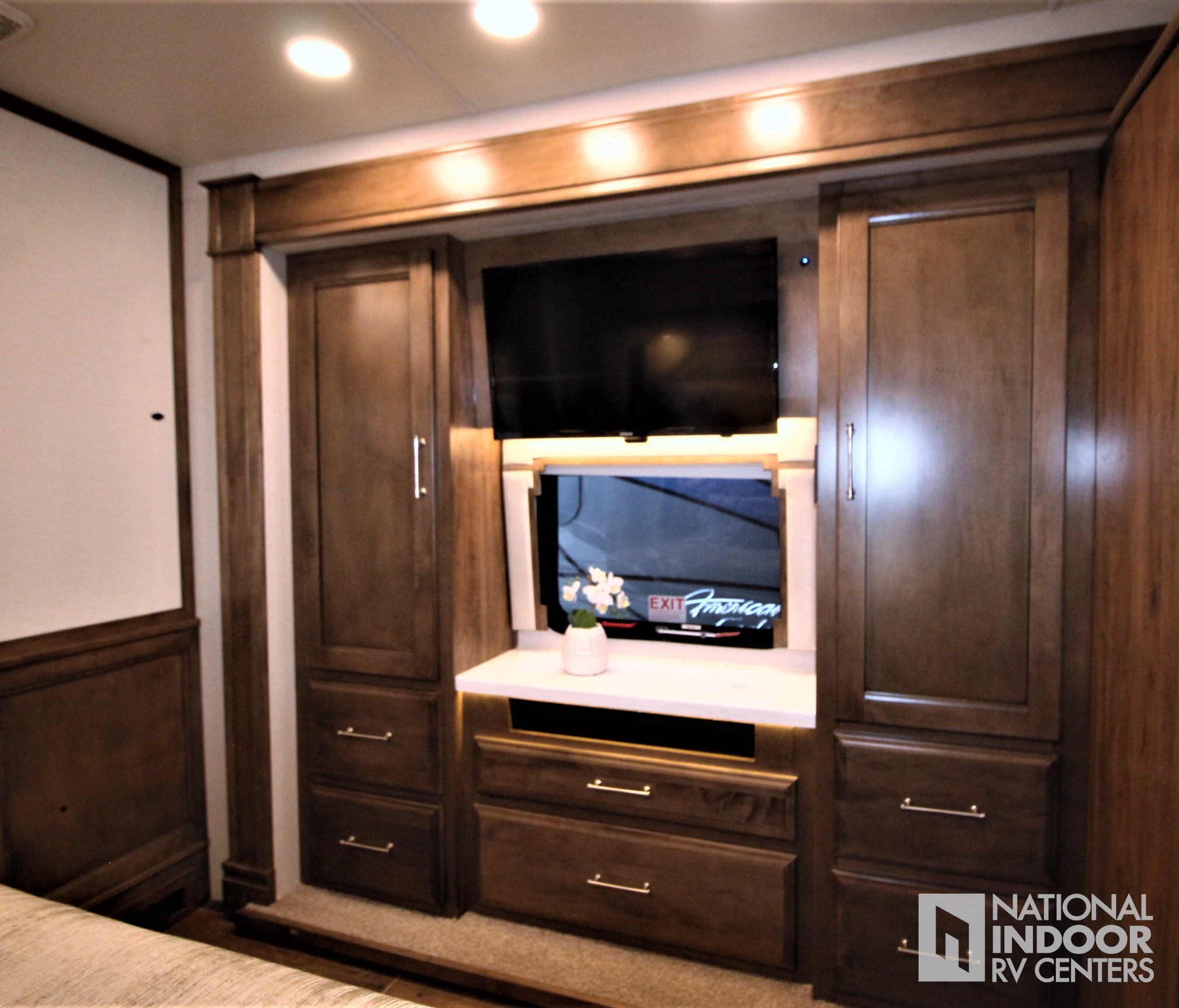

| Television |
| 32 in. Samsung® LED 1080P Smart TV |
| Sound |
| Bose® sound bar with universal remote control |
| DVD Systems |
| Sony® Blu-ray™ player |
| Ceiling Fan |
| Ceiling fan |
| Nightstands |
| Nightstands with solid-surface tops |

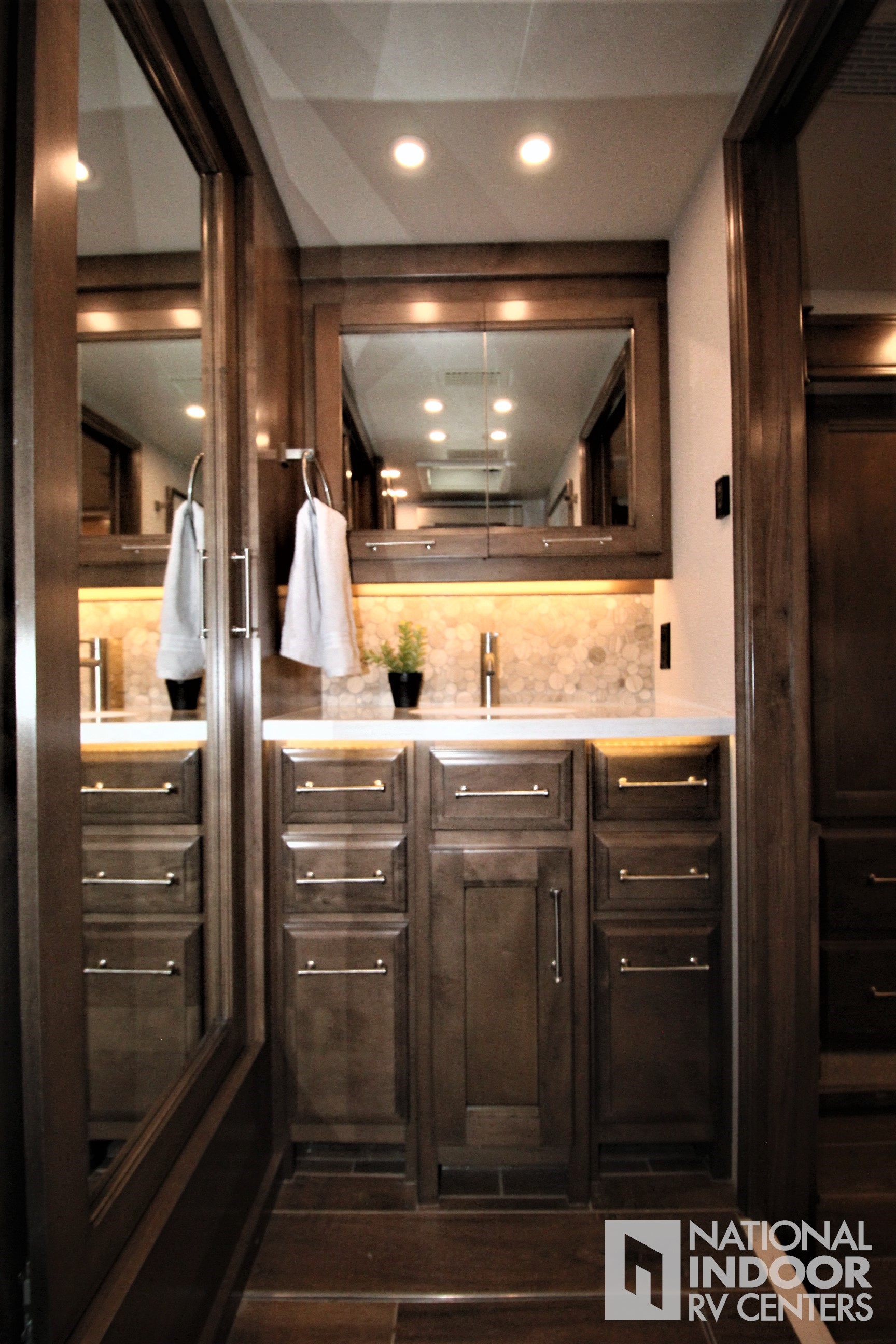

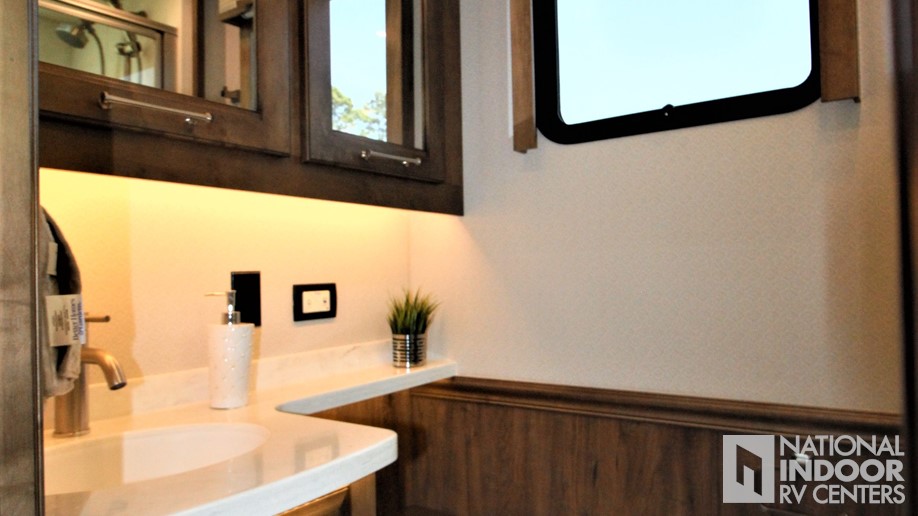

| Countertop(s) |
| Solid-surface countertops with dimmable LED accent lighting |

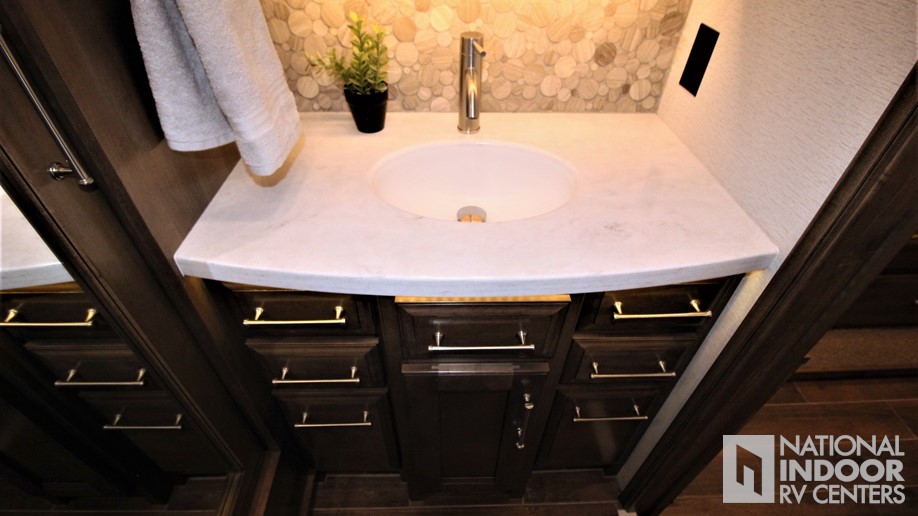

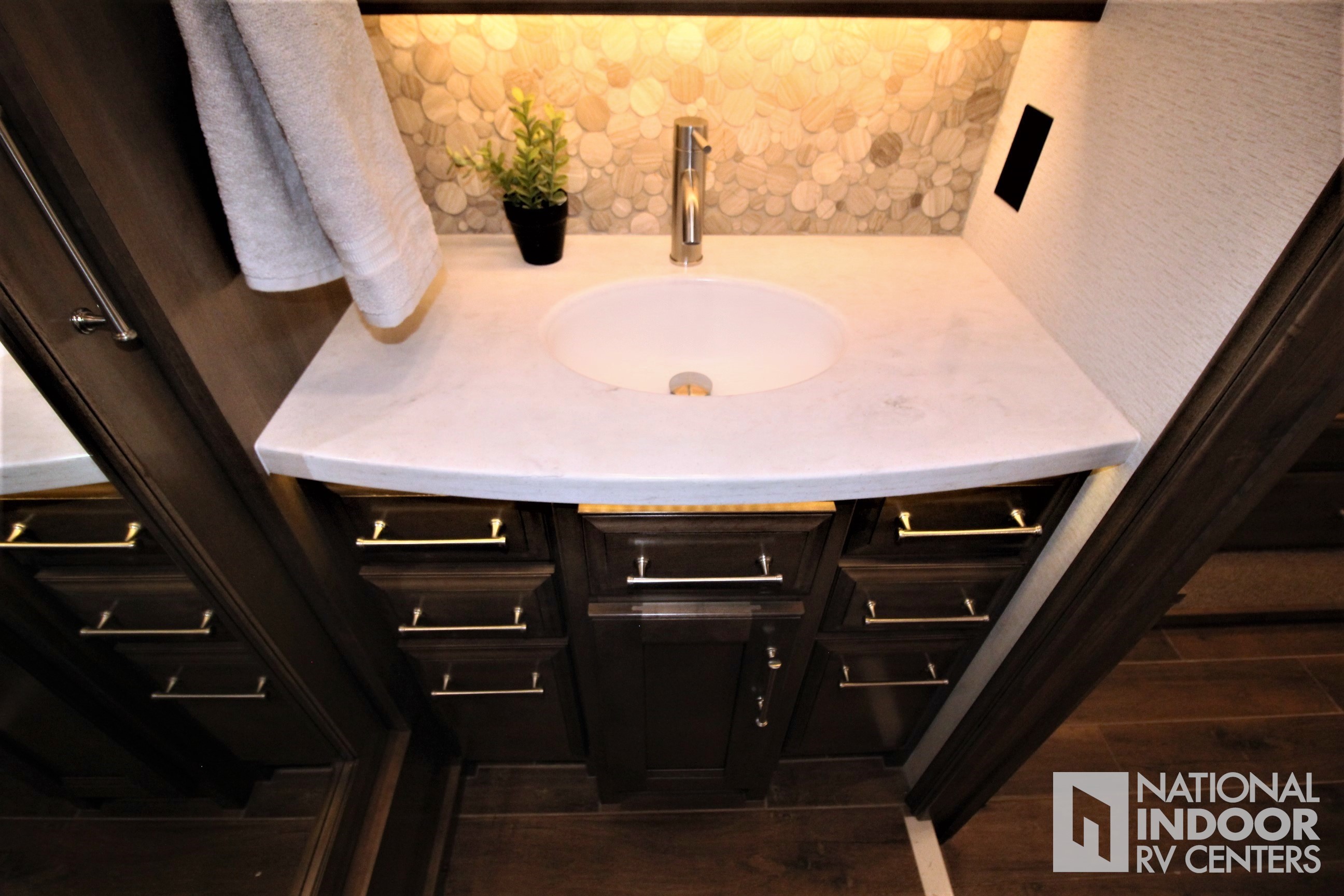

| Sink |
| Integrated bathroom sink |

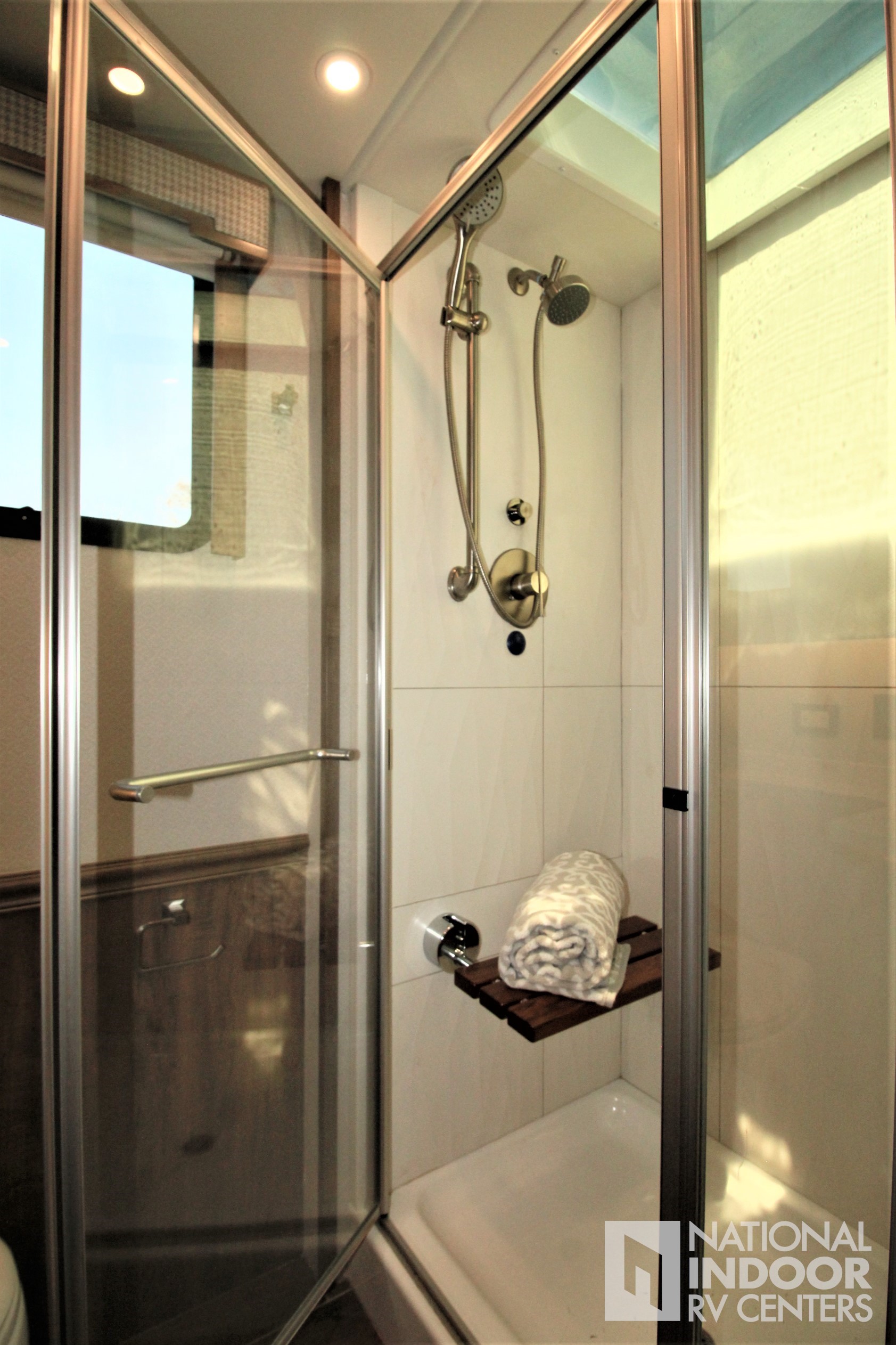

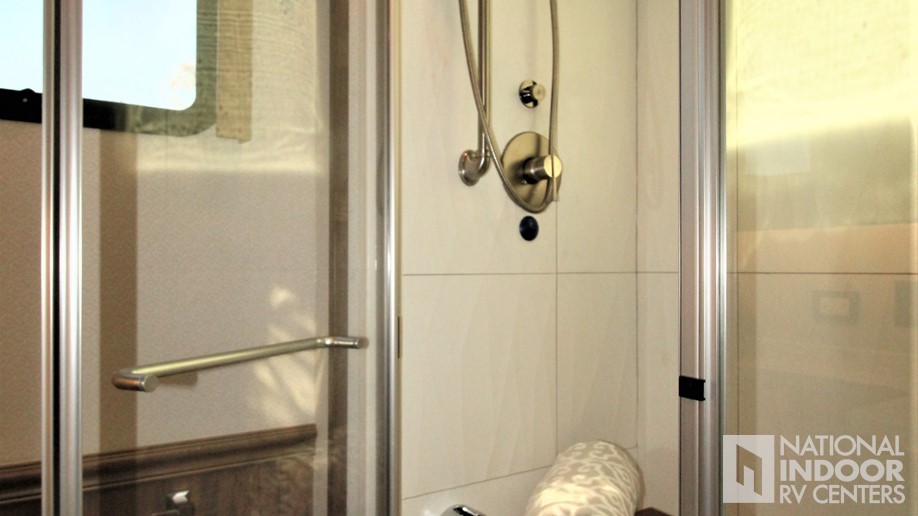

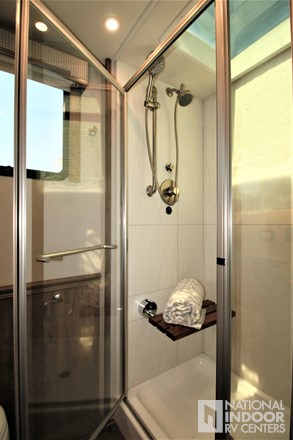

| Shower |
| Textured porcelain tile shower with skylight and clear glass shower door |
| Shower Seat |
| Teakwood shower seat |
| Shower Head |
| Fixed shower head and separate hand-held spray wand |
| Water Saving System |
| Aqua View SHOWERMI$ER™ water saving system |

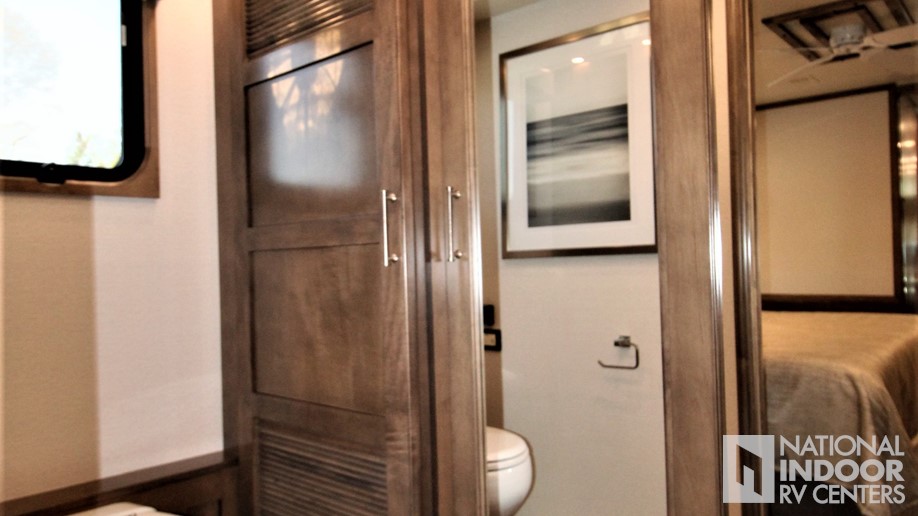

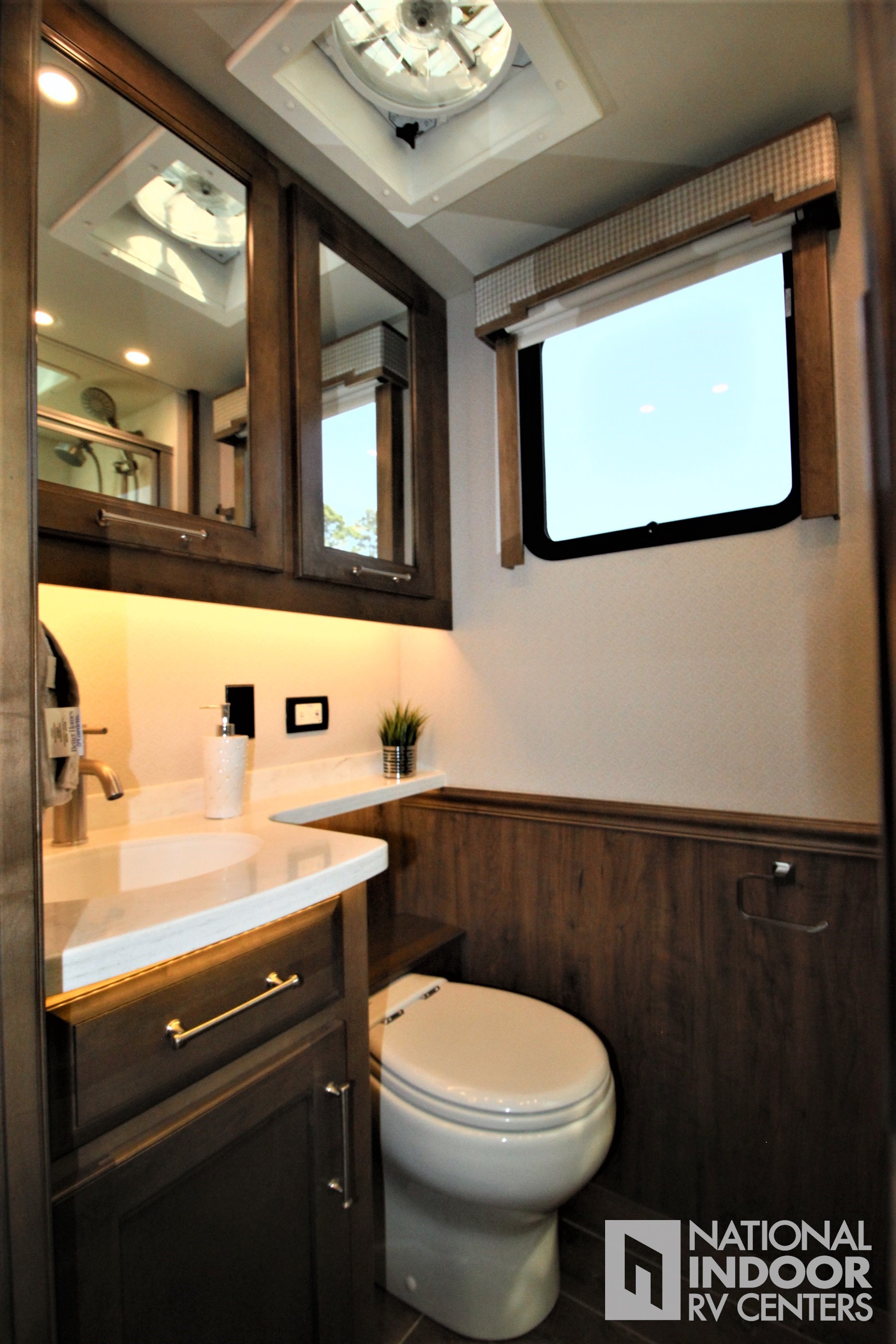

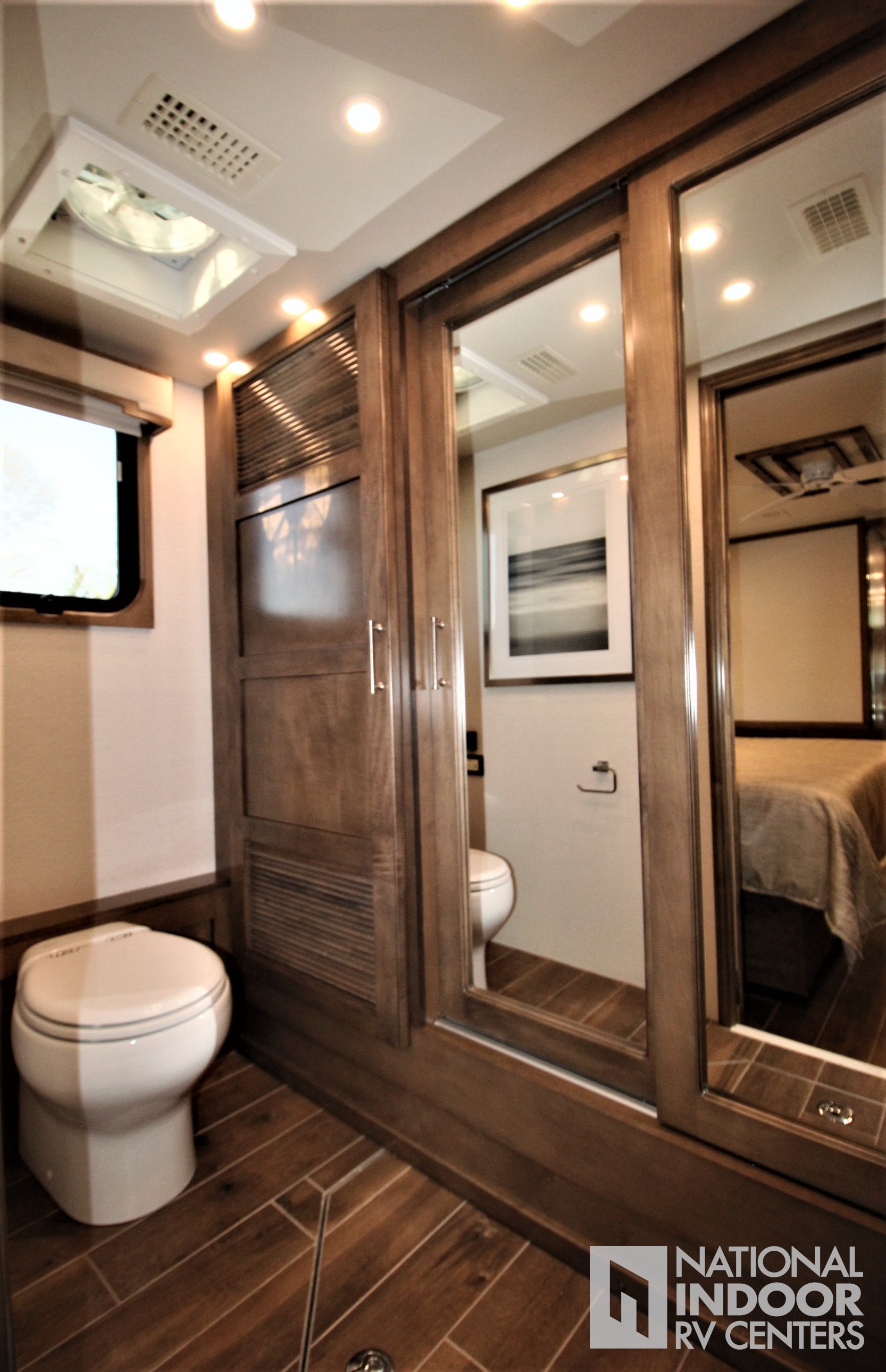

| Toilet |
| Thetford® macerator toilet in main bath (N/A 44Z); Thetford® Aqua-Magic toilet with foot flush in mid bath (44B, 40P) |
| Vent |
| Maxxair® power exhaust fan with intake |
| Carbon Monoxide Detector |
| Carbon monoxide detector |
| Security System |
| Security system with glass shatter sensors |
| Smoke Alarm |
| Smoke alarm |
| Security Safe |
| Storage safe |
| Canadian Standards |
| Canadian standards (includes Canadian Shaw satellite) |

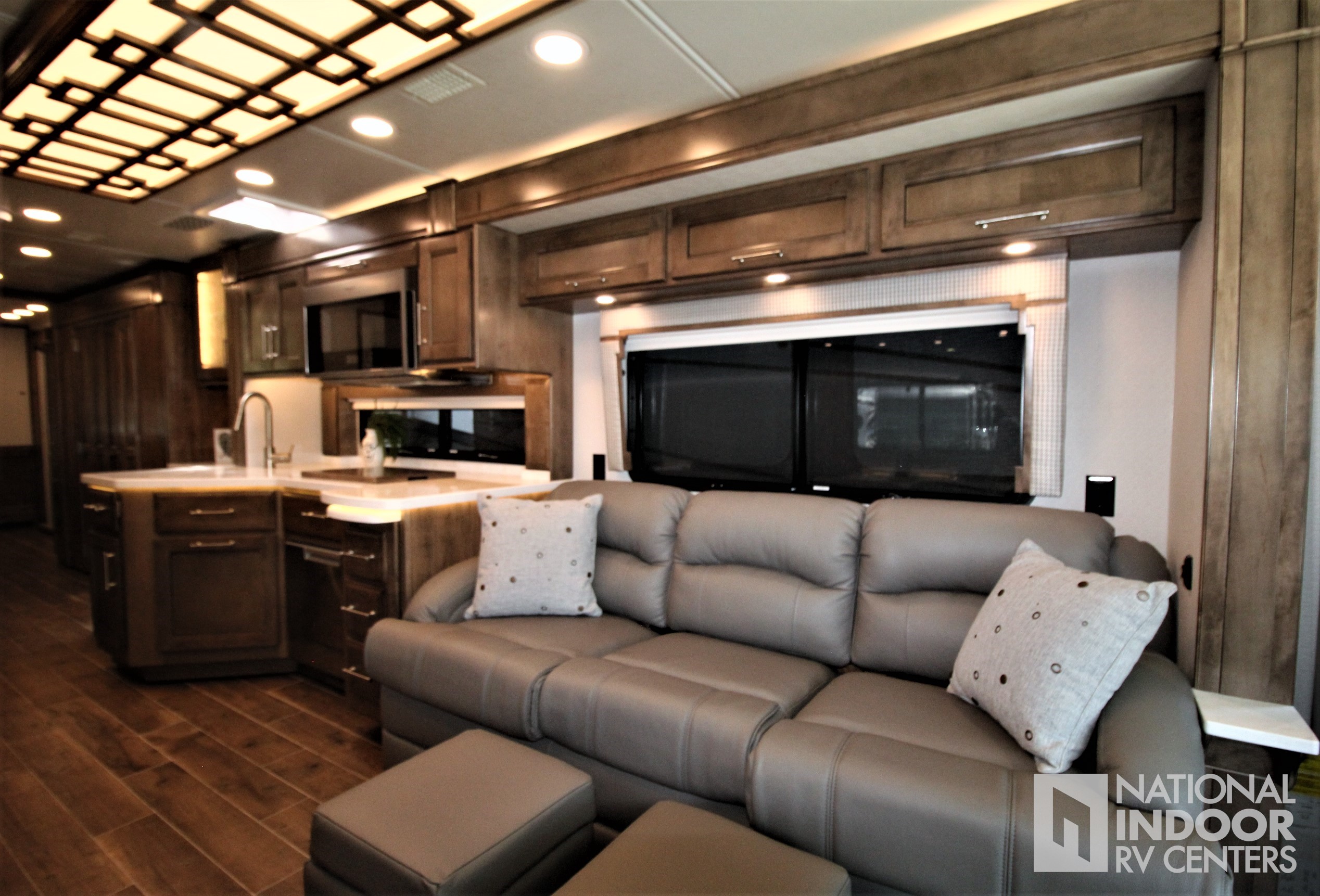

| Sofa |
| Sofa ILO power theater seating (40P, 44D, 44W only) |
| Theater Seating |
| Power theater seating ILO hide-a-bed (44R only) |
| Hide-a-Bed Sofa |
| 100 in. hide-a-bed sofa ILO 100 in. power reclining sofa (44B, 44Z only) |
| Fireplace/TV/entertainment center and work station ILO sofa |
| Fireplace/entertainment center/work station ILO sofa (44D, 44W only) |
| Batteries |
| (2) additional AGM batteries (N/A 40P) |
| Satellite Dish |
| Winegard® In-motion satellite dome |
| Satellite Dish - US |
| Winegard TRAV'LER satellite dish- Dish Network |

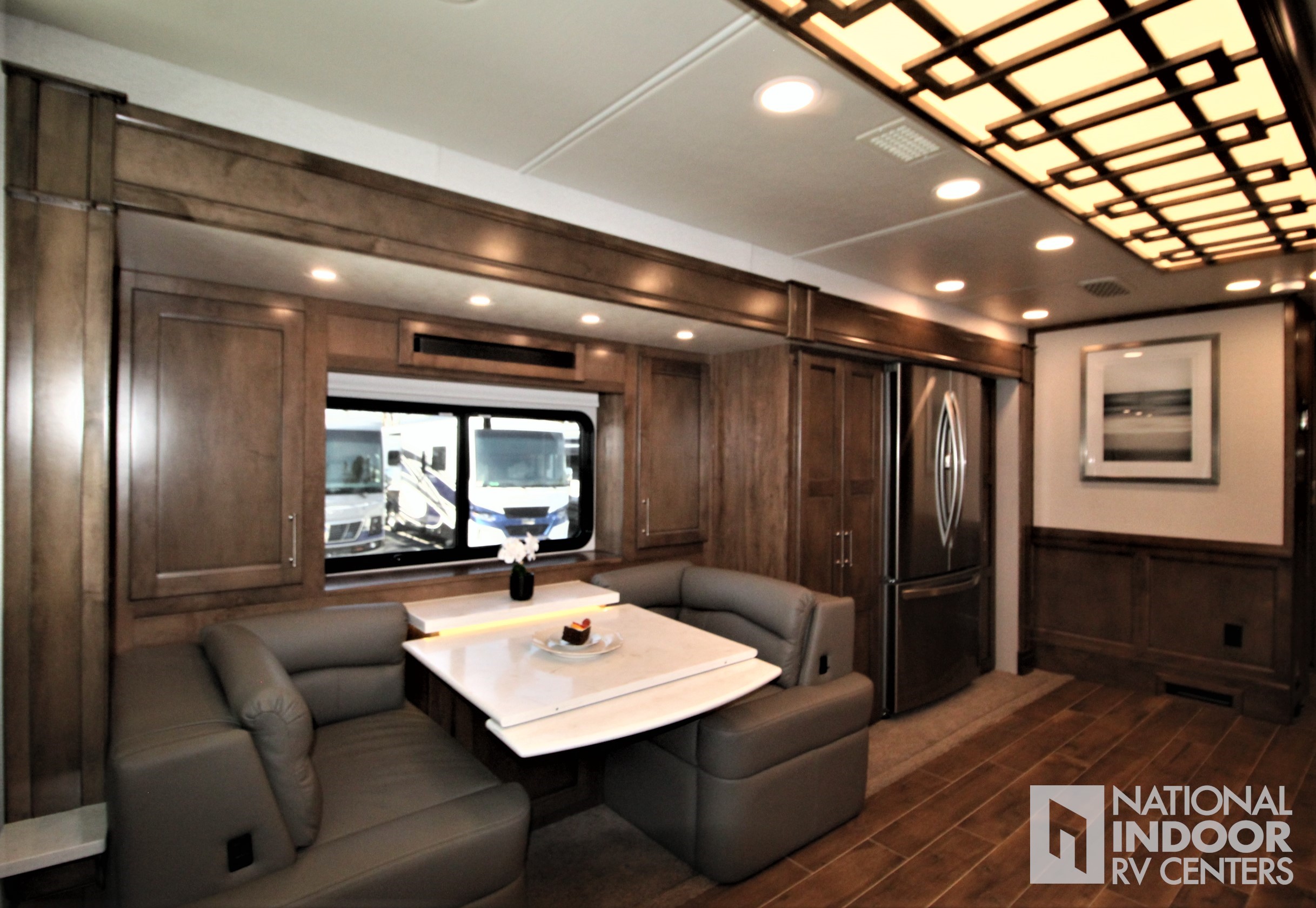

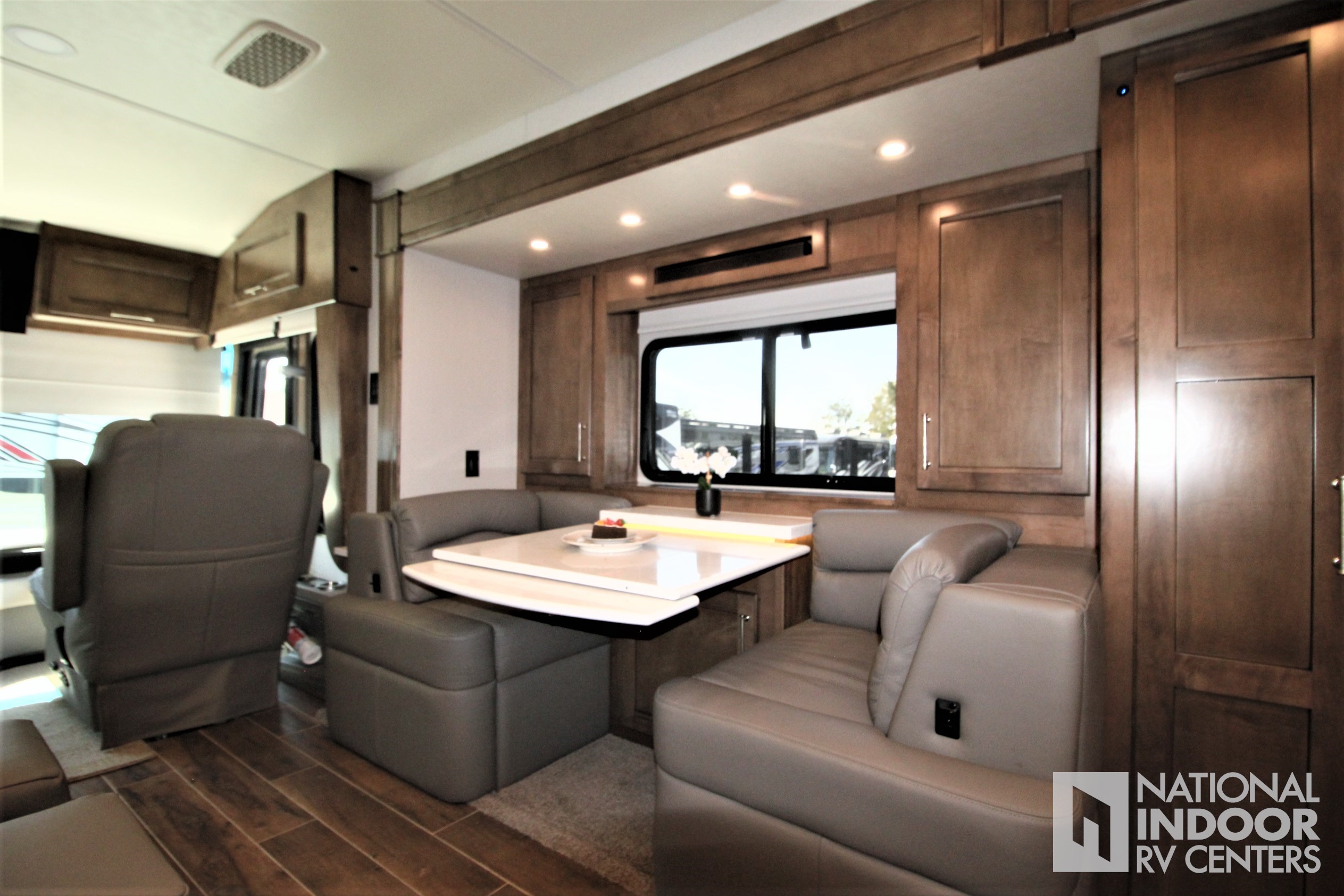

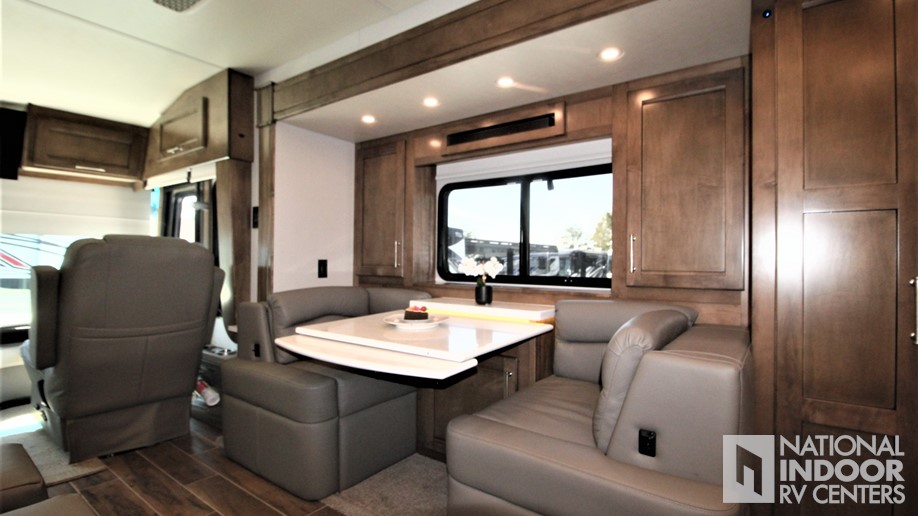

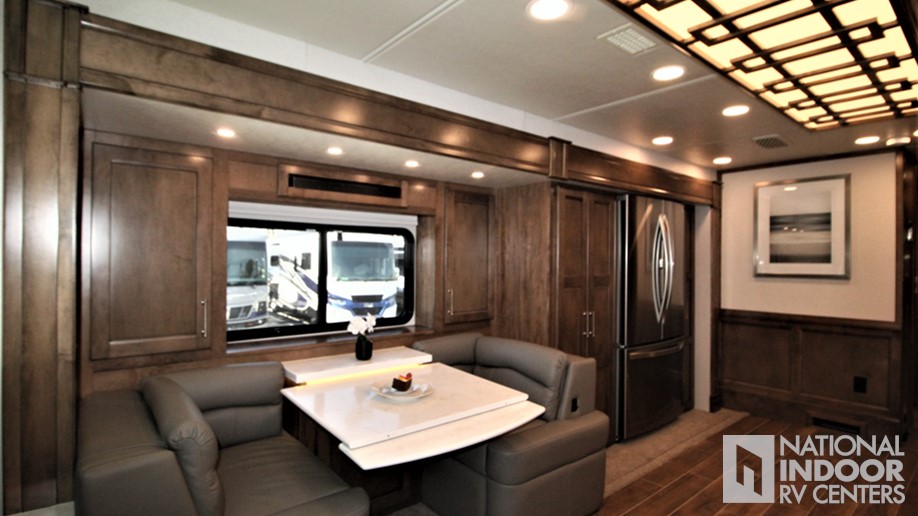

| Dinette |
| Booth Dinette |
