Chassis |
Spartan® K3 raised-rail chassis |
Engine |
Cummins® 15 liter X15 turbocharged 605 HP engine 1,950 lb. ft. torque at 1,150 RPM |
Transmission |
Allison® 4,000 MH 6-speed transmission |
Radiator |
Side-mounted radiator |
Alternator |
210 amp alternator |
Engine Block Heater |
1,500 watt engine block heater |
Engine Brake |
Three-stage engine brake |
Air Leveling |
Valid air leveling system with auxiliary air compressor |
Leveling System |
Equalizer hydraulic automatic coach leveling |
Ride & Handling Package |
Electronic stability control |
Front Axle |
Reyco® Granning®- 20,000 lb. rating |
Front Suspension |
Independent front air suspension (IFS) |
Rear Axle |
Dana® rear axle- 20,000 lb. rating |
Tag Axle |
Reyco® Granning® passive steer tag axle with air dump- 14,000 lb. rating |
Braking System |
All-wheel ABS disc brakes |
Rear Axle Ratio |
4.30 rear axle ratio |
Tires |
Michelin® 365/70R 22.5” tires (front) and 315/80R 22.5” tires (rear) |
Tire Pressure Monitoring |
Tire pressure monitoring system (TPMS) with temperature monitoring |
Traction Control |
Automatic traction control |
Shocks |
Bilstein® shocks- 60mm front axle & 46mm rear/tag axles |
Air Connection |
Remote air connection |
Chassis Battery |
(2) 12V chassis batteries |
Fuel Tank |
150 gal. fuel tank(dual fill) |
DEF Tank |
15 gal. DEF tank (dual fill) |
Turning Radius |
55 degree turning radius |
Tow Air Brake System |
Spartan® Safehaul tow vehicle air brake system |
Hitch |
20,000 lb. hitch with 7/4-pin plug |
Roof |
4" arched aluminum trusses filled with bat insulation and reflective Flexfoil® topped with 3/8" plywood decking then one-piece fiberglass |
Walls |
2-1/2" exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16" centers or less filled with bat and Flexfoil insulation then covered with high-gloss gelcoat |
Floor |
2" x 4" wood trusses on 16" centers or less filled with bat and Flexfoil insulation then topped with 3/4" 7-ply plywood decking (R-33) |
Frame |
X-Bridge™ bracing welded into chassis frame |
Slideouts |
Entegra-exclusive Relia-Torque flush-mounted 12V slideout system with VegaTouch and rocker switch controls |
Heated Tanks |
Aqua-Hot® heated basement storage on thermostat |
Generator |
Onan® 12,500 watt diesel generator, with automatic start, on powered slide-out tray |
Inverter |
(2) 3,000 watt pure sine wave inverters |
Batteries |
(4) L16 AGM batteries (6V/390 amp hrs. ea.) |
Electrical Hookup |
50 amp power cord on electric powered reel |
Power Management |
Premium surge protector with smart transfer switch |
Air Conditioning |
(3) 15,000 BTU A/C units with heat pumps and condensation drain system |
Black Tank Management |
Sani-Con® Macerator holding tank dump system with electric gate valves and manual backup |
Tank Flush |
Black holding tank sprayer |
Water Filtration |
City and tank water filtration system |
Winterization Drain System |
Winterizing drain system |
Water Monitoring |
Trutank™ ultrasonic tank monitoring system displayed on VegaTouch screen |
Water Hose w/ Electric Reel |
Water hose with electric reel |
Front/Rear Cap |
Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame |
Stainless Steel Accents |
Executive Bus Armor 10” stainless steel trim |
Engine Door |
Power rear engine door with manual override |
Patio Awnings |
Dual roof-mounted Girard® Vision dual pitched patio awnings with LED lights |
Door Awning |
Girard® power entrance door awning with LED lights |
Slideout Awnings |
Girard® Ultra slideout awnings |
Window Awnings |
Girard® Ultra window awnings |
Windows |
Frameless, dual-pane, tinted, safety-glass windows |
Keypad |
Lit grab handle with keypad system for keyless entry |
Entertainment |
43” Samsung® 4K UHD Slim, Smart TV wand Bose® Solo 5 sound bar on TV bracket with extend, tilt and swivel arm |
Mirrors |
Chrome, heated, remote control, Ramco side-view mirrors with integrated cameras and blind-spot indicators |

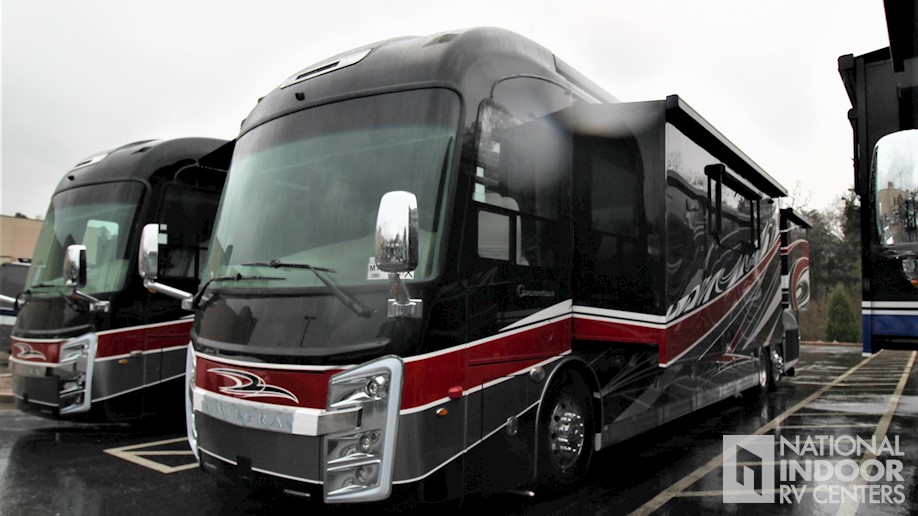

Exterior |
Diamond Shield™ front protective film mask |
Headlights |
LED high/low beam headlights and fog lights |
Daytime Running Lights |
Daytime running lights |
Accent Lights |
LED accent lights under passenger slideout rooms |
LED Lights |
LED marker lights, turn lights, license plate light, accent lights, & docking lights |
Clearance Accent |
LED lit chrome clearance accent light |

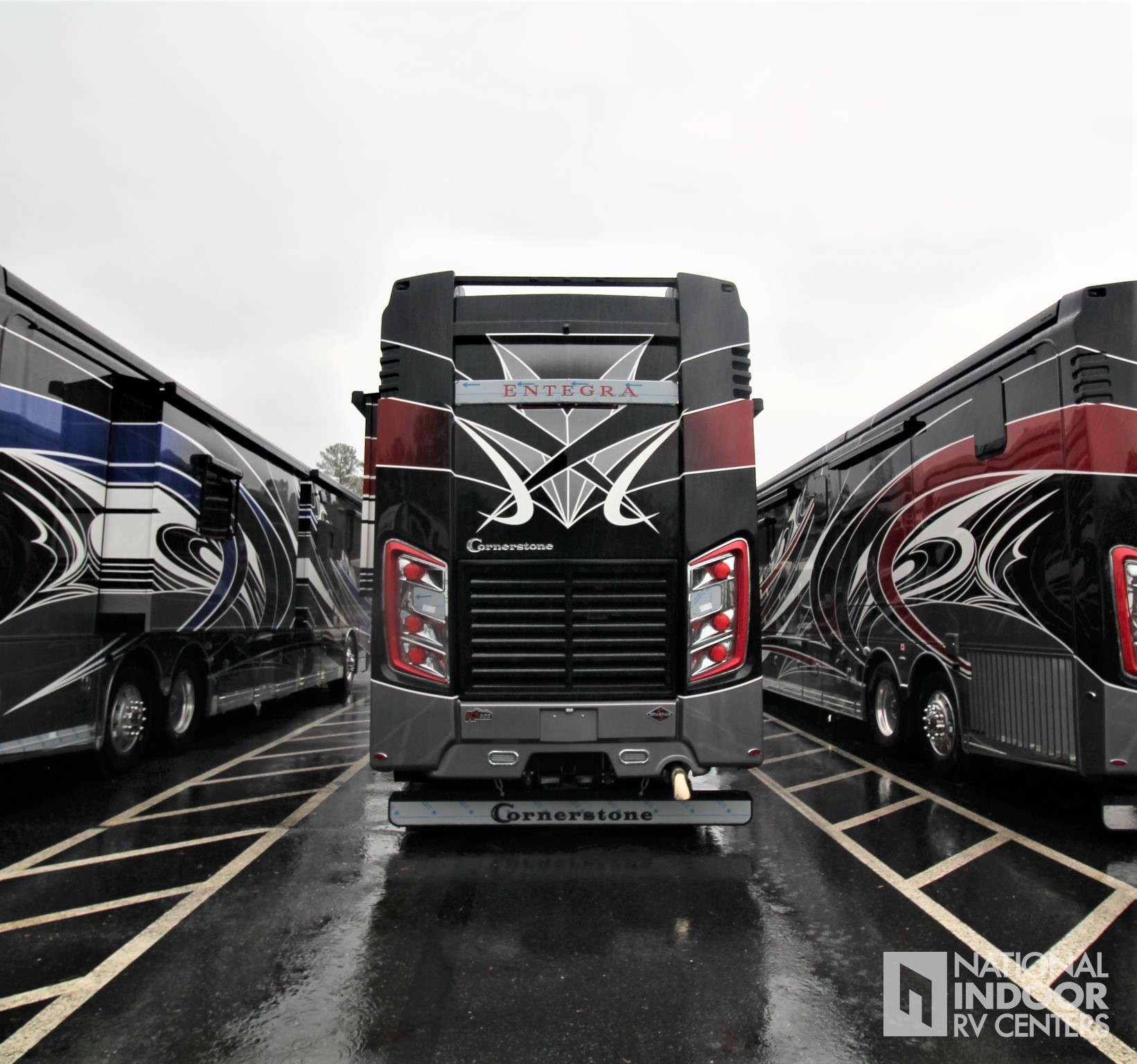

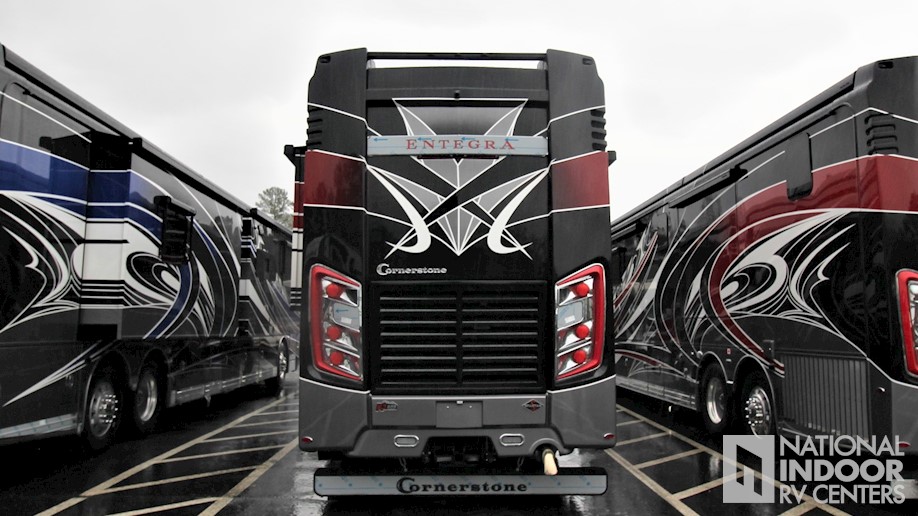

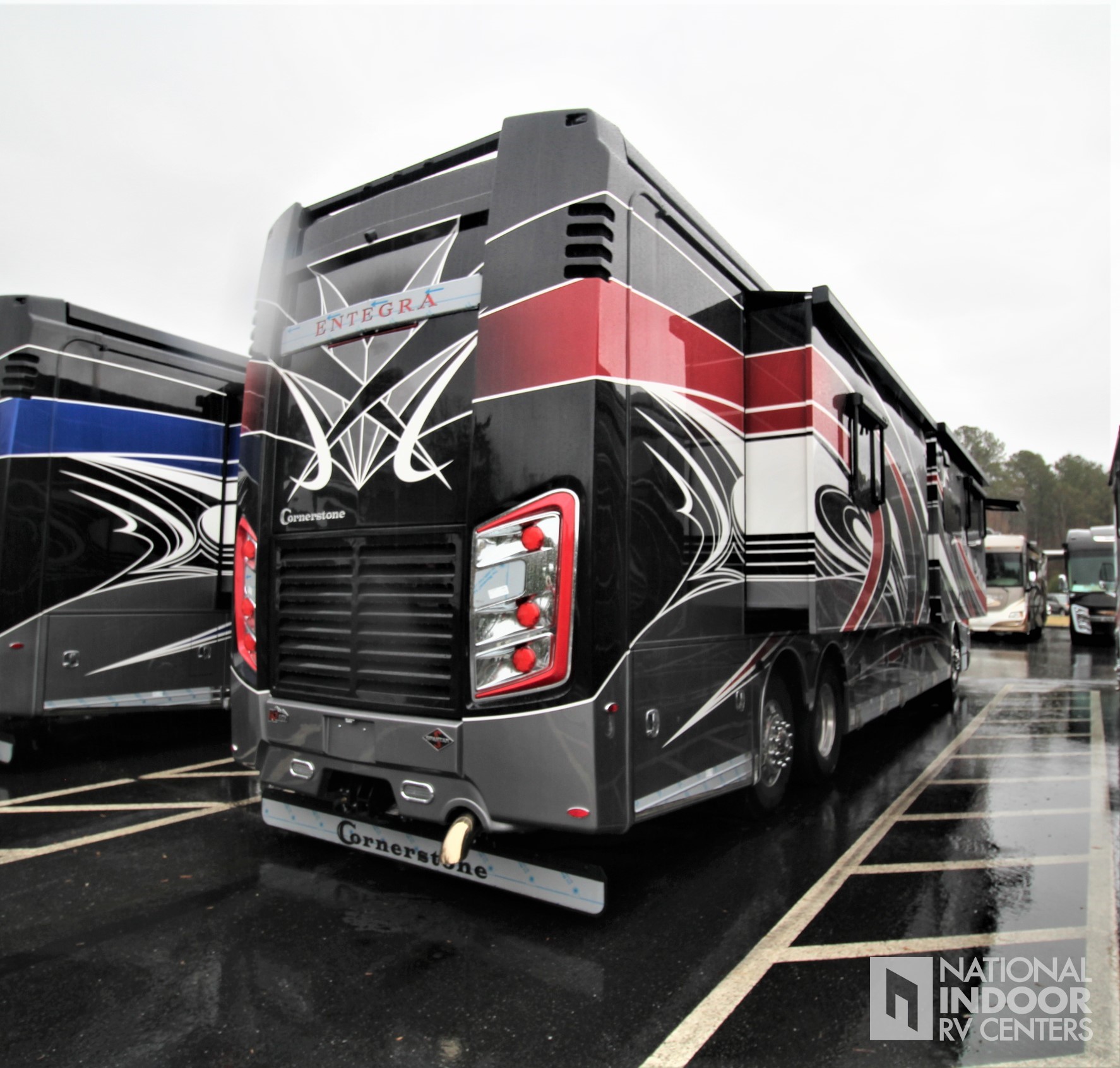

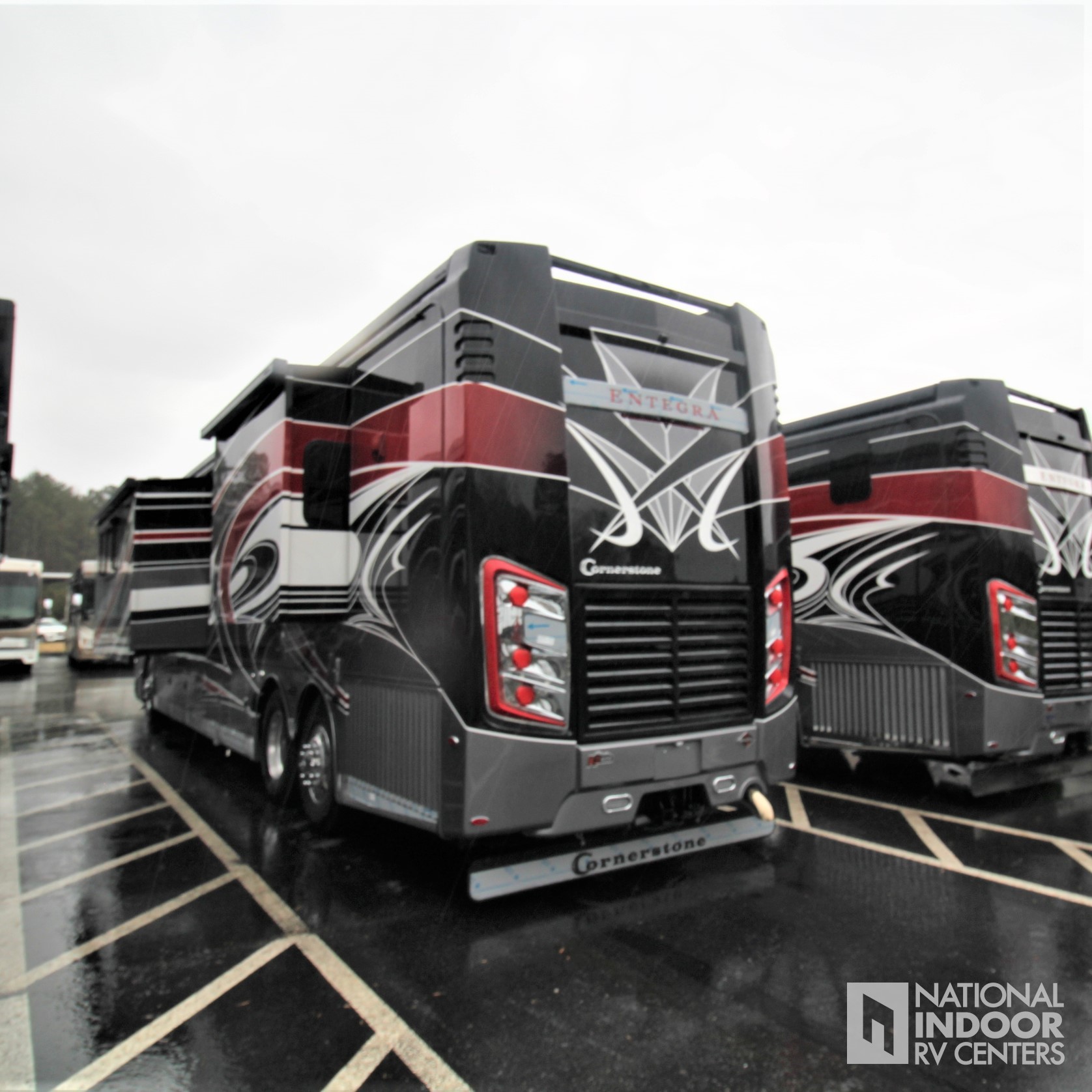

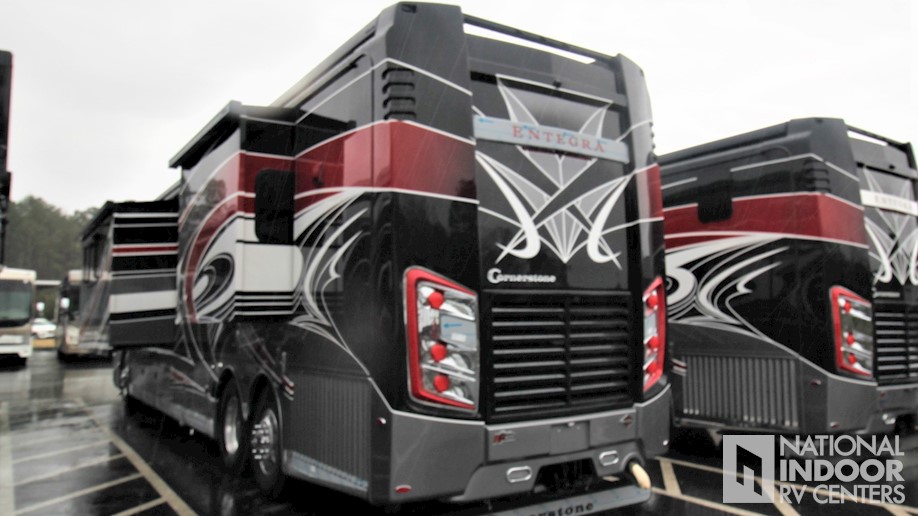

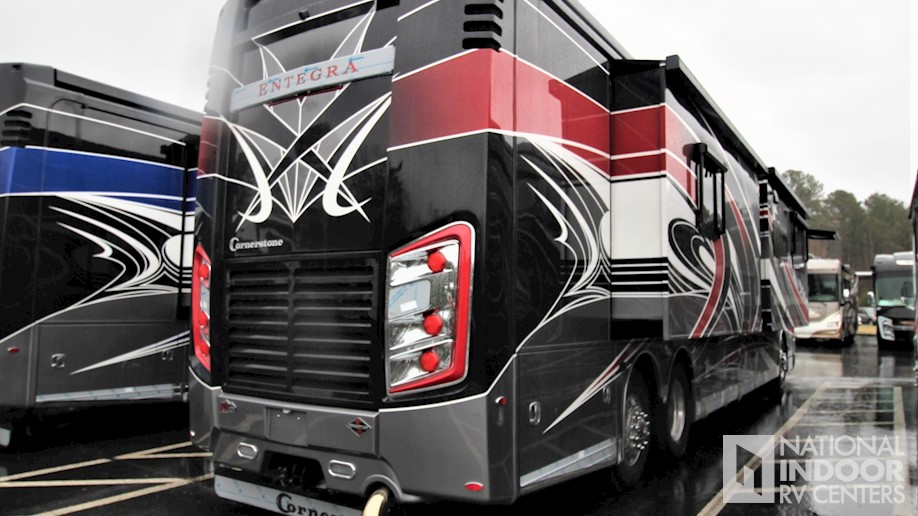

Rear Mudflap |
Full-width rear mudflap, with chrome “Cornerstone” nameplate |
Satellite Dish - US |
Winegard® TRAV'LER satellite dish DIRECTV®- standard with USA option |
Satellite Dish - CA |
Winegard® TRAV'LER satellite dish Shaw TV- standard with CSA option |
TV Antenna |
Winegard® Rayzar automatic powered TV antenna |
Wi-Fi |
Winegard® WIFI extender with 4G/LTE |
Utility Center |
Heated exterior utility center with 5" LED Firefly® tank monitoring panel |
Freezer |
2.8 cu.ft. exterior Dometic® refrigerator/freezer on slideout tray |
Cargo Features |
Power locking baggage doors, (2) power slideout basement storage trays |
Paint |
Sikkens custom full body paint |
Third Brake Light |
LED third brake light |
Entrance Door |
Removable screen on entry door |
Lights |
Porch light and motion sensor security lights |
Collision Mitigation |
Collision avoidance system with collision warning and adaptive cruise control |
Cameras |
Xite™ 360° camera system that displays on digital dash screen |
Dash |
Valid 15” digital dash with selector knob and three main selection screens |
Infotainment System(s) |
Dual, glass panel 9” touchscreen in-dash infotainment center with Rand McNally™ RV navigation, Bluetooth, SiriusXM™, AM/FM tuner, integrated camera control, house mode whole coach audio distribution, and integrated VegaTouch coach control |
Driving Features |
E-Z Steer™ electric, adjustable power steering assist with steering angle sensor |
Steering Wheel |
VIP wood-grain, leather-wrapped, power tilt and telescoping steering wheel with integrated controls for radio, cruise, wipers and Bluetooth phone functionality |
Blind Spot Monitoring |
Blind spot monitoring system displayed on digital dash screen |
Sound System |
JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer |

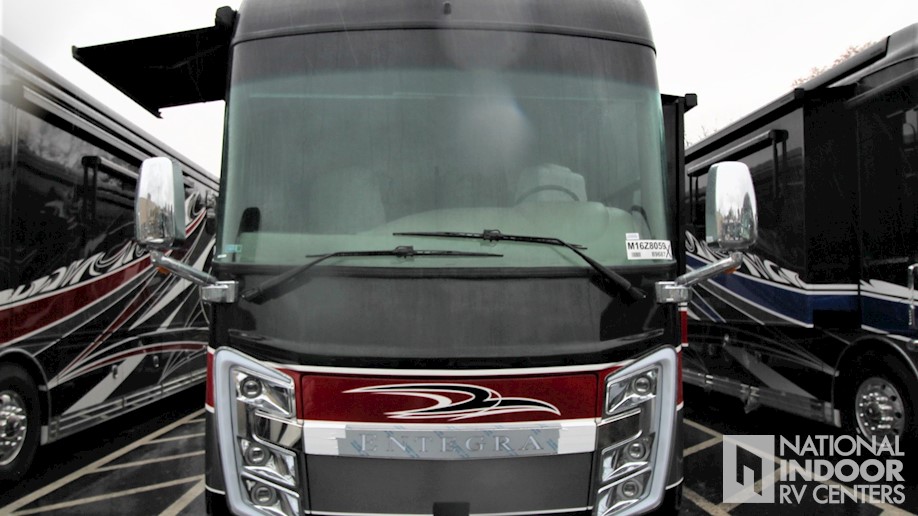

Windshield |
Ultra-Vision® one-piece wrap-around tinted windshield |
Start |
Push button start system |

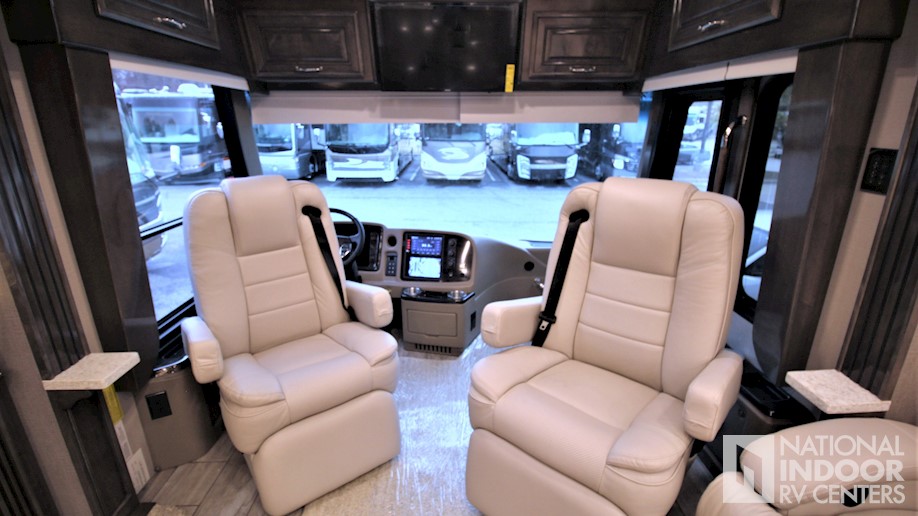

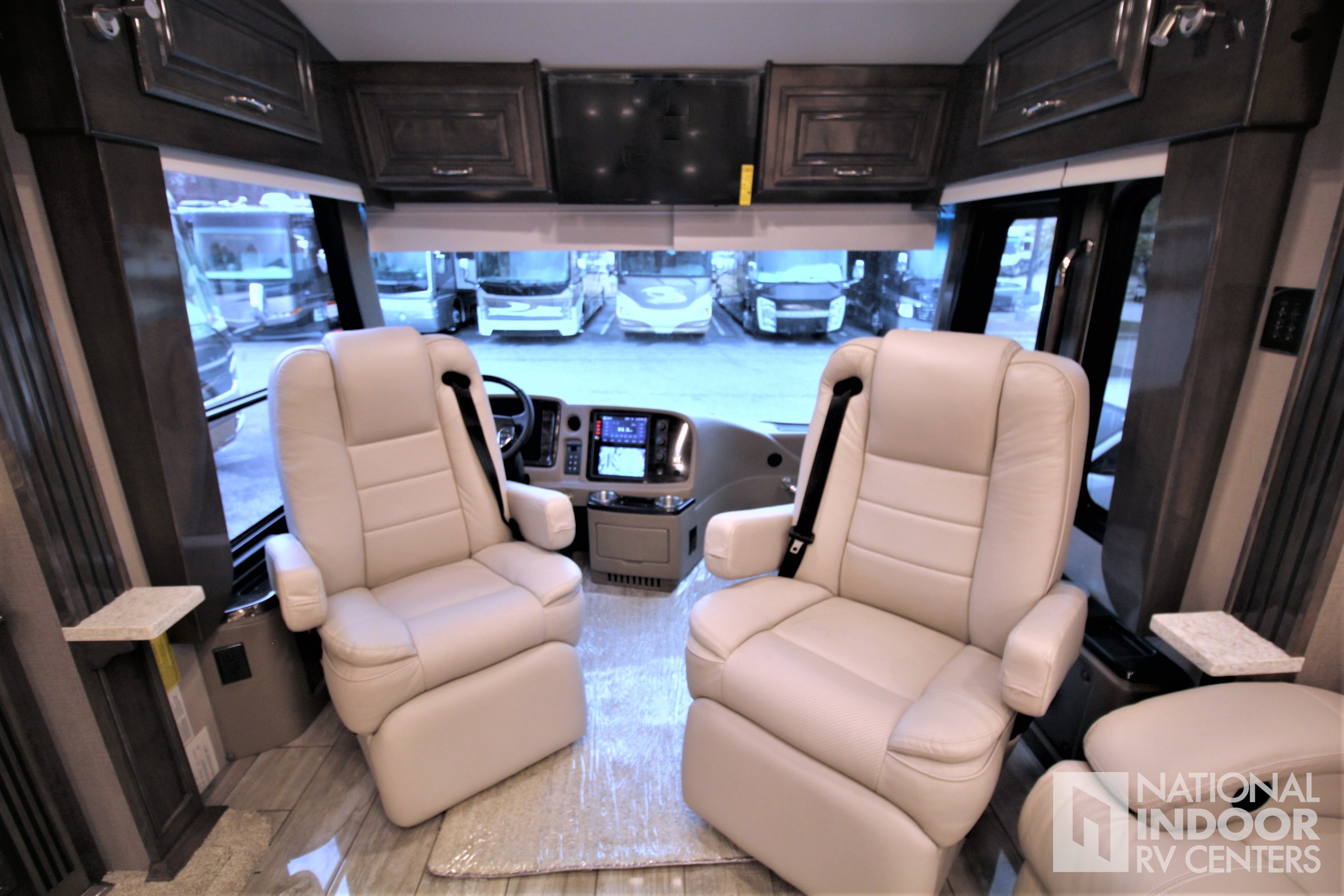

Driver / Passenger Seats |
Villa® 6-way power, lumbar, heated and cooled Italian leather driver and passenger seats with integrated seatbelt |
Additional Amenities |
Power operated toll window on driver's side, (2) dual USB ports and (2) 12V socket for charging |
Power Features |
Powered flush stepwell cover |
Pedals |
Power adjustable brake and accelerator pedals |
Visors & Privacy Shade |
Powered front sun visors and privacy shade |
Side Consoles |
Wrapped dash with molded side consoles |
Television - Front Overhead |
Samsung® 32” LED Slim 1080P Smart TV in front overhead |
Command Center |
10” VegaTouch touchpad system for complete integration of coach controls (mobile app available) |
Television - Living Room |
50” Samsung® 4K UHD Smart TV |
DVD Systems |
Sony® HD Blu-Ray® player |
Sound - Living Room |
Bose® Soundbar 700 sound system with wireless surround sound speakers |

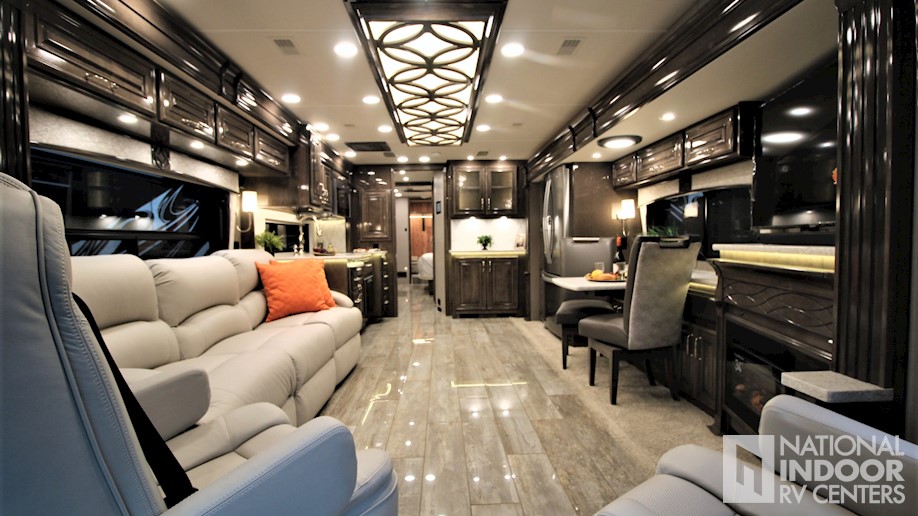

Furniture |
Villa Italian leather furniture throughout |
Flooring |
Hand-laid, high-gloss porcelain floor tiles |
Lighting |
Premium, recessed, 12V, LED lighting |
Ceiling |
Decorative ceiling feature with integrated accent lighting |
Window Treatments |
Powered solar day and black out night shades |
Central Vacuuming System |
Central vacuum system |
Interior Doors |
Aire-Secure™ travel locks for all pocket doors |

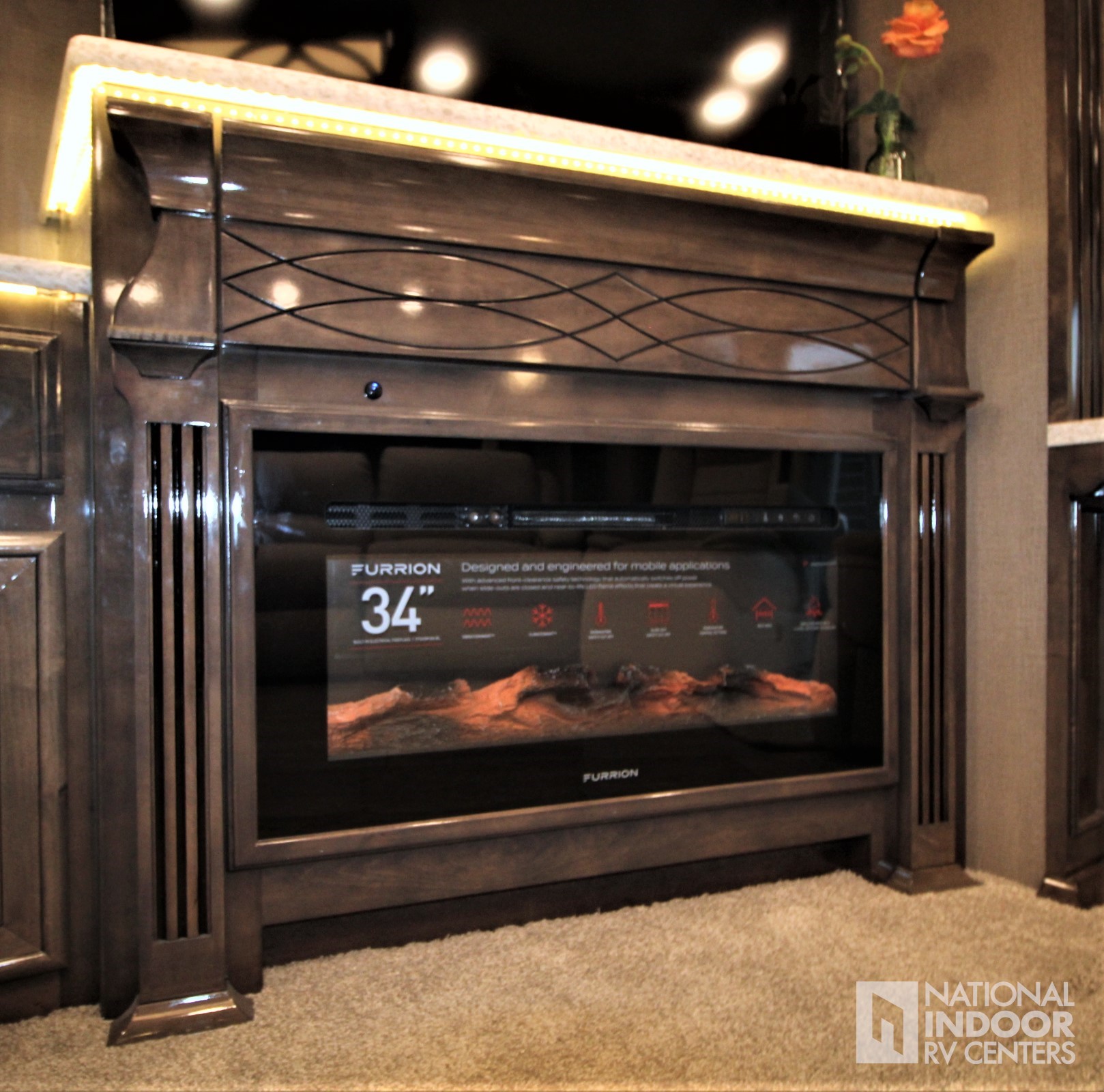

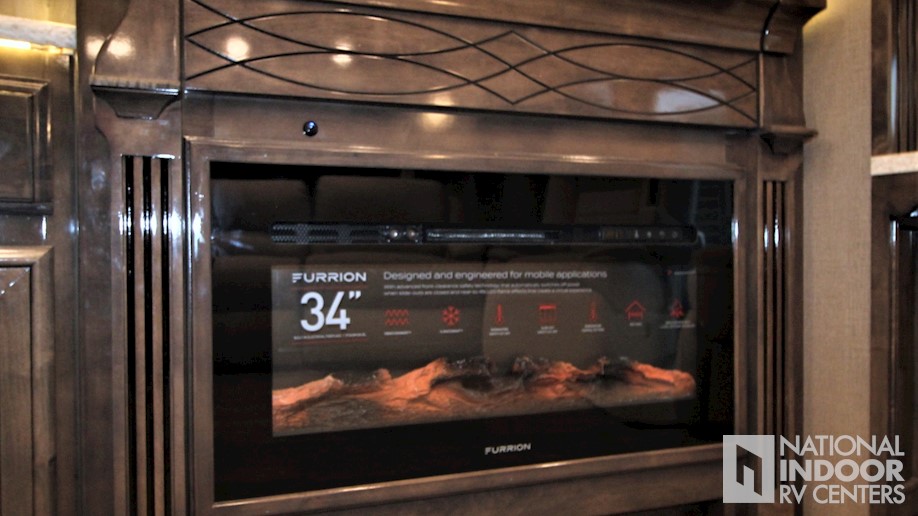

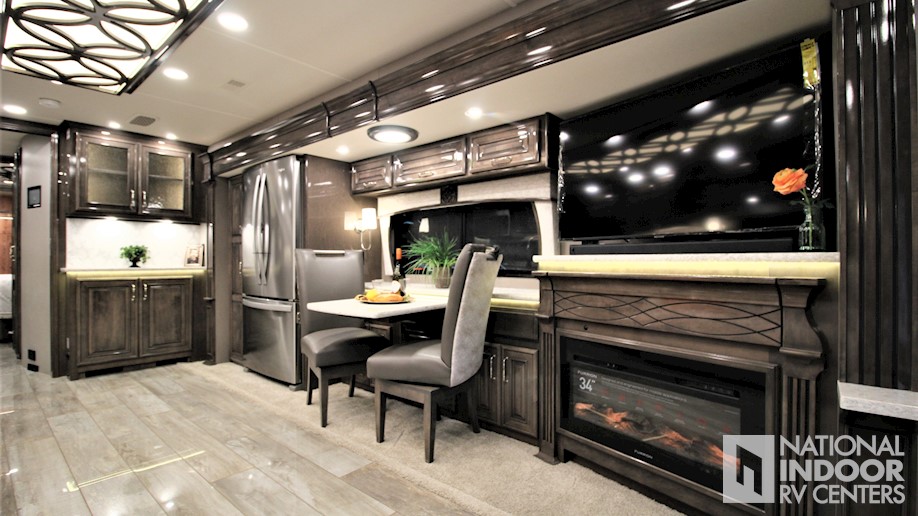

Electric Fireplace |
LED lit fireplace with 1500W heating element (45B, 45X, 45Y, 45Z) |

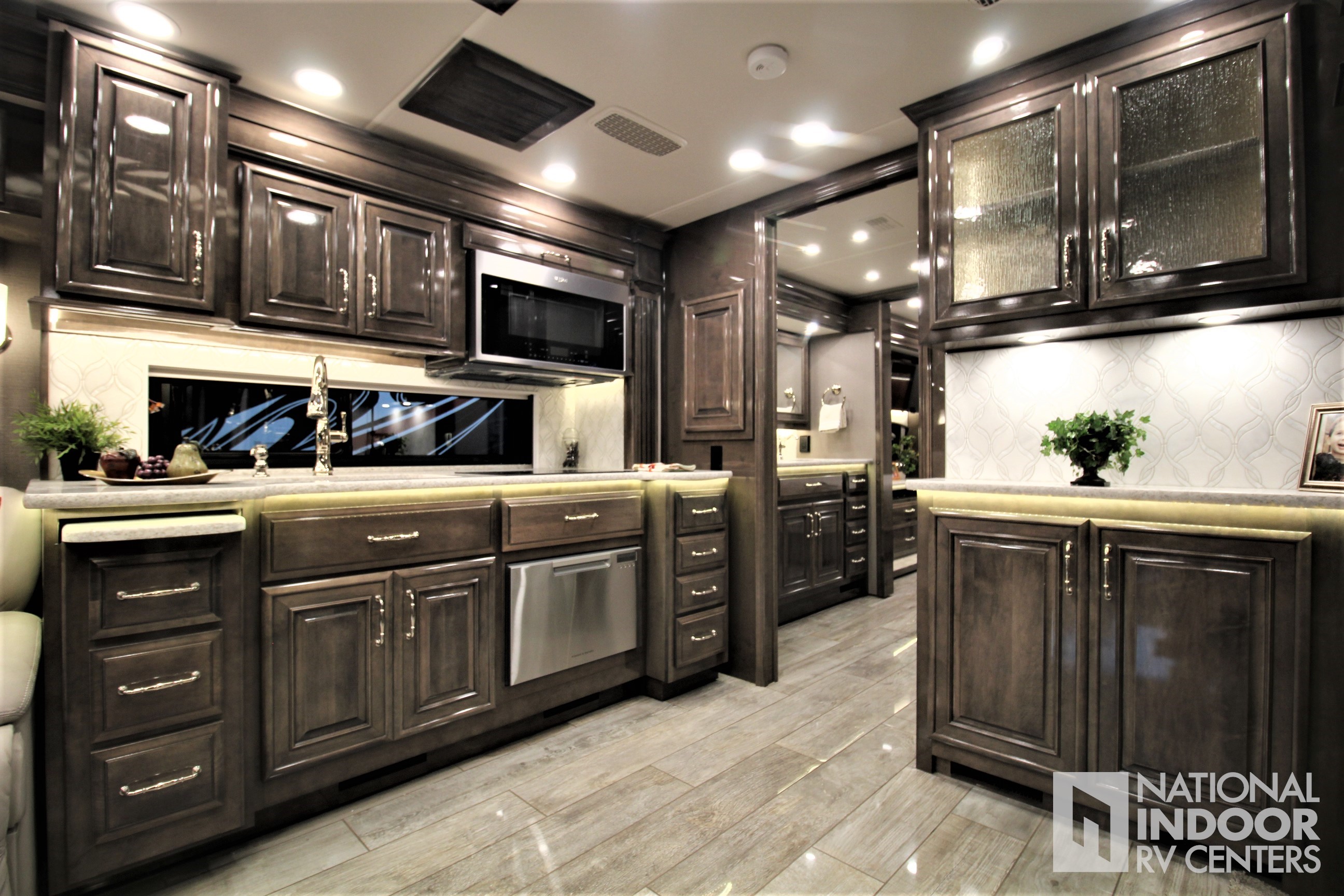

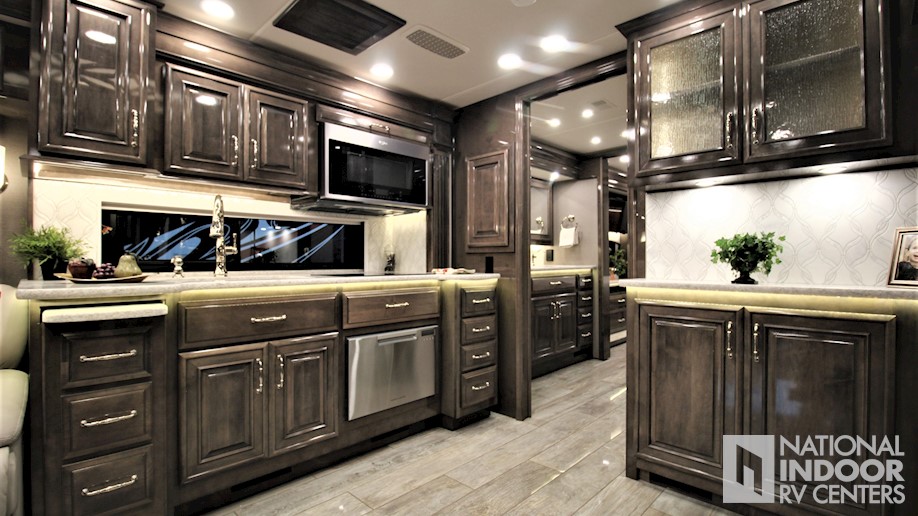

Cabinetry |
Handcrafted hardwood cabinetry |
Fascia |
Handcrafted hardwood fascia |

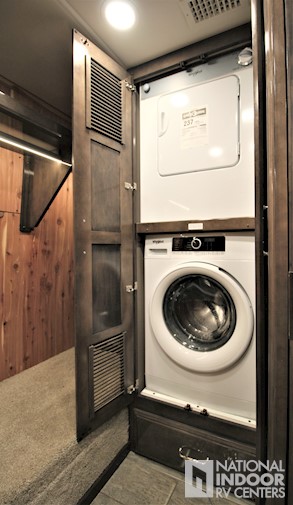

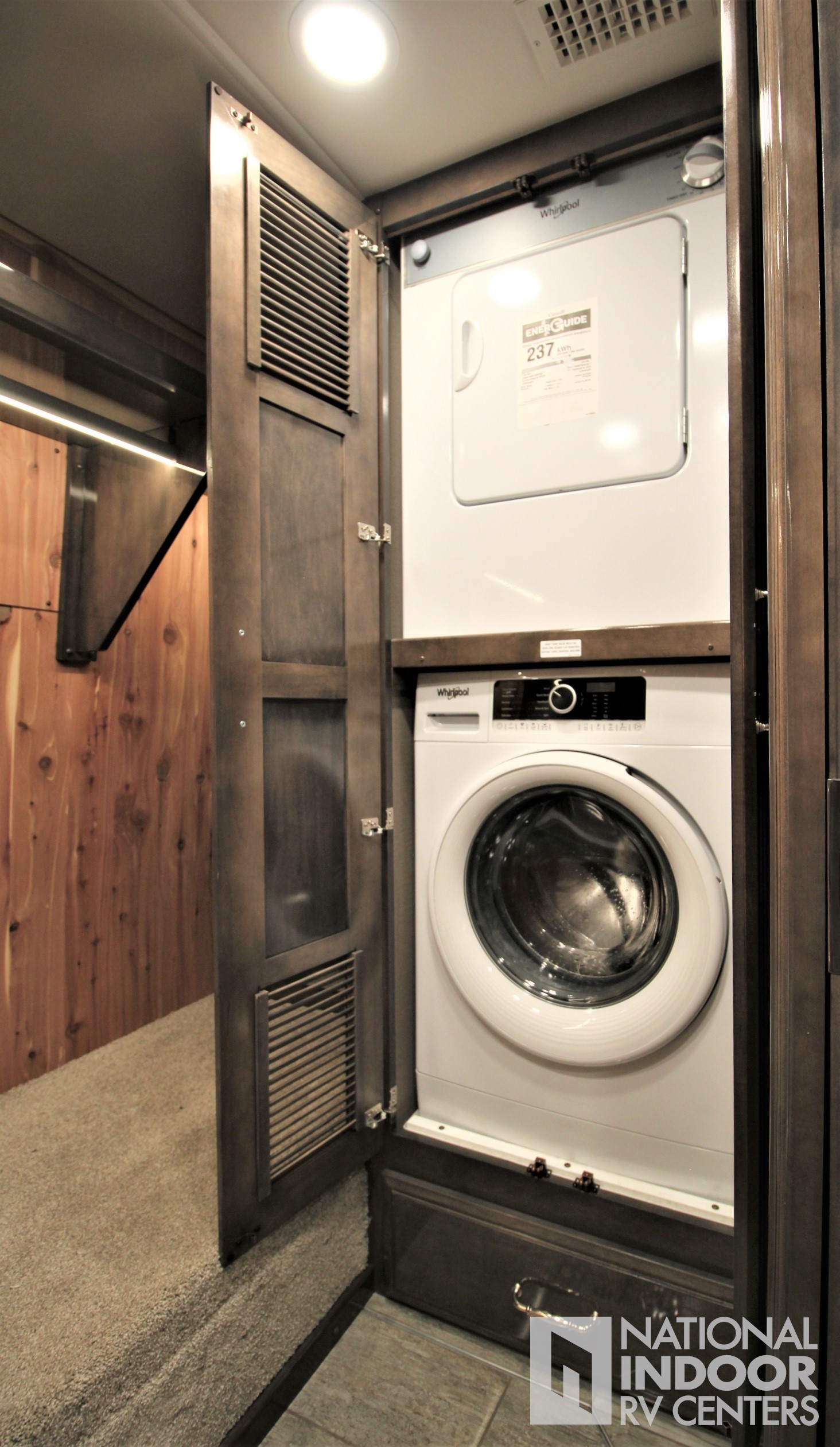

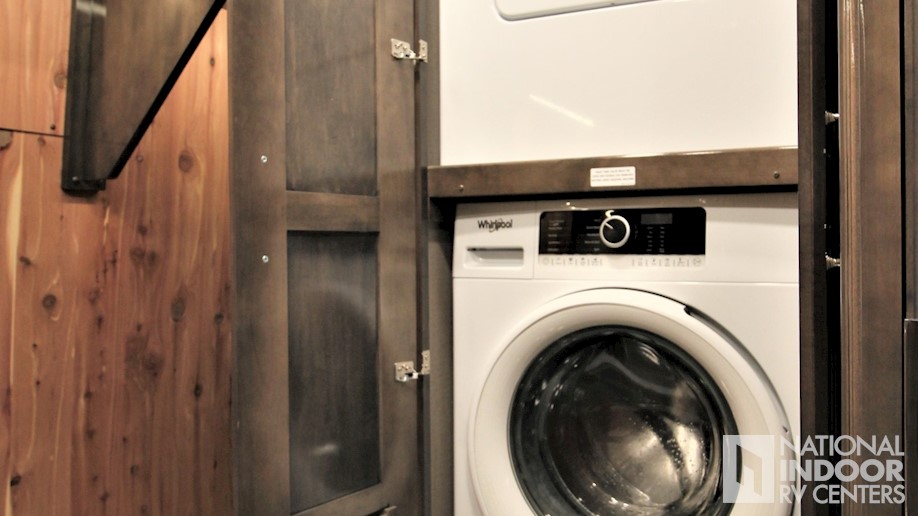

Washer/Dryer |
Whirlpool® stacked washer and dryer |

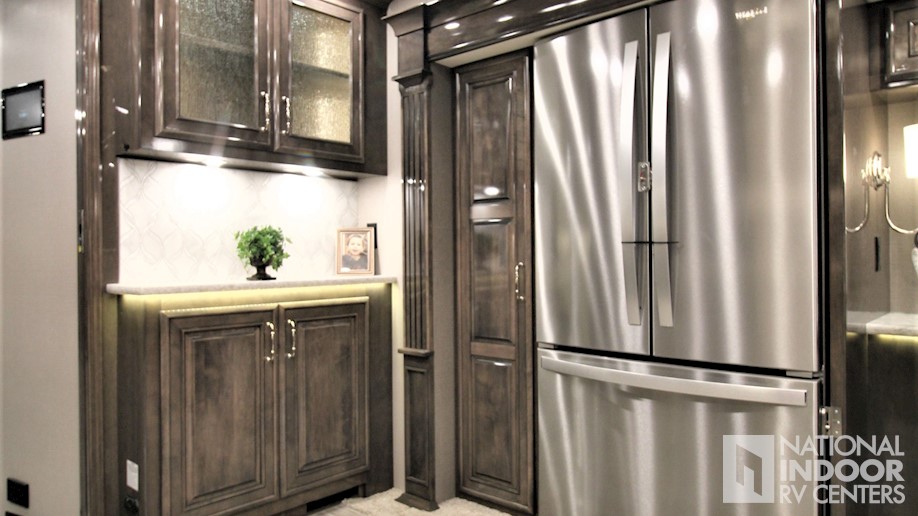

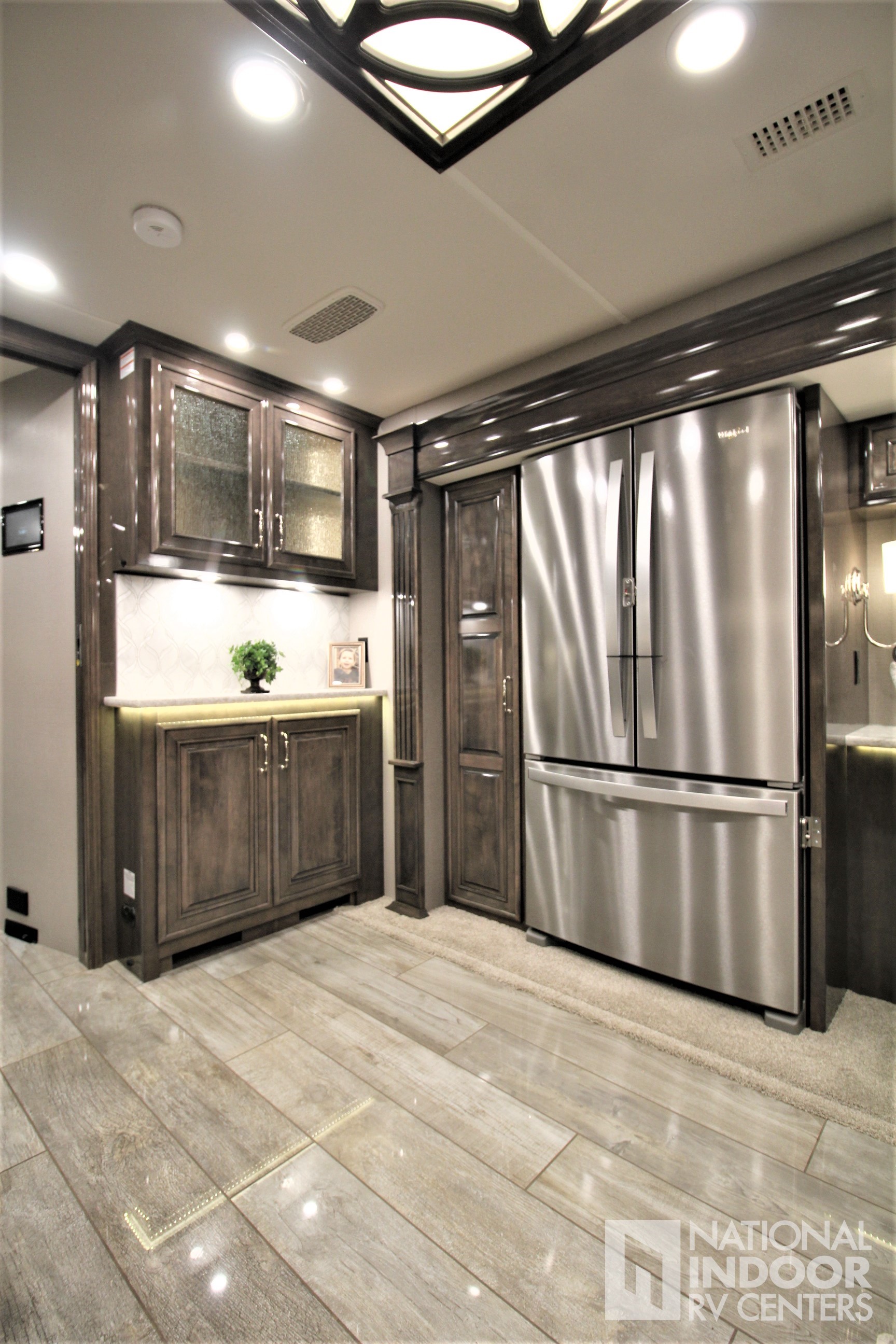

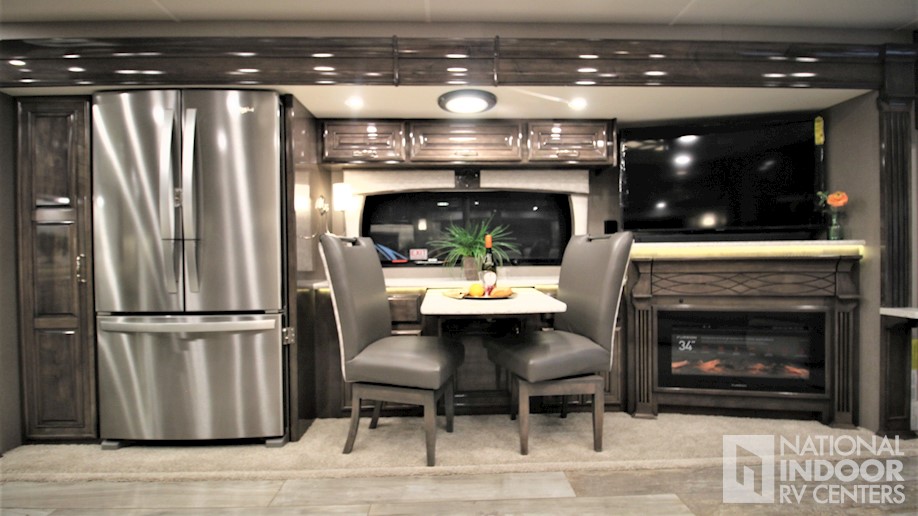

Refrigerator |
Whirlpool® stainless steel residential refrigerator with ice maker and water dispenser |

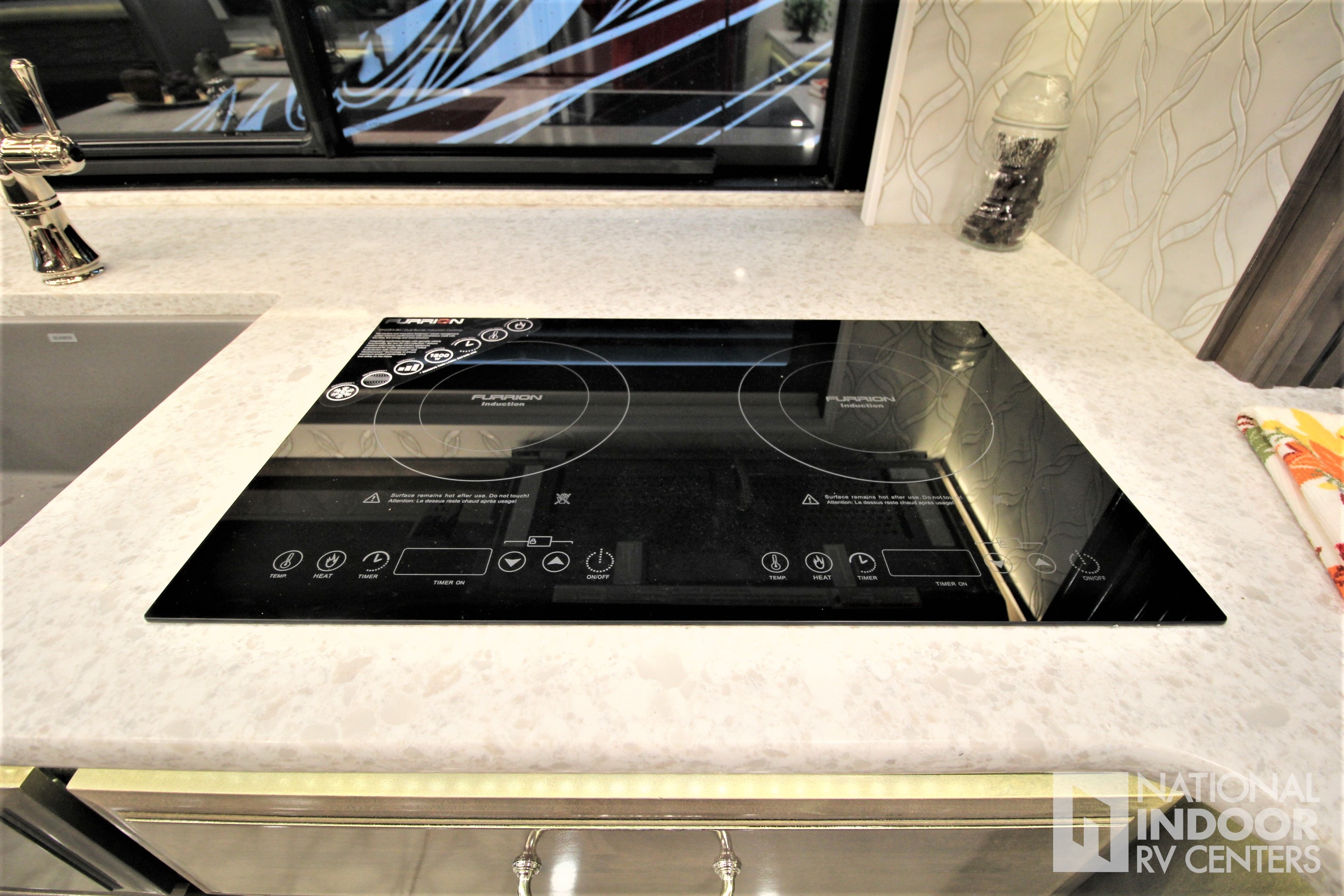

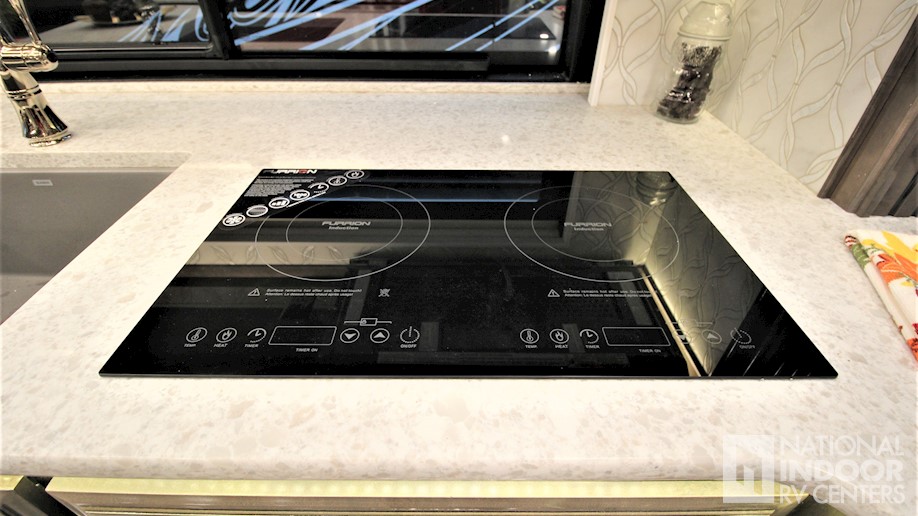

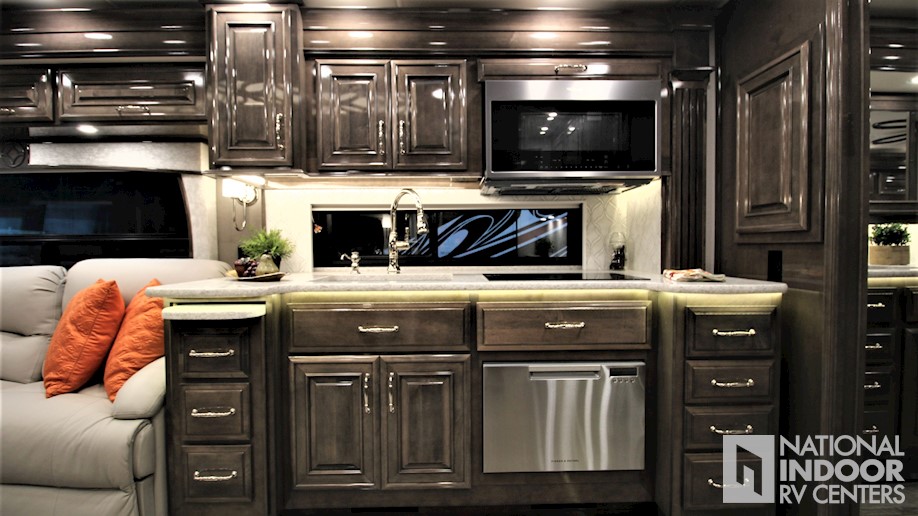

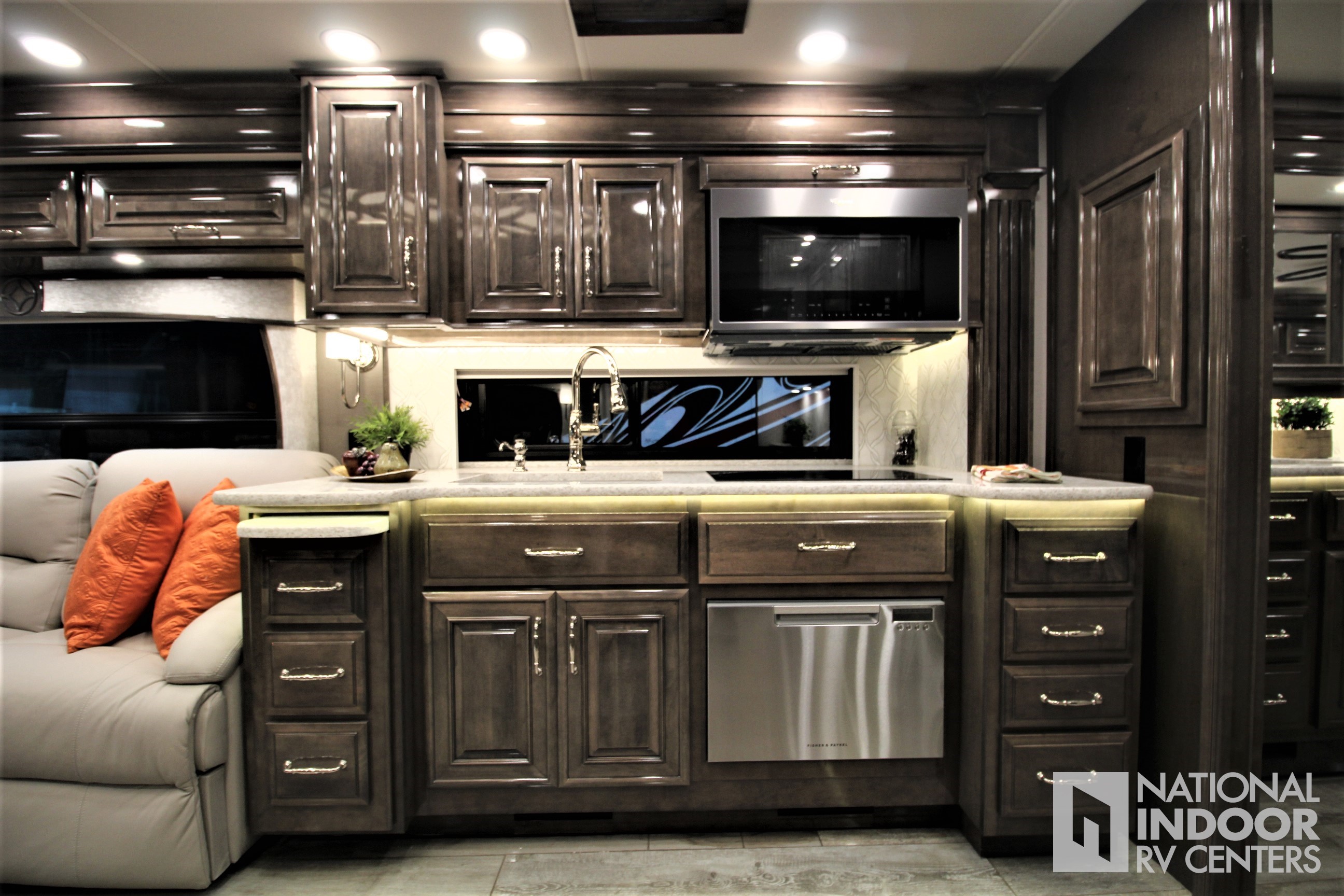

Cooktop |
Induction cooktop with matching wood cover |

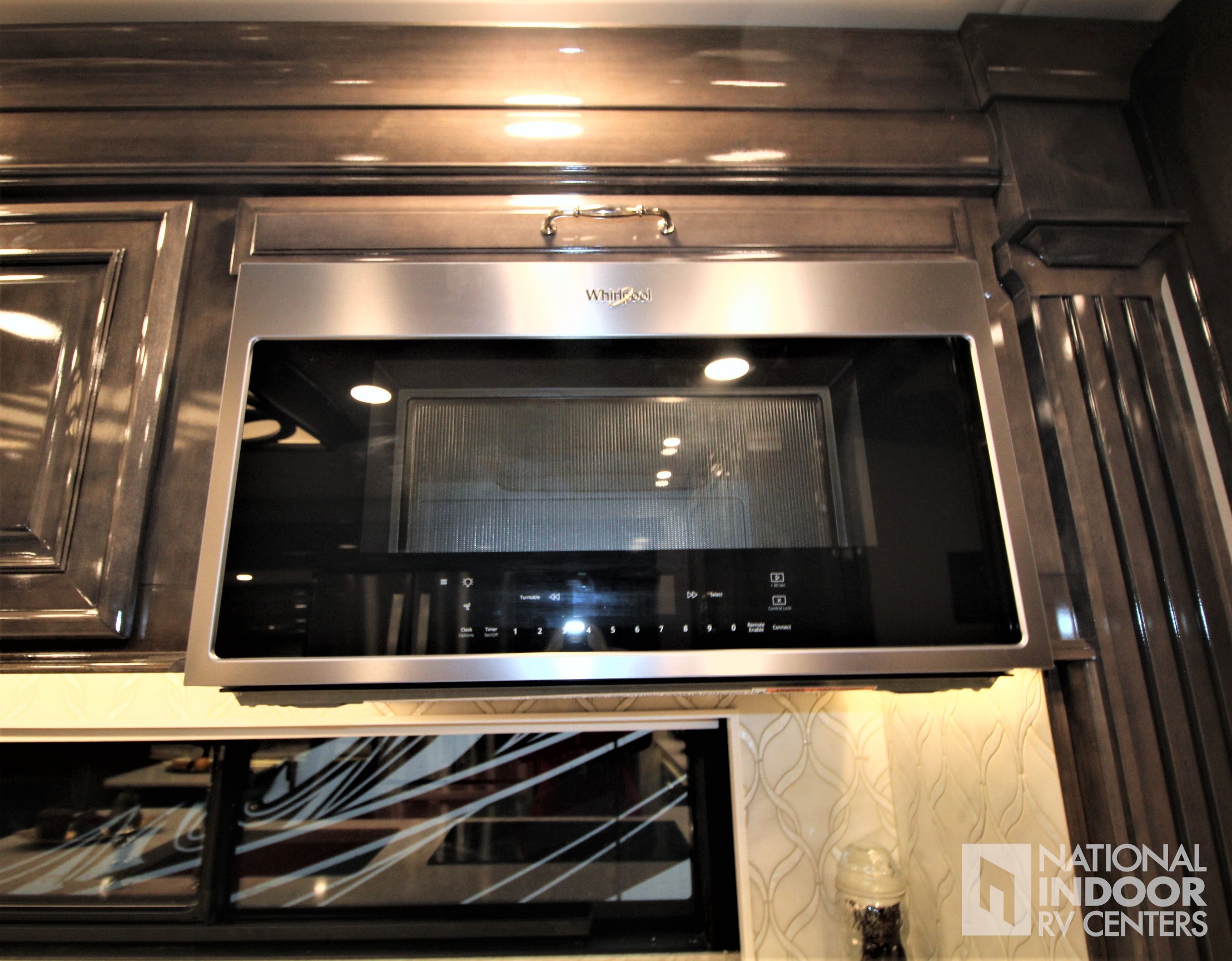

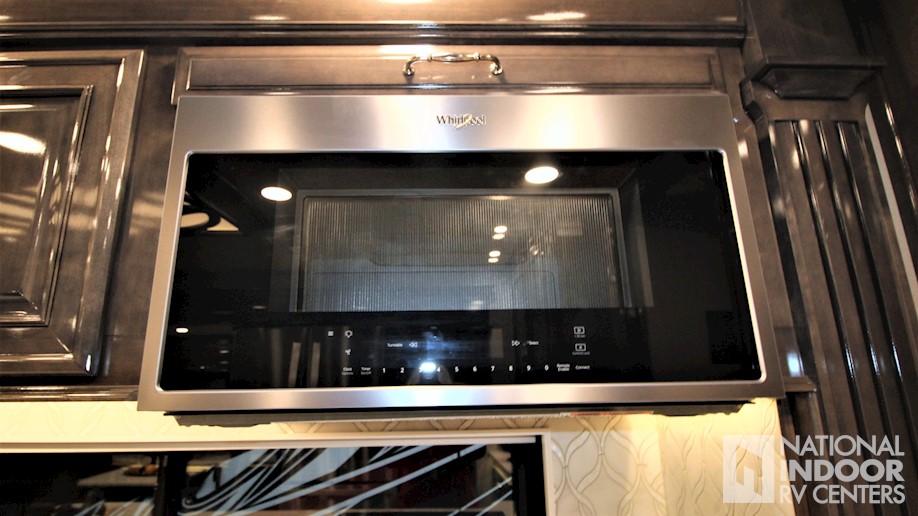

Microwave |
Whirlpool® Gold 1.9 cu. ft. convection microwave oven |

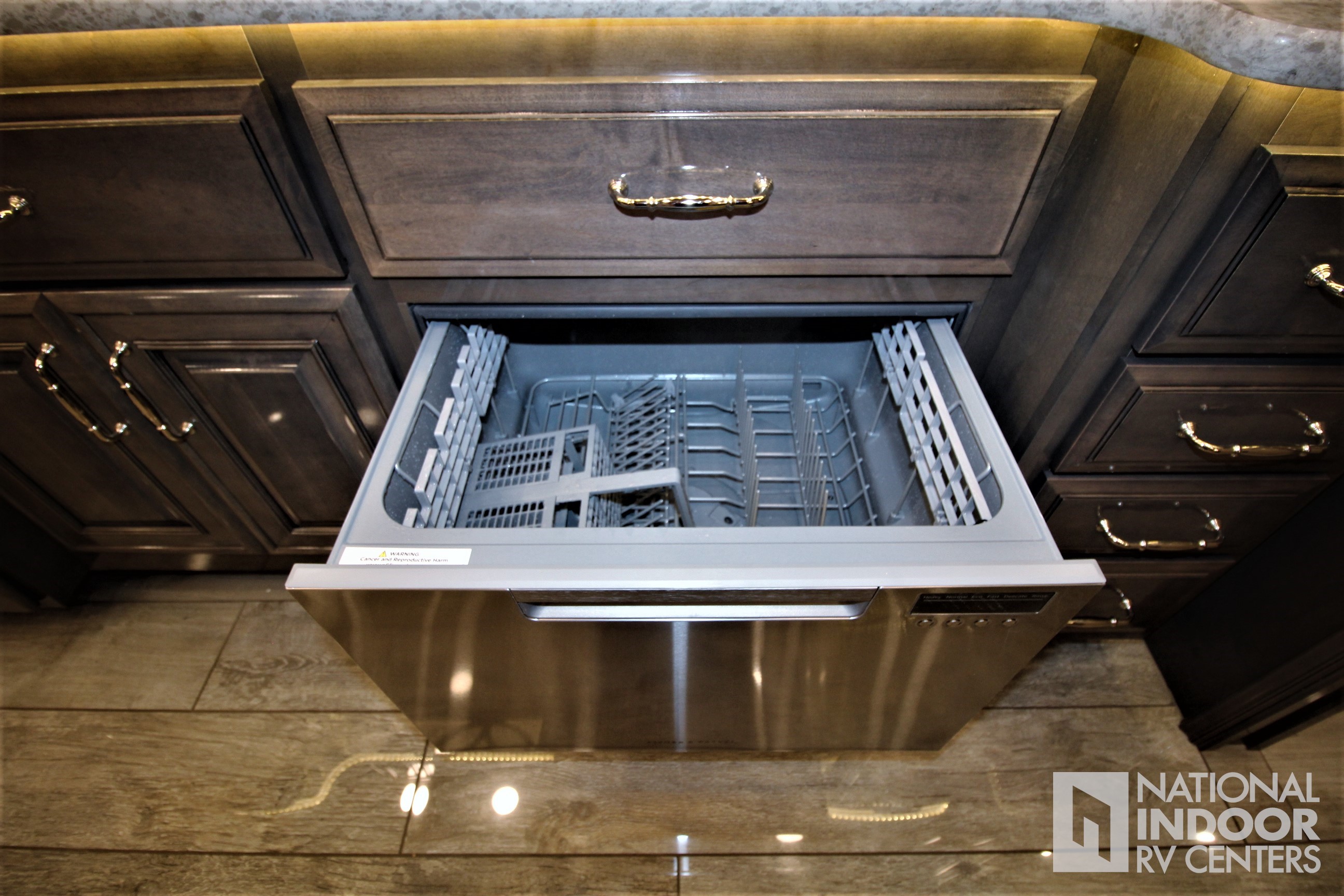

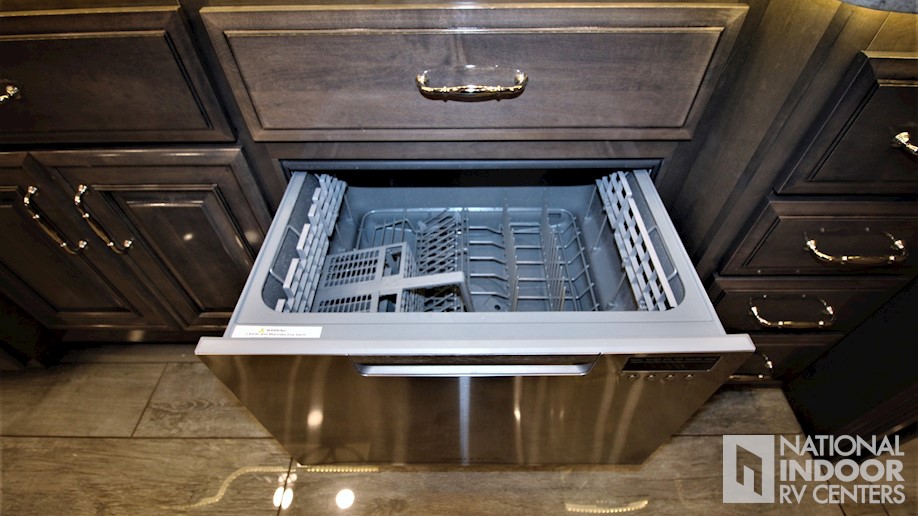

Dishwasher |
24" stainless EZ clean Fisher and Paykel Dishwasher |
Backsplash |
Porcelain tile backsplash |
Countertops |
Quartz countertops with dimmable LED accent lighting |

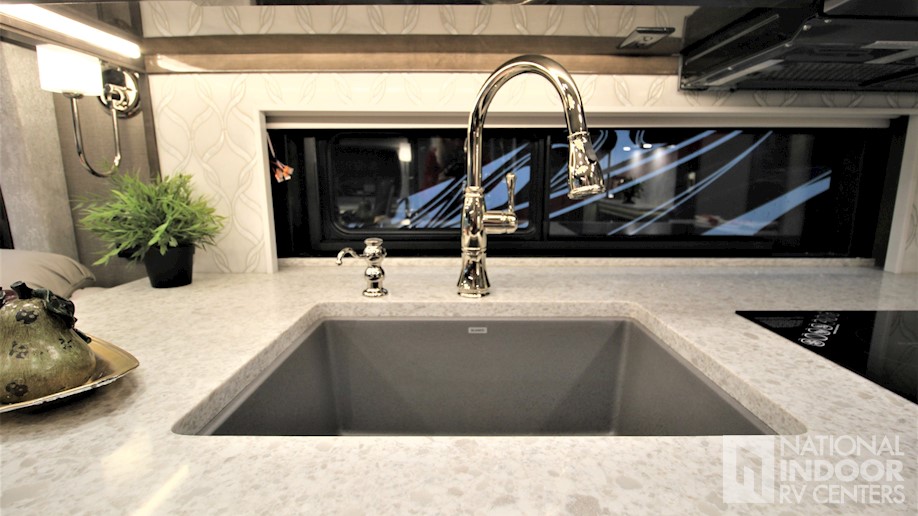

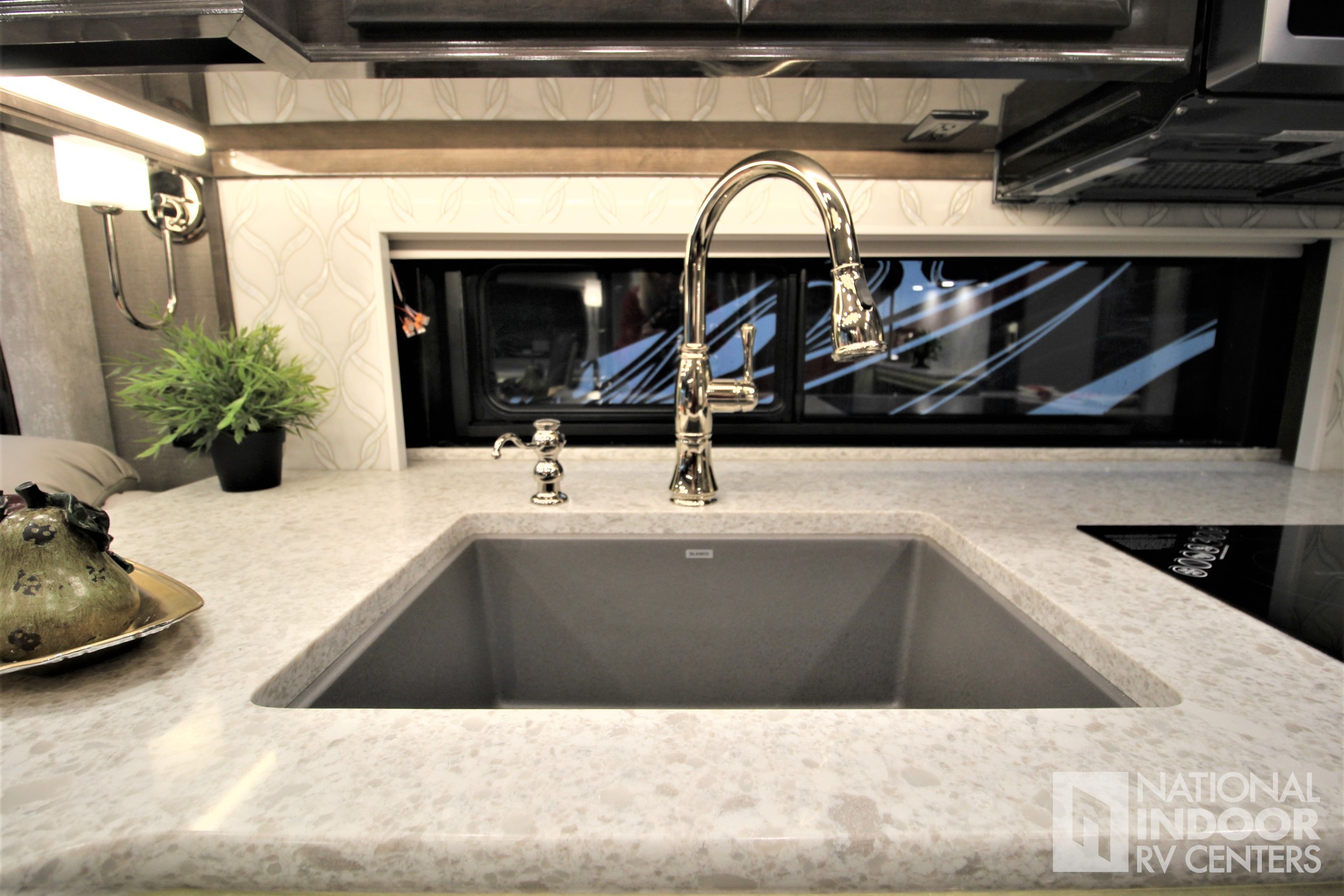

Sink |
Blanco single bowl granite sink |
Vent |
Maxxair® power vent exhaust fan with intake |
Waste Basket |
Large deep drawer for waste basket with easy access trash chute (trash chute not available in 45F) |
Storage |
Slide out storage tray(s) in overhead cabinet |

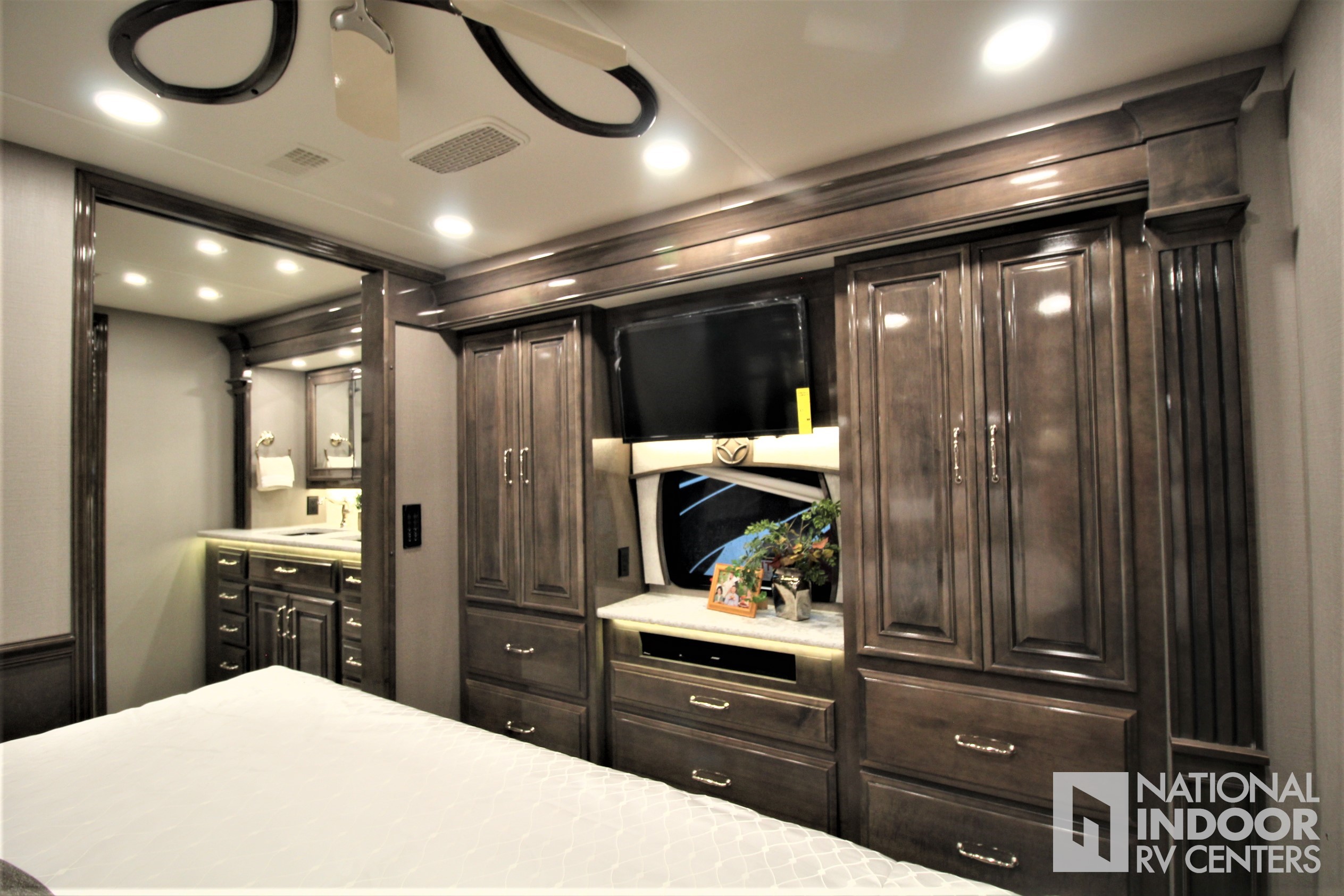

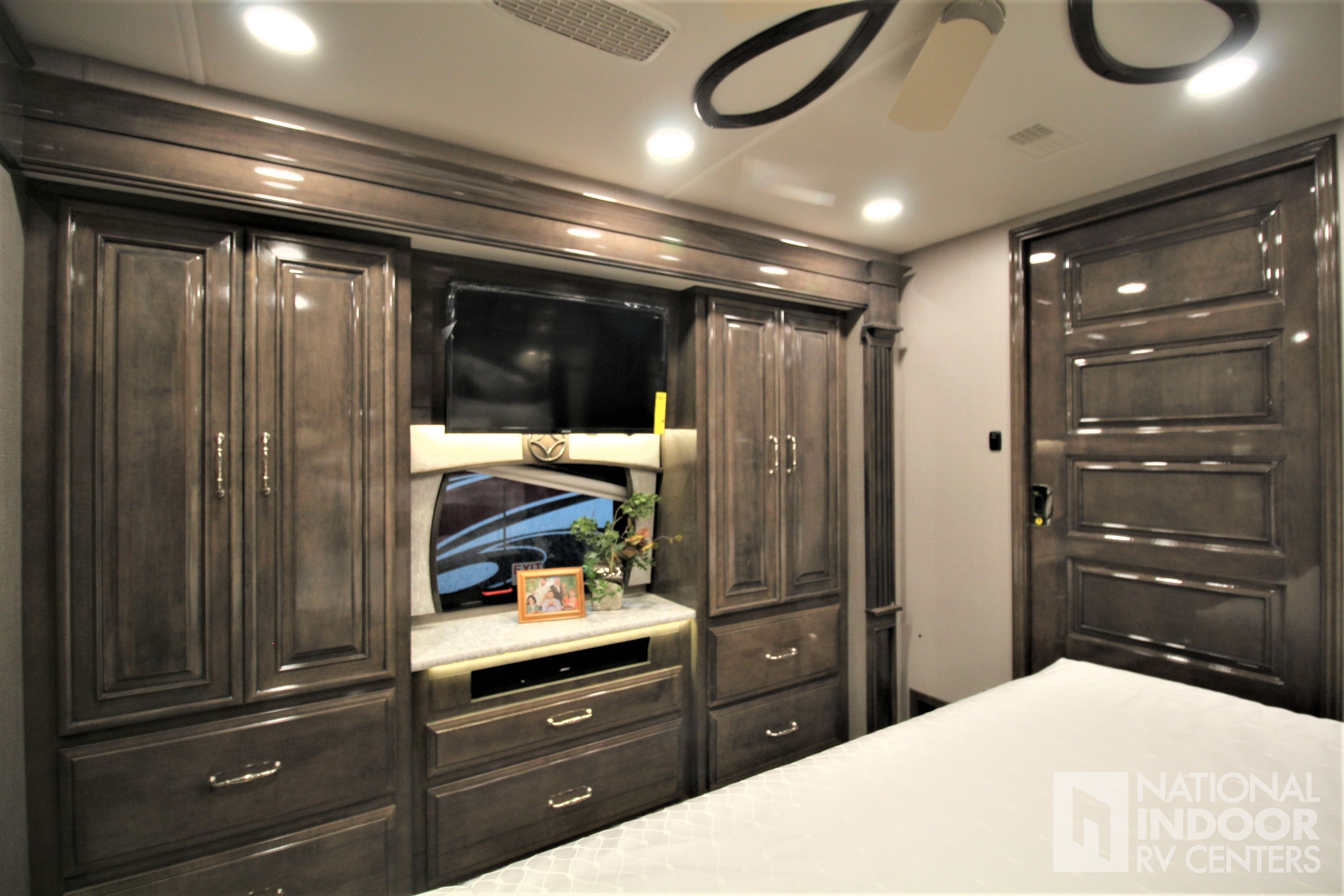

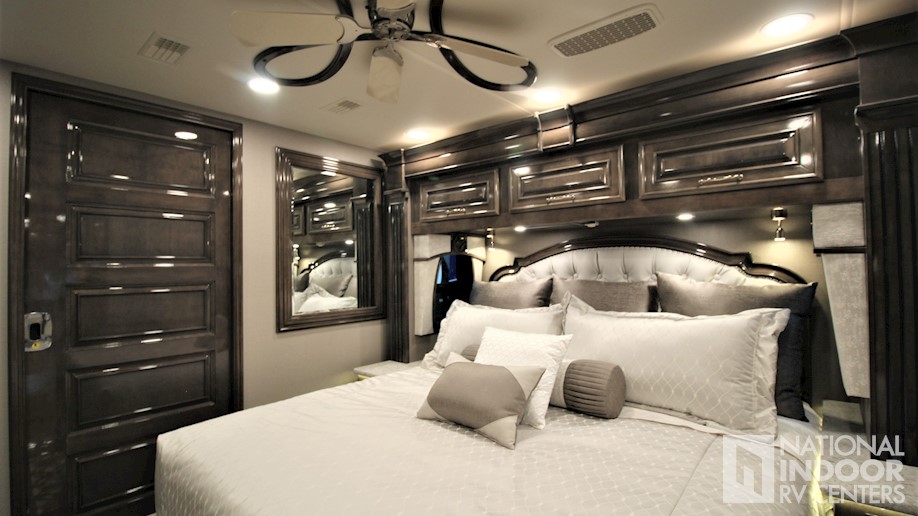

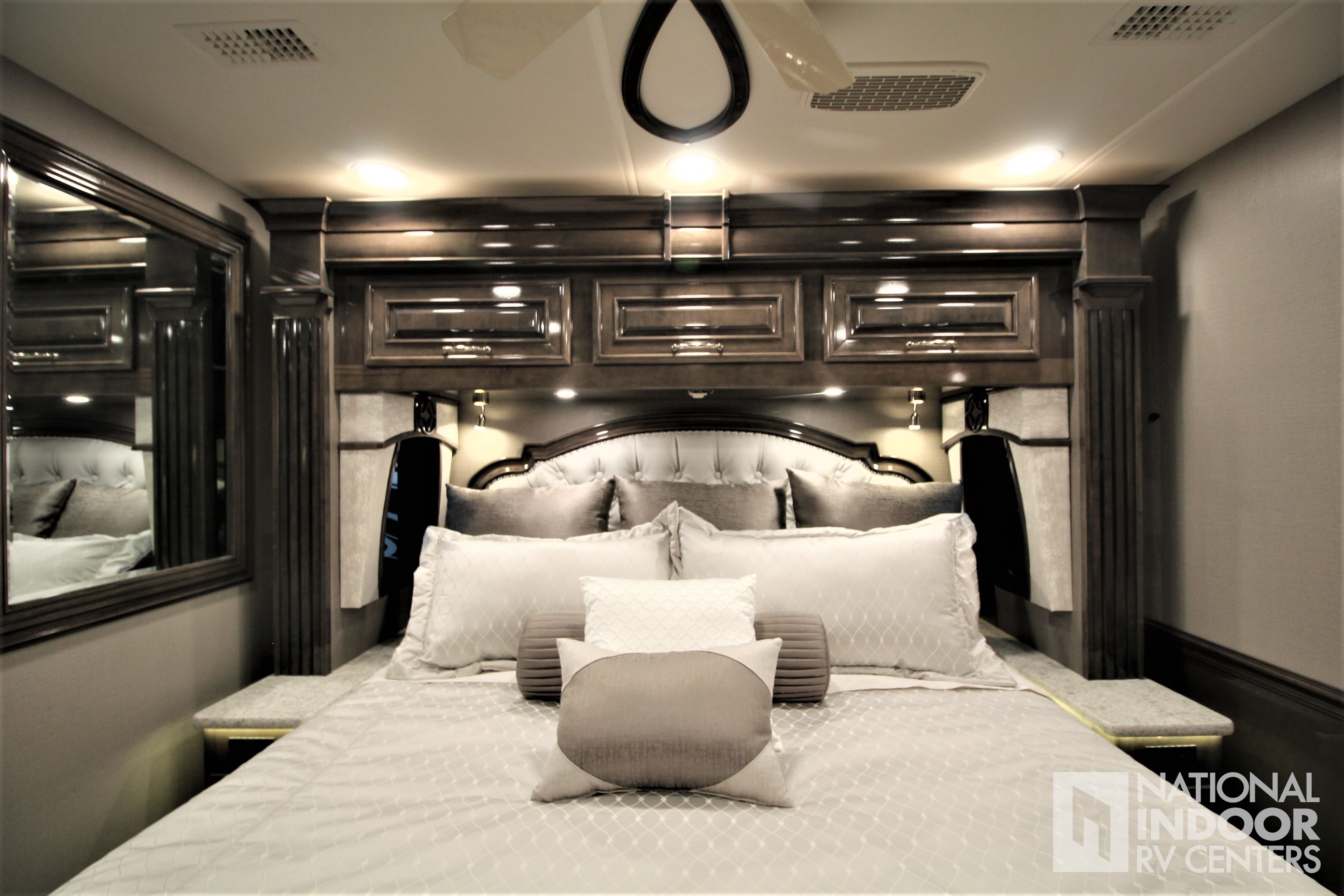

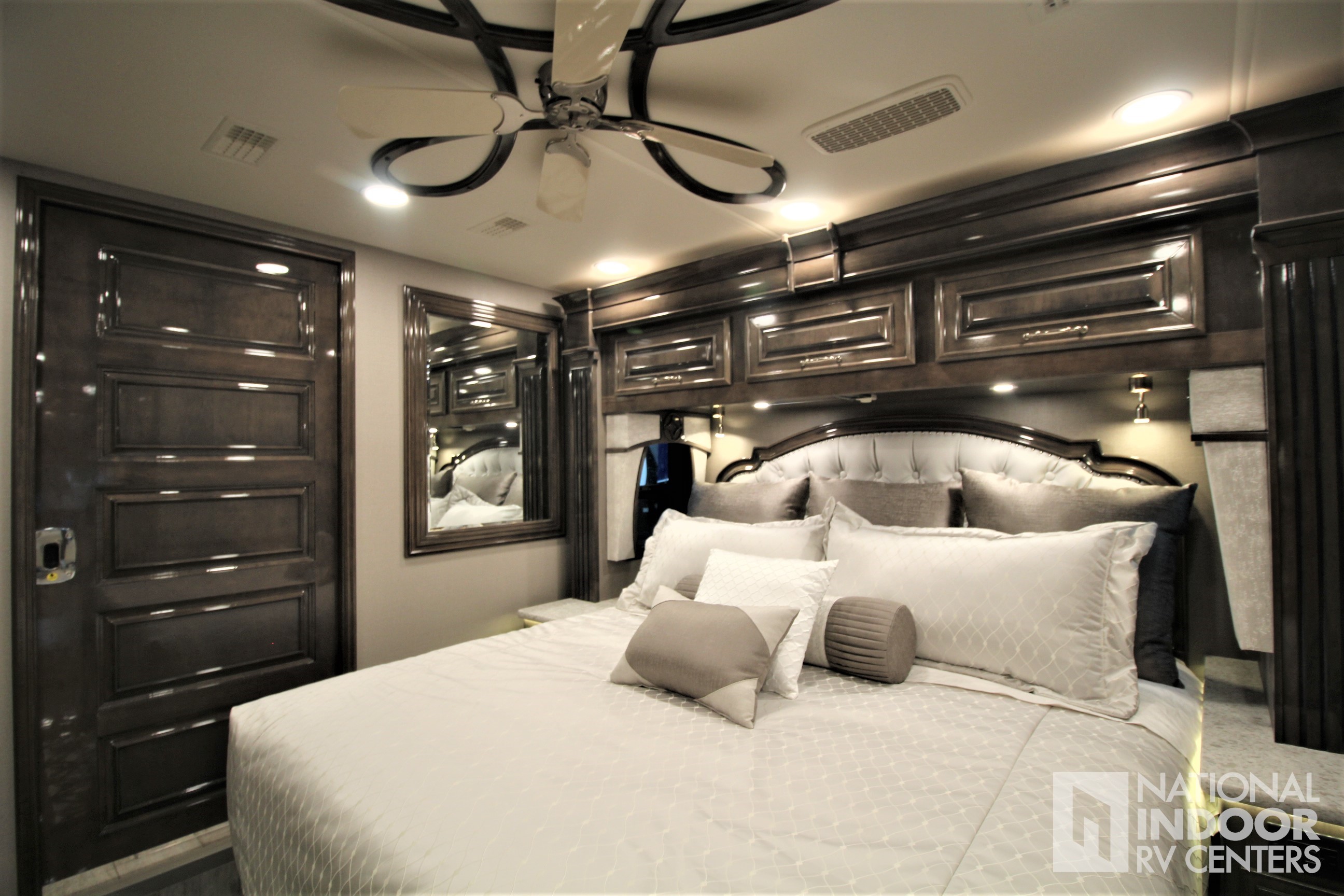

Bed |
Select Comfort® Sleep Number® king-sized mattress |

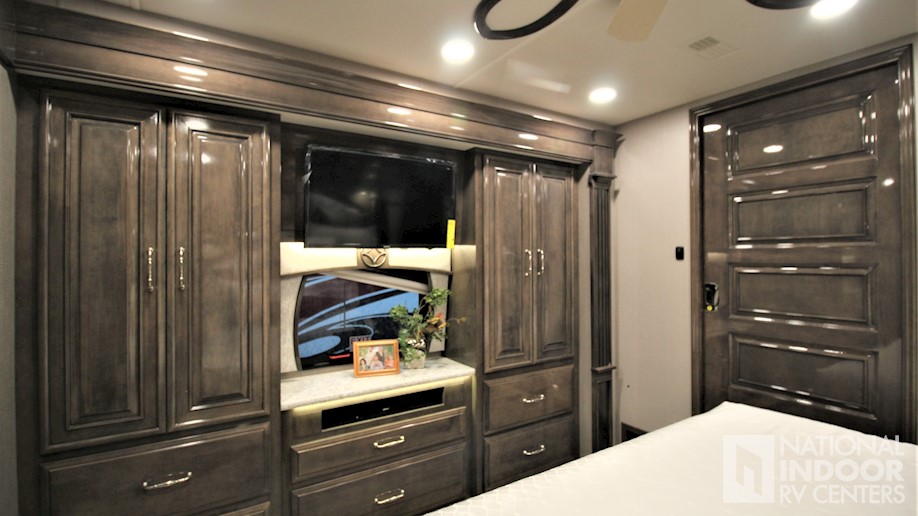

Television |
32” Samsung® LED, HD Slim 1080P Smart TV |
DVD Systems |
Sony® Blu-Ray® player |
Sound |
Bose® Solo 5 sound bar |
Ceiling Fan |
Ceiling fan |
Nightstands |
Nightstands with USB ports and solid quartz tops |

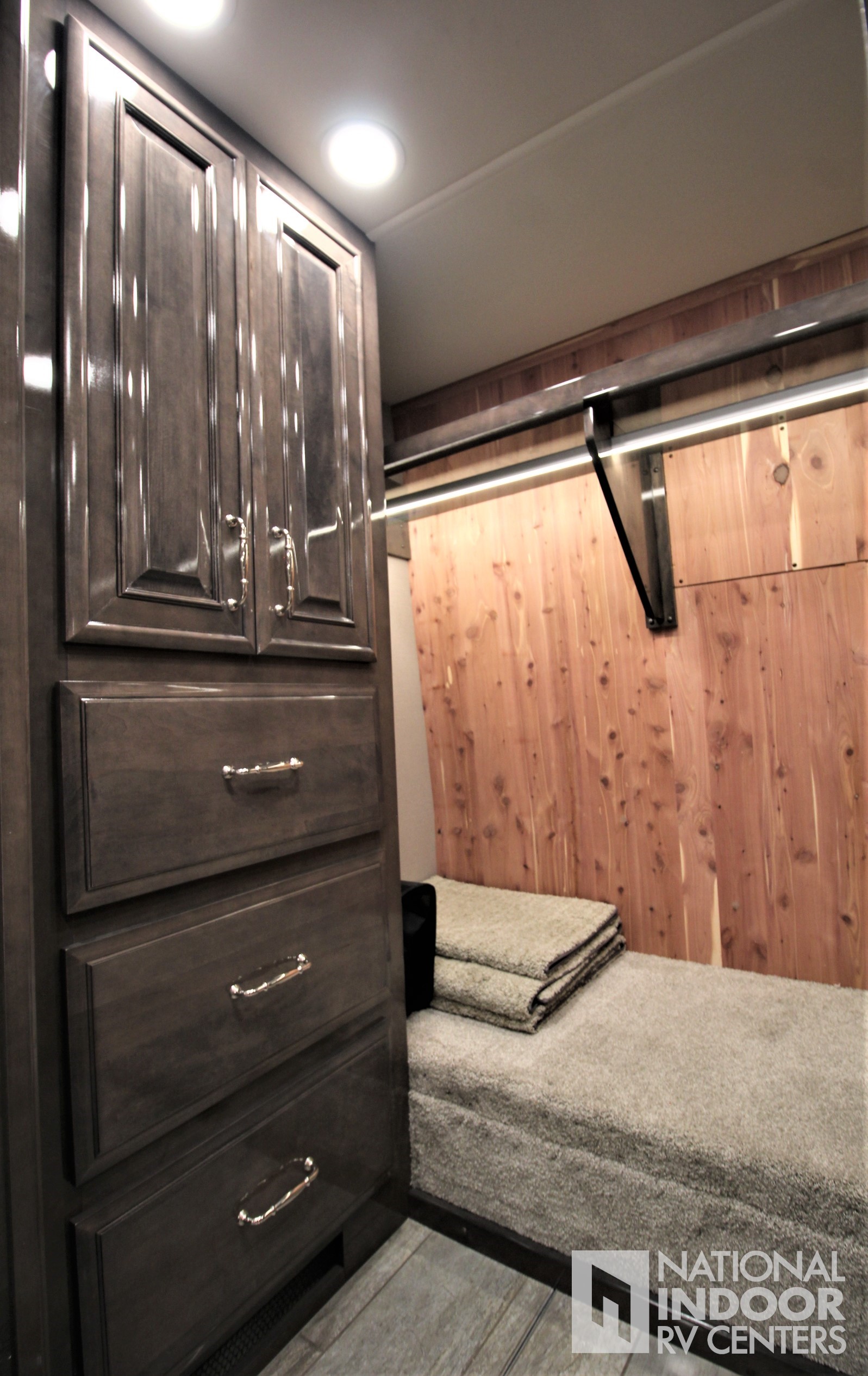

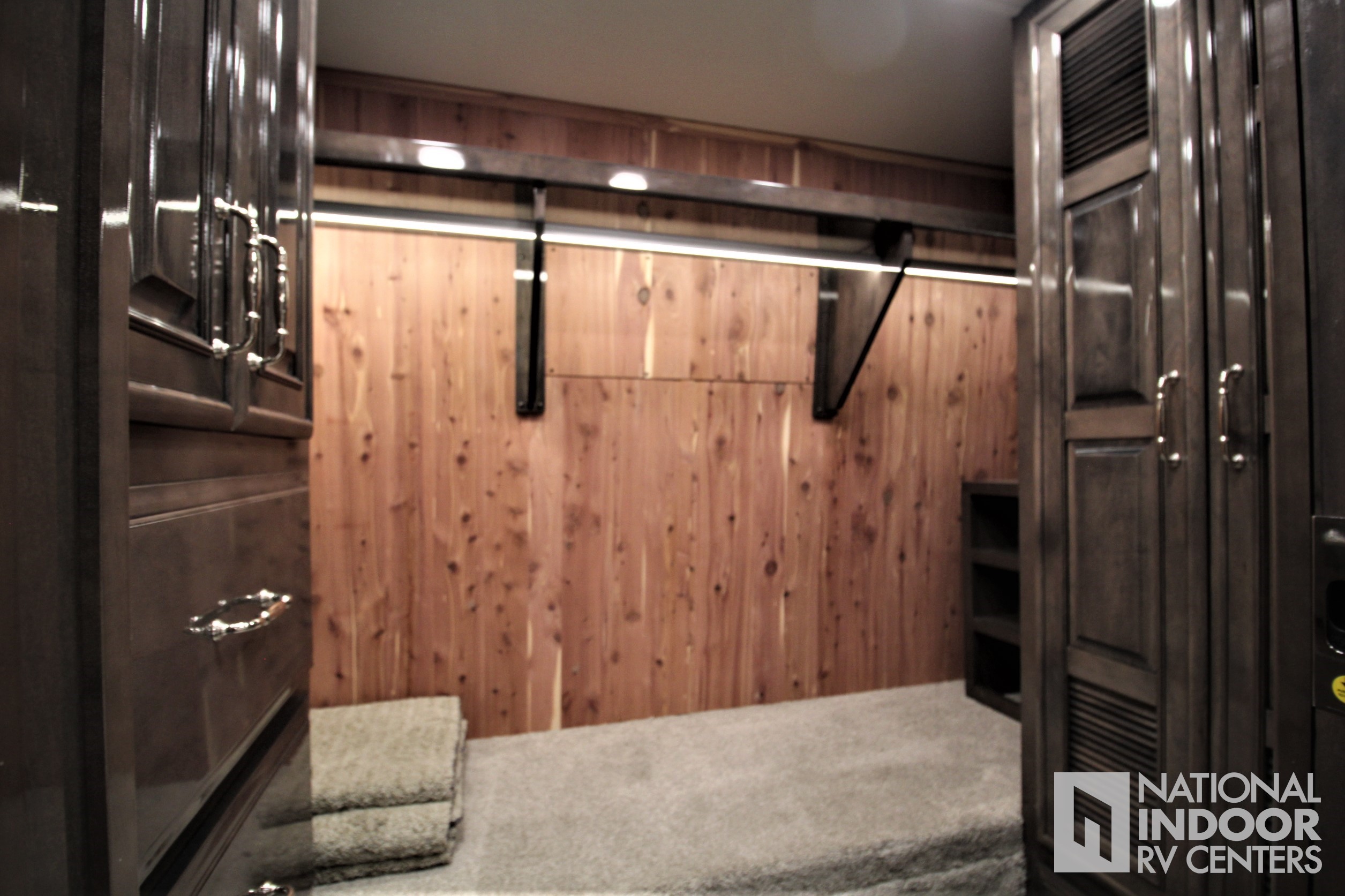

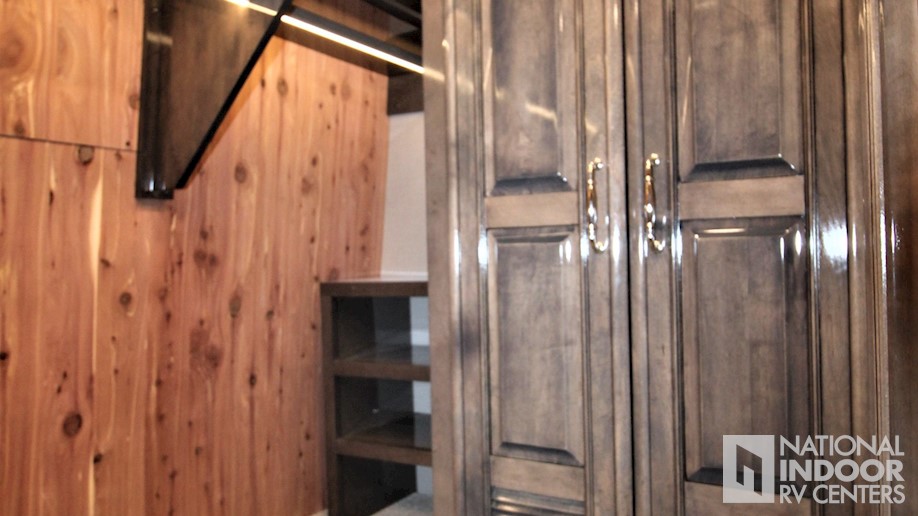

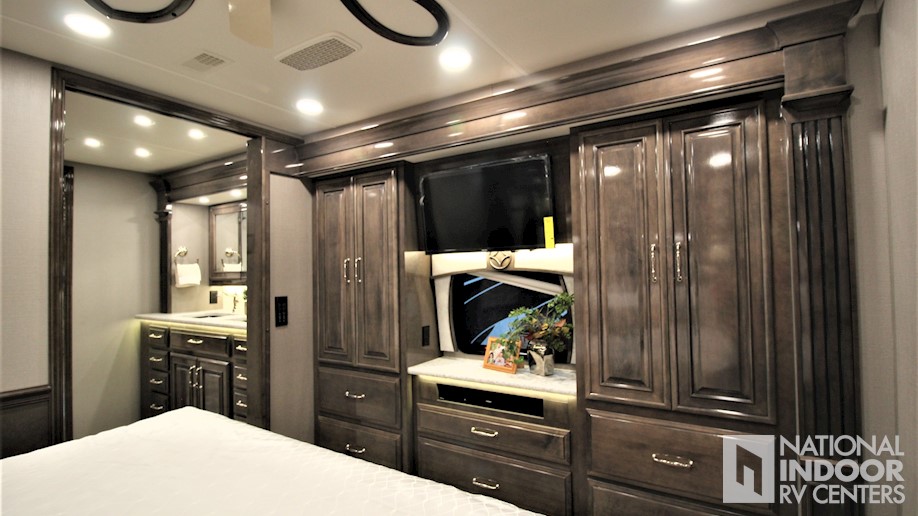

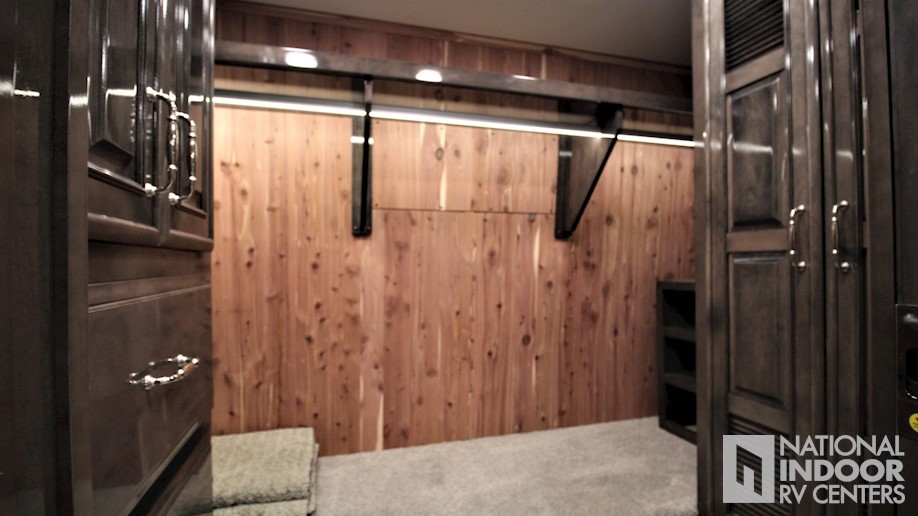

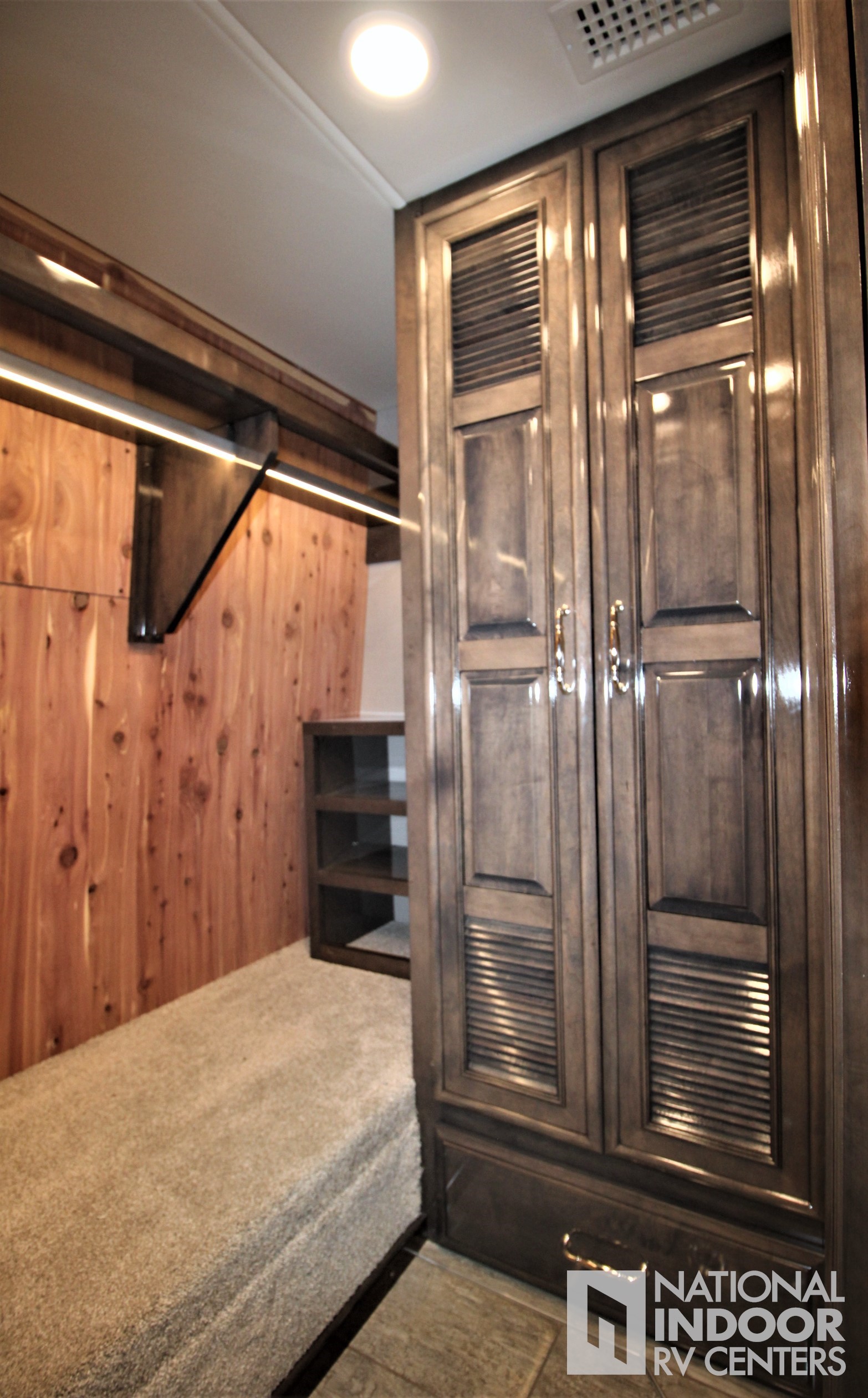

Wardrobe |
Large cedar-lined wardrobe with motion activated LED light |

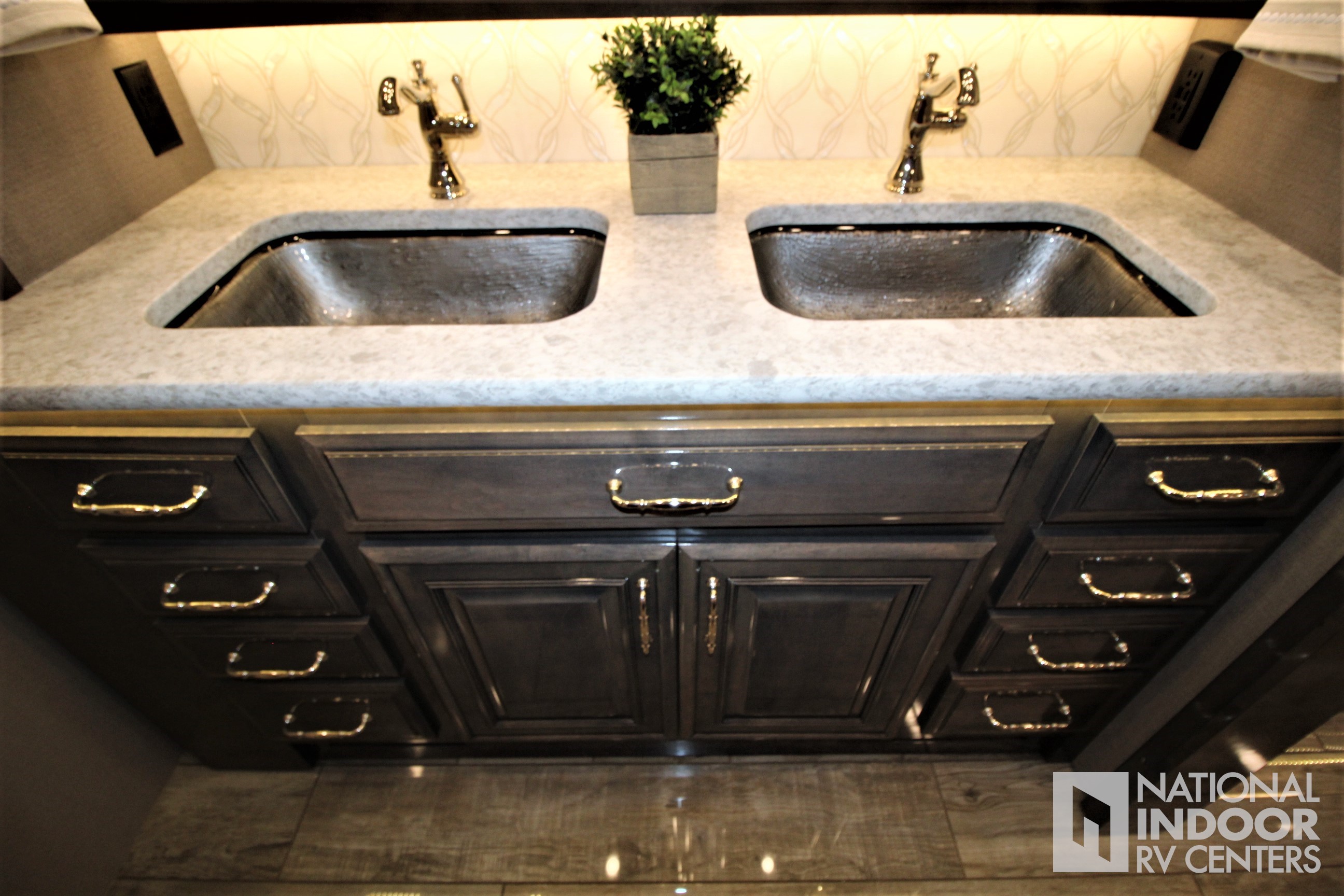

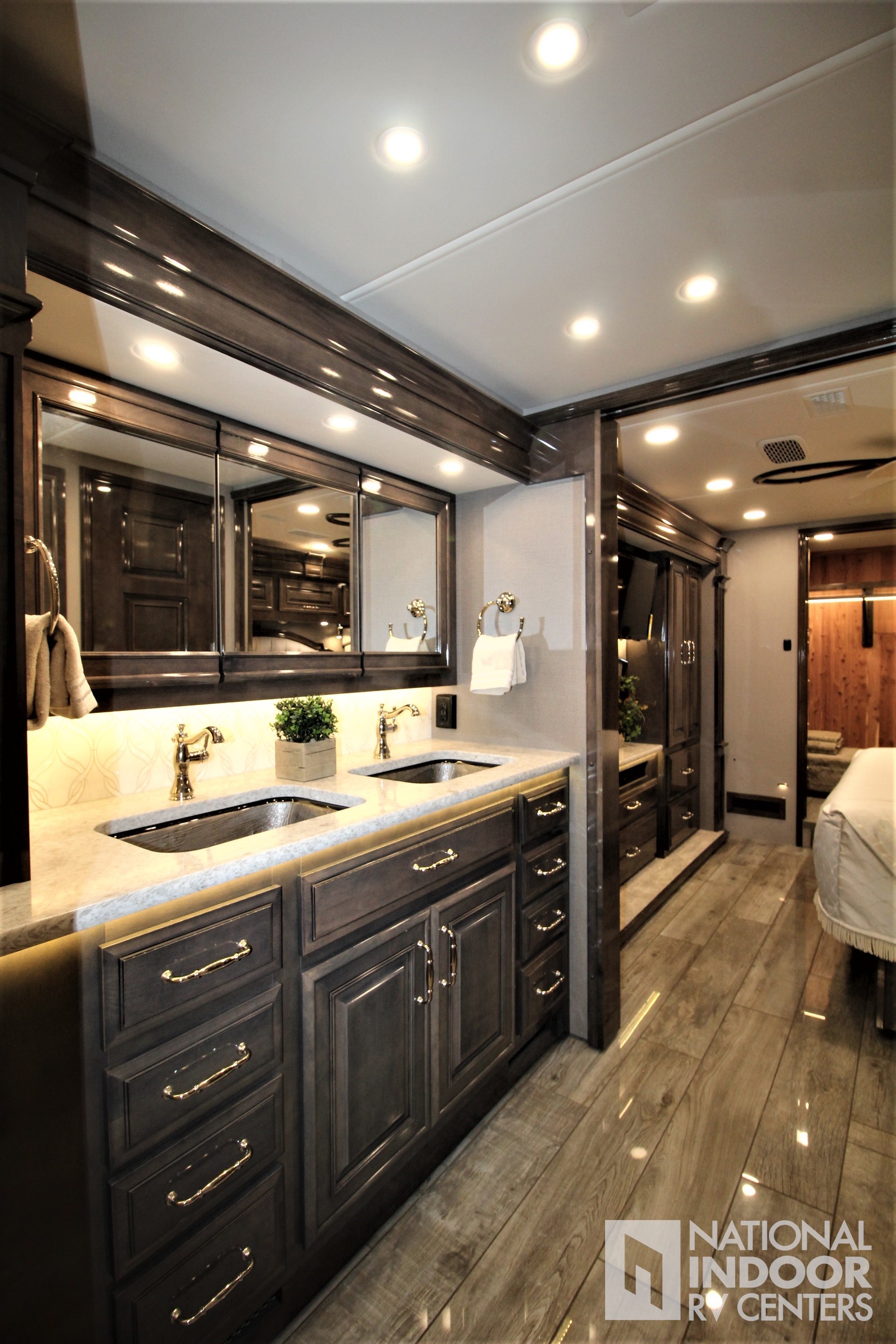

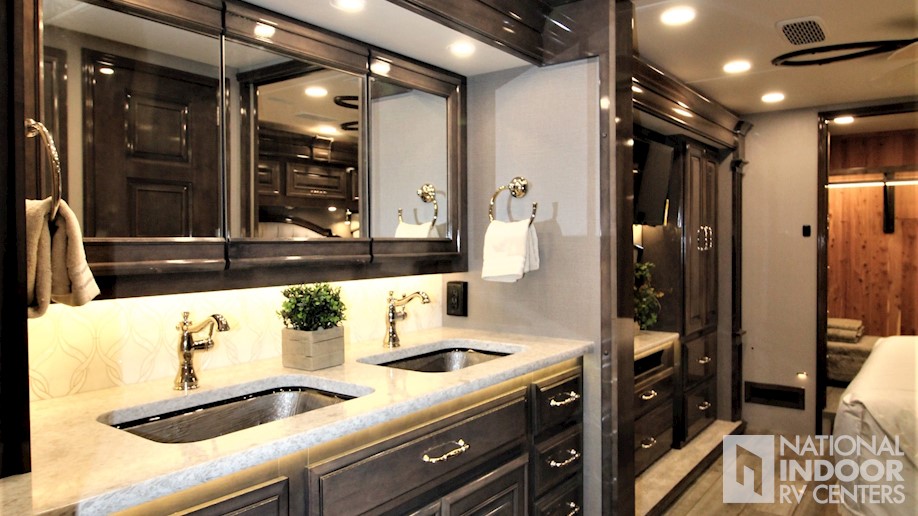

Countertop(s) |
Quartz countertops with dimmable LED accent lighting |

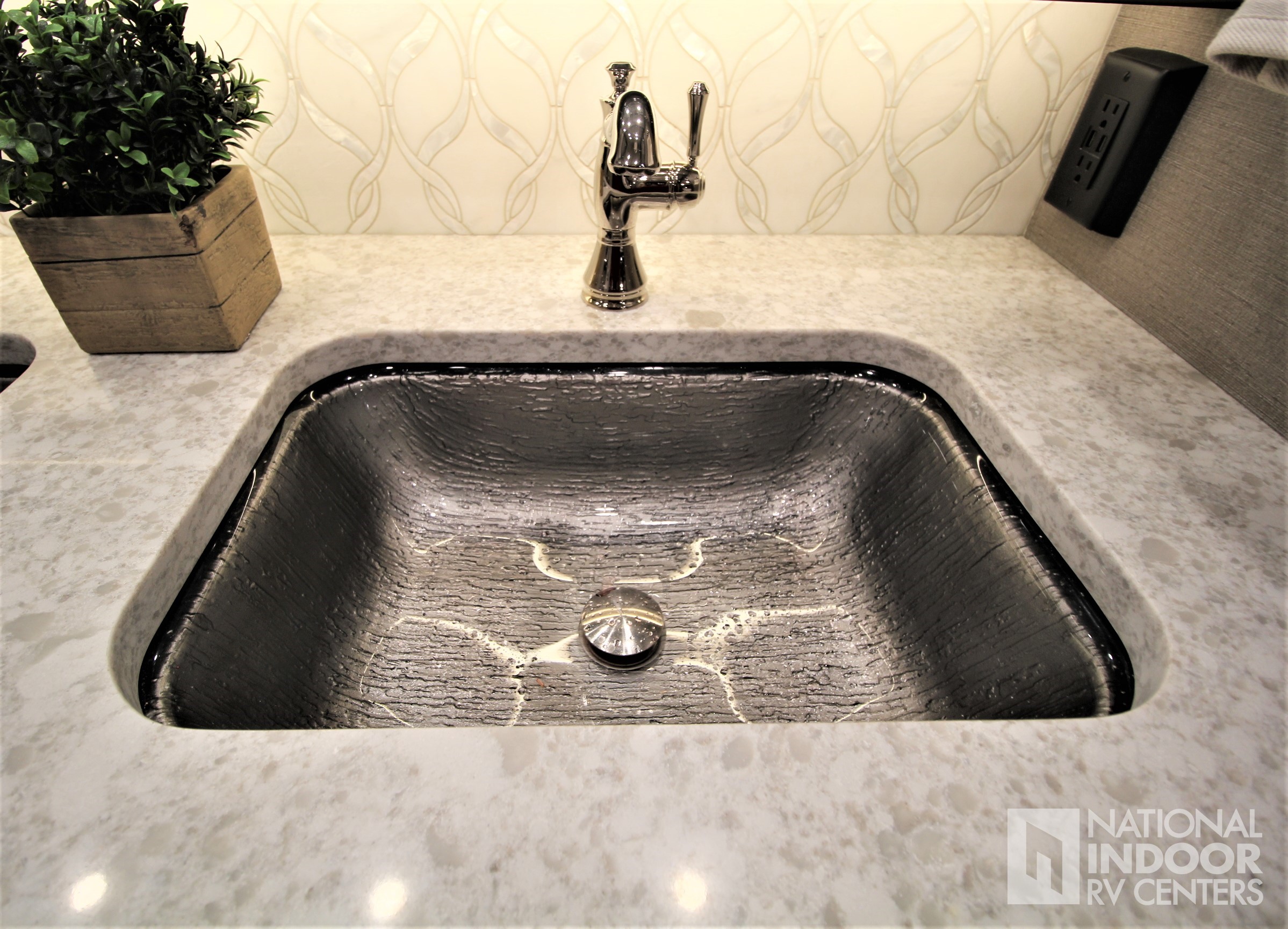

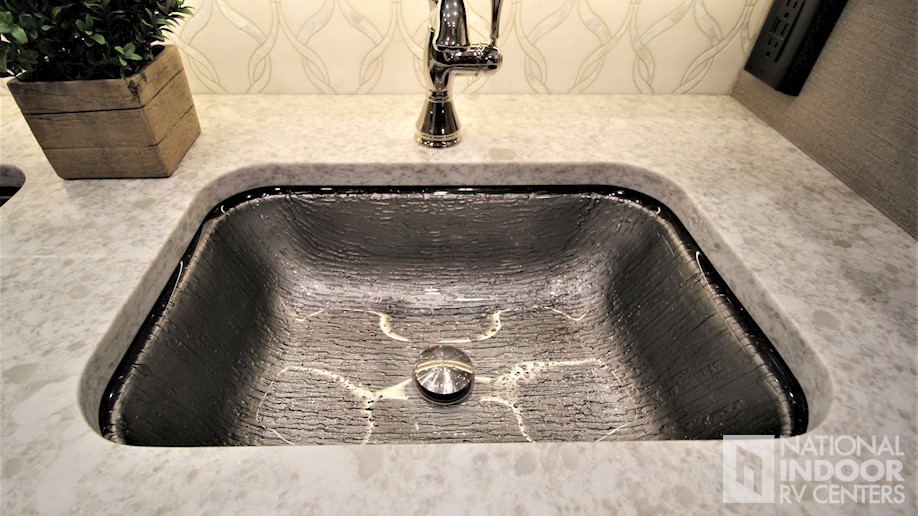

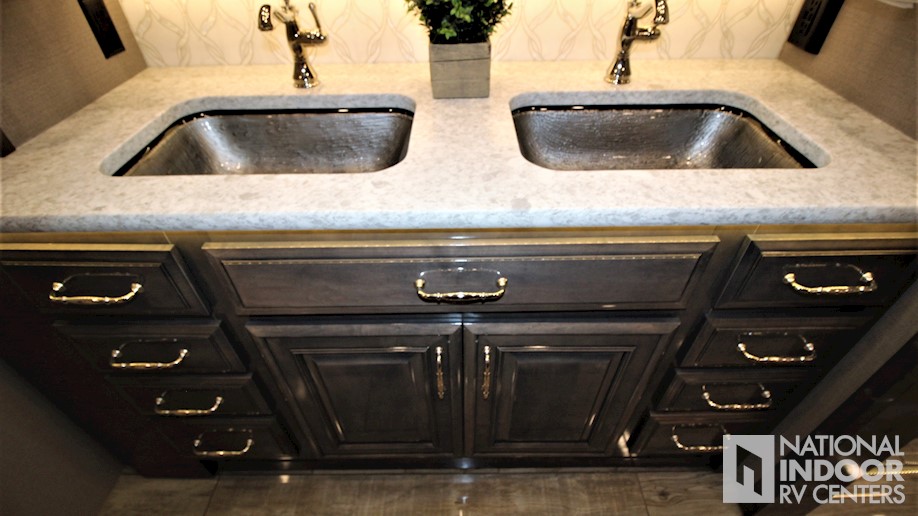

Sink |
Integrated glass sink |

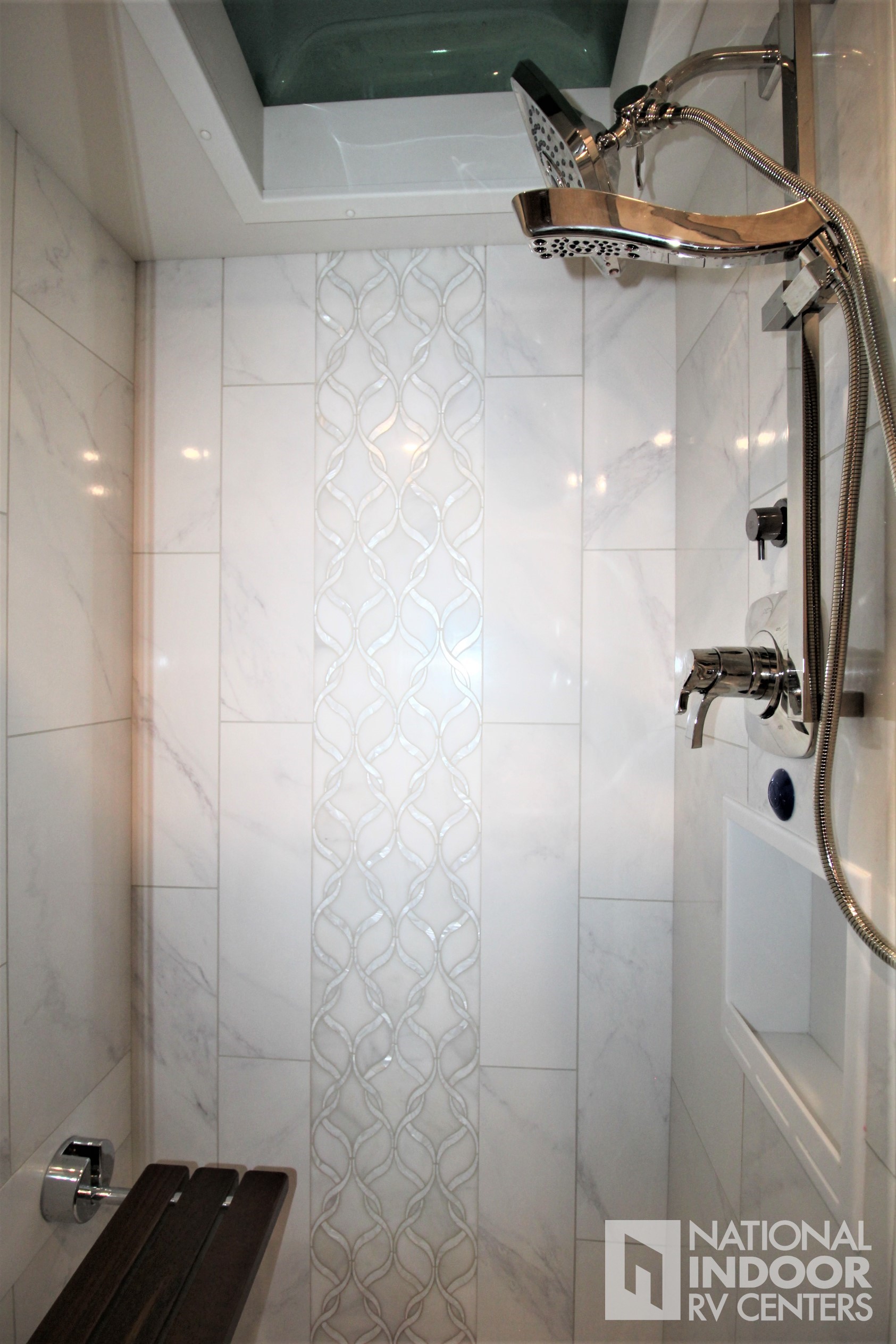

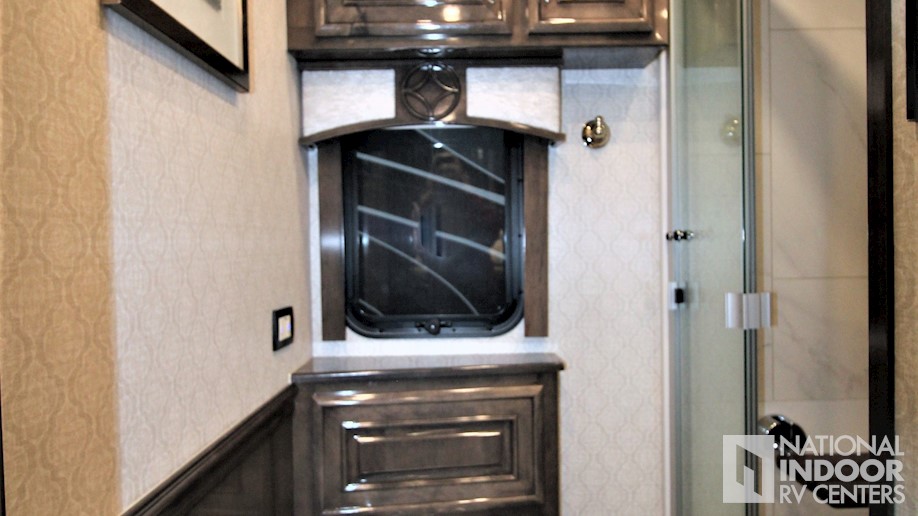

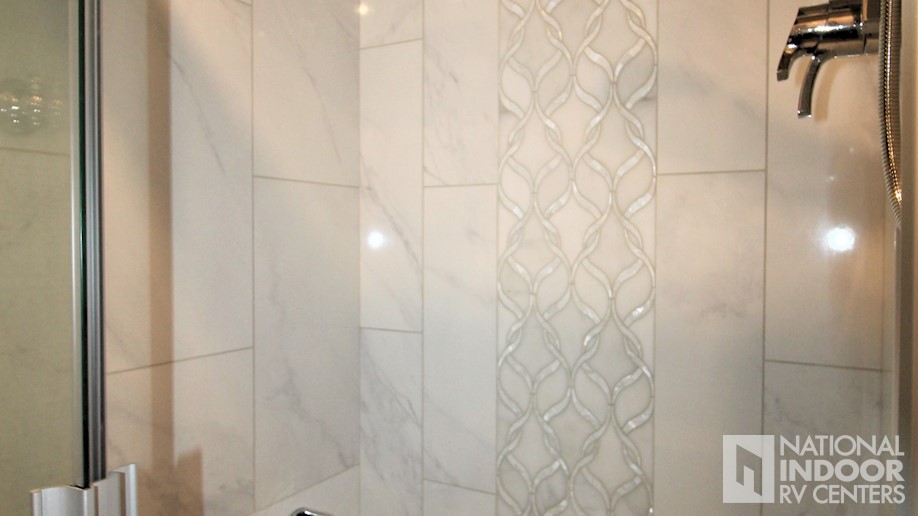

Shower |
Porcelain tile shower walls and floor with skylight and frameless glass shower door |
Shower Seat |
Teakwood shower seat (not available in 45F) |
Shower Head |
Pivoting shower head and separate hand-held spray wand |
Water Saving System |
Aqua View Showermiser water saving system |

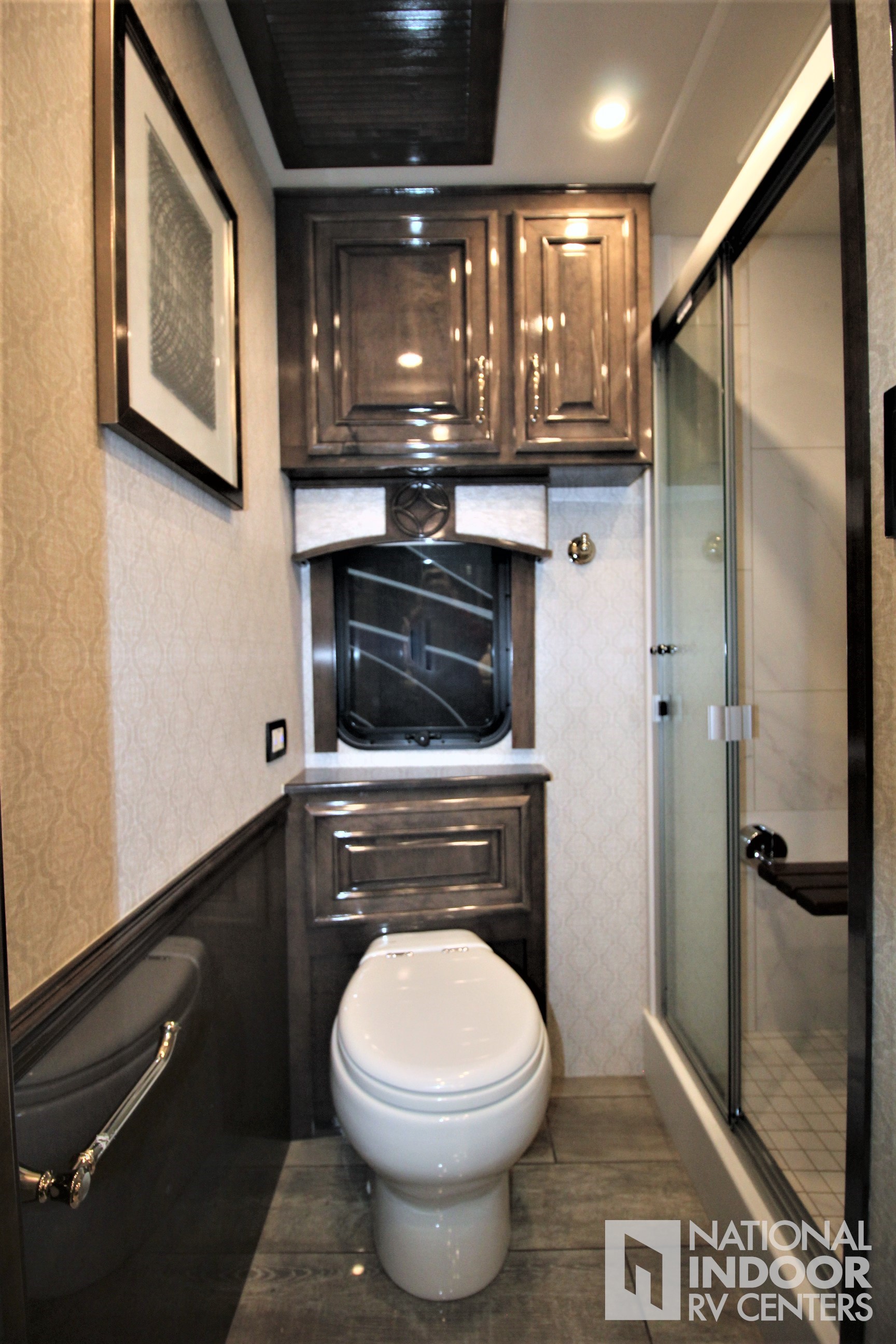

Toilet |
SaniFlo macerator toilet in main bath (N/A on 45X, 45Y, 45Z) |
Vent |
Maxxair® Deluxe power exhaust vent fan with intake |
Carbon Monoxide Detector |
Carbon monoxide detector |
Security System |
Security system with glass shatter sensors |
Smoke Alarm |
Smoke alarm |

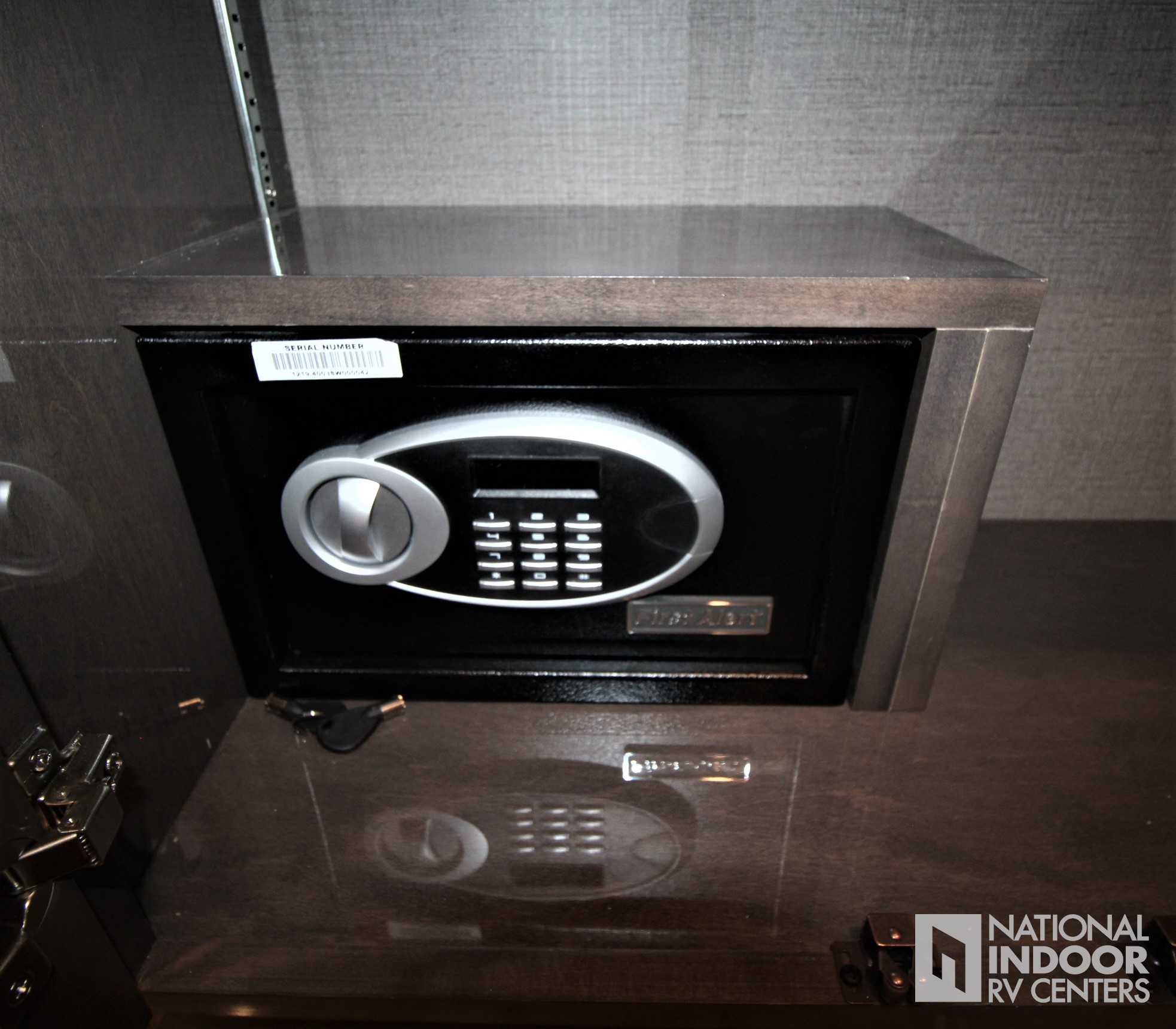

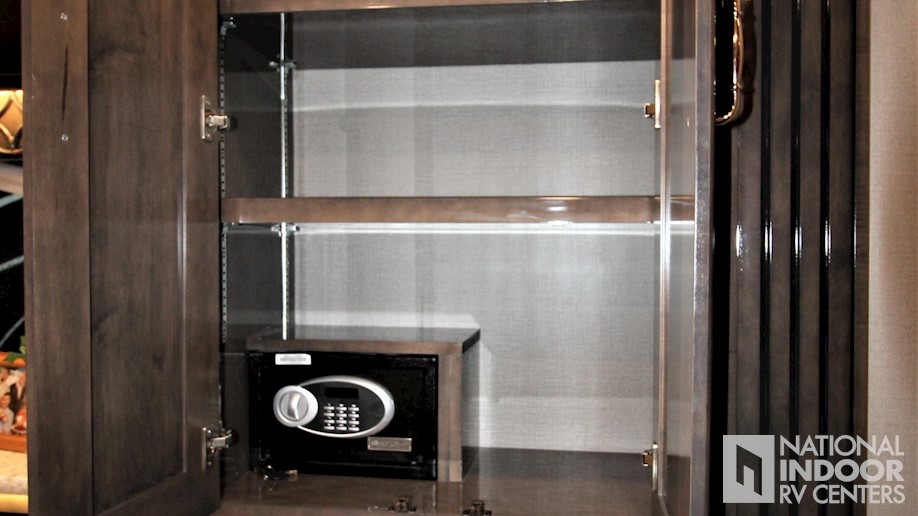

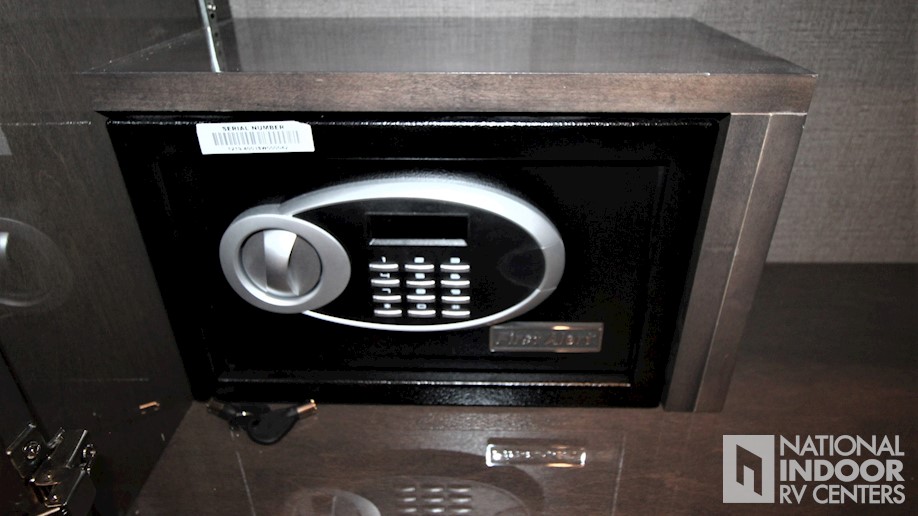

Security Safe |
Safe |
Seat Belts |
Seat belts in every designated seating position |
Canadian Standards |
Canadian Standards- CSA |
Theater Seating |
Theater seating with power recliners and fixed console |

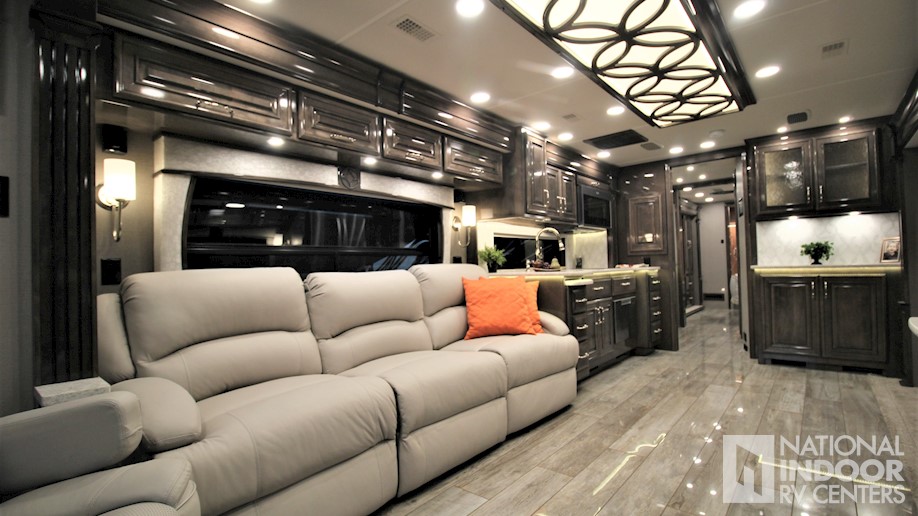

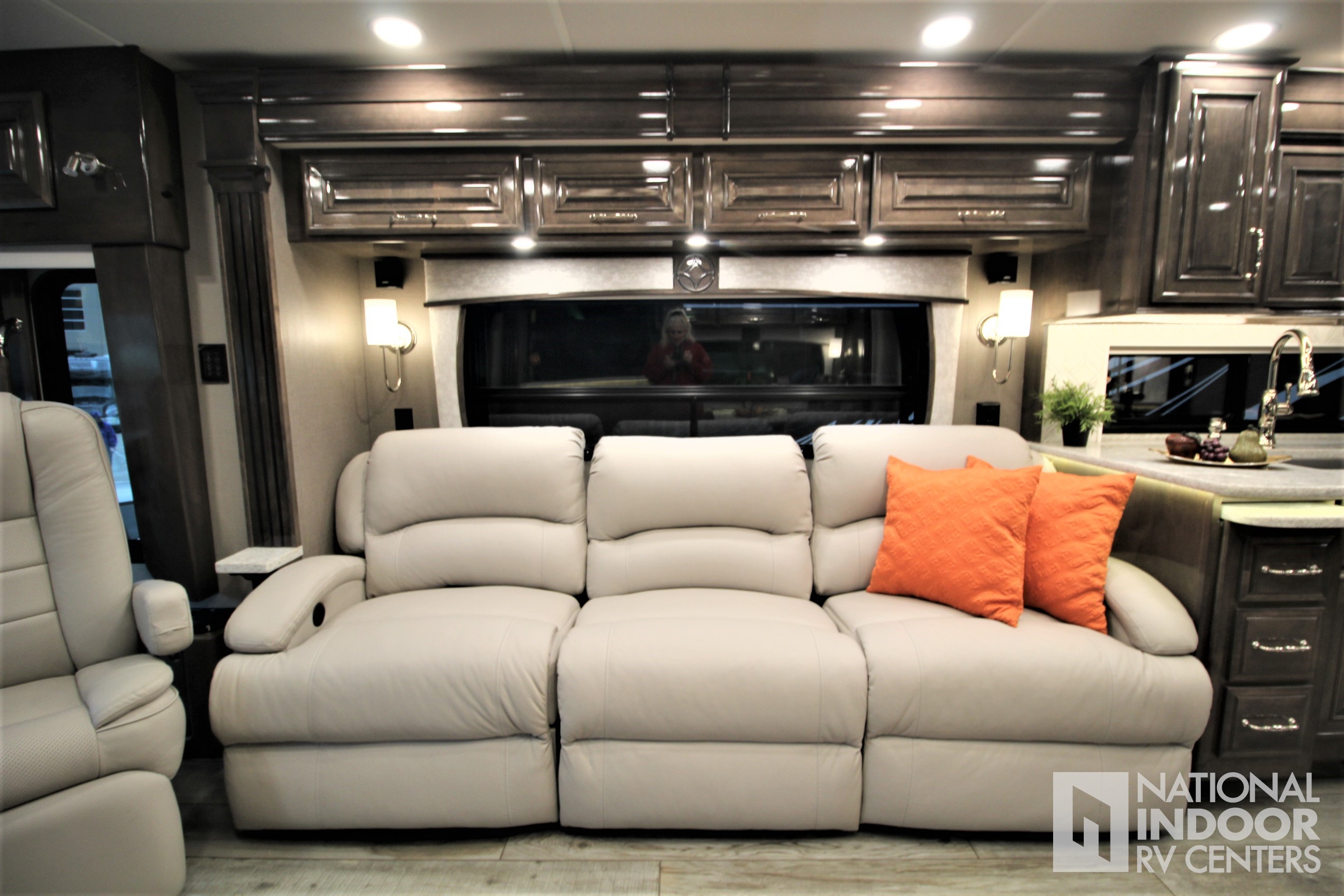

Reclining Sofa |
100" power reclining sofa |
Fireplace/TV/entertainment center and work station ILO sofa |
Fireplace/TV/entertainment center and work station ILO sofa |
Satellite Dish |
Winegard In-Motion satellite dome |
Satellite Dish - US |
Winegard TRAV'LER Dish Network |
Solar |
Dual 100 watt solar panels |
Dinette |
Dinette booth |

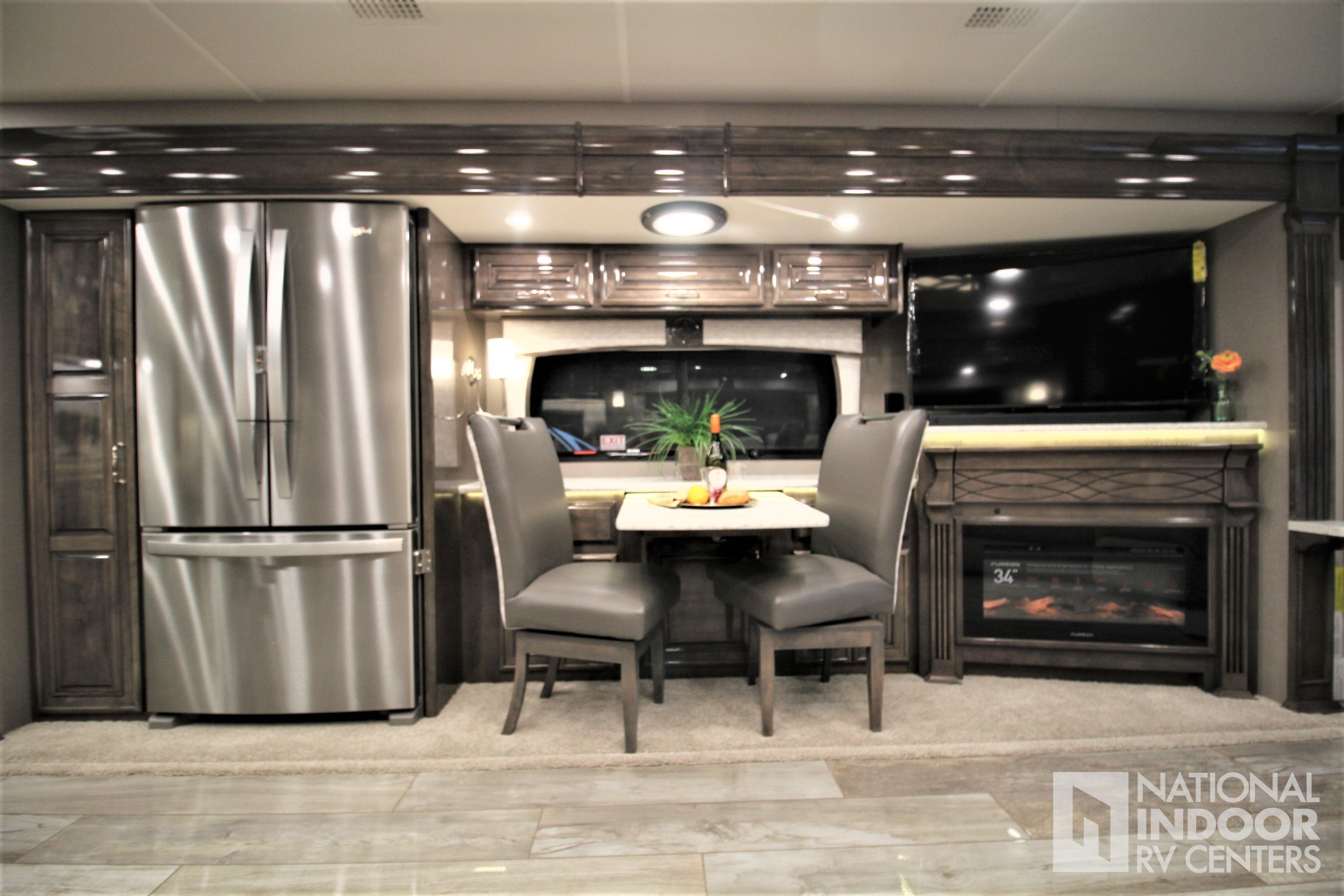

Freestanding Table |
Freestanding table with 4 chairs |
