Air Connection |
Remote air connection |
Leveling System |
Equalizer hydraulic automatic leveling system |
Alternator |
170-amp alternator |
Braking System |
ABS brakes on front and rear |
Chassis |
Spartan® K1 raised-rail chassis |
Chassis Battery |
(2) 12V chassis batteries |
DEF Tank |
10-gal. DEF tank (driver side fill) |
Engine |
Cummins® B6.7 turbocharged 360 HP engine 800 lb. ft. torque at 1,800 RPM |
Engine Block Heater |
750 watt engine block heater |
Engine Brake |
Variable geometry turbo (VGT) engine brake |
Front Axle |
Independent front air suspension (IFS) front axle- 12,600-lb.(37K) 14,320-lb.(39BH/39T2) |
Front Suspension |
Independent front air suspension |
Fuel Tank |
100-gal. fuel tank (driver side fill) |
Hitch |
10,000-lb. hitch with 7/4-pin plug |

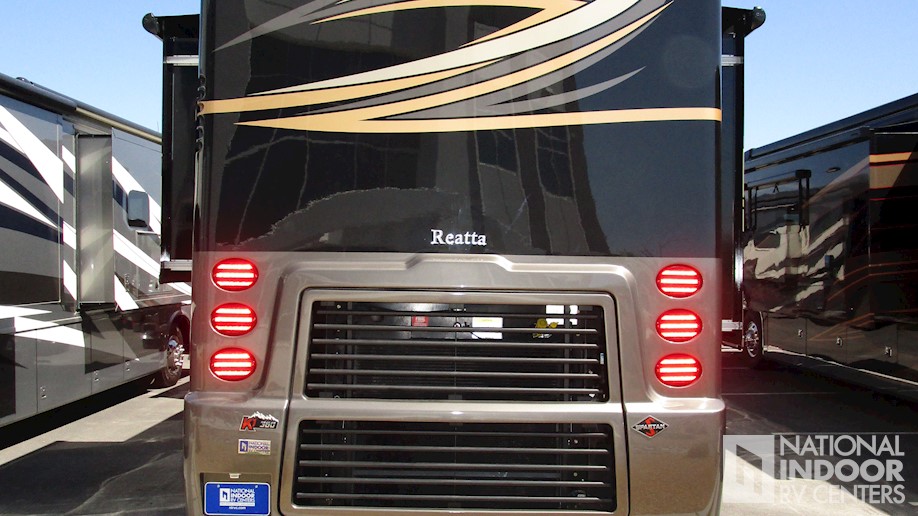

Radiator |

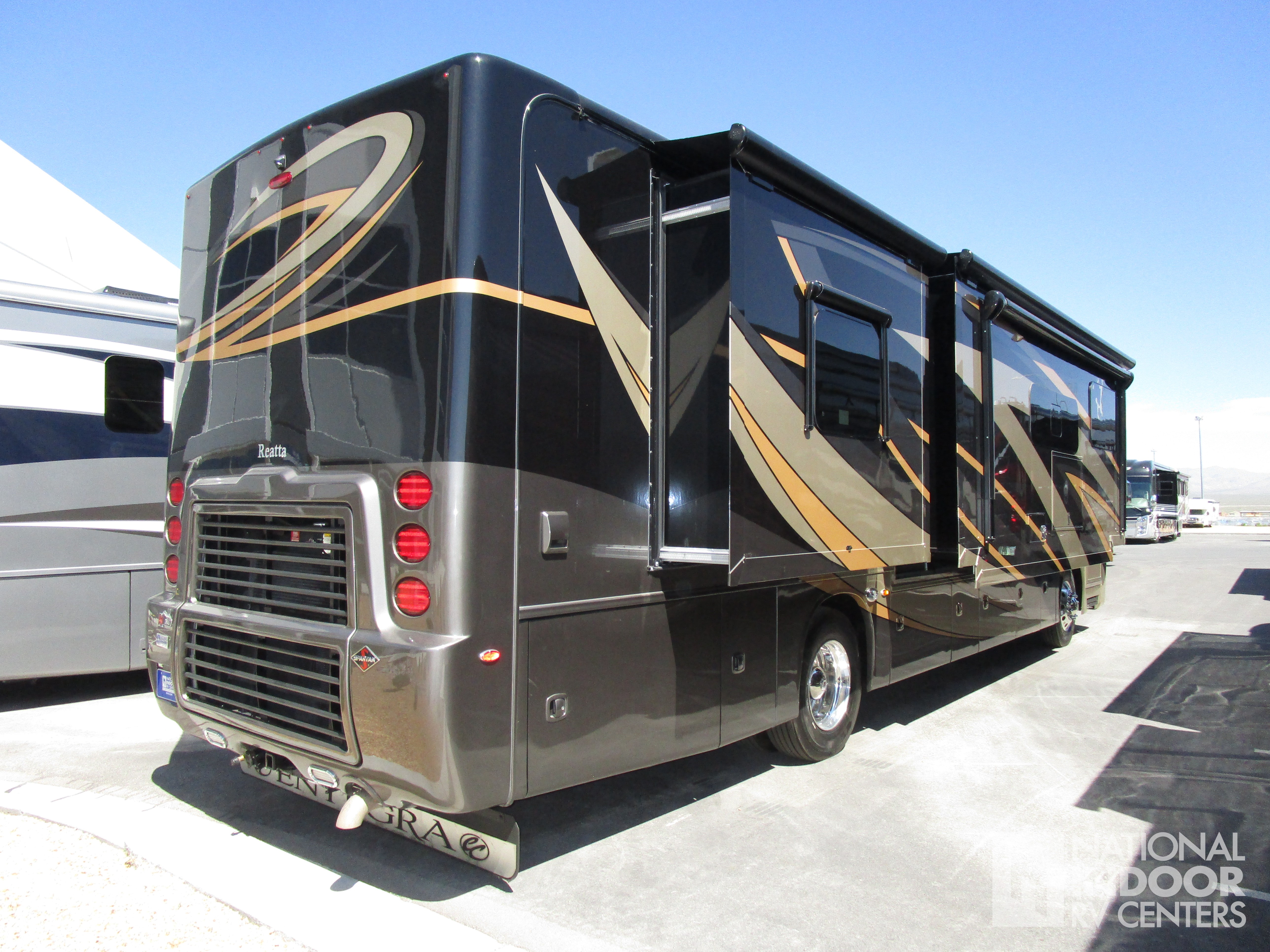

Rear-mounted radiator |
Rear Axle |
Rear axle 20,000-lb. (37K) 22,000-lb. (39BH/39T2) |
Rear Axle Ratio |
4.88 rear axle ratio |
Shocks |
Bilstein® 46mm shocks |
Tires |
Michelin® 275/80R 22.5" tires |
Tow Air Brake System |
Spartan® Safehaul tow vehicle air brake system |
Transmission |
Allison® 3,000 MH 6-speed transmission |
Turning Radius |
55° turning radius |
Tire Pressure Monitoring |
Tire pressure monitoring system (TPMS) with temperature monitoring |
Roof |
One-piece fiberglass with 3/8" plywood decking, 4" arched aluminum trusses, insulation and reflective Flexfoil® (R-24) |
Floor |
Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurewood® and 1/4" plywood |

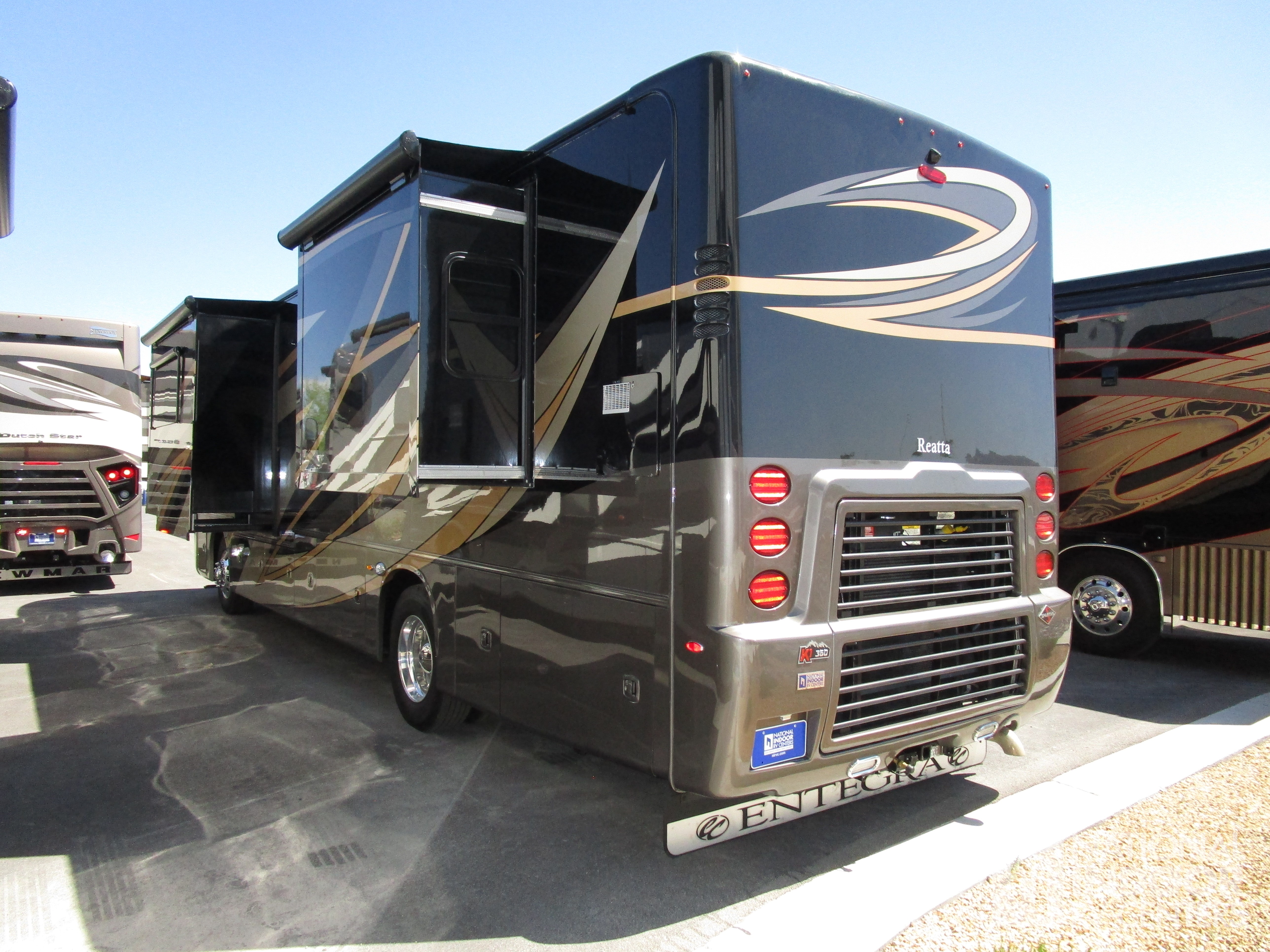

Slideouts |
Electric-powered slideout rooms |
Walls |
Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation |
Frame |
X-Bridge™ bracing welded into chassis frame |
Air Conditioning |
(3) 15,000 BTU A/C units with heat pumps [(2)15,000 BTU units with heat pumps on 37K] |
Generator |
Onan® 8,000 watt diesel generator, with automatic start, on slide-out tray |
Heating System |
35,000 BTU furnace (37K)/ (1) 20,000 and (1) 30,000 (39BH, 39T2) |
Batteries |
(2) L16 AGM batteries (6V/390 amp hrs. ea.) |
Inverter |
2,000 watt pure sine wave inverter with 100 amp battery charger |
Water Heater |
10 gal. gas/electric water heater |
Propane |
24.5 gal. propane tank |
Tank Flush |
Black holding tank sprayer |
Black Tank Management |
Sani-Con® Macerator holding tank dump system with manual gate valves and manual backup |
Winterization Drain System |
Winterizing drain system |
Water Filtration |
City and tank water filtration system |
Heated Tanks |
Heated basement storage |
Electrical Hookup |
50 amp power cord |
Power Management |
Surge protector transfer switch |
Solar |
Solar power prep |
Front/Rear Cap |
Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame |
Patio Awnings |
Power patio awning with LED lights |
Door Awning |
Power entrance door awning with LED lights |
Power Cord |
50 amp power cord |
Slideout Awnings |
Slideout awnings |
Window Awnings |
Window awnings- manual |
Windows |
Frameless, dual-pane, tinted, safety-glass windows |
Entertainment |
Exterior 39” LED TV on adjustable TV bracket |
Mirrors |
Heated, remote control, side-view mirrors with integrated cameras |
Headlights |
Halogen high/low beam headlights and fog lights |
Daytime Running Lights |
Daytime running lights |
Rear Mudflap |
Full-width rear mudflap |
Keypad |
Grab handle with keypad system for keyless entry |
Exterior |
Diamond Shield™ front protective film mask |
TV Antenna |
Winegard® Rayzar Z1 TV antenna |
Satellite Dish - US |
Winegard® TRAV'LER satellite dish DIRECTV®- standard with USA option |
Satellite Dish - CA |
Winegard® TRAV'LER satellite dish Shaw TV- standard with CSA option |
Third Brake Light |
LED third brake light |
Paint |
Sikkens custom full body paint |
Utility Center |
Exterior utility center |

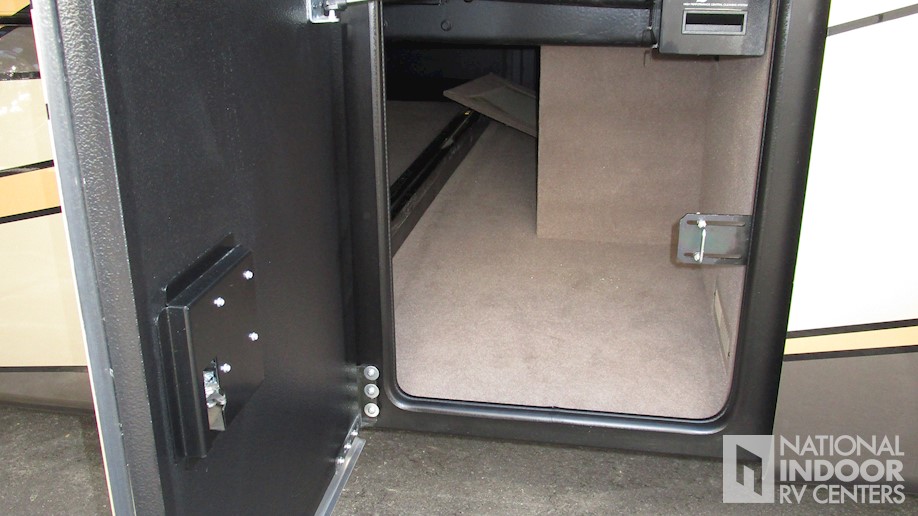

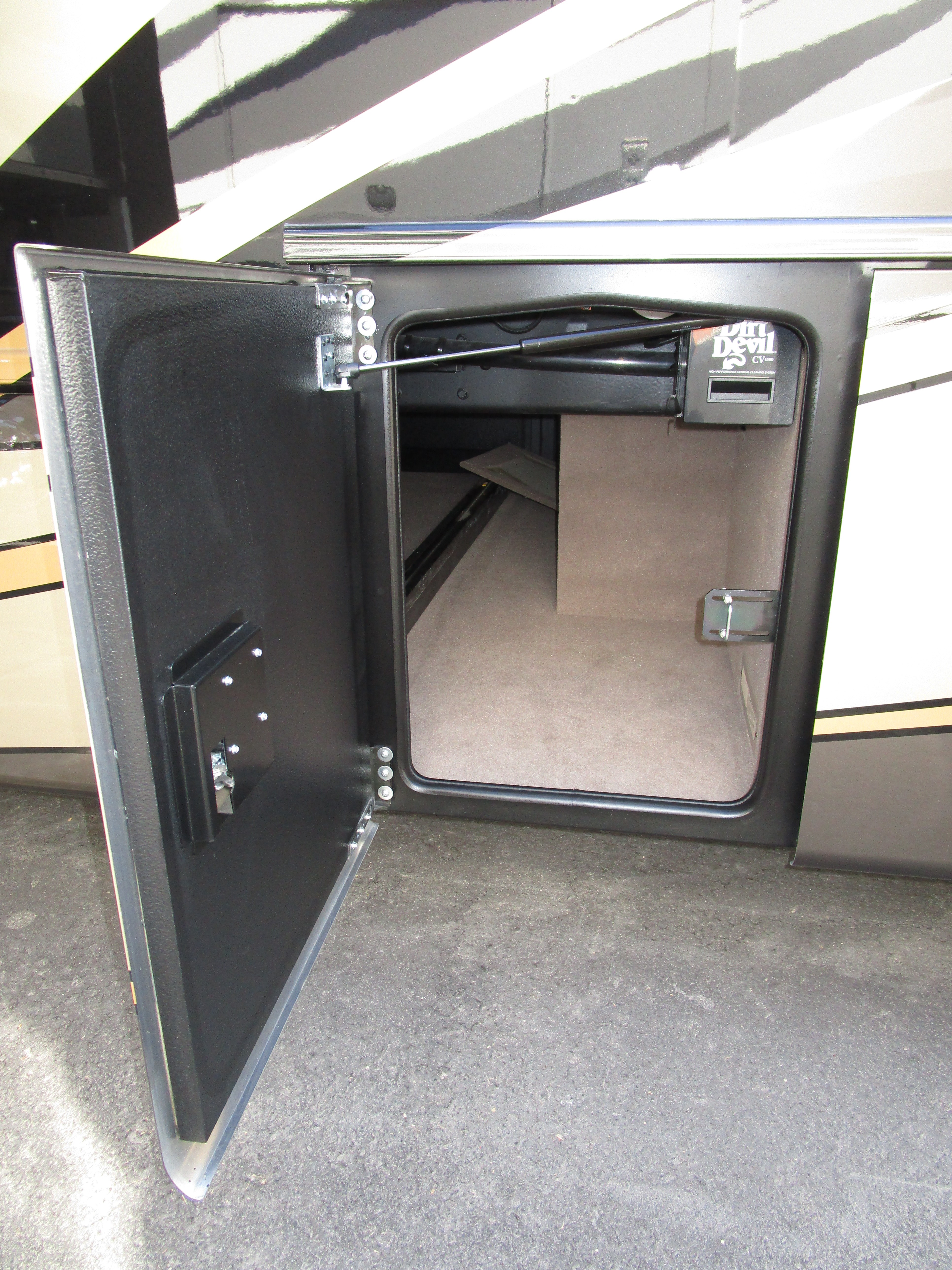

Cargo Features |

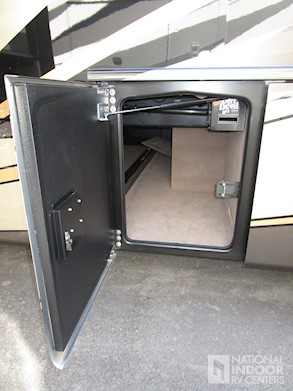

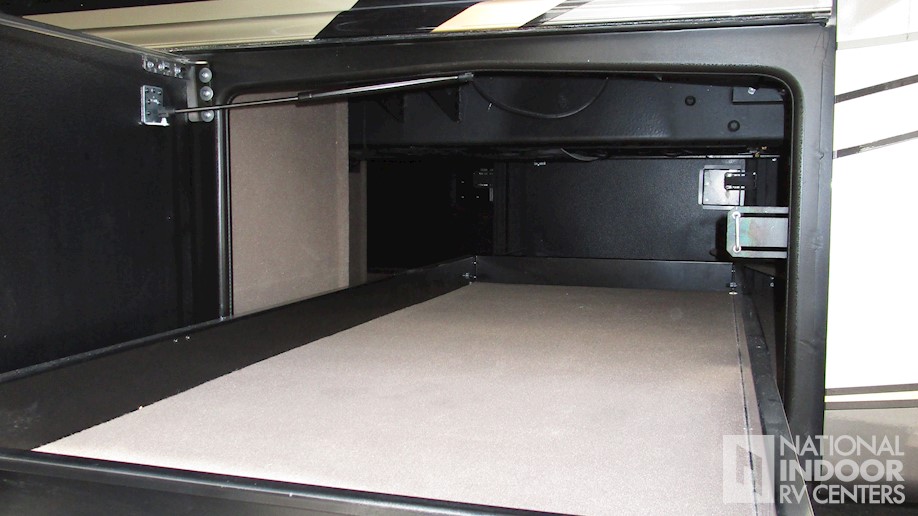

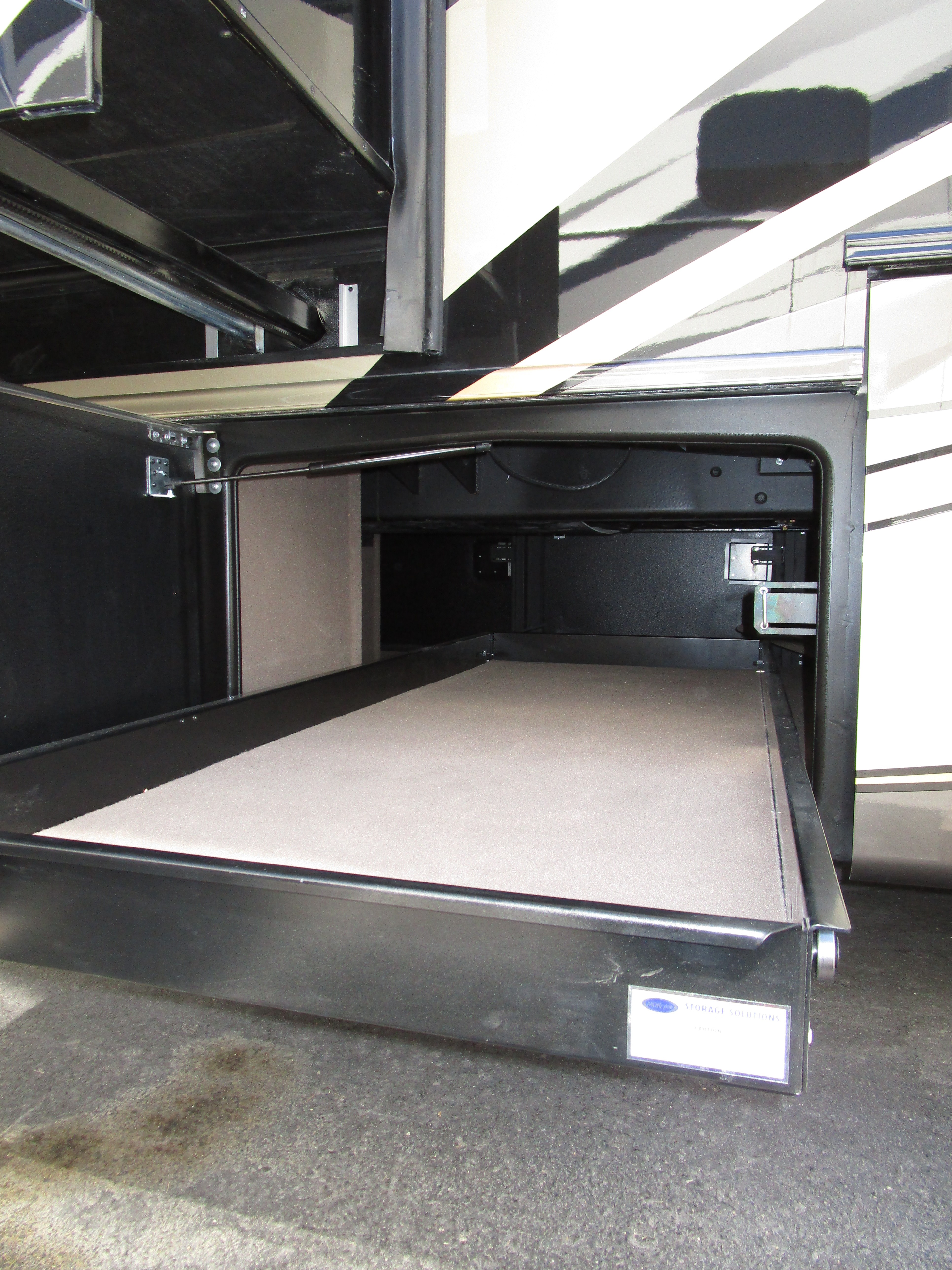

Slideout basement storage tray |
LED Lights |
LED marker lights, turn lights, license plate light, accent lights, & docking lights |
Wi-Fi |
Winegard® WIFI extender with 4G/LTE |

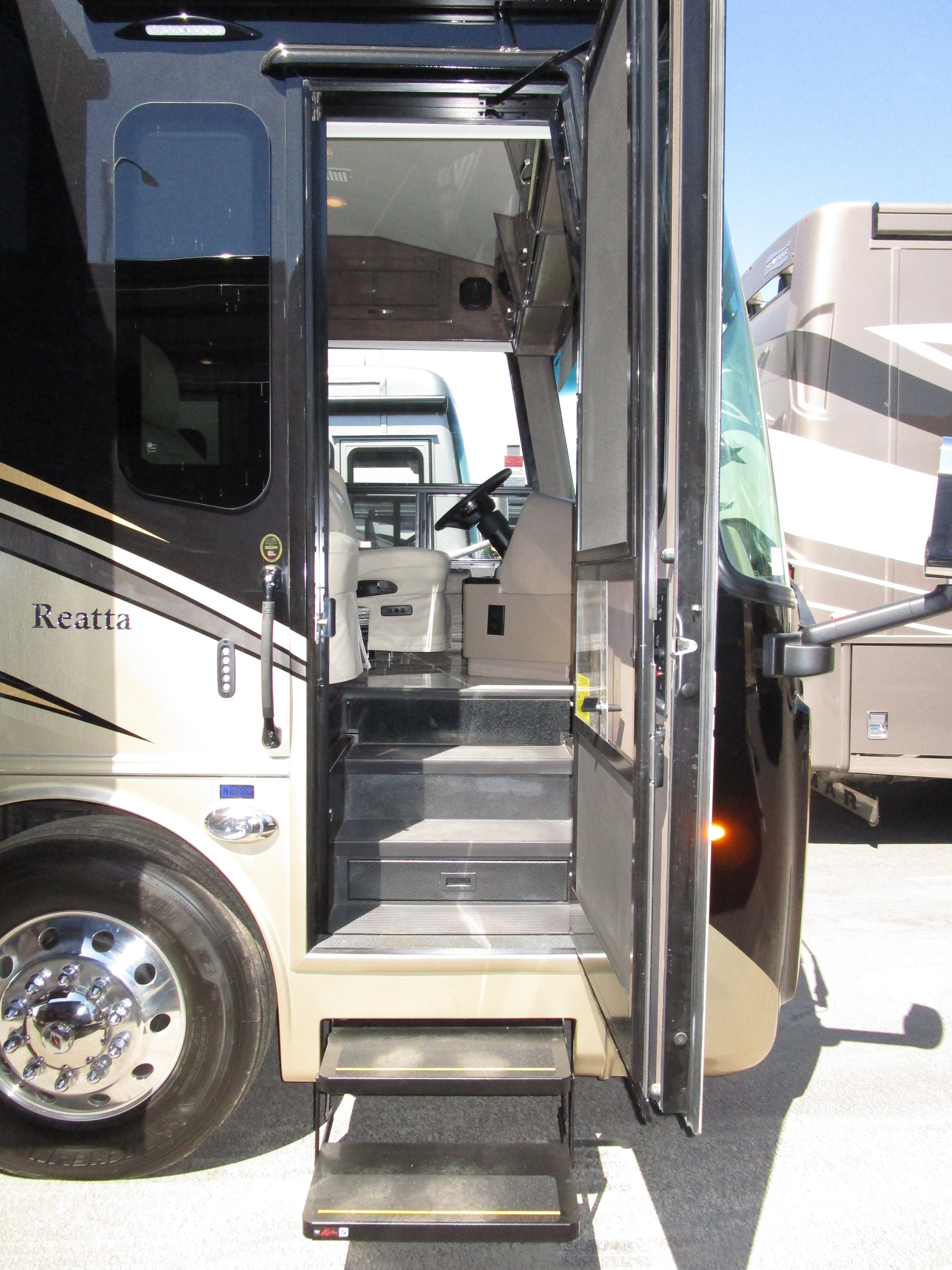

Entrance Door |
Removable screen on entry door |
Lights |
Porch light |

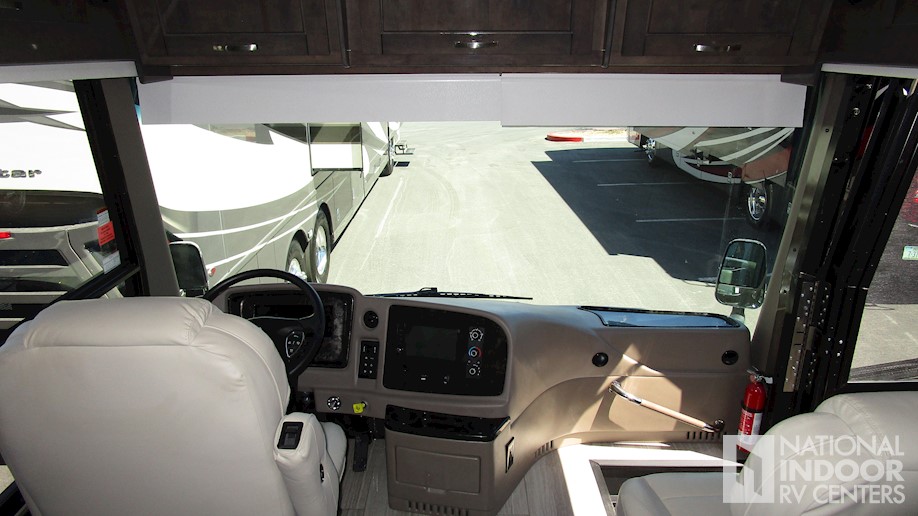

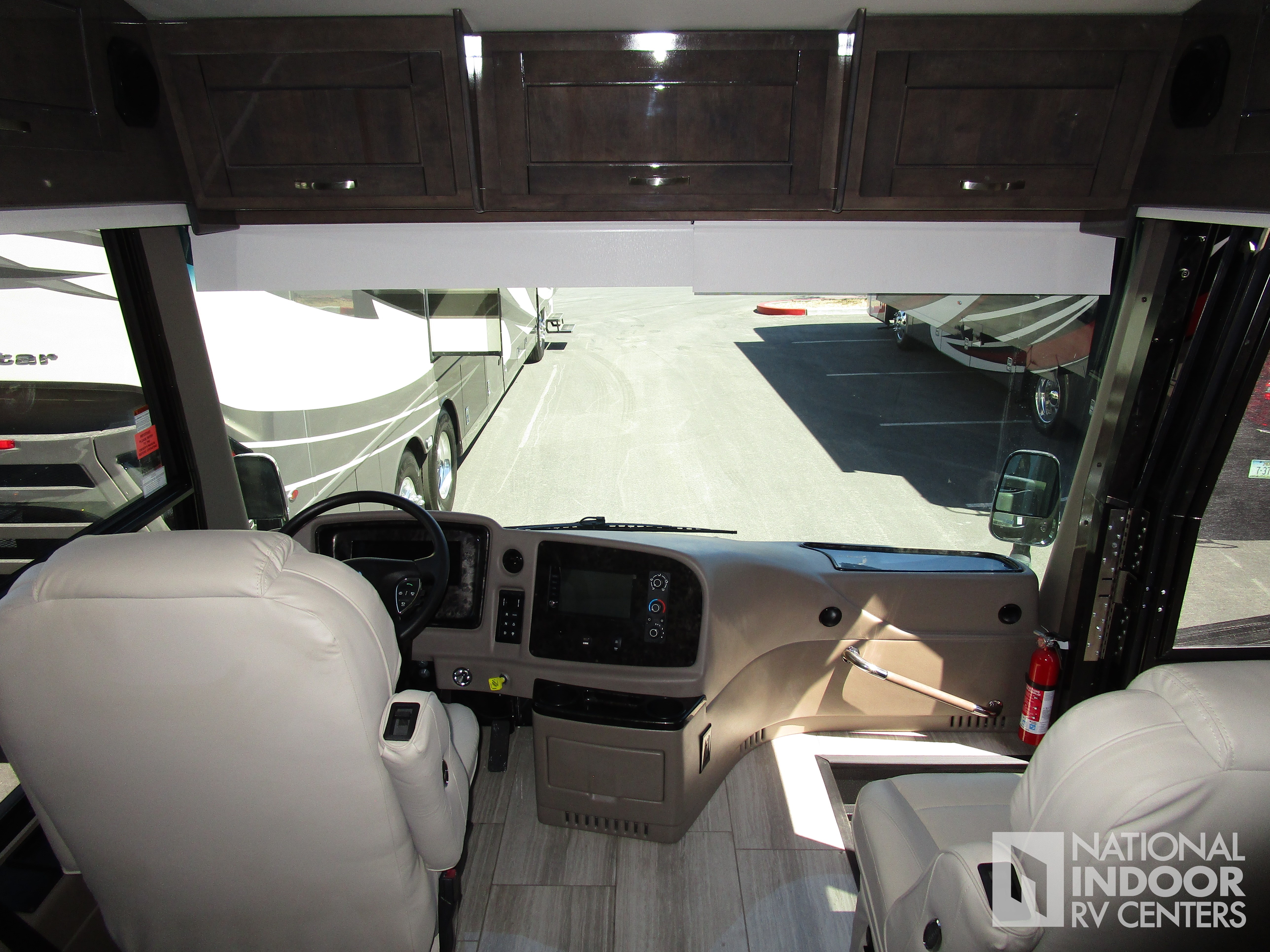

Dash |
Valid 12.3" digital dash with quad core graphics processor with ability to display on-board diagnostics, traditional instument cluster, 360 degree camera system or Rand McNally™ GPS navigation. |
Infotainment System(s) |
Xite™ XSG3 infotainment system with navigation, Bluetooth, Sirius XM and AM/FM tuner |
Cameras |
Xite™ 360° camera system that displays on digital dash screen |

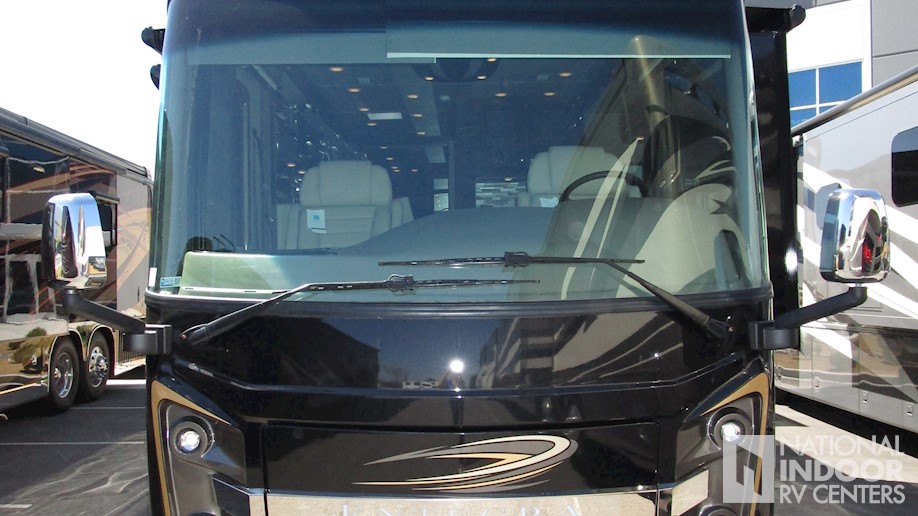

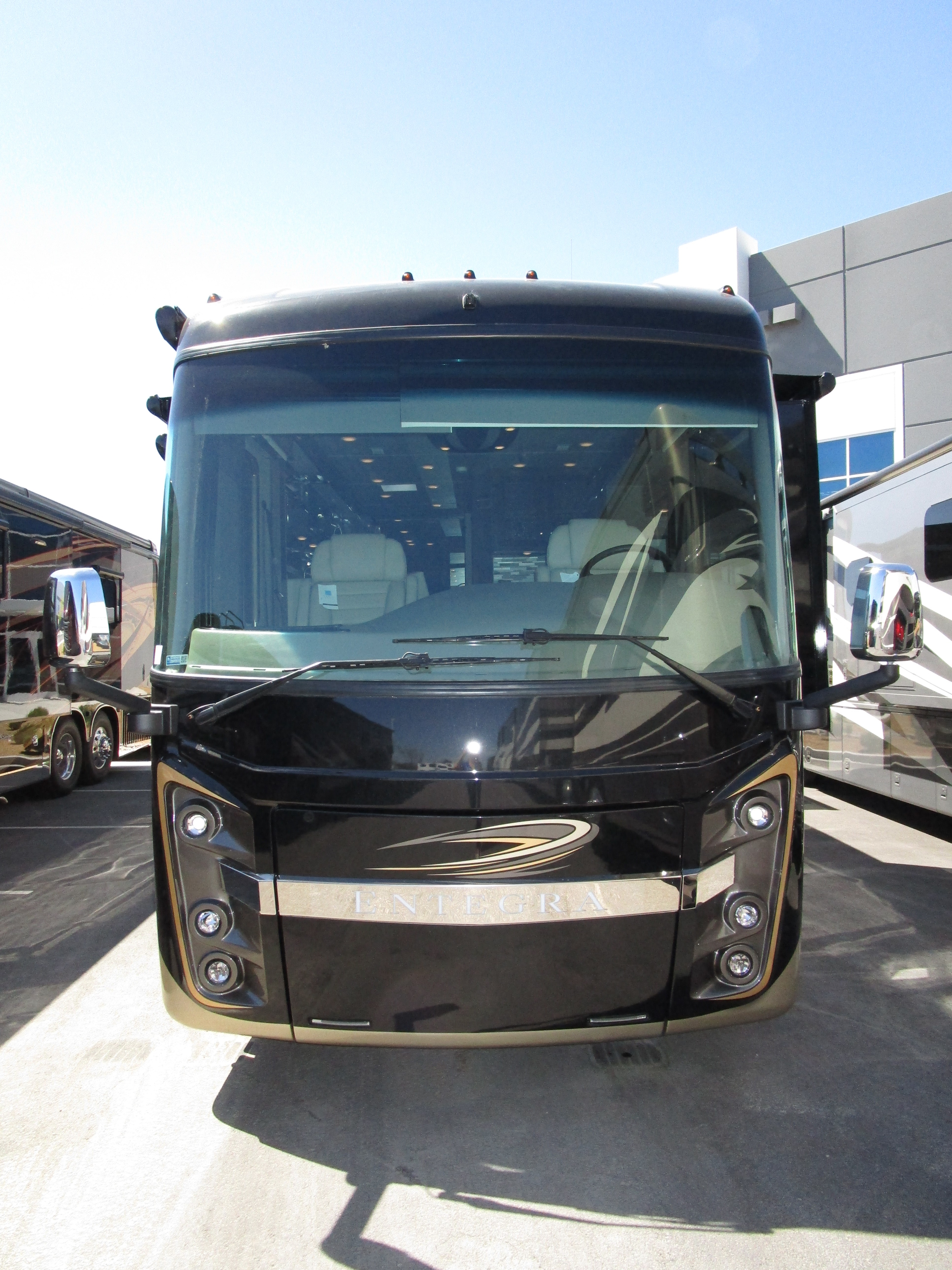

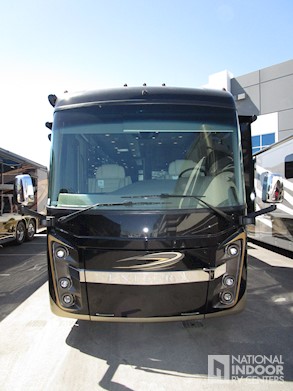

Windshield |
Ultra-Vision® one-piece wrap-around tinted windshield |
Steering Wheel |
Tilt and telescoping steering wheel with integrated controls for cruise ,wipers, radio controls and Bluetooth phone functionality |
Driver / Passenger Seats |
Power adjustable driver and passenger seats |
Pedals |
Power adjustable brake and accelerator pedals |
Visors & Privacy Shade |
Powered front sun visors and privacy shade |

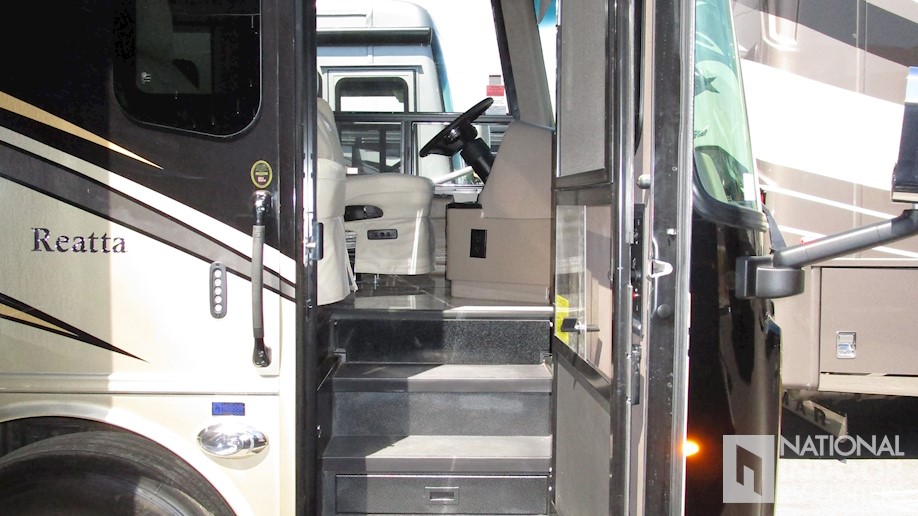

Power Features |
Powered flush stepwell cover |
Additional Amenities |
(2) dual USB ports and (2) 12V socket for charging |
Side Consoles |
Wrapped dash with molded side consoles |

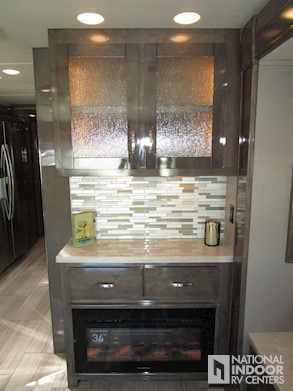

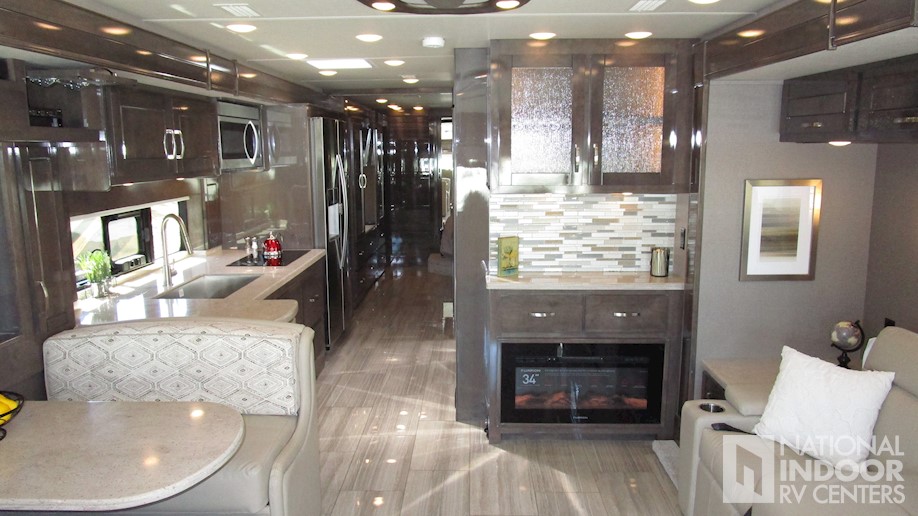

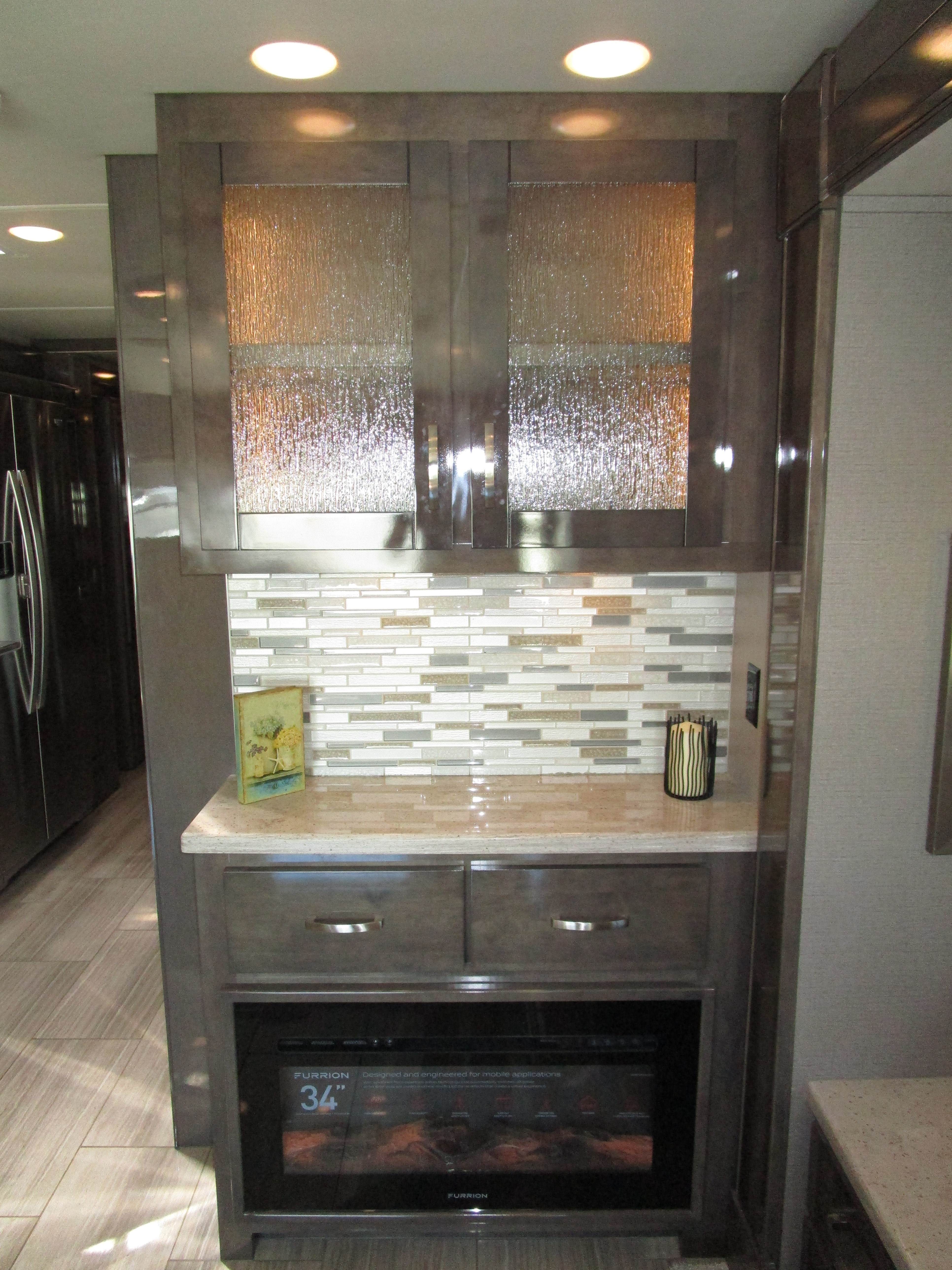

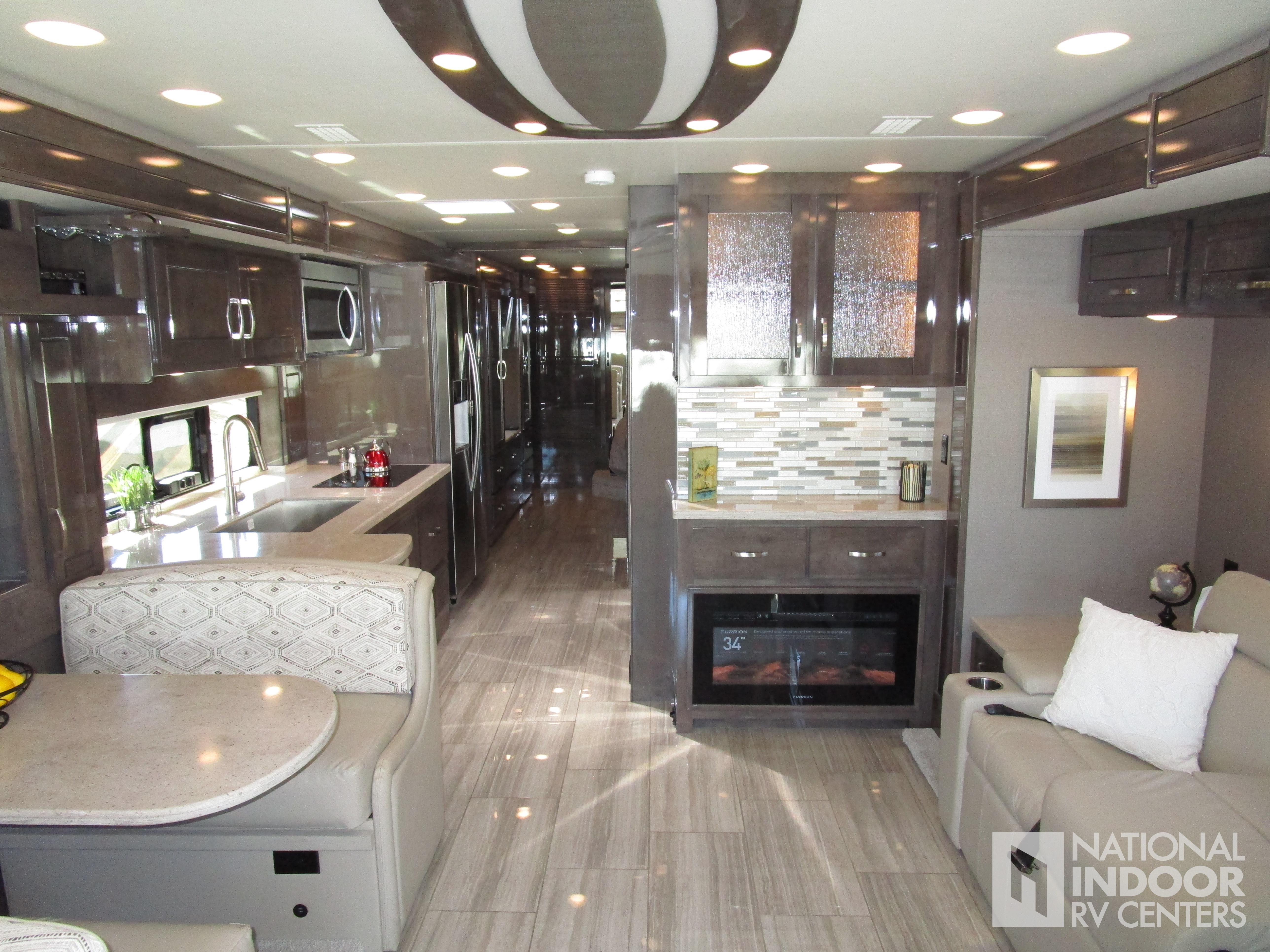

Electric Fireplace |
Fireplace (37K only) |
Command Center |
7” VegaTouch touchpad system for complete integration of coach controls (mobile app available) |
DVD Systems |
LG® Blu-Ray® player |

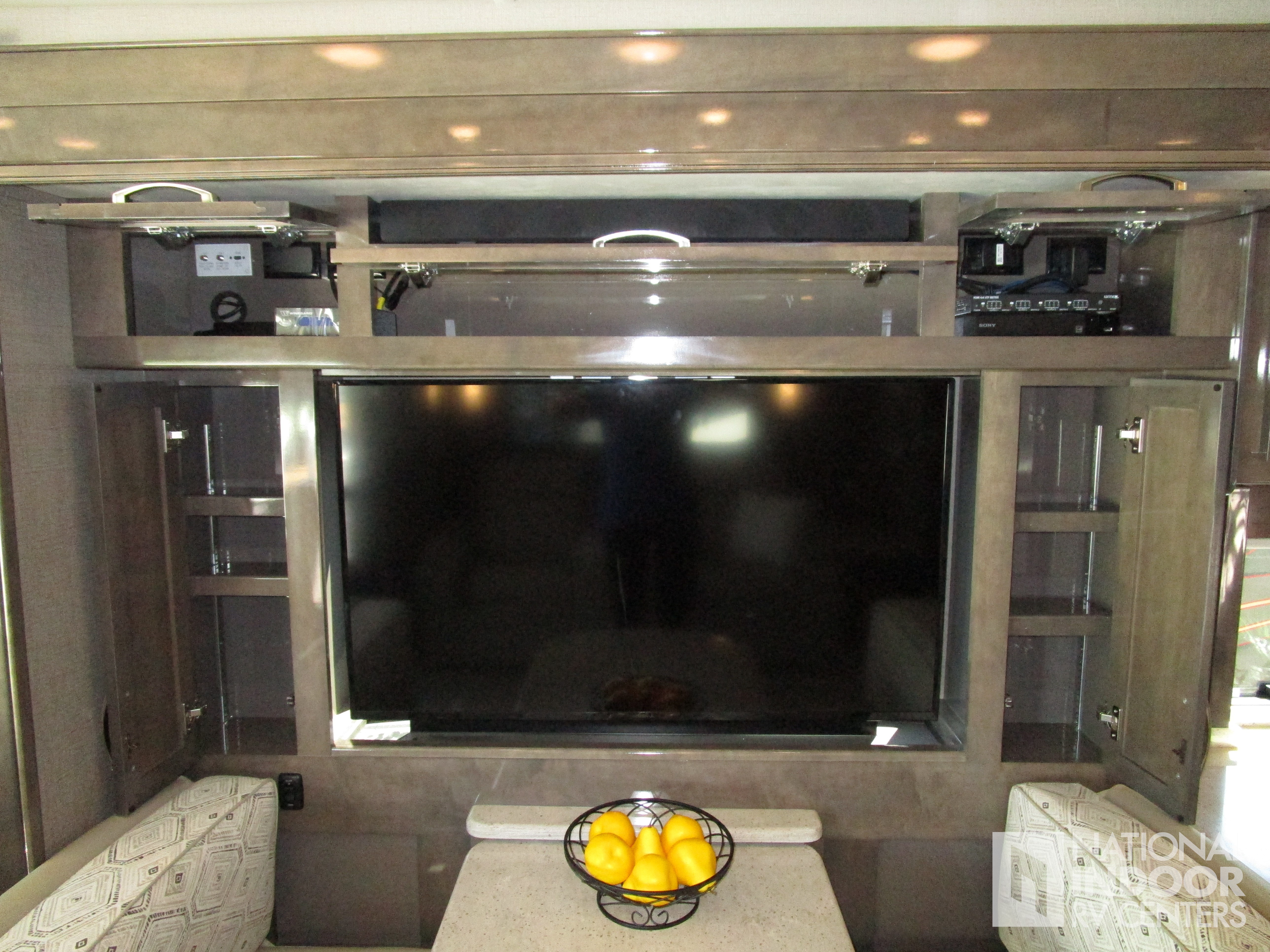

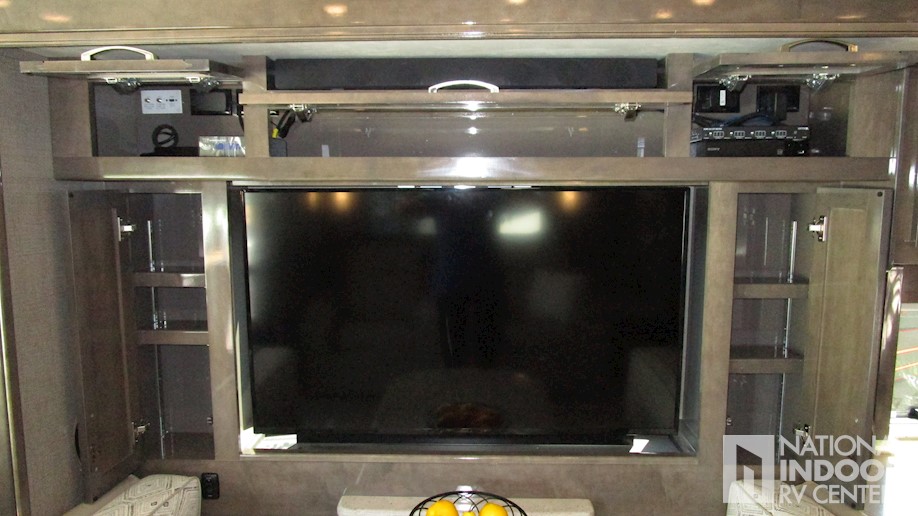

Television - Living Room |

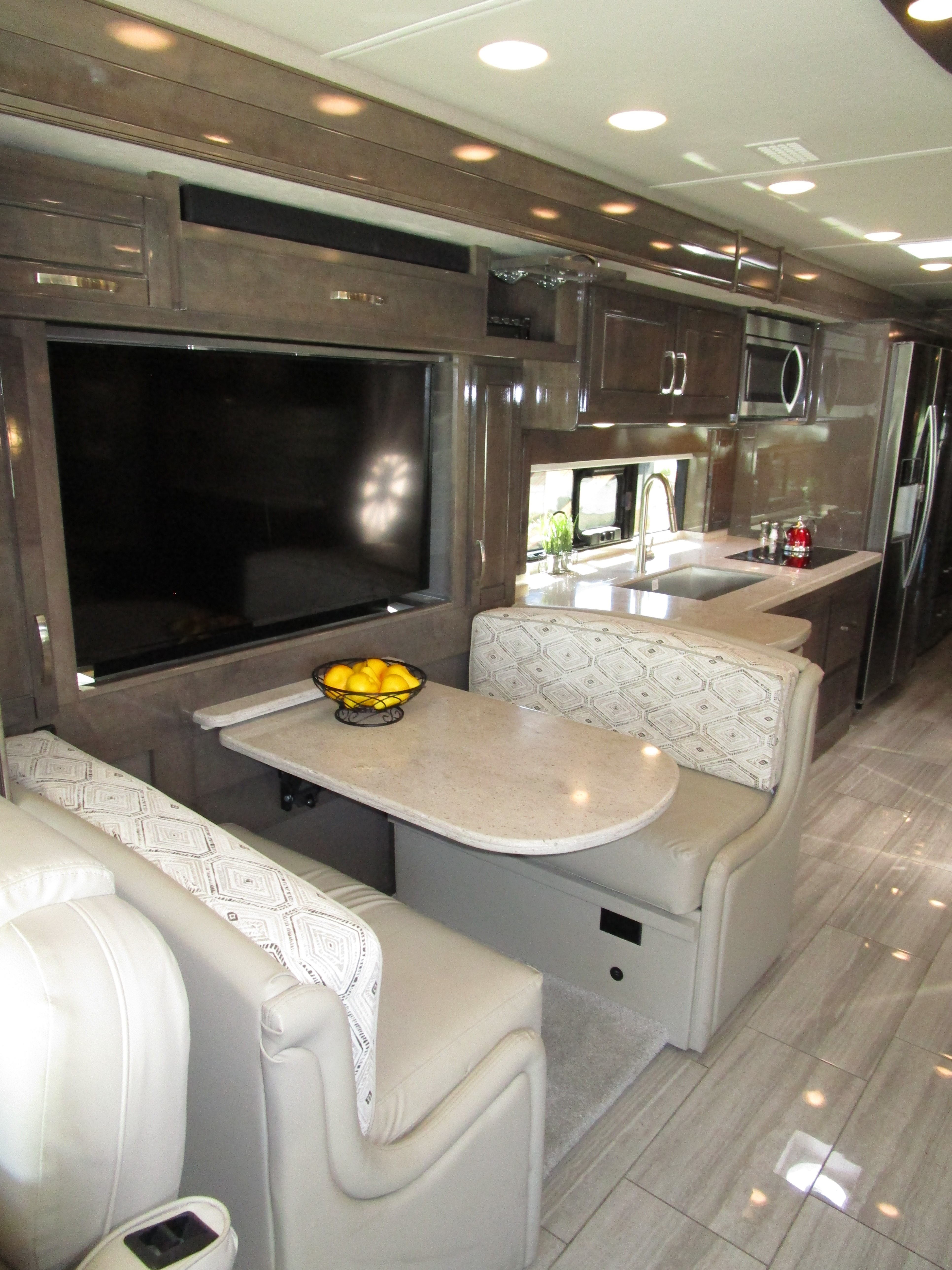

50” Insignia™ LED TV |
Sound - Living Room |
Insignia™ sound bar |

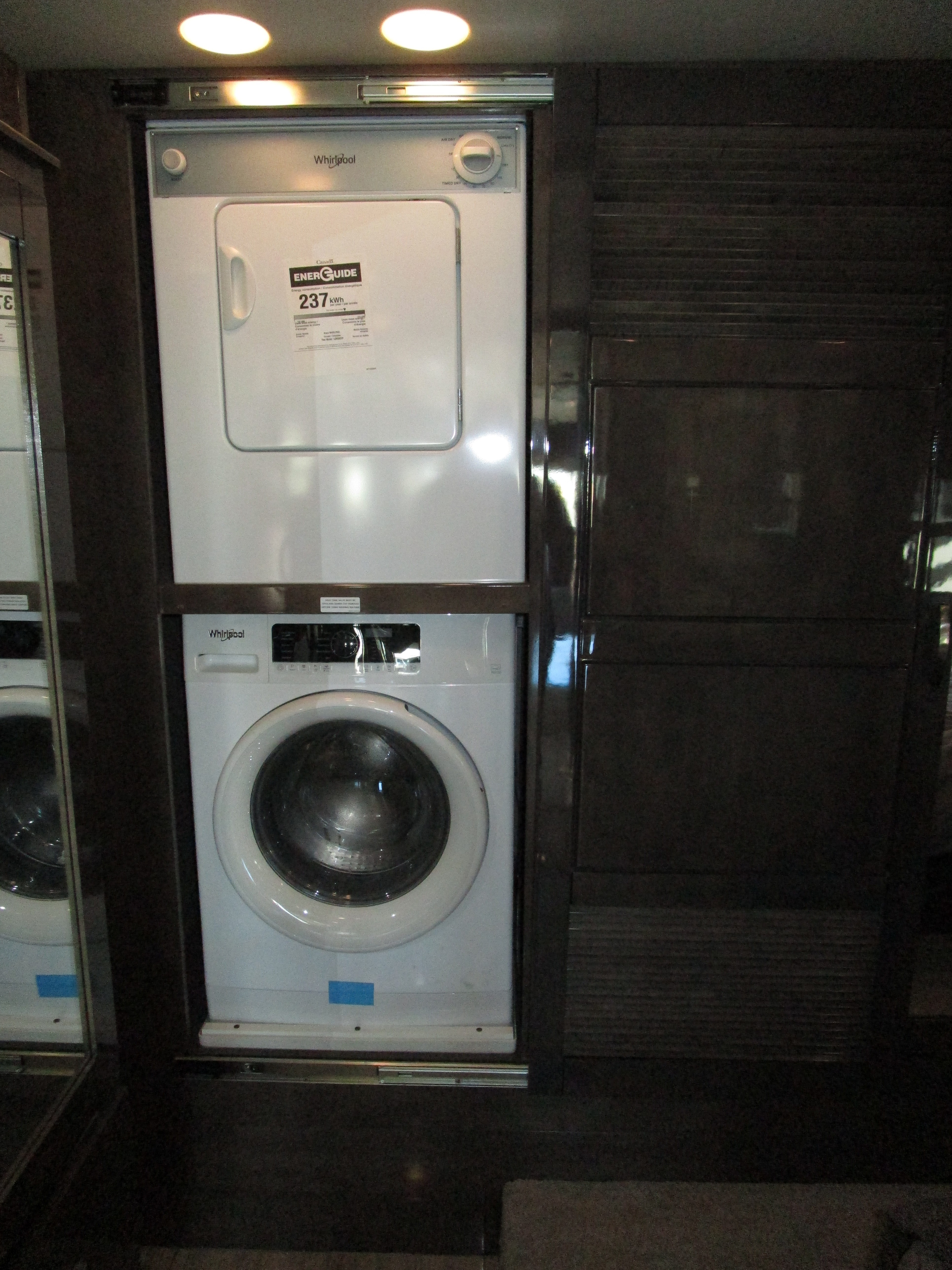

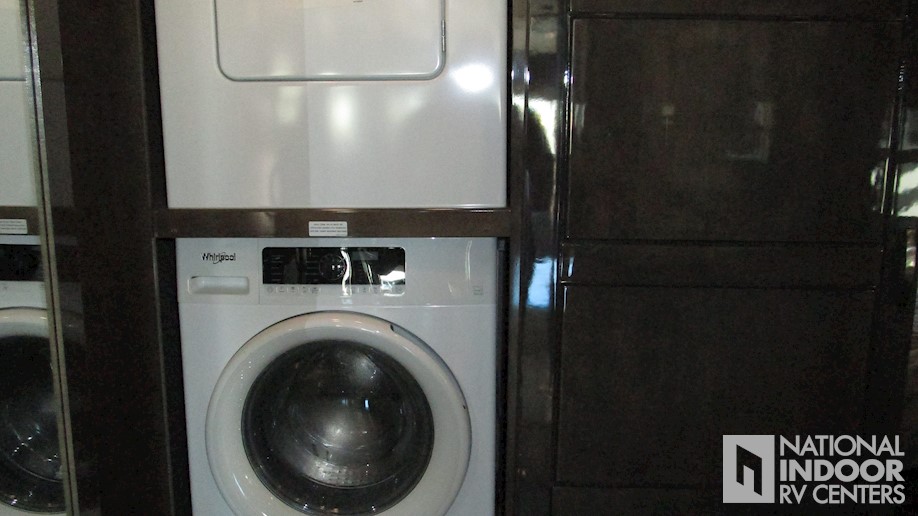

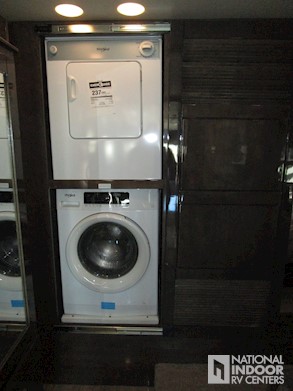

Washer/Dryer |
Whirlpool® stacked washer and dryer |

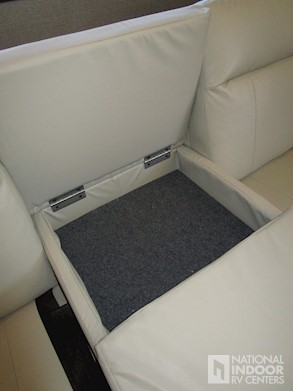

Furniture |

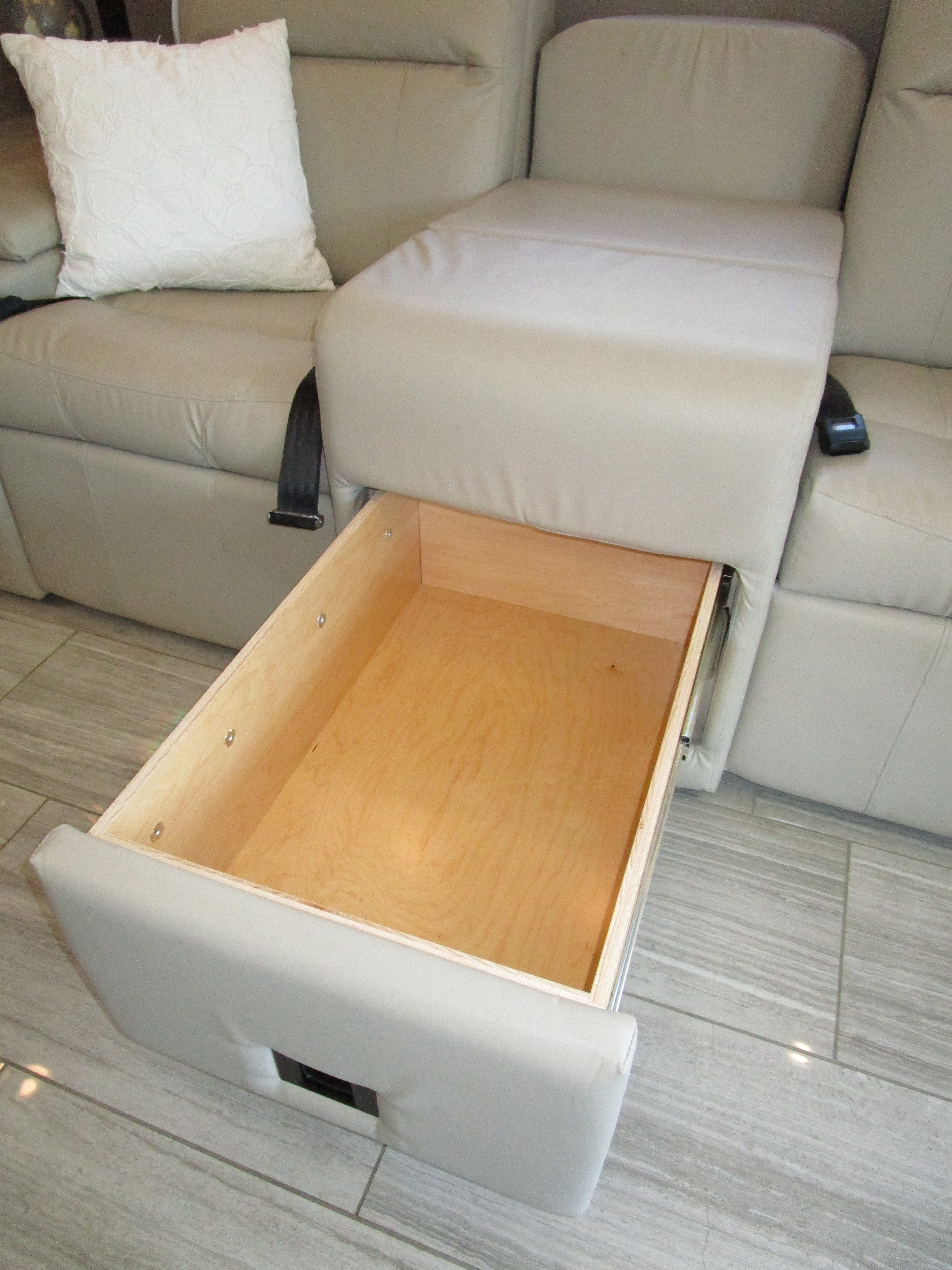

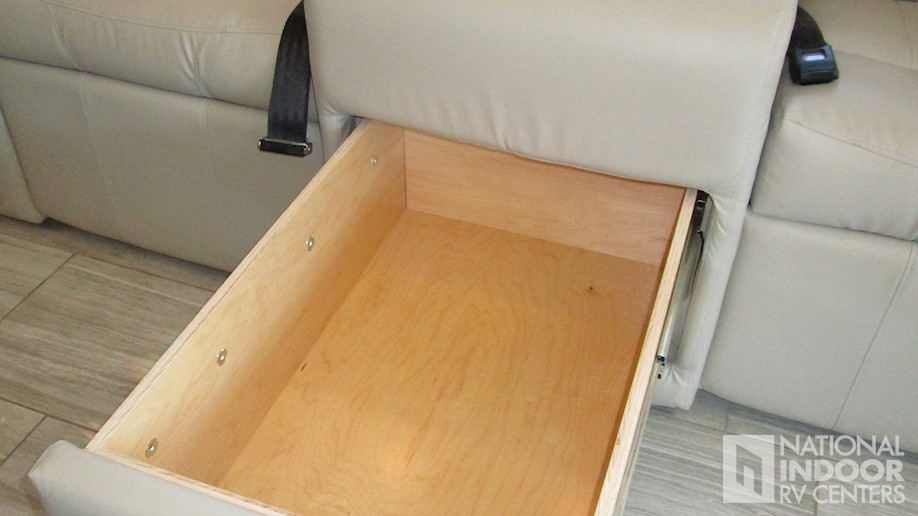

Flexsteel® furniture |

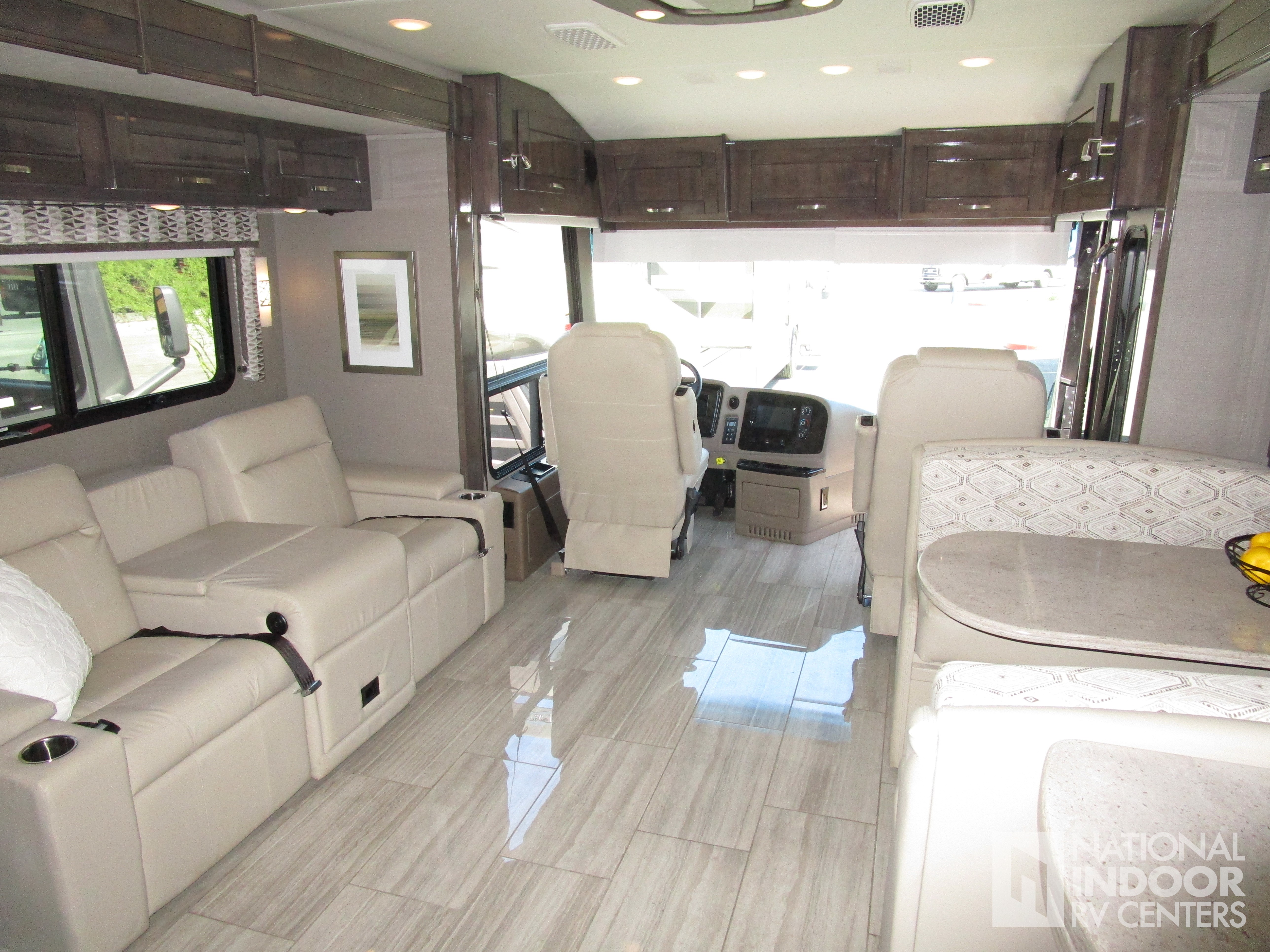

Flooring |
Hand-laid polished porcelain floor tiles |
Lighting |
Recessed, 12V, LED lighting |
Ceiling |
Decorative ceiling feature with integrated accent lighting |
Window Treatments |
Manual solar day shades and blackout night shades |
Central Vacuuming System |
Central vacuum system |
Bunks |
300-lb. bunk capacity (39BH only) |

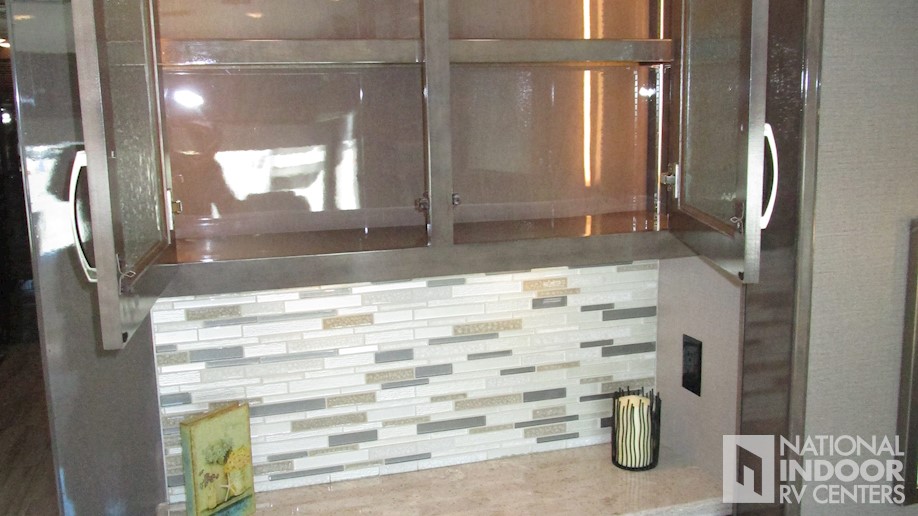

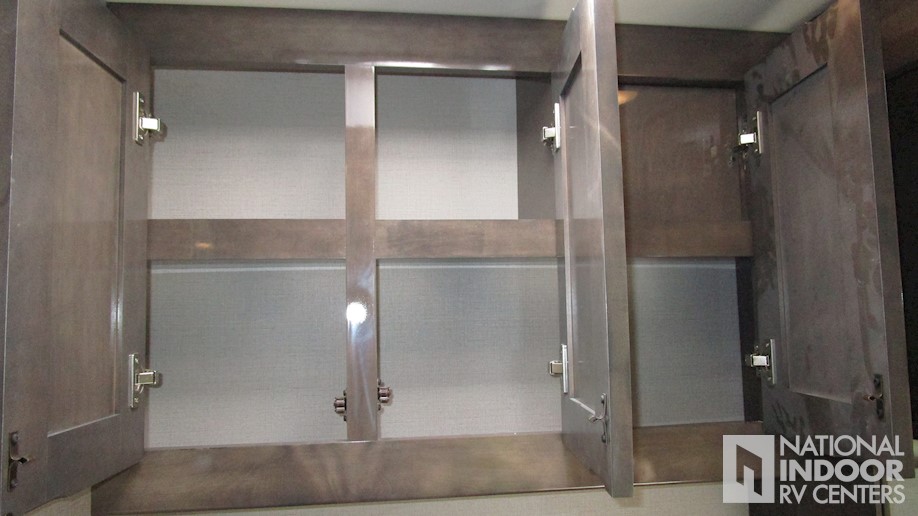

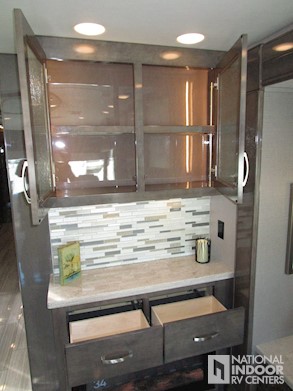

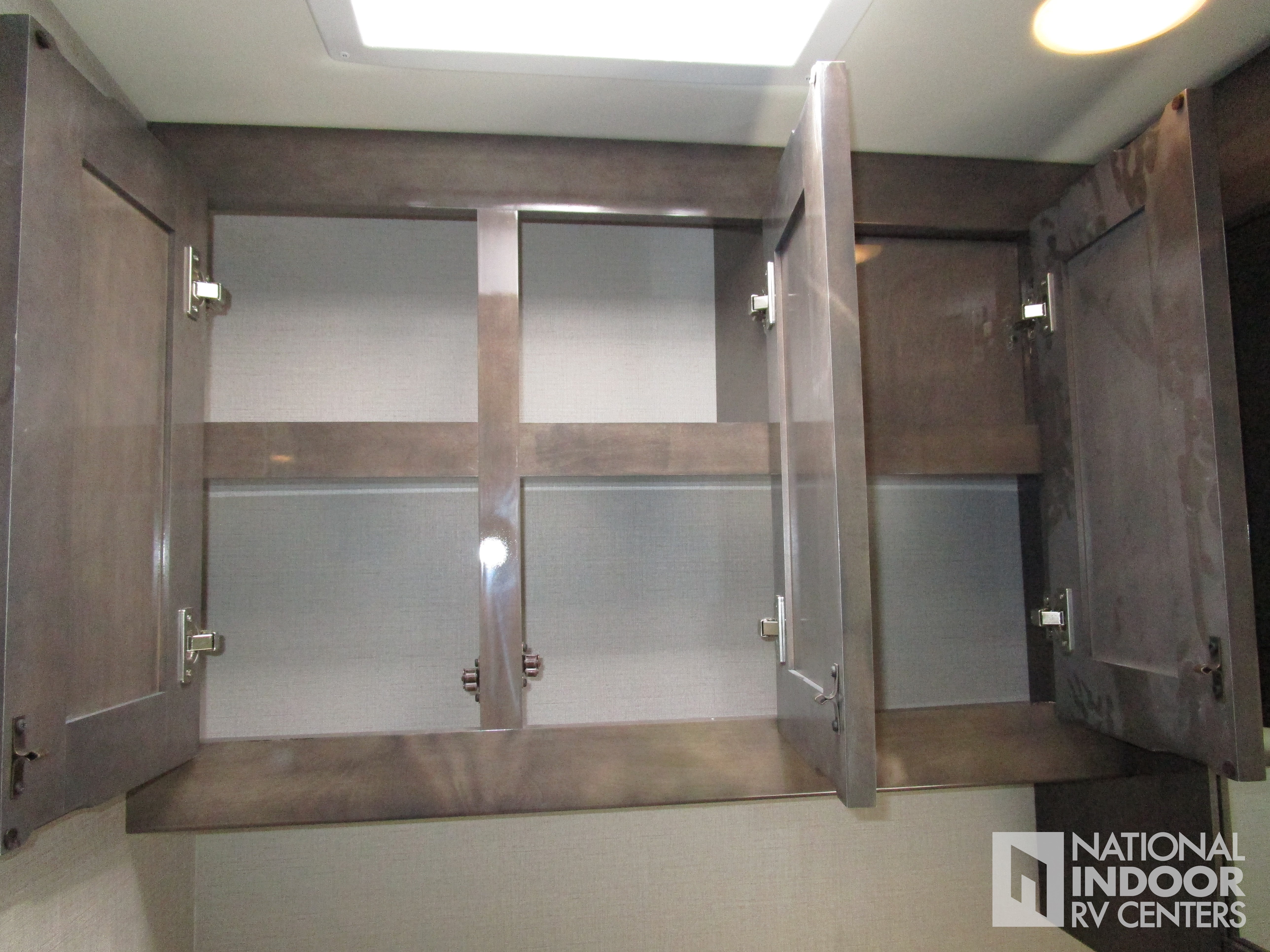

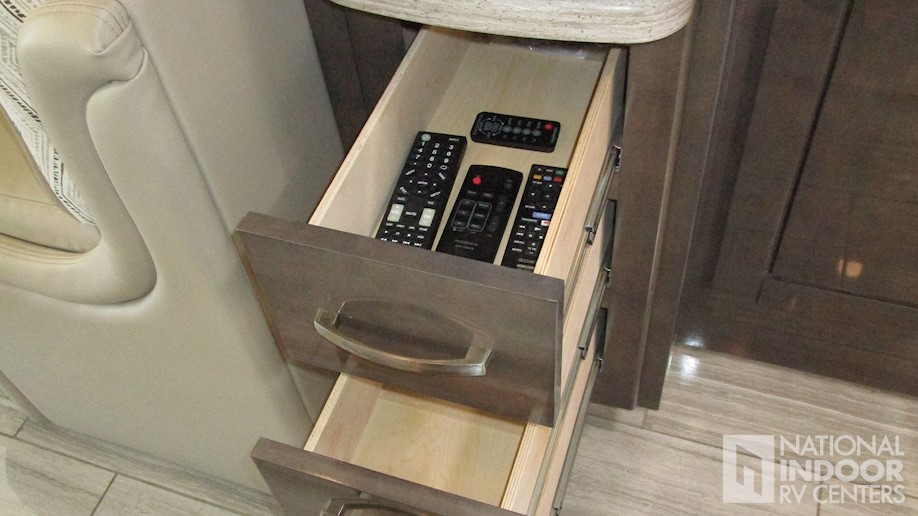

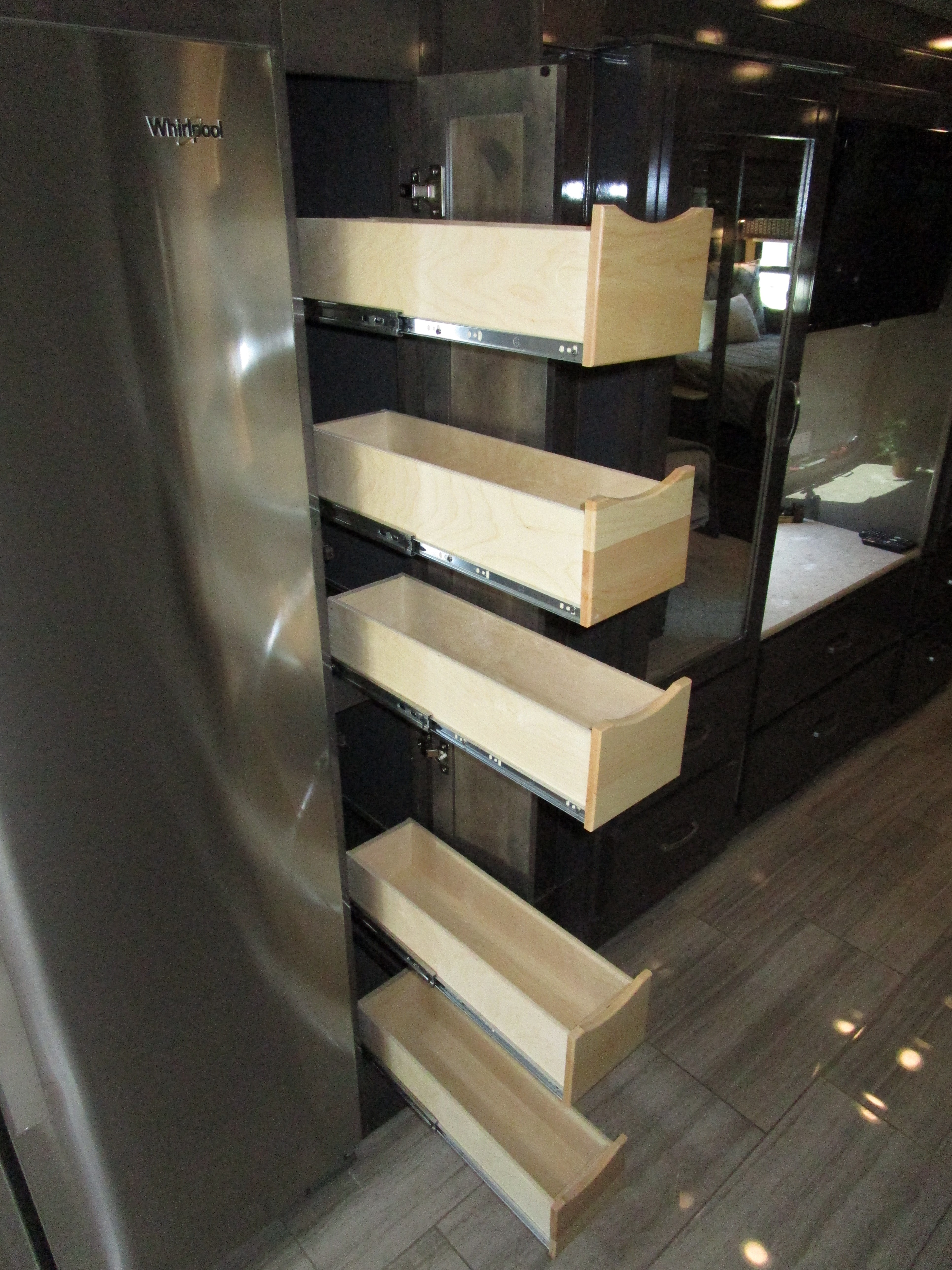

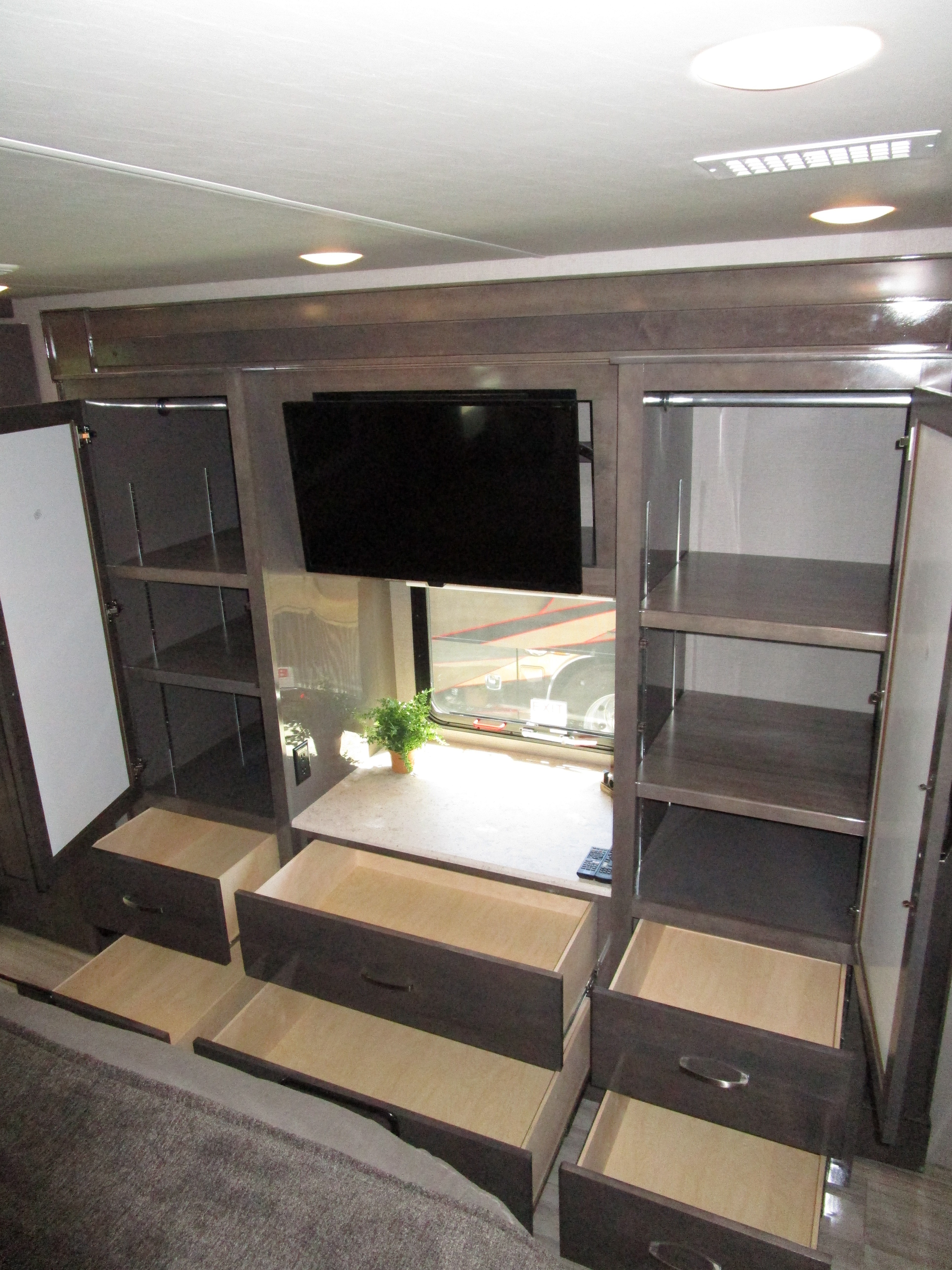

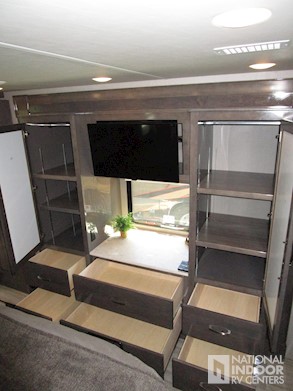

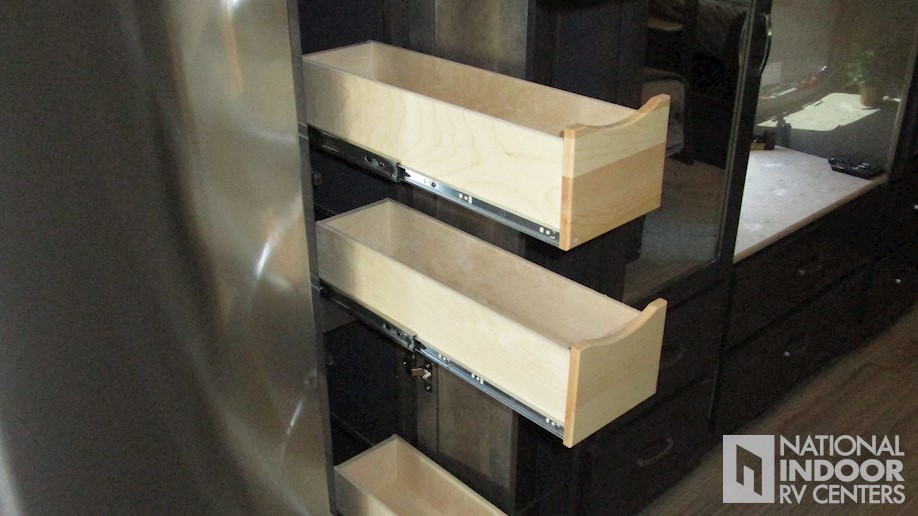

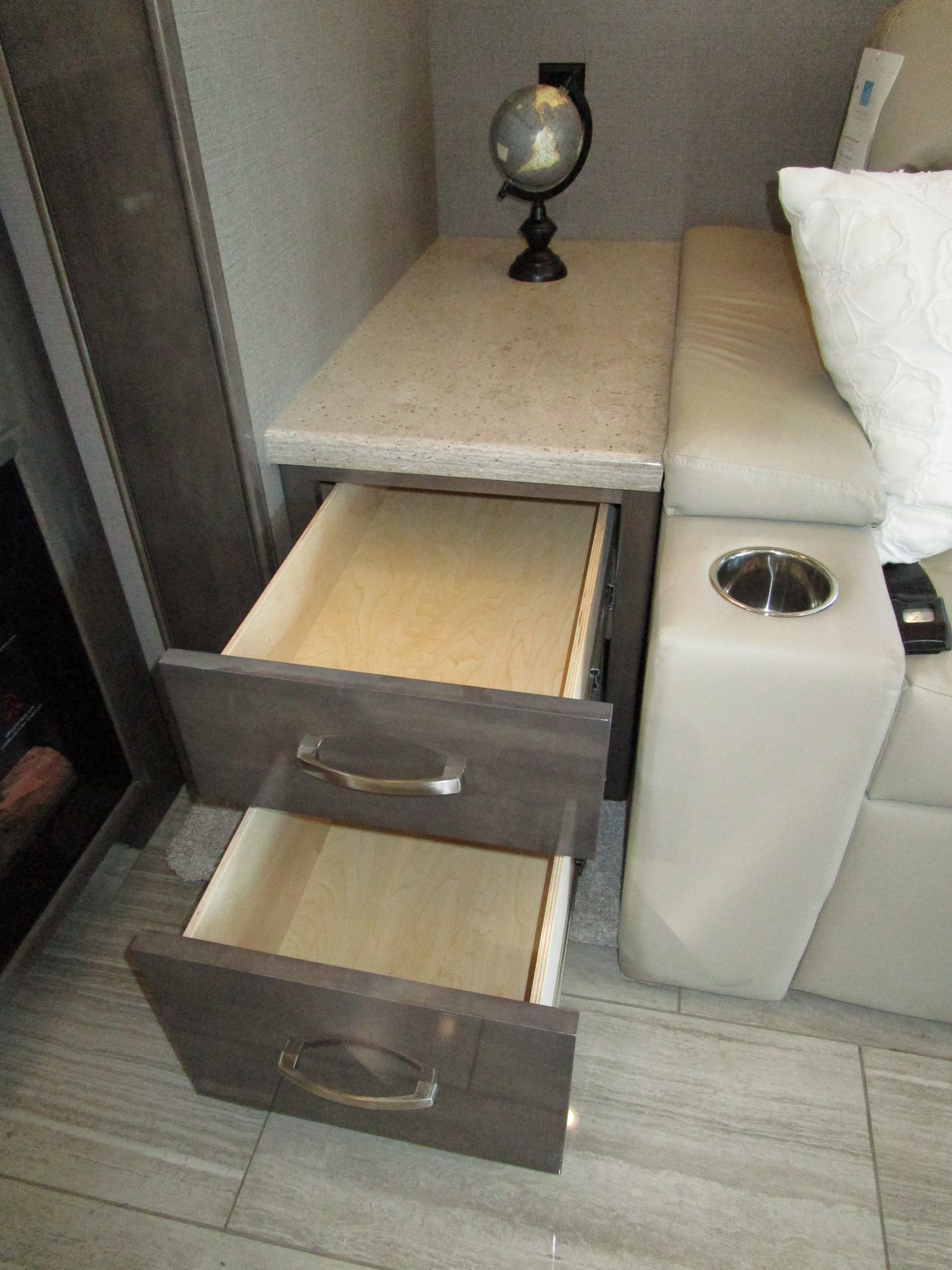

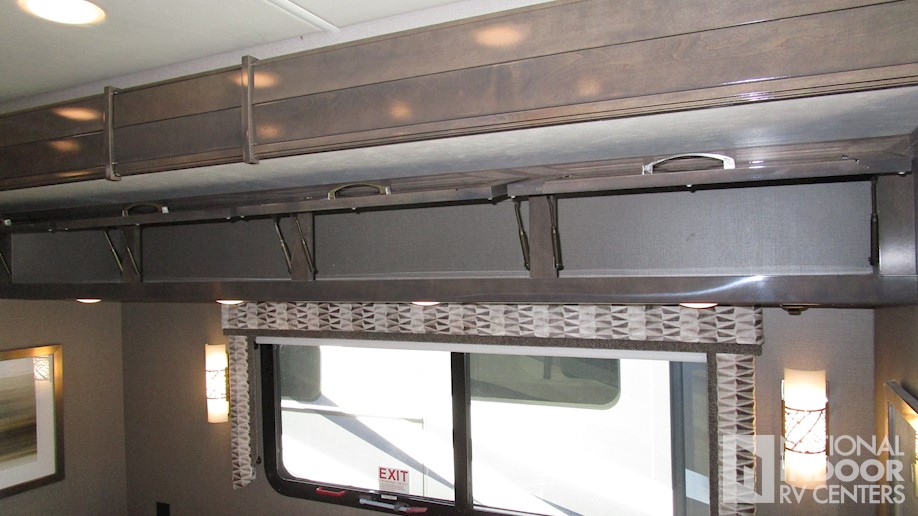

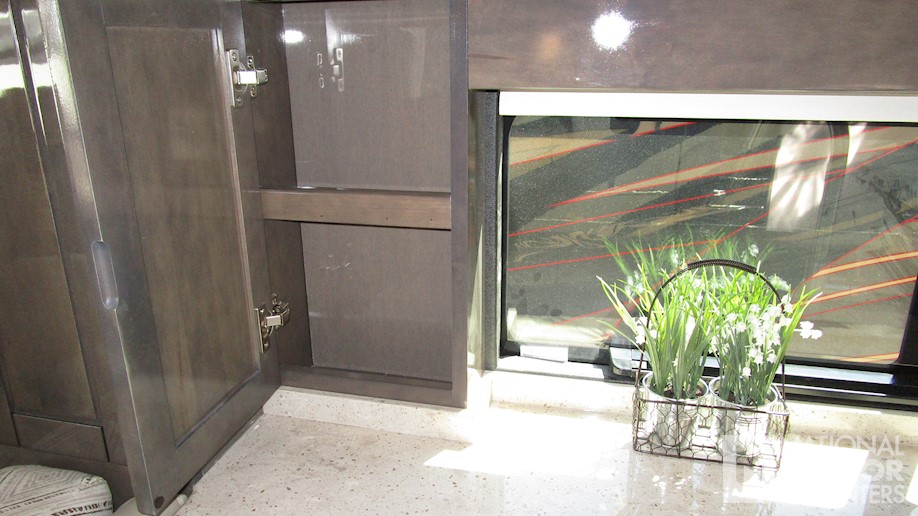

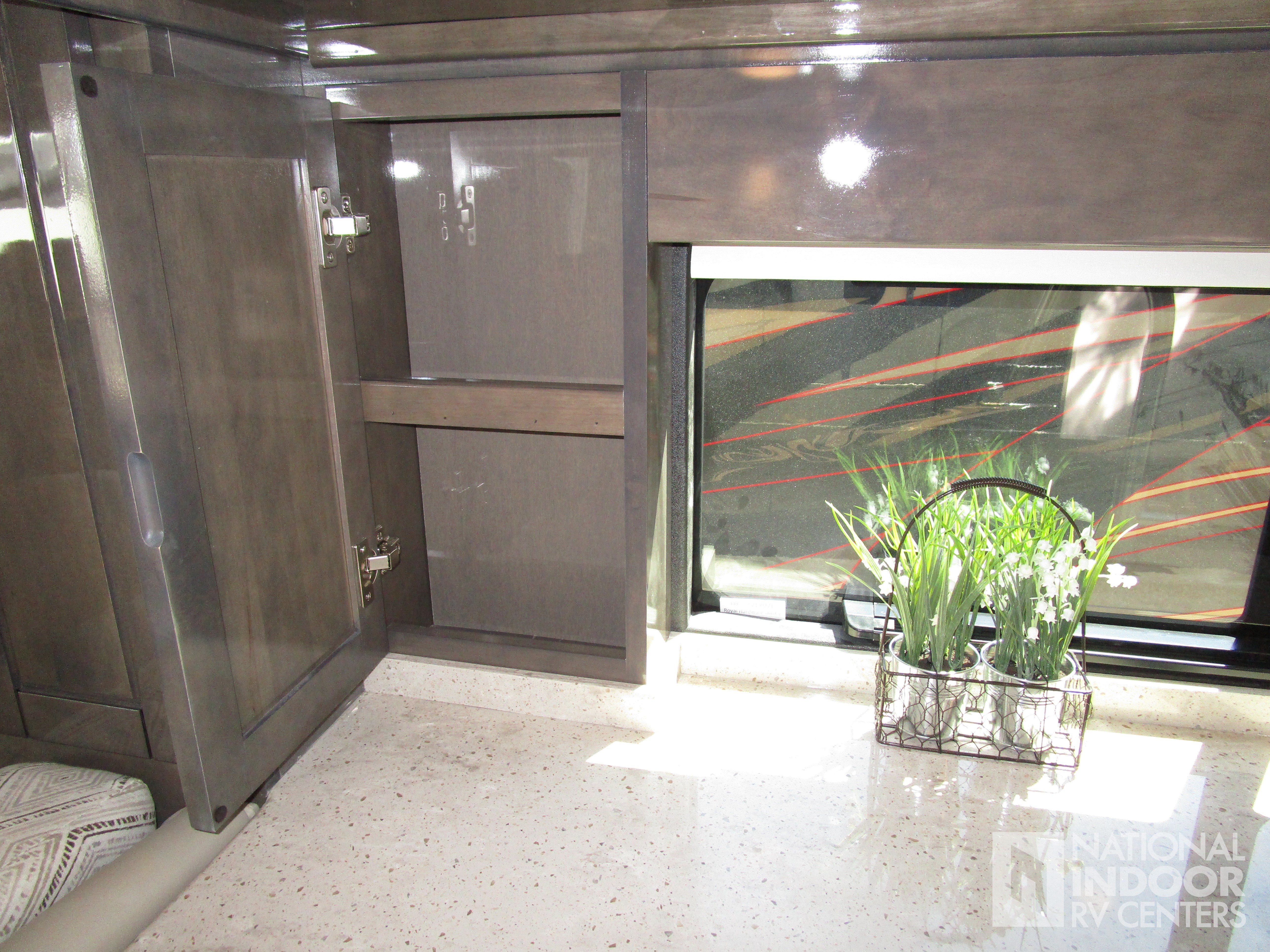

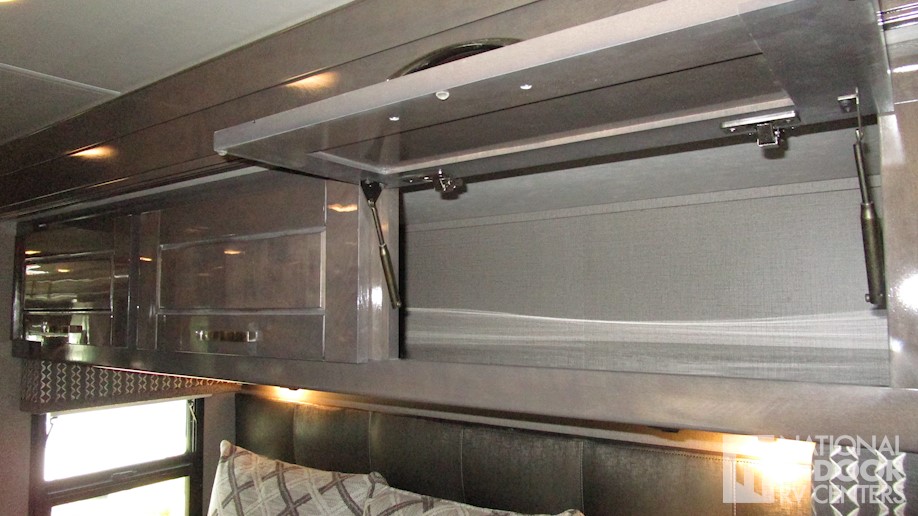

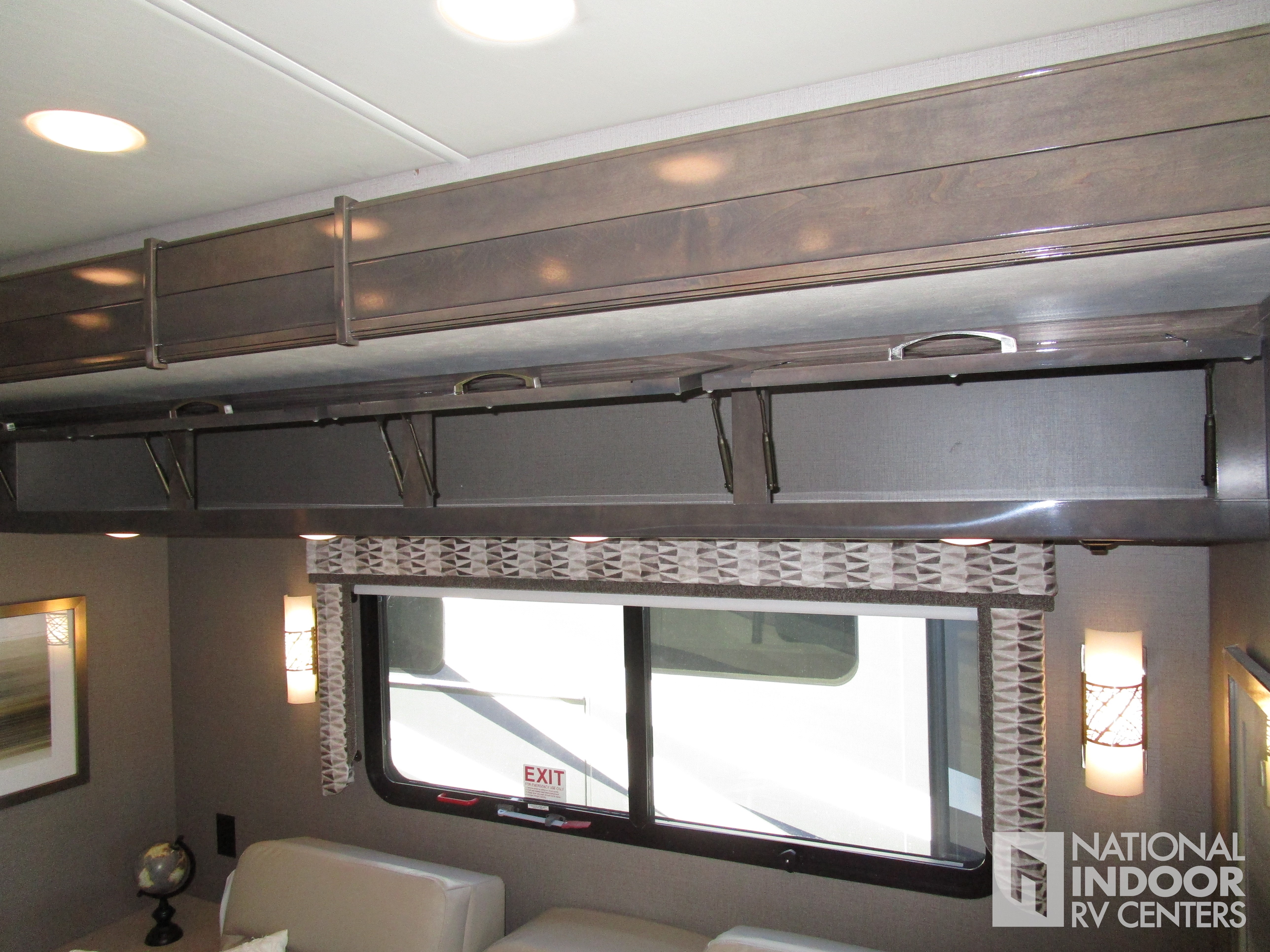

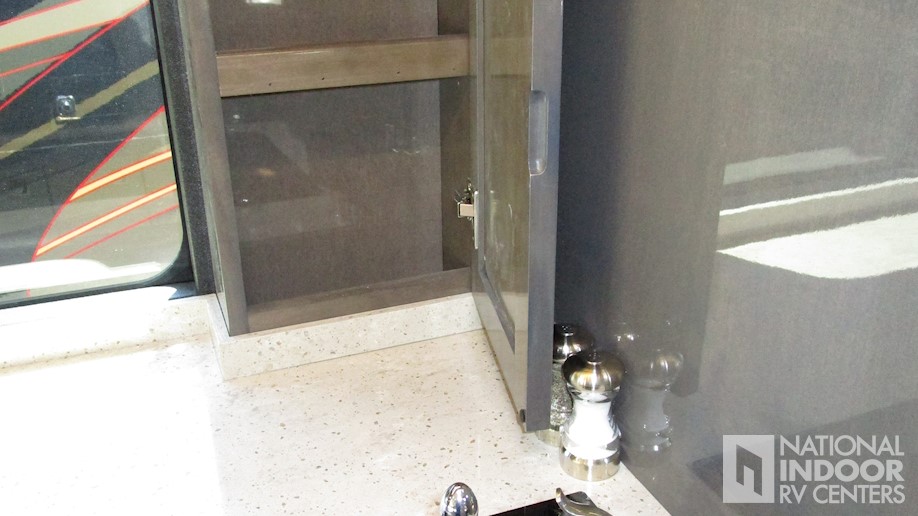

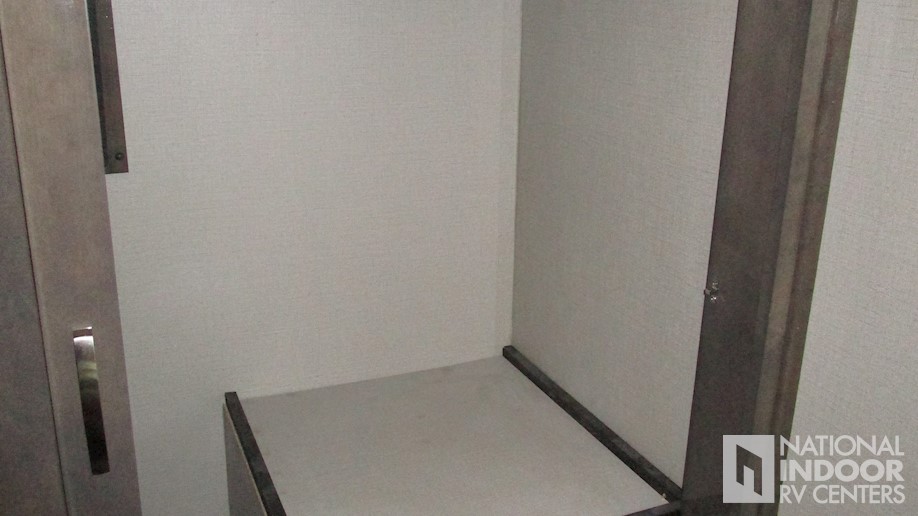

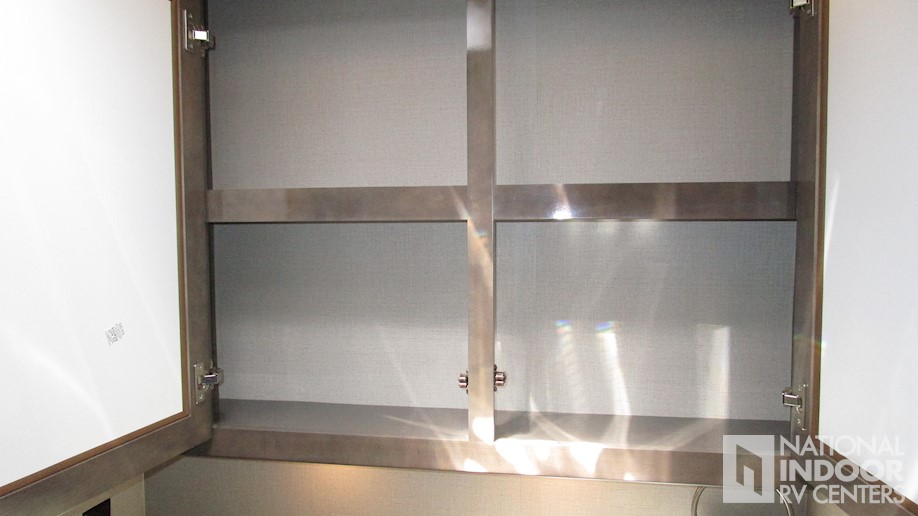

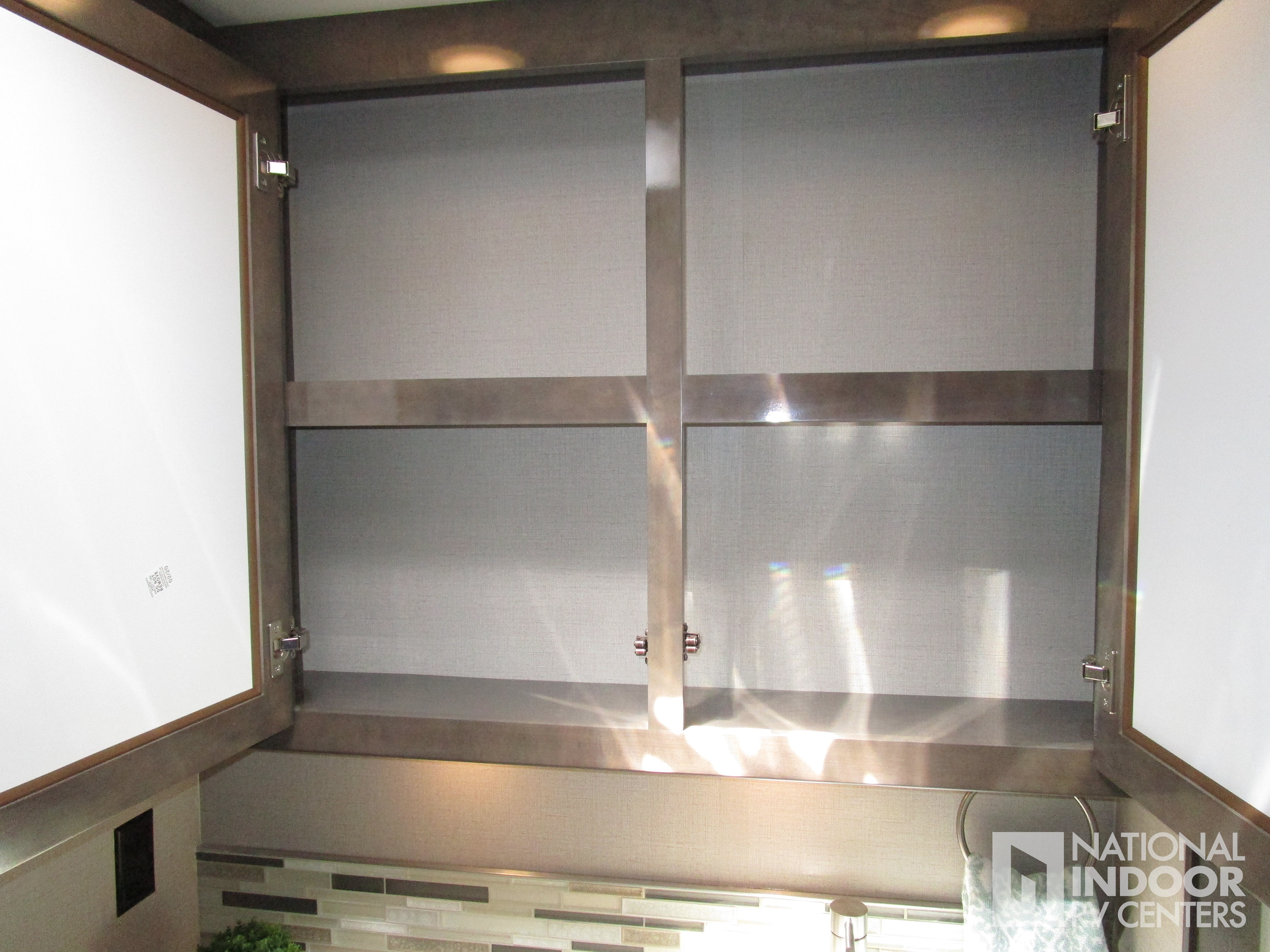

Cabinetry |

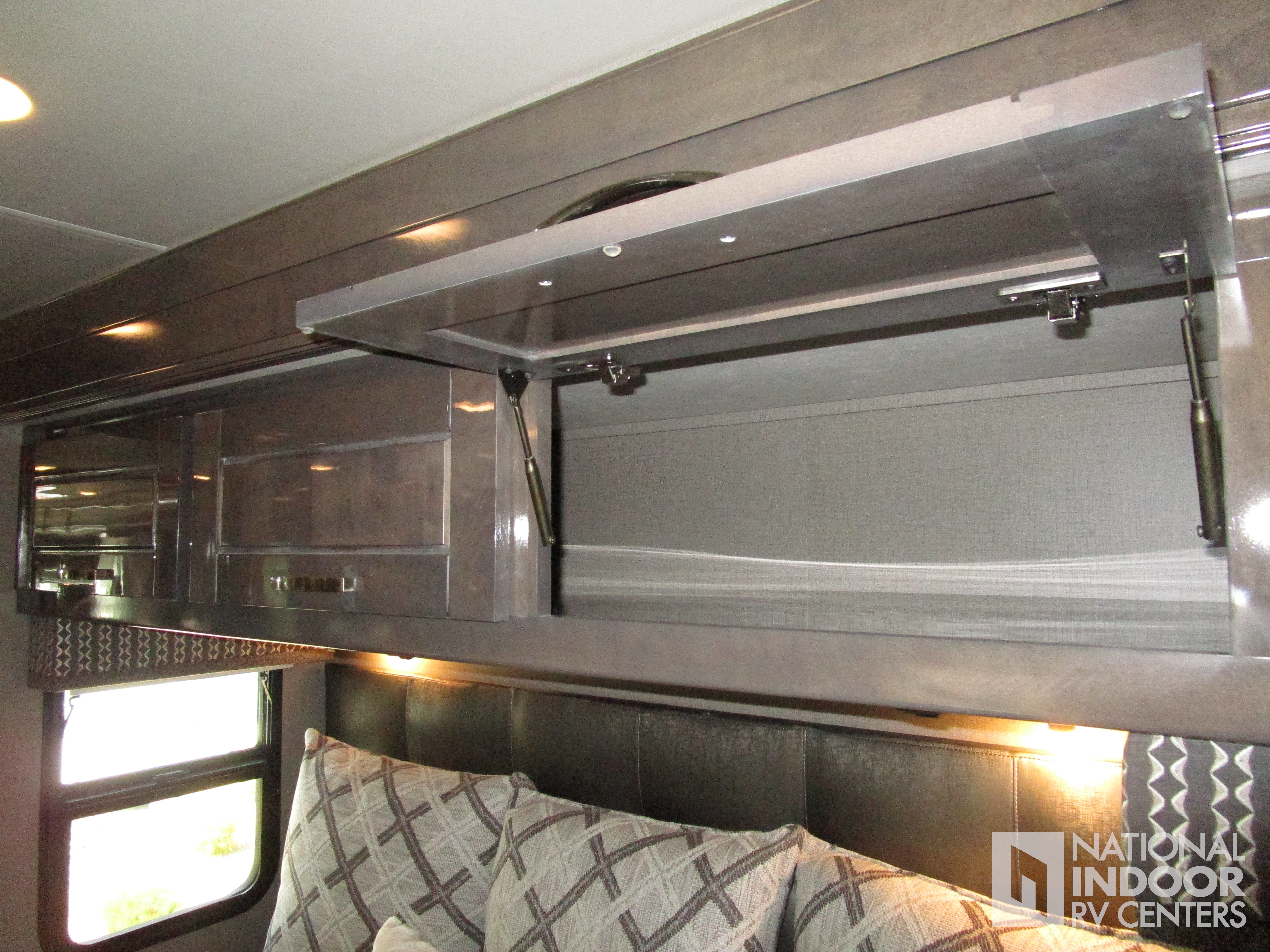

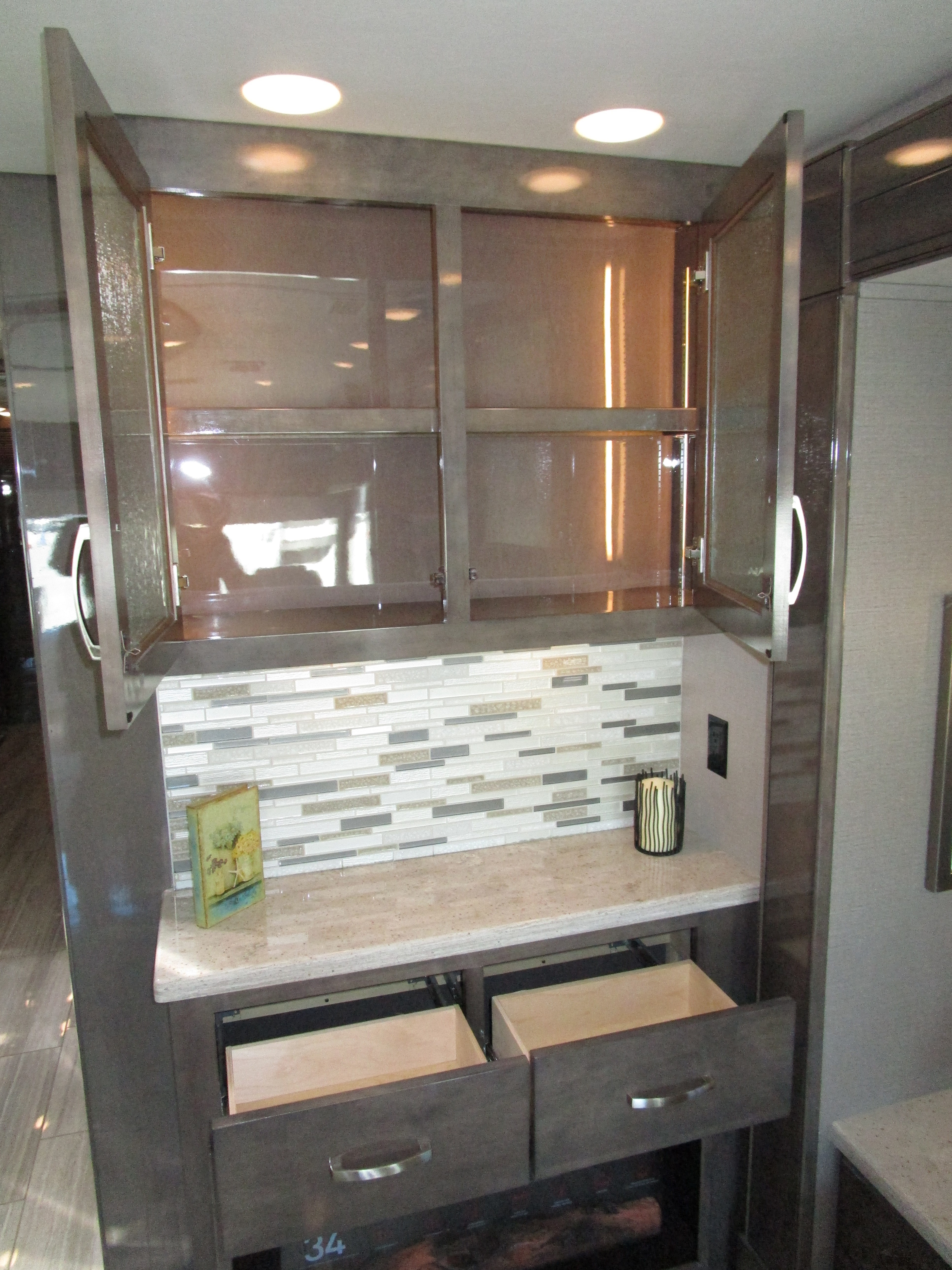

Handcrafted hardwood cabinetry |
Fascia |
Handcrafted hardwood fascia |

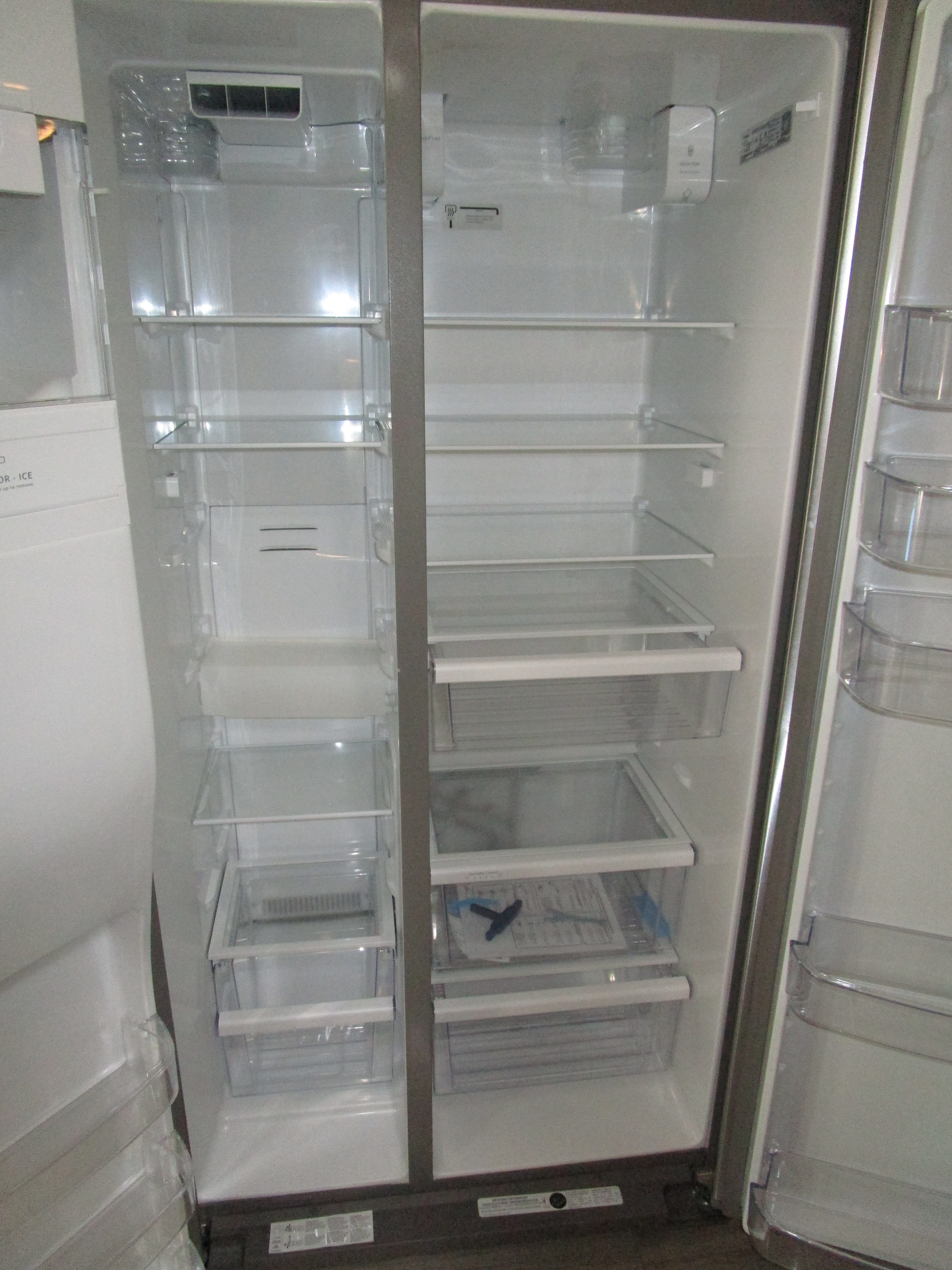

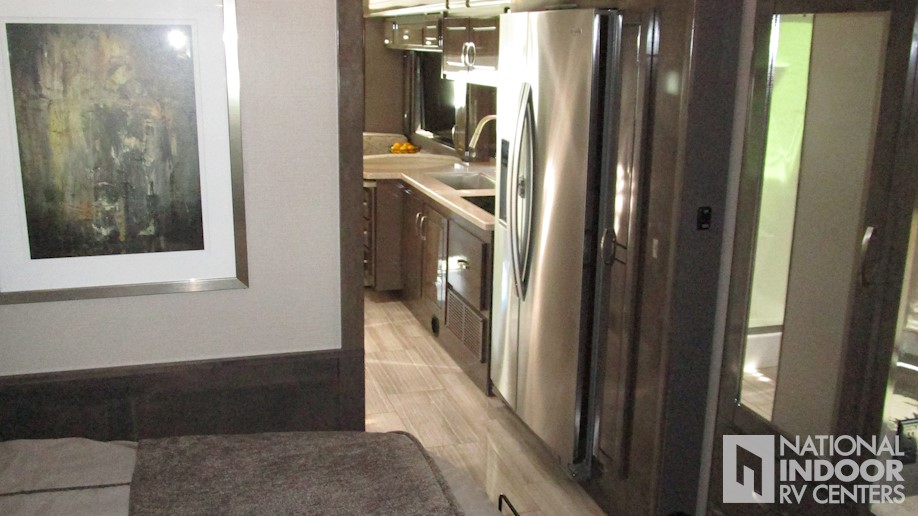

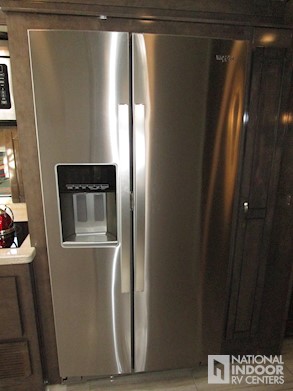

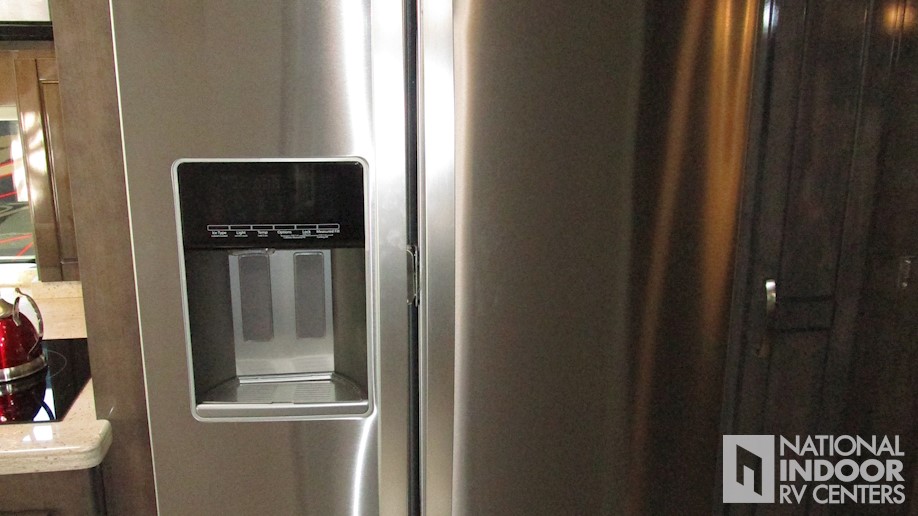

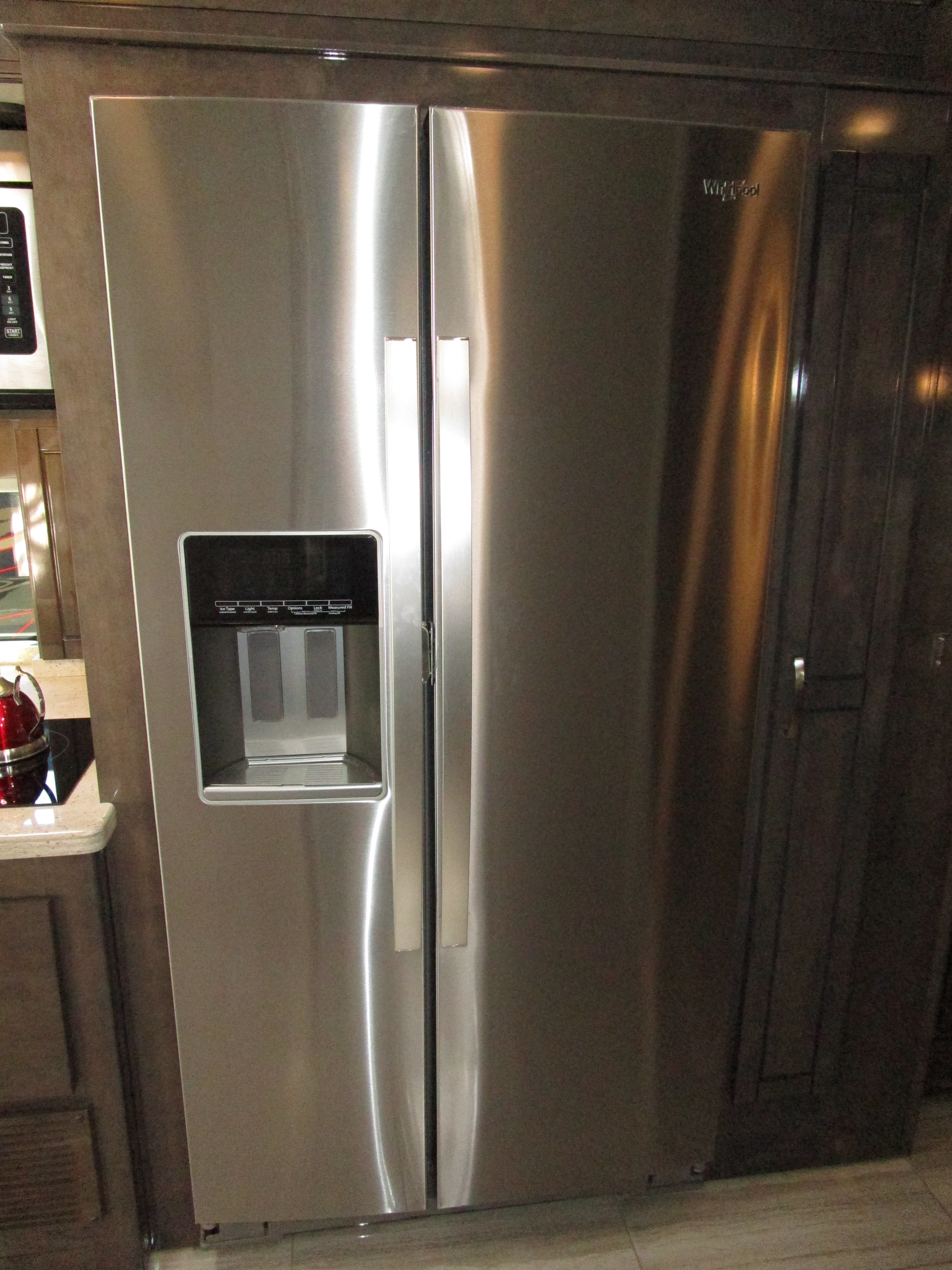

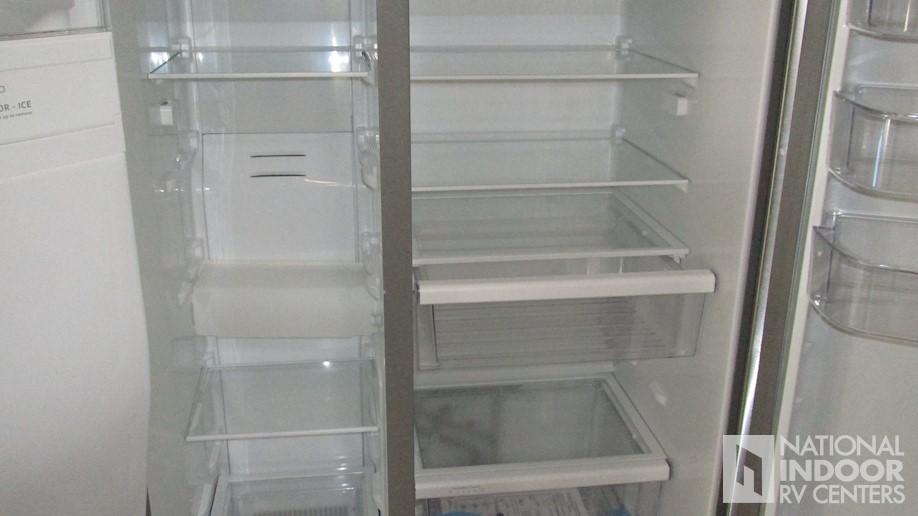

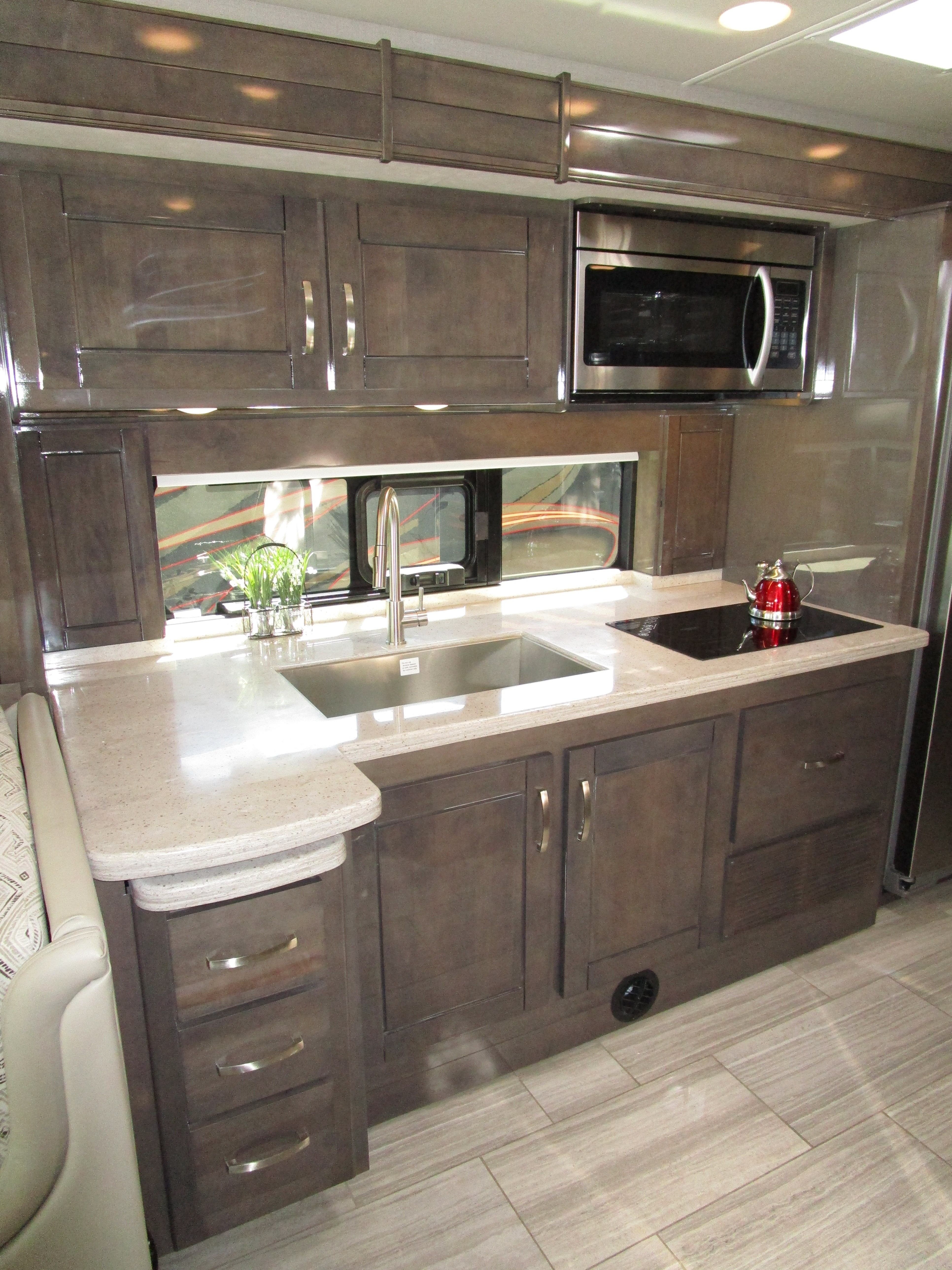

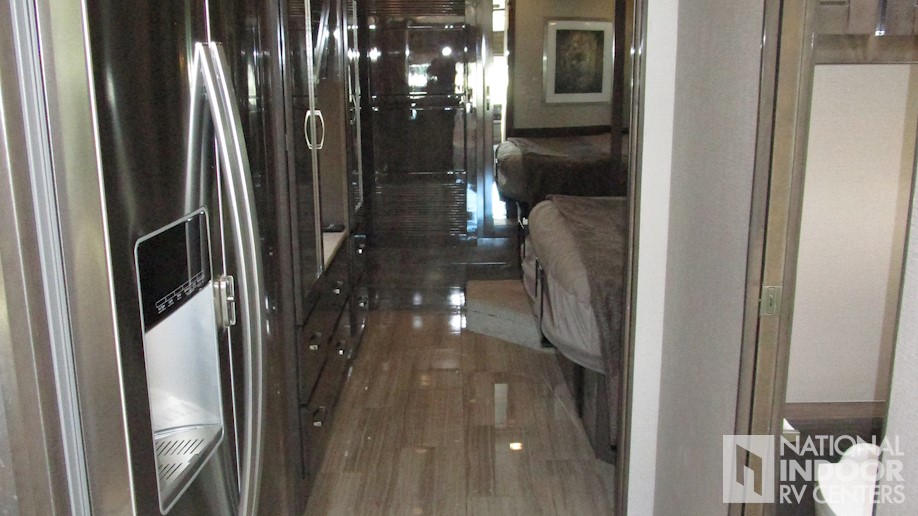

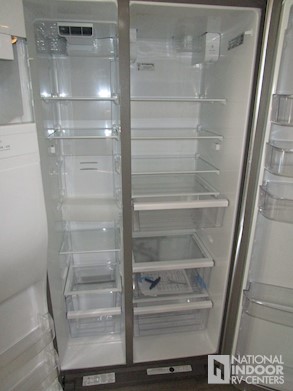

Refrigerator |

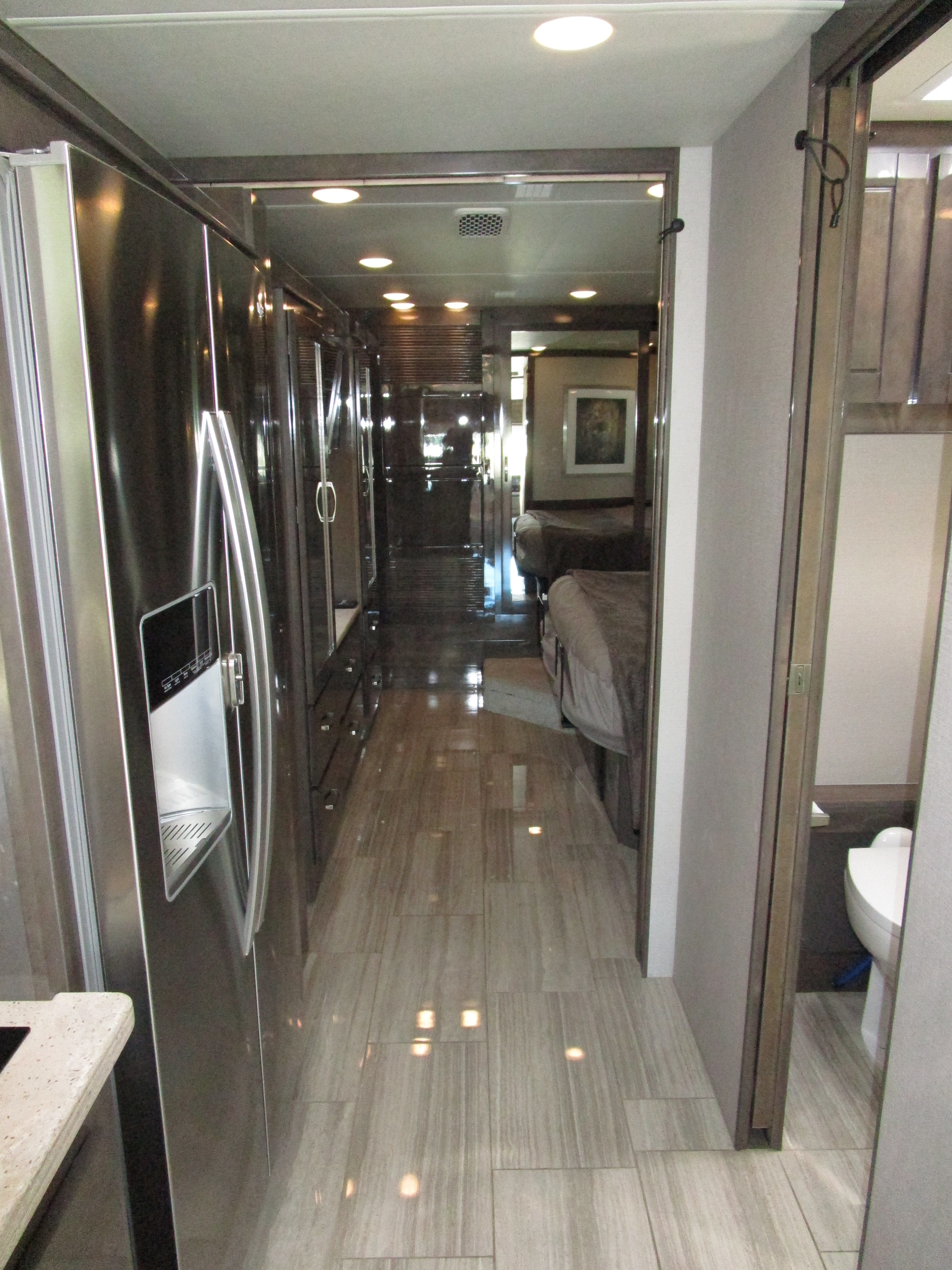

Whirlpool® stainless steel residential refrigerator with ice maker and water dispenser |

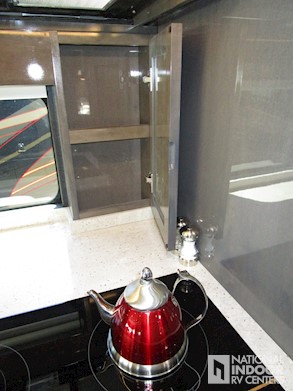

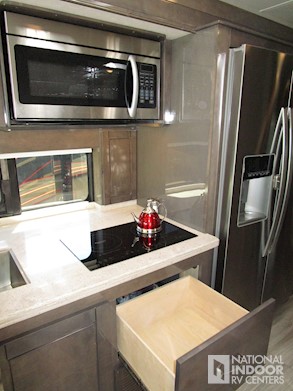

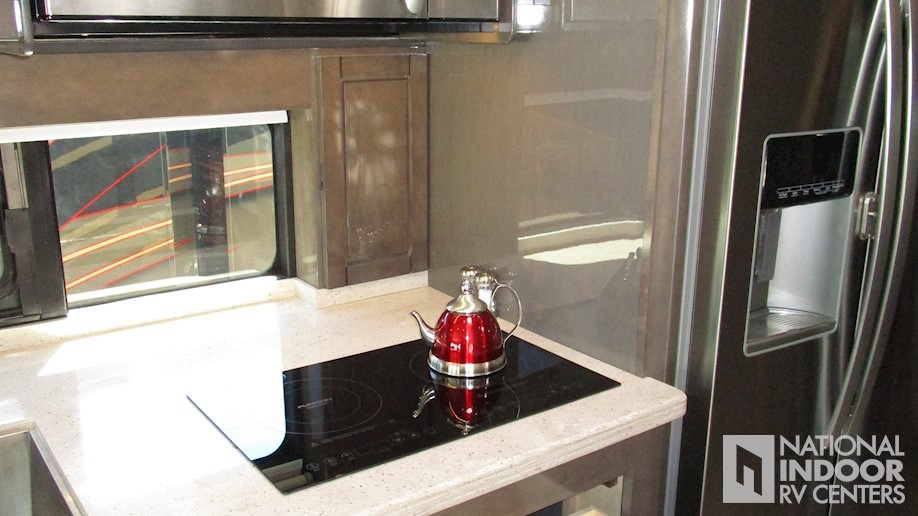

Cooktop |

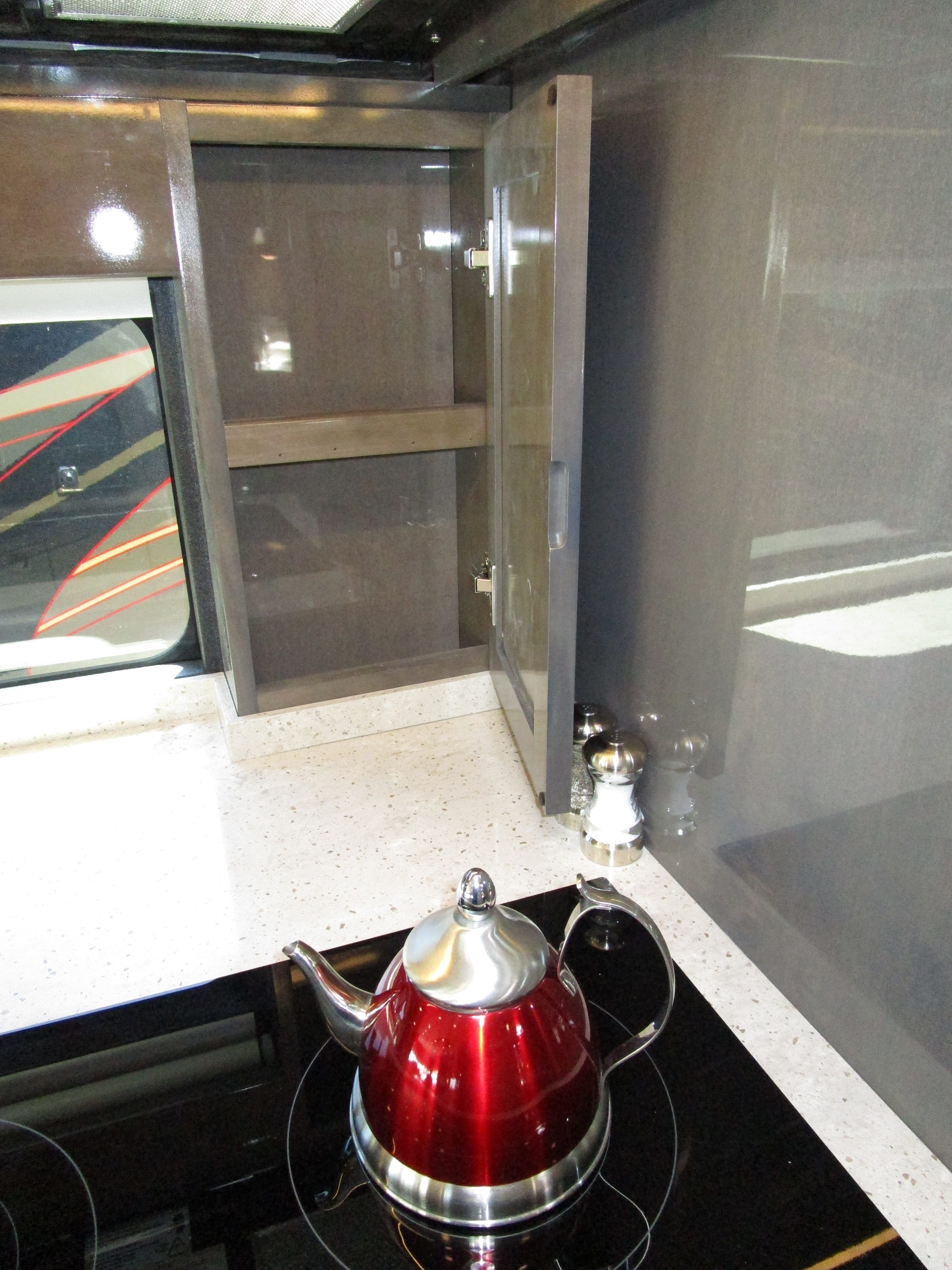

Induction cooktop |

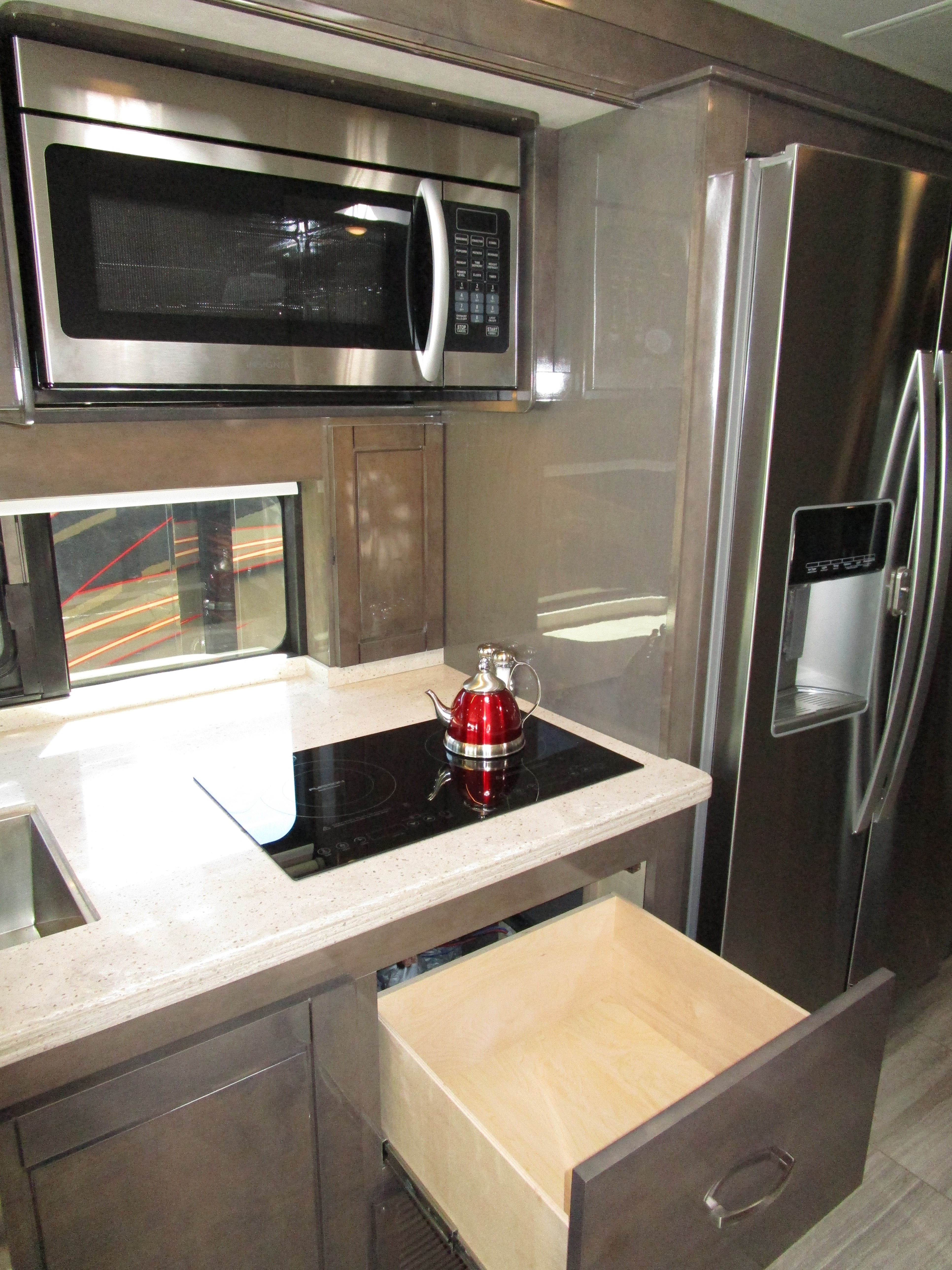

Microwave |
1.5 cu. ft. convection microwave oven |

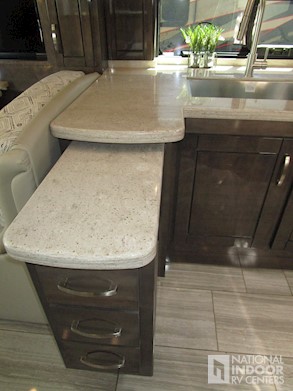

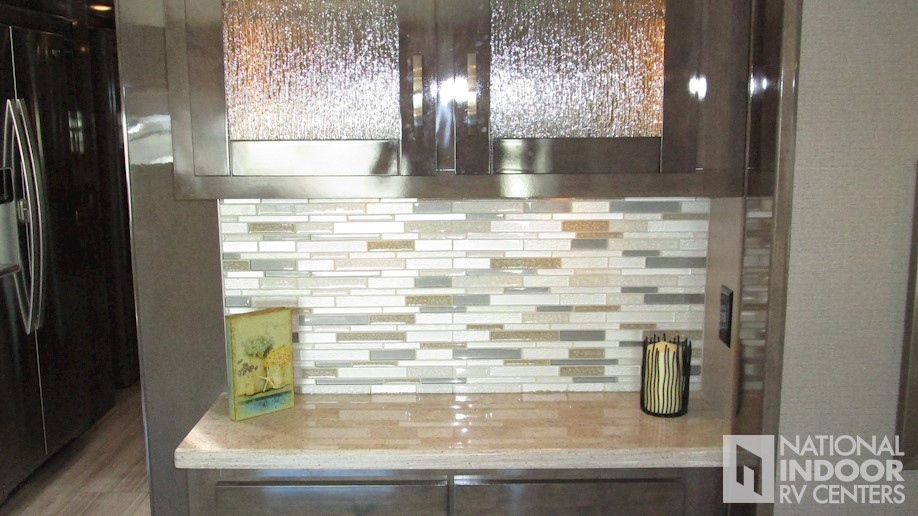

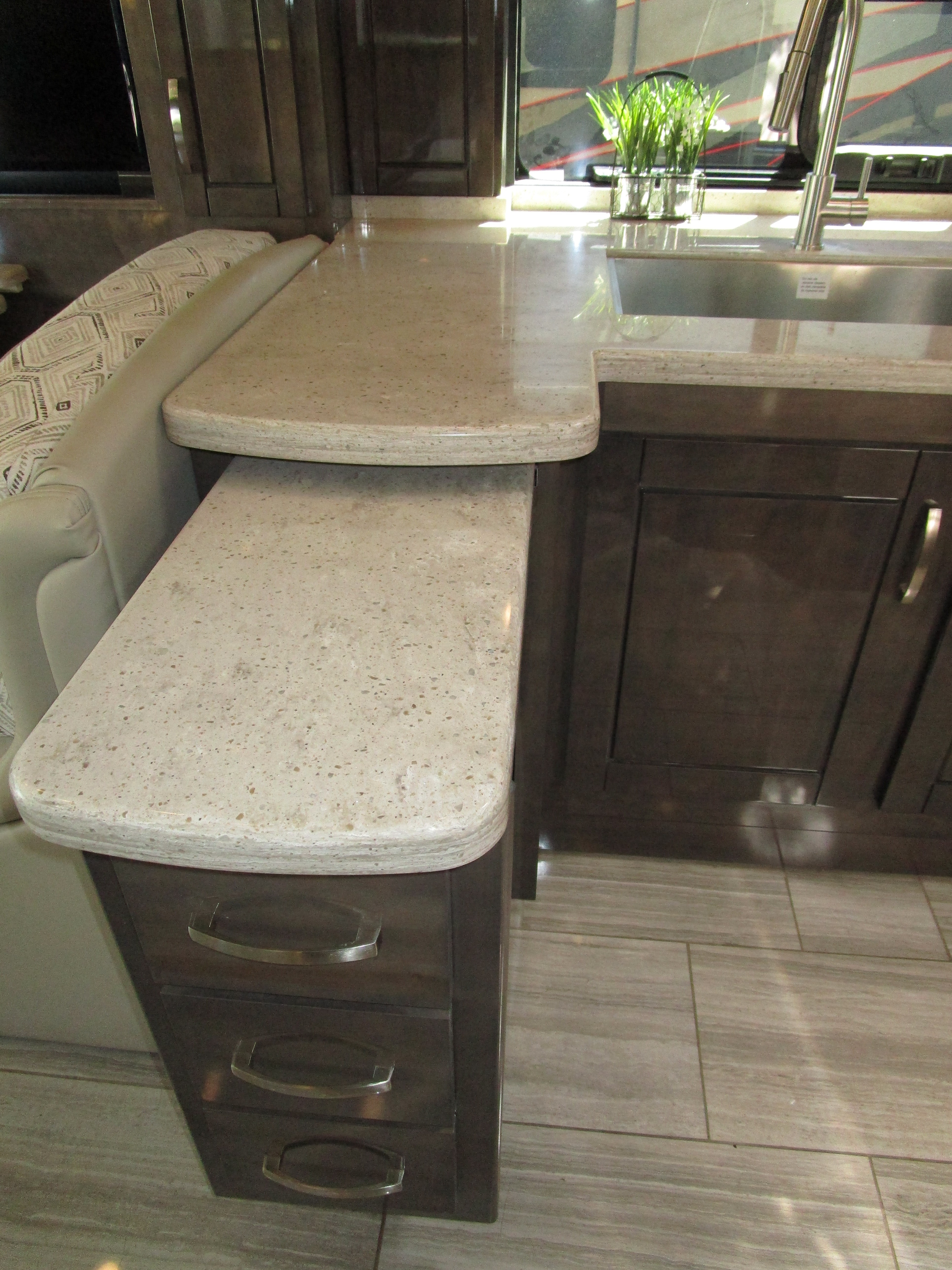

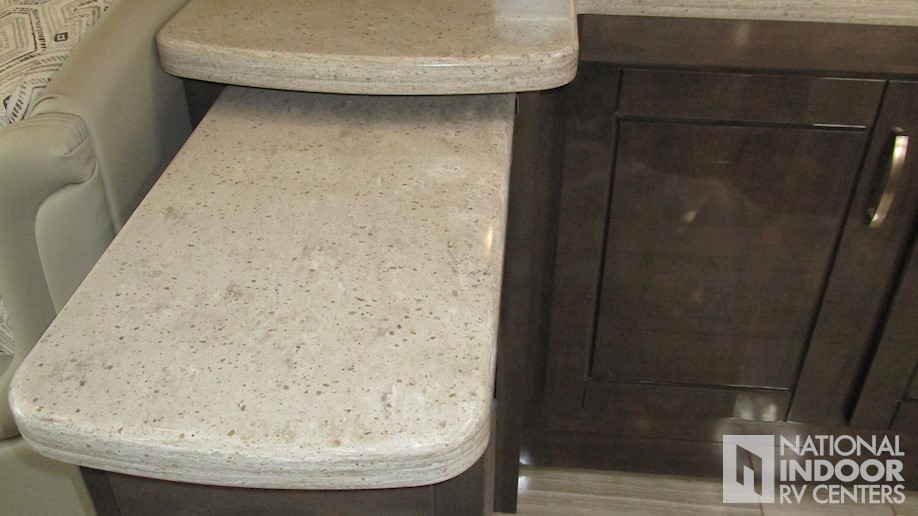

Countertops |
Solid surface countertops |

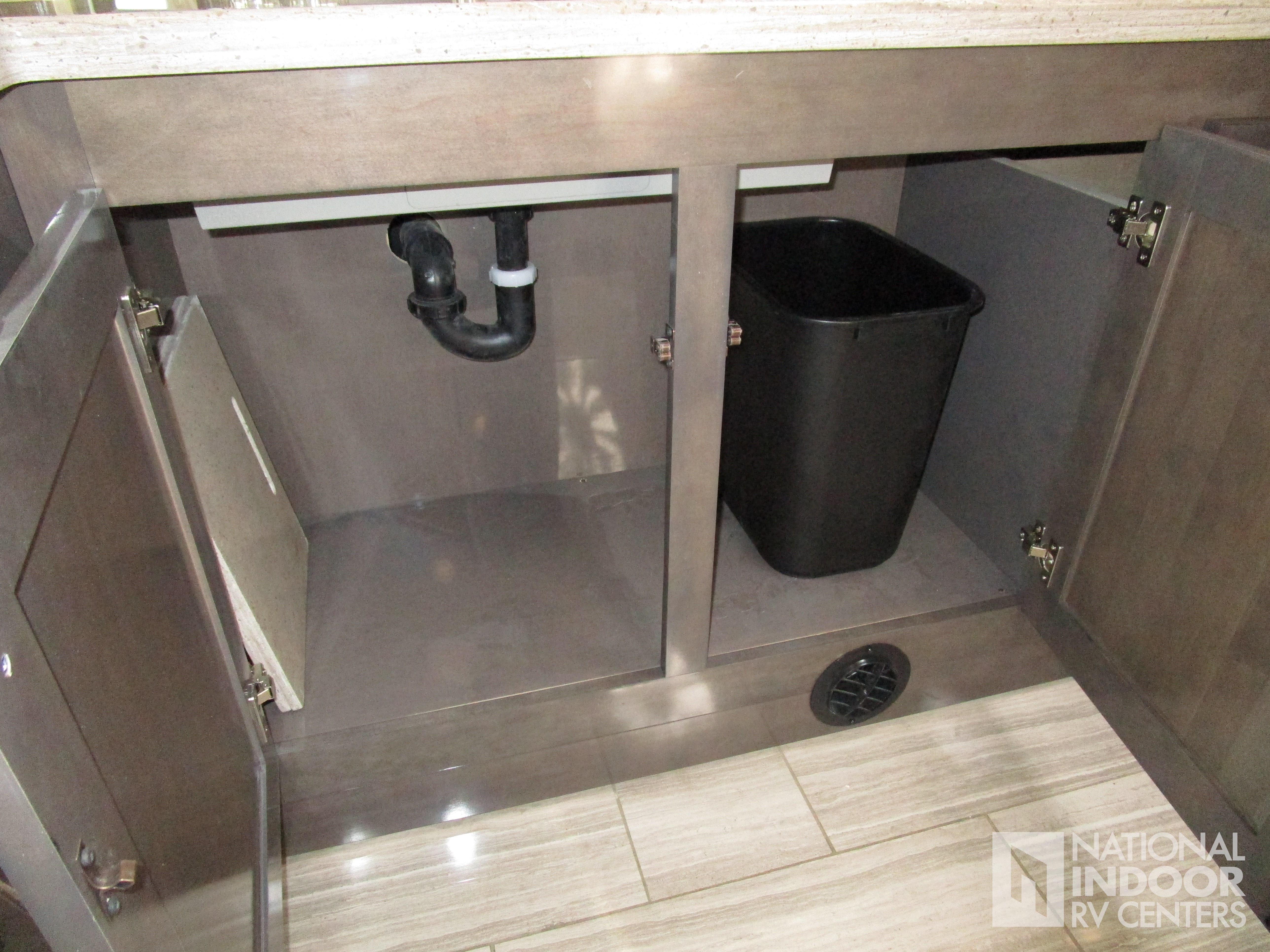

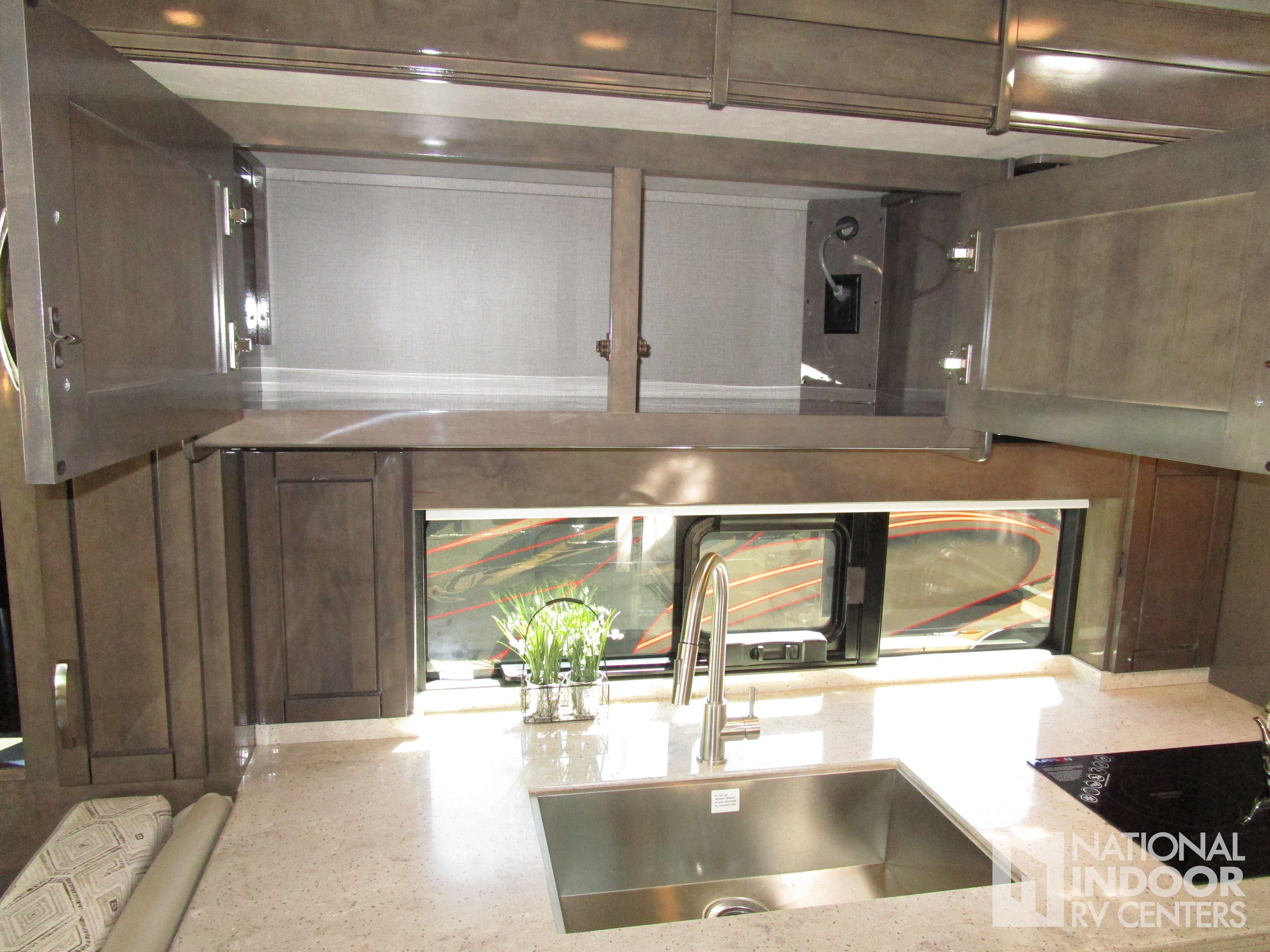

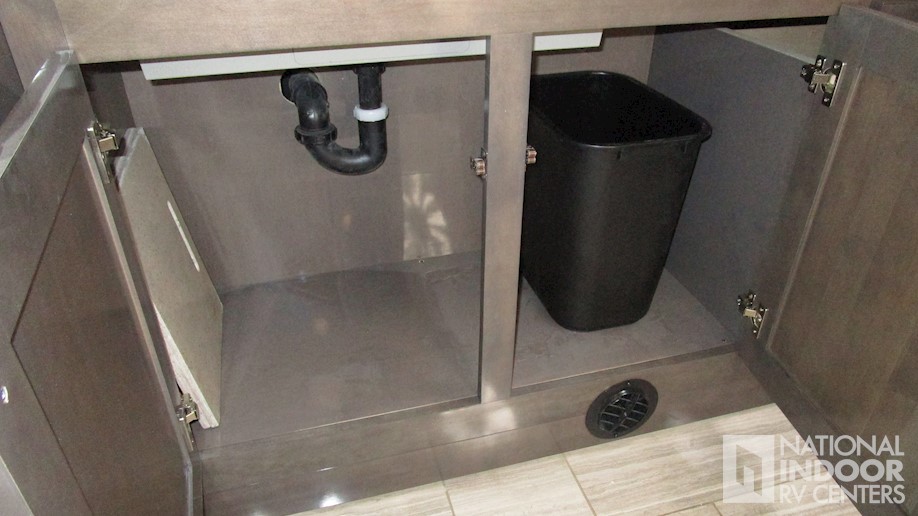

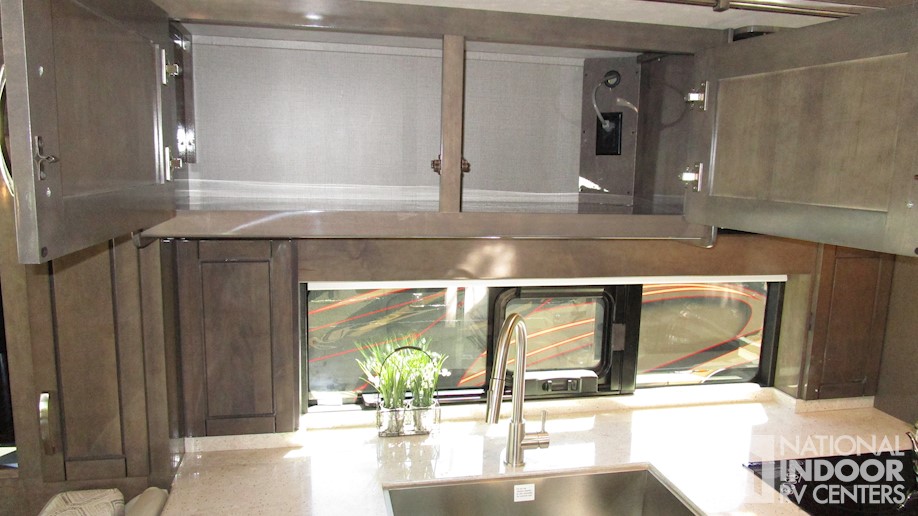

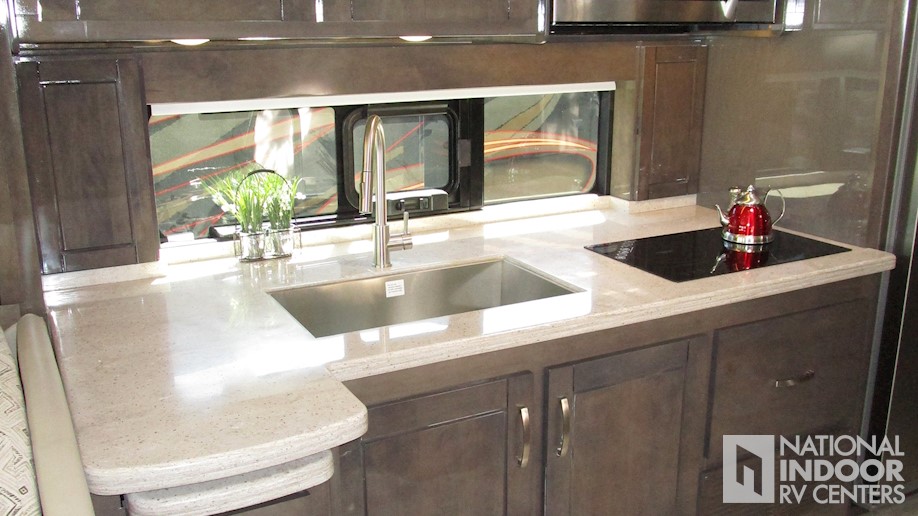

Sink |
Single-bowl, stainless steel sink |
Vent |
Fan-Tastic power exhaust fan with intake |

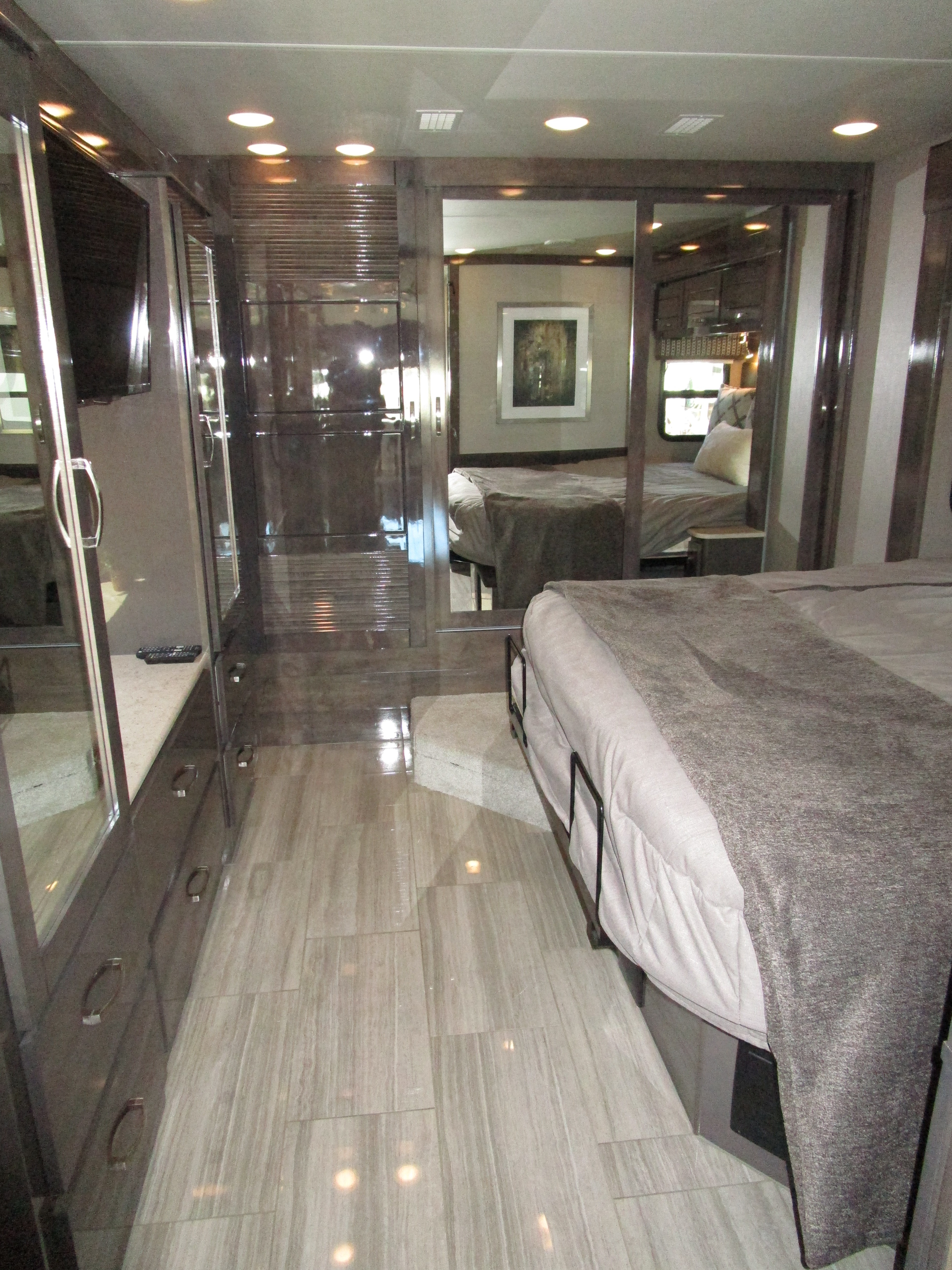

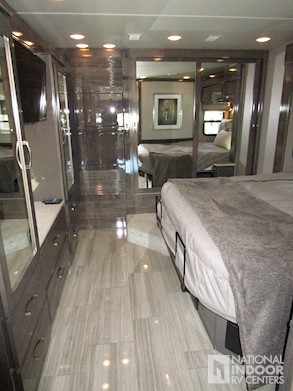

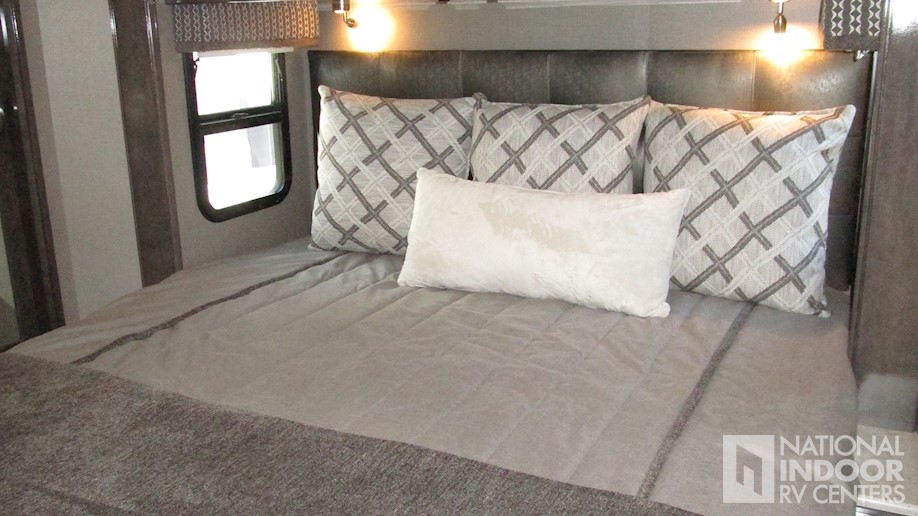

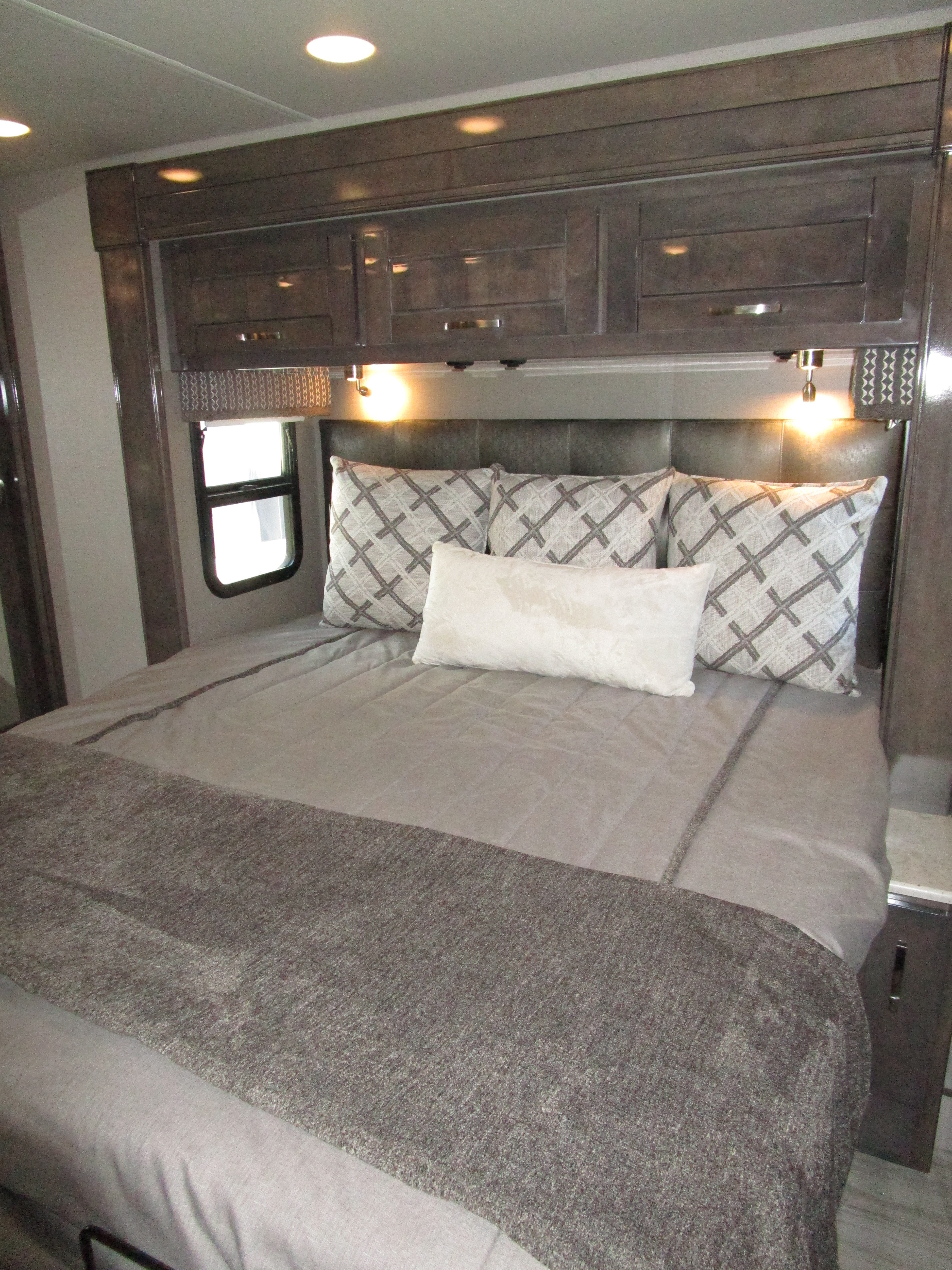

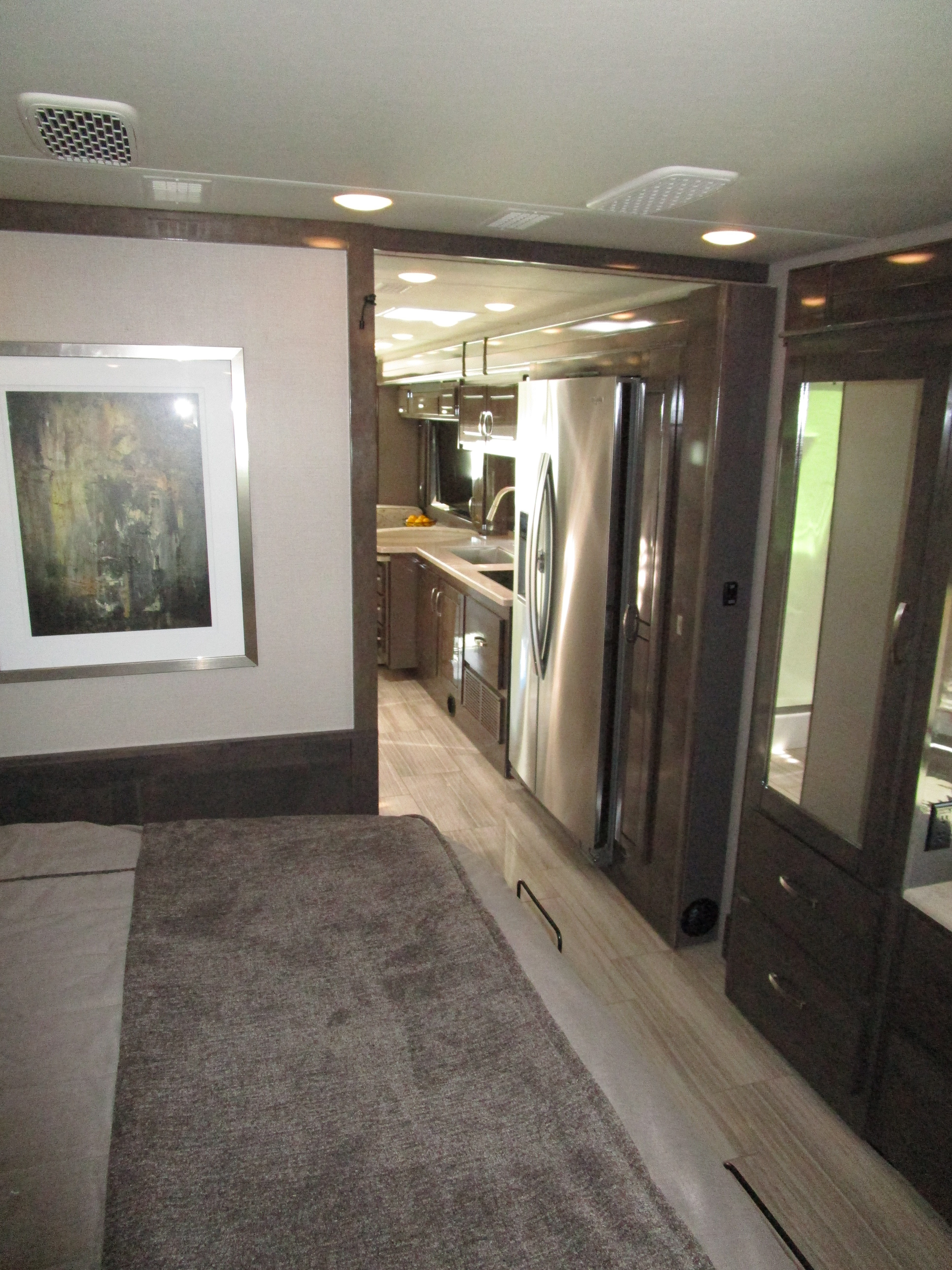

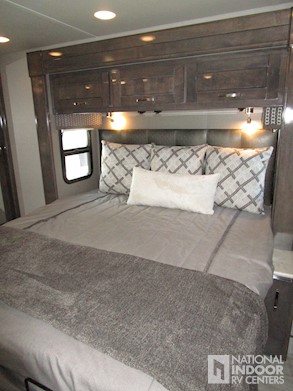

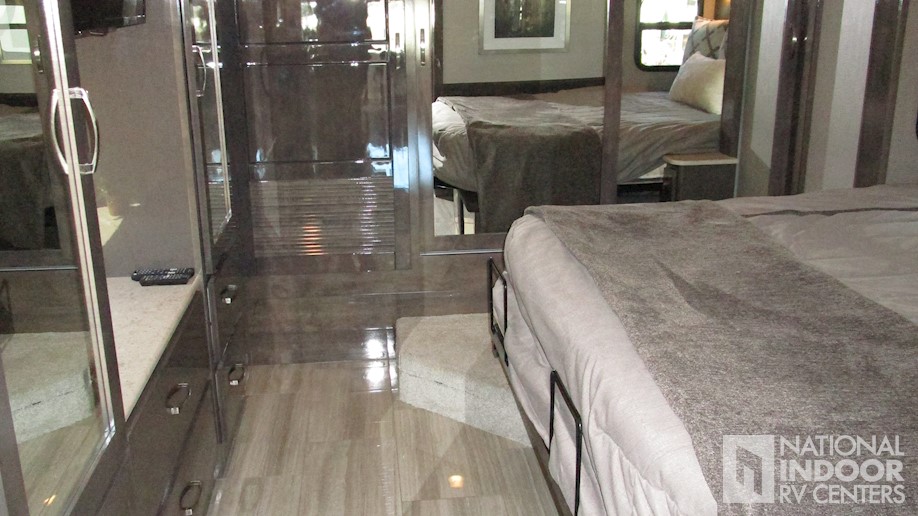

Bed |
King-sized pillow top mattress on tilt bed |
DVD Systems |
LG® Blu-Ray® player |

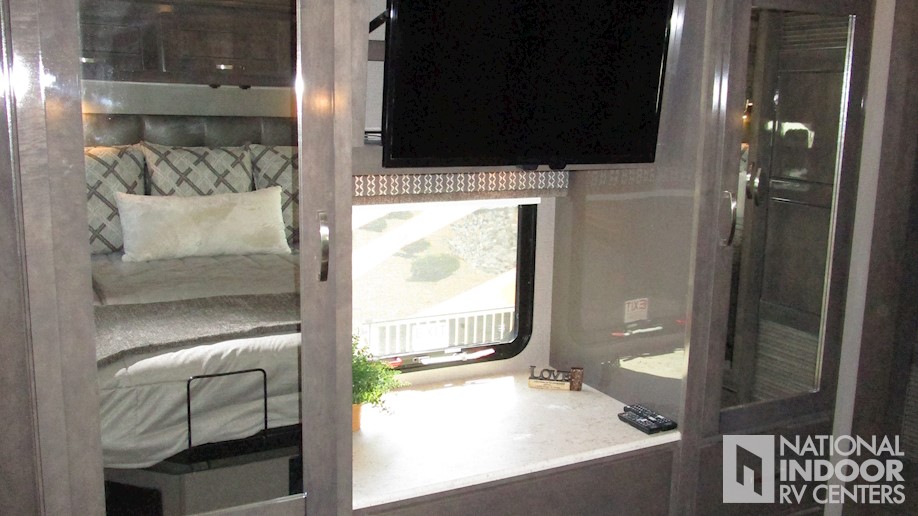

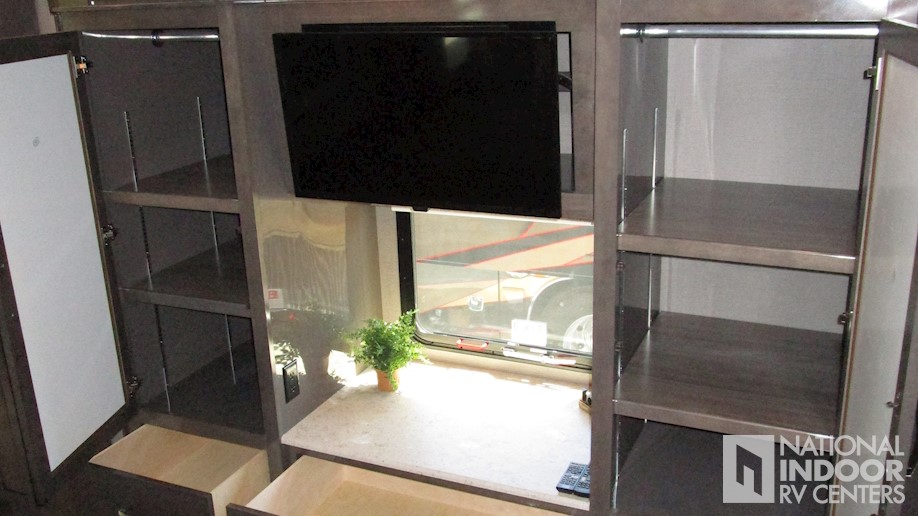

Television |

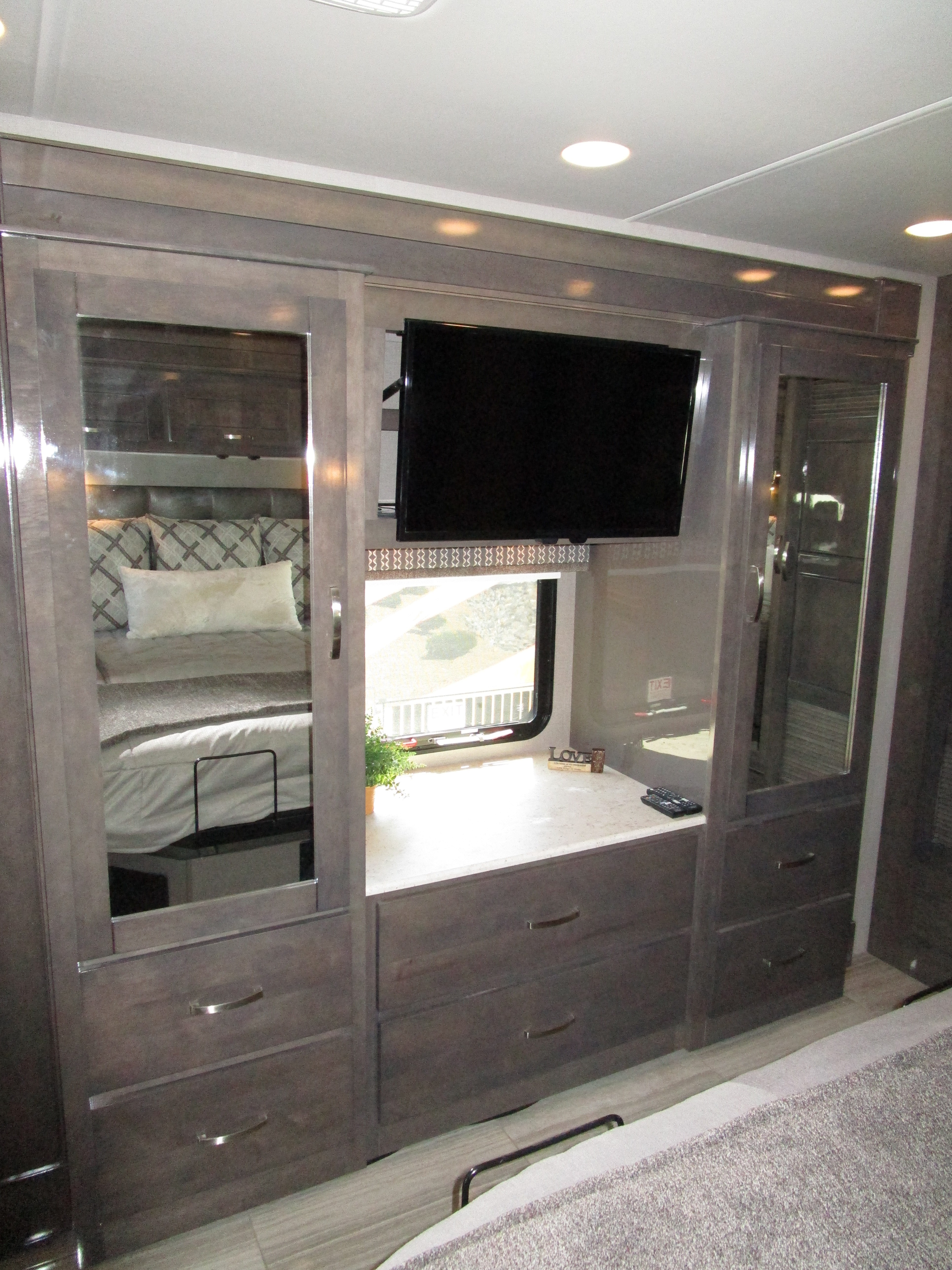

32” Insignia™ LED TV |

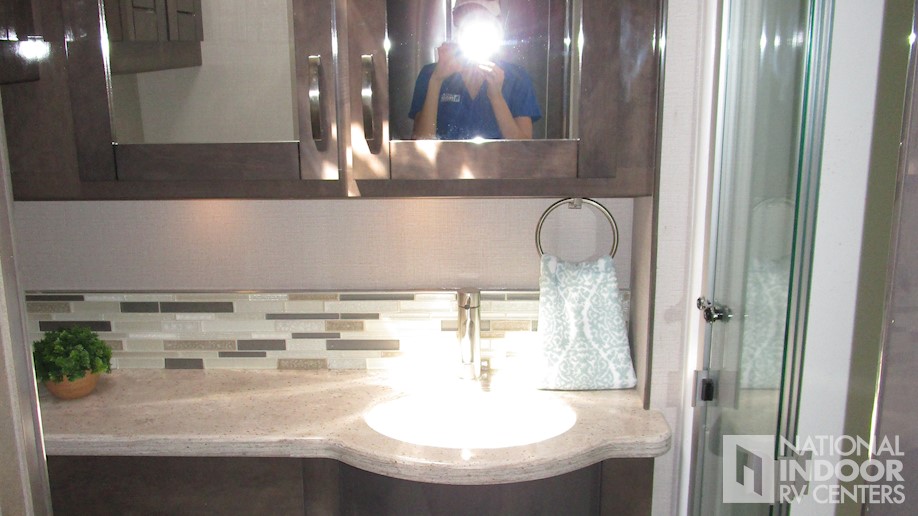

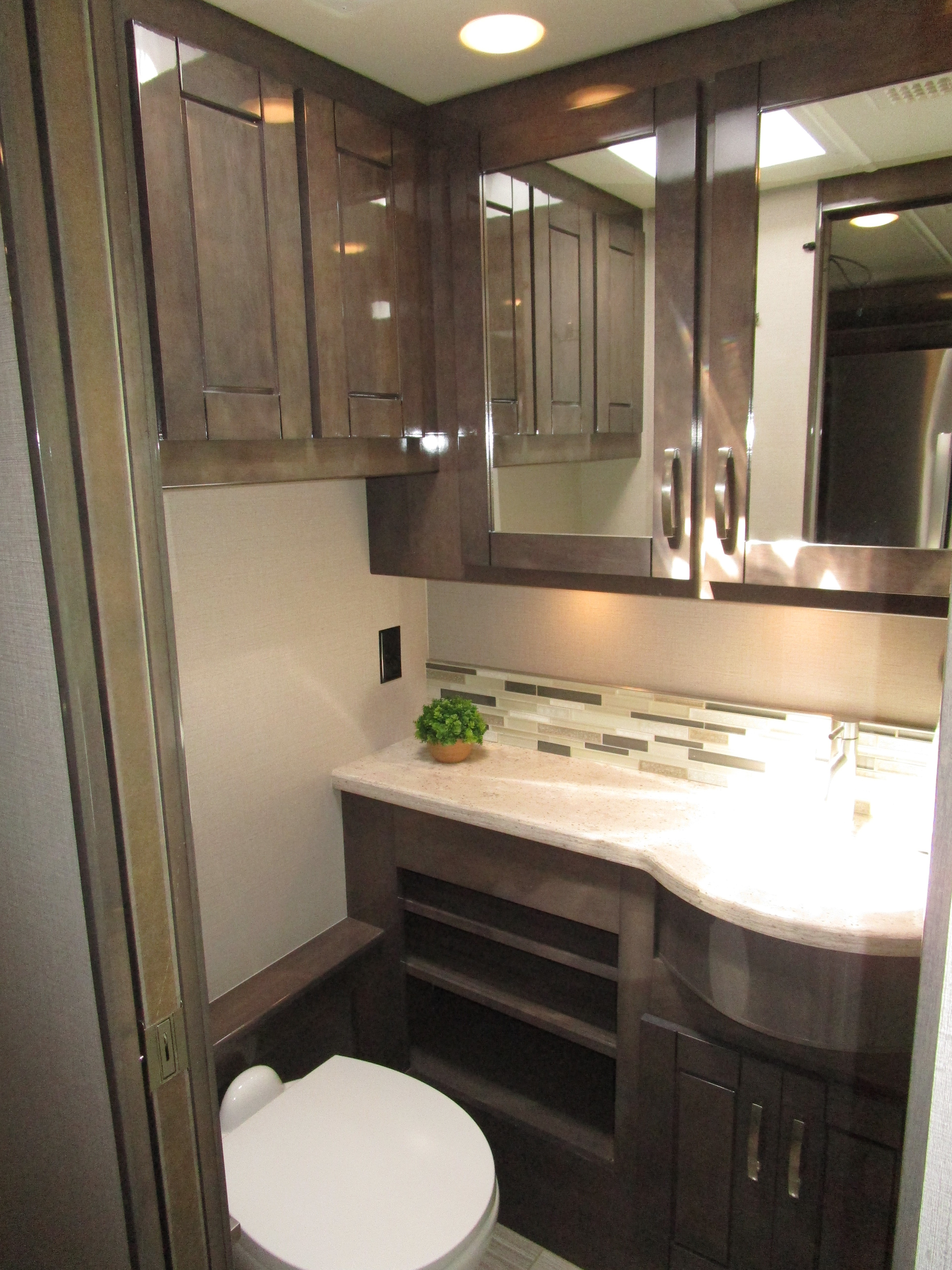

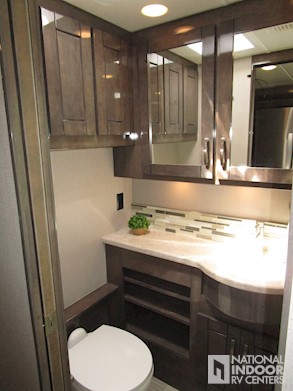

Countertop(s) |
Solid surface countertops |

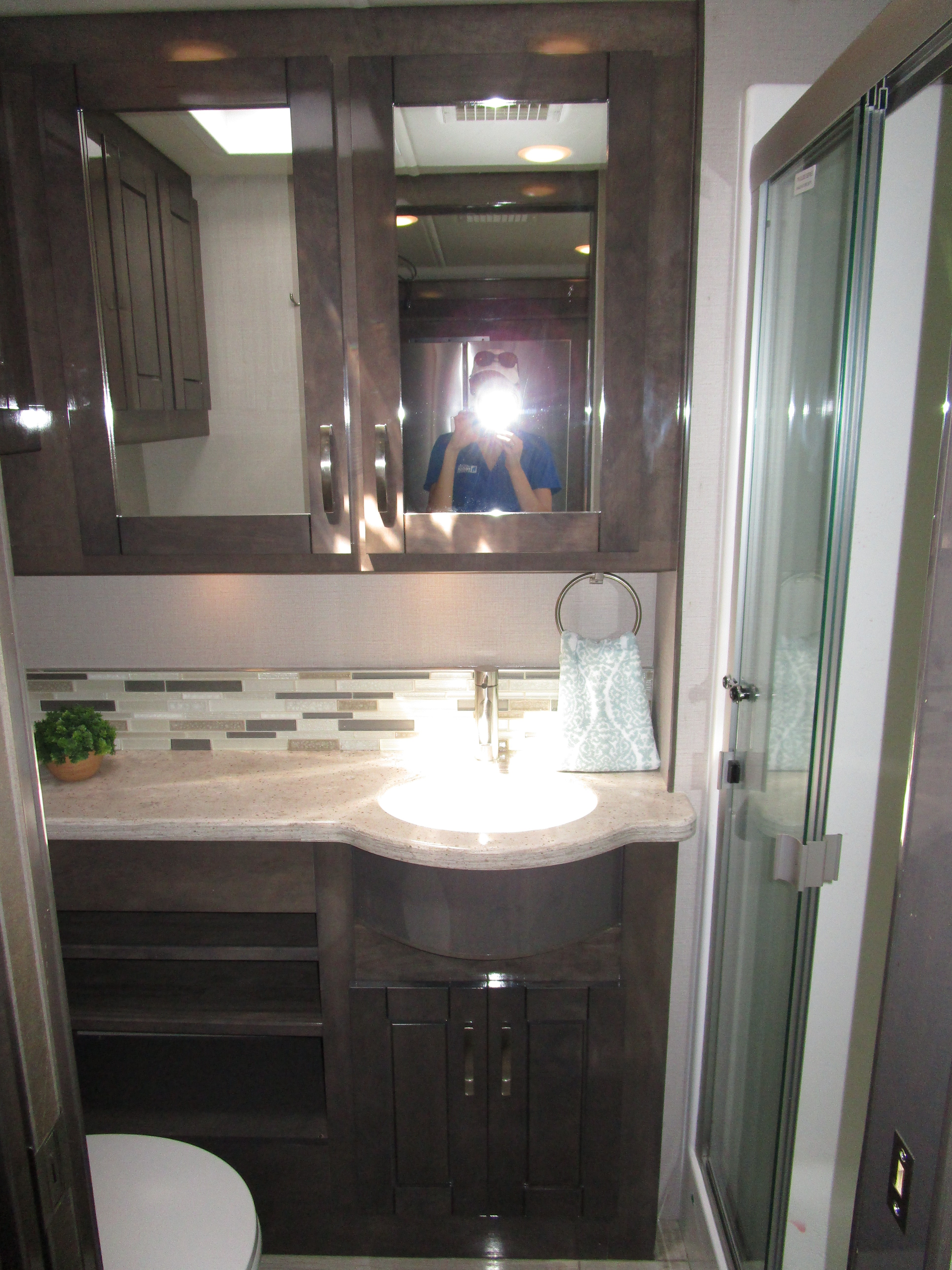

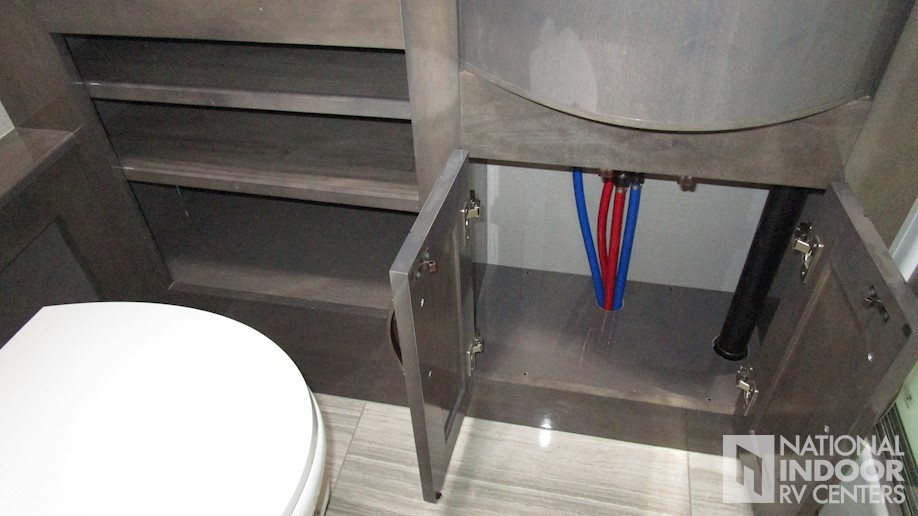

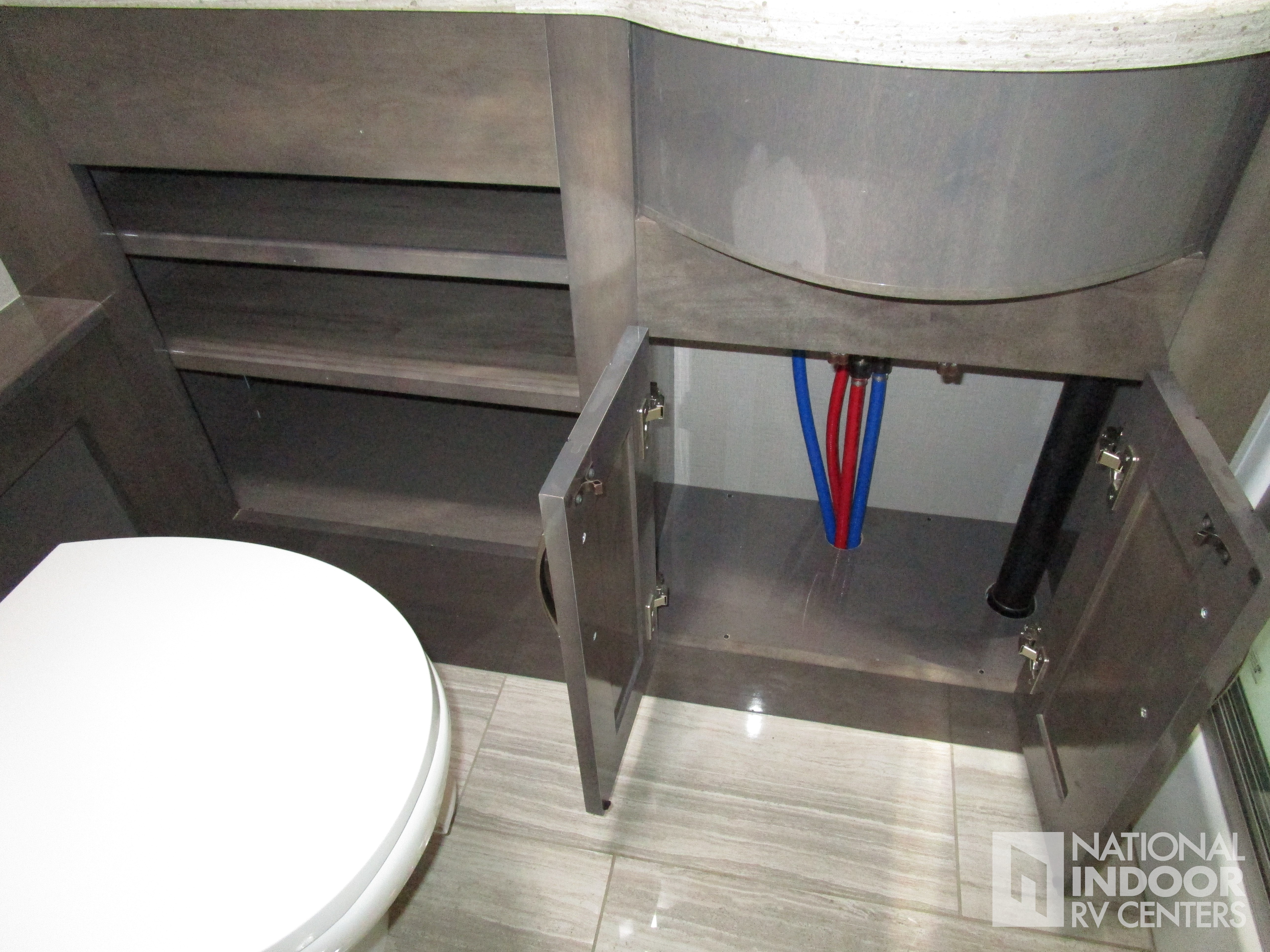

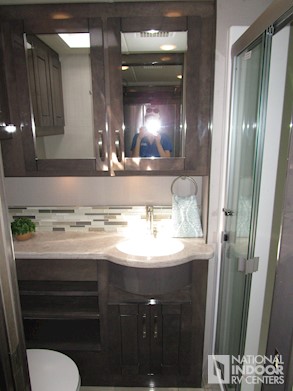

Sink |
Integrated sink |

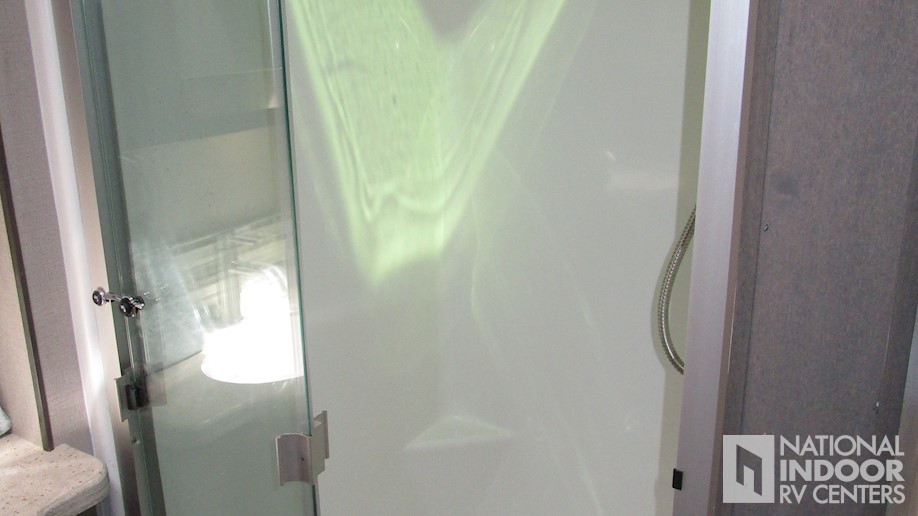

Shower |

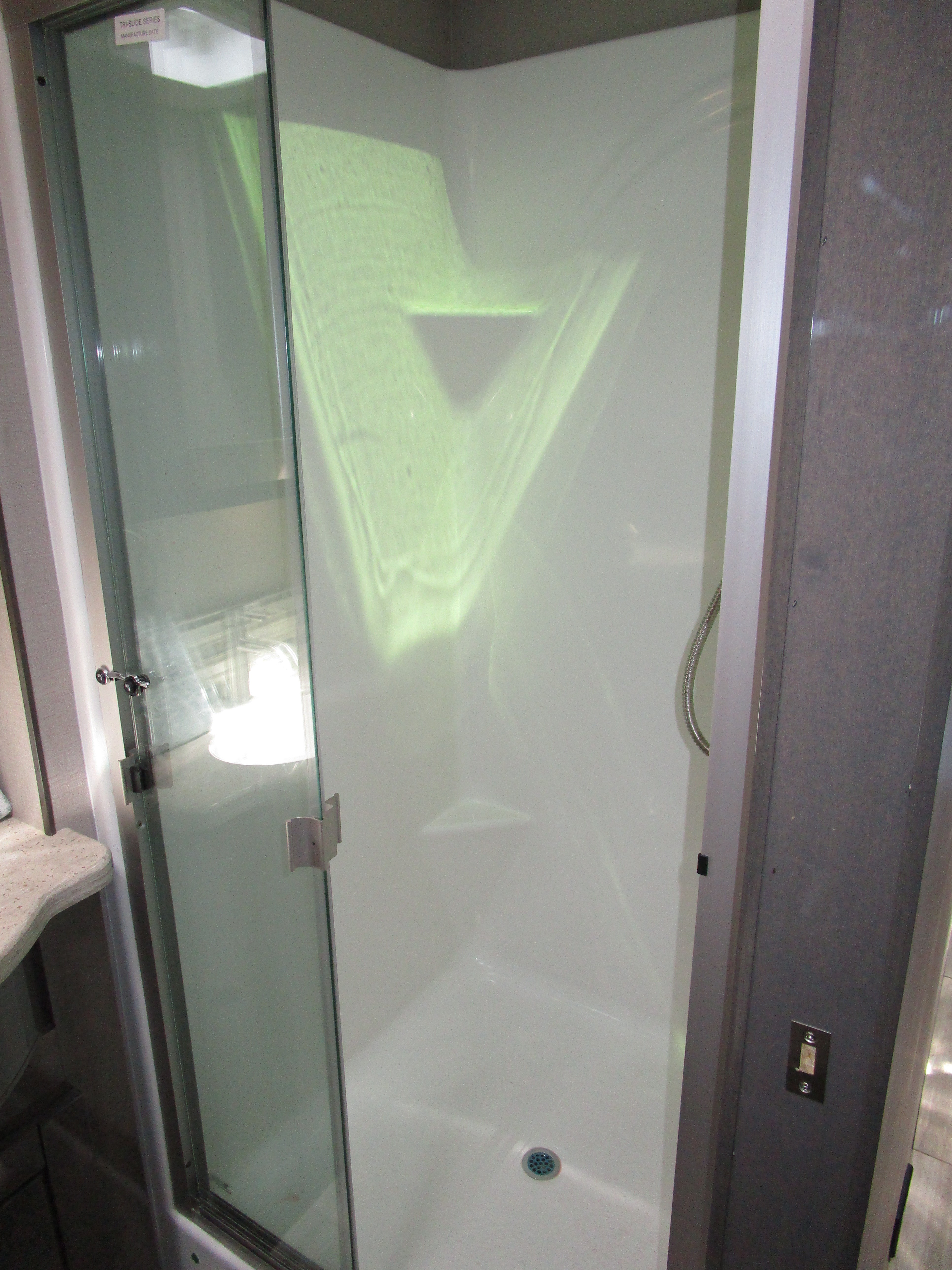

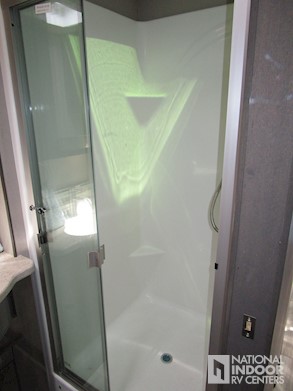

One-piece fiberglass shower with skylight |
Toilet |
Thetford® Aqua Magic toilet with foot flush |
Vent |
Fan-Tastic power exhaust fan with intake |
Water Saving System |
Aqua View Showermiser water saving system |
Carbon Monoxide Detector |
Combination carbon monoxide detector and LP gas alarm |
Smoke Alarm |
Smoke Alarm |
Seat Belts |
Seat belts in every designated seating position |
Canadian Standards |
Canadian Standards- CSA |
Customer Value Package (Mandatory) |
Customer Value Package- 8KW diesel generator, 2,000 watt invertor, (2)15,000 BTU A/Cs with heat pump, automatic leveling jacks, backup and sideview cameras, power awning with LED lights, exterior entertainment center with LED TV, solar shades |

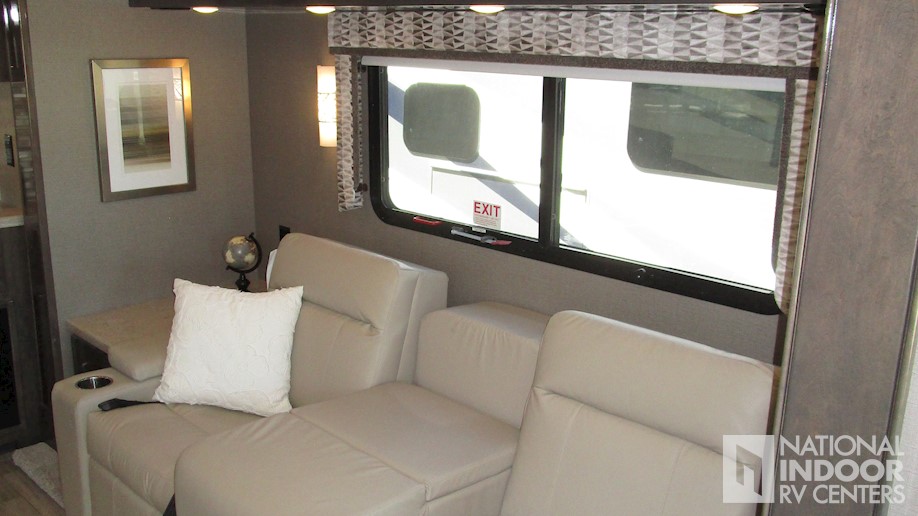

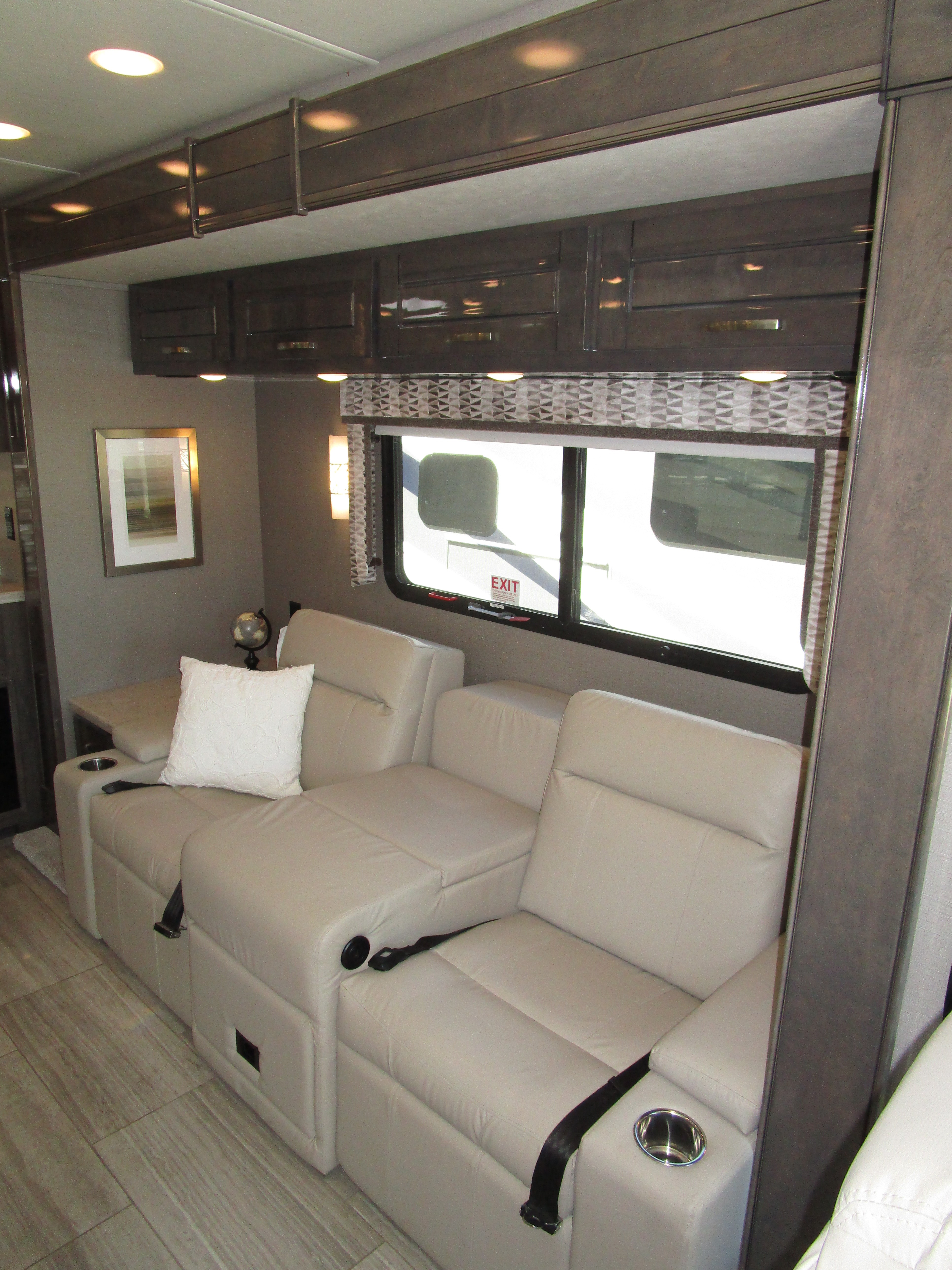

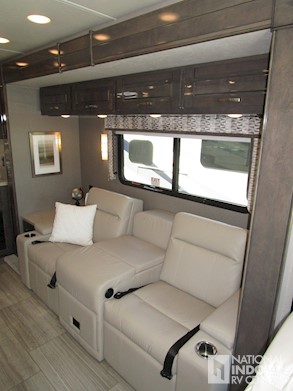

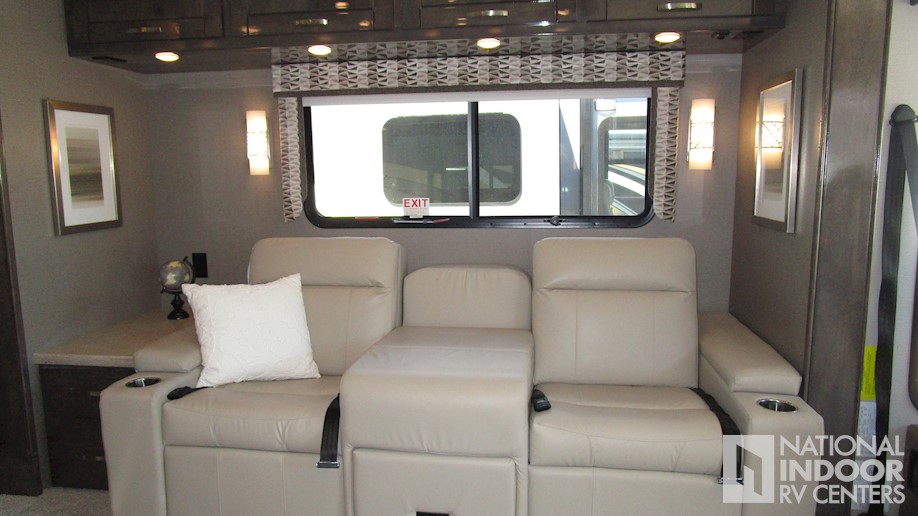

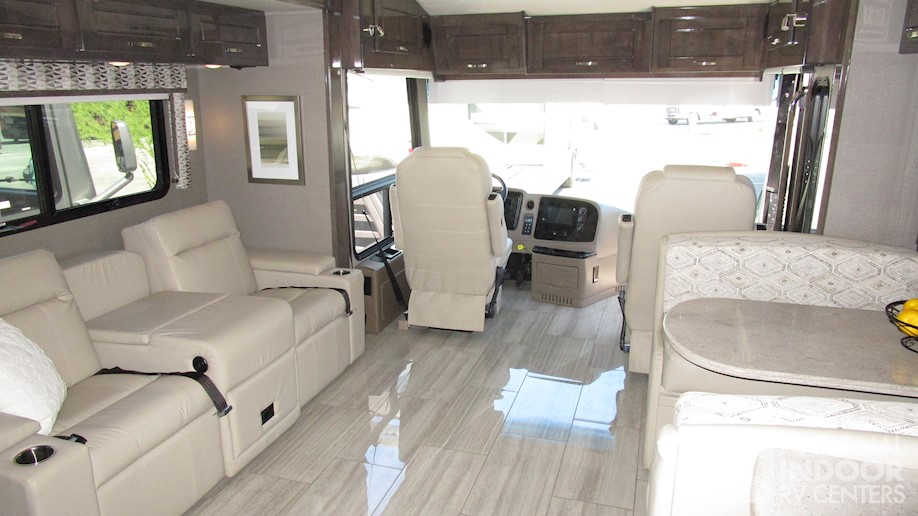

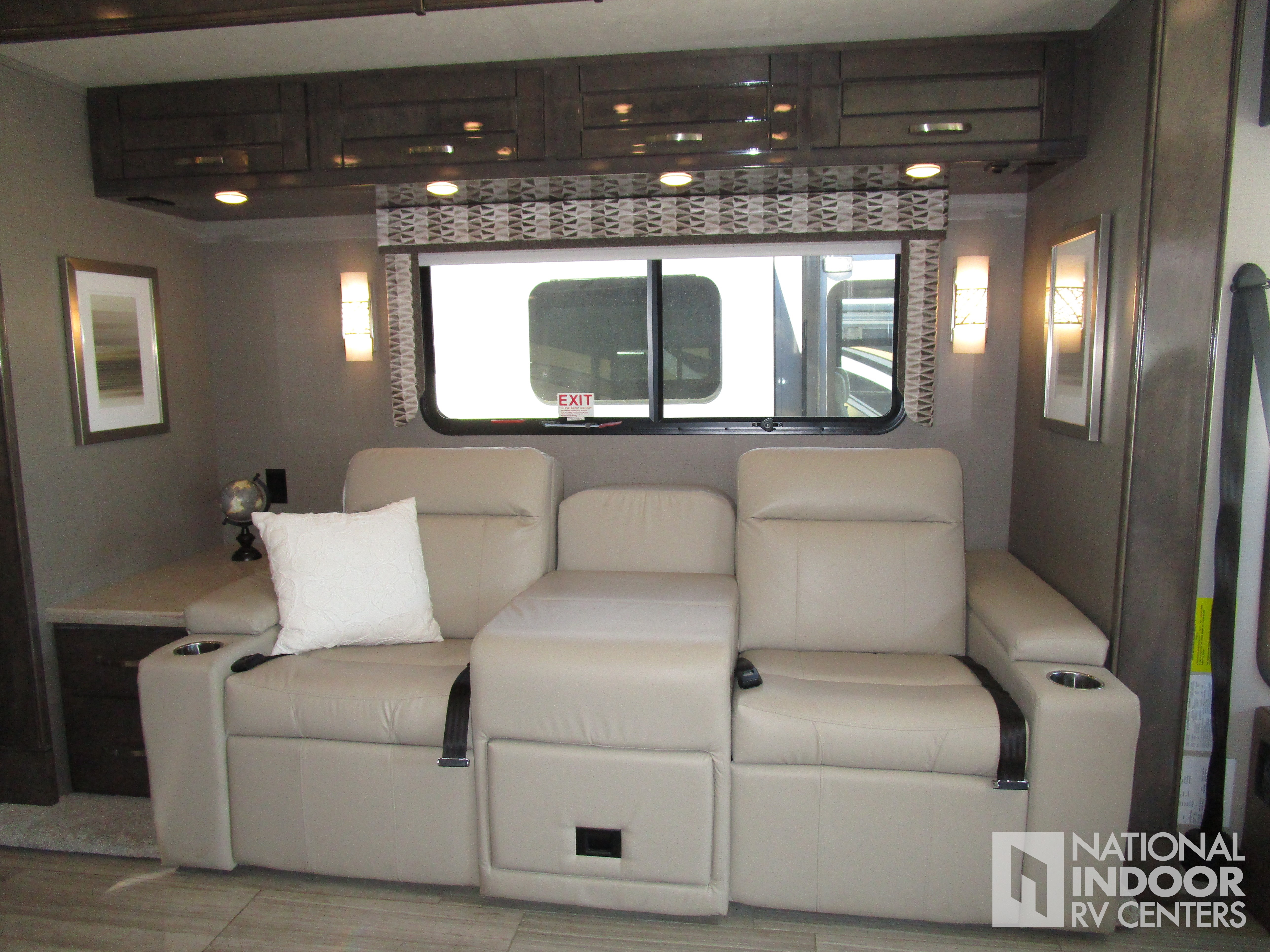

Theater Seating |
Theater seating with power recline |
Satellite Dish |
Winegard In-Motion satellite dome |
Satellite Dish - US |
Winegard TRAV'LER Dish Network |
