| Chassis |
| Spartan K2 Mountain Master raised rail chassis |
| Engine |
| Cummins ISL turbocharged 450 HP engine 1,250 lb. ft. torque at 1,400 RPM |
| Transmission |
| Allison 3000 MH 6-speed transmission |
| Engine Block Heater |
| 1,000 watt engine block heater |
| Front Suspension |
| Reyco Granning IFS independent front air suspension |
| Rear Suspension |
| Front Axle |
| Reyco Granning front axle 17,000-lb. wide track |
| Rear Axle |
| Rear axle 20,000-lb., tag axle 12,000-lb. |
| Rear Axle Ratio |
| 4.88 rear axle ratio |
| Hitch |
| 15,000-lb. hitch with 7/4-pin plug |
| Tag Axle |
| Tag axle air dump |
| Radiator |
| Side-mounted radiator |
| Braking System |
| ABS disc brakes on front and drive axle/drum brakes on tag axle & two-stage engine brake |
| Traction Control |
| Shocks |
| Bilstein shocks |
| Fuel Tank |
| 100-gal. fuel tank (dual fill) |
| DEF Tank |
| Dual DEF fill (44B, 44U, 42RBQ, 42DEQ) |
| Tires |
| Goodyear G670 315/80R 22.5" Tires (Front) and G670 295/80 R 22.5" Tires (rear) |
| Turning Radius |
| Chassis Battery |
| Chassis batteries (2) |
| Alternator |
| 170-amp alternator |
| Air Connection |
| Remote air connection |
| Frame |
| X-Bridge frames welded into chassis frame |
| Underbelly |
| Enclosed, insulated and heated floor and thermostat controlled heating in storage area |
| Insulation |
| Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
| Floor |
| 2" x 4" floor truss construction |
| Floor Decking |
| 3/4" 7-ply plywood main floor decking |
| Walls |
| Aluma-Tru Superstructure construction on 12"-16" centers |
| Slideouts |
| Flush-mounted electric-powered slideout rooms with remote control |
| Roof |
| One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss |
| Propane |
| Heating System |
| Aqua-Hot 400 diesel hydronic water and heating system with in-floor heat throughout |
| Air Conditioning |
| 15,000-BTU low profile A/Cs (3) with heat pump, digital thermostat, and roof to ground condensation drain tubes |
| Electrical Hookup |
| 50-amp power cord with electric reel |
| Generator |
| Onan 10,000-watt diesel generator with auto gen start on slide-out tray |
| Inverter |
| 2,800-watt pure sine wave inverter |
| Batteries |
| L16 AGM batteries (2), (6v/390 amp hrs. ea.) |
| Power Management |
| Solar power prep |
| Water Hose w/ Electric Reel |
| Water hose with electric reel |
| Tank Flush |
| Black holding tank sprayer |
| Black Tank Management |
| Macerator holding tank dump system with manual gate valves, & manual back-up system |
| Water Monitoring |
| SeeLevel tank monitoring system |
| Water Filtration |
| City and tank water filtration system |
| Winterization Drain System |
| Winterizing drain system |
| Tank Vents |
| 360 Siphon tank vent(s) |
| Exterior Walls |
| 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
| Front/Rear Cap |
| Steel-reinforced front cap and windshield frame |
| Exterior |
| 3M front protective film mask |
| Headlights |
| LED high beam headlights and Xenon low beam headlights |
| Fog Lights |
| LED fog lights |
| Daytime Running Lights |
| Daytime running lights |
| LED Lights |
| LED marker and turn lights the full length of the coach |
| Docking Lights |
| LED docking lights |
| Accent Lights |
| LED accent lights on underside of slideout rooms curbside |
| Keypad |
| Lighted grab handle with keypad system |
| Keyless Fob |
| Keyless entry with key fob |
| Entrance Steps |
| Entrance Door |
| Aire-Secure travel locks for all pocket doors |
| Door Awning |
| Carefree power entrance door awning with LED lights |
| Window Awnings |
| Carefree window shade awning and slideout awnings |
| Patio Awnings |
| Roof mounted Girard Vision dual pitched patio awning with LED lights |
| Mirrors |
| Heated, remote control, side-view mirrors with integrated cameras |
| Windows |
| Frameless, dual-pane, tinted, safety-glass windows |
| Entertainment |
| Exterior 40" Samsung LED HDTV on TV bracket with extend, tilt and swivel arm and JBL multimedia stereo receiver with Bluetooth audio streaming |

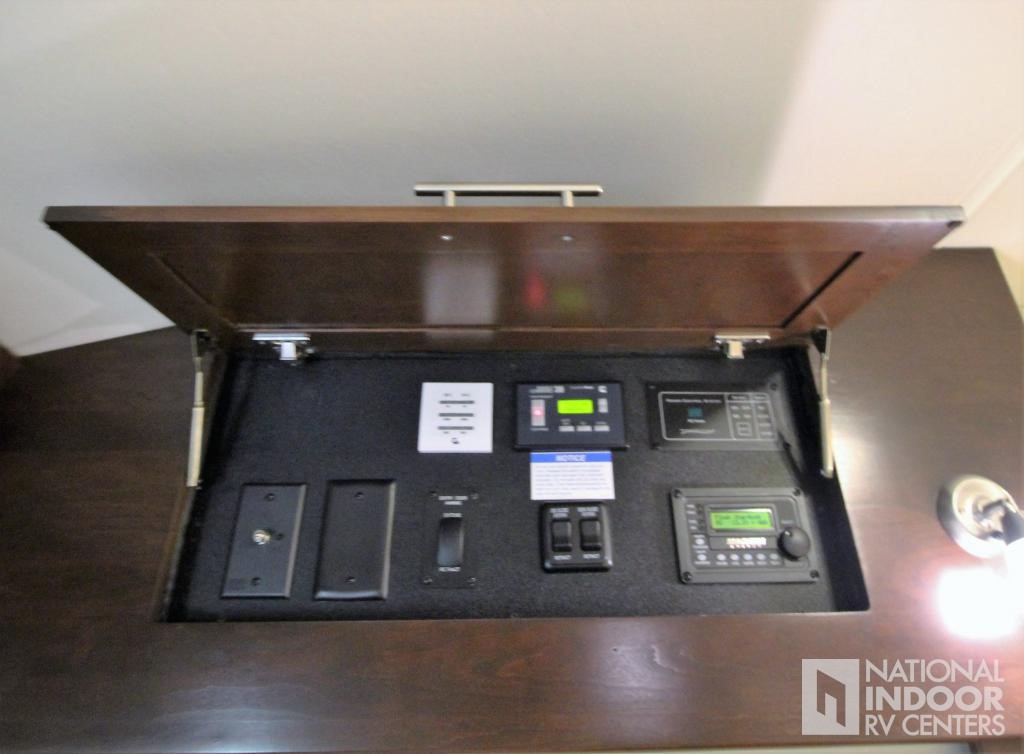

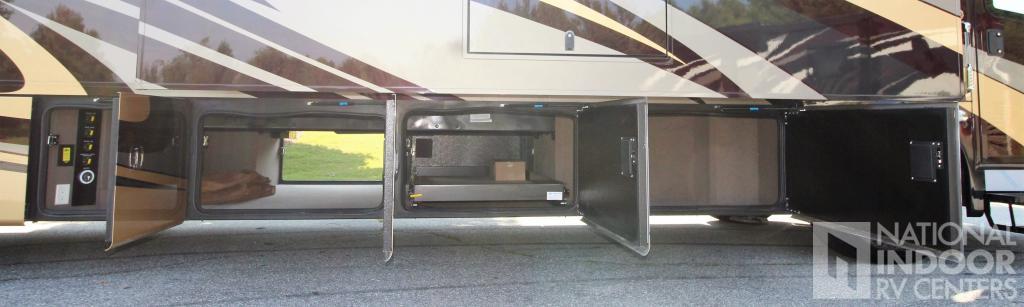

| Utility Center |

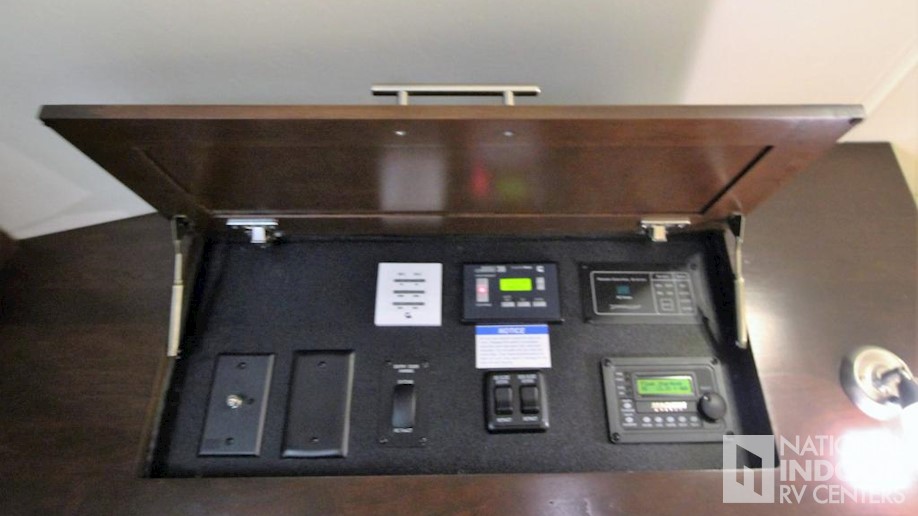

| Exterior utility center, heated and enclosed with system monitor panel |

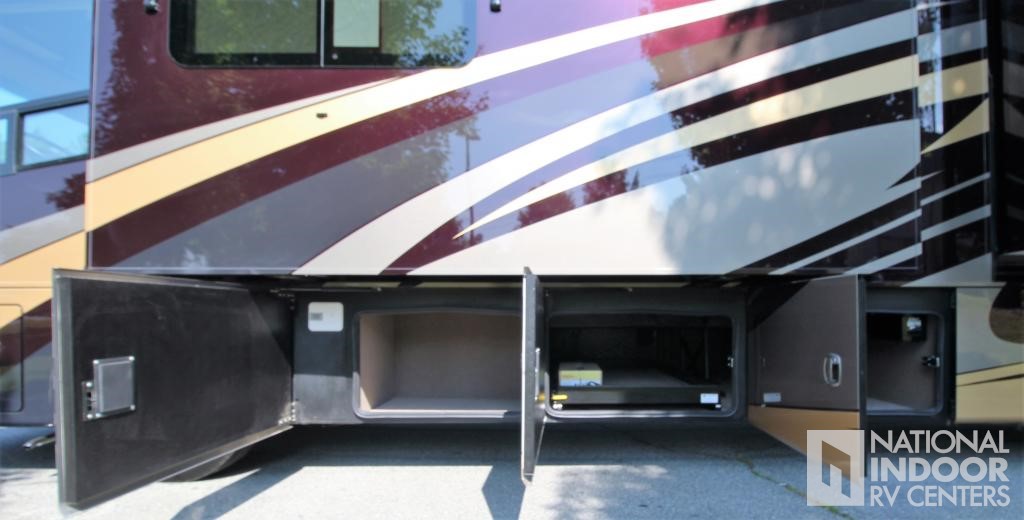

| Cargo Features |
| Satellite Dish |
| Winegard in-motion satellite dome with prep for Trav'ler satellite dish |
| TV Antenna |
| TV Antenna |
| Engine Door |
| Power rear engine door |

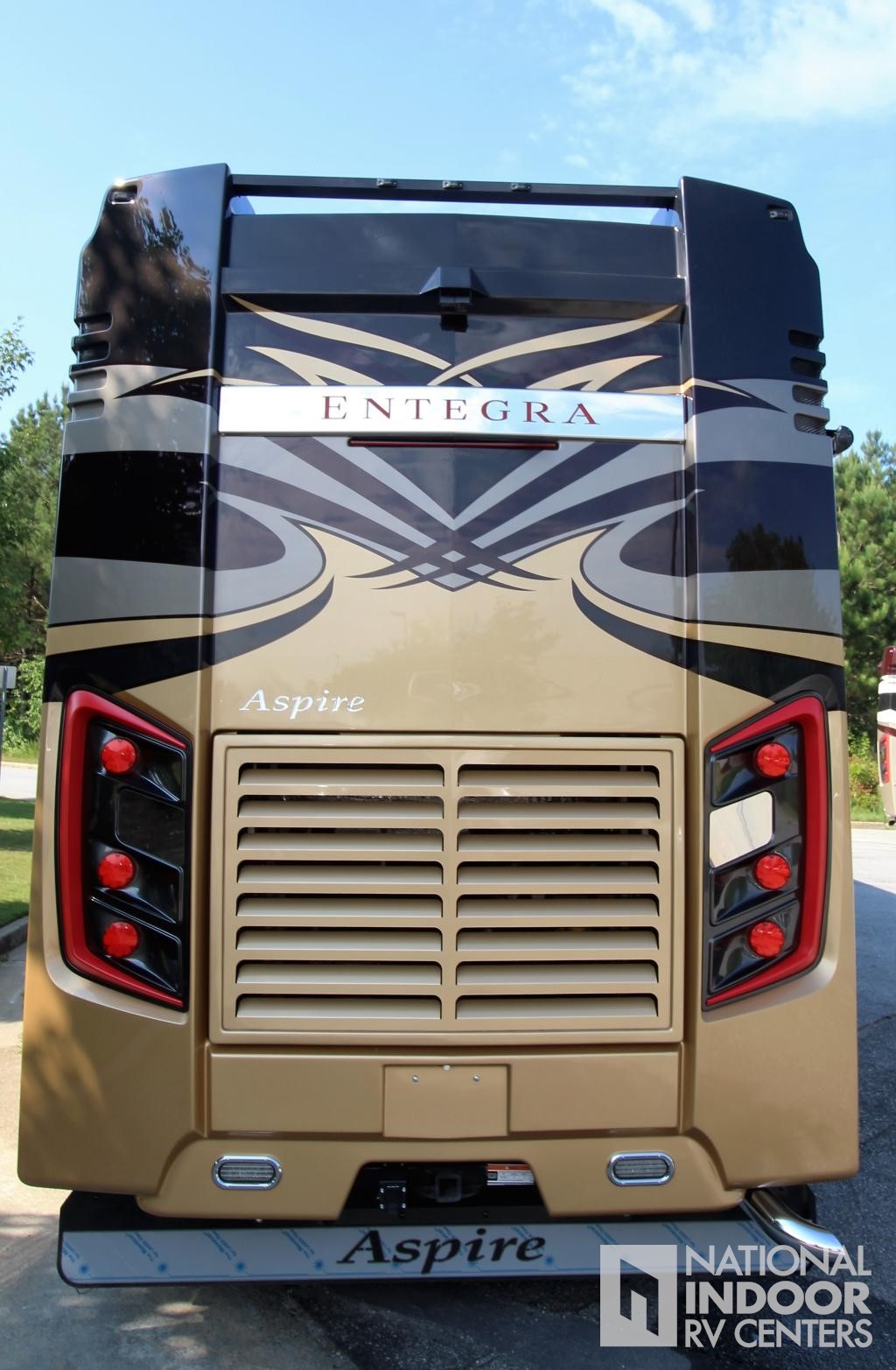

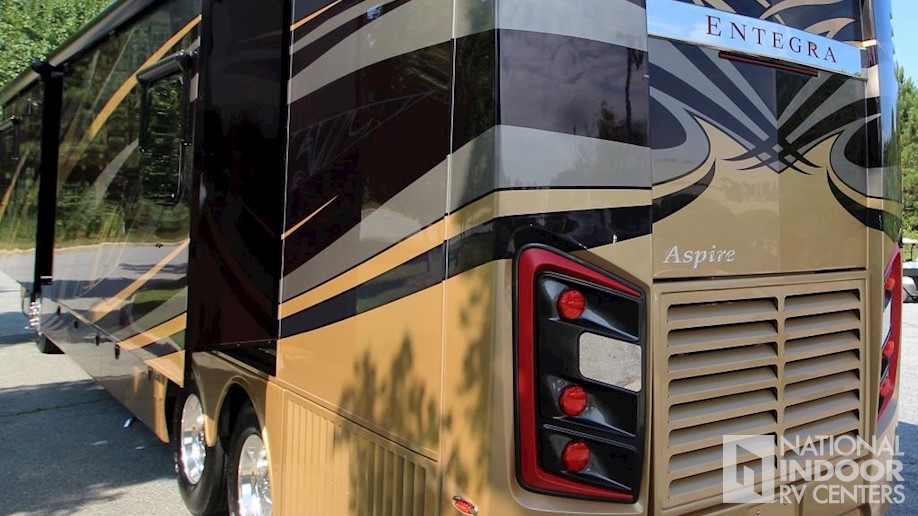

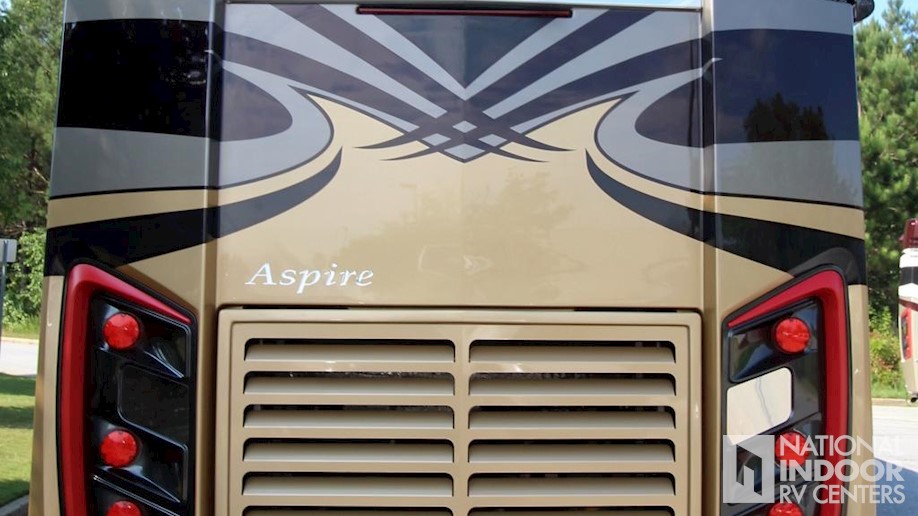

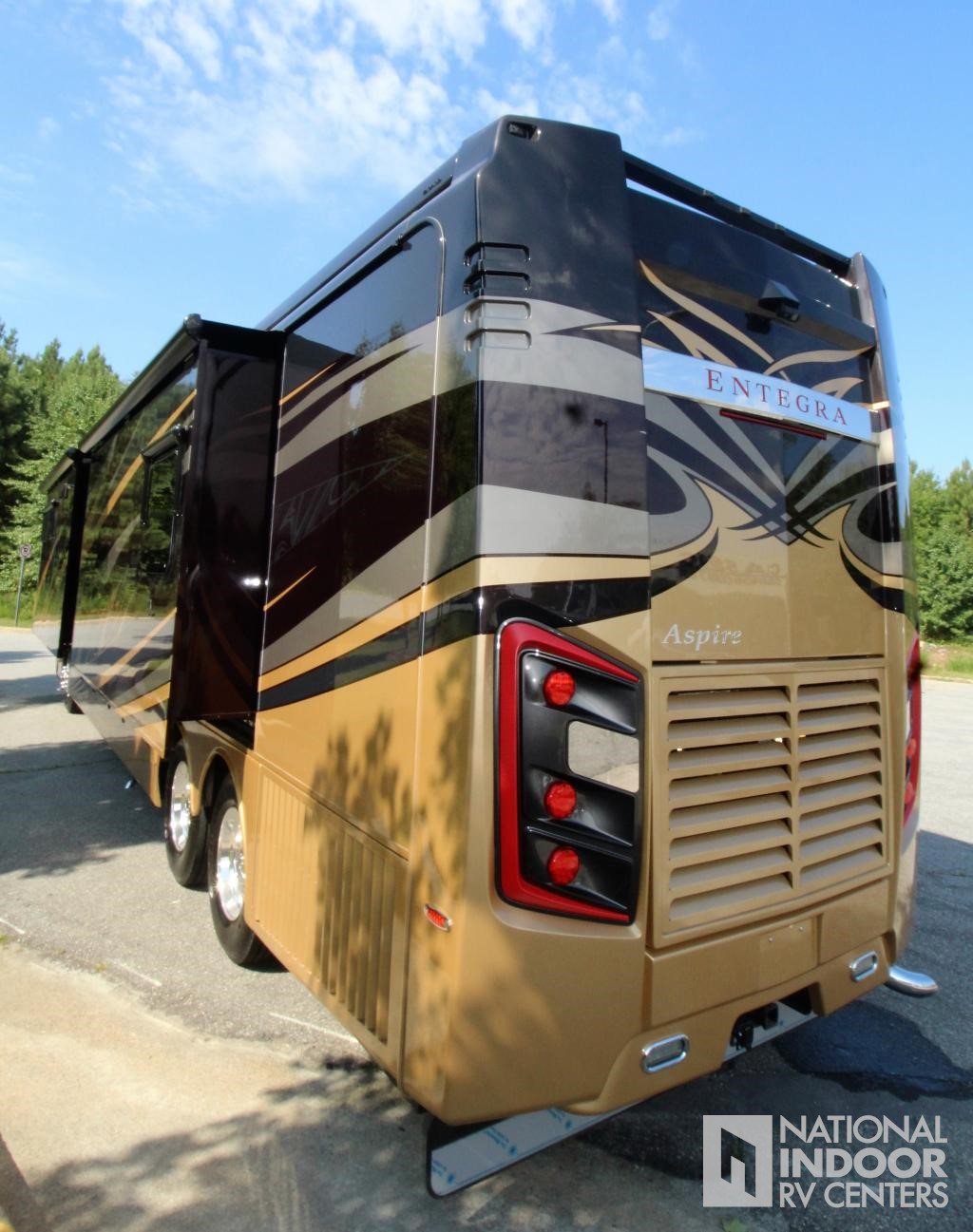

| Rear Mudflap |

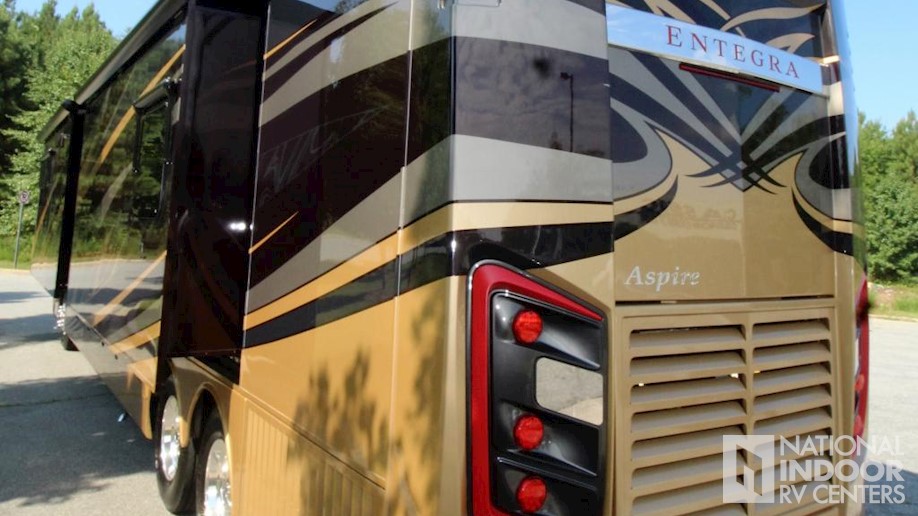

| Full-width rear mudflap, with chrome "Aspire" nameplate |
| Lights |
| Motion sensor security lights (2) |
| Third Brake Light |
| Pulsing Third Brake Light |
| Flooring |
| Powered flush stepwell cover |
| Visors & Privacy Shade |
| Powered front sun visors and privacy shade |

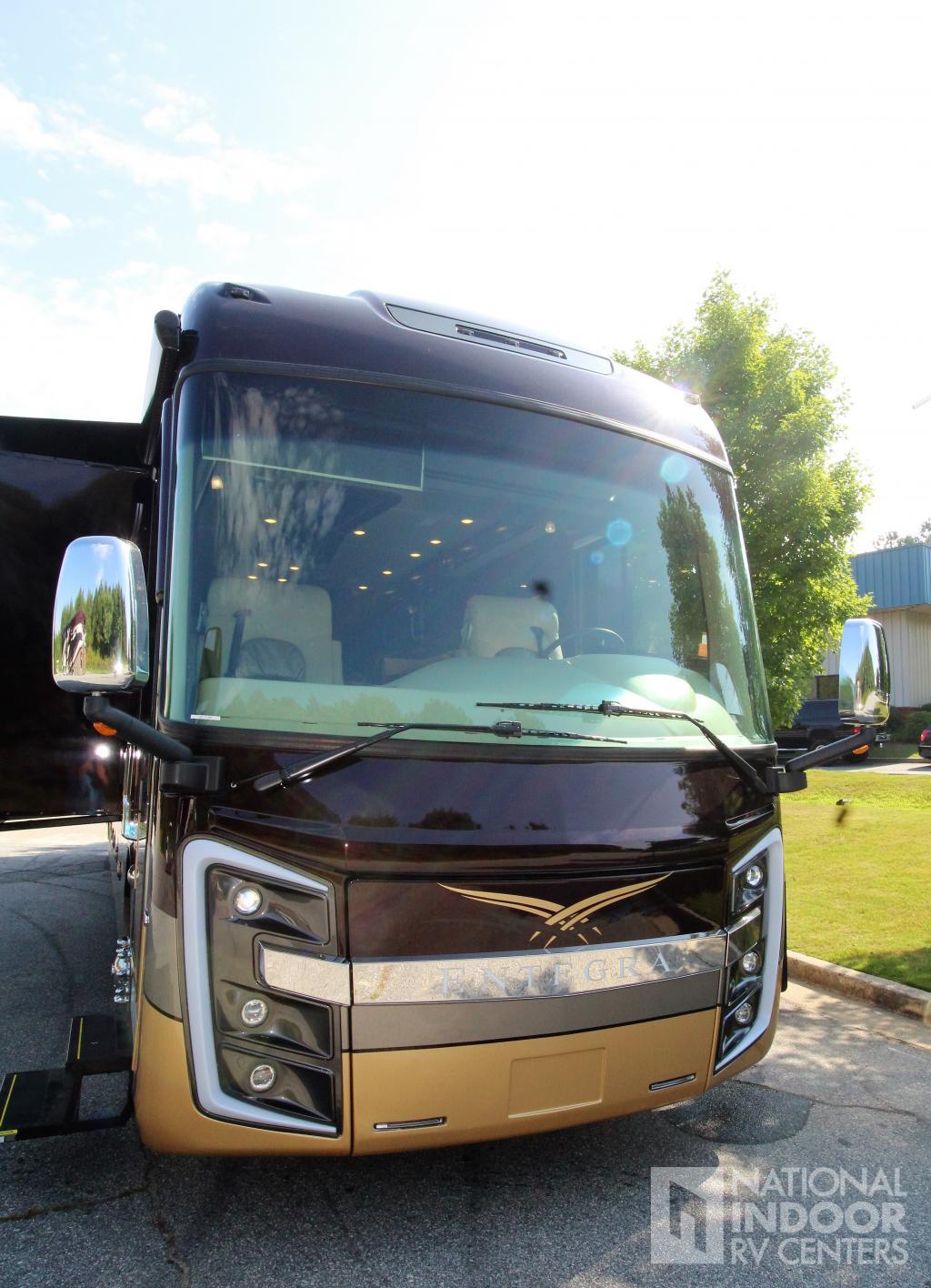

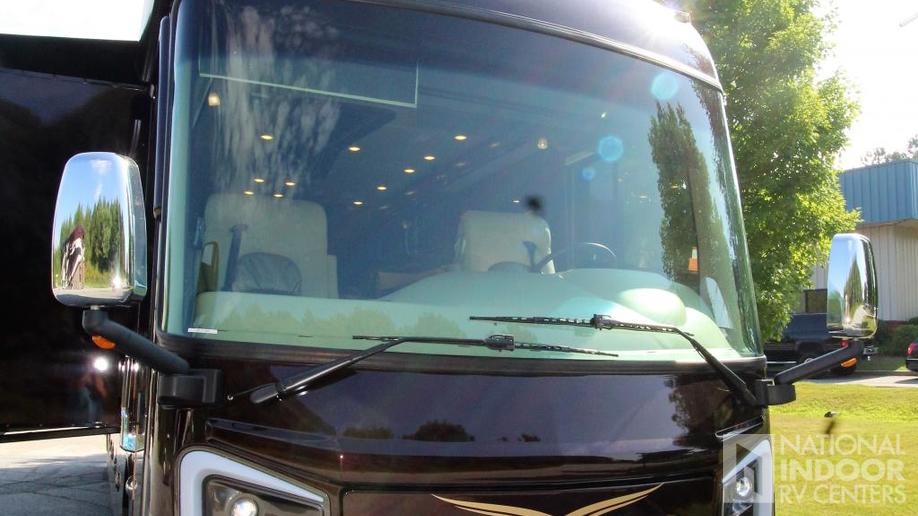

| Windshield |

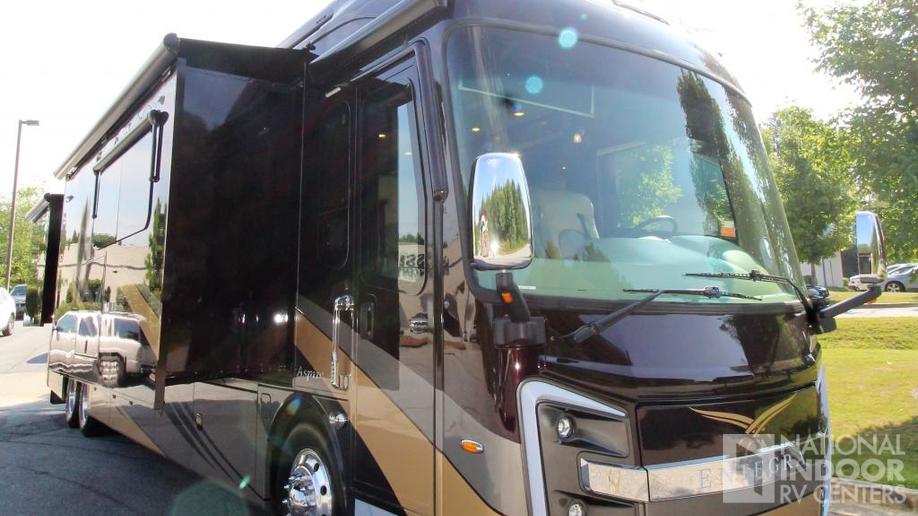

| Ultra-Vision one-piece wrap-around tinted windshield |
| Driver / Passenger Seats |
| Ultraleather, power adjustable driver and passenger seats with integrated 3-point lap and shoulder safety belts |

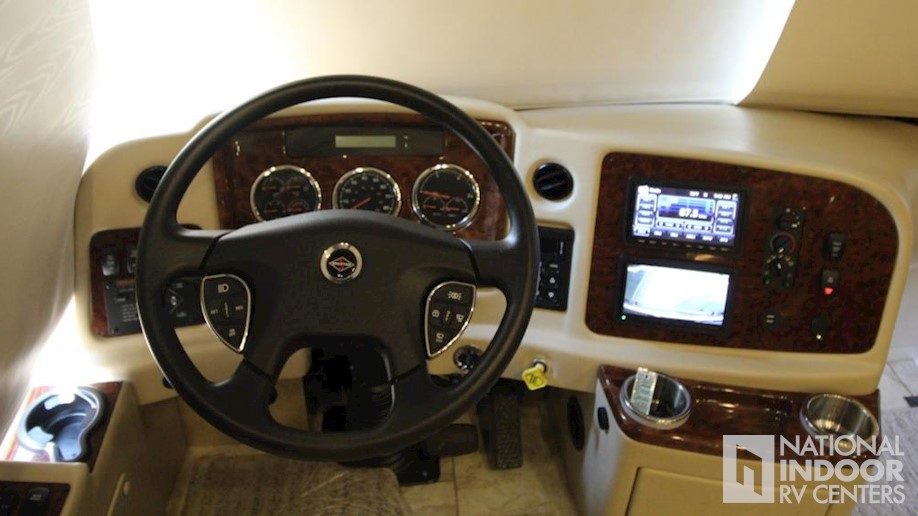

| Steering Wheel |
| VIP leather-wrapped, tilt and telescoping steering wheel with integrated controls for cruise and wipers |
| Monitoring System(s) |
| Spartan Message Center with LCD display featuring: odometer, tachometer, fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, trip meter, speed and voltage |
| Infotainment System(s) |
| Dual 7" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, SiriusXM, AM/FM tuner, integrated camera control, and House Mode whole coach audio distribution |
| Sound System |
| JBL premium audio with calibrated 180-watt DSP amplifier and 5 speakers including subwoofer |
| Leveling System |
| Hydraulic automatic leveling jack system |
| Power Features |
| Battery boost system |
| Pedals |
| Powered adjustable foot pedals |
| Cameras |
| Color, dual back-up camera and monitor system with side and rear views |
| Trip Management System |
| Additional Amenities |
| Chrome, LED lit cup holders and dual USB ports in dash |
| Lighting System |
| Multiplex controlled lighting system |
| Lighting |
| LED recessed 12V lighting |

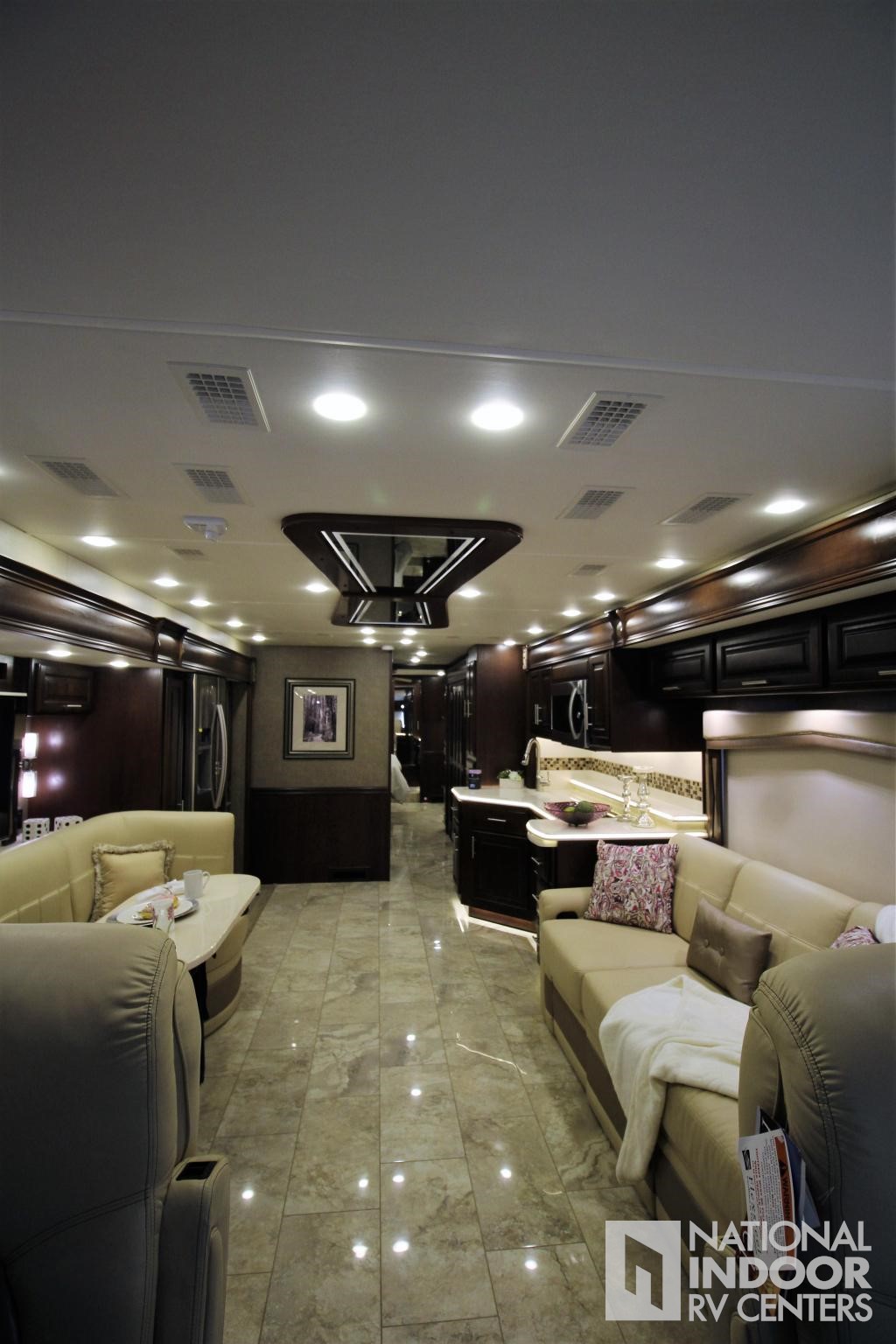

| Flooring |

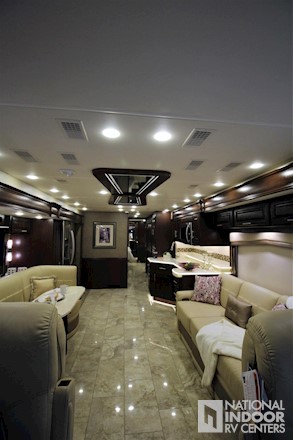

| 12" x 24" porcelain tile floor |
| Window Treatments |
| Manual solar day and black out night shades |

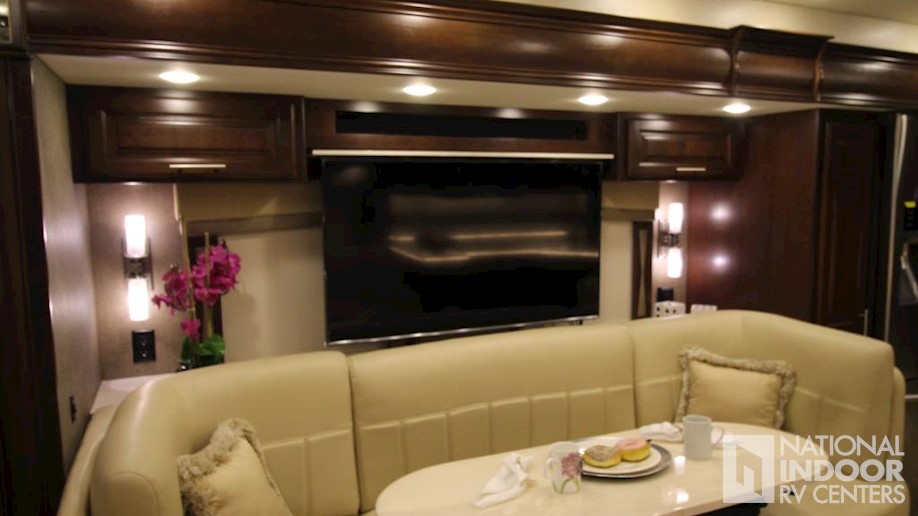

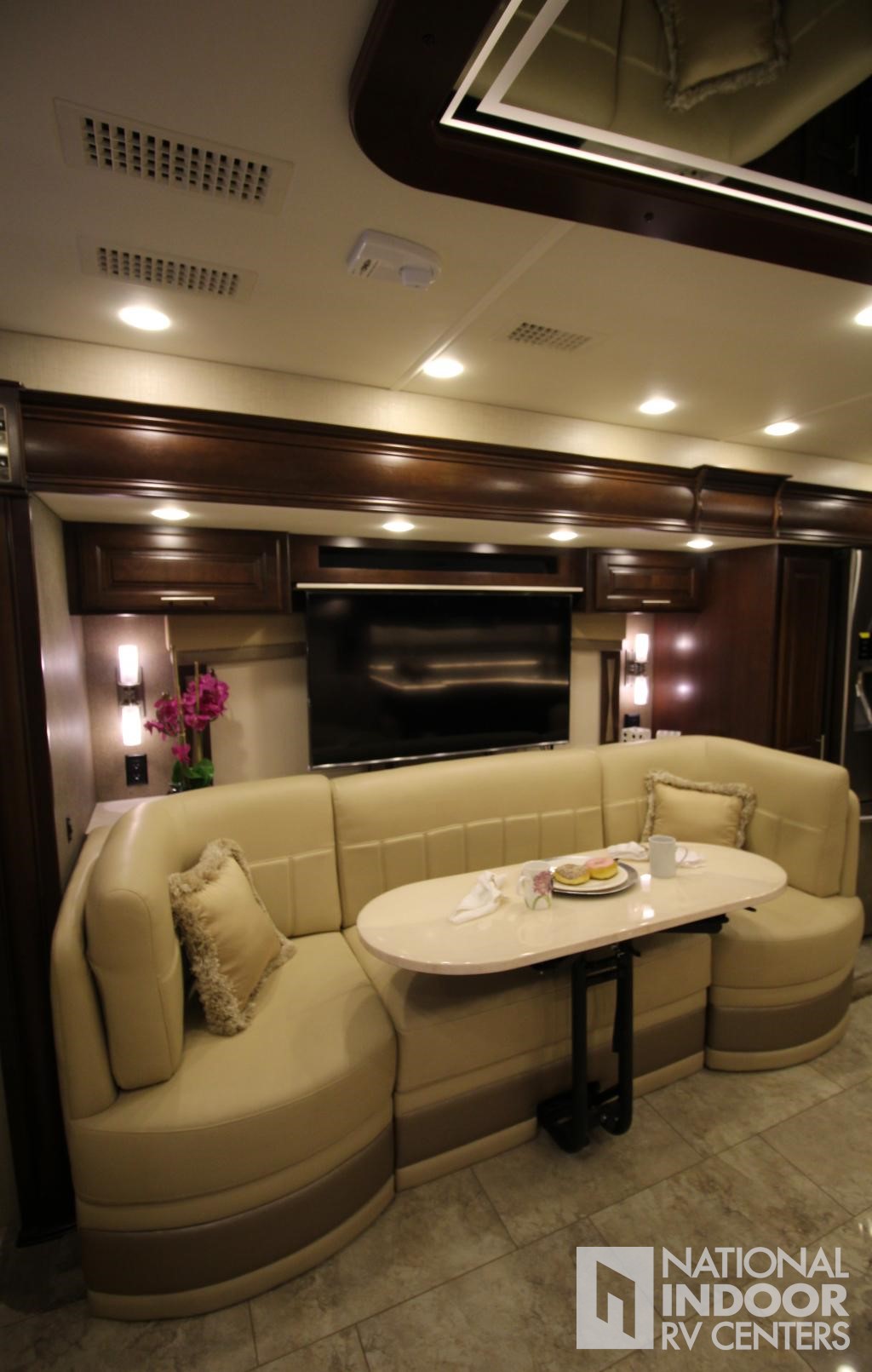

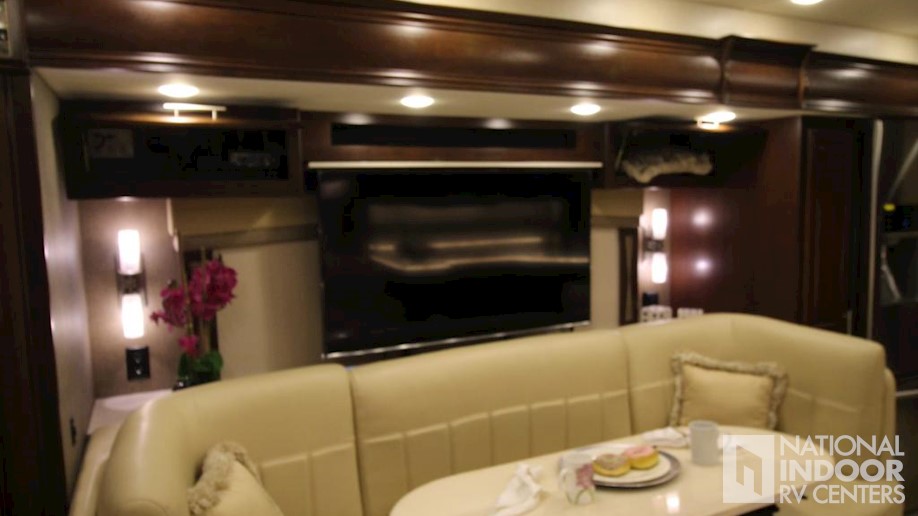

| Television - Living Room |
| Samsung 50" LED HDTV (42DEQ, 44B, 44R) / Samsung 48" LED HDTV (38M, 42RBQ, 44U) |

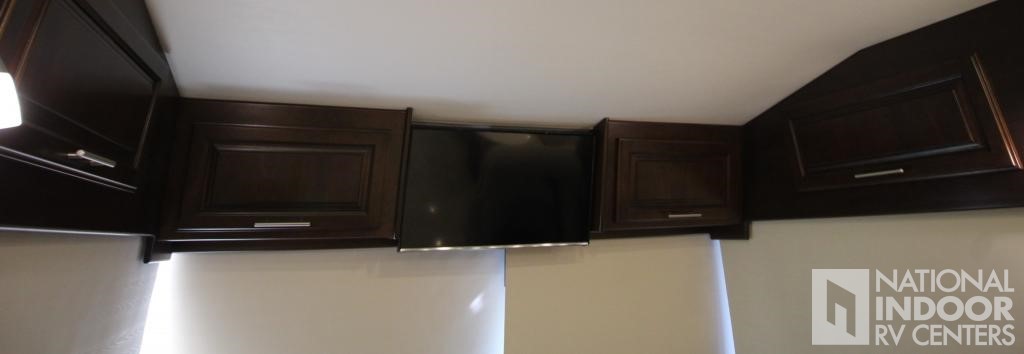

| Television - Front Overhead |

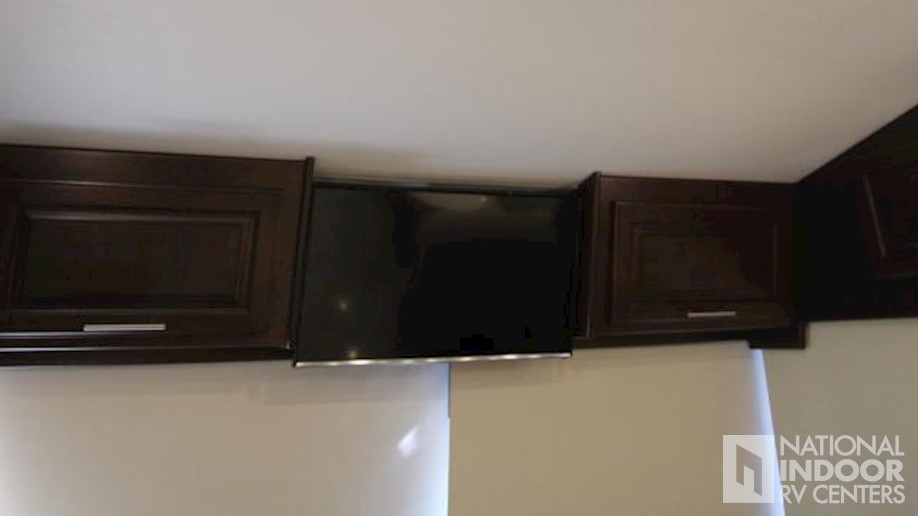

| Samsung 32" LED HD TV in front overhead (40" in the 40P) |
| Sound - Living Room |
| Samsung sound bar |

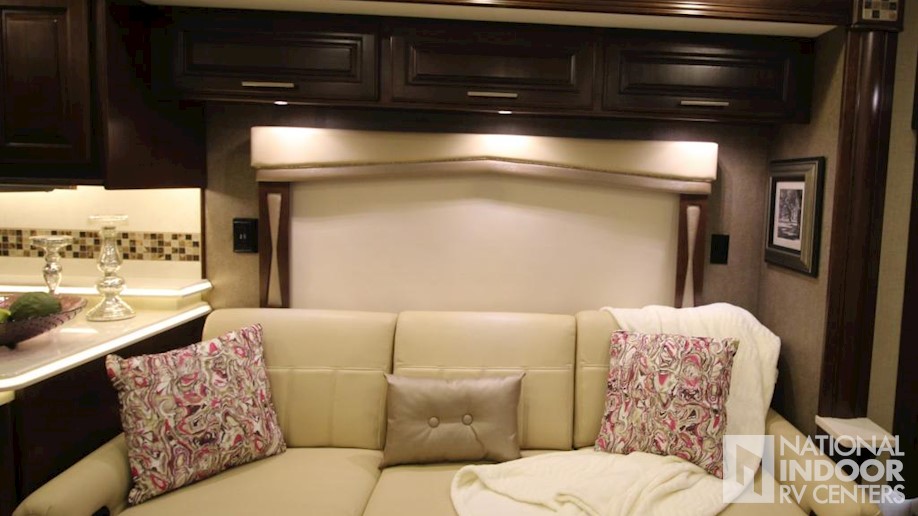

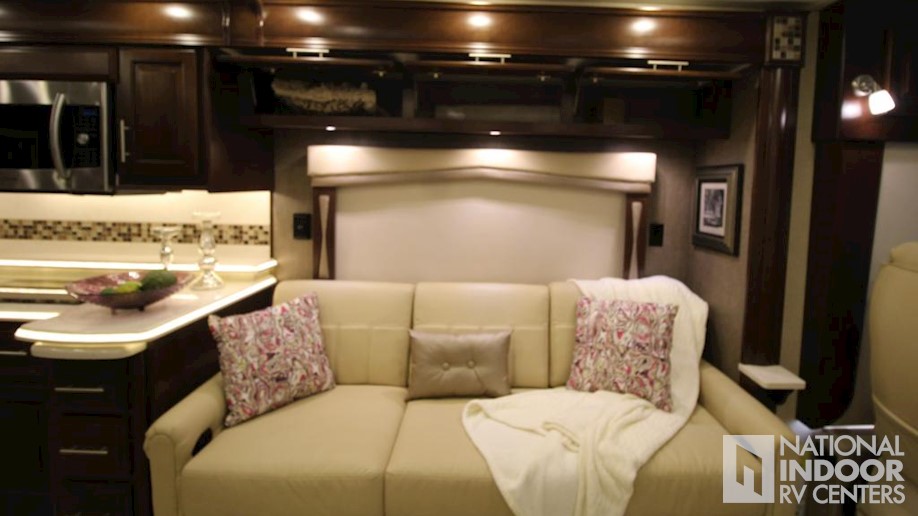

| Furniture |

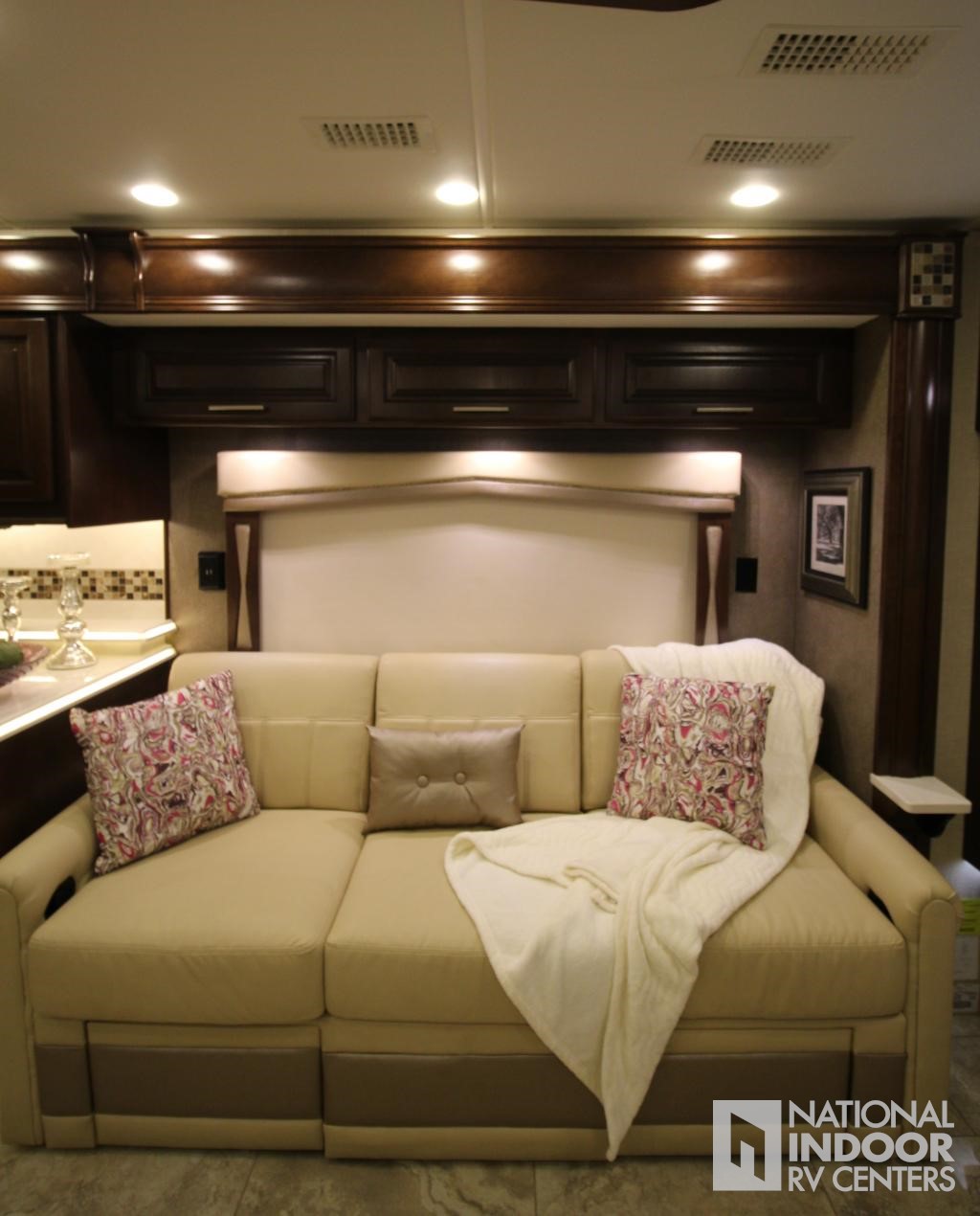

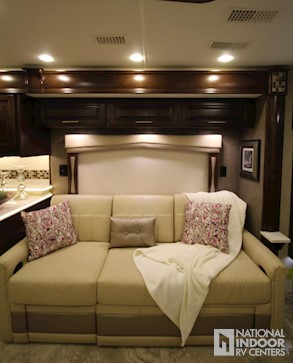

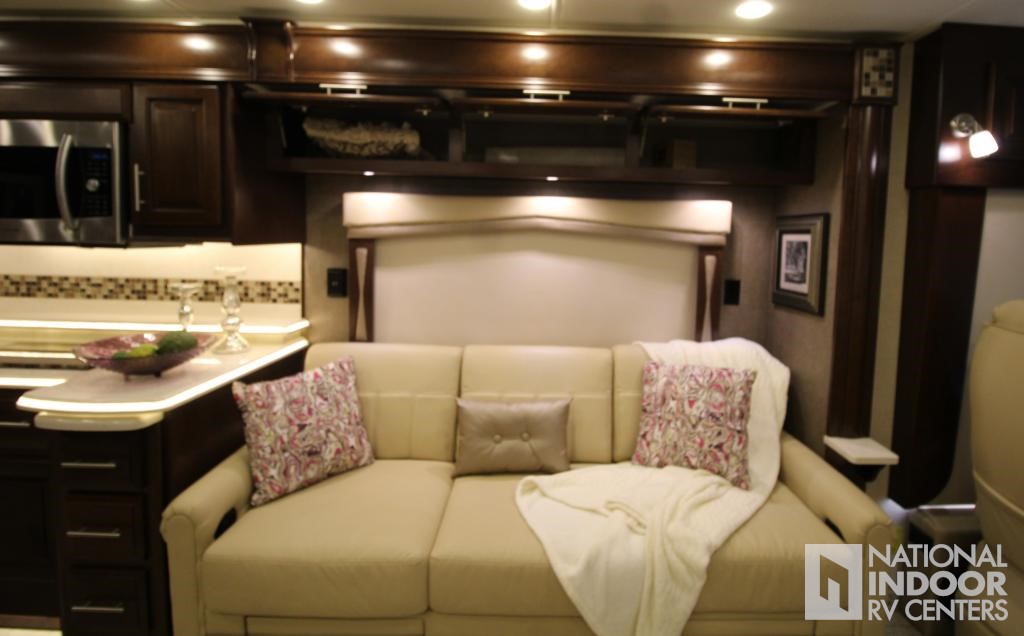

| Ultraleather hide-a-bed sofa(s) |

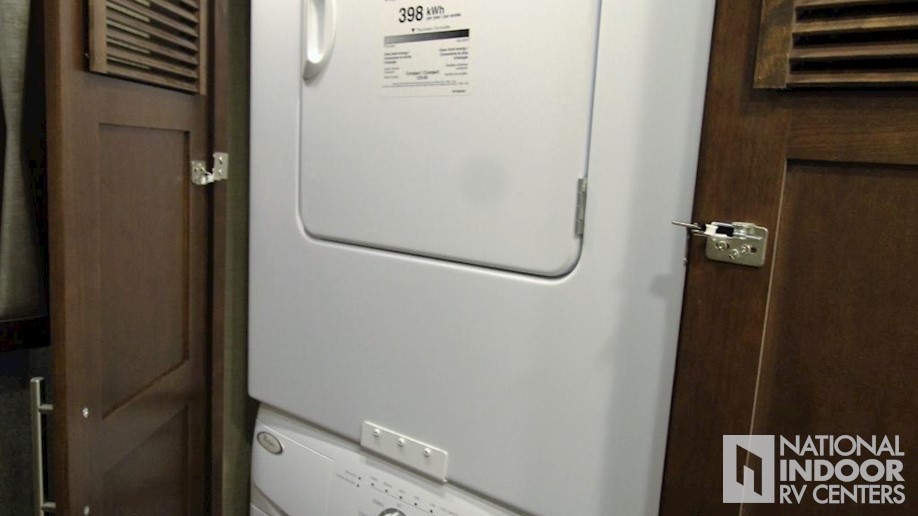

| Washer/Dryer |

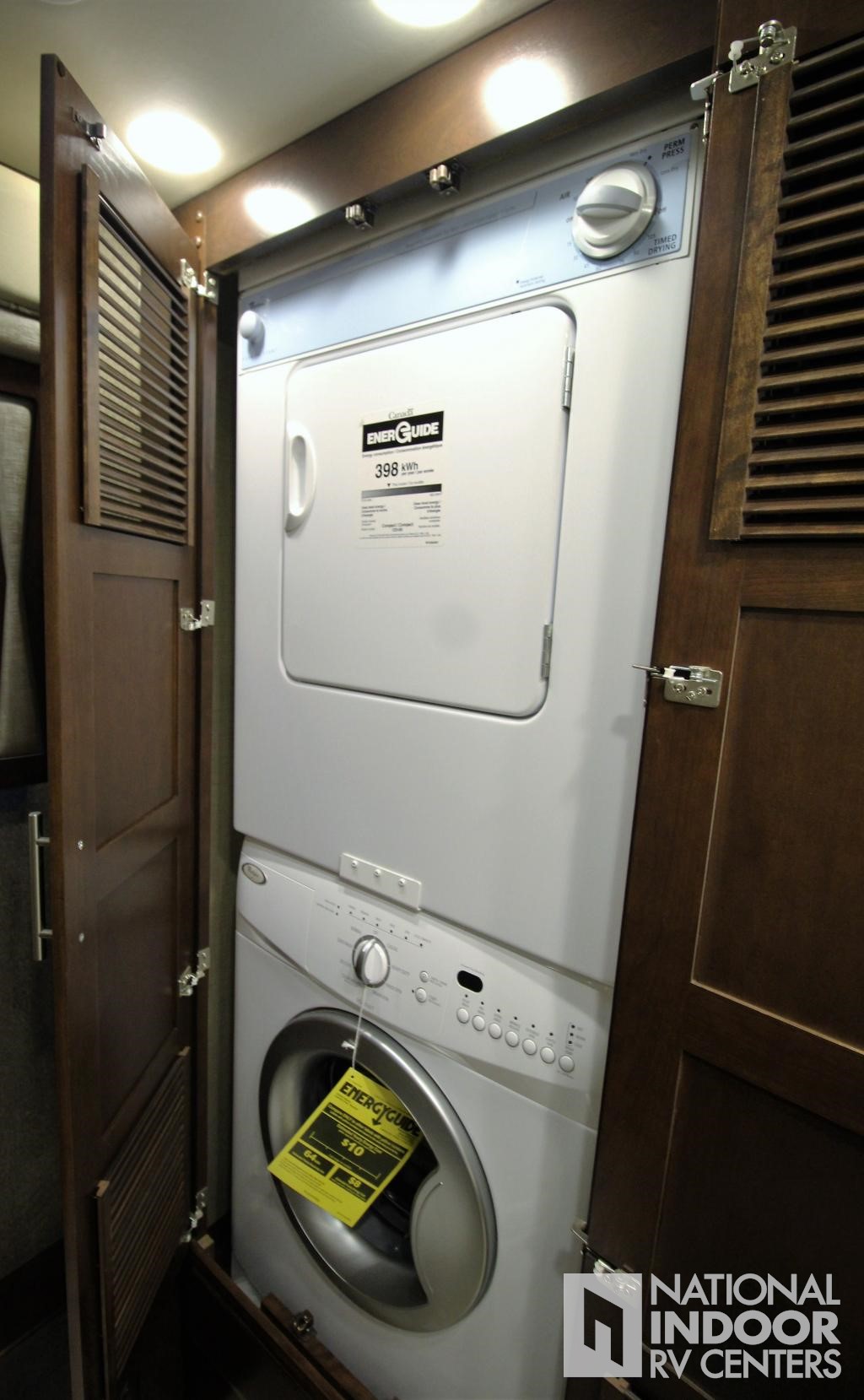

| Stacked washer and dryer |
| Central Vacuuming System |
| Central vacuum system |
| Electric Fireplace |
| DVD Systems |
| Blu-ray players in living area & bedroom |

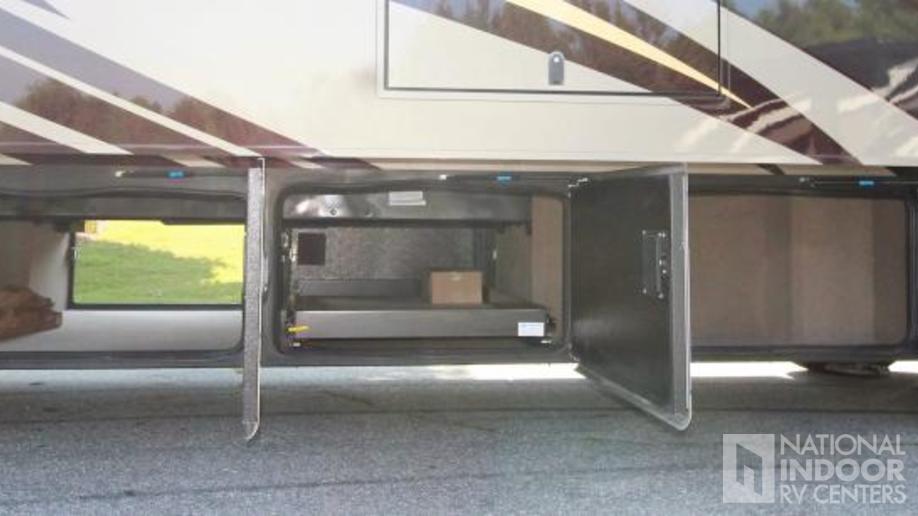

| Additional Storage |
| In-step storage with pull-out tray |

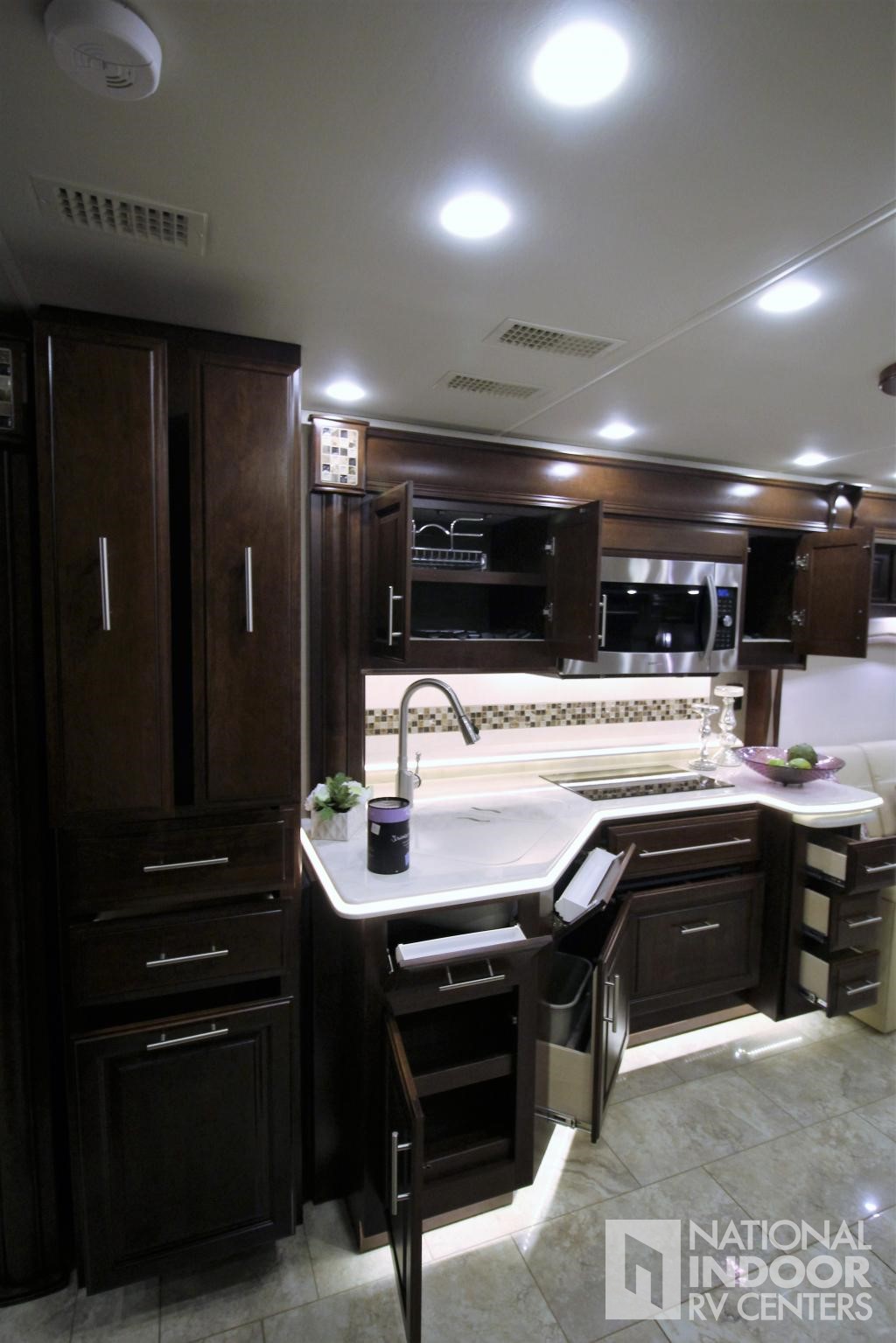

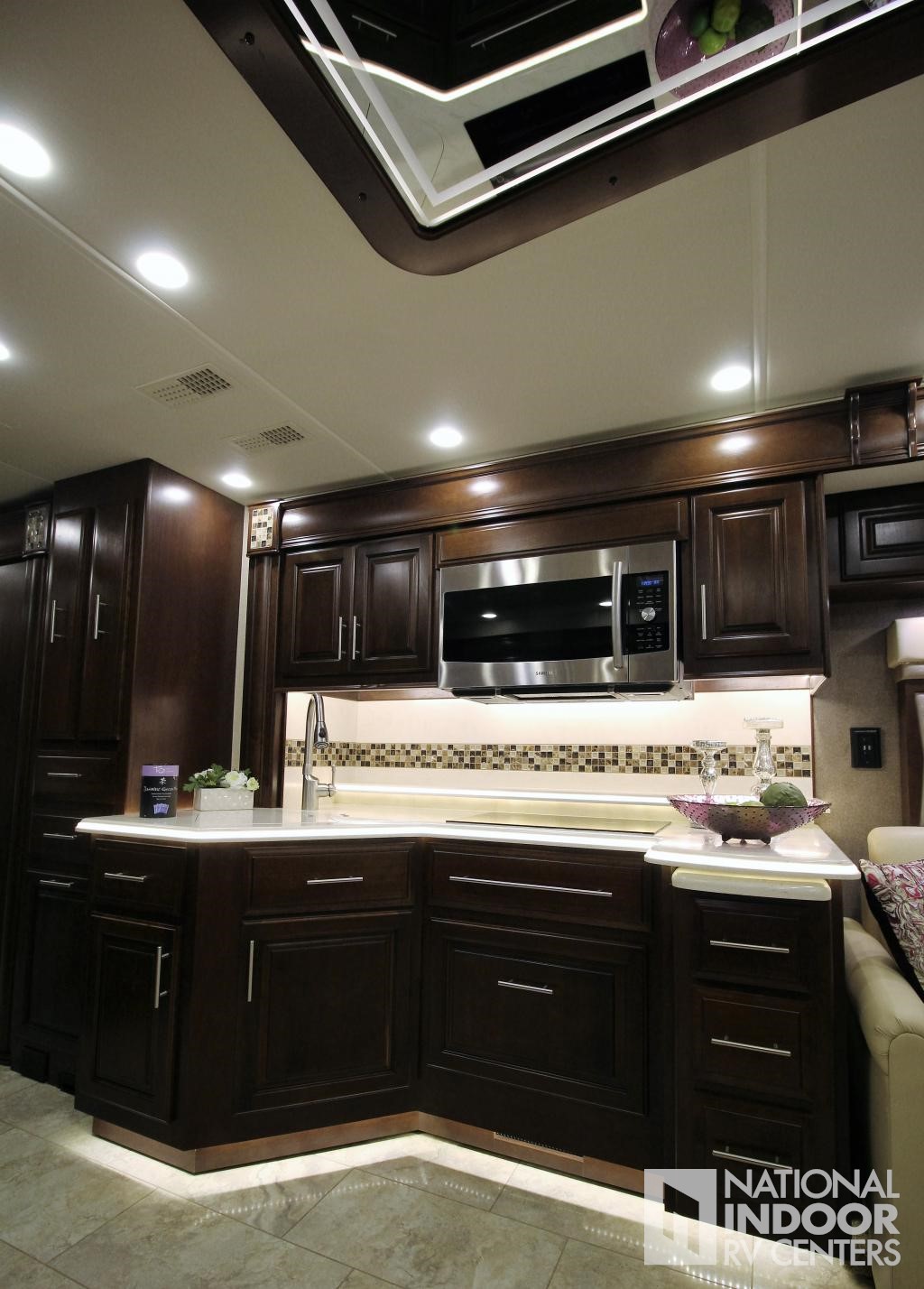

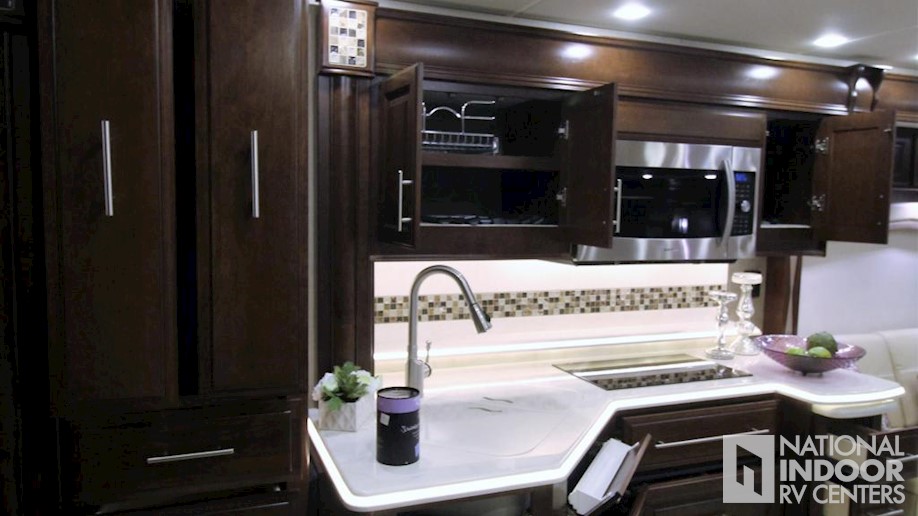

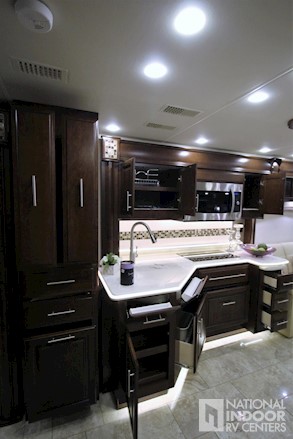

| Countertops |
| Dimmable LED lit solid surface countertops with stainless steel sink |
| Cabinet Extension |
| Backsplash |
| Cutting Board |
| Silverware Drawer |
| Silverware drawer |
| Waste Basket |
| Large deep drawer with waste basket |
| Dishwasher |
| Cooktop |
| Induction cooktop |

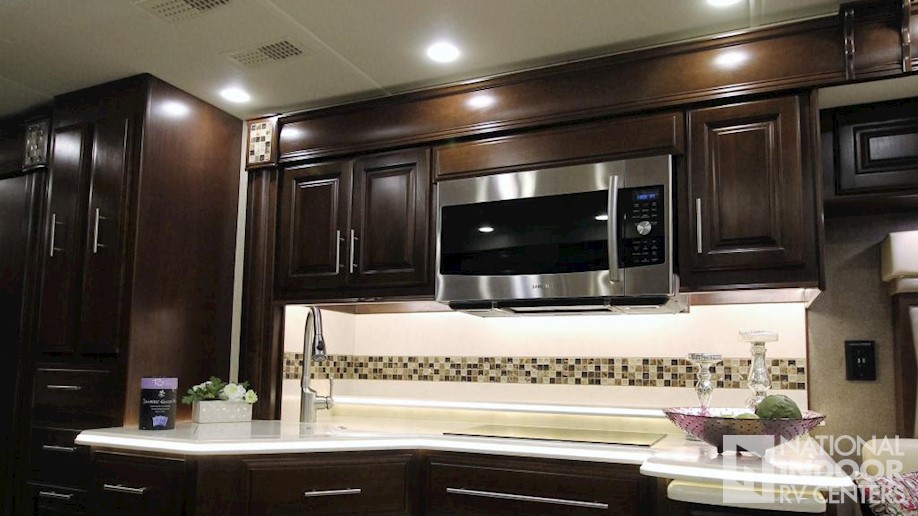

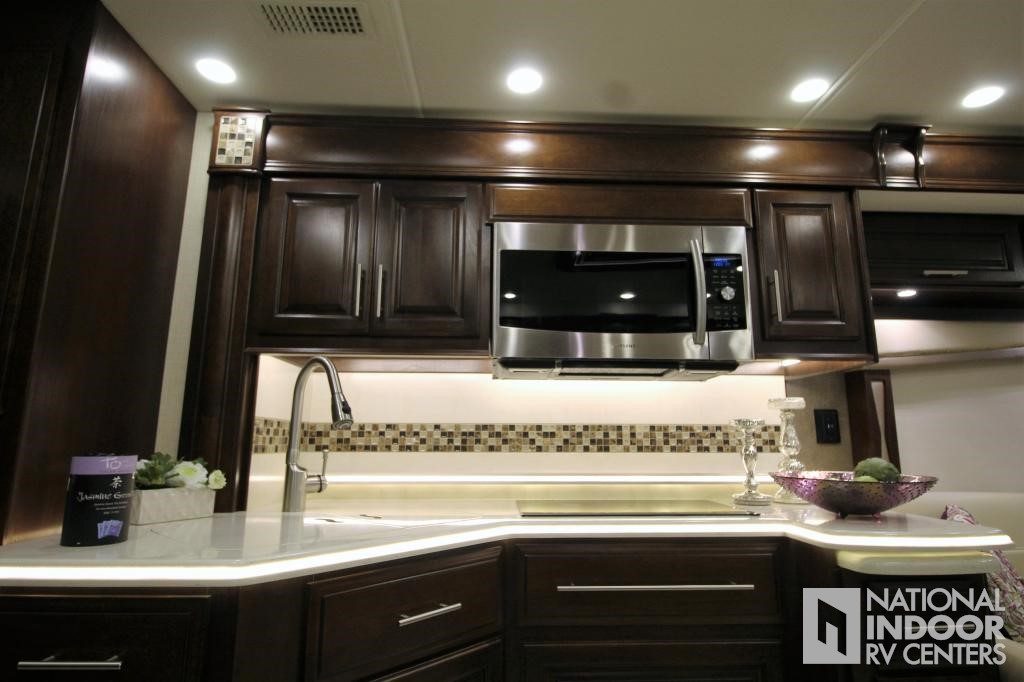

| Microwave |

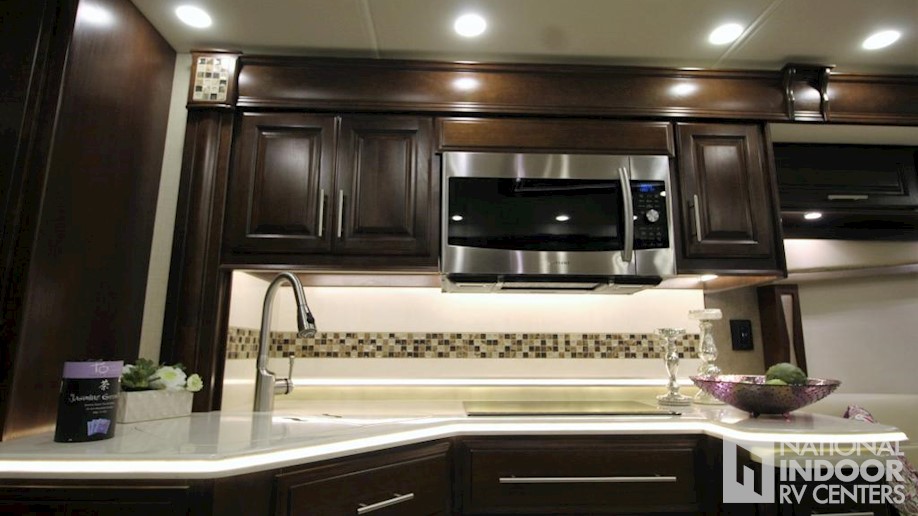

| Samsung 1.7 cu. ft. convection microwave oven |

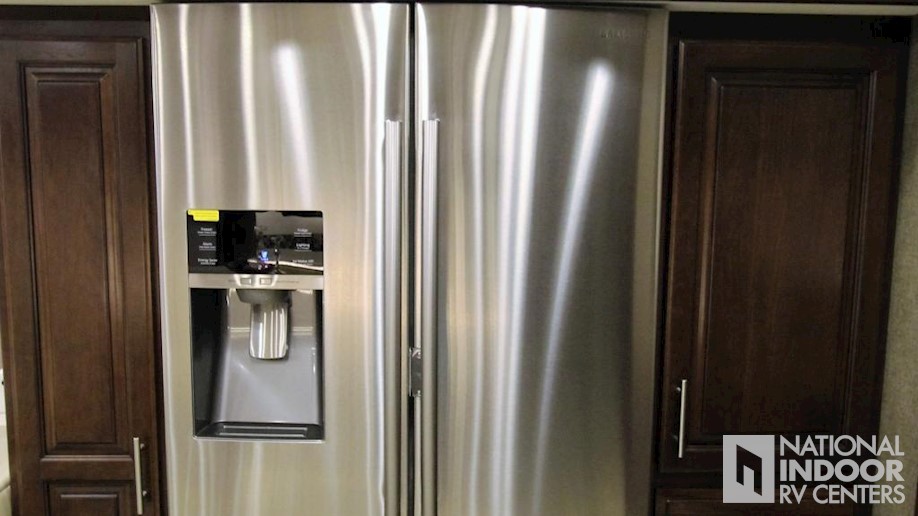

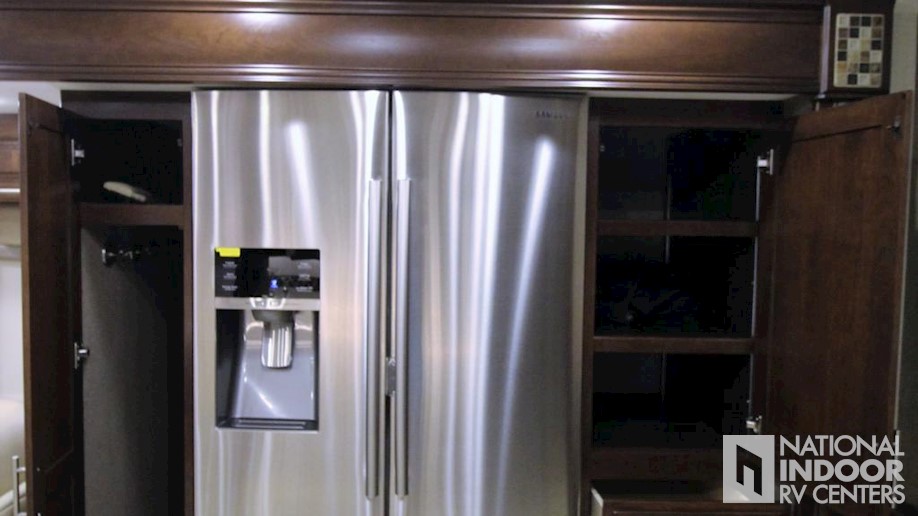

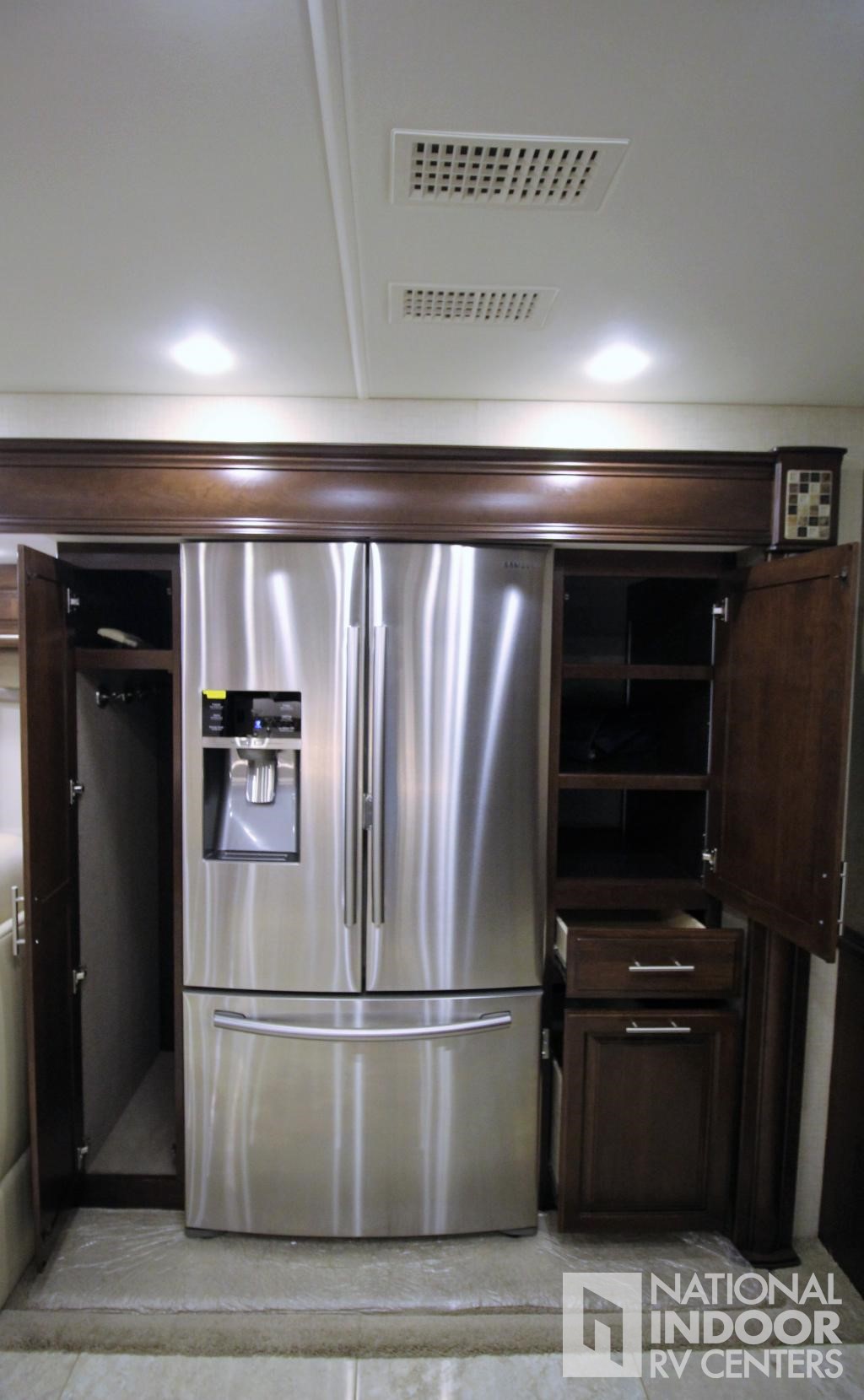

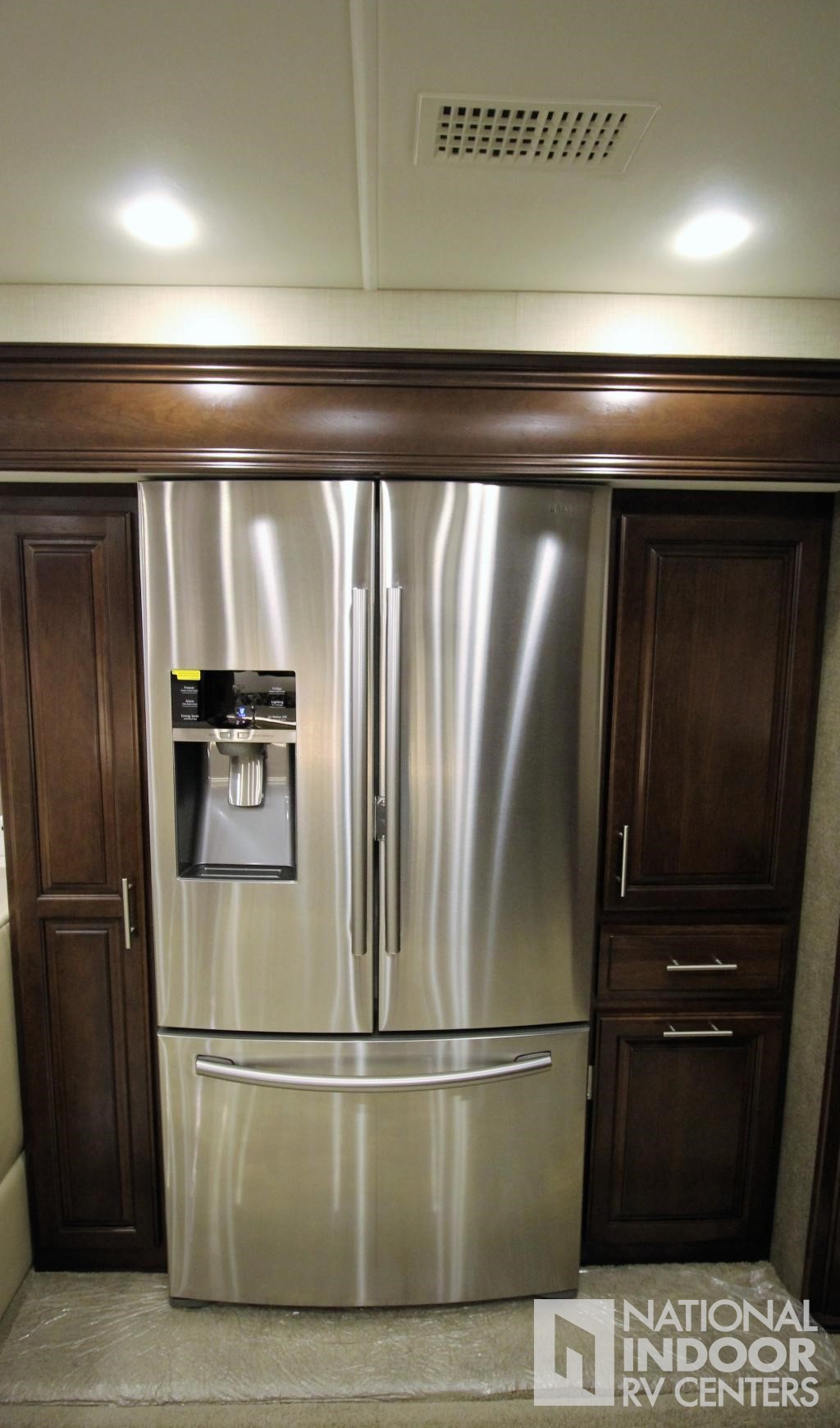

| Refrigerator |

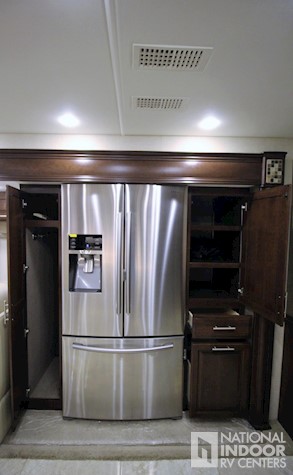

| Samsung residential 23 cu. ft. refrigerator with ice maker and water dispenser |

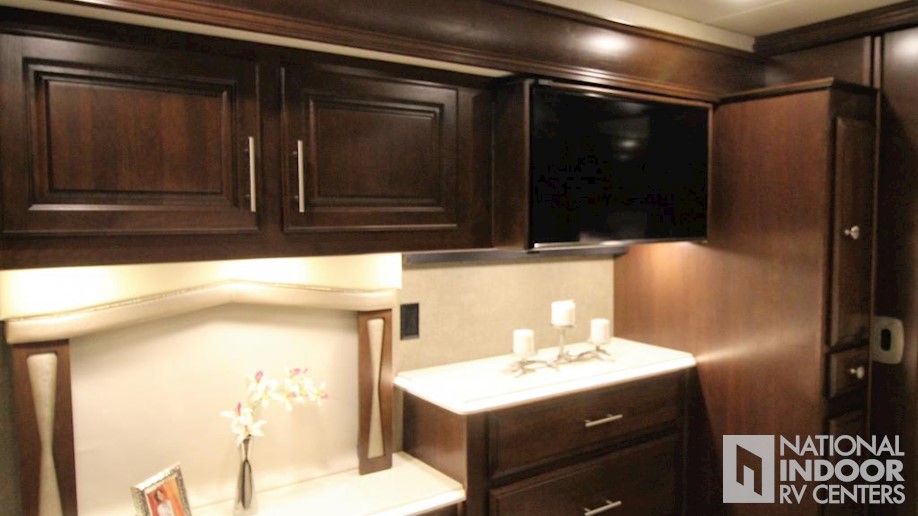

| Television |
| Samsung 32" LED HDTV in bedroom |
| Sound |
| Samsung sound bar |

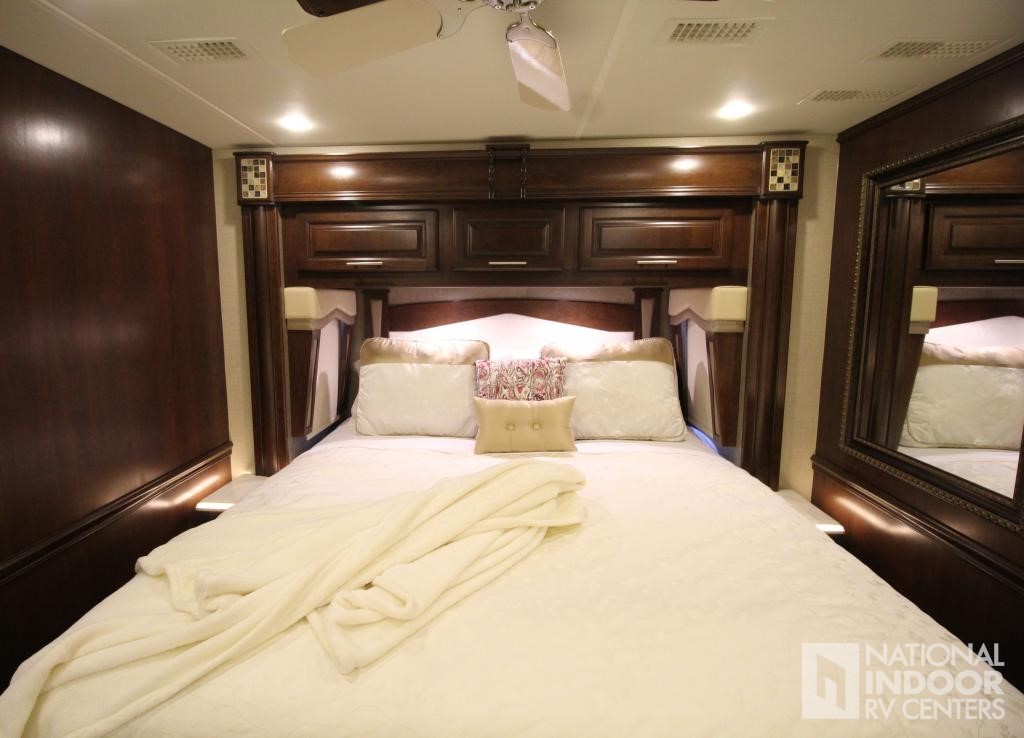

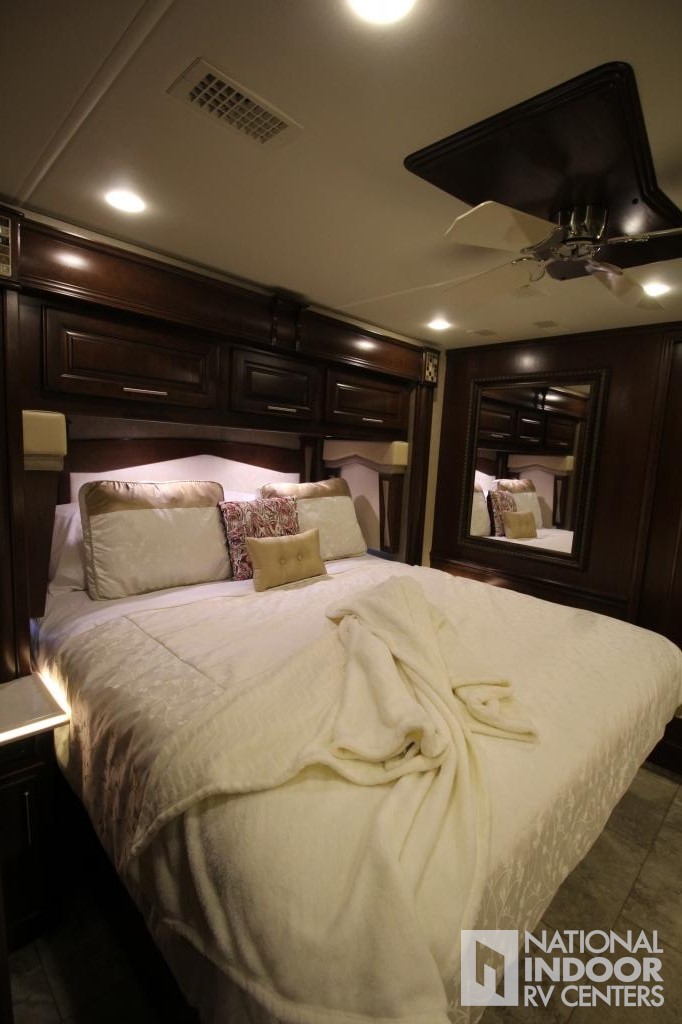

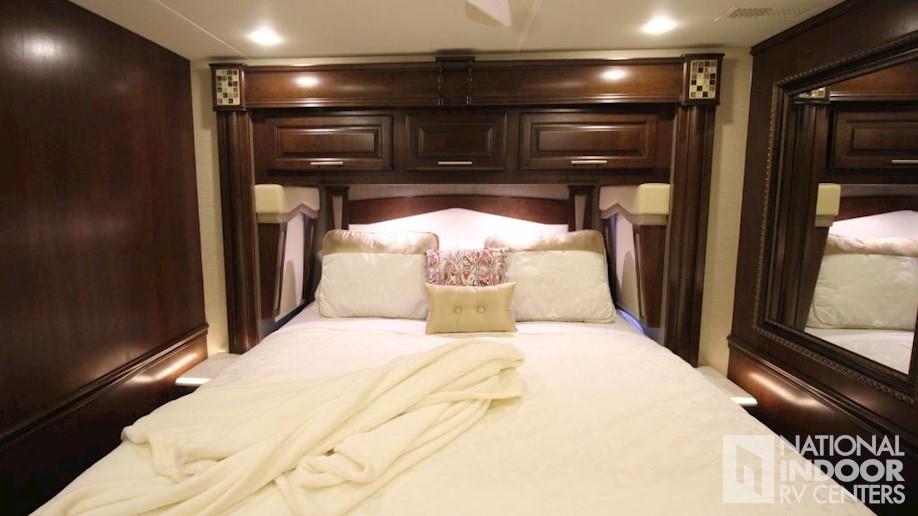

| Bed |

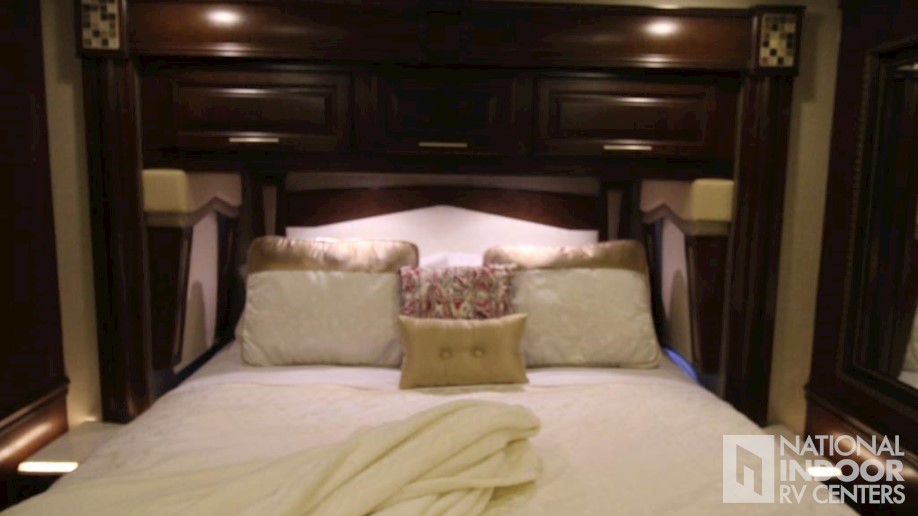

| Denver King Mattress |
| Ceiling Fan |
| Ceiling fan |

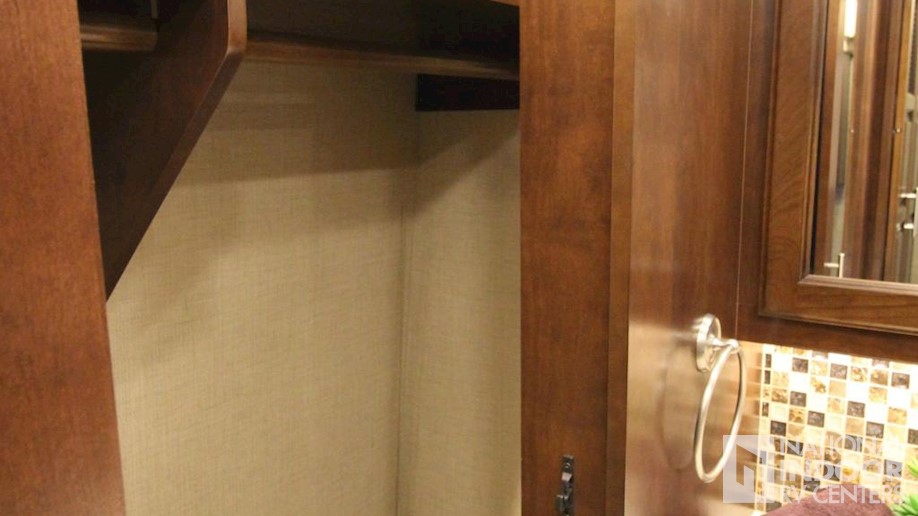

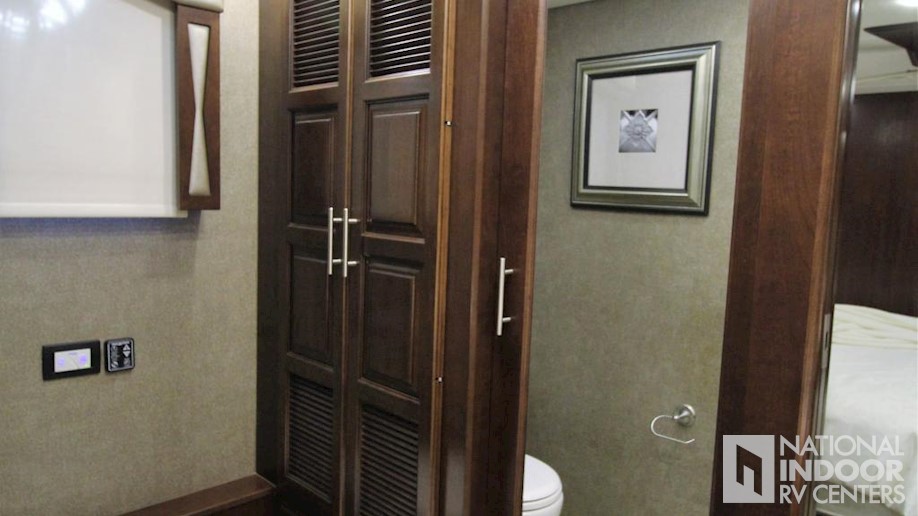

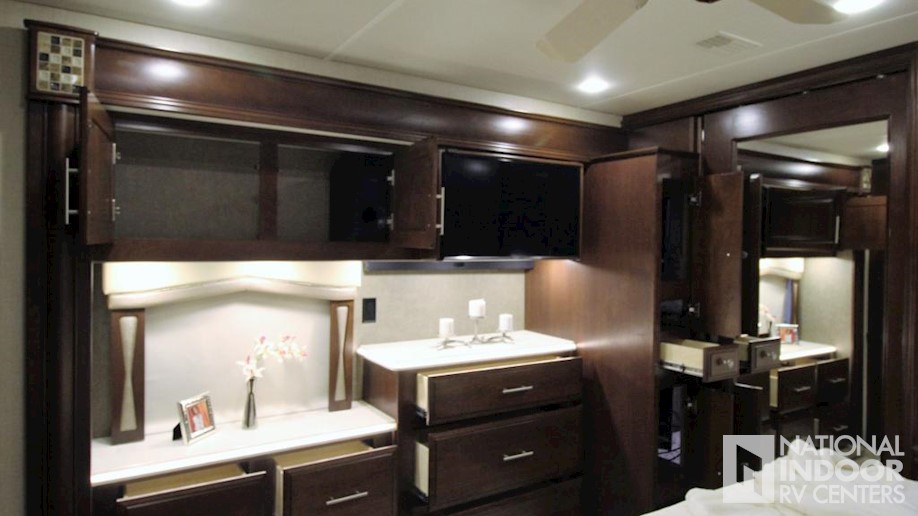

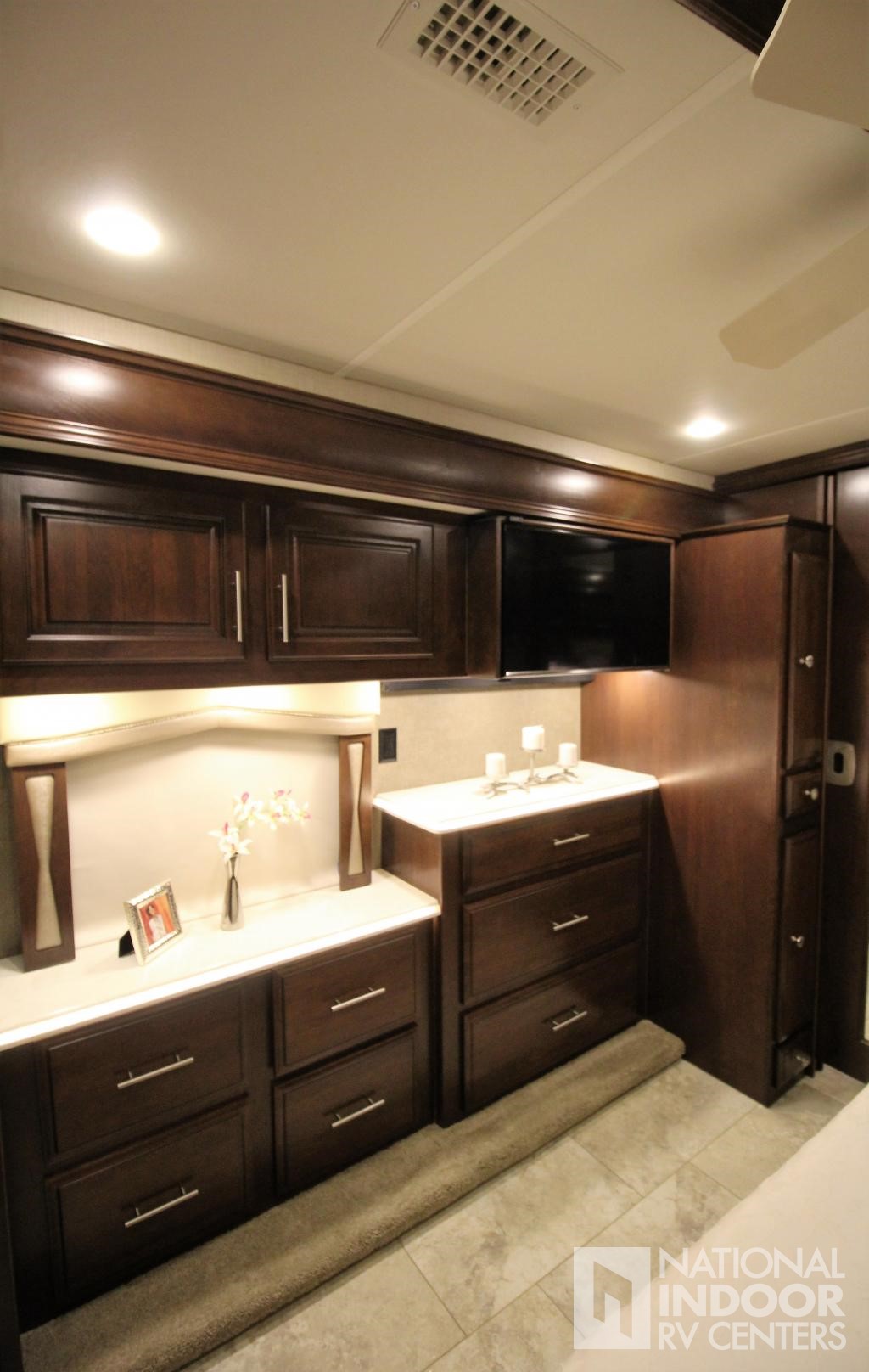

| Wardrobe |

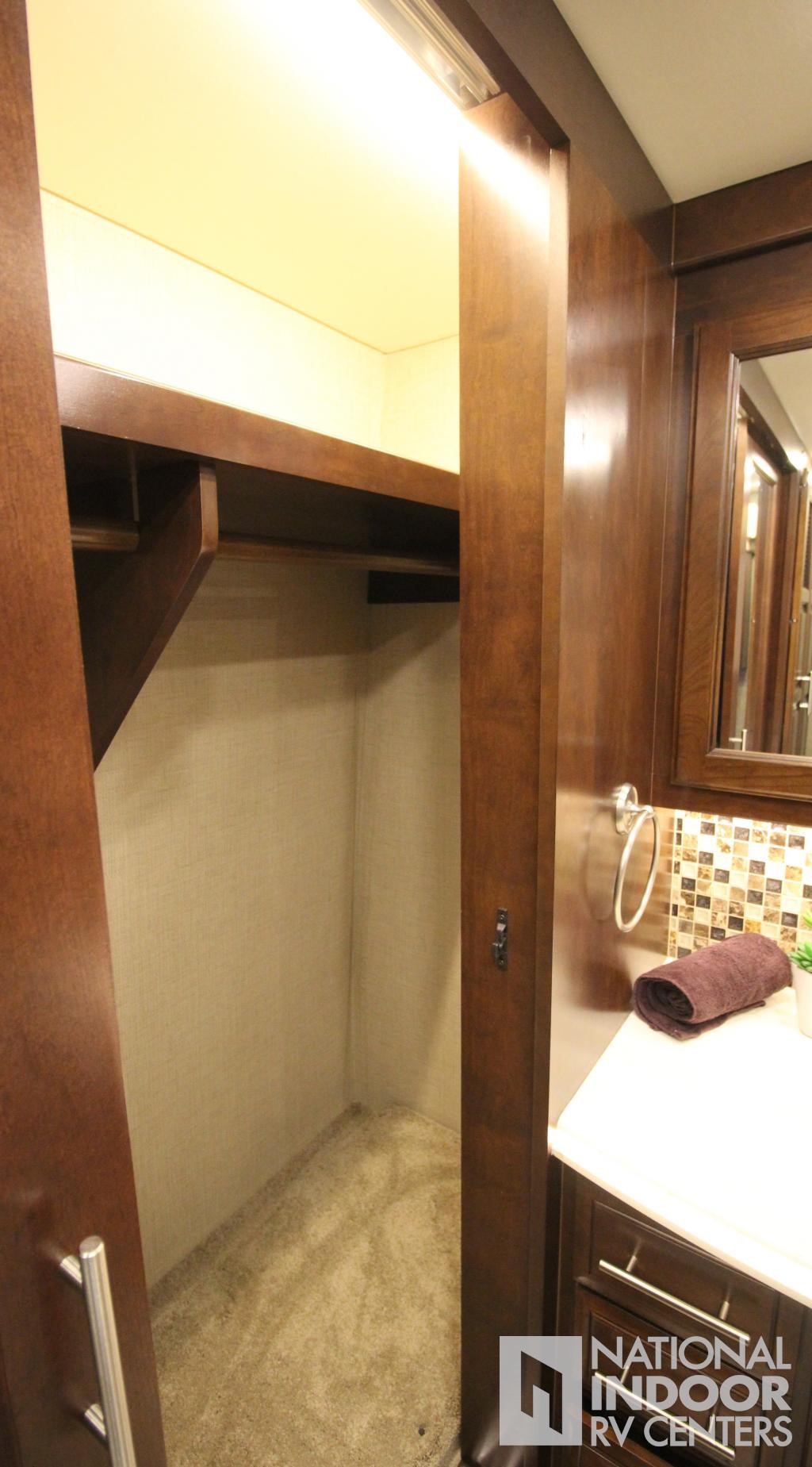

| Automatic lights in wardrobe |

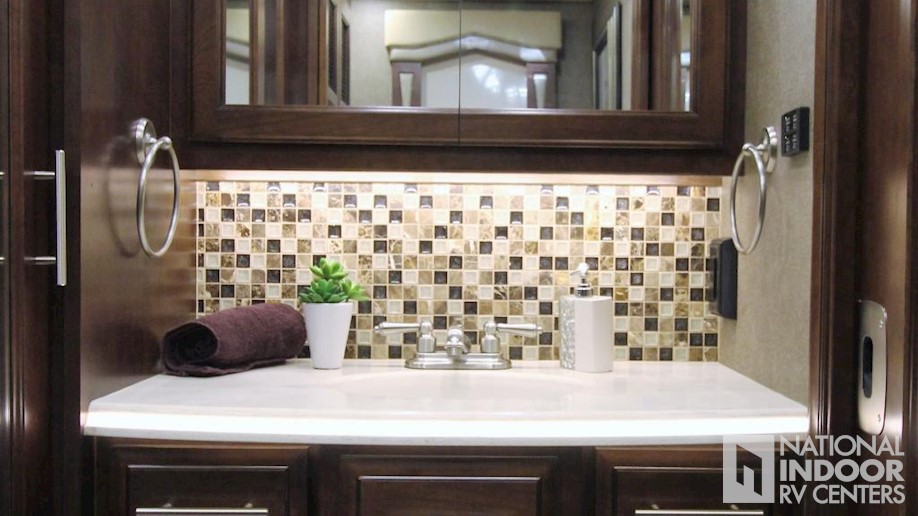

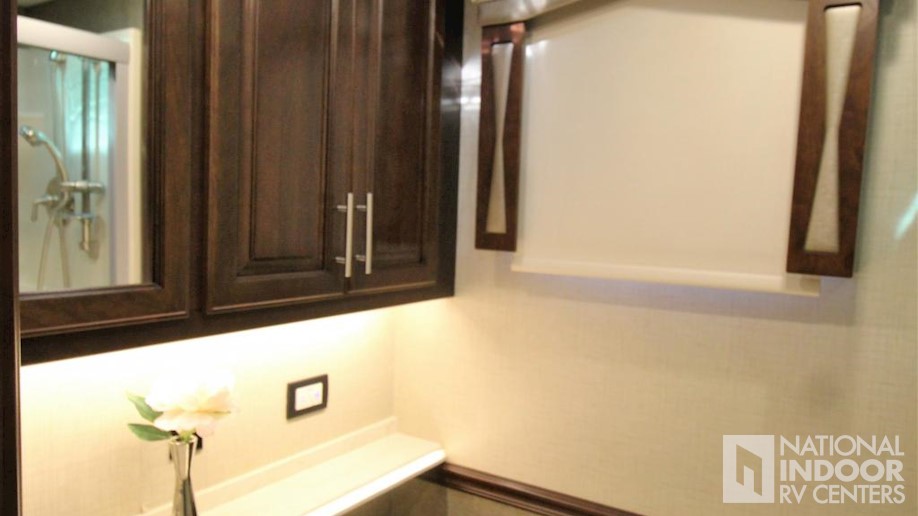

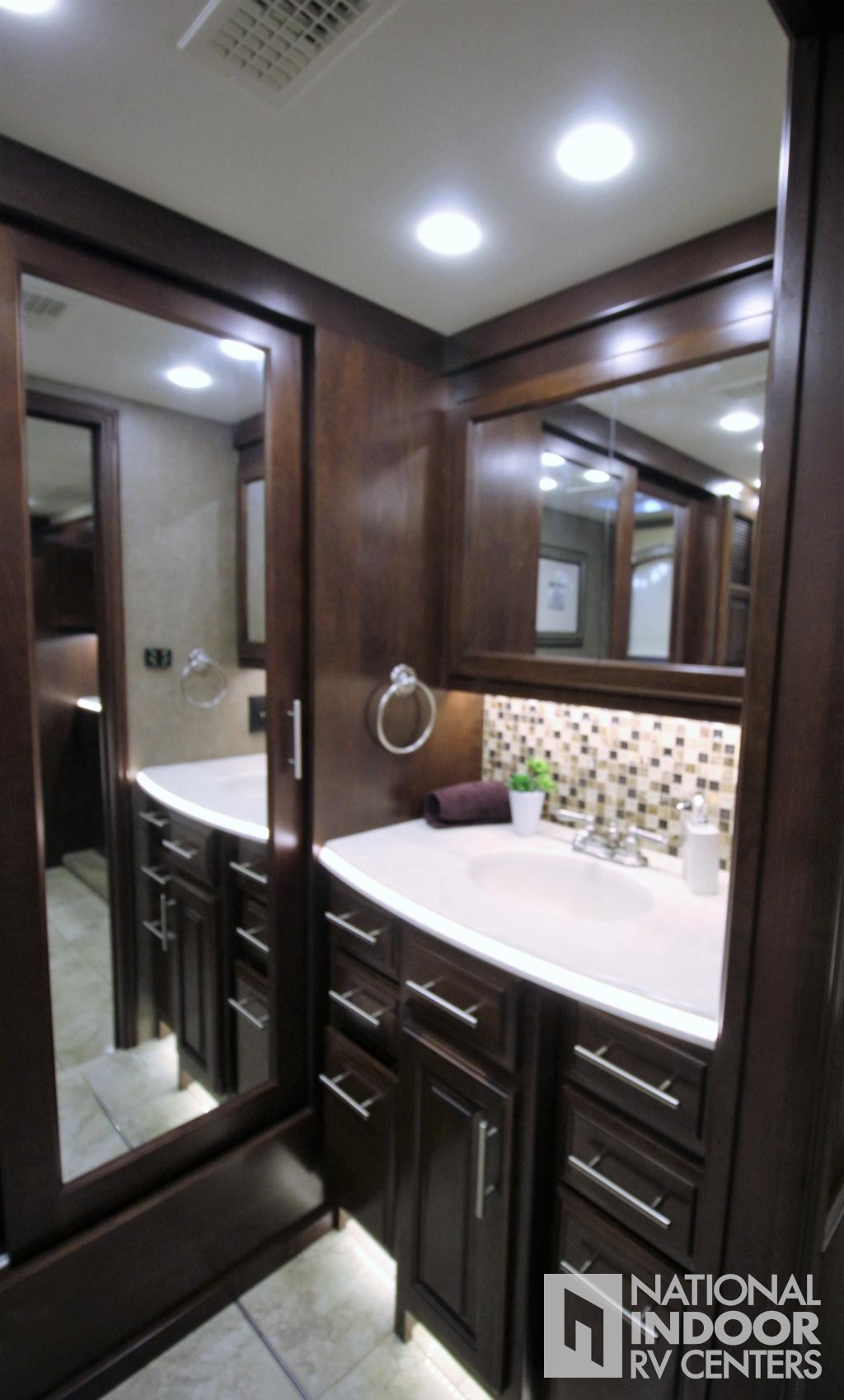

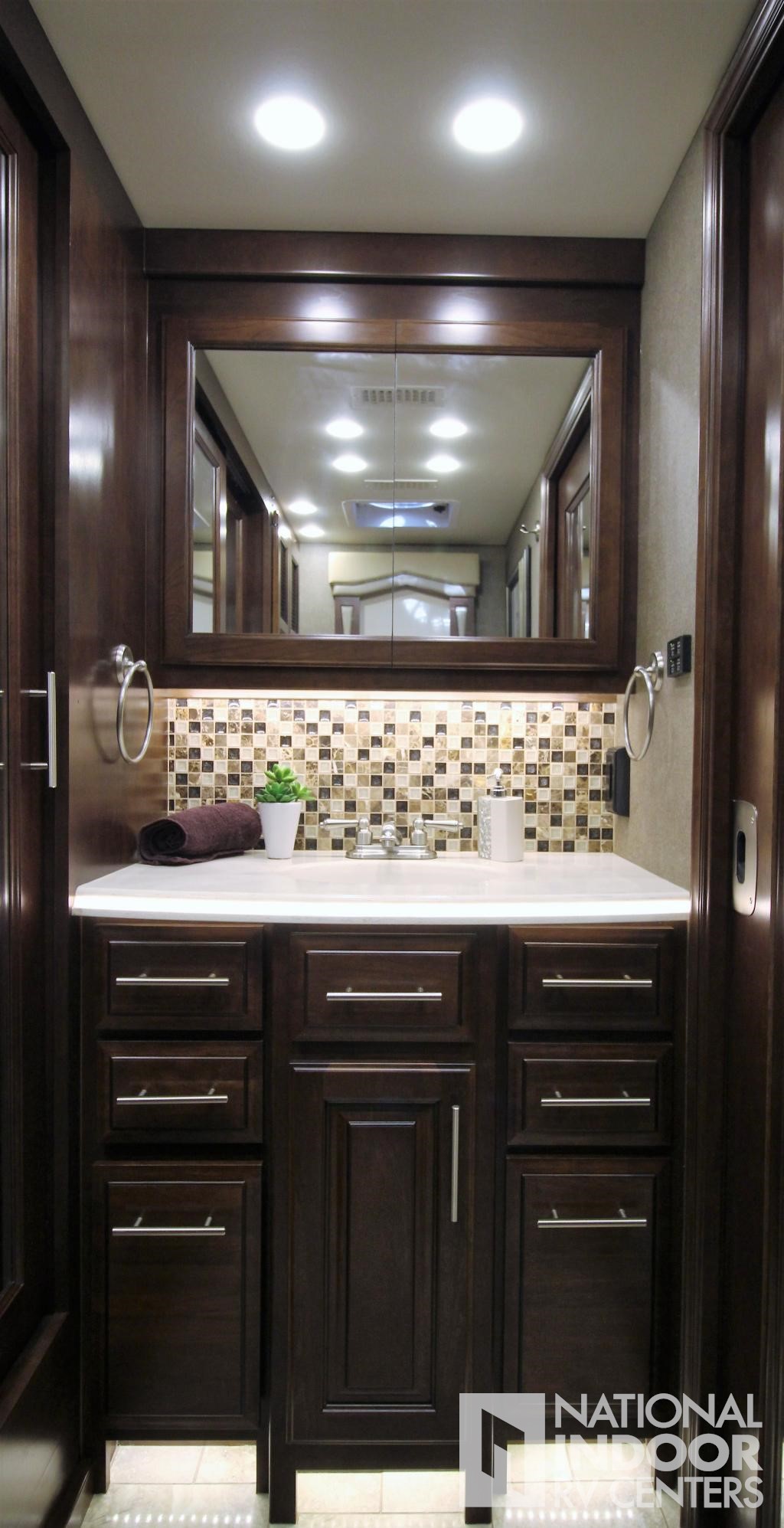

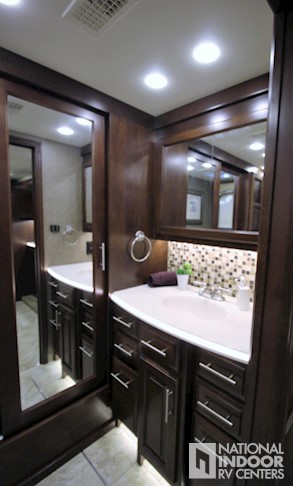

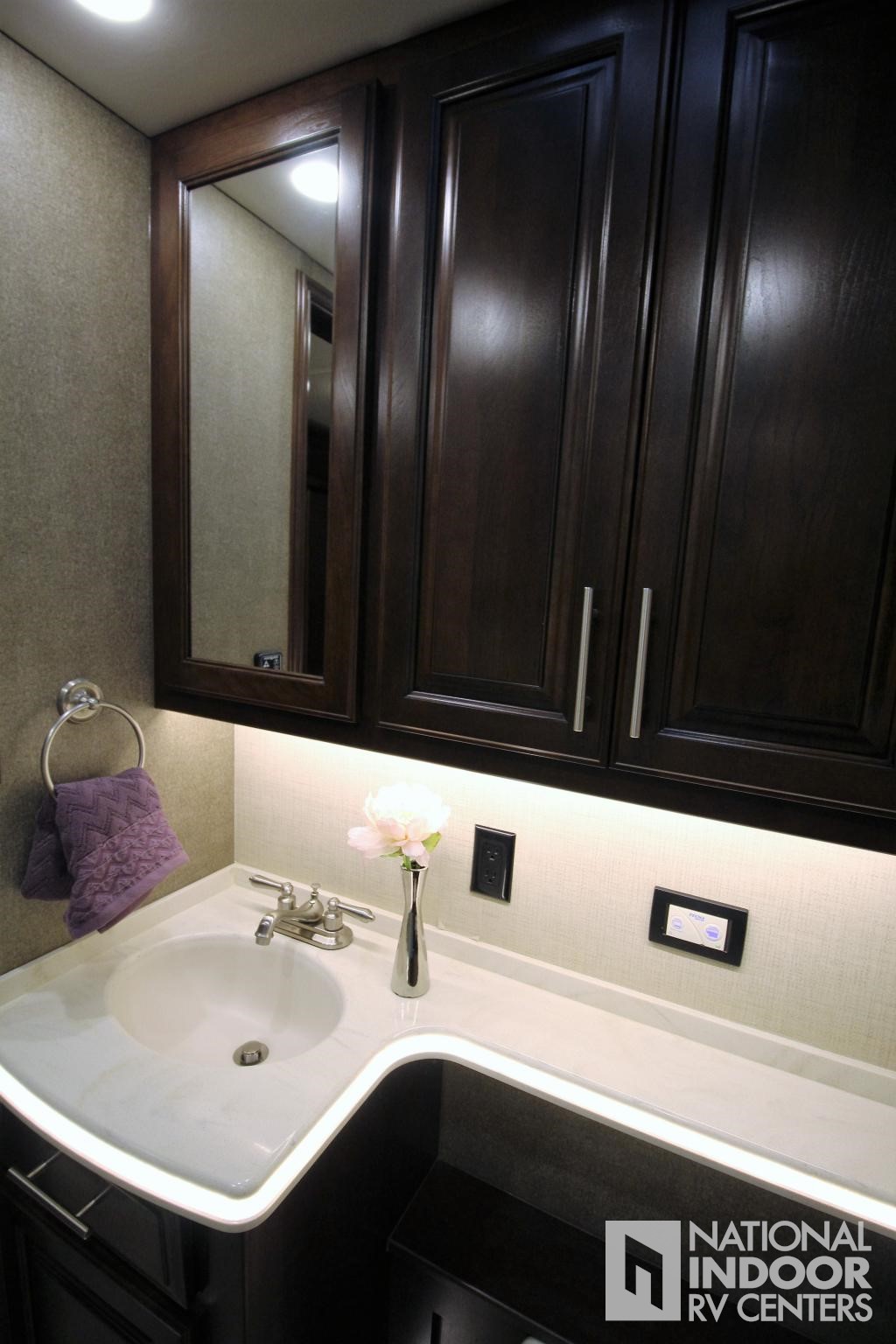

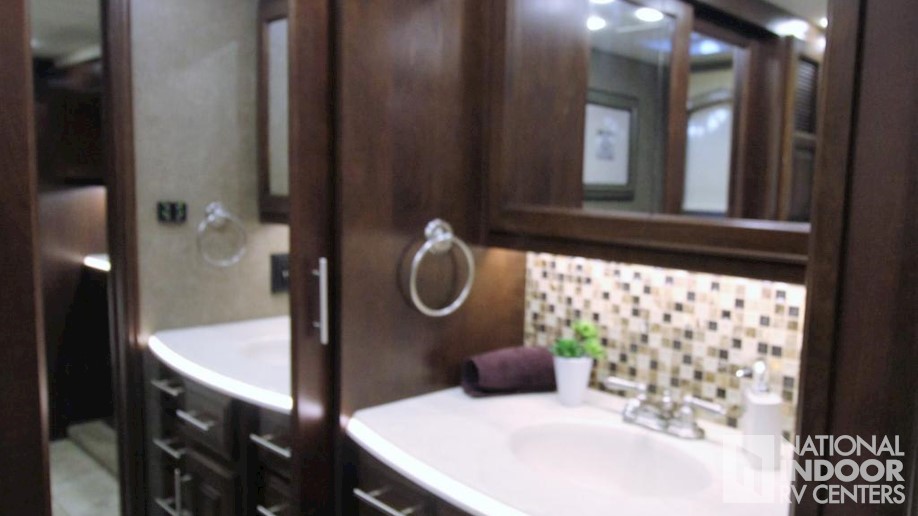

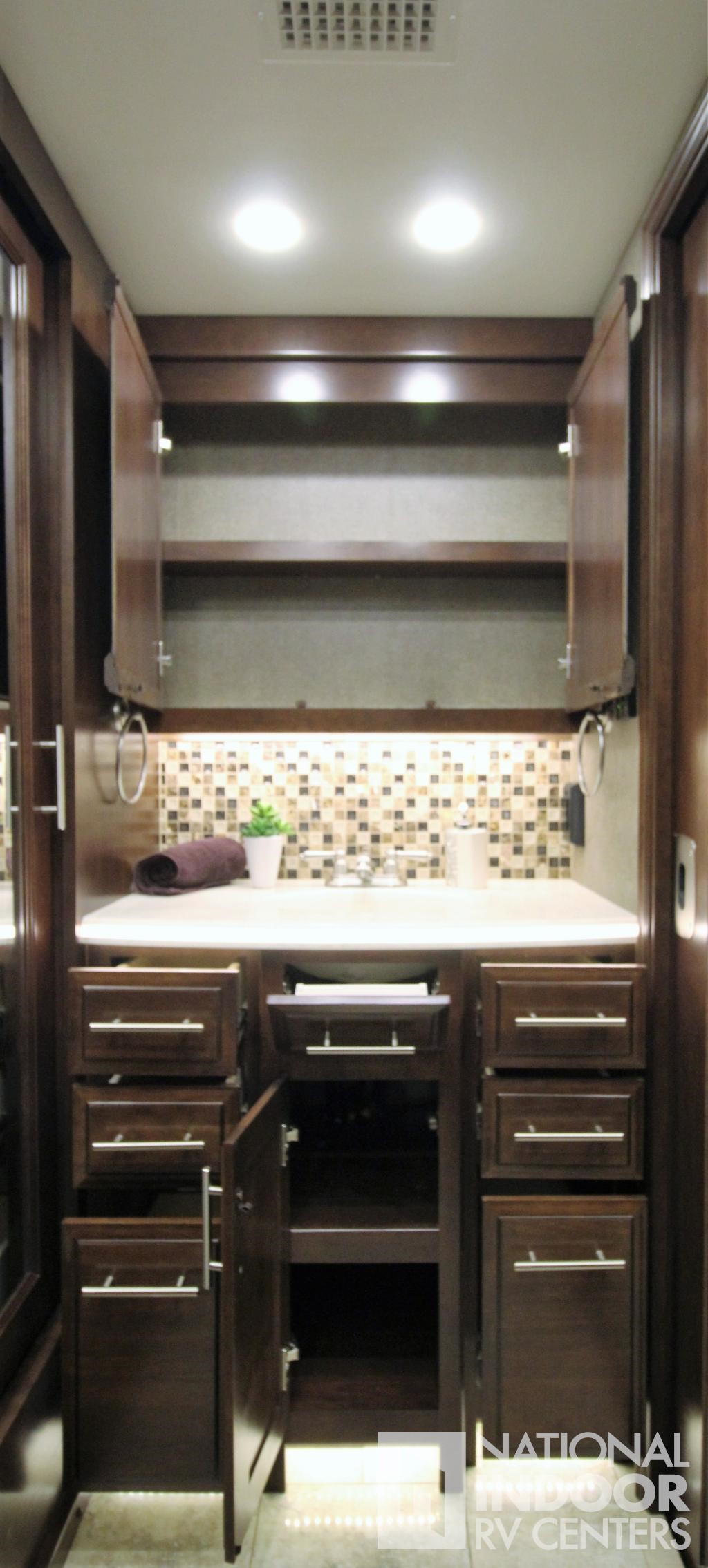

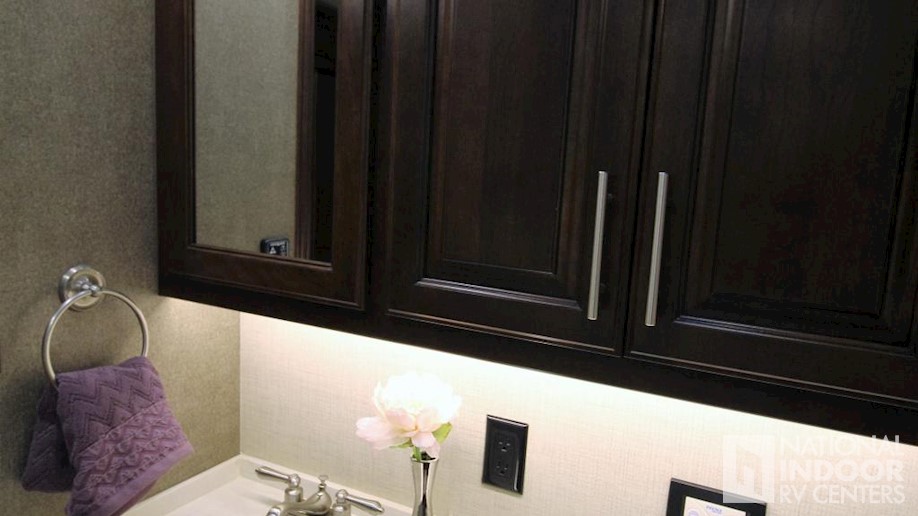

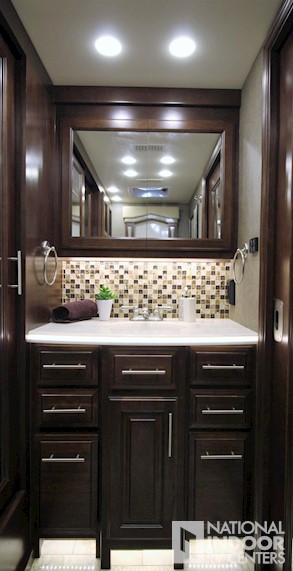

| Countertop(s) |

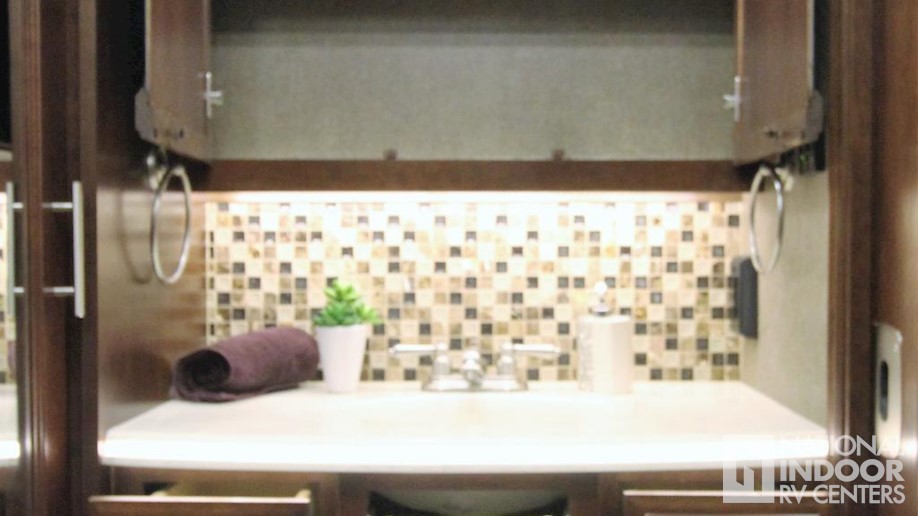

| LED lit solid surface countertop(s) with integrated sink |

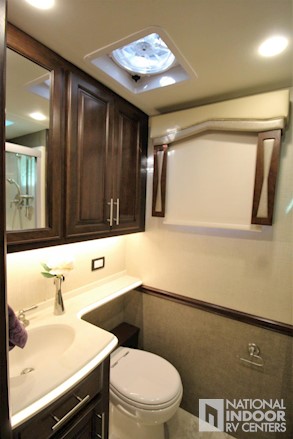

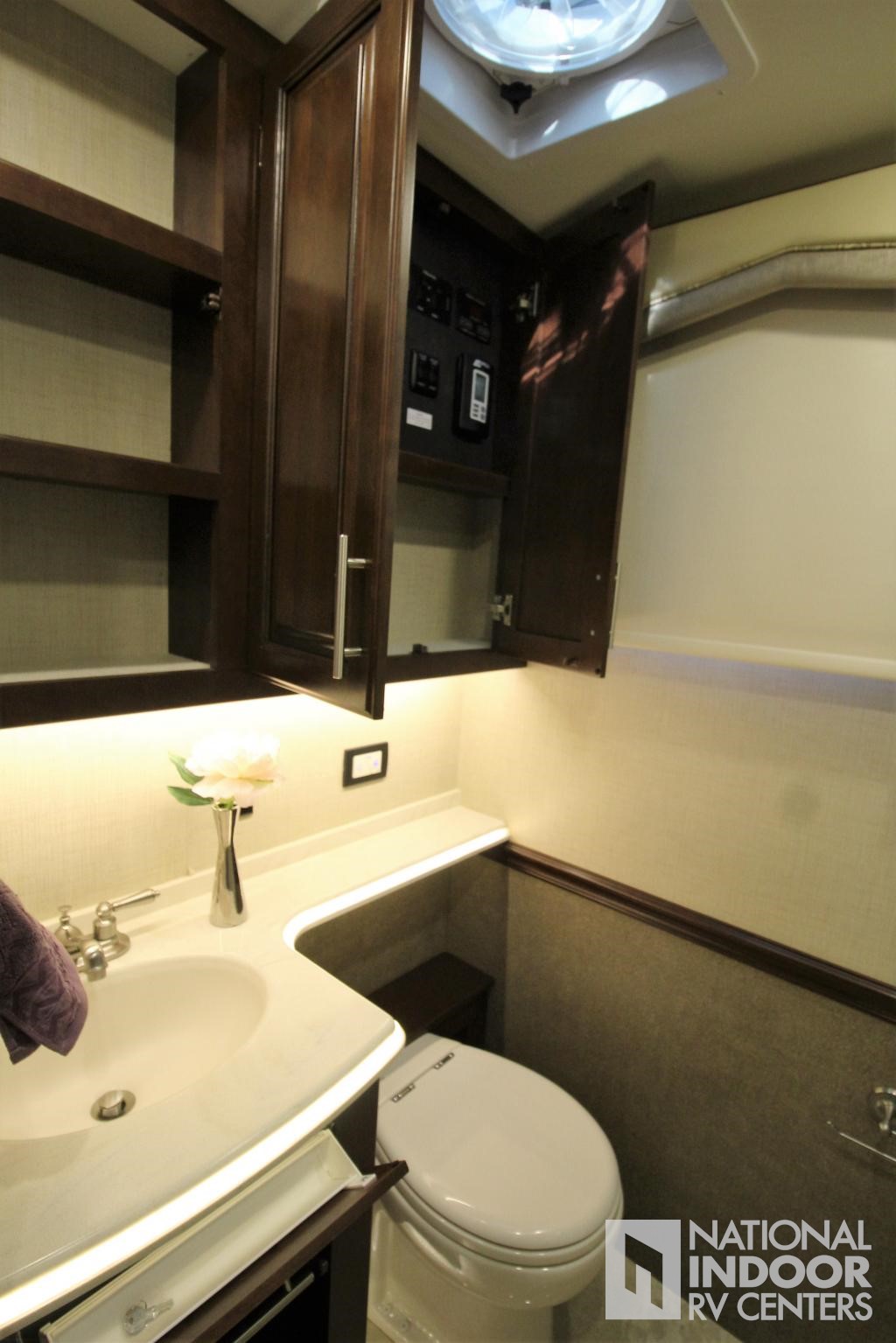

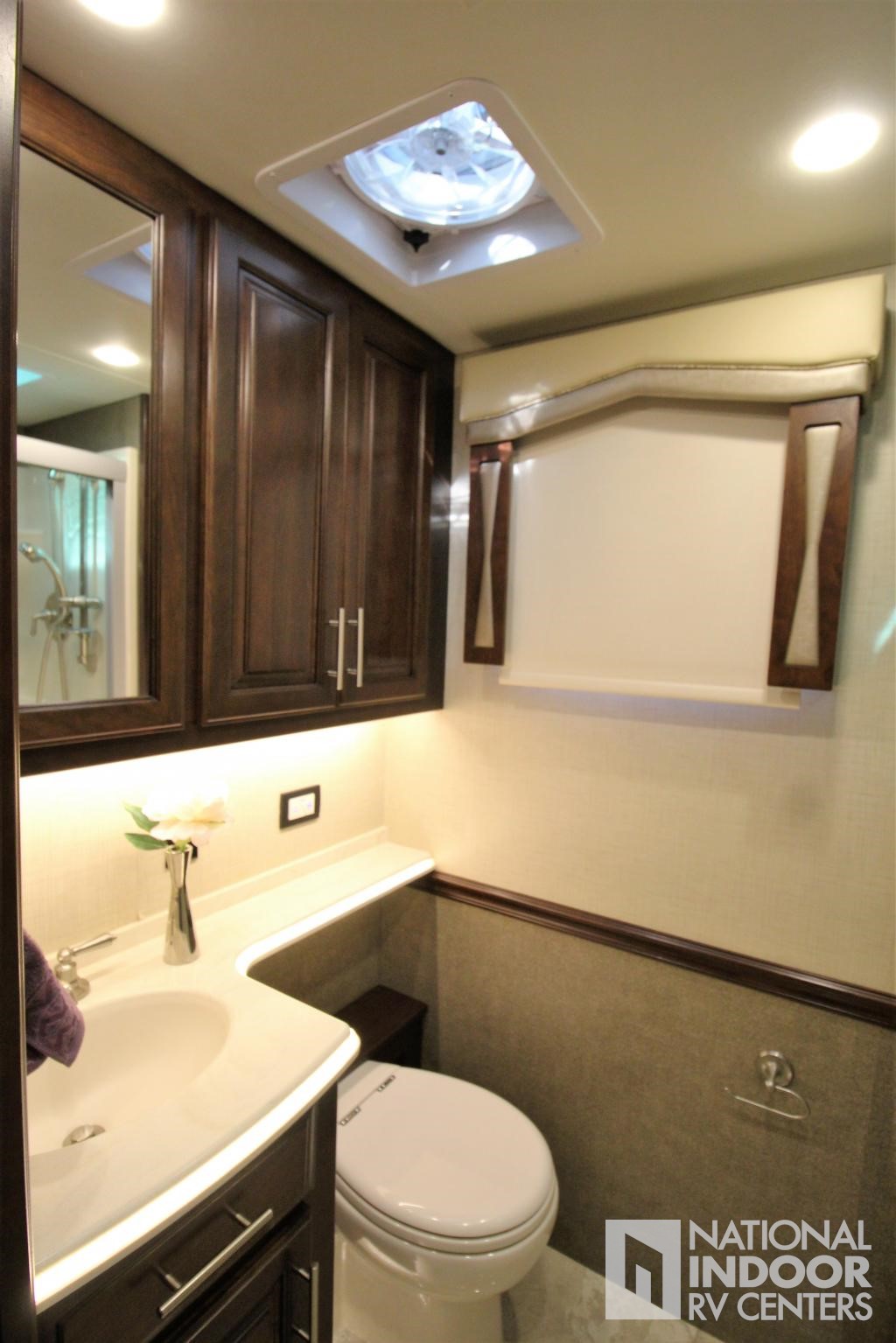

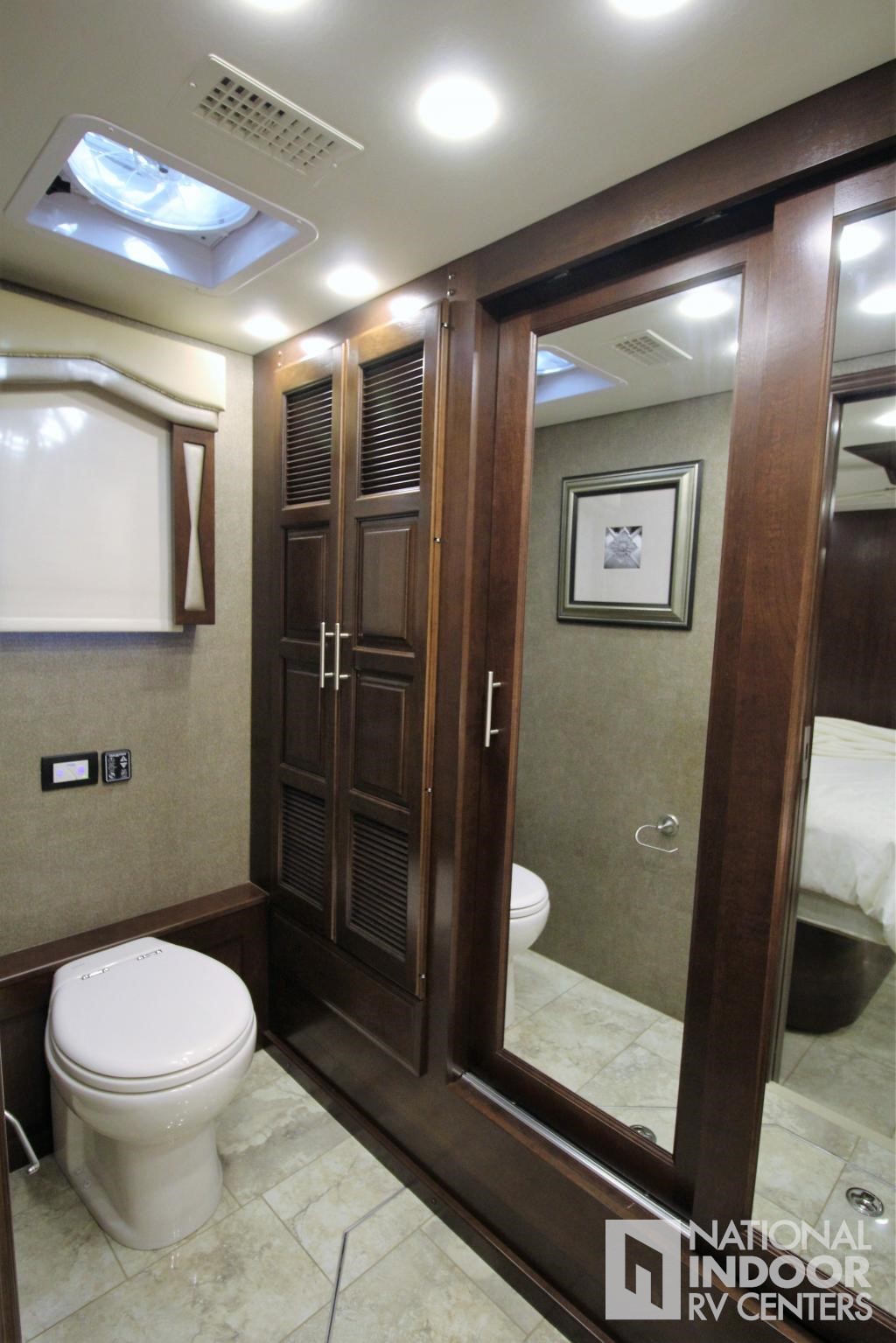

| Toilet |
| Porcelain toilet, with push button flush |

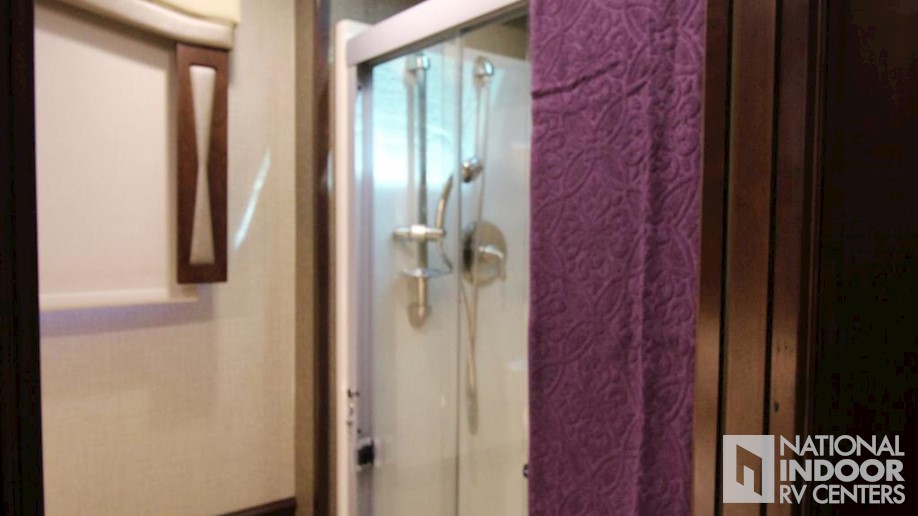

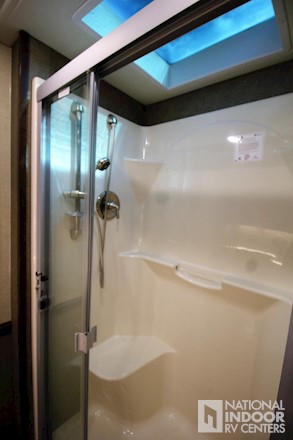

| Shower Door |
| Clear glass shower door |

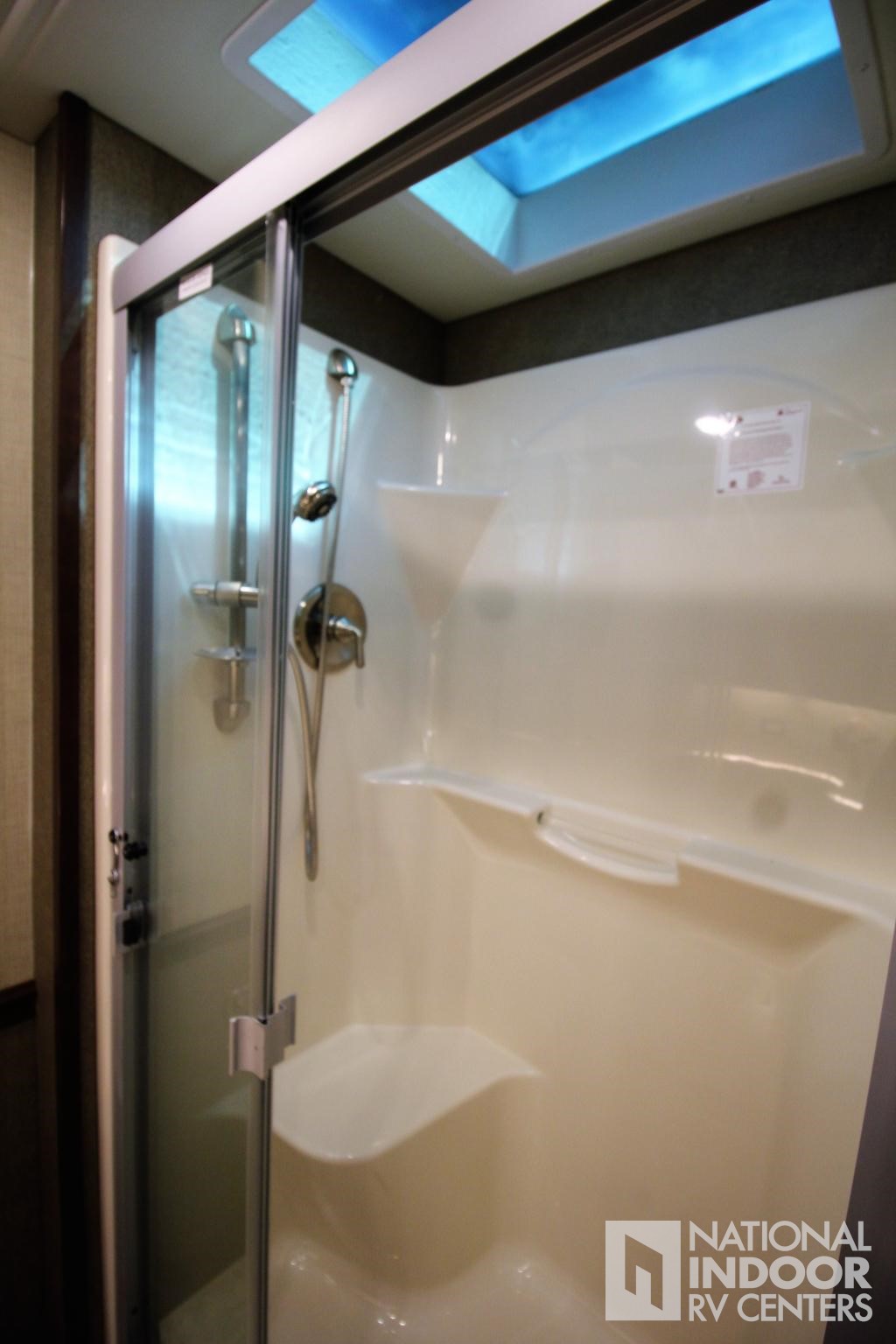

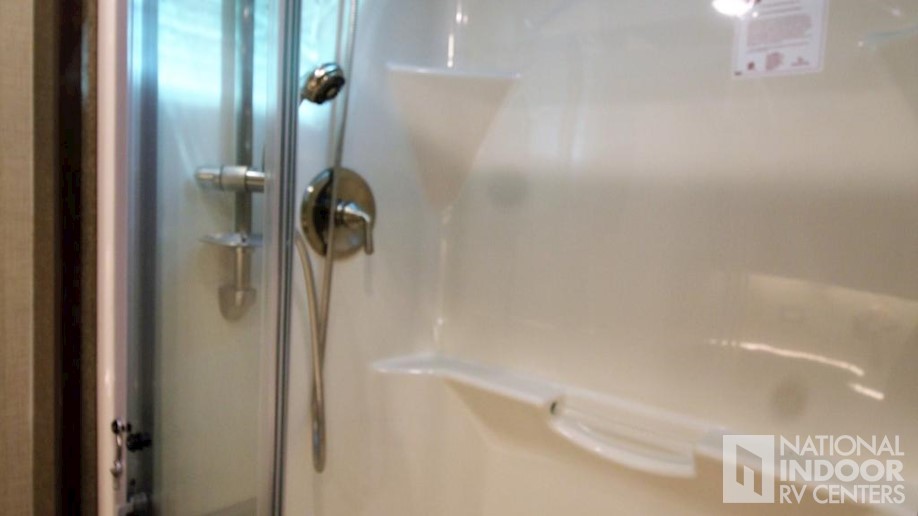

| Shower |

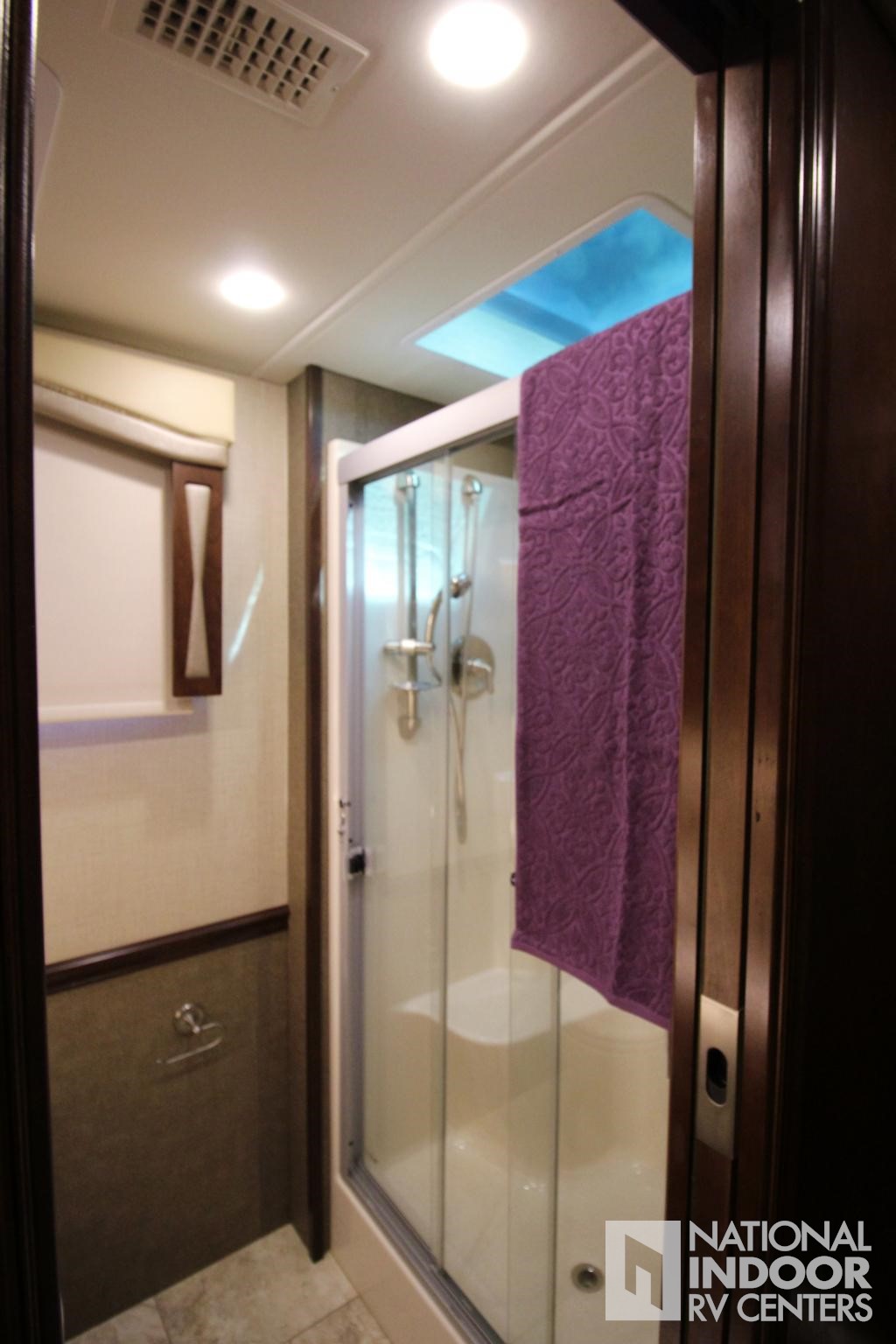

| One-piece fiberglass shower with skylight |
| Vent |
| Power vent |
| Security System |
| Security system with glass shatter sensors |
| Smoke Alarm |
| Smoke alarm |
| Carbon Monoxide Detector |
| Carbon monoxide detector |
| Propane Alarm |
| Propane alarm |
| Security Safe |
| Security safe |
| Canadian Standards |
| Optional |
| Satellite Dish - US |
| Winegard Trav'ler satellite dish - DIRECTV |
| Satellite Dish - CA |
| Winegard Trav'ler satellite dish - Shaw Direct |
| Solar |
| Freezer |
| L-Sofa Lounger with Hide-A-Bed |
| (38M, 42DEQ, 44B and 44U) |
| 100" Sofa with Incliner & Hide-A-Bed |
| (42DEQ, 44B and 44U) |
| Slideout Storage Tray |
| Optional |
| Second Girard Patio Awning |
| Optional |
| Fireplace |
| (N/A on 40P, 44R, & 44W) |
| Dishwasher Drawer |
| Optional |
