| Chassis |
| Spartan K3 raised rail chassis |
| Chassis Battery |
| 2 |
| Hitch |
| 20,000-lb. hitch with 7/4-pin plug |
| Engine |
| Cummins 15 liter ISX turbocharged 600 HP engine 1,950 lb-ft torque at 1,200 RPM |
| Engine Block Heater |
| 1,500 watt engine block heater |
| Fuel Tank |
| 150-gal. fuel tank (dual fill) |
| DEF Tank |
| 15-gallon DEF tank with easy fill door |
| Transmission |
| Allison 4000 MH 6-speed transmission |
| Alternator |
| 210-amp alternator |
| Radiator |
| Side-mounted radiator |
| Front Axle |
| Reyco Granning front axle 20,000-lb. wide track |
| Rear Axle Ratio |
| 4.30 “Quiet-Gear” rear axle ratio |
| Tag Axle |
| Tag axle air dump |
| Turning Radius |
| 55-degree turning radius |
| Braking System |
| All-wheel ABS brakes |
| Tires |
| Michelin 365/70R 22.5" tires (Front) + 315/80R 22.5" tires (Rear |
| Traction Control |
| Automatic Traction Control |
| Shocks |
| Bilstein shocks - 60MM in front and 46MM on rear tag |
| Front Suspension |
| Reyco Granning IFS independent front air suspension |
| Rear Suspension |
| Ridewell tag axle suspension; Hadley air leveling system |
| Air Connection |
| Remote air connection |
| Rear Axle |
| Meritor rear axle 20,000-lb., tag axle 14,000-lb. |
| Frame |
| X-Bridge frames welded into chassis frame |
| Underbelly |
| Enclosed, insulated and heated floor, and thermostat controlled heating in storage area |
| Floor |
| 2" x 4" floor truss construction |
| Walls |
| Aluma-Tru Superstructure construction on 12"-16" centers |
| Insulation |
| Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
| Slideouts |
| Flush-mounted electric-powered slideout rooms w/ remote control |
| Roof |
| One-piece, gel-coat fiberglass, 4-1/2" arched aluminum truss roof; Fully decked with 3/8" plywood |
| Floor Decking |
| 3/4" 7-ply plywood main floor decking |
| Water Monitoring |
| SeeLevel tank monitoring system |
| Air Conditioning |
| 15,000-BTU low profile central A/Cs (3) with heat pump, digital thermostat, and roof to ground condensation drain tubes |
| Electrical Hookup |
| 50-amp power cord with electric reel |
| Generator |
| Onan 12,500-watt diesel generator with auto gen start on powered slide-out tray |
| Heating System |
| Aqua-Hot 450 Diesel hydronic water and heating system with in-floor heat throughout |
| Batteries |

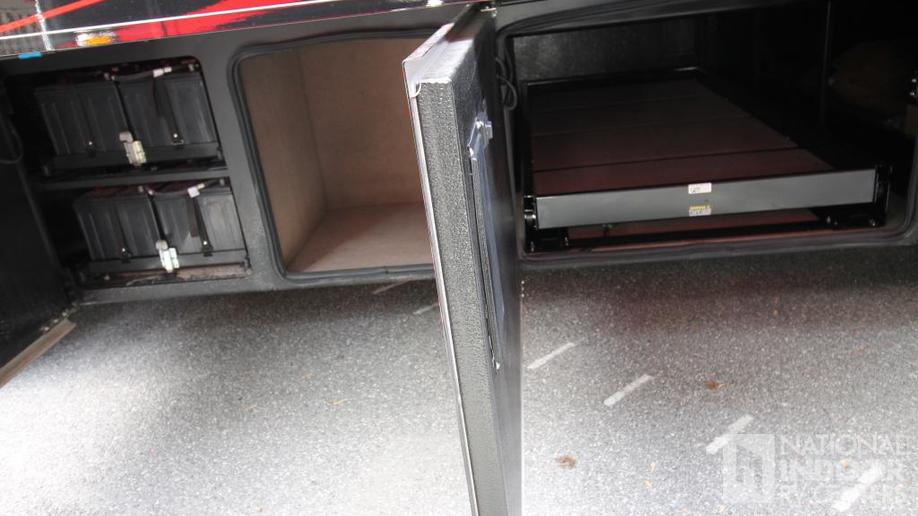

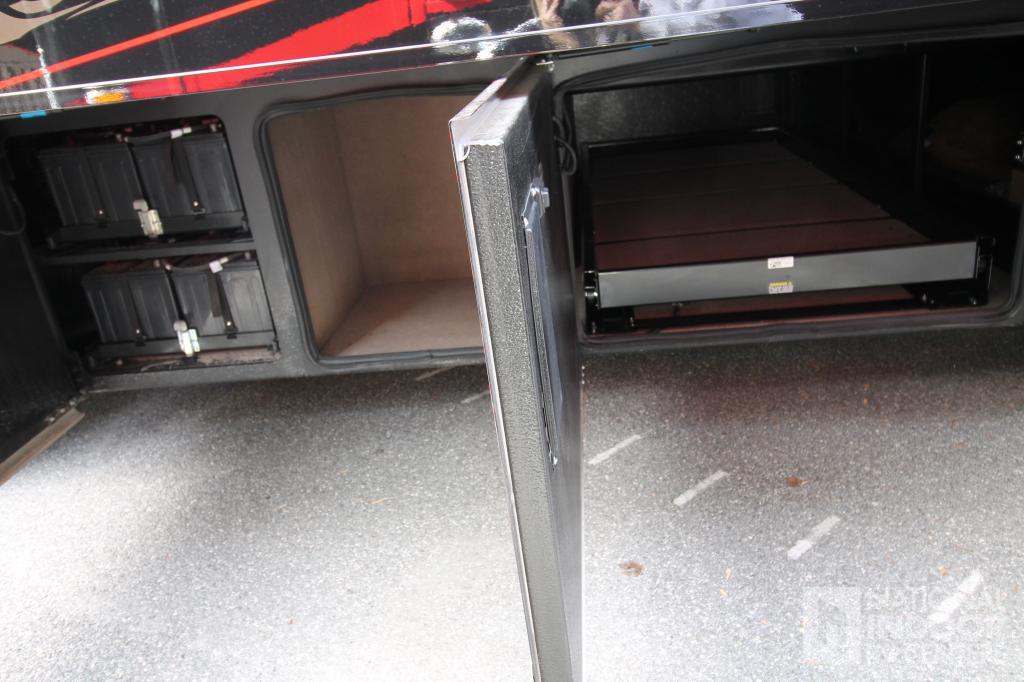

| 6V glass mat batteries on sliding tray (8) |
| Power Management |
| Surge protector transfer switch |
| Water Hose w/ Electric Reel |
| Water hose w/ electric reel |
| Tank Flush |
| Black holding tank sprayer |
| Black Tank Management |
| Macerator holding tank dump system w/ electric gate valves |
| Water Filtration |
| City and tank water filtration system |
| Inverter |
| 2,800-watt and 2,000-watt pure sine wave inverter |
| Winterization Drain System |
| Winterizing drain system |
| Mirrors |
| Chrome, heated, remote control, side-view mirrors w/ integrated cameras |
| Exterior |
| 3M front protective film mask |
| Entrance Door |
| Aire-Secure travel locks for all passage doors |
| Entrance Steps |
| Deluxe concealed entry step |
| Windows |
| Frameless, tinted, dual-pane, safety-glass windows |
| Door Awning |
| Girard Vision dual pitched awning |

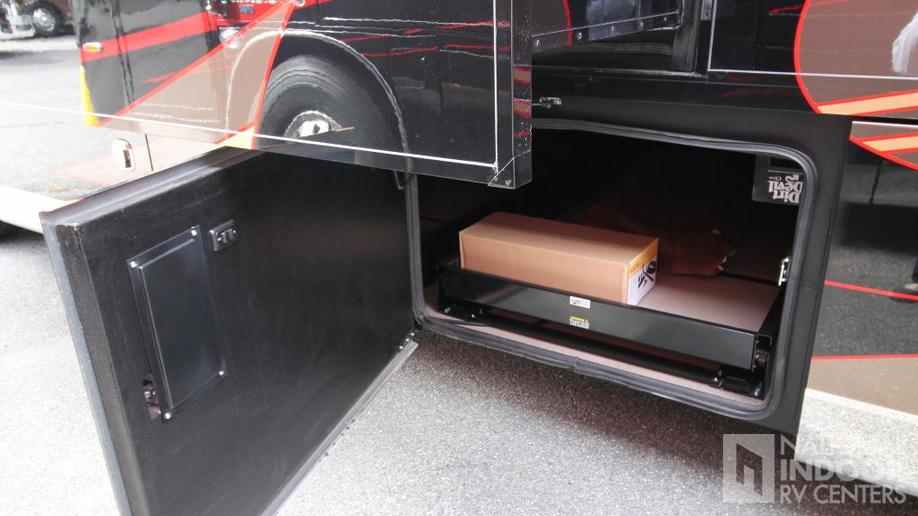

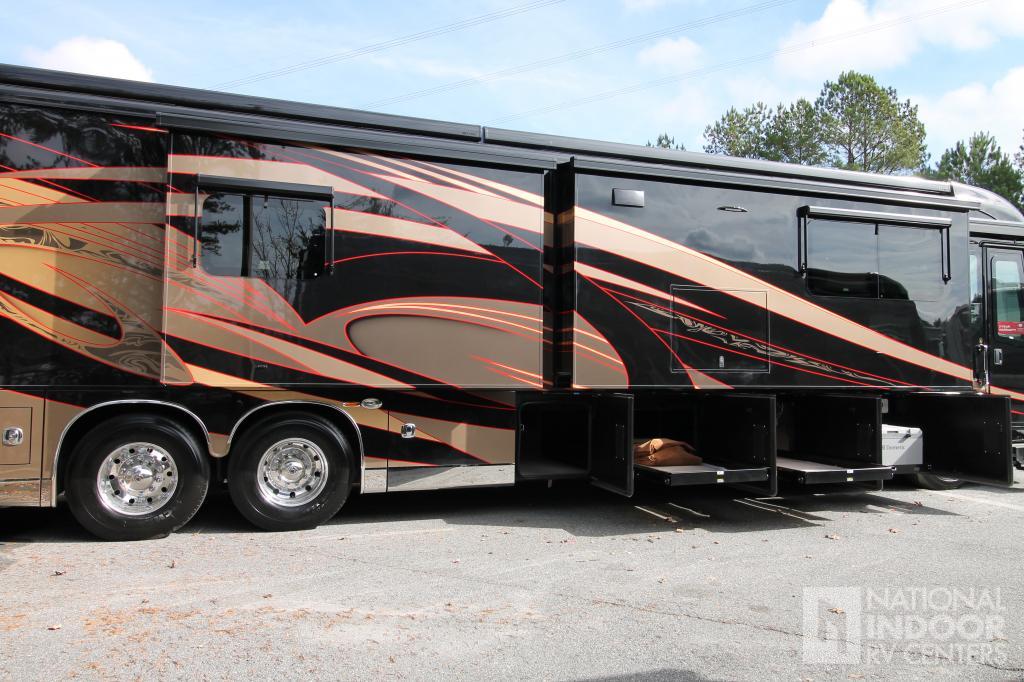

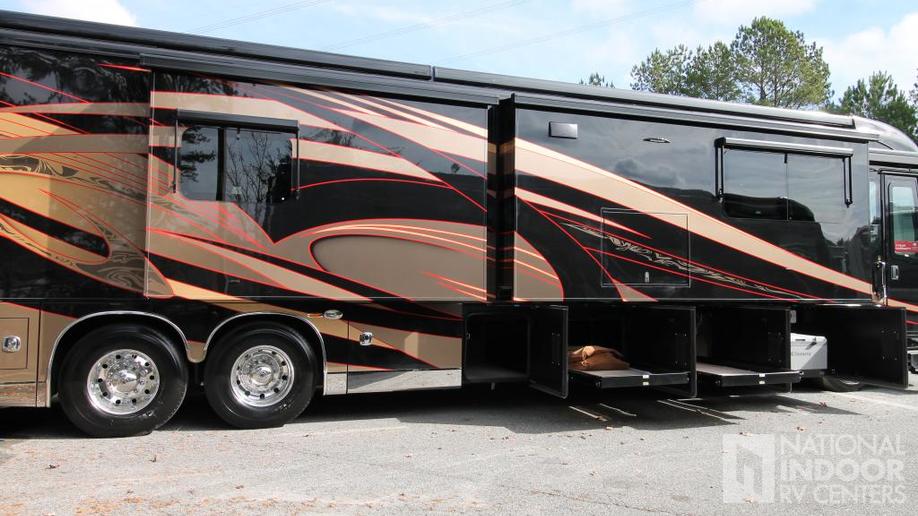

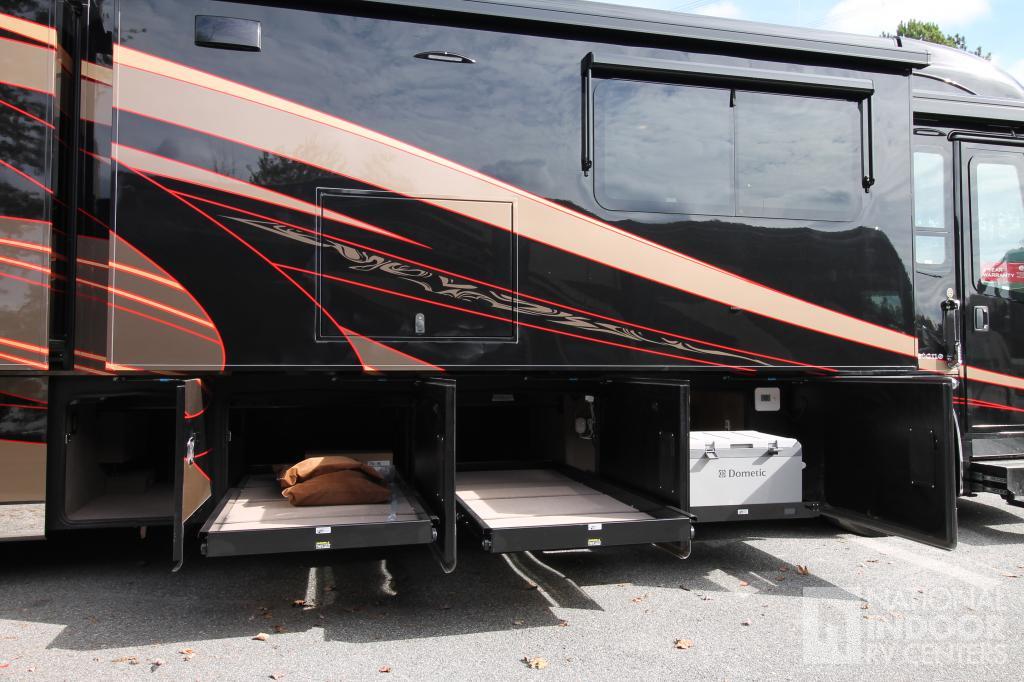

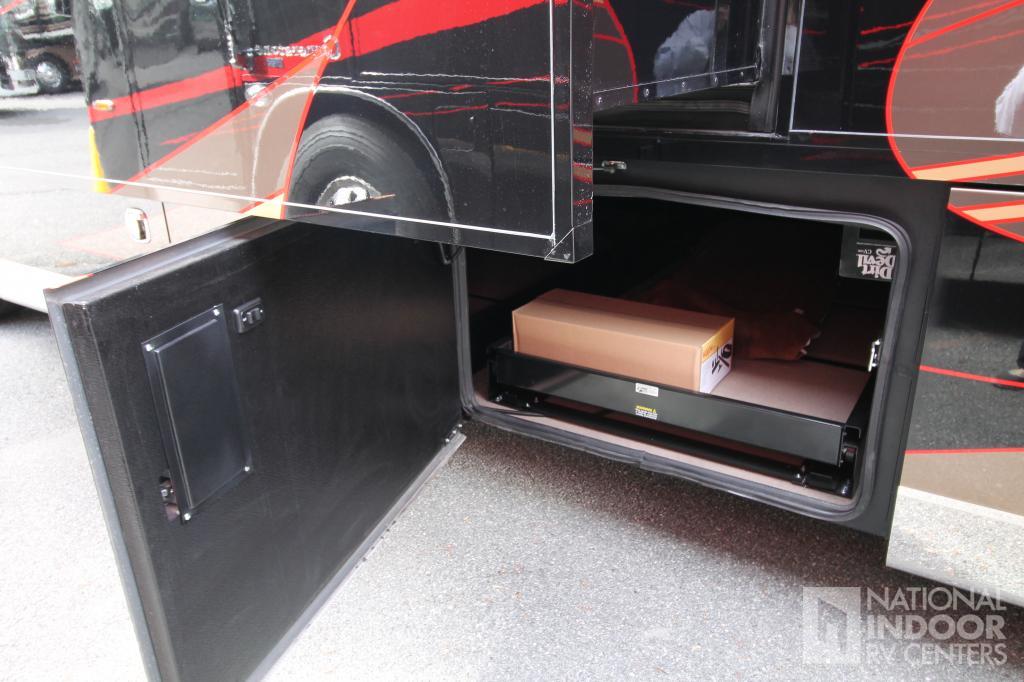

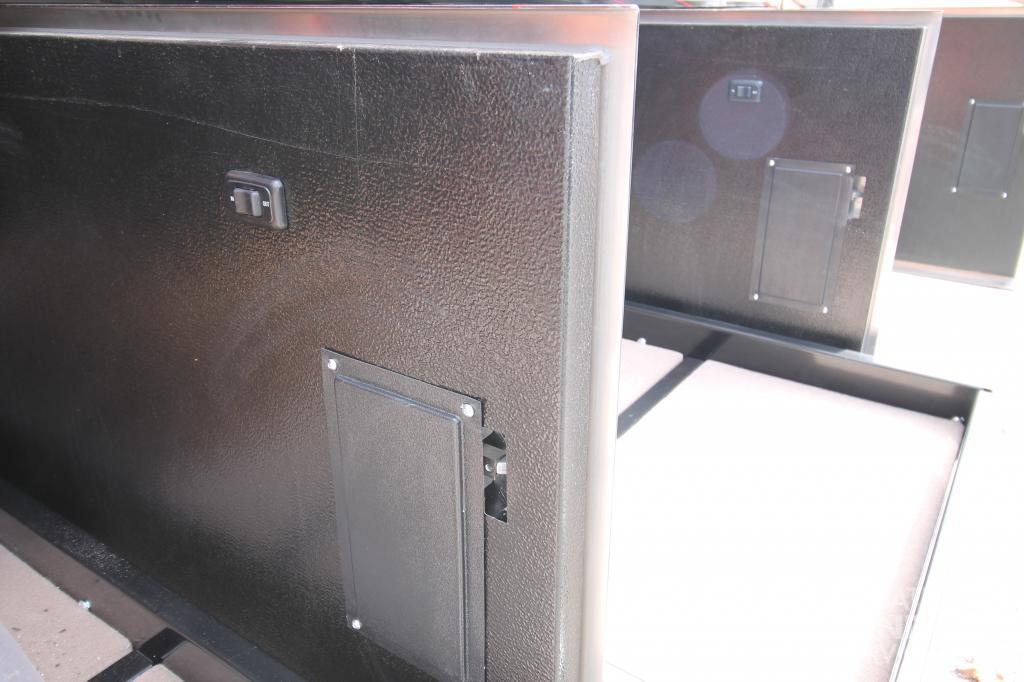

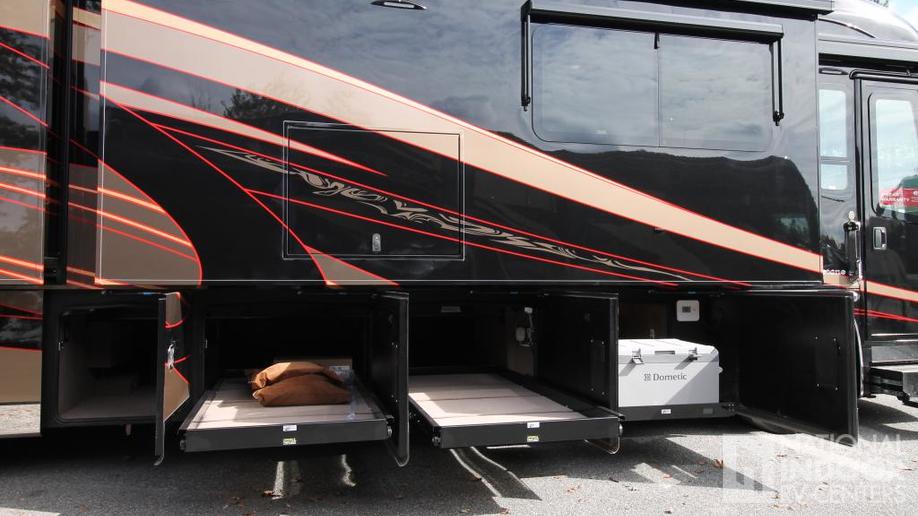

| Cargo Features |

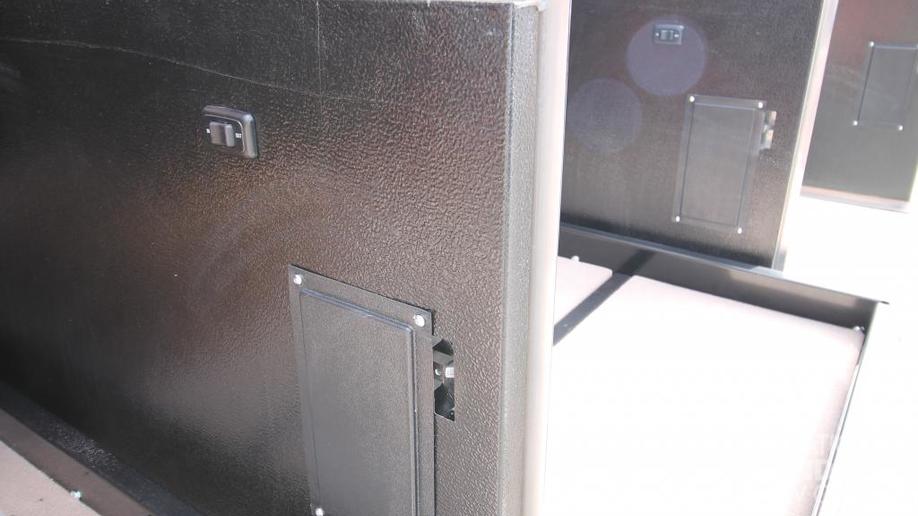

| Powered slide-out cargo trays (2) |

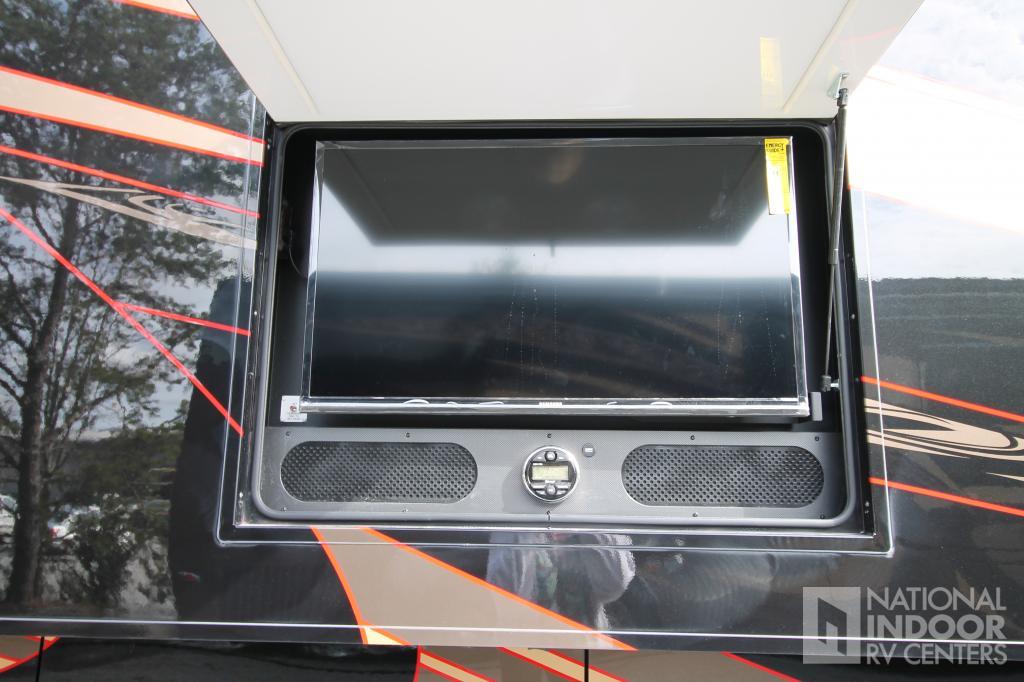

| Entertainment |

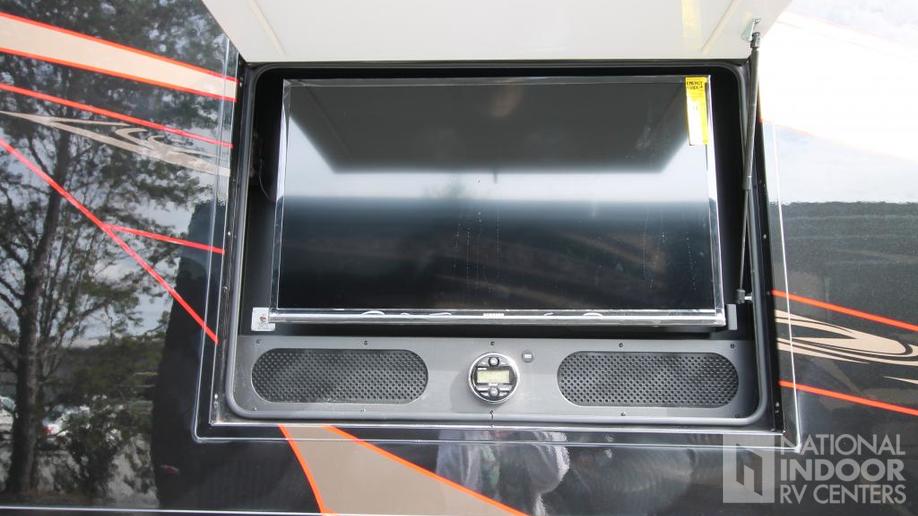

| Exterior 40" Samsung LED HDTV on TV bracket w/ extend and swivel arm and JBL multimedia stereo receiver with Bluetooth audio streaming |
| Satellite Dish |
| Winegard in-motion satellite dome w/ prep for Trav'ler satellite dish |
| Rear Mudflap |
| Full-width rear mudflap |
| TV Antenna |
| Winegard Rayzar powered TV antenna |
| Exterior Walls |
| 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
| Front/Rear Cap |
| Steel-reinforced front cap and windshield frame |
| Headlights |
| LED high beam headlights and Xenon low beam headlights |
| Fog Lights |
| LED fog lights |
| Daytime Running Lights |
| Daytime running lights |
| LED Lights |
| LED marker and turn lights the full length of the coach |
| Docking Lights |
| LED docking lights |
| Accent Lights |
| LED accent lights on underside of slideout rooms curbside |
| Keypad |
| Lighted grab handle with keypad system |
| Keyless Fob |
| Keyless entry with key fob |
| Window Awnings |
| Girard Ultra window shade awning and Ultra slide-out awnings |
| Patio Awnings |
| Roof mounted Girard Vision dual pitched patio awning with LED lights |
| Utility Center |
| Exterior utility center, heated and enclosed with system monitor panel |

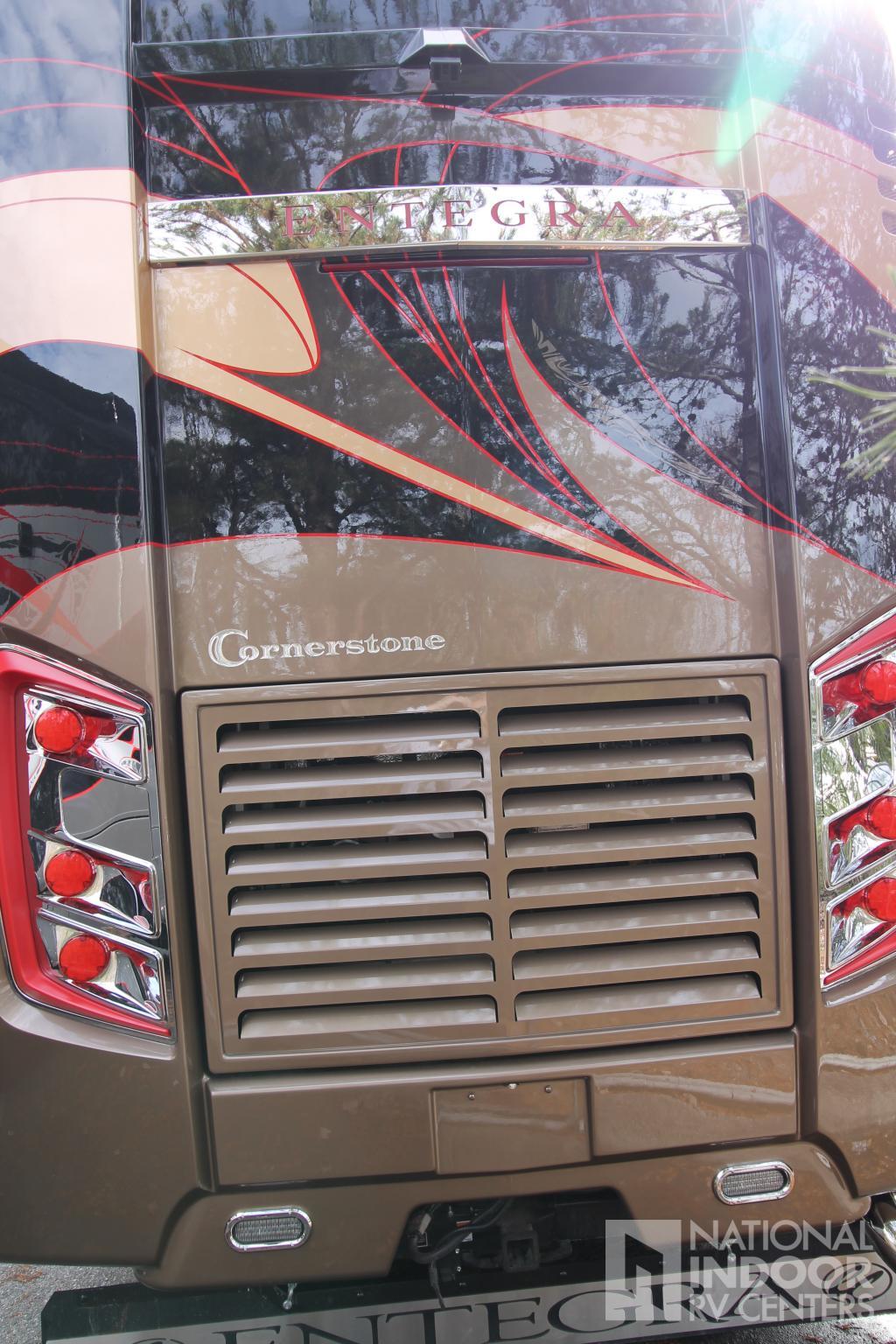

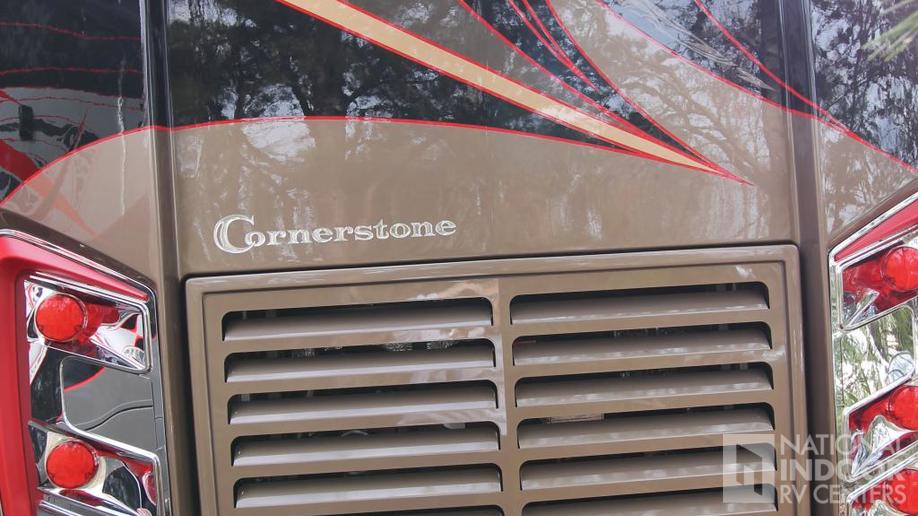

| Engine Door |
| Power rear engine door |
| Lights |
| Motion sensor security lights (2) |

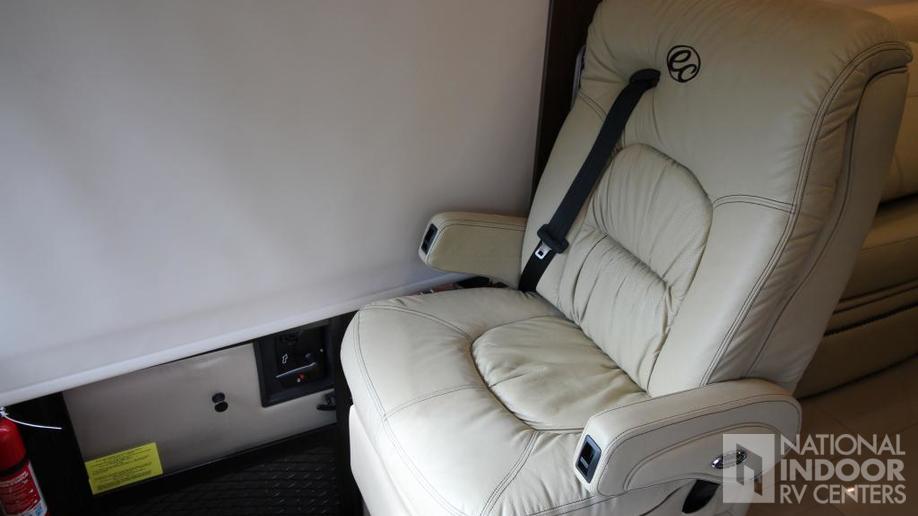

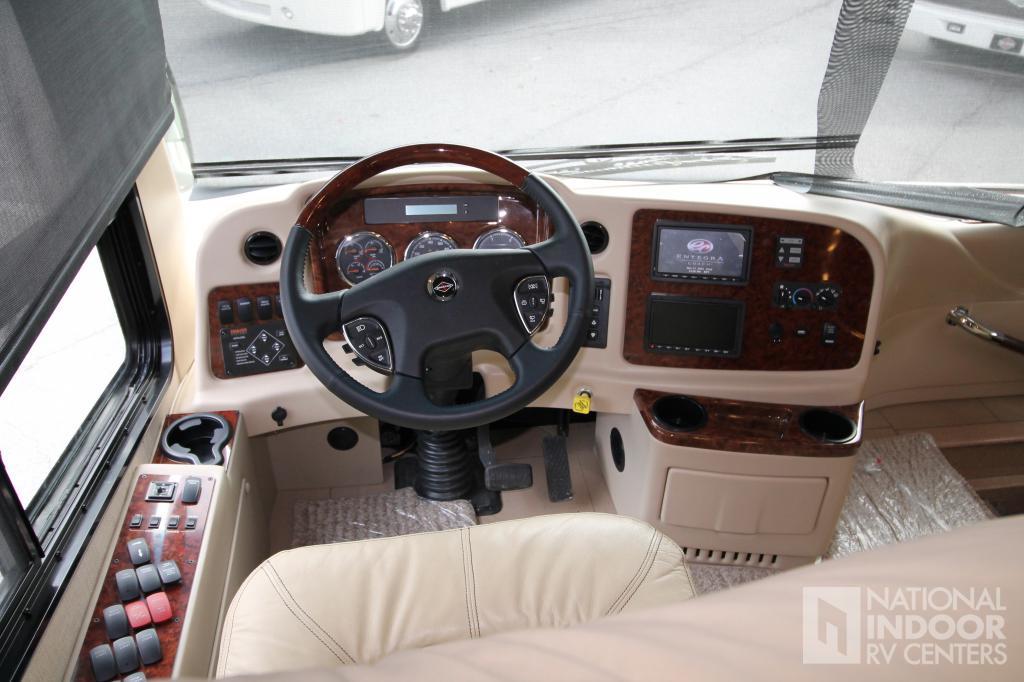

| Driver / Passenger Seats |
| 8-way power, lumbar, heated, leather driver and passenger seats with integrated 3-point lap and shoulder safety belts |

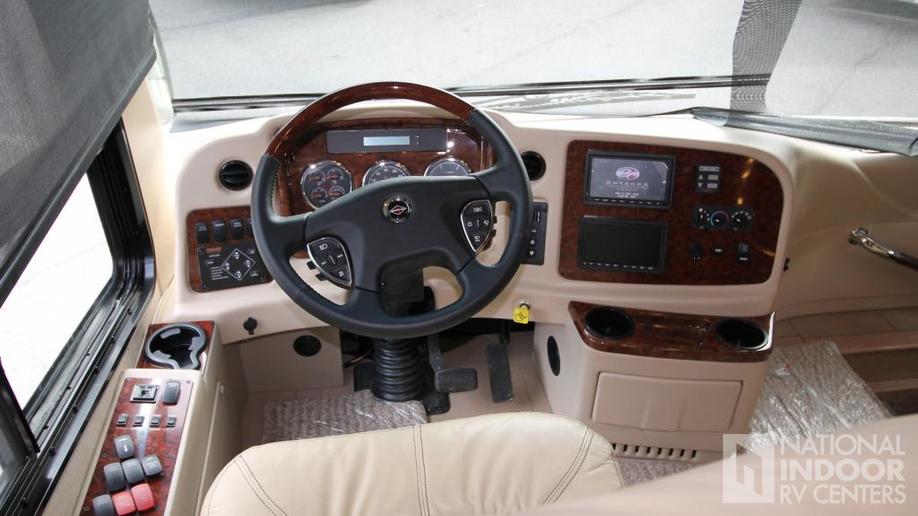

| Steering Wheel |
| VIP soft-touch, wood-grain, leather-wrapped, tilt and telescoping steering wheel w/ integrated controls for radio, cruise, and wipers |
| Infotainment System(s) |
| Infotainment center with touch screen, Rand-McNally GPS navigation, Bluetooth, Sirius radio and tuner |

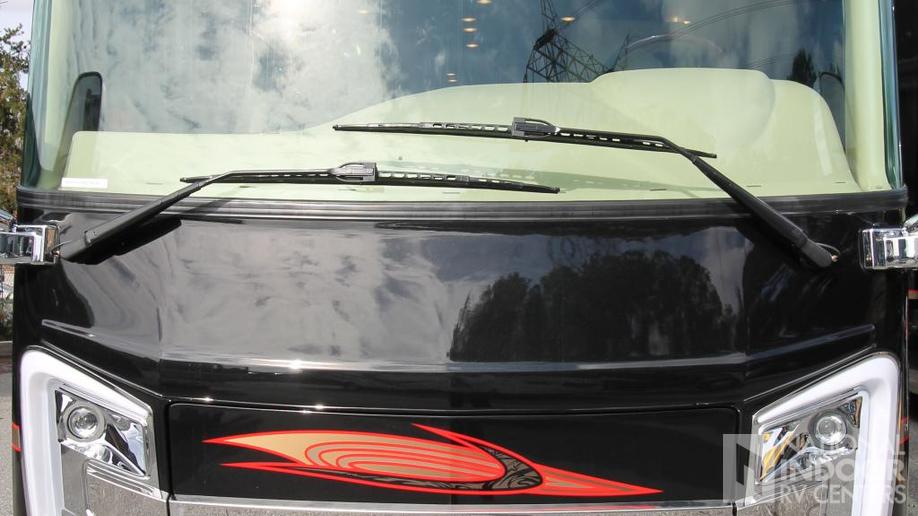

| Windshield |
| Ultra-Vision one-piece wrap-around tinted windshield |
| Cameras |
| Color back-up camera and monitor system w/ side and rear view cameras |
| Visors & Privacy Shade |
| MCD powered front sun visors and privacy shade |
| Power Features |
| Battery boost system |
| Monitoring System(s) |
| Spartan Message Center with LCD display featuring: odometer, tachometer, fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, trip meter, speed and voltage |
| Flooring |
| Powered flush stepwell cover |
| Sound System |
| JBL premium audio tuned 360-watt DSP amplifier and 11 speakers including subwoofer |
| Leveling System |
| Hydraulic automatic leveling jack system |
| Pedals |
| Powered adjustable foot pedals |
| Trip Management System |
| TripTek Information Center |

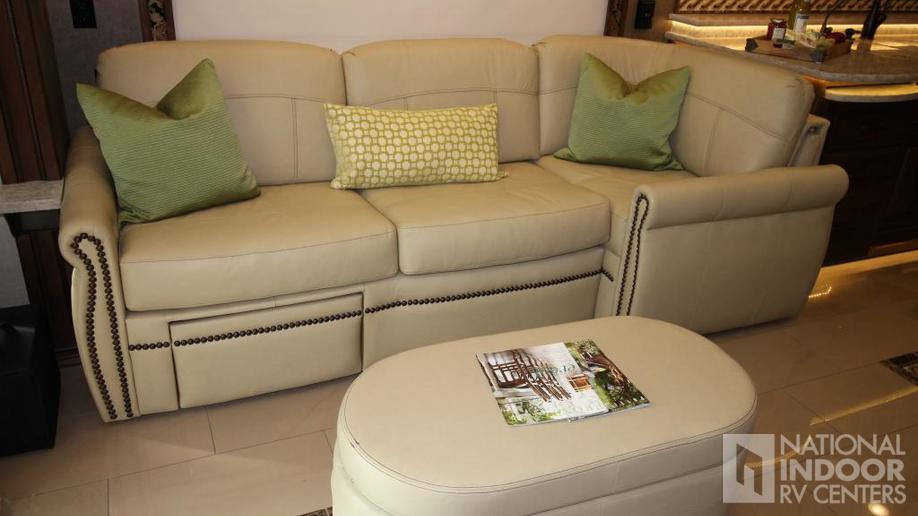

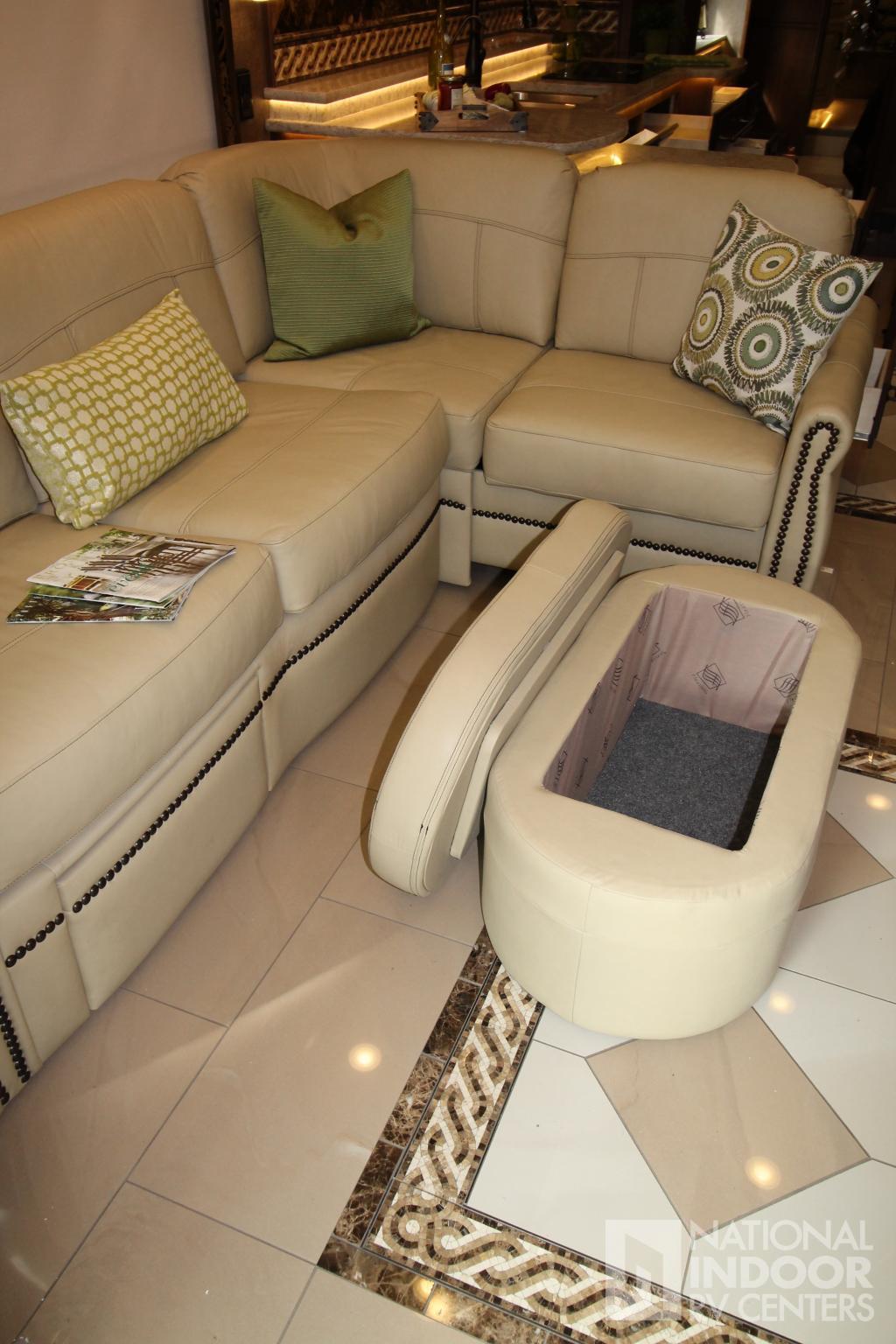

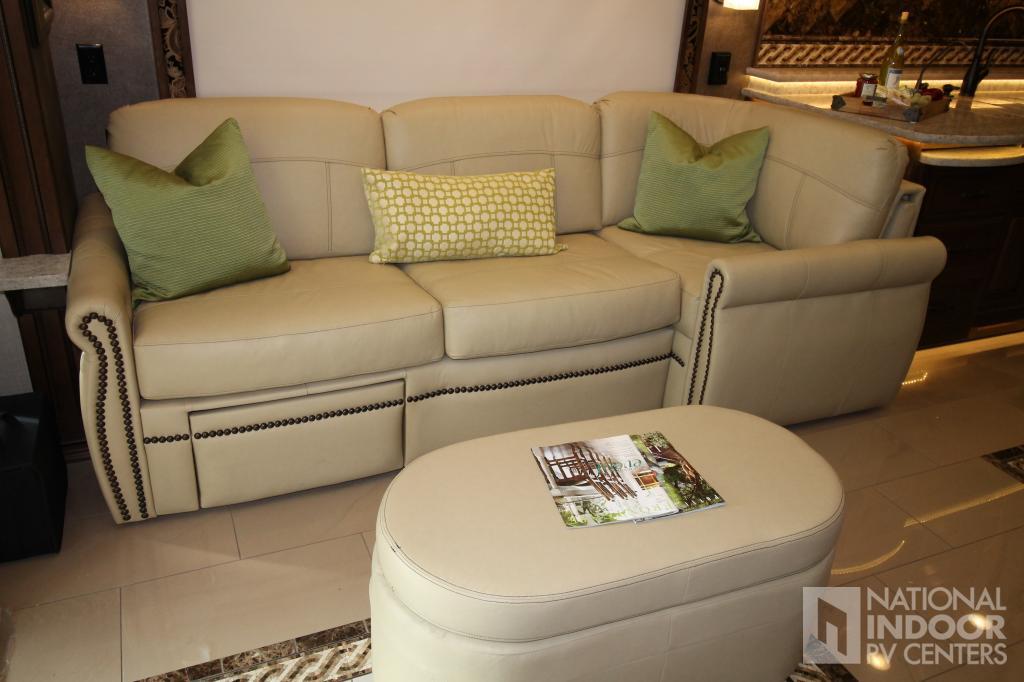

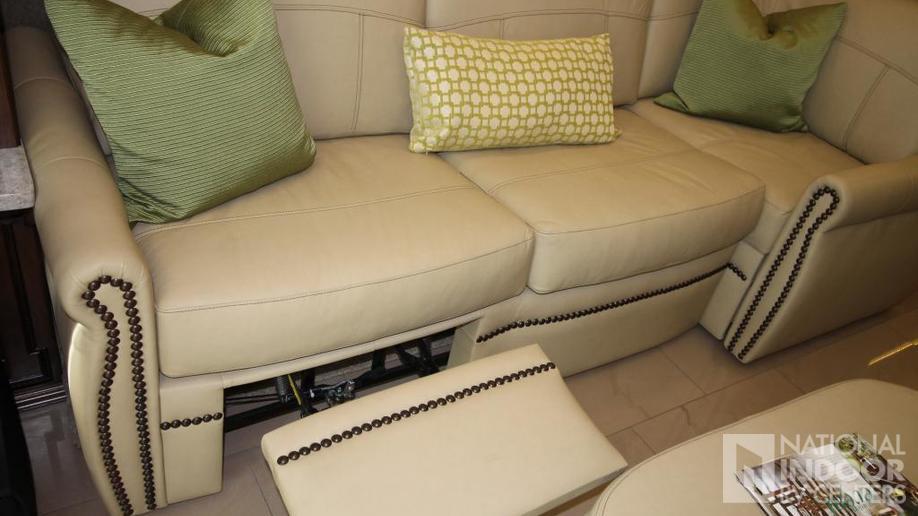

| Furniture |

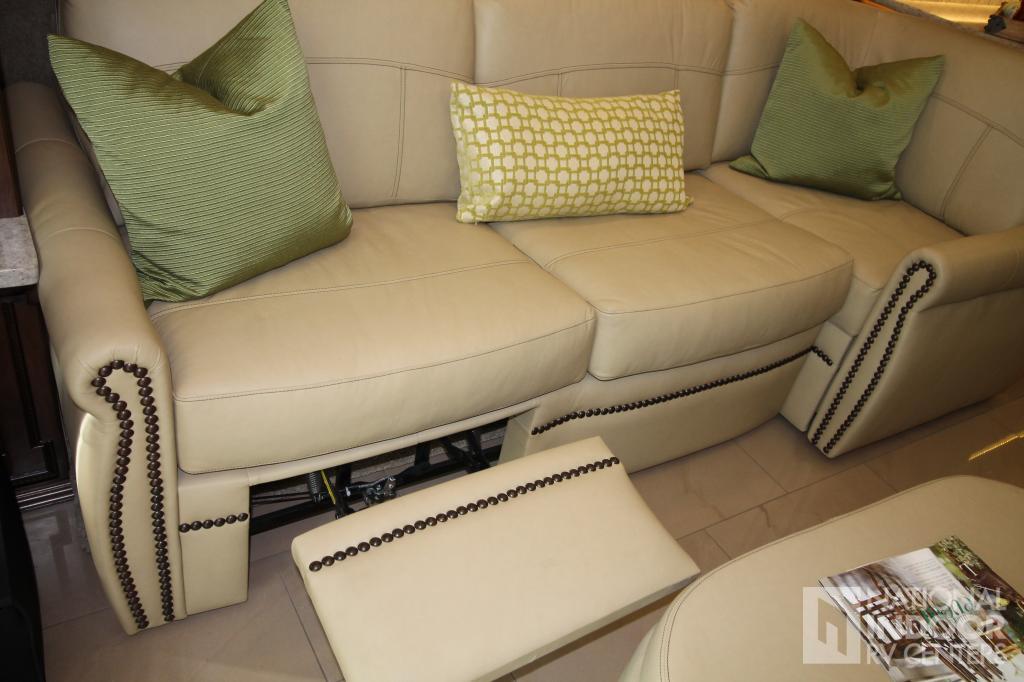

| leather hide-a-bed(s) |

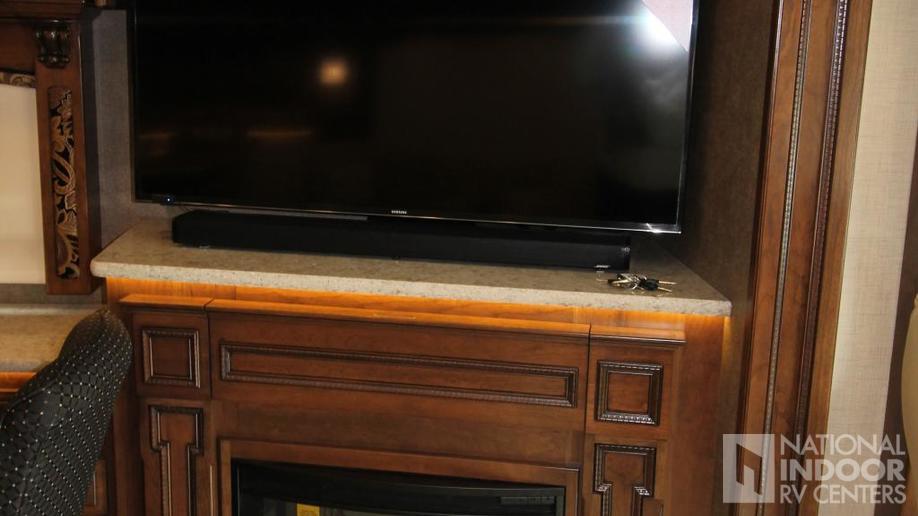

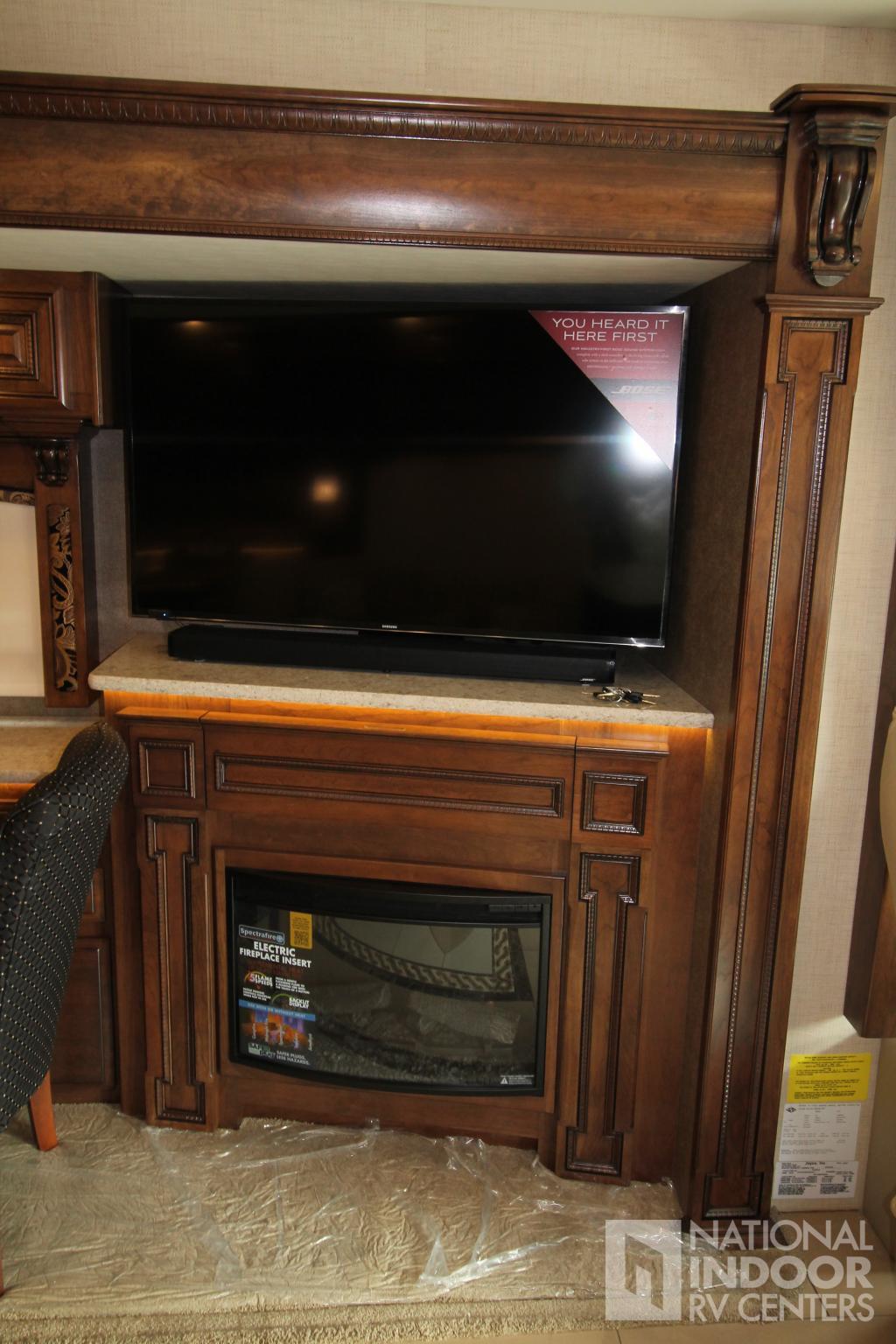

| Electric Fireplace |
| LED lit electric fireplace |
| Lighting |
| LED recessed 12V lighting |
| Central Vacuuming System |
| Central vacuum system |
| Window Treatments |
| Powered MCD solar day and black out night shades |
| Flooring |
| High Gloss 12" x 24" porcelain tile with granite inlay design |
| Washer/Dryer |
| Stackable washer and dryer |
| Lighting System |
| Multiplex controlled lighting system |
| Television - Living Room |

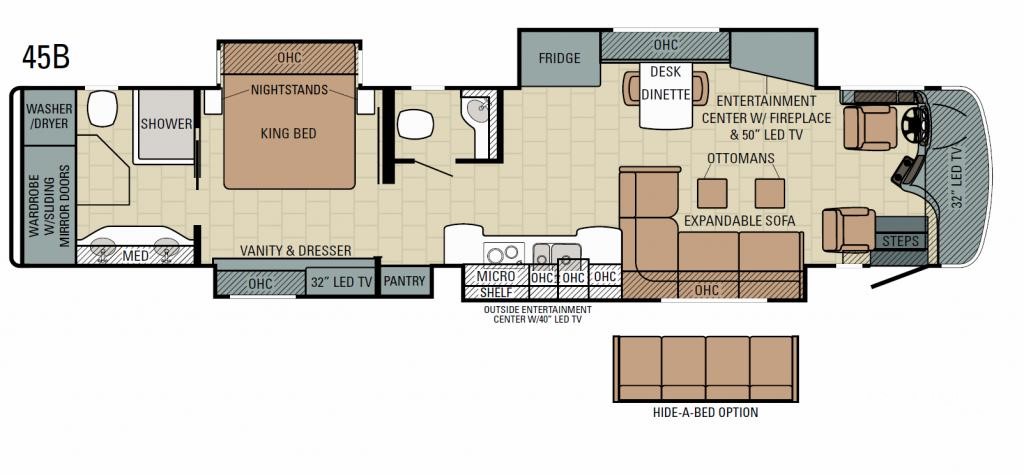

| Samsung 50" 4K UHDTV (45B, 45A); Samsung 48" 4K UHDTV (45J, 45K, 45U) |

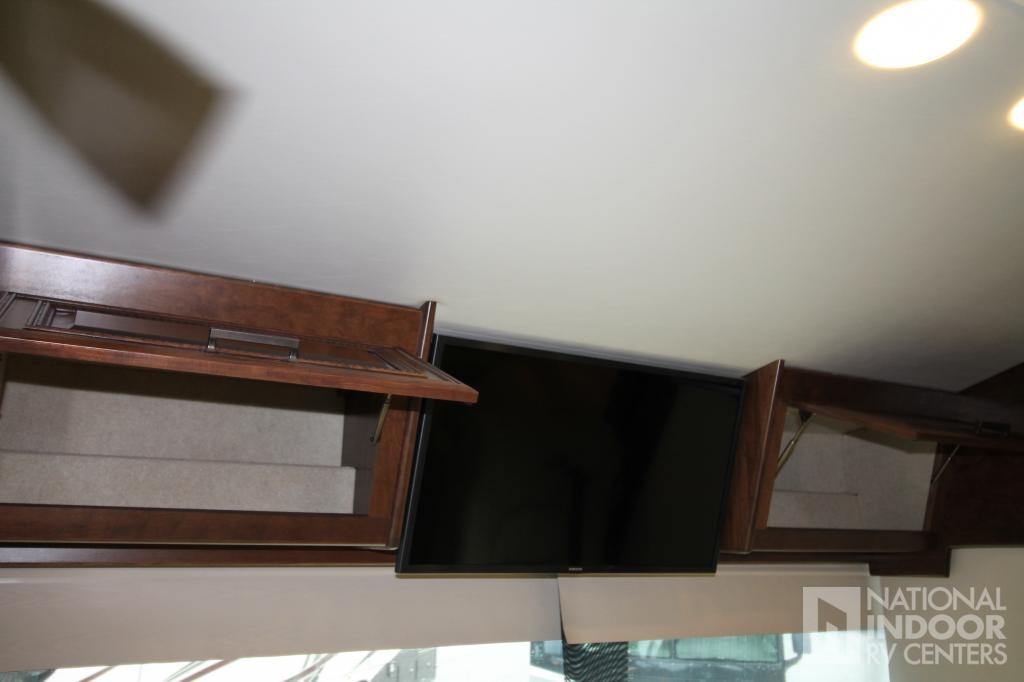

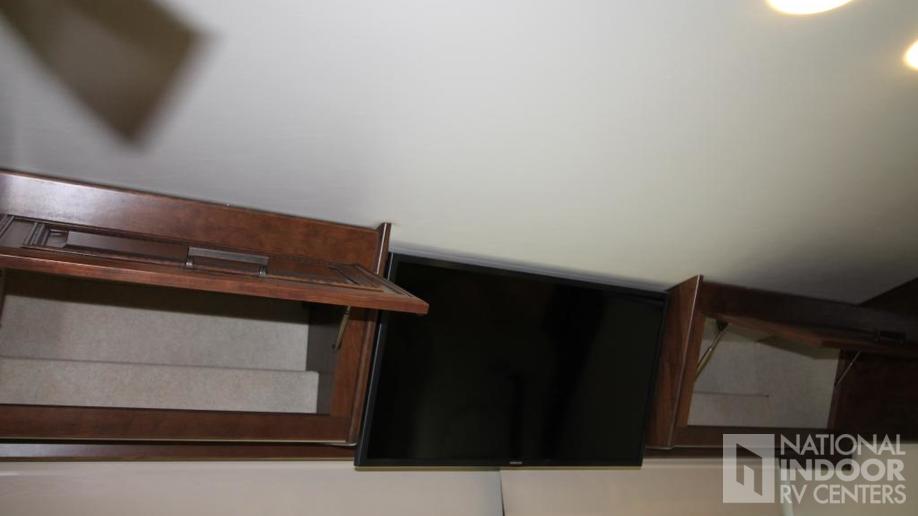

| Television - Front Overhead |
| Samsung 32" LED HDTV in front overhead |
| Sound - Living Room |
| Bose CineMate 130 home theater system in living area |

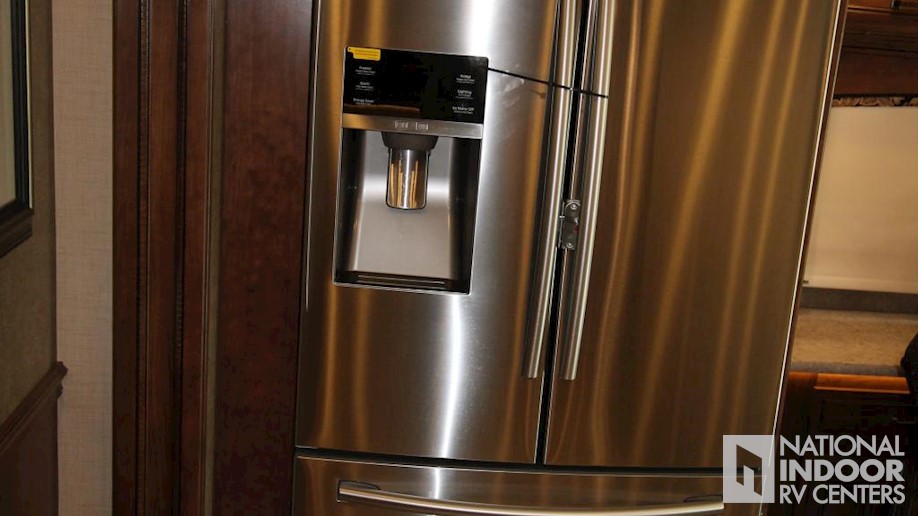

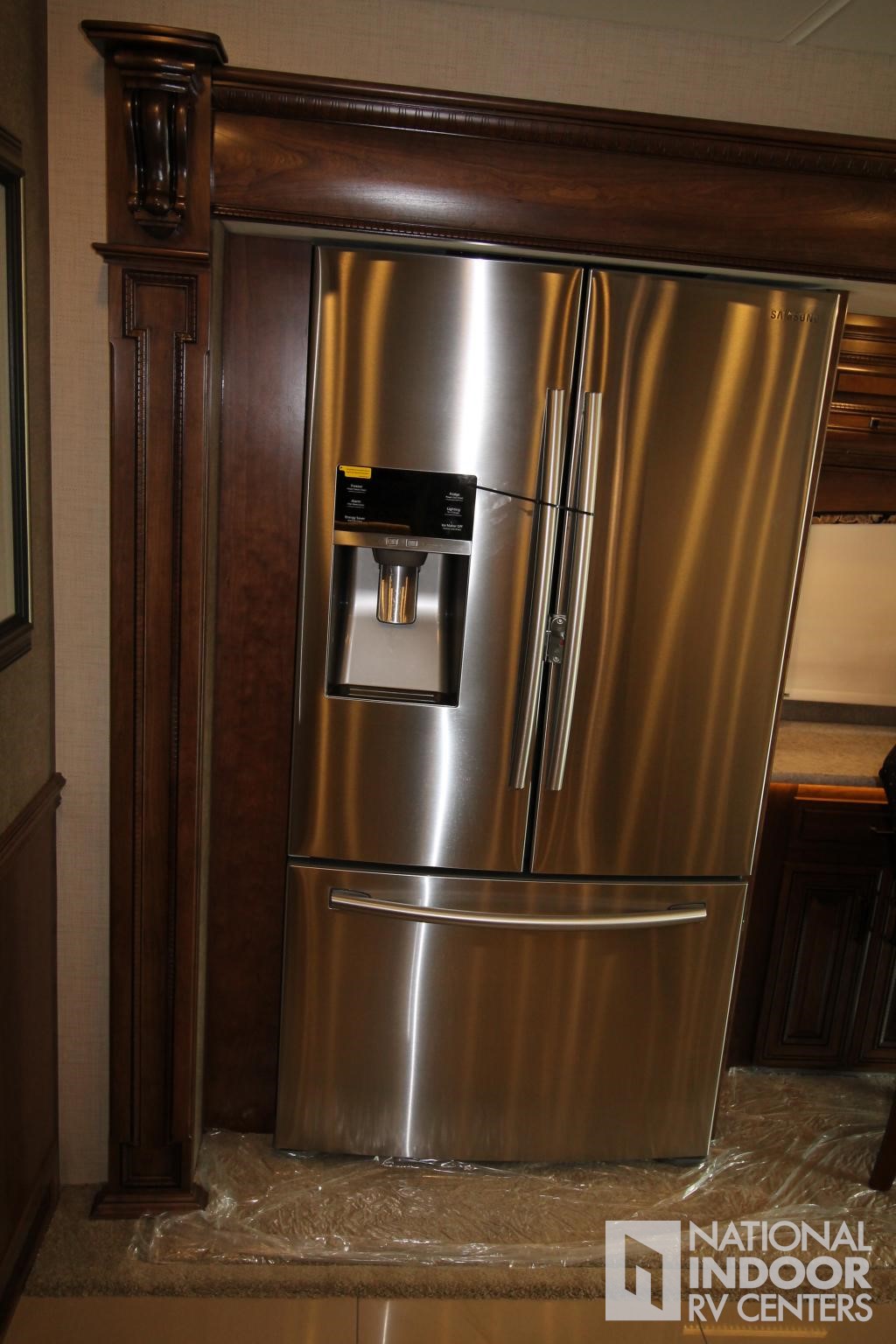

| Refrigerator |
| Samsung residential 23 cu. ft. refrigerator with ice maker and water dispenser |
| Microwave |
| Samsung 1.7 cu. ft. convection microwave oven |

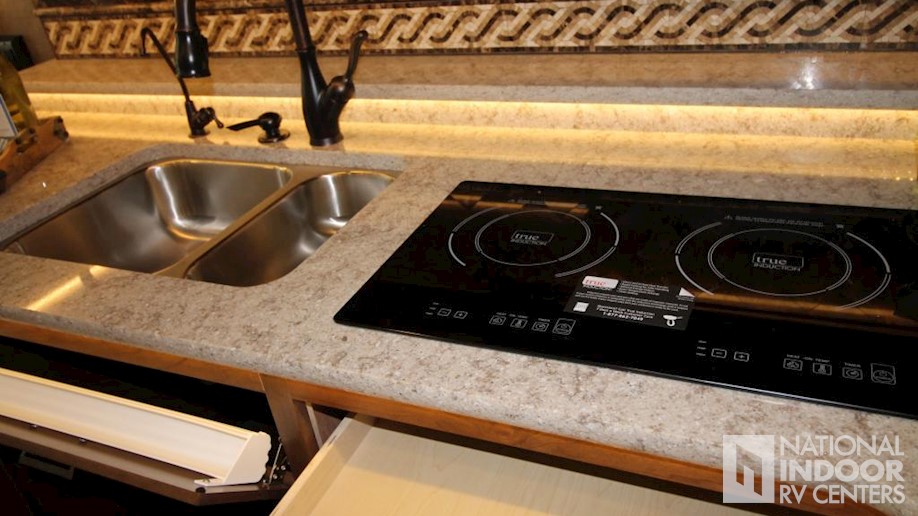

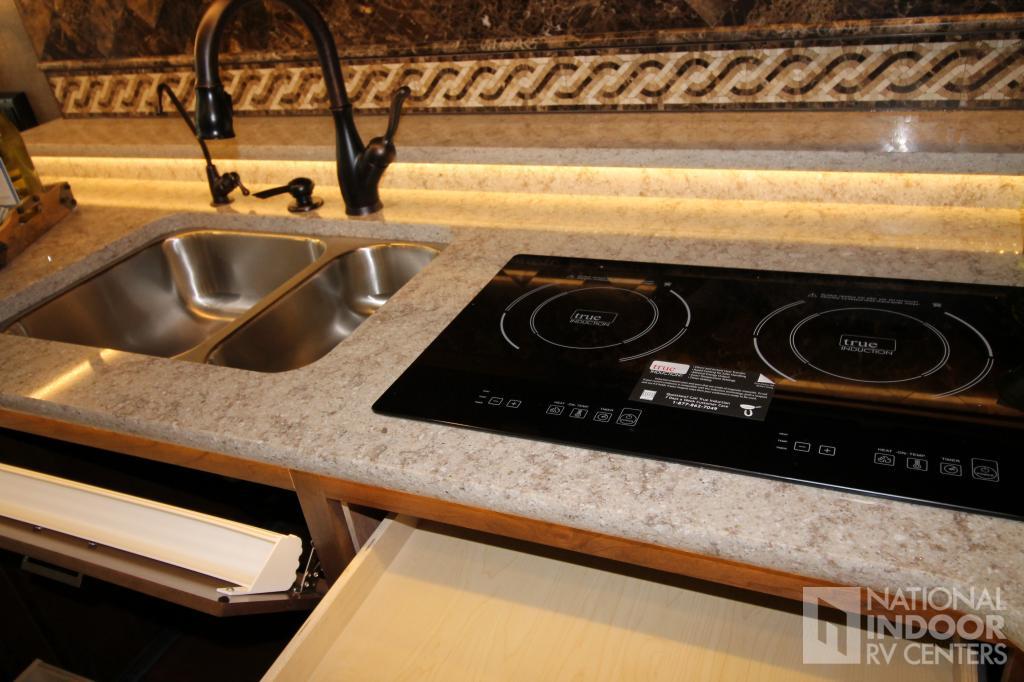

| Cooktop |
| Flush mounted induction cooktop |

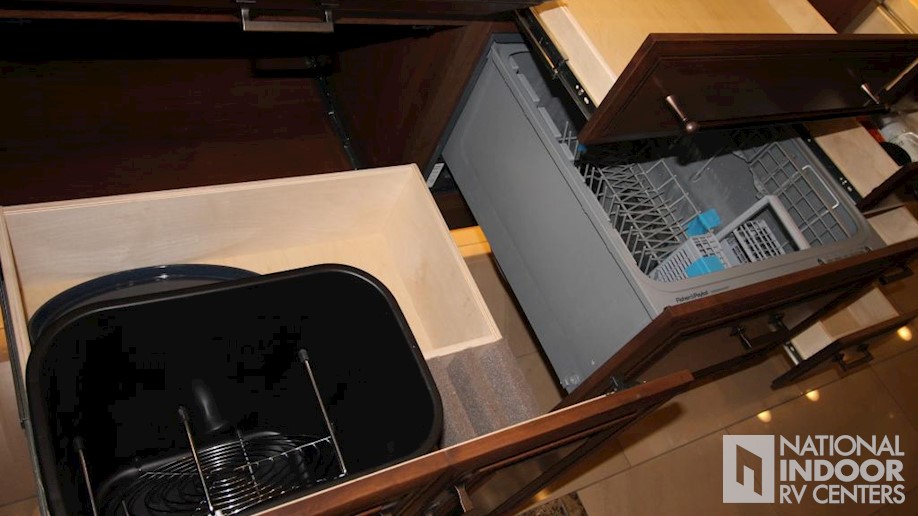

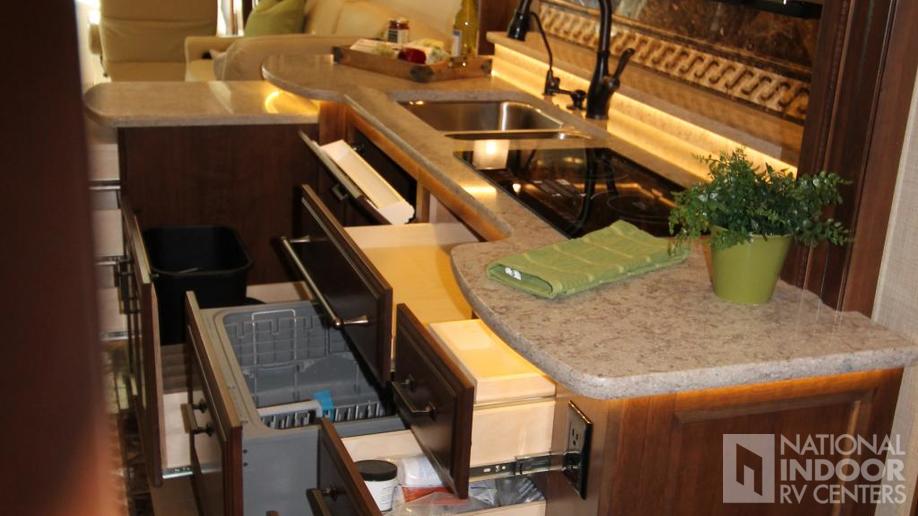

| Dishwasher |
| Dishwasher |

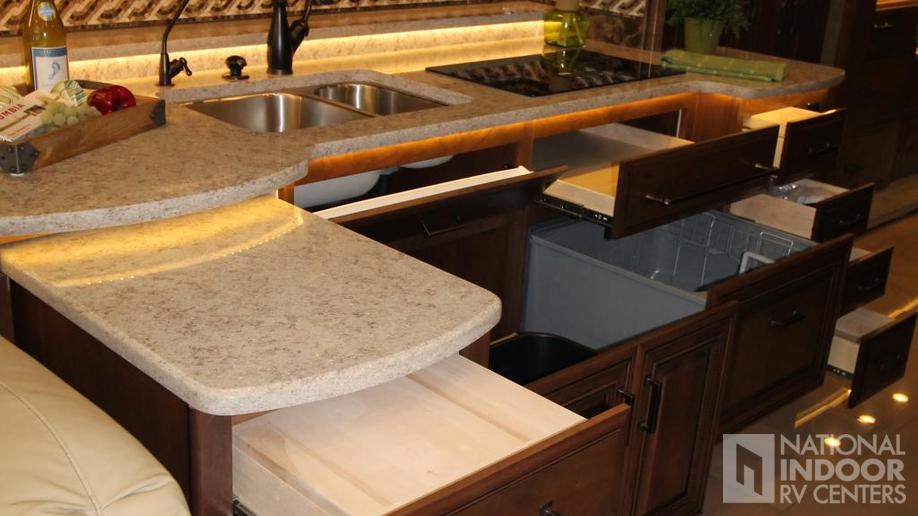

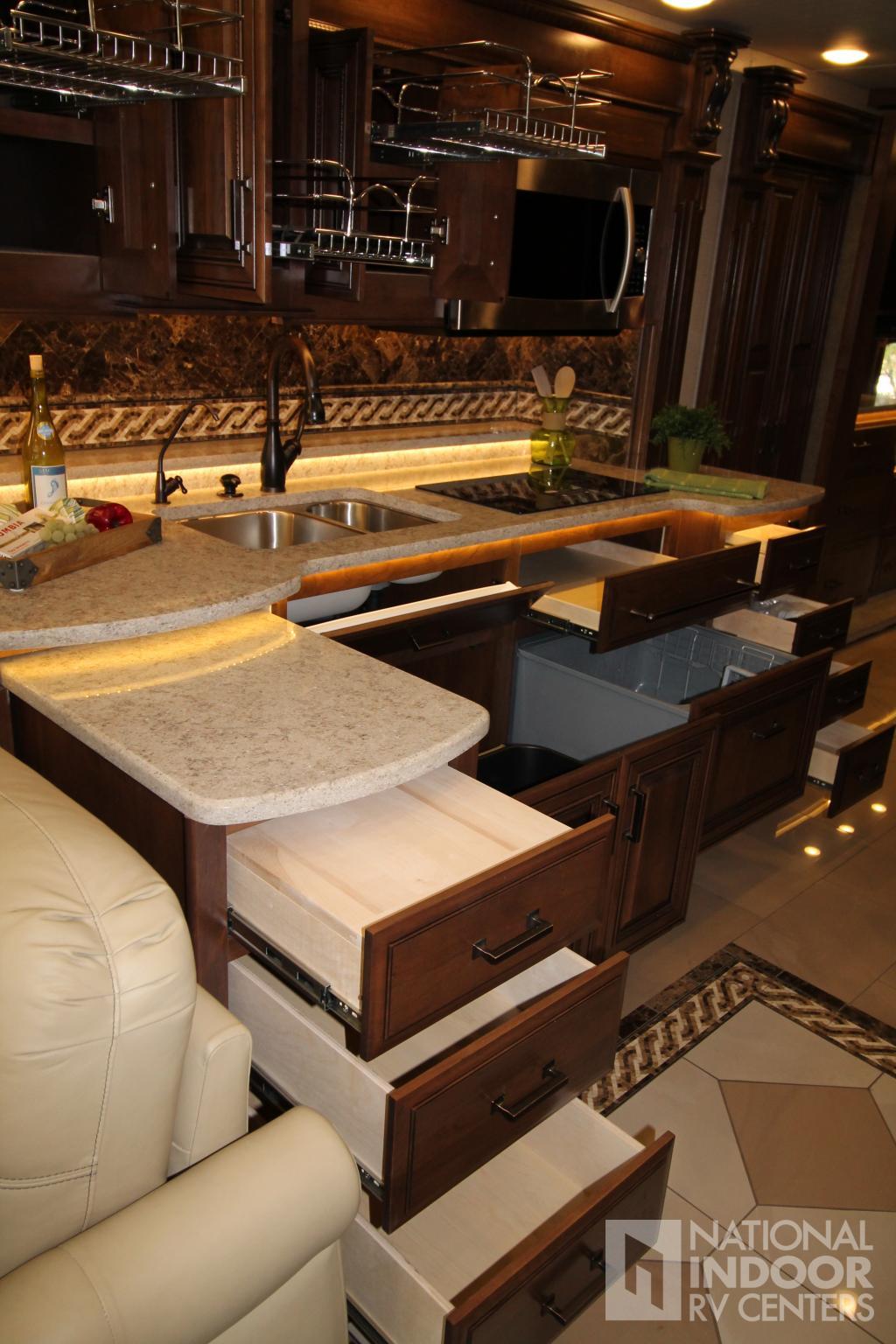

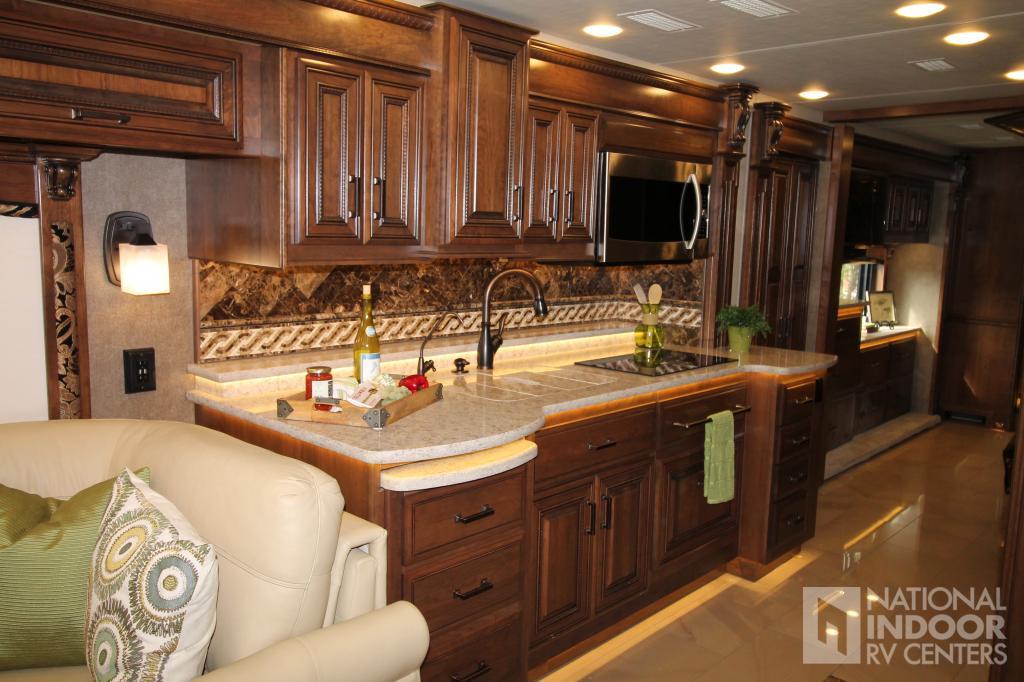

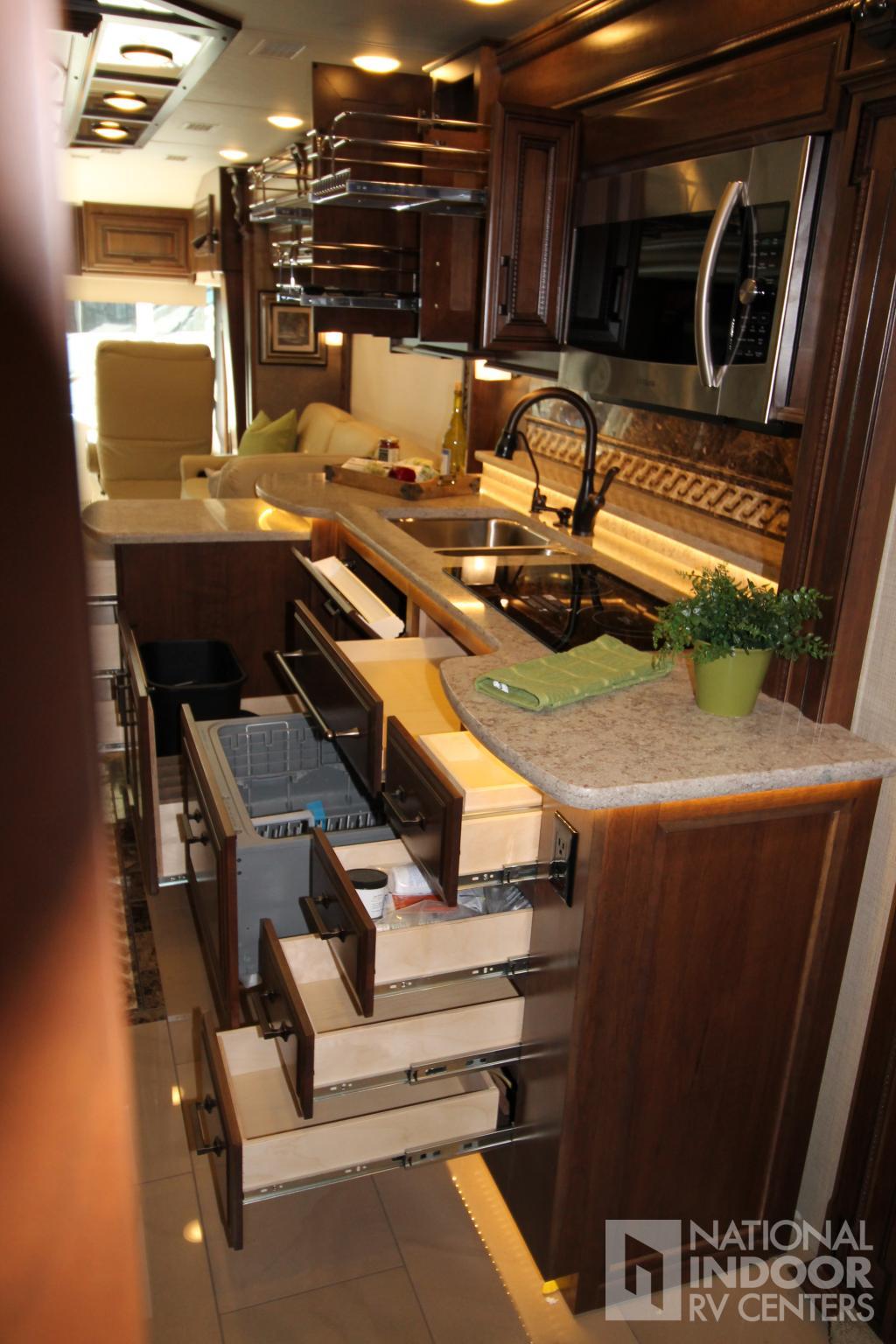

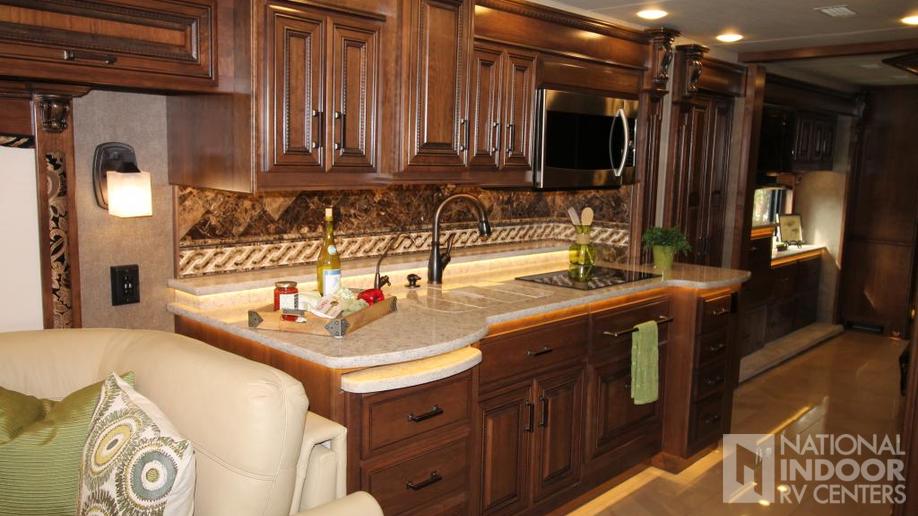

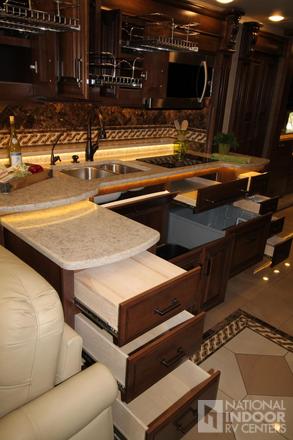

| Countertops |
| LED lit quartz countertops with integrated stainless sink |
| Backsplash |
| Porcelain tile backsplash with glass design inlays |

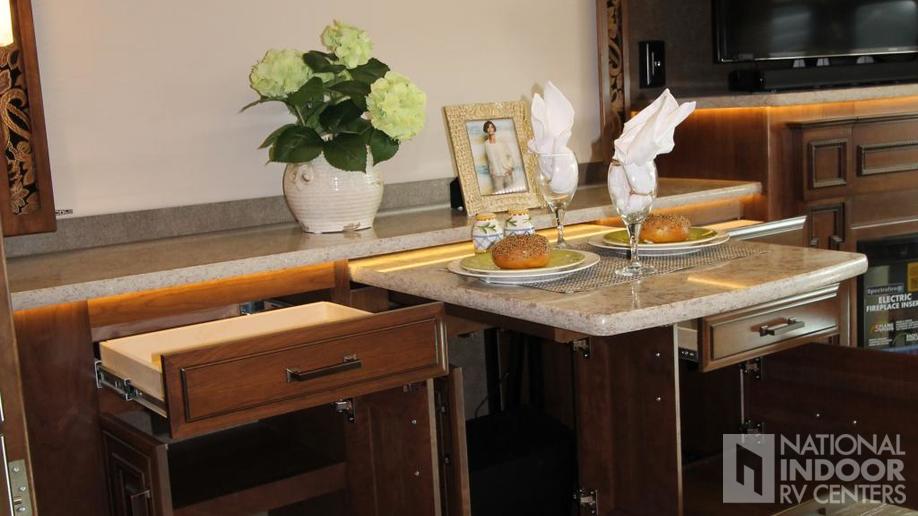

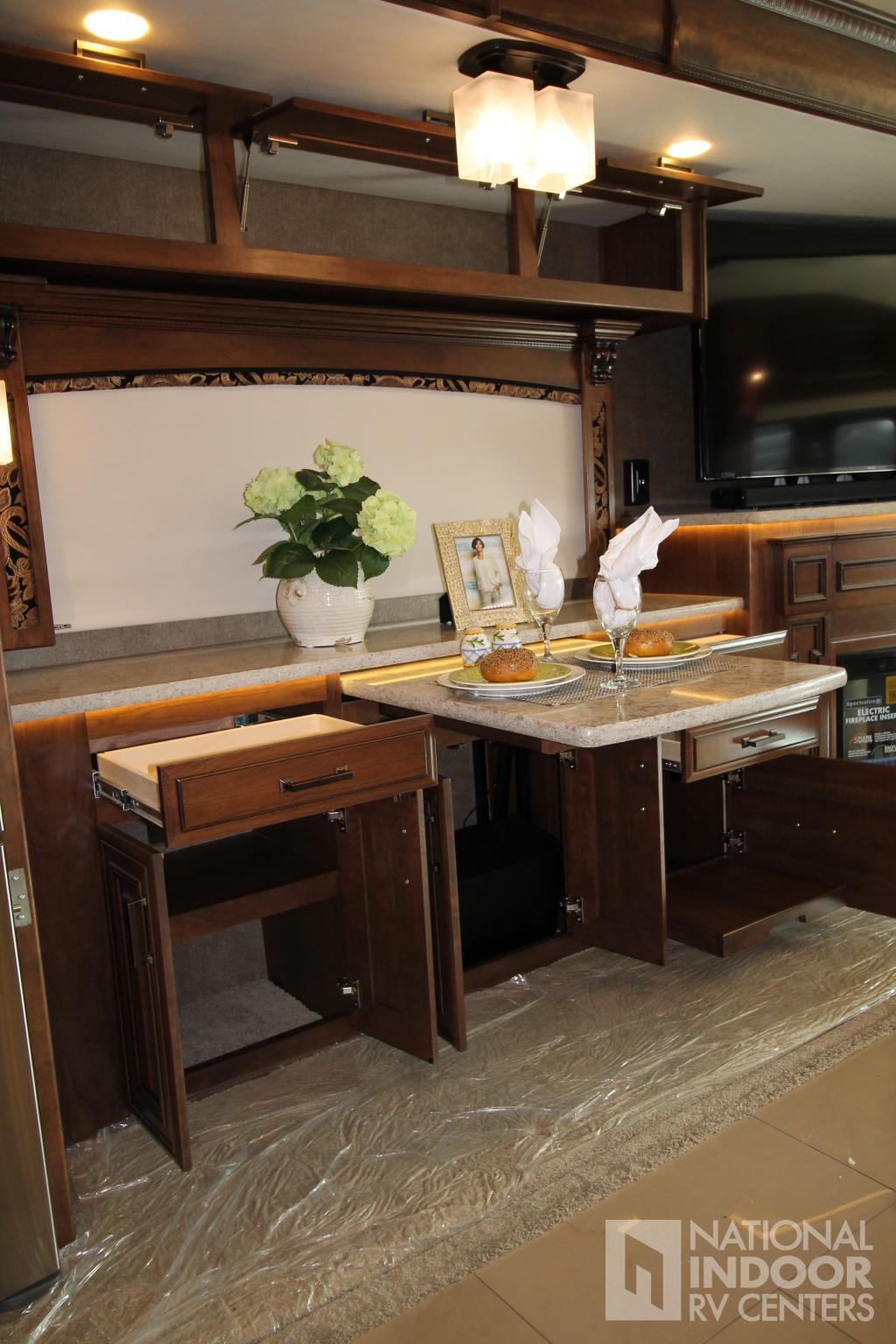

| Cabinet Extension |
| Pullout cabinet extension with countertop |
| Cutting Board |
| Cutting board |
| Silverware Drawer |
| Silverware drawer |

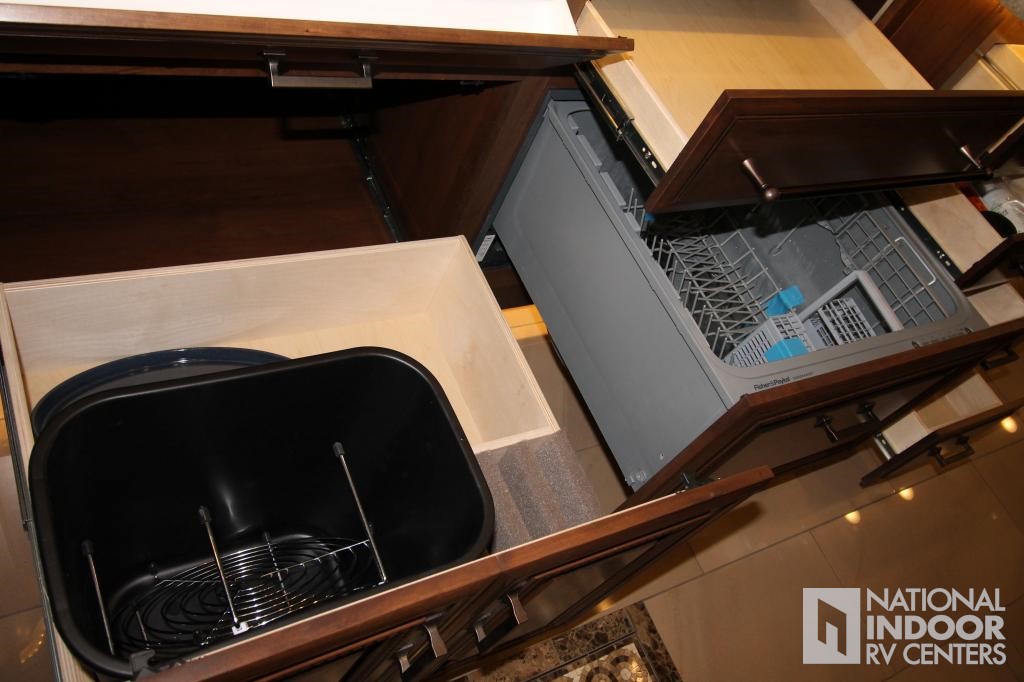

| Waste Basket |
| Large deep drawer with waste basket |

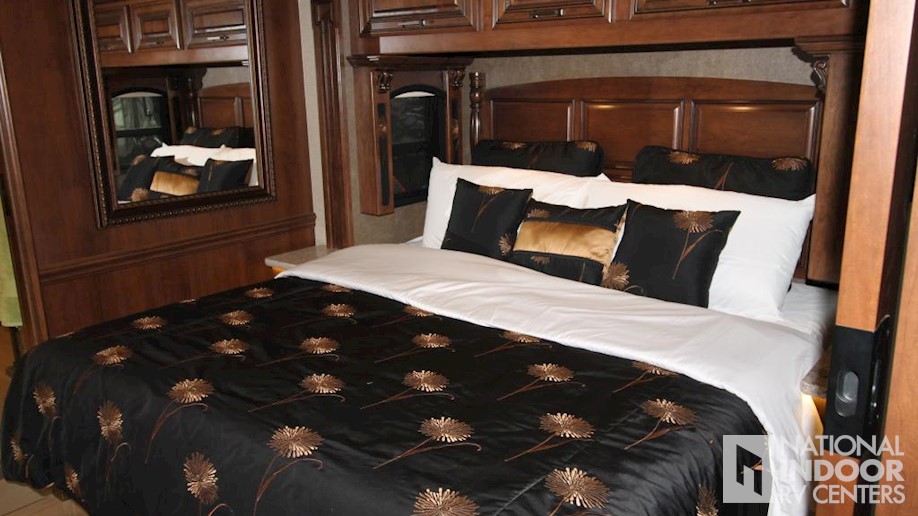

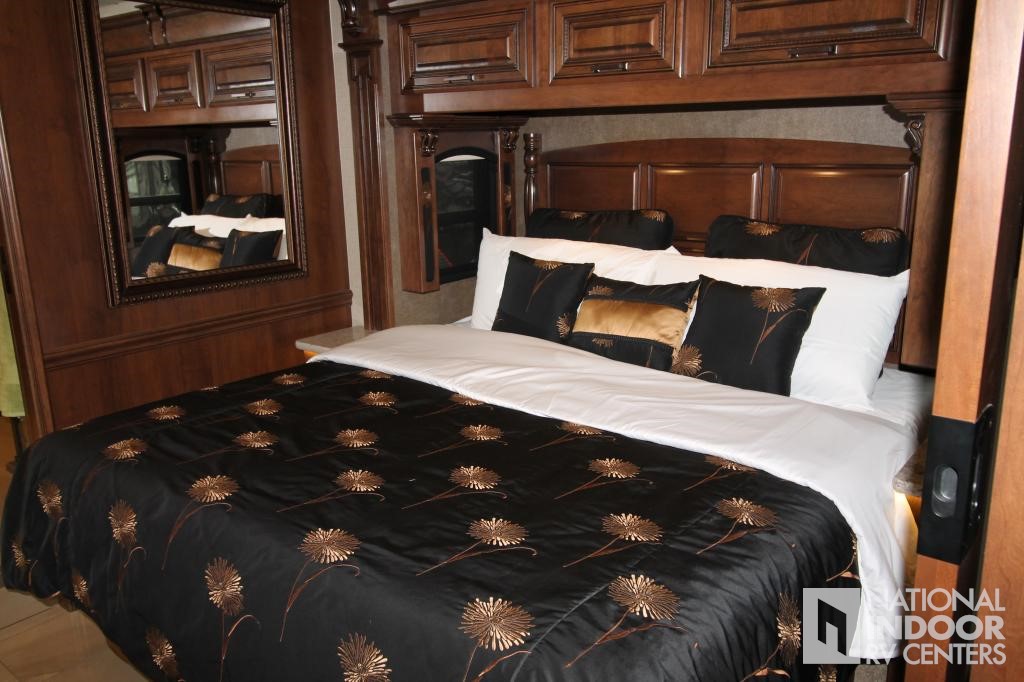

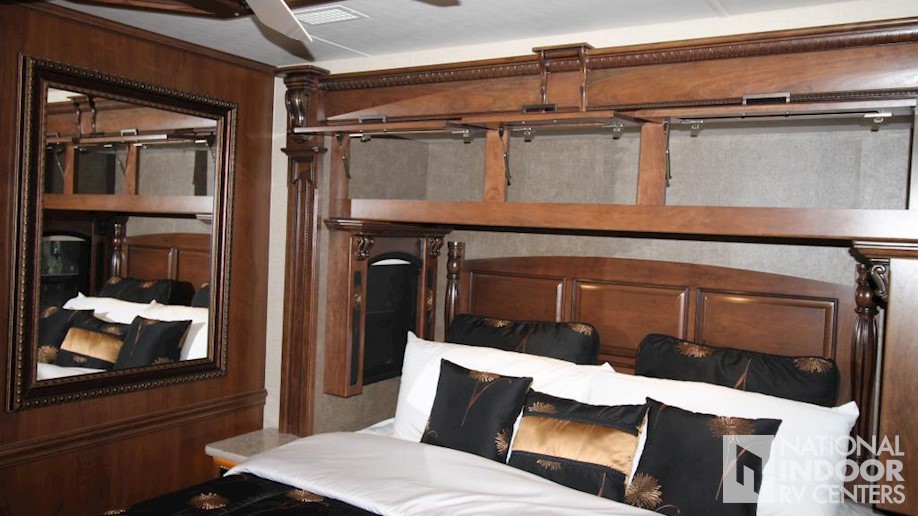

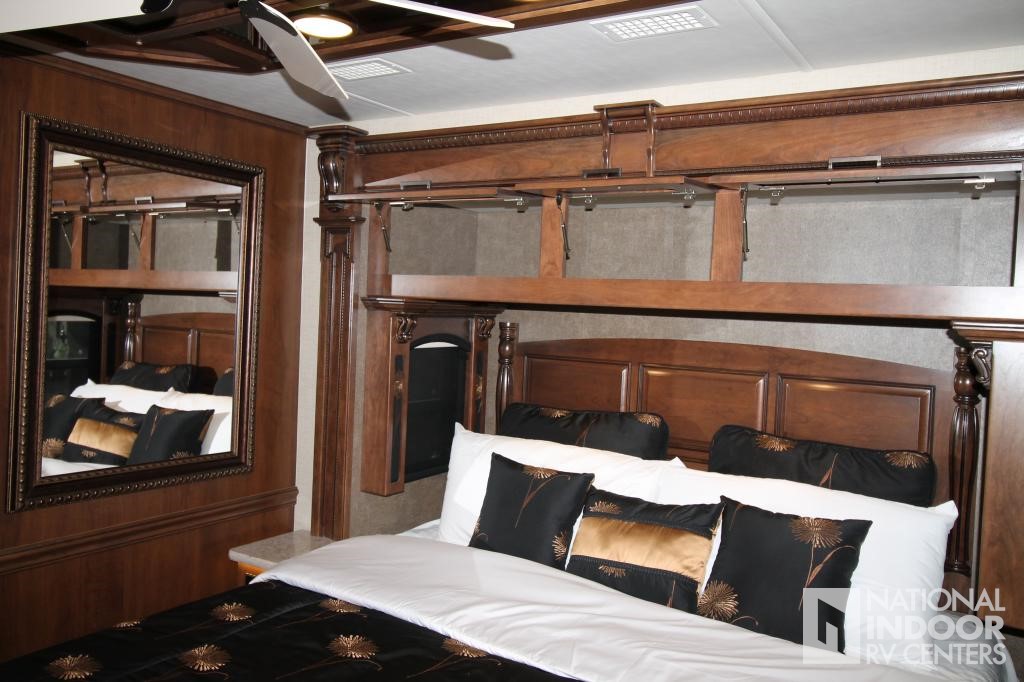

| Bed |
| Tempur-Pedic Cloud Prima king size mattress |

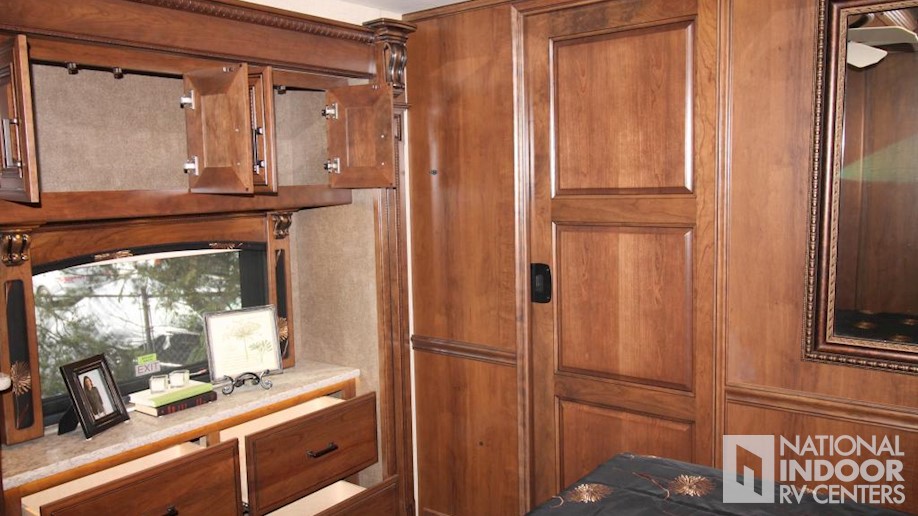

| Wardrobe |
| Large cedar-lined wardrobe |

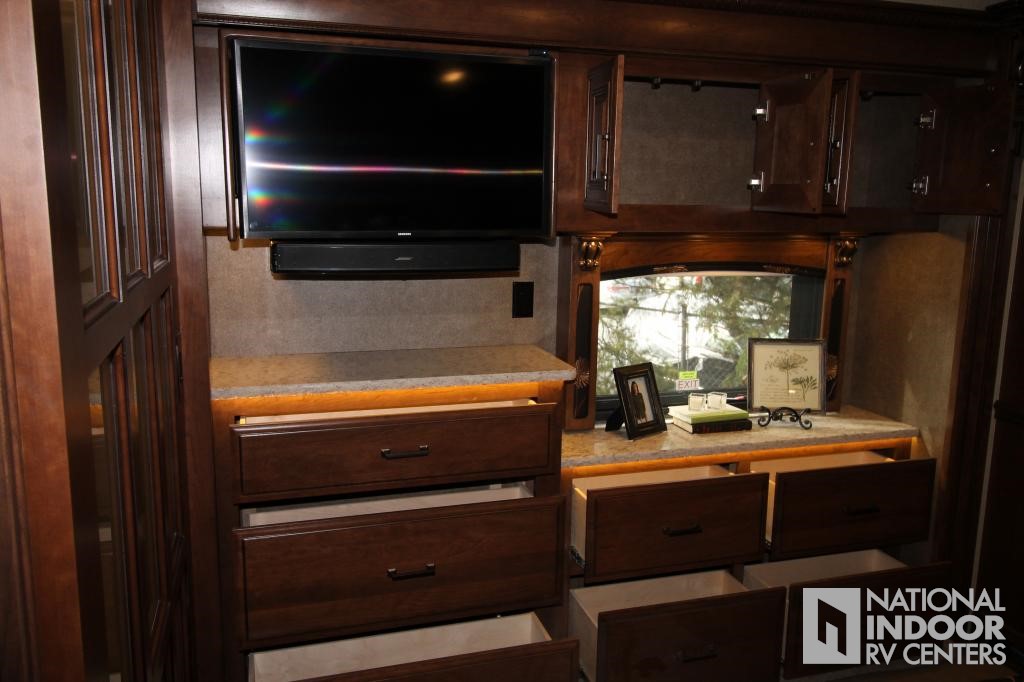

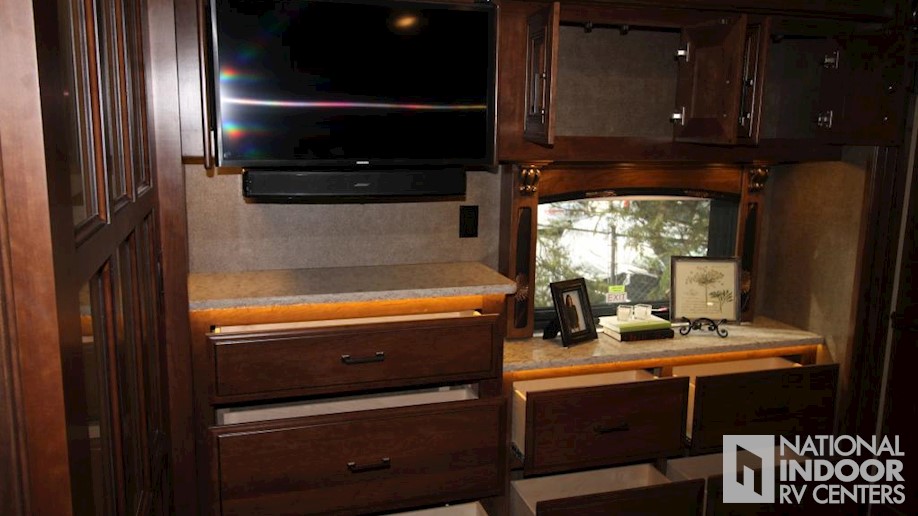

| Television |
| Samsung 32" LED HDTV in bedroom |
| Sound |
| Bose Solo 15 sound bar in bedroom |

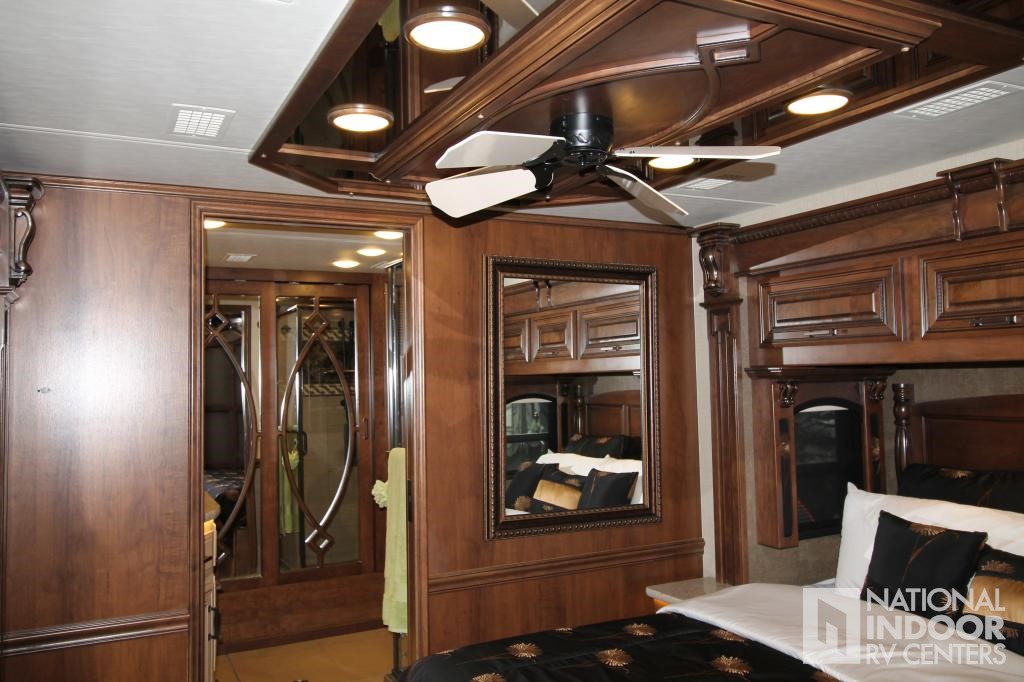

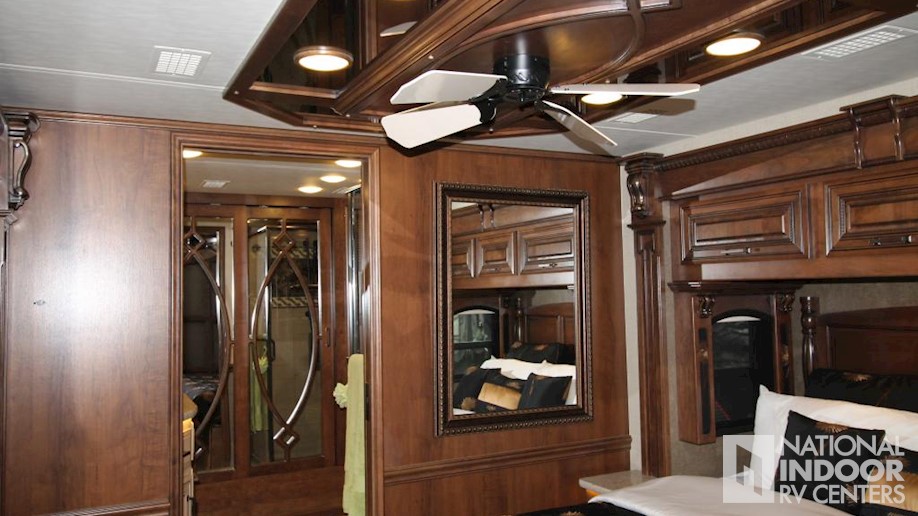

| Ceiling Fan |
| Ceiling fan |

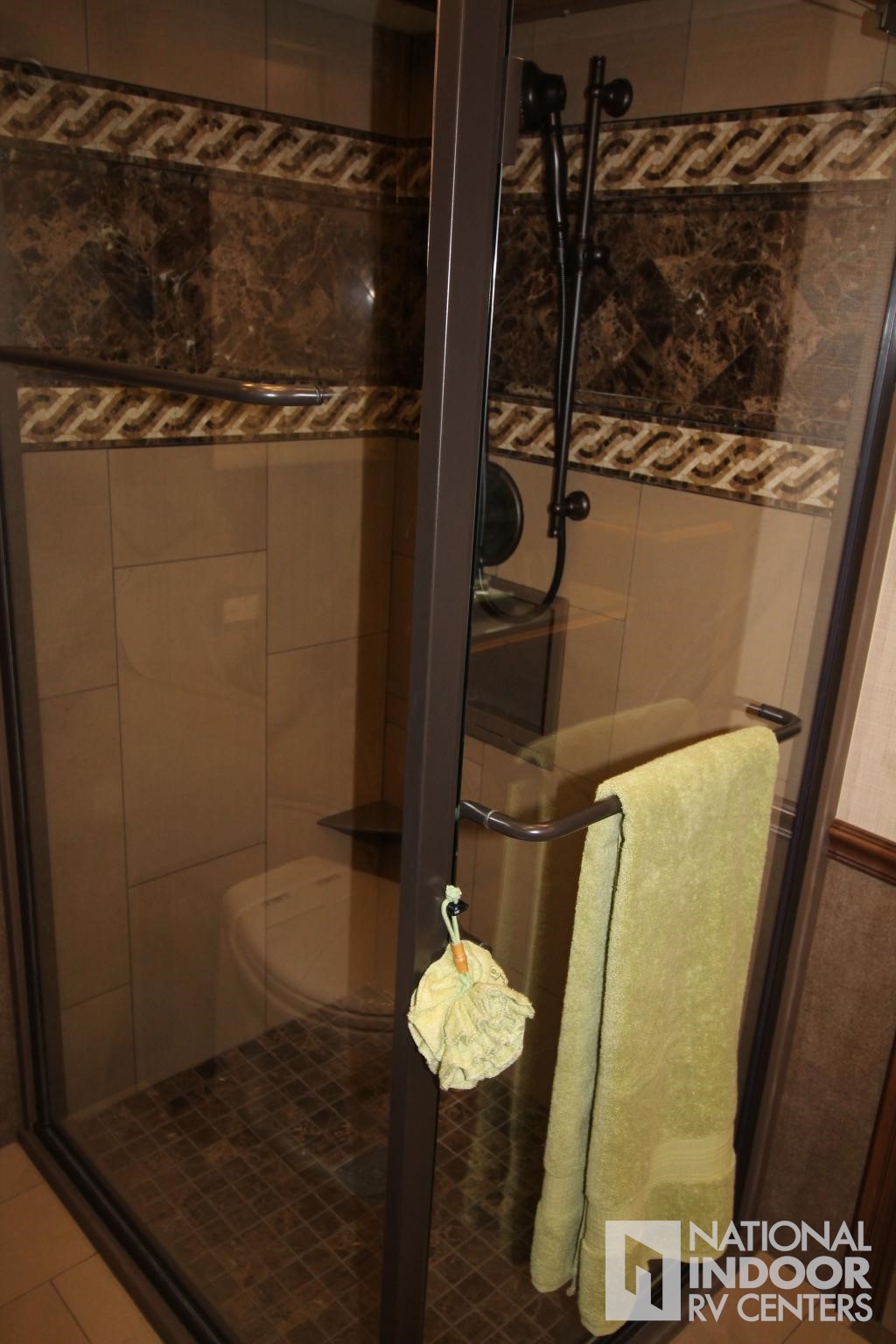

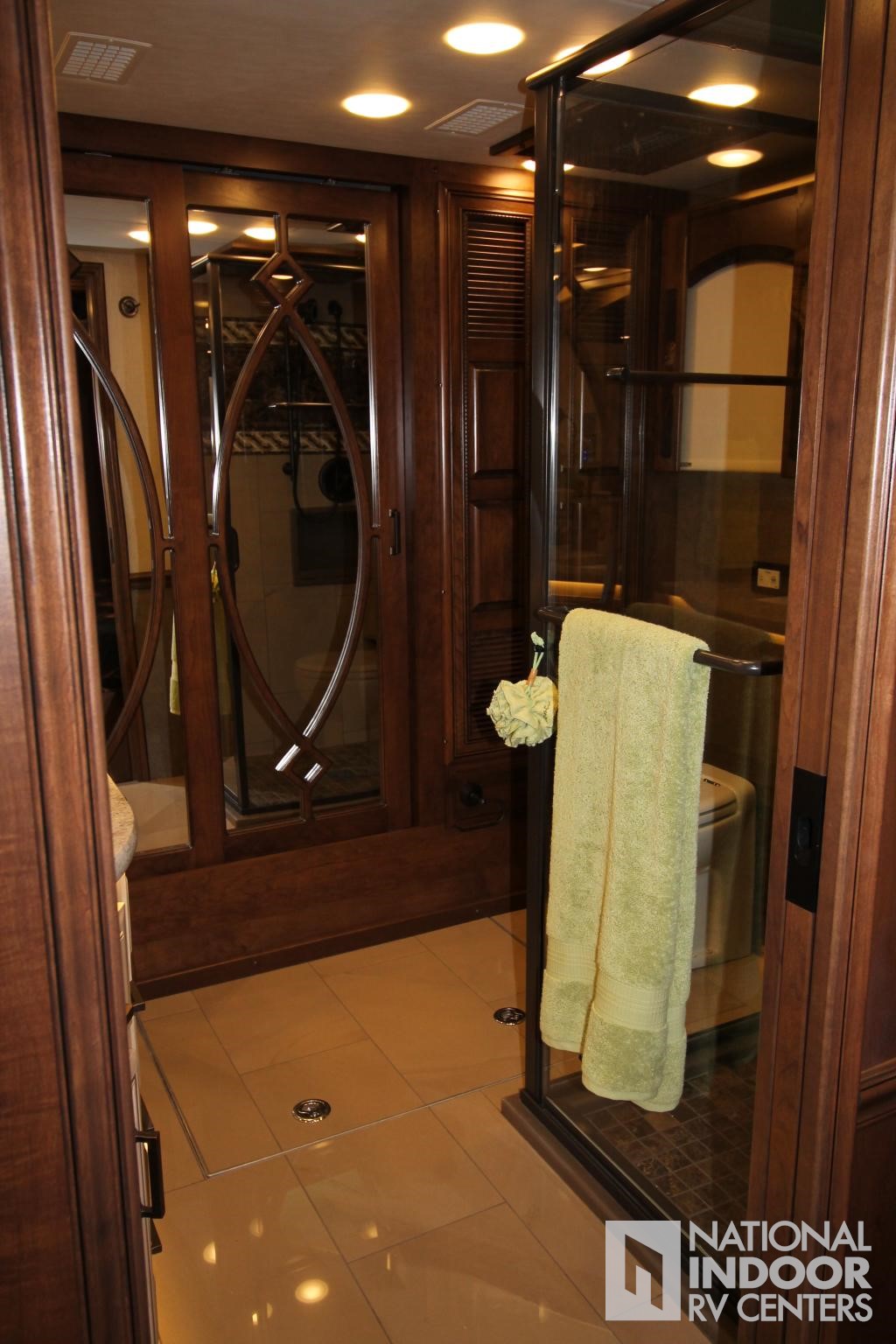

| Shower |
| Porcelain tiled shower walls and floor w/ skylight |

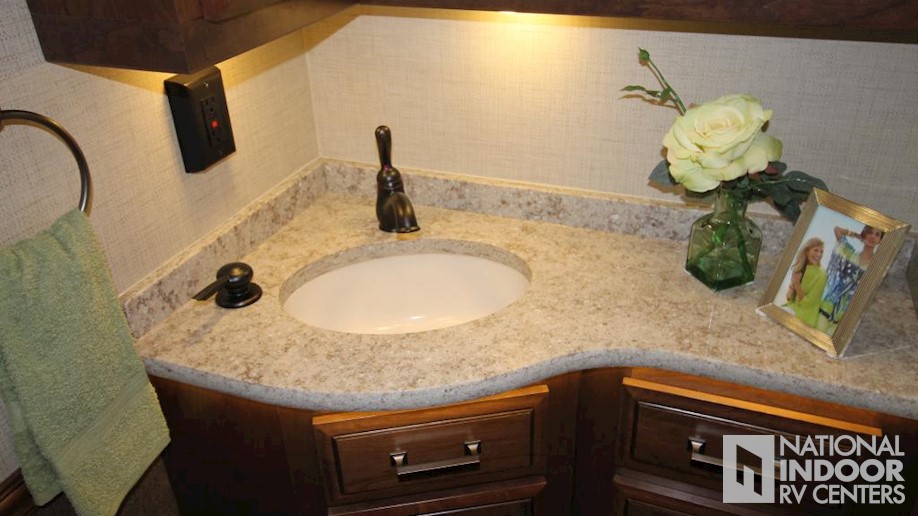

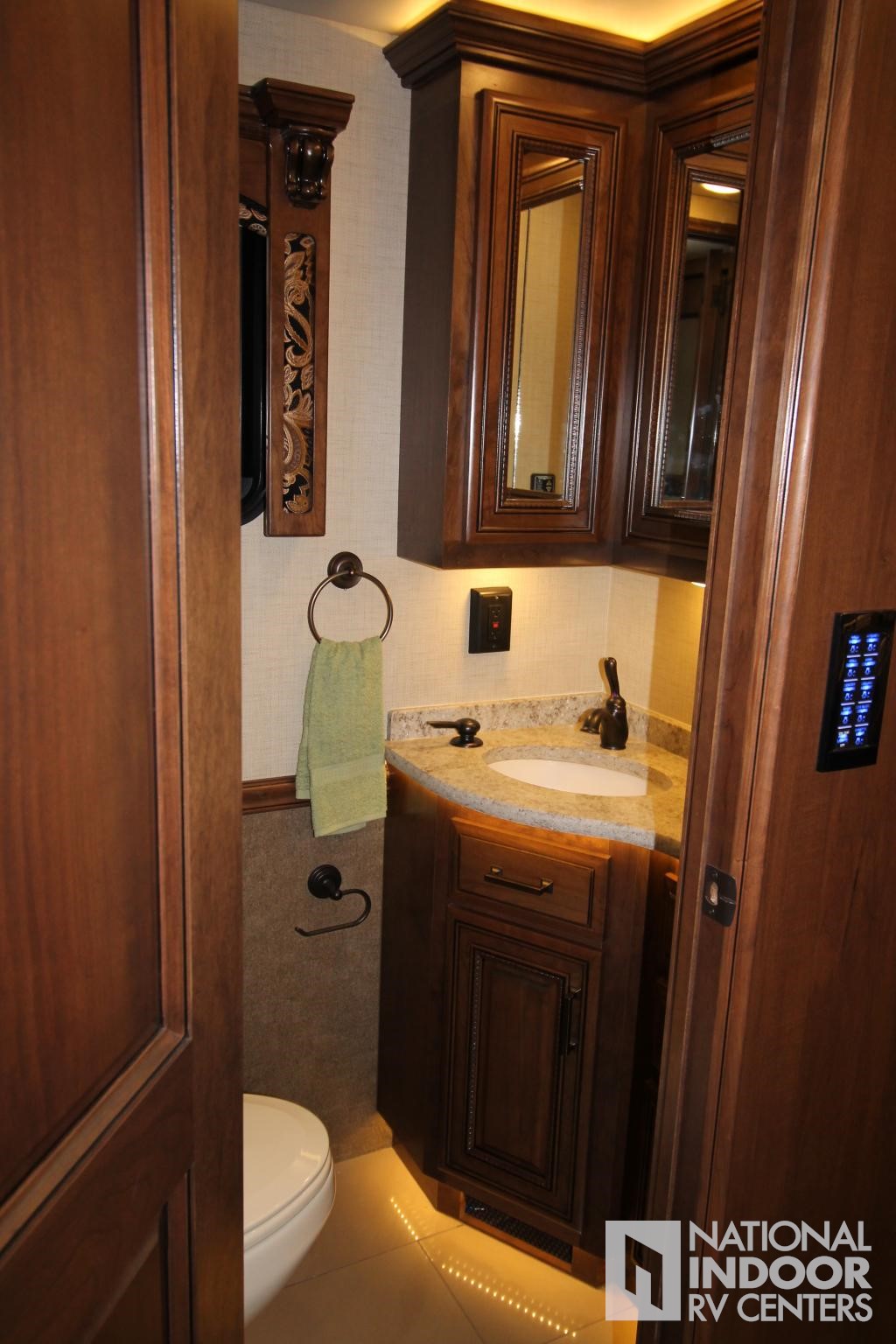

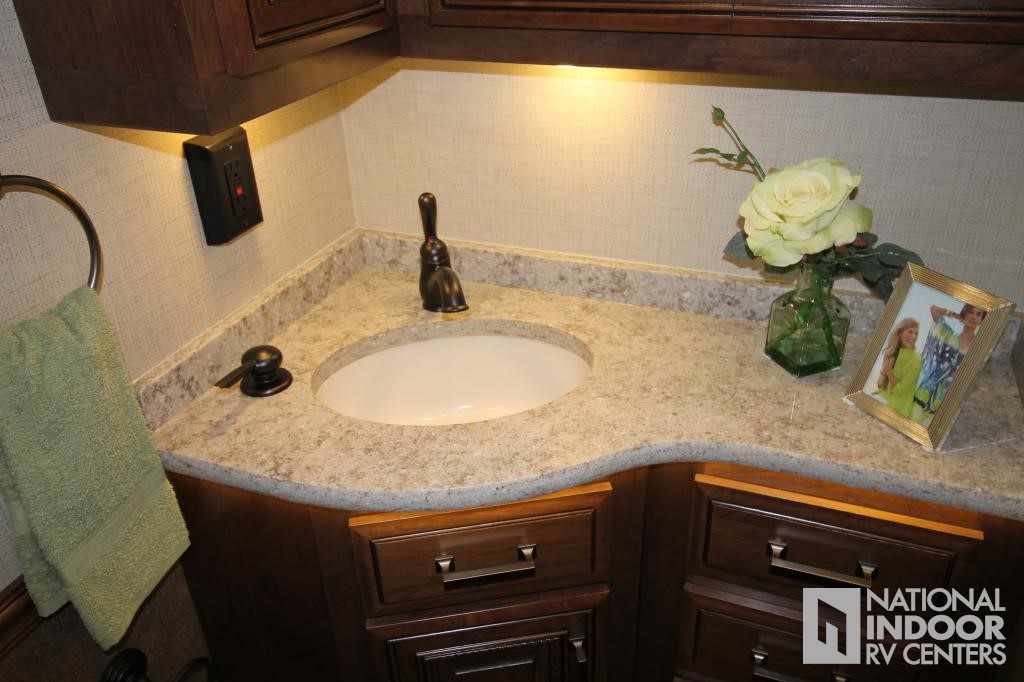

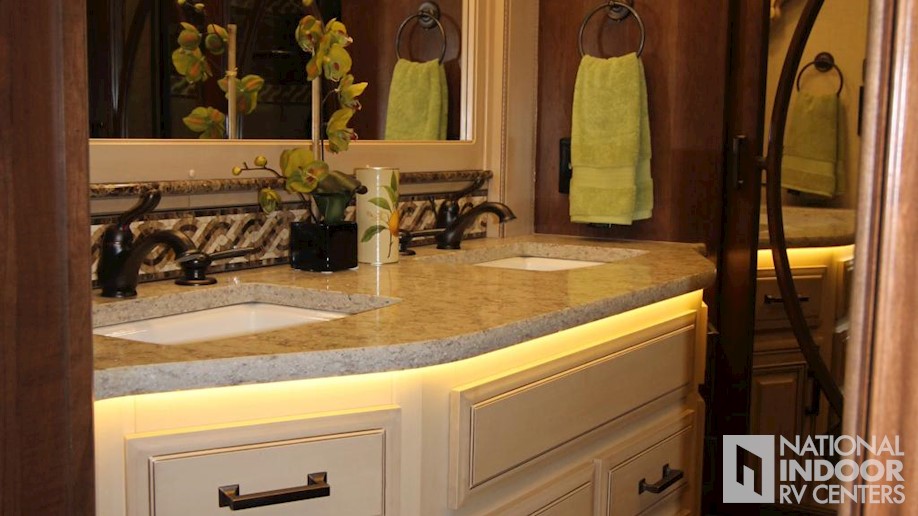

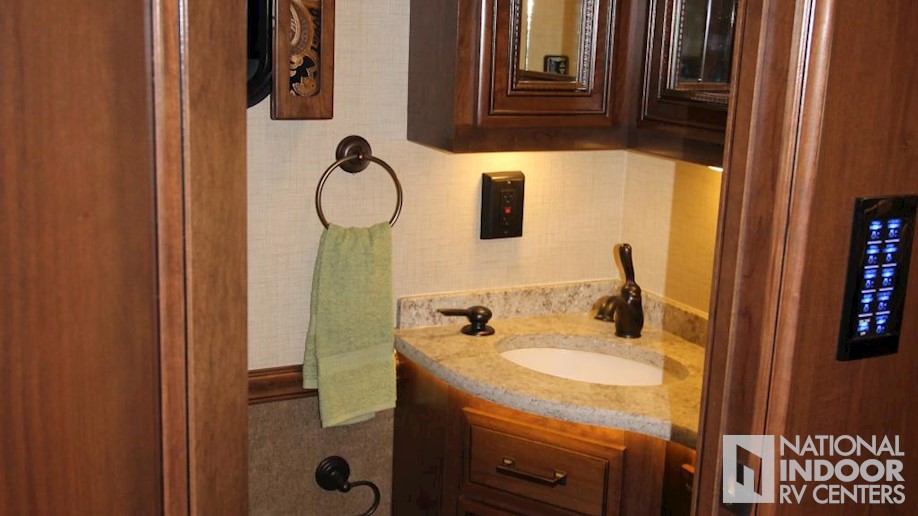

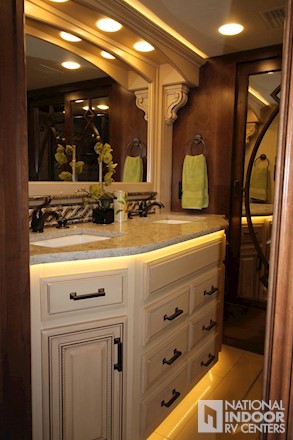

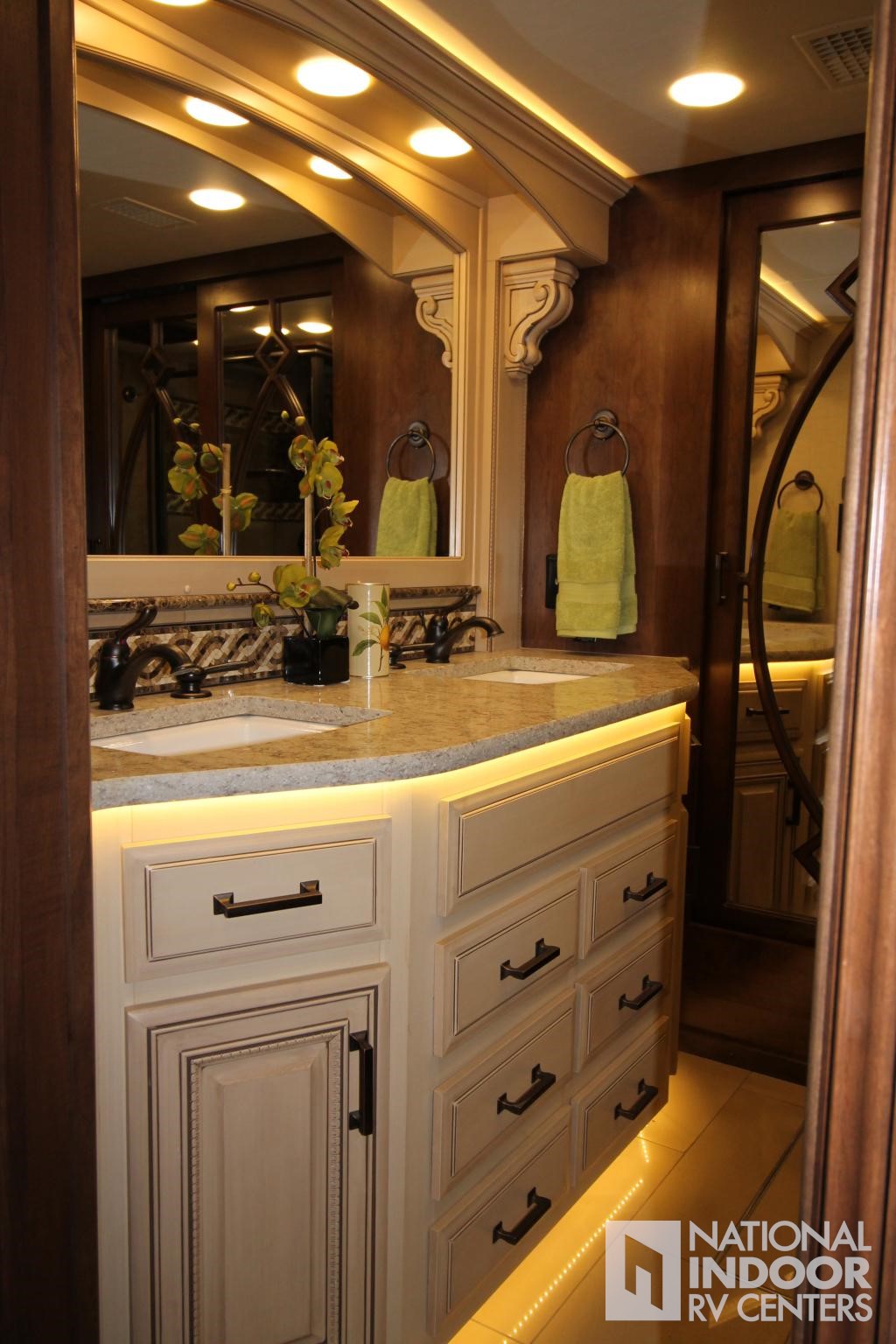

| Countertop(s) |
| LED lit quartz countertops with integrated sink(s) |

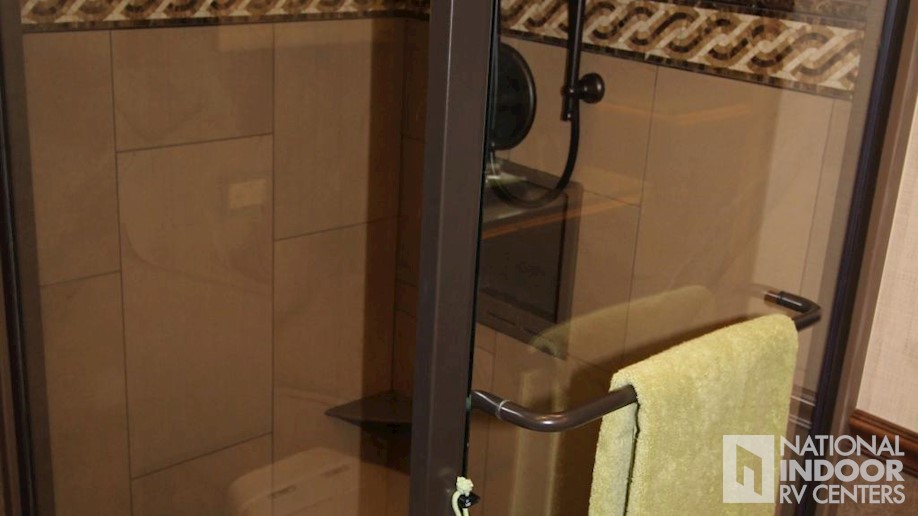

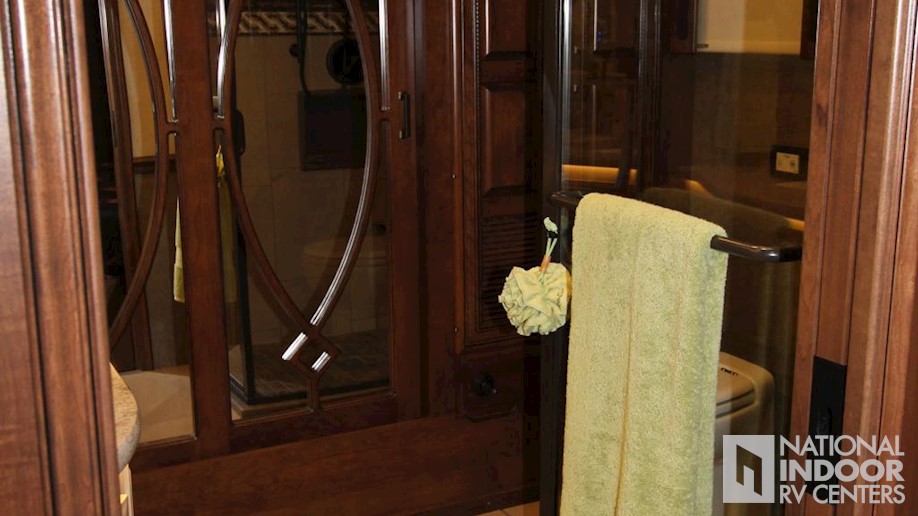

| Shower Door |
| Frameless glass shower door |
| Vent |
| Power vent |

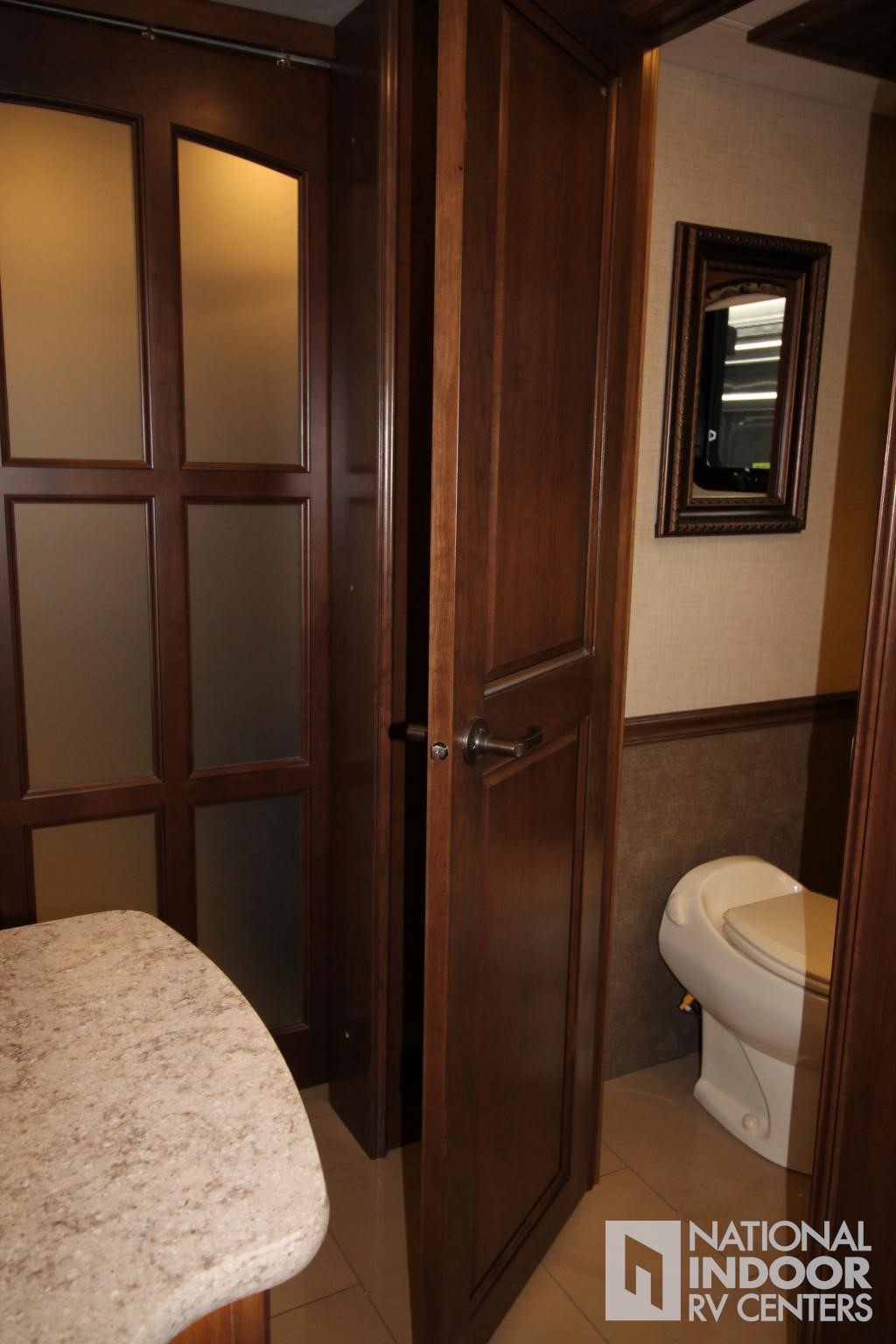

| Toilet |
| Porcelain toilet |
| Smoke Alarm |
| Smoke alarm |
| Carbon Monoxide Detector |
| Carbon monoxide alarm |
| Security System |
| Security system with glass shatter sensors |
| Propane Alarm |
| Security Safe |
| Security safe |
| Canadian Standards |
| Optional |
| Satellite Dish - US |
| Winegard Trav'ler satellite dish - DIRECTV |

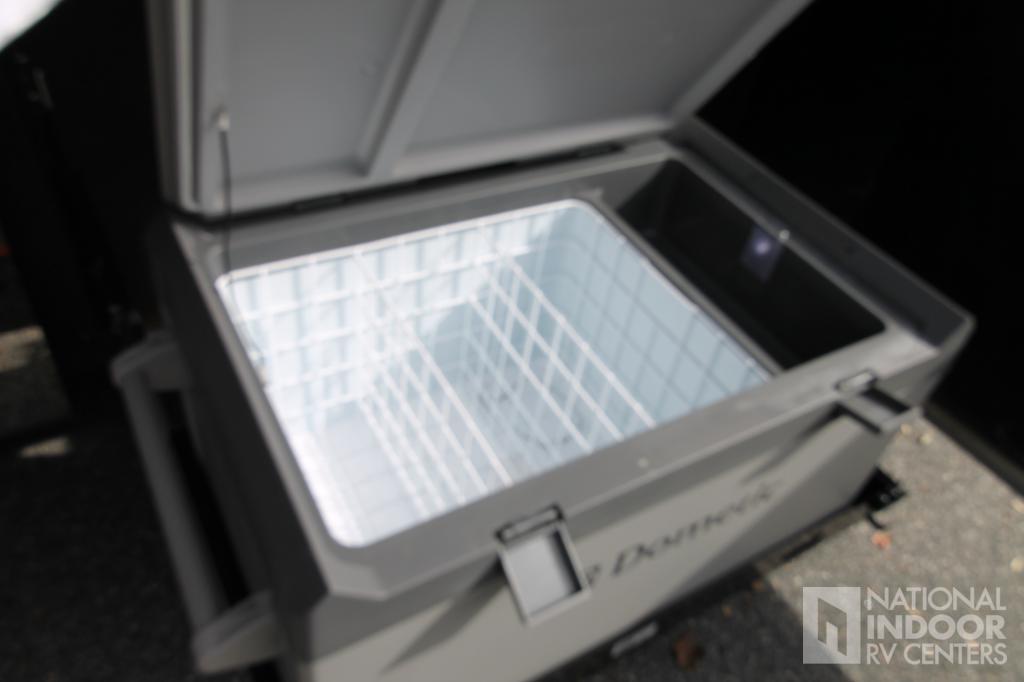

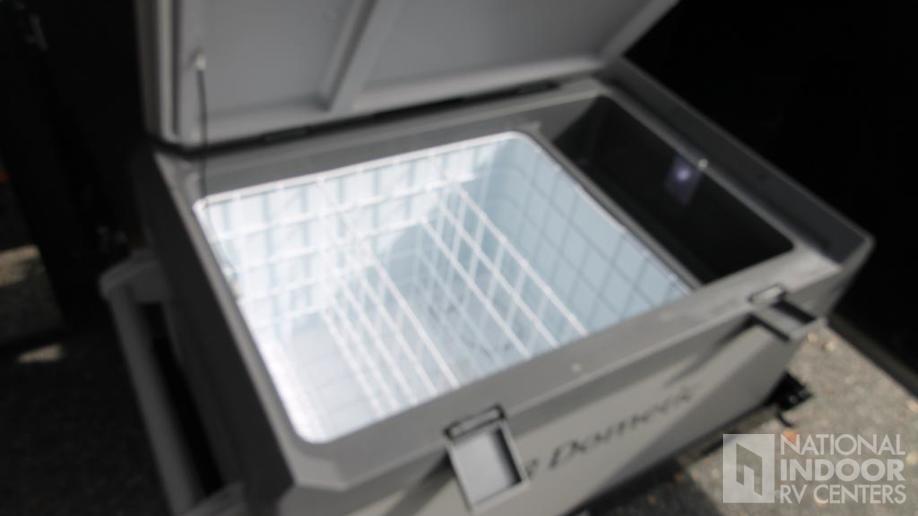

| Freezer |
| 2.8 cu.ft. exterior freezer with slideout tray |
| Solar |
| Solar panels (Dual-100 watt) w/Morningstar SunSaver Duo solar panel charge controller |
| Satellite Dish - CA |
| Winegard Trav'ler satellite dish - Shaw Direct |
