| Chassis |
| Spartan® K3 raised-rail chassis |
| Engine |
| Cummins® 15 liter X15 turbocharged 605 HP engine 1,950 lb. ft. torque at 1,150 RPM |
| Transmission |
| Allison® 4,000 MH 6-speed transmission |
| Radiator |
| Side-mounted radiator |
| Alternator |
| 210 amp alternator |
| Engine Block Heater |
| 1,500 watt engine block heater |
| Engine Brake |
| Three-stage engine brake |
| Air Leveling |
| Valid air leveling system with auxiliary air compressor |
| Leveling System |
| Equalizer hydraulic automatic coach leveling |
| Ride & Handling Package |
| Electronic stability control |
| Front Axle |
| Reyco® Granning®- 20,000 lb. rating |
| Front Suspension |
| Independent front air suspension (IFS) |
| Rear Axle |
| Dana® rear axle- 20,000 lb. rating |
| Tag Axle |
| Reyco® Granning® passive steer tag axle with air dump- 14,000 lb. rating |
| Braking System |
| All-wheel ABS disc brakes |
| Rear Axle Ratio |
| 4.30 rear axle ratio |
| Tires |
| Michelin® 365/70R 22.5” tires (front) and 315/80R 22.5” tires (rear) |
| Tire Pressure Monitoring |
| Tire pressure monitoring system (TPMS) with temperature monitoring |
| Traction Control |
| Automatic traction control |
| Shocks |
| Bilstein® shocks- 60mm front axle & 46mm rear/tag axles |
| Air Connection |
| Remote air connection |
| Chassis Battery |
| (2) 12V chassis batteries |
| Fuel Tank |
| 150 gal. fuel tank(dual fill) |
| DEF Tank |
| 15 gal. DEF tank (dual fill) |
| Turning Radius |
| 55 degree turning radius |
| Tow Air Brake System |
| Spartan® Safehaul tow vehicle air brake system |
| Hitch |
| 20,000 lb. hitch with 7/4-pin plug |
| Roof |
| 4" arched aluminum trusses filled with bat insulation and reflective Flexfoil® topped with 3/8" plywood decking then one-piece fiberglass |
| Walls |
| 2-1/2" exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16" centers or less filled with bat and Flexfoil insulation then covered with high-gloss gelcoat |
| Floor |
| 2" x 4" wood trusses on 16" centers or less filled with bat and Flexfoil insulation then topped with 3/4" 7-ply plywood decking (R-33) |
| Frame |
| X-Bridge™ bracing welded into chassis frame |
| Slideouts |
| Entegra-exclusive Relia-Torque flush-mounted 12V slideout system with VegaTouch and rocker switch controls |
| Heated Tanks |
| Aqua-Hot® heated basement storage on thermostat |
| Generator |
| Onan® 12,500 watt diesel generator, with automatic start, on powered slide-out tray |
| Inverter |
| (2) 3,000 watt pure sine wave inverters |
| Batteries |
| (4) L16 AGM batteries (6V/390 amp hrs. ea.) |
| Electrical Hookup |
| 50 amp power cord on electric powered reel |
| Power Management |
| Premium surge protector with smart transfer switch |
| Air Conditioning |
| (3) 15,000 BTU A/C units with heat pumps and condensation drain system |
| Black Tank Management |
| Sani-Con® Macerator holding tank dump system with electric gate valves and manual backup |
| Tank Flush |
| Black holding tank sprayer |
| Water Filtration |
| City and tank water filtration system |
| Winterization Drain System |
| Winterizing drain system |
| Water Monitoring |
| Trutank™ ultrasonic tank monitoring system displayed on VegaTouch screen |
| Water Hose w/ Electric Reel |
| Water hose with electric reel |
| Front/Rear Cap |
| Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame |
| Stainless Steel Accents |
| Executive Bus Armor 10” stainless steel trim |
| Engine Door |
| Power rear engine door with manual override |
| Patio Awnings |
| Dual roof-mounted Girard® Vision dual pitched patio awnings with LED lights |
| Door Awning |
| Girard® power entrance door awning with LED lights |

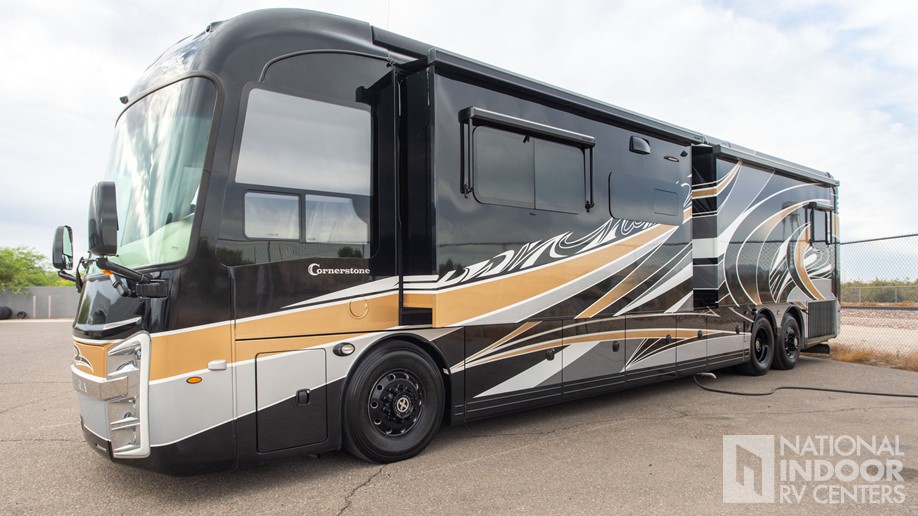

| Slideout Awnings |
| Girard® Ultra slideout awnings |
| Window Awnings |
| Girard® Ultra window awnings |
| Windows |
| Frameless, dual-pane, tinted, safety-glass windows |
| Keypad |
| Lit grab handle with keypad system for keyless entry |
| Entertainment |
| 43” Samsung® 4K UHD Slim, Smart TV wand Bose® Solo 5 sound bar on TV bracket with extend, tilt and swivel arm |
| Mirrors |
| Chrome, heated, remote control, Ramco side-view mirrors with integrated cameras and blind-spot indicators |
| Exterior |
| Diamond Shield™ front protective film mask |
| Headlights |
| LED high/low beam headlights and fog lights |
| Daytime Running Lights |
| Daytime running lights |
| Accent Lights |
| LED accent lights under passenger slideout rooms |
| LED Lights |
| LED marker lights, turn lights, license plate light, accent lights, & docking lights |
| Clearance Accent |
| LED lit chrome clearance accent light |
| Rear Mudflap |

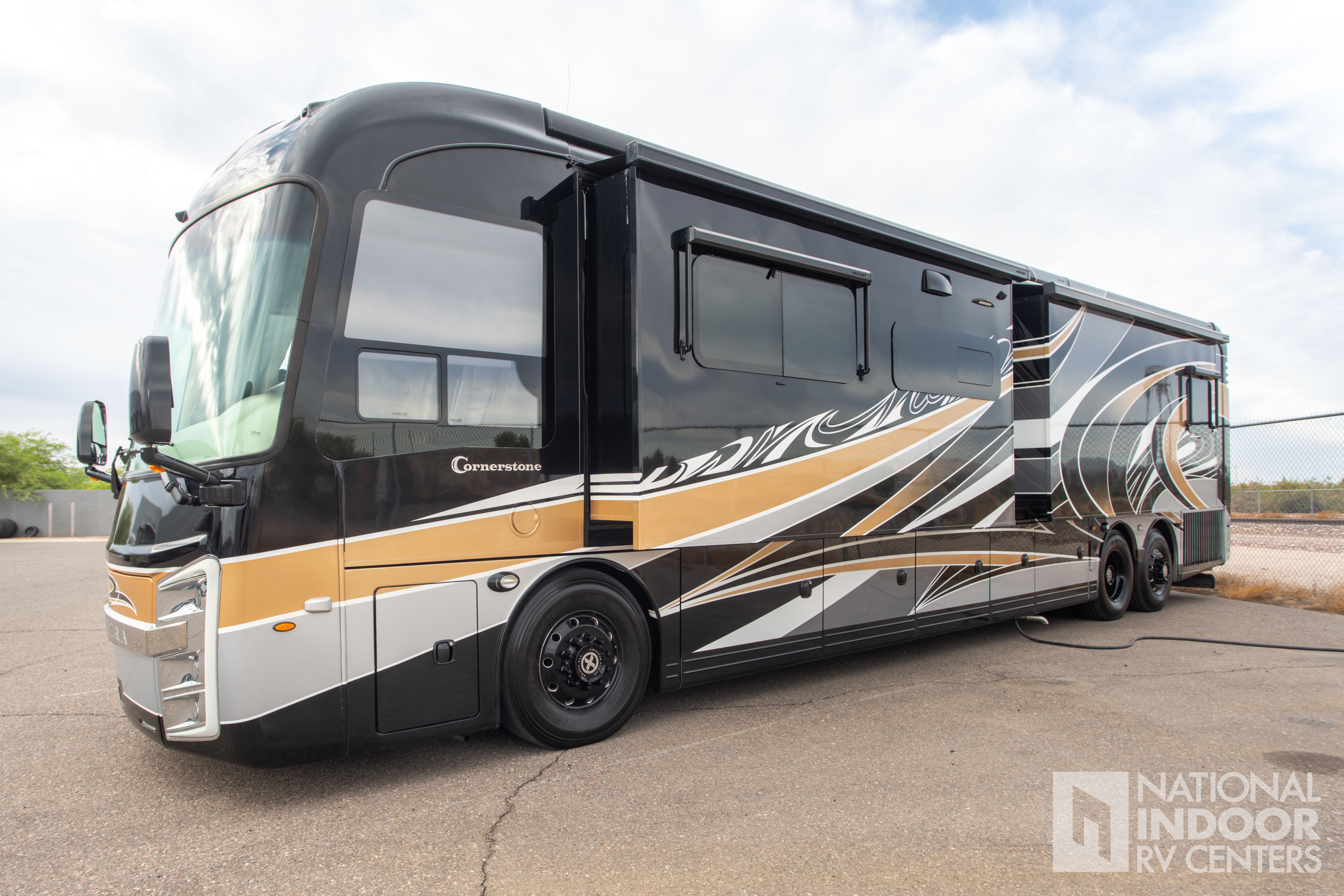

| Full-width rear mudflap, with chrome “Cornerstone” nameplate |
| Satellite Dish - US |
| Winegard® TRAV'LER satellite dish DIRECTV®- standard with USA option |
| Satellite Dish - CA |
| Winegard® TRAV'LER satellite dish Shaw TV- standard with CSA option |
| TV Antenna |
| Winegard® Rayzar automatic powered TV antenna |
| Wi-Fi |
| Winegard® WIFI extender with 4G/LTE |
| Utility Center |
| Heated exterior utility center with 5" LED Firefly® tank monitoring panel |
| Freezer |
| 2.8 cu.ft. exterior Dometic® refrigerator/freezer on slideout tray |
| Cargo Features |
| Power locking baggage doors, (2) power slideout basement storage trays |

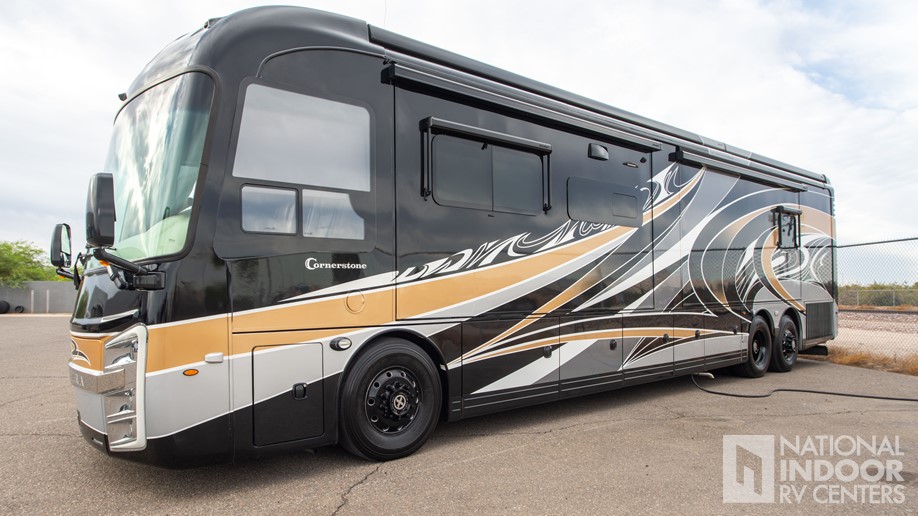

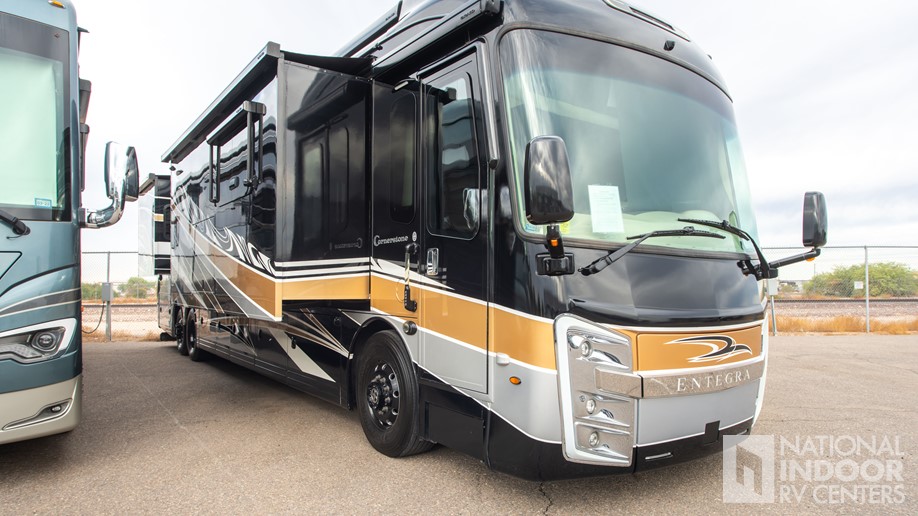

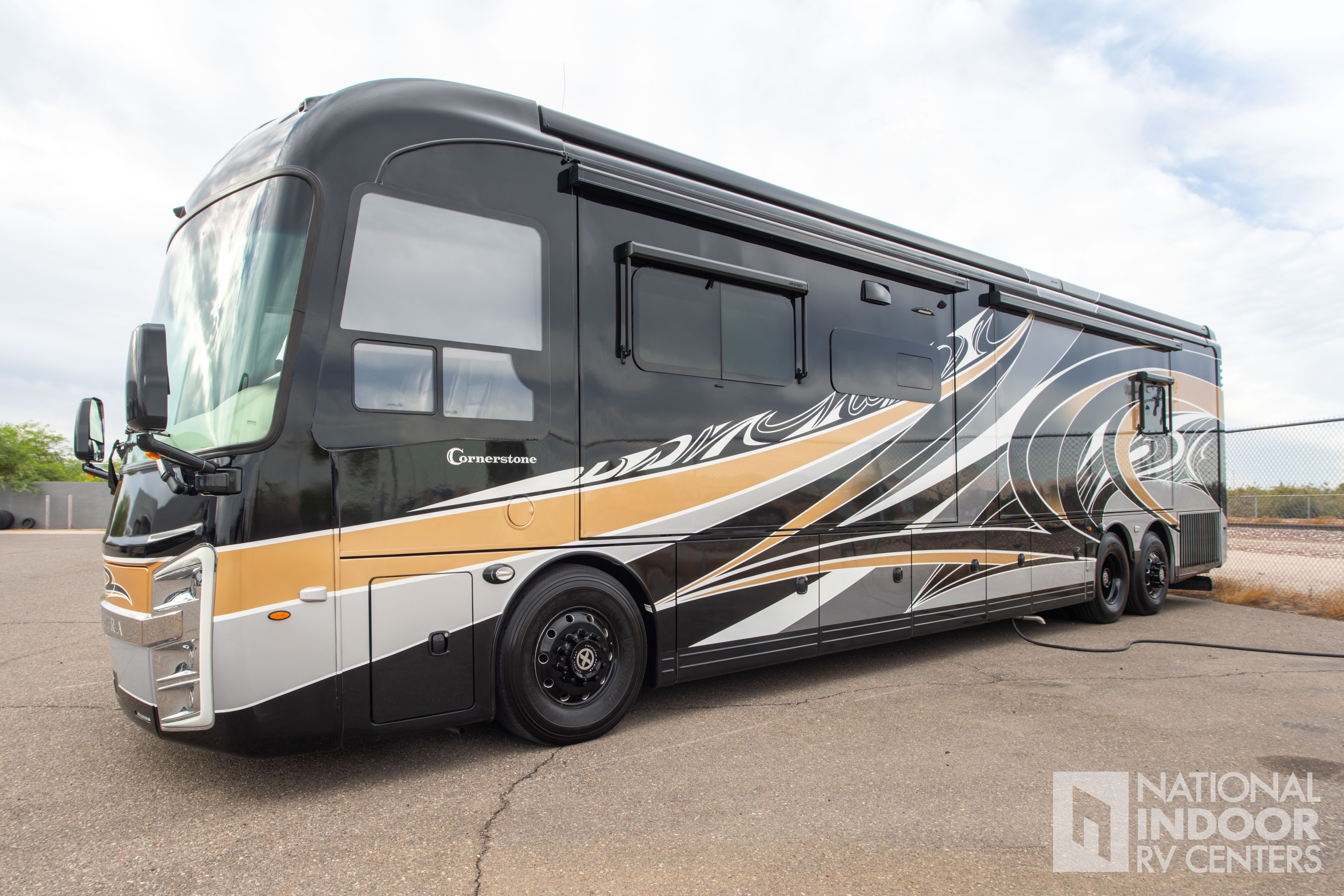

| Paint |
| Sikkens custom full body paint |
| Third Brake Light |
| LED third brake light |
| Entrance Door |
| Removable screen on entry door |
| Lights |
| Porch light and motion sensor security lights |
| Collision Mitigation |
| Collision avoidance system with collision warning and adaptive cruise control |
| Cameras |
| Xite™ 360° camera system that displays on digital dash screen |
| Dash |
| Valid 15” digital dash with selector knob and three main selection screens |
| Infotainment System(s) |
| Dual, glass panel 9” touchscreen in-dash infotainment center with Rand McNally™ RV navigation, Bluetooth, SiriusXM™, AM/FM tuner, integrated camera control, house mode whole coach audio distribution, and integrated VegaTouch coach control |
| Driving Features |
| E-Z Steer™ electric, adjustable power steering assist with steering angle sensor |
| Steering Wheel |
| VIP wood-grain, leather-wrapped, power tilt and telescoping steering wheel with integrated controls for radio, cruise, wipers and Bluetooth phone functionality |
| Blind Spot Monitoring |
| Blind spot monitoring system displayed on digital dash screen |
| Sound System |
| JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer |
| Windshield |
| Ultra-Vision® one-piece wrap-around tinted windshield |
| Start |
| Push button start system |
| Driver / Passenger Seats |
| Villa® 6-way power, lumbar, heated and cooled Italian leather driver and passenger seats with integrated seatbelt |
| Additional Amenities |
| Power operated toll window on driver's side, (2) dual USB ports and (2) 12V socket for charging |
| Power Features |
| Powered flush stepwell cover |
| Pedals |
| Power adjustable brake and accelerator pedals |
| Visors & Privacy Shade |
| Powered front sun visors and privacy shade |
| Side Consoles |
| Wrapped dash with molded side consoles |
| Television - Front Overhead |
| Samsung® 32” LED Slim 1080P Smart TV in front overhead |
| Command Center |
| 10” VegaTouch touchpad system for complete integration of coach controls (mobile app available) |
| Television - Living Room |
| 50” Samsung® 4K UHD Smart TV |
| DVD Systems |
| Sony® HD Blu-Ray® player |
| Sound - Living Room |
| Bose® Soundbar 700 sound system with wireless surround sound speakers |

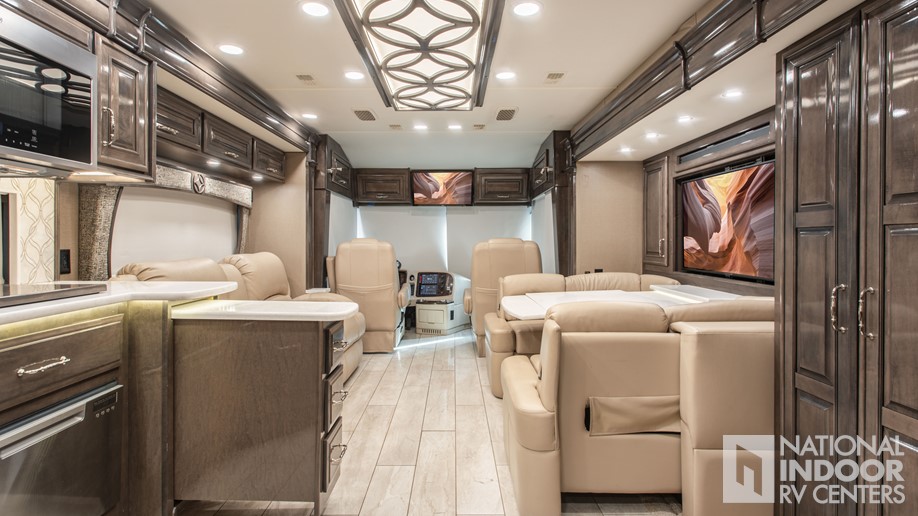

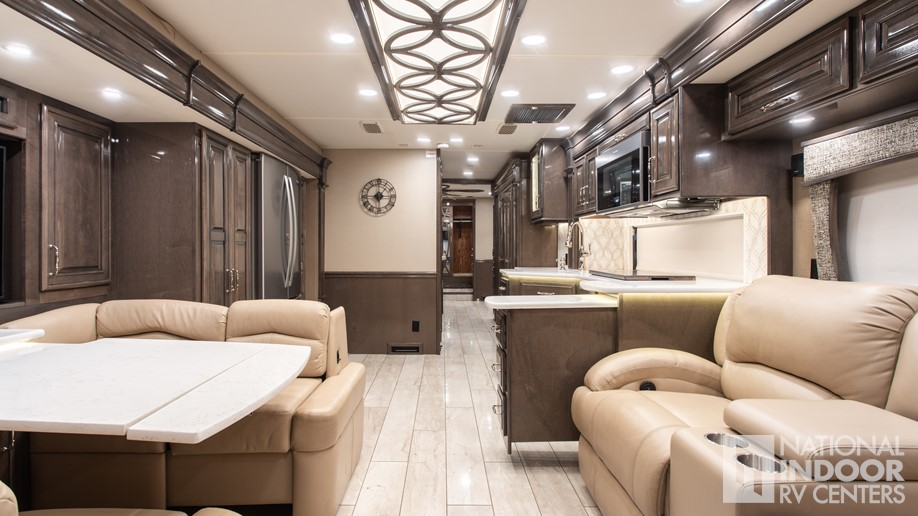

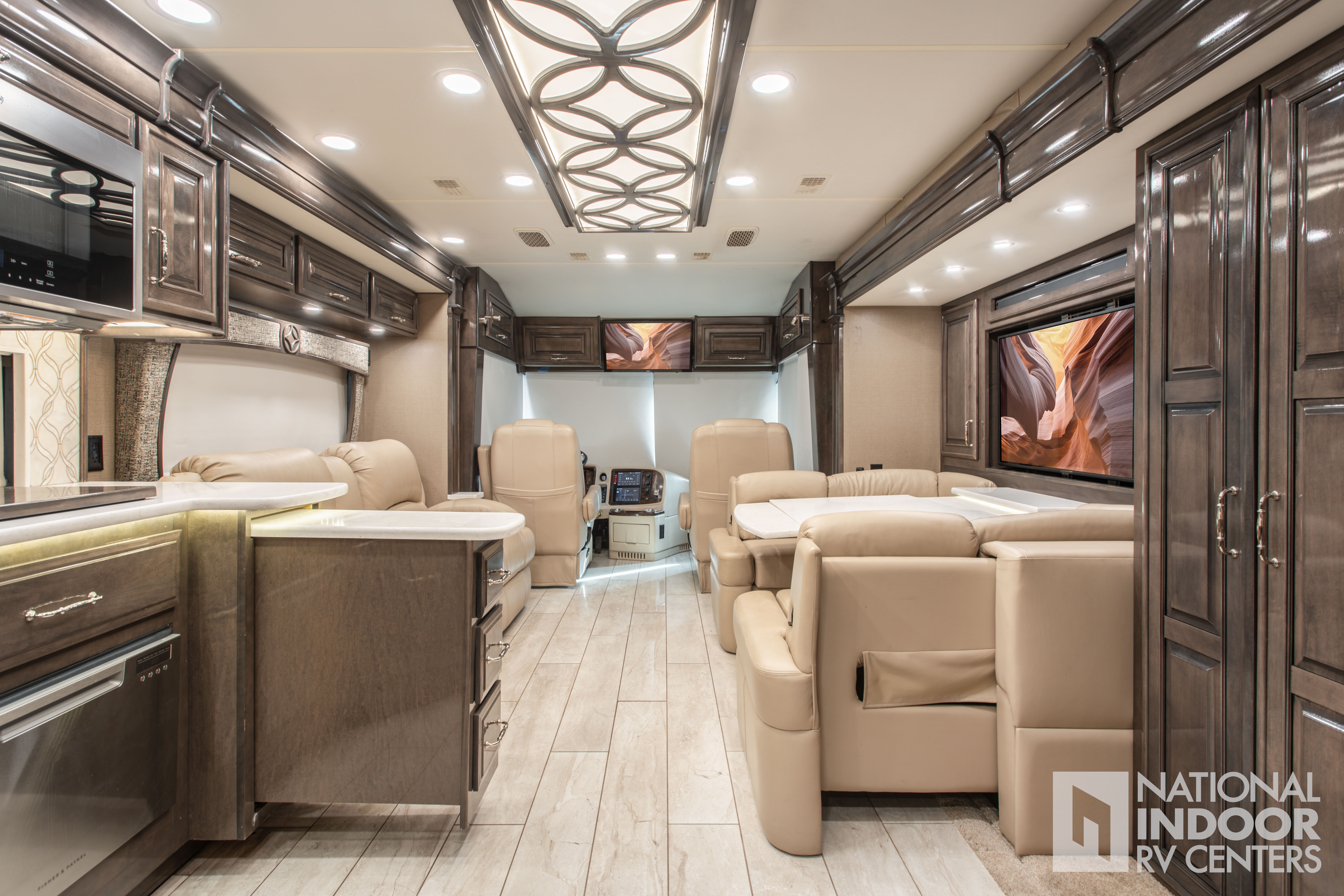

| Furniture |
| Villa Italian leather furniture throughout |
| Flooring |
| Hand-laid, high-gloss porcelain floor tiles |
| Lighting |
| Premium, recessed, 12V, LED lighting |
| Ceiling |
| Decorative ceiling feature with integrated accent lighting |
| Window Treatments |
| Powered solar day and black out night shades |
| Central Vacuuming System |
| Central vacuum system |
| Interior Doors |
| Aire-Secure™ travel locks for all pocket doors |
| Electric Fireplace |
| LED lit fireplace with 1500W heating element (45B, 45X, 45Y, 45Z) |
| Cabinetry |
| Handcrafted hardwood cabinetry |
| Fascia |
| Handcrafted hardwood fascia |

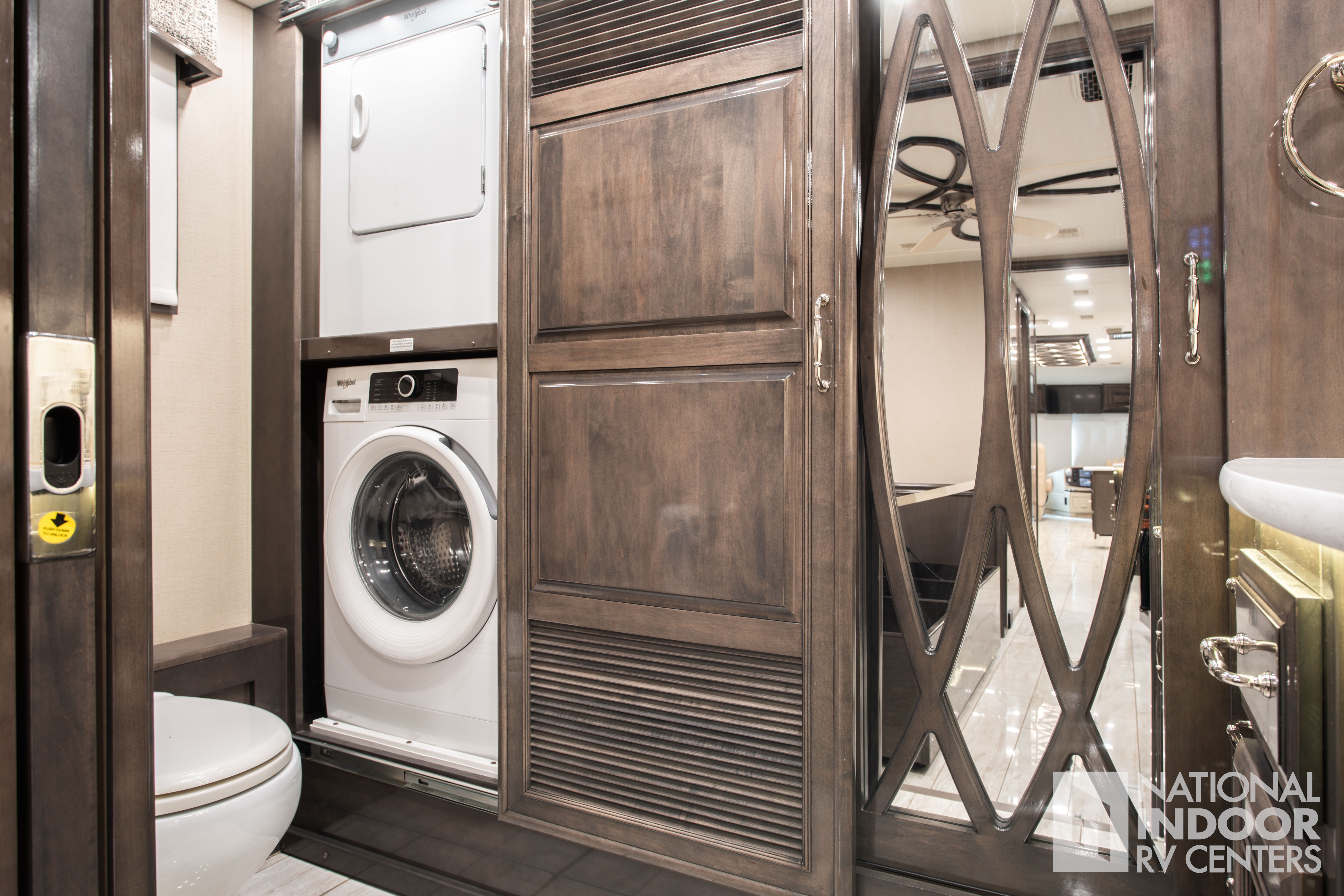

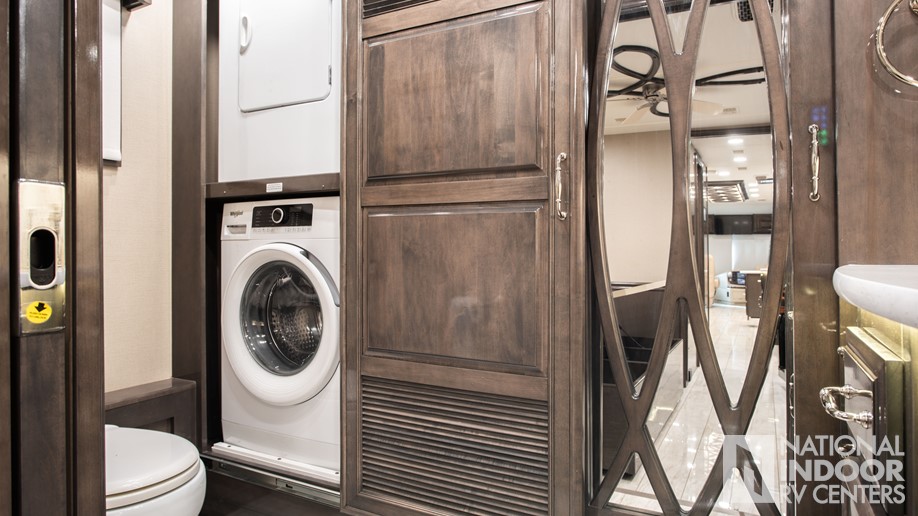

| Washer/Dryer |
| Whirlpool® stacked washer and dryer |

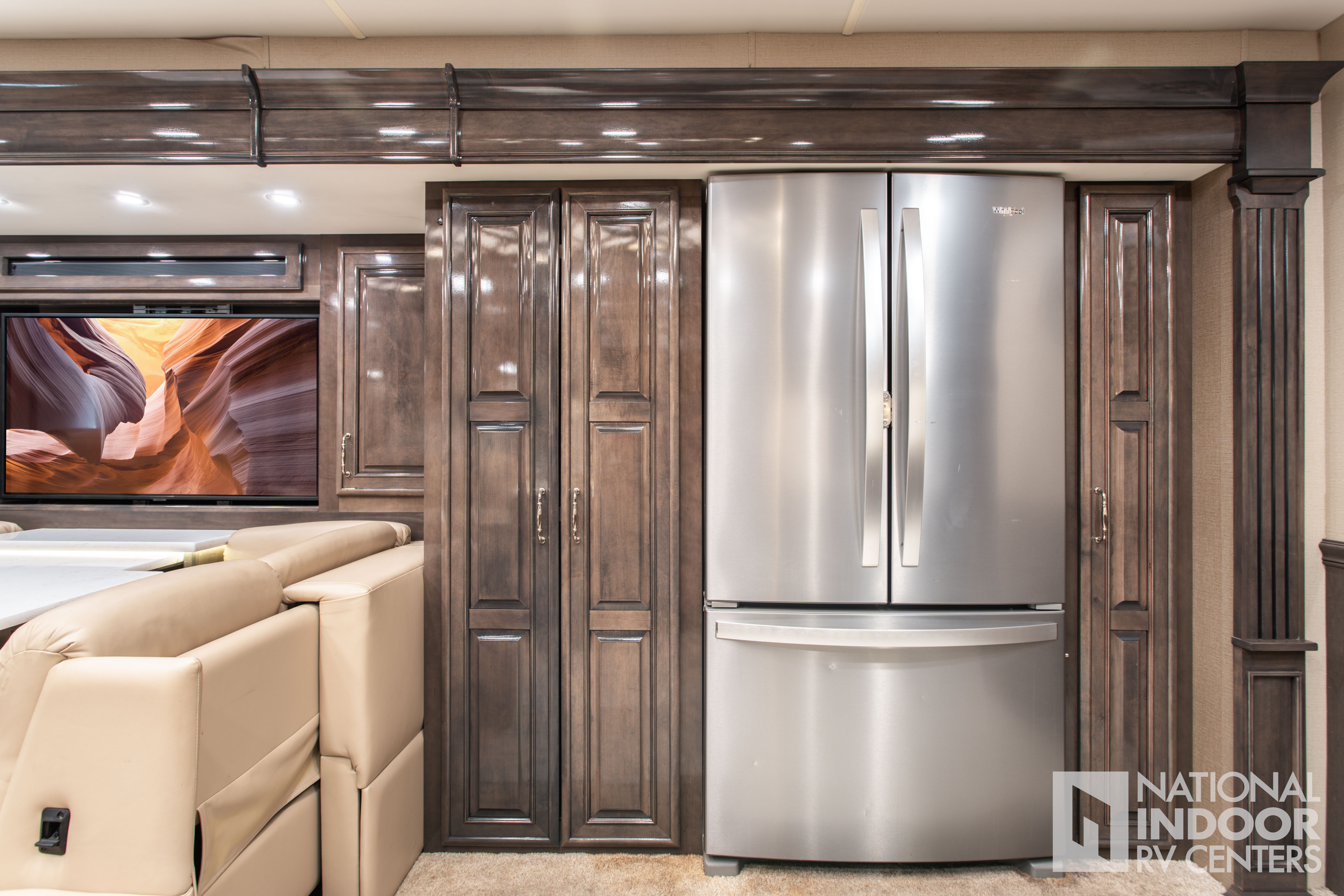

| Refrigerator |

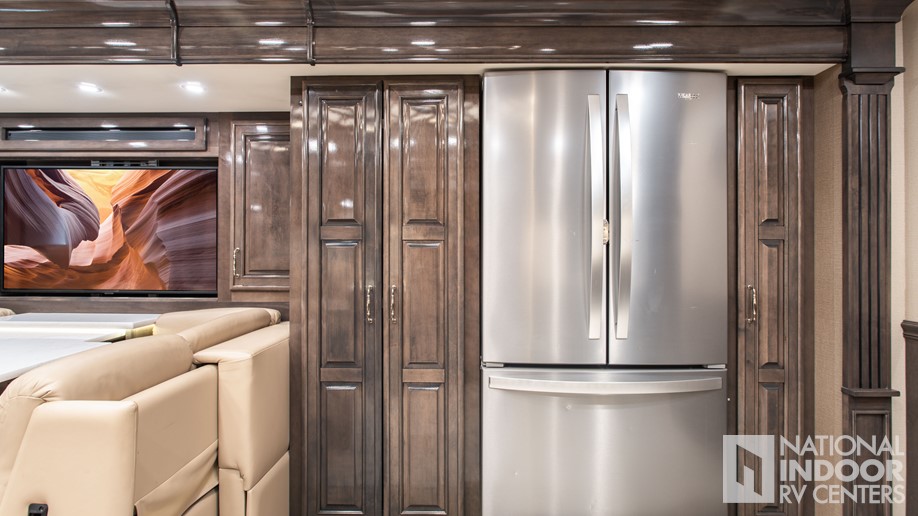

| Whirlpool® stainless steel residential refrigerator with ice maker and water dispenser |

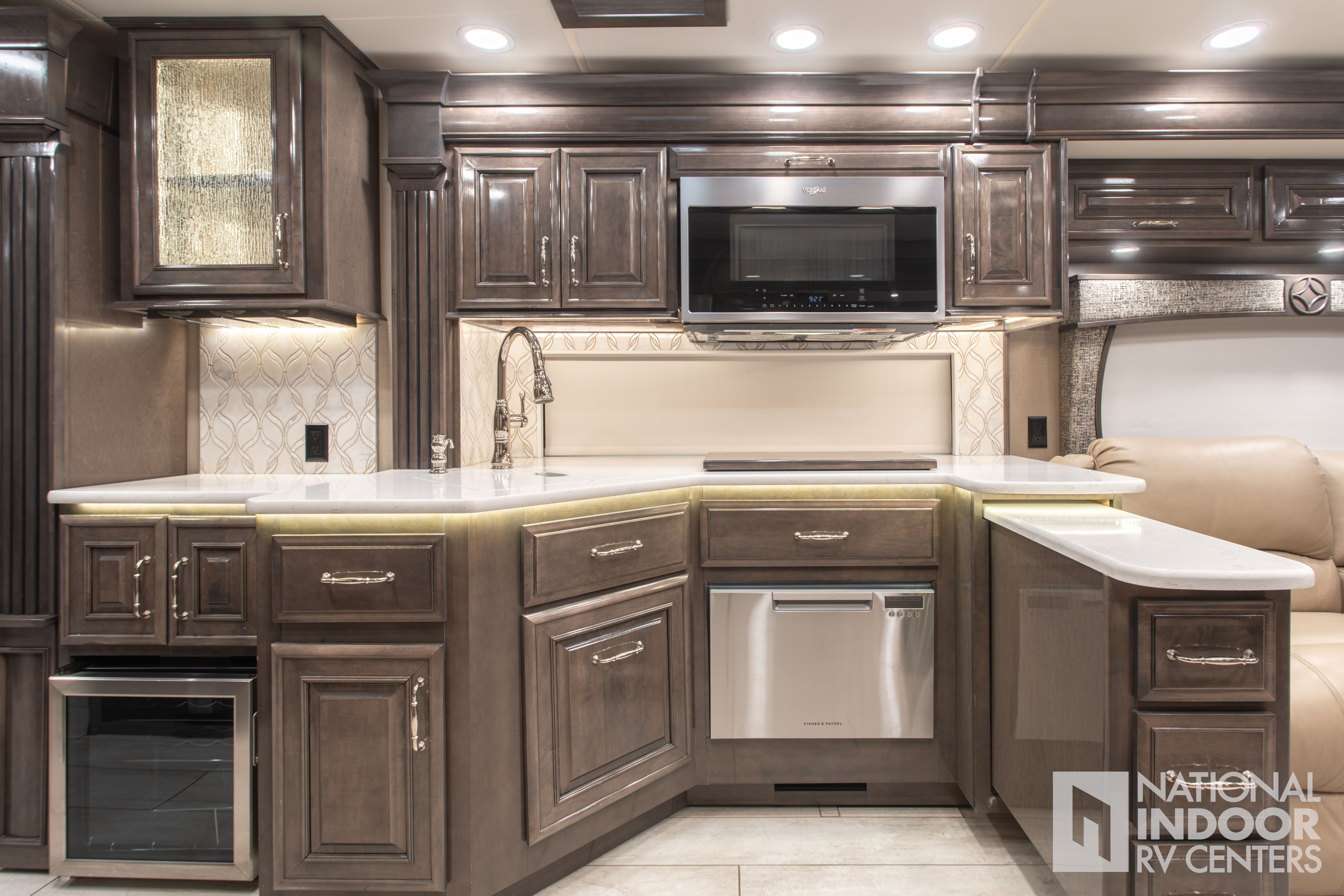

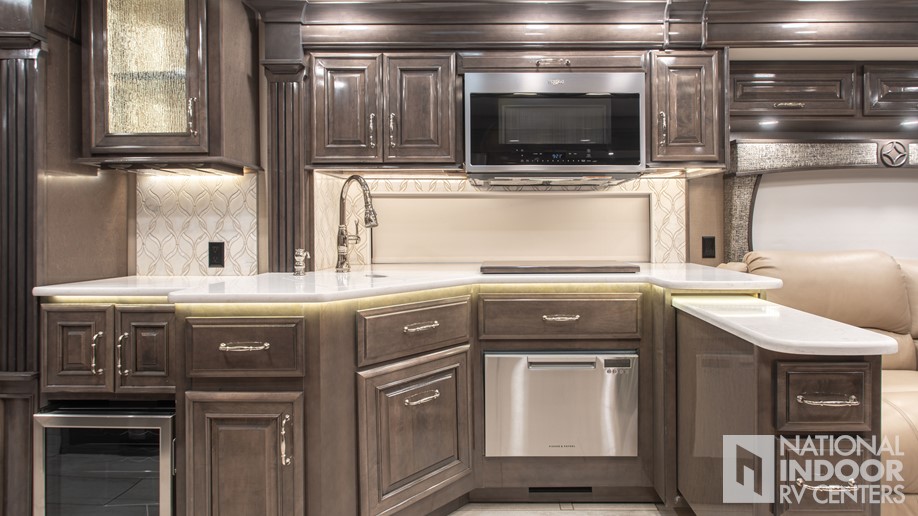

| Cooktop |
| Induction cooktop with matching wood cover |
| Microwave |
| Whirlpool® Gold 1.9 cu. ft. convection microwave oven |
| Dishwasher |
| 24" stainless EZ clean Fisher and Paykel Dishwasher |
| Backsplash |
| Porcelain tile backsplash |
| Countertops |
| Quartz countertops with dimmable LED accent lighting |
| Sink |
| Blanco single bowl granite sink |
| Vent |
| Maxxair® power vent exhaust fan with intake |
| Waste Basket |
| Large deep drawer for waste basket with easy access trash chute (trash chute not available in 45F) |
| Storage |
| Slide out storage tray(s) in overhead cabinet |

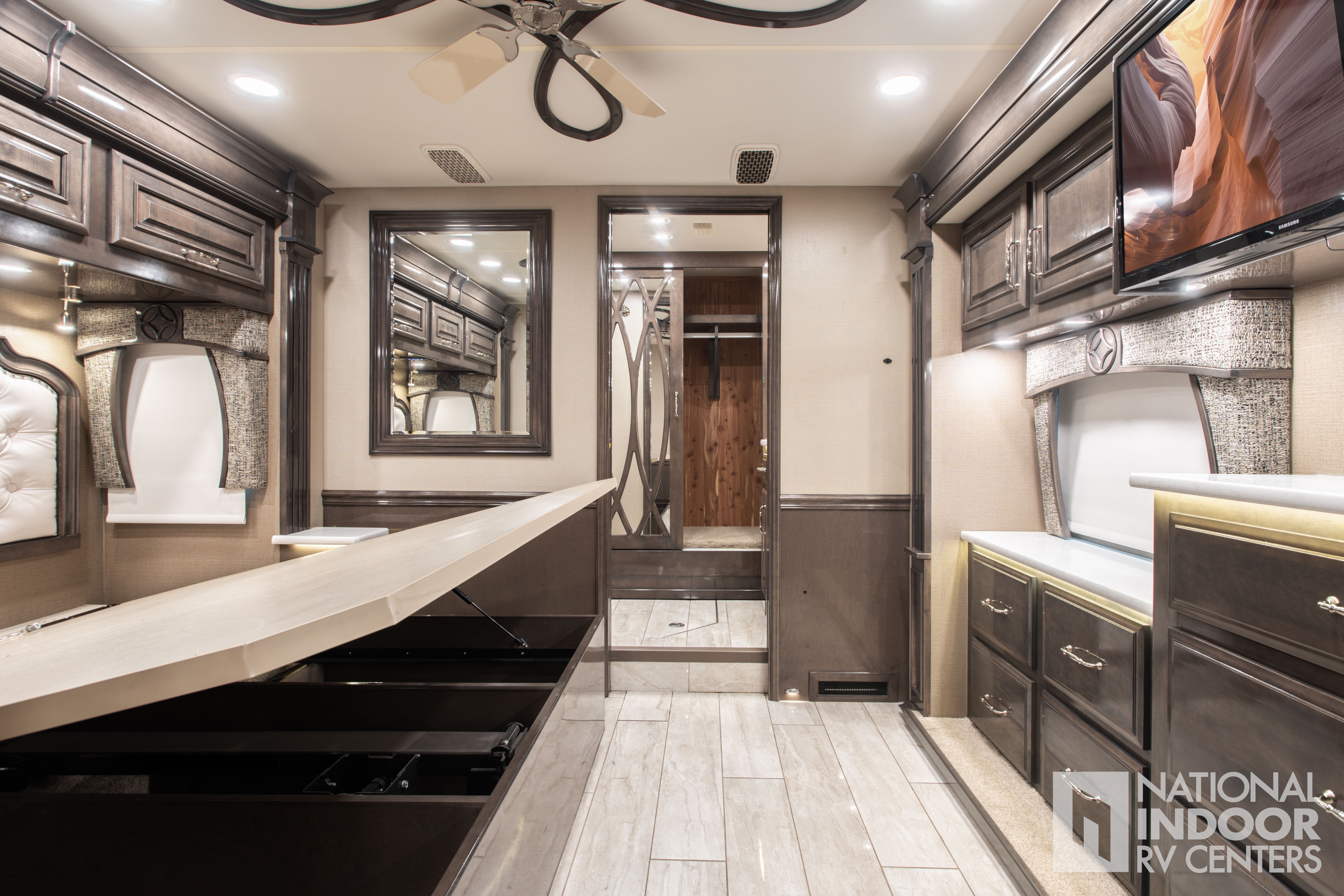

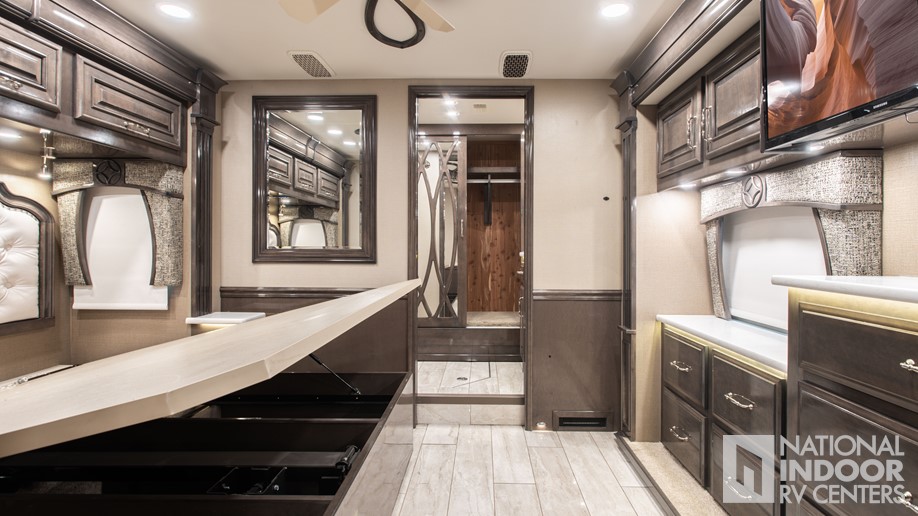

| Bed |
| Select Comfort® Sleep Number® king-sized mattress |
| Television |

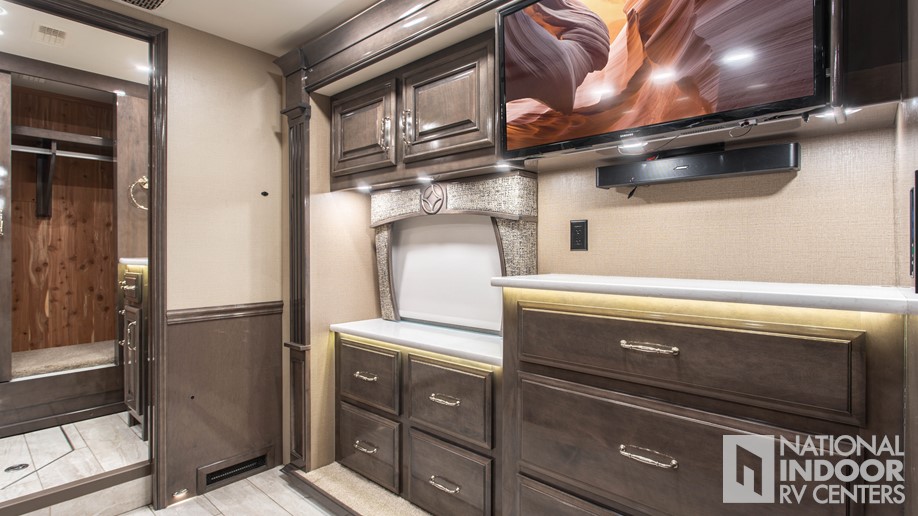

| 32” Samsung® LED, HD Slim 1080P Smart TV |
| DVD Systems |
| Sony® Blu-Ray® player |
| Sound |
| Bose® Solo 5 sound bar |
| Ceiling Fan |
| Ceiling fan |
| Nightstands |
| Nightstands with USB ports and solid quartz tops |

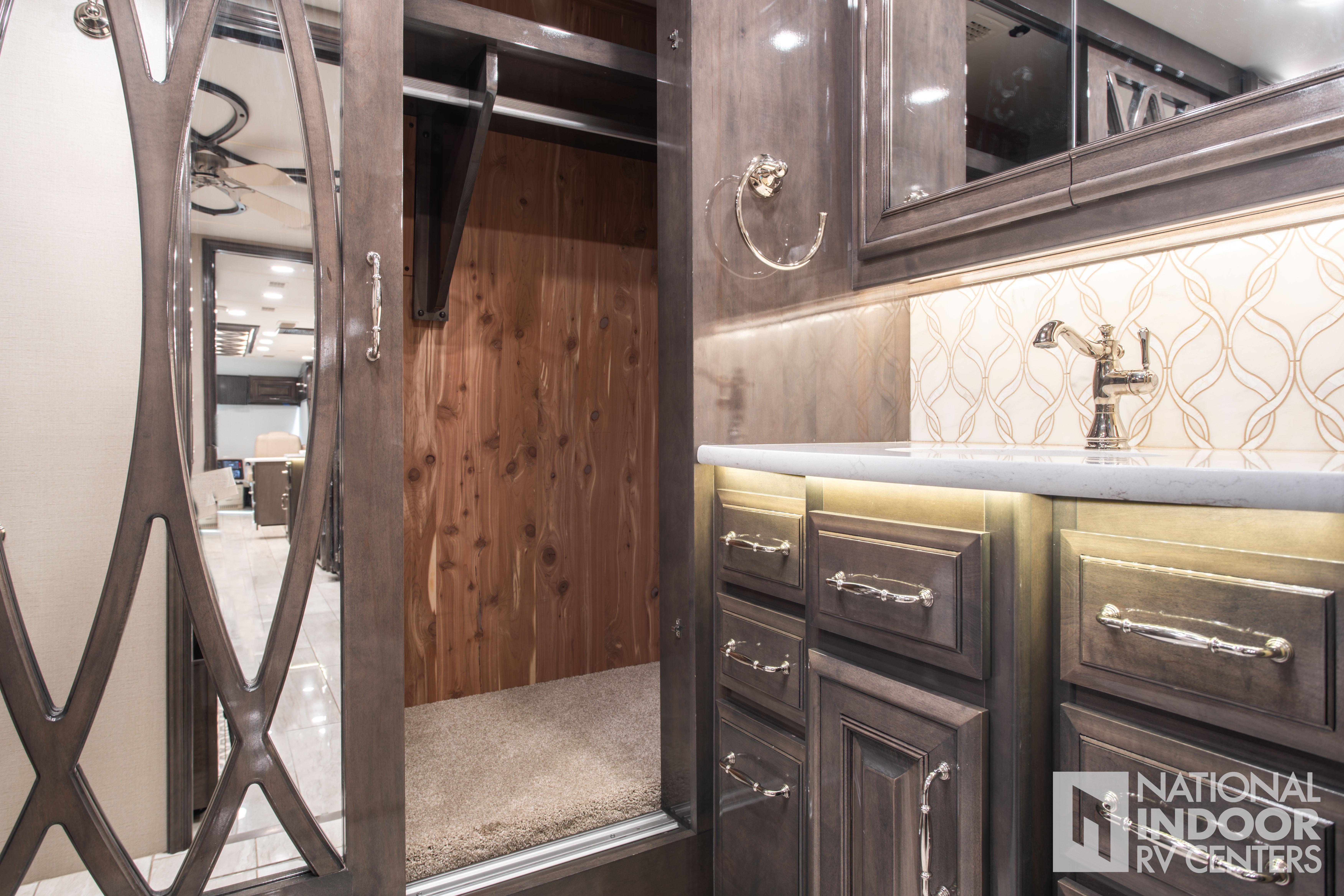

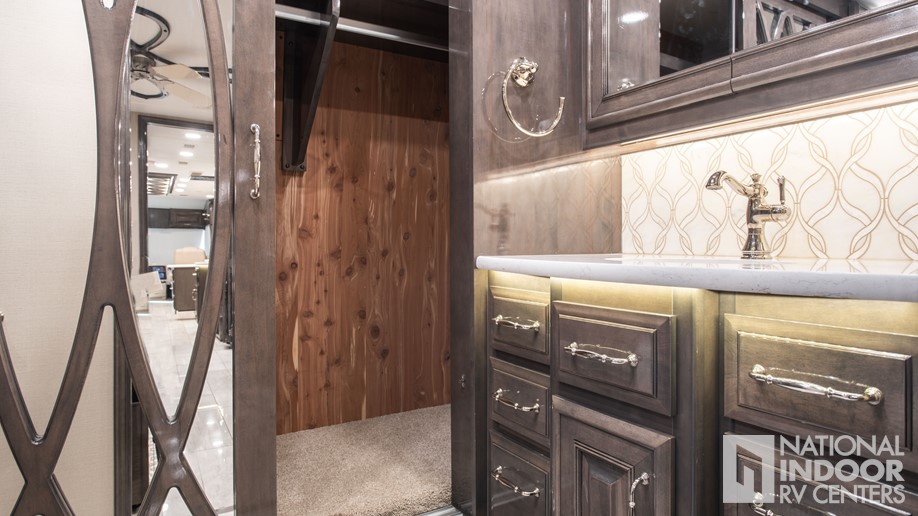

| Wardrobe |
| Large cedar-lined wardrobe with motion activated LED light |
| Countertop(s) |
| Quartz countertops with dimmable LED accent lighting |
| Sink |
| Integrated glass sink |

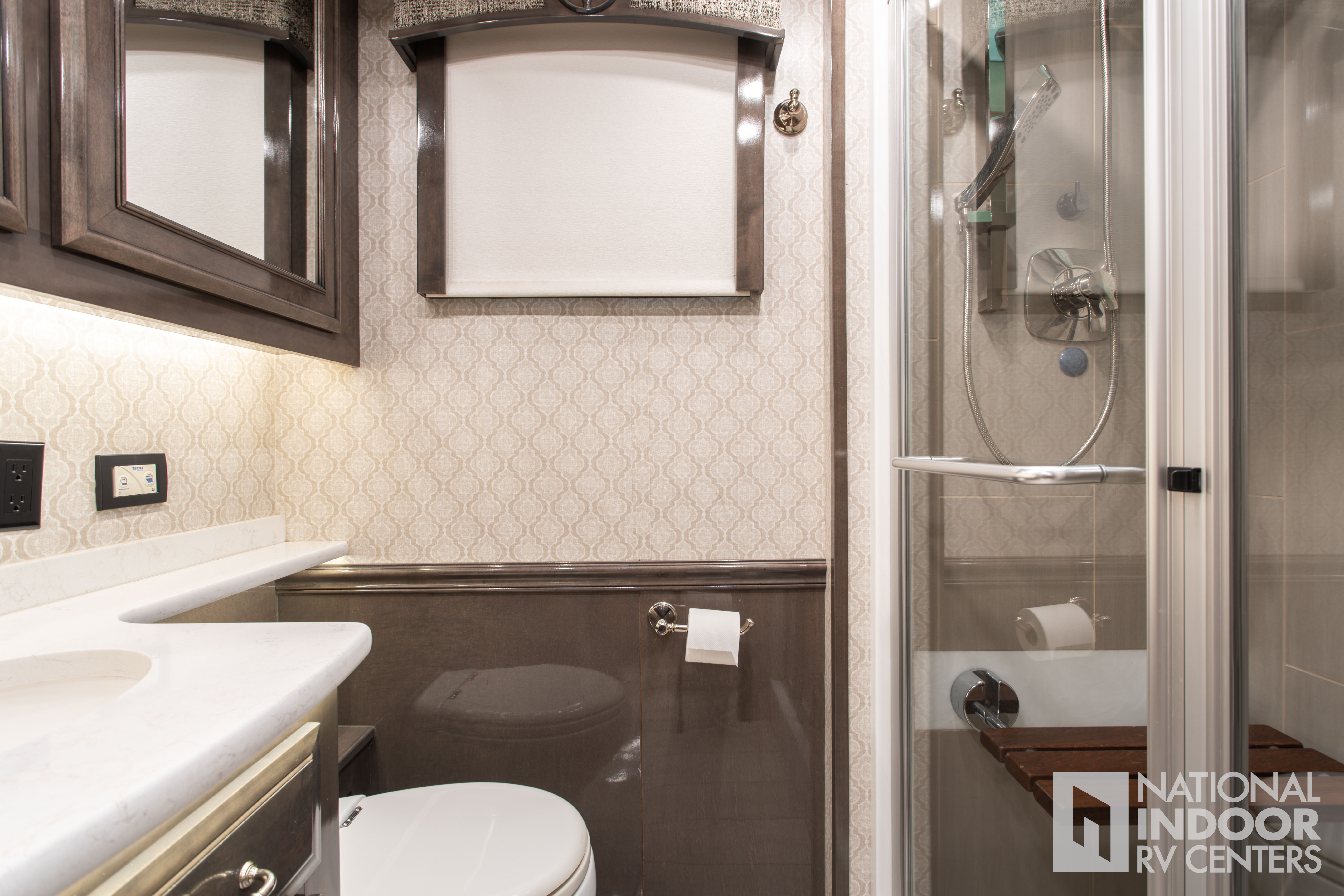

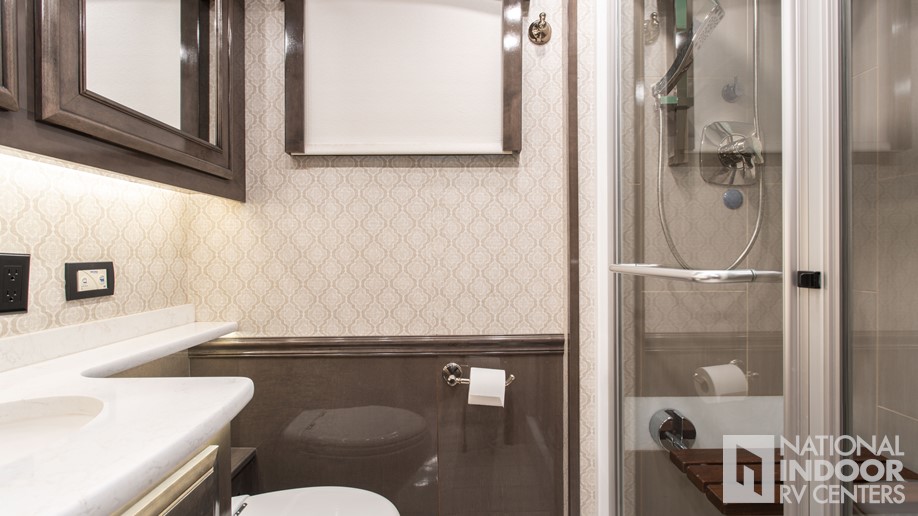

| Shower |
| Porcelain tile shower walls and floor with skylight and frameless glass shower door |
| Shower Seat |
| Teakwood shower seat (not available in 45F) |
| Shower Head |
| Pivoting shower head and separate hand-held spray wand |
| Water Saving System |
| Aqua View Showermiser water saving system |
| Toilet |
| SaniFlo macerator toilet in main bath (N/A on 45X, 45Y, 45Z) |
| Vent |
| Maxxair® Deluxe power exhaust vent fan with intake |
| Carbon Monoxide Detector |
| Carbon monoxide detector |
| Security System |
| Security system with glass shatter sensors |
| Smoke Alarm |
| Smoke alarm |
| Security Safe |
| Safe |
| Seat Belts |
| Seat belts in every designated seating position |
| Canadian Standards |
| Canadian Standards- CSA |

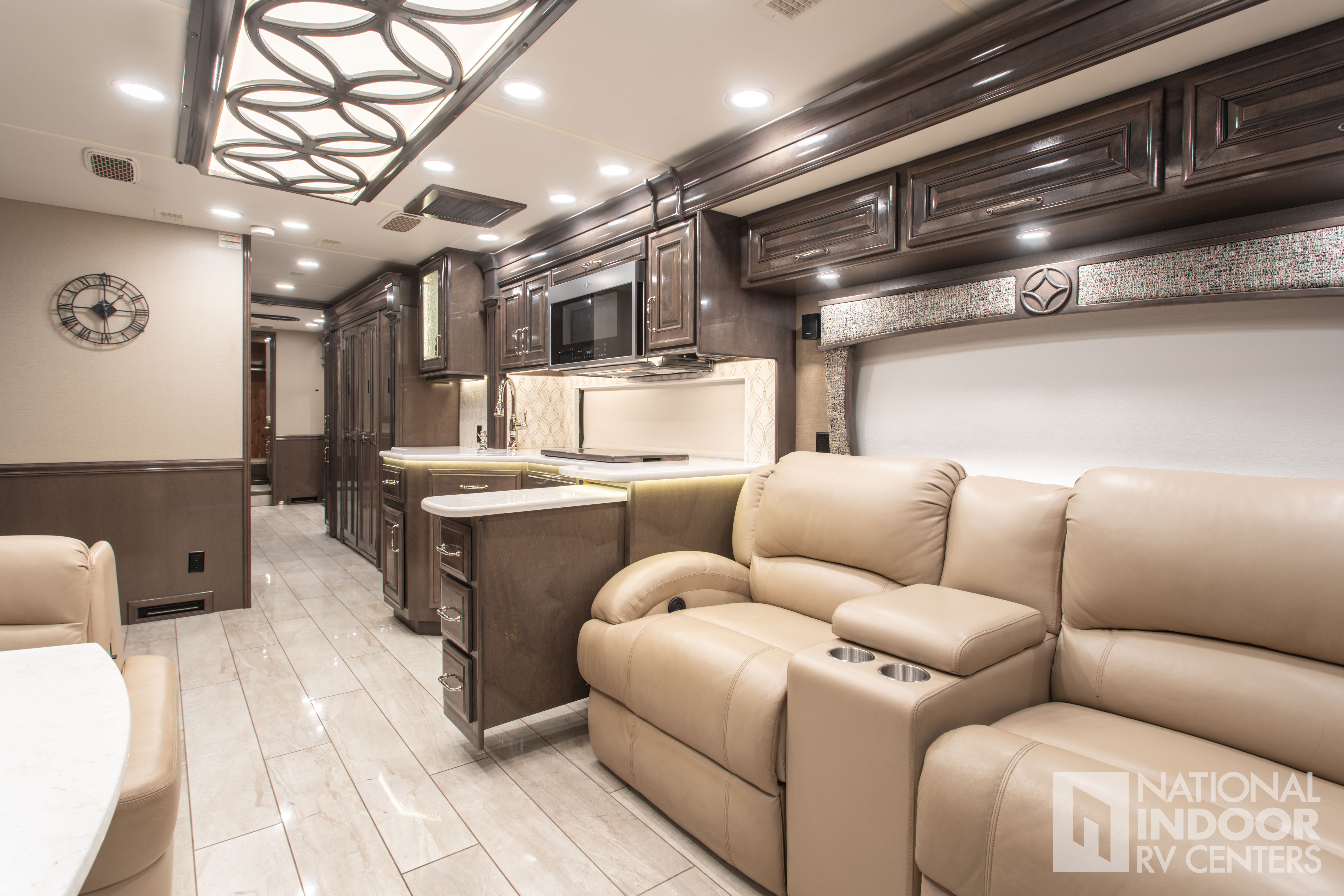

| Theater Seating |

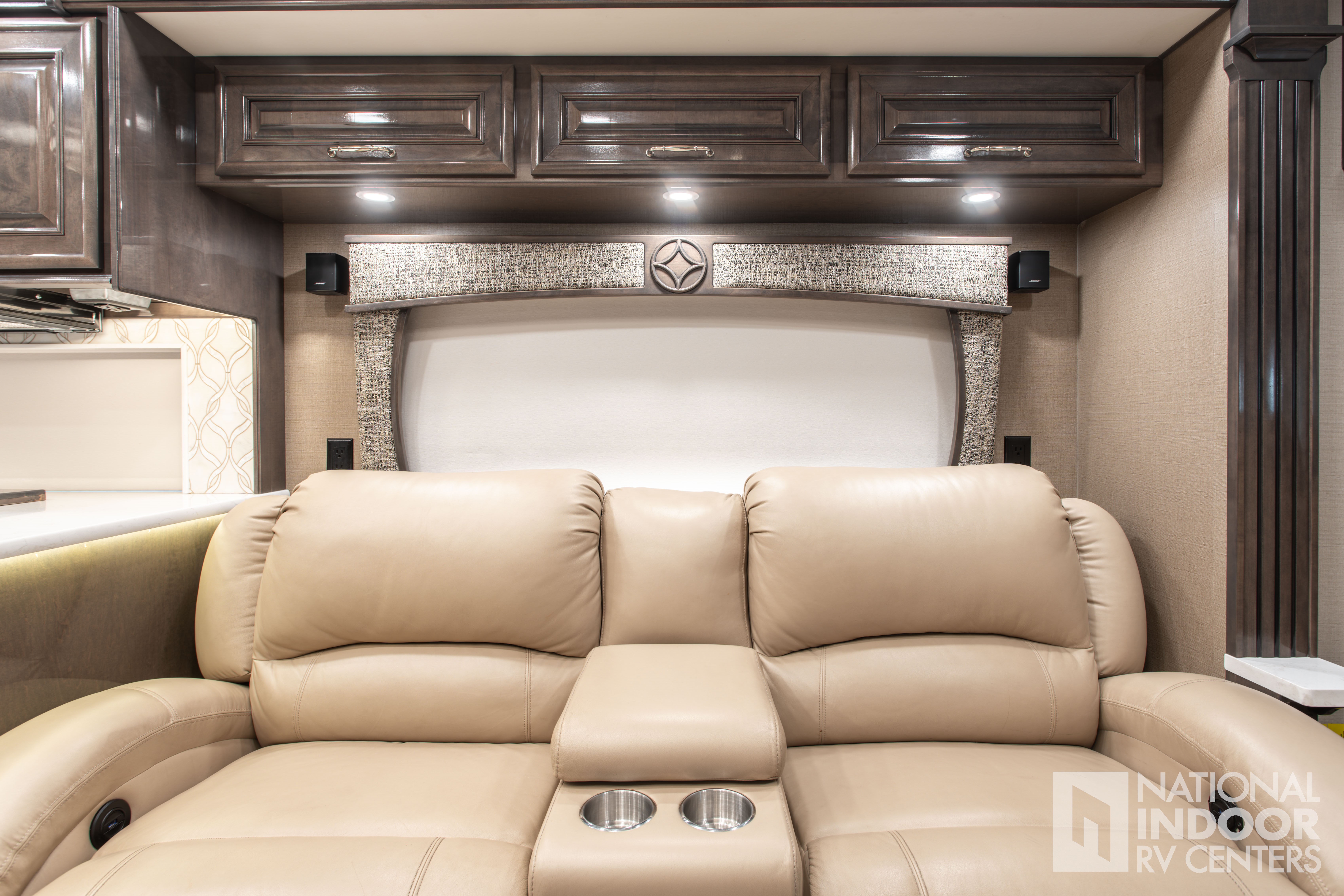

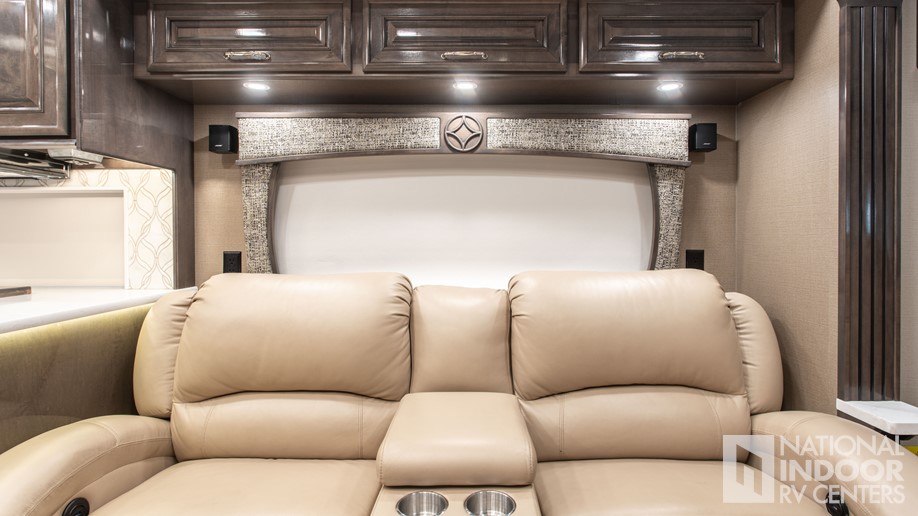

| Theater seating with power recliners and fixed console |
| Reclining Sofa |
| 100" power reclining sofa |
| Fireplace/TV/entertainment center and work station ILO sofa |
| Fireplace/TV/entertainment center and work station ILO sofa |
| Satellite Dish |
| Winegard In-Motion satellite dome |
| Satellite Dish - US |
| Winegard TRAV'LER Dish Network |
| Solar |
| Dual 100 watt solar panels |

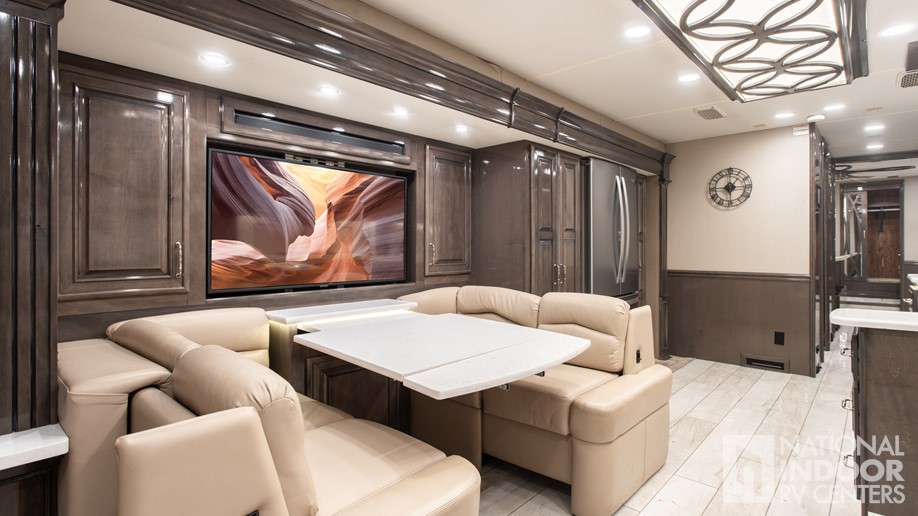

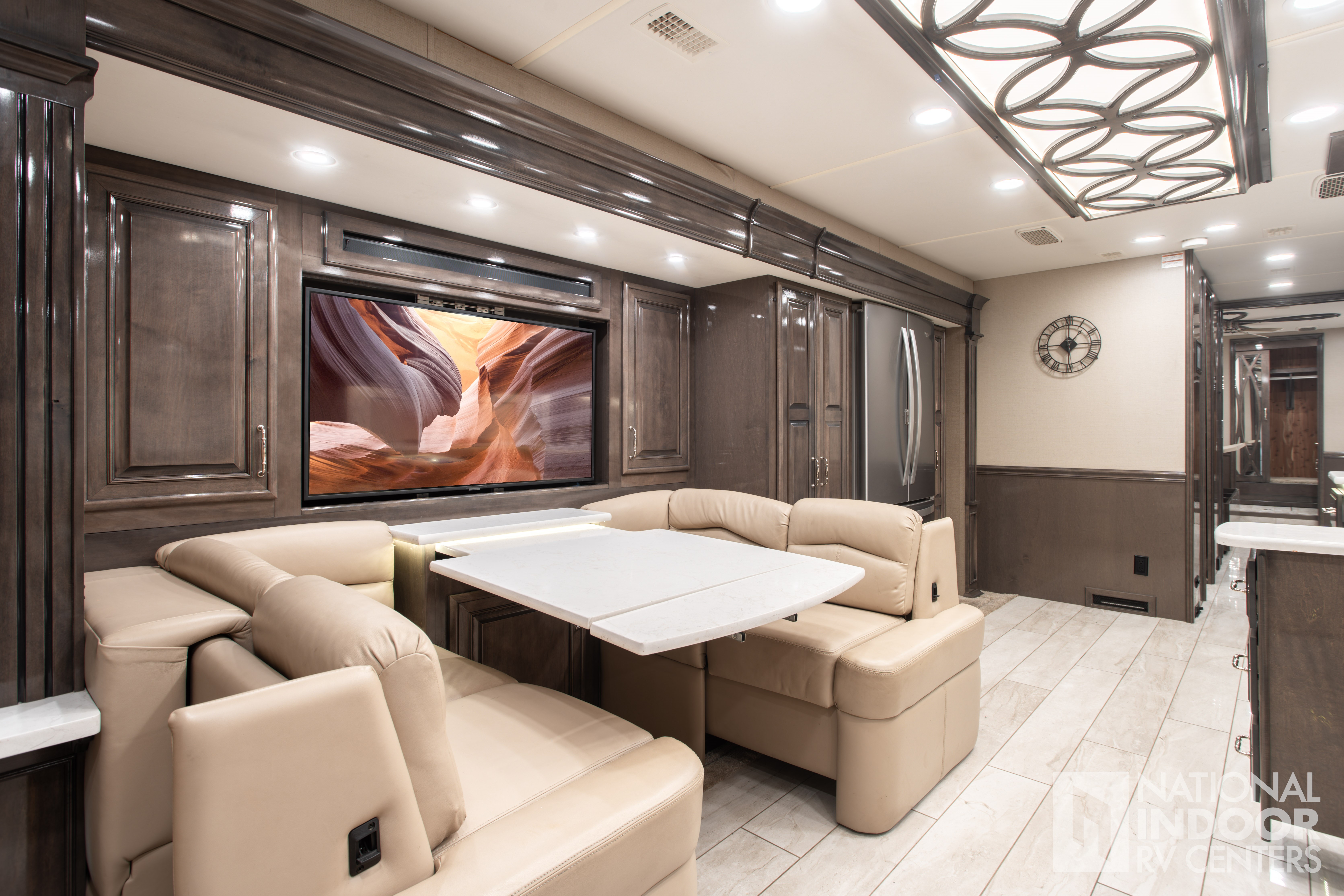

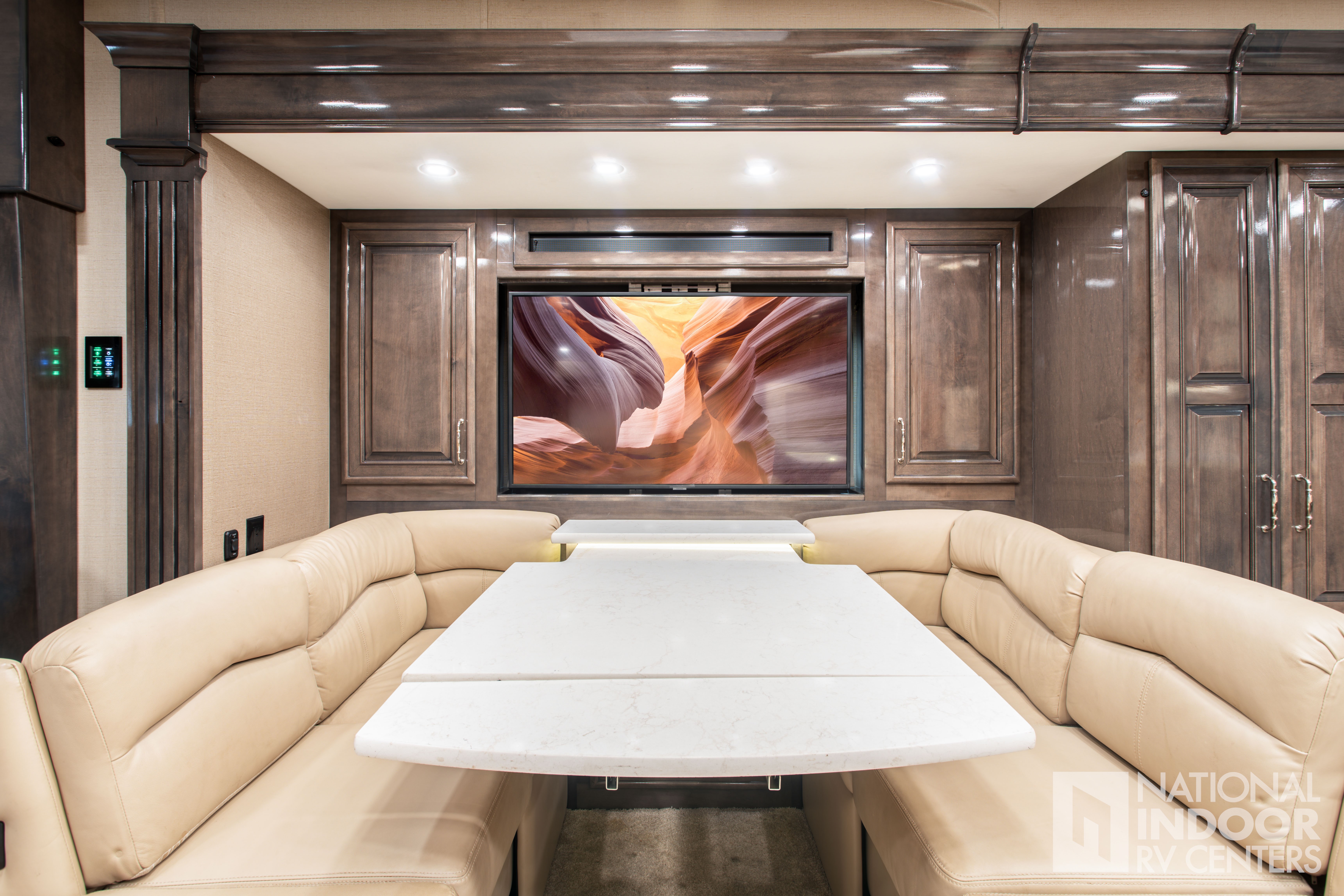

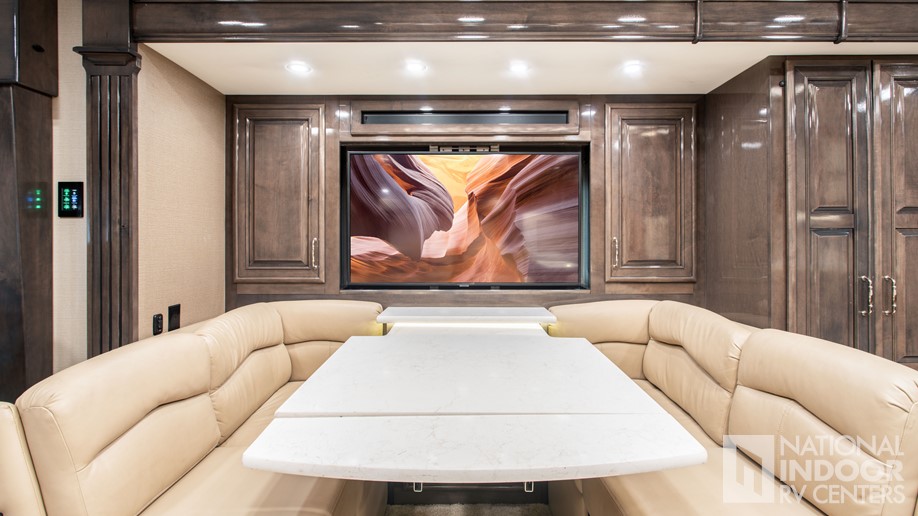

| Dinette |
| Dinette booth |
| Freestanding Table |
| Freestanding table with 4 chairs |
