2022 Entegra Cornerstone 45B

$420,000
Payments (wac)
Class A Diesel
  • Stock #12409U
  • LocationLas Vegas
  • ConditionUsed

Contact Us Now

$420,000
Payments (wac)
Class A Diesel
  • Stock #12409U
  • LocationLas Vegas
  • ConditionUsed

Contact Us Now

Unit Details

Stock Number:12409U Status:Available Vin:4VZVU1E91NC091372 Class:Class A Condition:Used
Mileage:14946 Length:44 Slides:4
Fuel Type:Diesel

Options & Standards

Chassis

Chassis
Spartan® K3 raised-rail chassis
Engine
Cummins® 15-liter X15 turbocharged 605 HP engine with 1,950-lb. ft. torque at 1,150 RPM
Transmission
Allison® 4,000 MH 6-speed transmission
Radiator
Side-mounted, parallel-airflow radiator
Alternator
210-amp alternator
Engine Block Heater
1,500-watt engine block heater
Engine Brake
Three-stage engine brake
Front Axle
Reyco® Granning® - 20,000 lb. rating
Front Suspension
Independent front air suspension (IFS)
Rear Axle
Dana® rear axle - 20,000 lb. rating
Tag Axle
Reyco® Granning® passive-steer tag axle with air dump - 14,000 lb. rating
Braking System
All-wheel ABS disc brakes
Rear Axle Ratio
4.30 rear axle ratio
Tires
Michelin® 365/70R 22.5” tires (front) and 315/80R 22.5” tires (rear)
Shocks
Bilstein® shocks- 60mm front axle & 46mm rear/tag axles
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Traction Control
Automatic traction control
Leveling System
Equalizer™ hydraulic automatic coach leveling
Air Leveling
Valid Truline air leveling system with auxiliary air compressor
Air Connection
Remote air connection
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
150-gal. fuel tank with dual fills
DEF Tank
15 gal. DEF tank with dual fills (single fill on 45D, 45R)
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Hitch
20,000-lb. hitch with 7-pin plug

Construction

Floor
2" x 4" wood trusses on 16" centers or less filled with bat and Flexfoil insulation then topped with 3/4" 7-ply plywood decking (R-33)
Frame
X-Bridge™ bracing welded into chassis frame
Roof
4" arched aluminum trusses filled with bat insulation and reflective Flexfoil® topped with 3/8" plywood decking then one-piece fiberglass
Slideouts
Entegra-exclusive Relia-Torque flush-mounted 12V slideout system with VegaTouch and rocker switch controls
Walls
2-1/2" exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16" centers or less filled with bat and Flexfoil insulation then covered with high-gloss gelcoat

Heat, AC, Water & Power

Generator
Onan® 12,500-watt diesel generator, with automatic start, on powered slide-out tray
Batteries
(4) L16 AGM batteries (6V/390 amp hrs. ea.)
Electrical Hookup
50-amp power cord on electric powered reel
Power Management
Smart automatic transfer switch with surge protection
Air Conditioning
(3) 15,000-BTU A/C units with heat pumps and condensation drain system
Heating System
Aqua-Hot® 450D hydronic water and heating system with in-floor heat throughout and engine preheat
Black Tank Management
Sani-Con® Macerator holding tank dump system with power gate valves, manual backup and metal door
Tank Flush
Black holding tank sprayer
Water Filtration
City and tank water filtration system
Winterization Drain System
Winterizing drain system
Water Monitoring
Trutank™ ultrasonic tank monitoring system displayed on VegaTouch screen
Water Hose w/ Electric Reel
Water hose with electric reel
Inverter
3,000-watt pure sine wave inverter
Heated Tanks
Aqua-Hot® heated basement storage

Exterior

Front/Rear Cap
Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame
Stainless Steel Accents
Executive Bus Armor 10” stainless-steel trim
Engine Door
Power rear engine door with manual override
Patio Awnings
Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
Door Awning
Girard® power entrance door awning with LED lights
Slideout Awnings
Girard® Ultra slideout awnings
Window Awnings
Girard® Ultra power window awnings
Windows
Frameless, dual-pane, tinted, safety-glass windows
Keypad
Lit grab handle with doorbell and keypad system for keyless entry
Entertainment
43” Samsung® QLED 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL radio and speakers with USB port and receptacle
Mirrors
Chrome, heated, remote-control, side-view mirrors with integrated cameras and blind-spot indicators
Exterior
Diamond Shield™ front protective film mask
LED Lights
LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
Headlights
LED high and low beam headlights and fog lights
Daytime Running Lights
Daytime running lights
Accent Lights
LED accent lights under passenger slideout rooms
Clearance Accent
LED-lit chrome clearance accent light
Lights
Porch light and motion sensor security lights
Rear Mudflap
Mudflap with chrome “Cornerstone” nameplate
Satellite Dish - US
Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
Satellite Dish - CA
Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
TV Antenna
Winegard® Rayzar Automatic powered TV antenna
Wi-Fi
Winegard® WiFi extender with 4G/LTE
Utility Center
Heated exterior utility center with 5” LED Firefly® tank monitoring panel
Cargo Features
(2) Power slideout basement storage trays; Push-button power-unlatching baggage doors with LED indicator light
Freezer
2.8-cu. ft. exterior Dometic® refrigerator/freezer on slideout tray
Paint
Sikkens custom full-body paint
Entrance Door
Removable screen on entry door

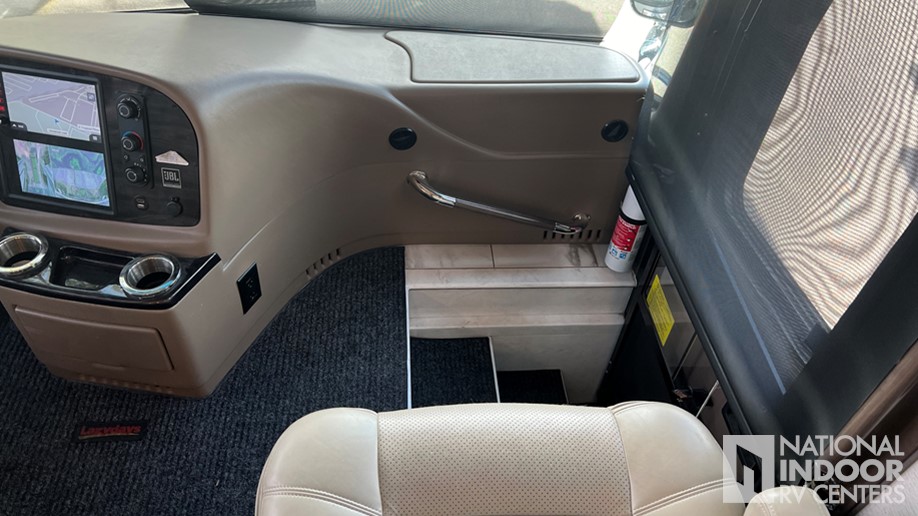

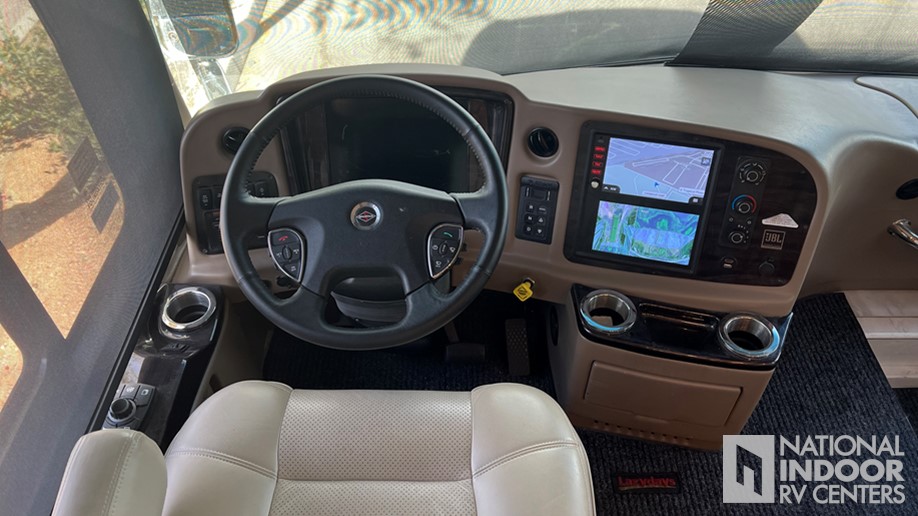

Cockpit

Collision Mitigation
Collision avoidance system with collision warning, adaptive cruise control and electronic stability control
Dash
Valid 15" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
Blind Spot Monitoring
Blind spot monitoring system displayed on digital dash screen
Cameras
Xite™ 360° HD digital camera system
Infotainment System(s)
Xite™ XSG4 infotainment system with dual 9" touchscreens, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, house mode whole-coach audio distribution and integrated VegaTouch coach control
Driving Features
E-Z Steer™ adjustable power steering assist
Steering Column
Power tilt and telescoping steering column
Steering Wheel
Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
Sound System
JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer
Windshield
Ultra-Vision® one-piece wrap-around tinted windshield
Driver / Passenger Seats
Villa® heated and cooled leather driver and passenger seats with powered 6-way adjustment, lumbar, recline, footrest and massage functions
Additional Amenities
Powered driver's window; (2) dual USB ports and (2) 12V sockets for charging
Power Features
Powered flush stepwell cover
Pedals
Powered adjustable brake and accelerator pedals
Visors & Privacy Shade
Powered front sun visors and privacy shades

Interior

Electric Fireplace
LED-lit fireplace with 5,000-BTU heating element (45B, 45Z)
Television - Front Overhead
32" Samsung® QLED 4K UHD Smart TV in front overhead
Command Center
Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls, with remote monitoring and control (mobile app available)
Television - Living Room
50” Samsung® QLED 4K UHD Smart TV
Sound - Living Room
Bose® sound bar with subwoofer and universal remote control
DVD Systems
Sony® Blu-ray™ player
Furniture
Premium leather Villa® furniture
Flooring
Hand-laid porcelain tiled floors
Lighting
LED interior lighting
Ceiling
Decorative ceiling feature with integrated accent lighting
Window Treatments
Powered solar day and blackout night shades
Central Vacuuming System
Central vacuum system
Interior Doors
Aire-Secure™ travel locks for all pocket doors
Bar
Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (45R only)

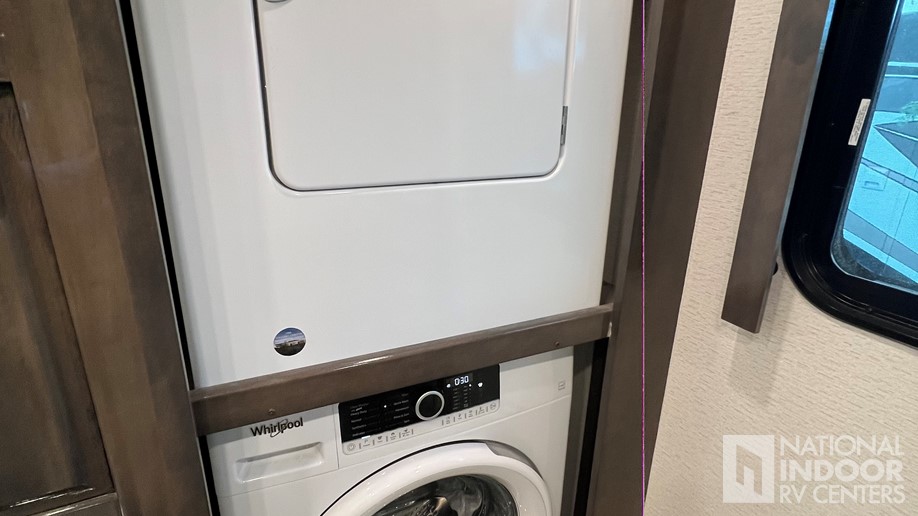

Washer/Dryer
Whirlpool® stacked washer and dryer

Kitchen

Refrigerator
Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
Cooktop
Induction cooktop with matching wood cover
Microwave
Whirlpool® 1.9-cu. ft. convection microwave oven
Dishwasher
Fisher & Paykel dishwasher
Backsplash
Porcelain tile backsplash
Countertops
Solid-surface countertops with dimmable LED accent lighting
Vent
Maxxair® power vent exhaust fan with intake and touch screen control
Waste Basket
Large, deep drawer for waste basket with easy access trash chute (trash chute not available in 45F, 45R)
Storage
Slide-out storage tray(s) in overhead cabinet
Sink
Blanco single-bowl granite sink

Bedroom

Bed
Select Comfort® Sleep Number® King-size mattress
Television
32" Samsung® QLED 4K UHD Smart TV
Sound
Bose® sound bar with universal remote control
DVD Systems
Sony® Blu-ray™ player
Ceiling Fan
Ceiling fan
Nightstands
Nightstands with solid-surface tops
Wardrobe
Large cedar-lined wardrobe

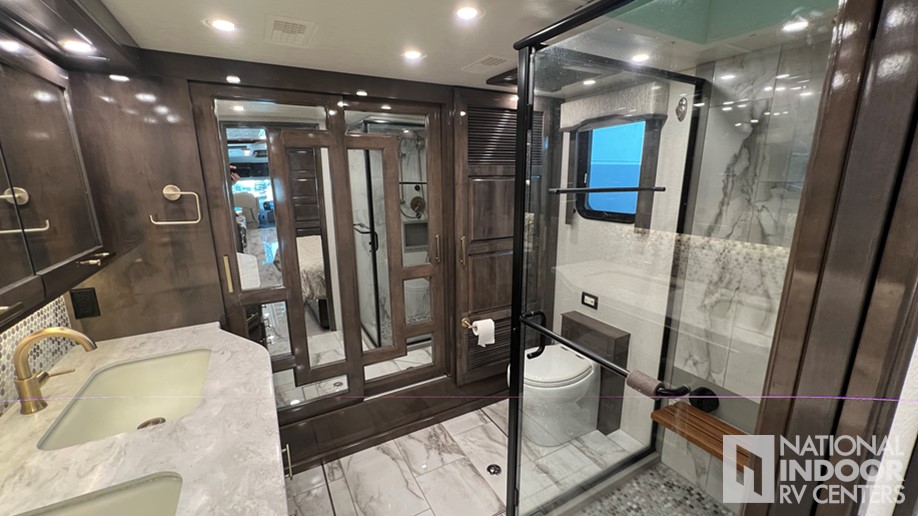

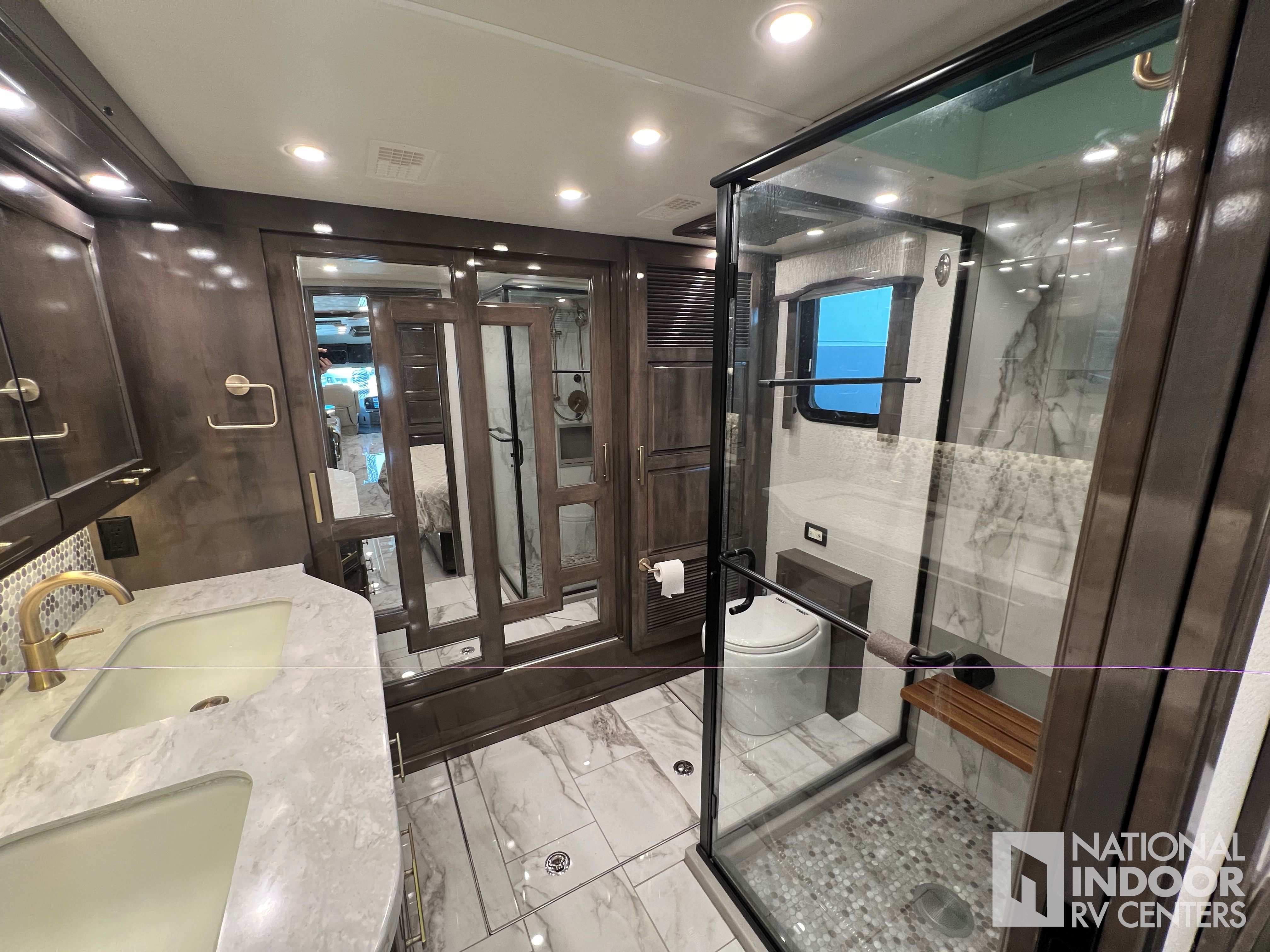

Bathroom

Countertop(s)
Solid-surface countertops with dimmable LED accent lighting
Sink
Integrated glass sink
Shower
Porcelain tile shower walls and floor with skylight and frameless glass shower door
Shower Seat
Teakwood shower seat (N/A 45F)
Shower Head
Pivoting shower head and separate hand-held spray wand
Water Saving System
Aqua View SHOWERMI$ER™ water saving system
Toilet
Thetford® macerator toilet in main bath (N/A 45Z)
Vent
Maxxair® Deluxe power exhaust vent fan with intake

Safety

Carbon Monoxide Detector
Carbon monoxide detector
Security System
Security system with glass shatter sensors
Smoke Alarm
Smoke alarm
Security Safe
Security safe

Options

Canadian Standards
Canadian Standards- CSA
Theater Seating
Theater seating with power recliners and fixed console
Reclining Sofa
100" power reclining sofa
Fireplace/TV/entertainment center and work station ILO sofa
Fireplace/TV/entertainment center and work station ILO sofa
Satellite Dish
Winegard In-Motion satellite dome
Satellite Dish - US
Winegard TRAV'LER Dish Network
Solar
Solar panels (dual 100-watt)
Dinette
Leather booth dinette
**NIRVC uses reasonable efforts to include accurate and up to date information for product listings. We make no warranties as to the accuracy of the content and assume no liability or responsibility for an error or omission in the content.**
