Chassis |
Spartan K2 raised rail chassis |
Engine |
Cummins L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM |
Transmission |
Allison 3000 MH 6-speed transmission |
Engine Block Heater |
1,000 watt engine block heater |
Front Suspension |
Reyco Granning IFS independent front air suspension |
Rear Suspension |
Dana rear suspension |
Front Axle |
Reyco Granning independent 20,000-lb. front axle with air suspension |
Rear Axle |
Dana rear axle 20,000-lb., tag axle 12,000-lb. |
Rear Axle Ratio |
4.88 rear axle ratio |

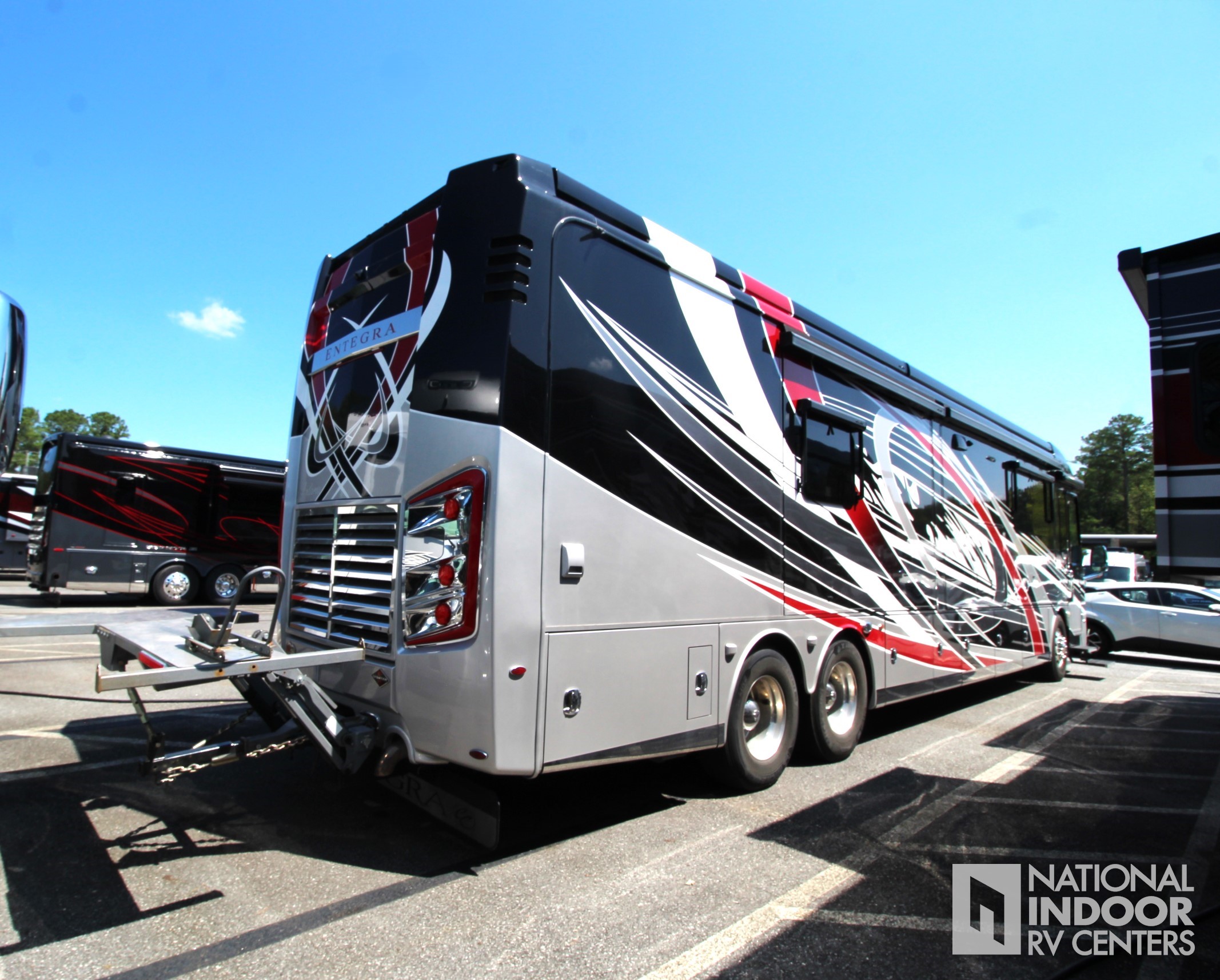

Hitch |
15,000-lb. hitch with 7/4-pin plug |
Tag Axle |
Tag axle air dump |
Leveling System |
Valid air leveling system with auxiliary air compressor |
Radiator |
Side-mounted radiator |
Braking System |
ABS disc brakes on front axle, drum brakes on drive and tag axle |
Engine Brake |
Two- stage engine brake |
Traction Control |
Automatic traction control |
Shocks |
Bilstein shocks- 60MM front & 46MM rear/tag |
Fuel Tank |
150-gal. fuel tank (dual fill) |
DEF Tank |
15 gallon DEF tank (dual fill) |
Tires |
Michelin XZA 1 365/80R 22.5" tires (front) and XZA 2 315/80R 22.5" tires (rear) |
Turning Radius |
55-degree turning radius |
Chassis Battery |
Chassis batteries 2-12 volt |
Alternator |
170-amp alternator |
Air Connection |
Remote air connection |
Tow Air Brake System |
Safehaul tow air brake system |
Tire Pressure Monitoring |
Tire pressure monitor system |
Frame |
X-bridge frames welded into chassis frame |
Underbelly |
Heated basement storage area |
Insulation |
Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
Floor |
2" x 4" floor truss construction |
Floor Decking |
3/4" 7-ply plywood main floor decking |
Walls |
Aluma-Tru superstructure construction on 12"-16" centers |
Slideouts |
Flush-mounted electric-powered slideout rooms both with VegaTouch and separate rocker switch controls |
Roof |
One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss |
Heating System |
Aqua-Hot 450 diesel hydronic water and heating system with in-floor heat throughout |
Air Conditioning |
15,000-BTU low profile A/Cs (3) with heat pumps and condensation drain system |
Electrical Hookup |
50-amp power cord with electric reel |
Generator |
Onan 12,500-watt diesel generator with auto gen start, on powered slide-out tray |
Inverter |
3,000 watt pure sine wave inverters (2) |
Batteries |
L16 AGM batteries (4) |
Power Management |
Premium surge protector transfer switch |
Water Hose w/ Electric Reel |
Water hose with electric powered reel |
Tank Flush |
Black holding tank sprayer |
Black Tank Management |
Macerator holding tank dump system with manual gate valves |
Water Monitoring |
Trutank ultra sonic tank monitoring system displayed on VegaTouch screen |
Water Filtration |
City and tank water filtration system |
Winterization Drain System |
Winterizing drain system |
Cargo Features |
Manual slideout cargo tray; 2.8 cu.ft. exterior Dometic refrigerator/freezer on slide out tray |
Exterior Walls |
2- 1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
Front/Rear Cap |
Steel-reinforced front cap and windshield frame |
Stainless Steel Accents |
Premier Bus Armor 8" stainless steel trim |
Clearance Accent |
LED lit chrome clearance accent light |
Exterior |
3M front protective film mask |
Headlights |
LED high and low beam headlights |
Fog Lights |
LED fog lights |
Daytime Running Lights |
Daytime running lights |
LED Lights |
LED marker lights, turn lights and license plate light |
Docking Lights |
LED docking lights |
Accent Lights |
LED accent lights on underside of slideout rooms passenger side |
Third Brake Light |
Third brake light |
Keypad |
Lighted grab handle with keypad system |
Door Awning |
Girard power entrance door awning with LED lights |
Window Awnings |
Girard Ultra window shade awnings |
Patio Awnings |
Roof mounted Girard Vision dual pitched patio awnings with LED lights |
Slideout Awnings |
Girard Ultra slide-out awnings |
Mirrors |
Chrome, heated, remote control, Ramco side-view mirrors with blind-spot indicators |
Windows |
Hehr frameless, tinted, dual-pane, safety-glass windows |
Entertainment |
40" Samsung 4K UHD Slim, Smart TV and Bose Solo 5 sound bar on TV bracket with extend, tilt and swivel arm |
Utility Center |
Exterior heated utility center with 5' Firefly system monitor panel |
TV Antenna |
Winegard Razar automatic powered TV antenna |
Engine Door |
Power engine door with manual override |
Rear Mudflap |
Full-width rear mudflap, with chrome "Anthem" nameplate |
Lights |
Porch light and motion sensor security lights |
Satellite Dish - CA |
Winegard Trav'ler satellite dish Shaw TV - standard w/ CSA option |
Satellite Dish - US |
Winegard Trav'ler satellite dish DIRECTV - standard w/ USA option |
Flooring |
Powered flush stepwell cover |
Visors & Privacy Shade |
Powered front sun visors and privacy shade |
Windshield |
Ultra-Vision one-piece wrap-around tinted windshield |

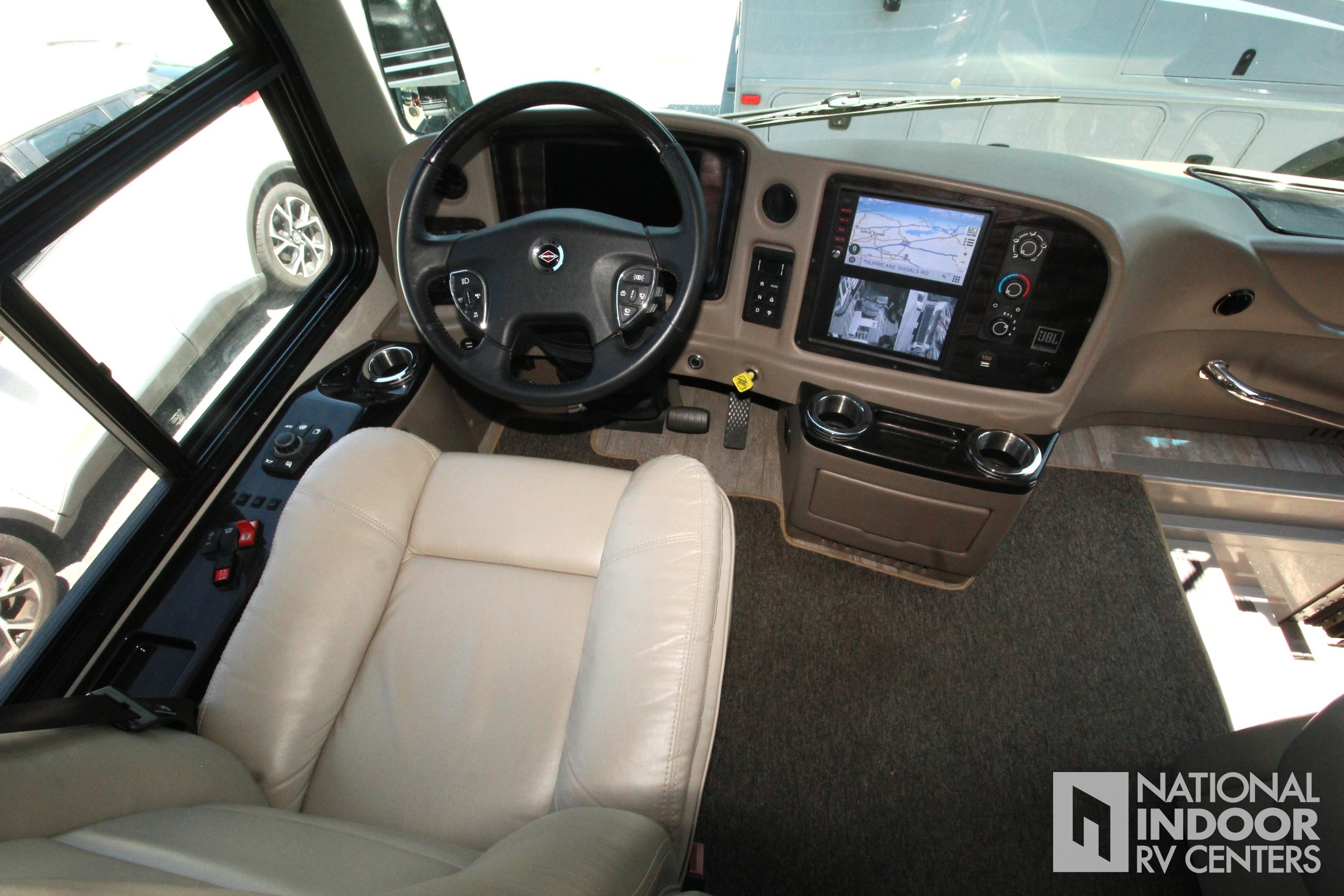

Driver / Passenger Seats |
Villa 6-way power, lumbar, Ultraleather driver and passenger seats with integrated 3-point seatbelt |
Start |
Push button start |

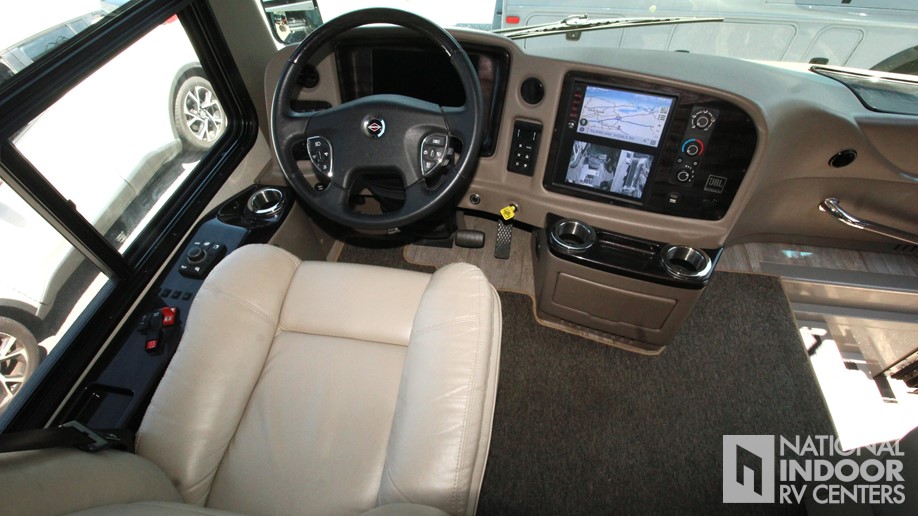

Steering Wheel |
E-Z Steer electric, adjustable power steering assist; VIP wood-grain, leather-wrapped, tilt and telescoping steering wheel with integrated controls for radio, cruise, and wipers |
Dash |
Valid 15" digital dash with selector knob and three selection main screens |
Monitoring System(s) |
Blind spot monitoring system displayed on digital dash screen |
Infotainment System(s) |
Glass panel, dual 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control, house mode whole coach audio distribution, and integrated VegaTouch coach control |
Sound System |
JBL® premium audio sound system with amplifier, speakers and DVC subwoofer |
Leveling System |
Equalizer hydraulic automatic leveling |
Pedals |
Powered adjustable brake and accelerator pedals |
Cameras |
Xite 360 camera system that displays on digital dash screen |
Additional Amenities |
Two dual USB ports |
Blind Spot Monitoring |
Blind spot monitoring system |
Lighting System |
10" VegaTouch touchpad system, for complete integration of coach controls/mobile app control also |
Lighting |
Premium LED 12V recessed ceiling lighting |

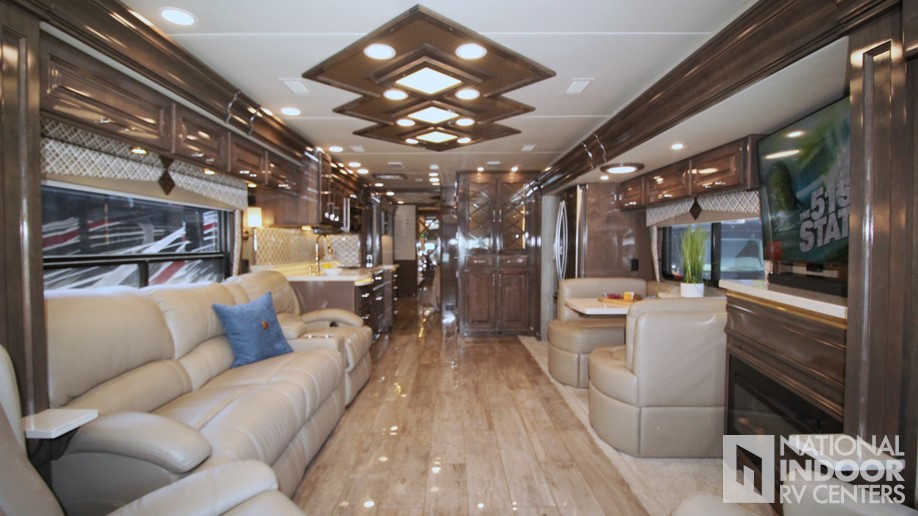

Flooring |
Hand laid high-gloss 8" x 48" porcelain tile floor |
Window Treatments |
Powered solar day and black out night shades |
Television - Living Room |
Samsung 50" 4K UHD Smart TV |
Television - Front Overhead |
Samsung 32" LED Slim 1080P Smart TV in front overhead |
Sound - Living Room |
Bose SoundTouch 300 sound system |
DVD Systems |
Samsung HD Blu-ray player |

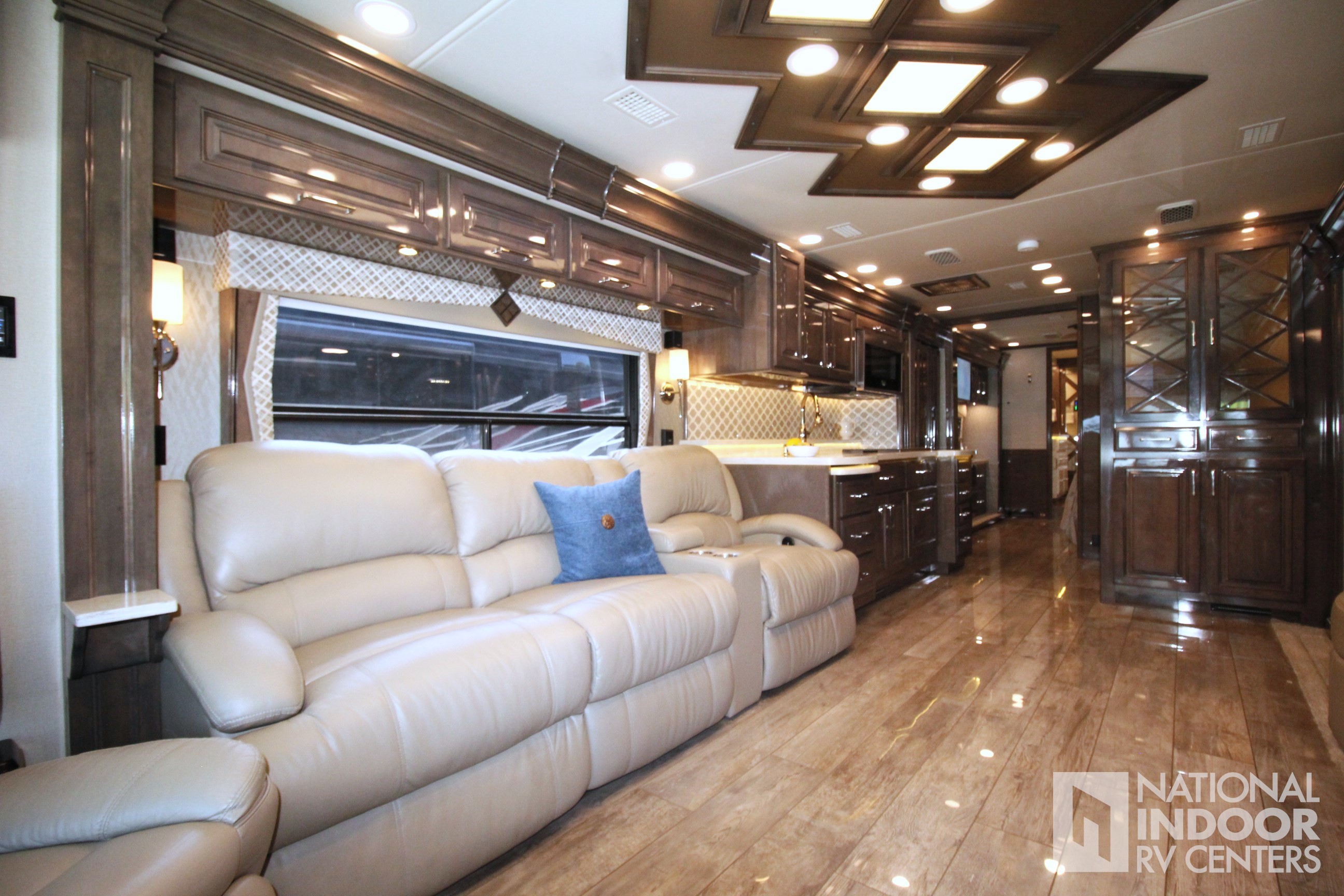

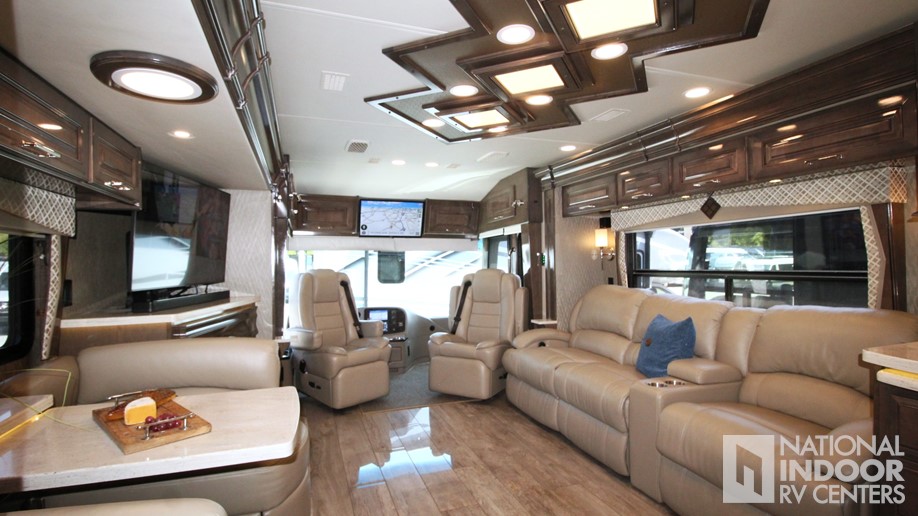

Furniture |
Villa italian ultra-leather furniture |

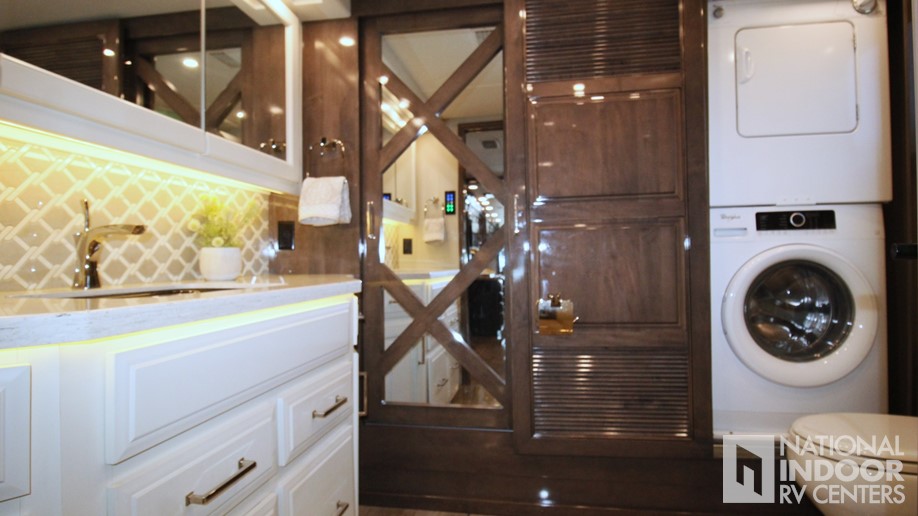

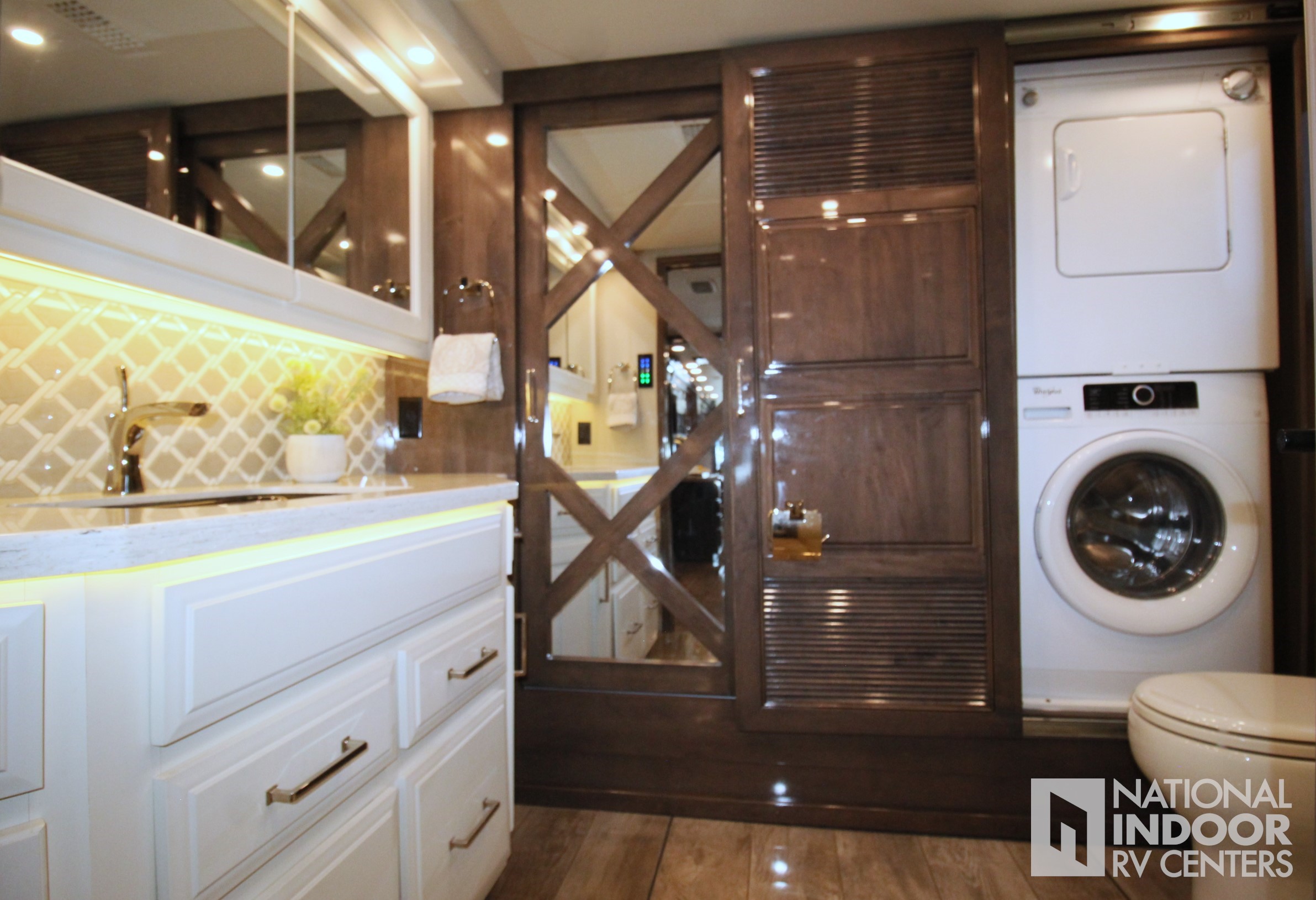

Washer/Dryer |
Whirlpool stacked washer and dryer |
Central Vacuuming System |
Central vacuum system |

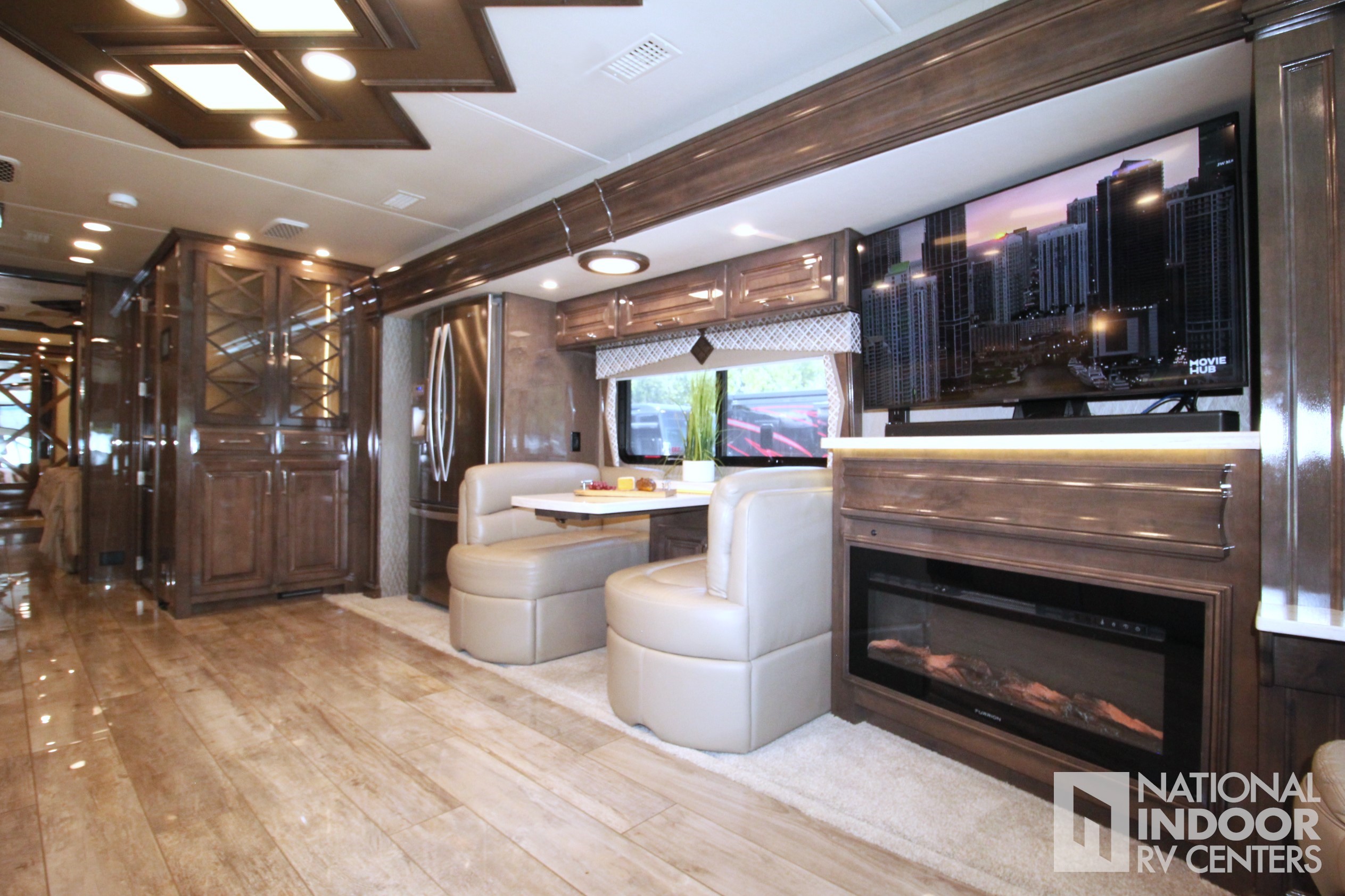

Electric Fireplace |
LED lit fireplace with 1500w heating element (44B, 42DEQ) |
Interior Doors |
Aire-Secure travel locks for all pocket doors |

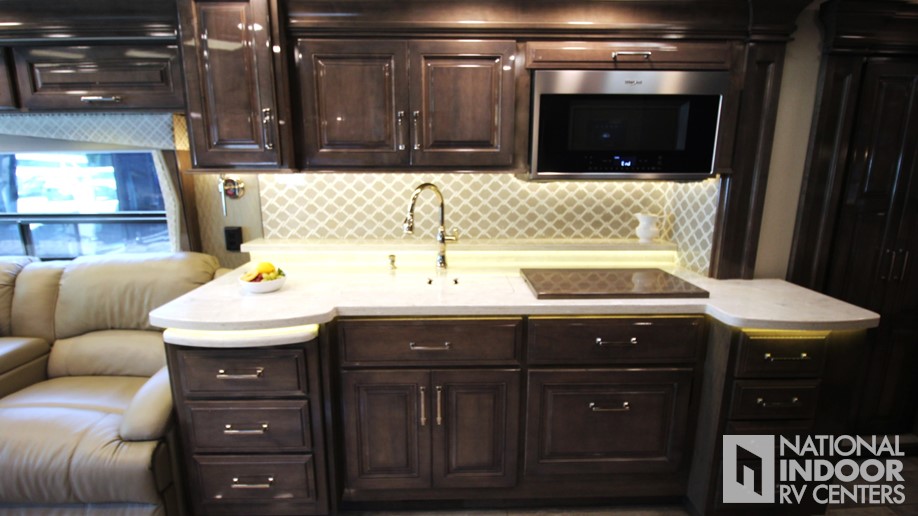

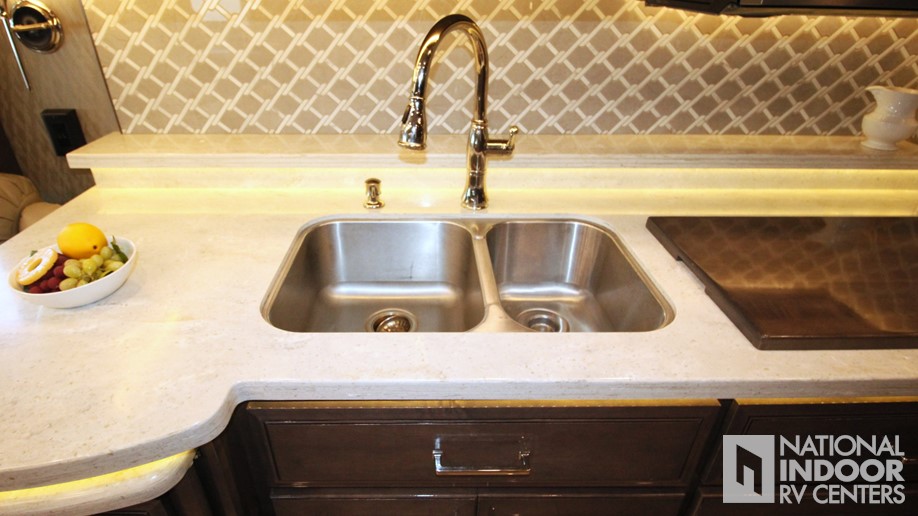

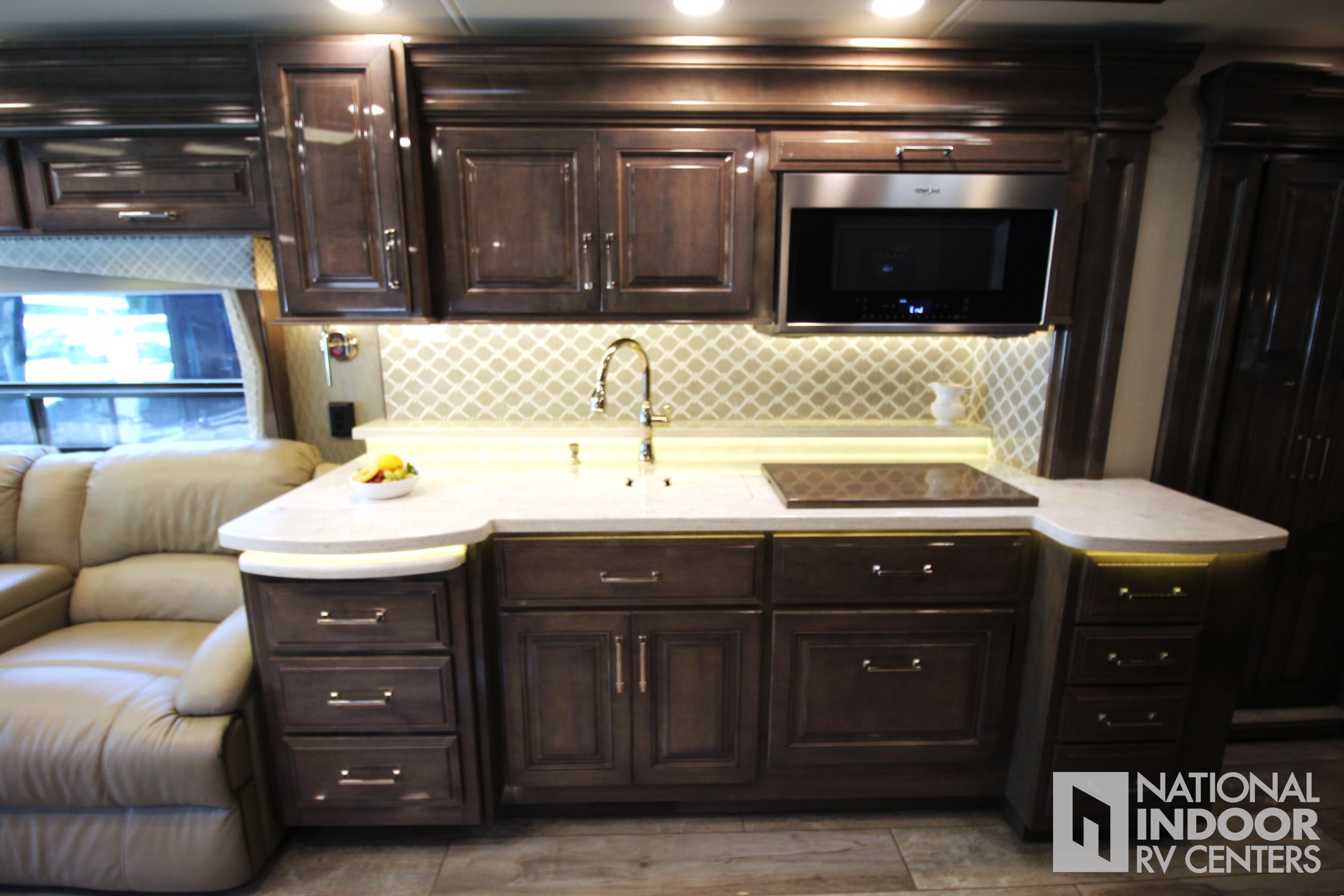

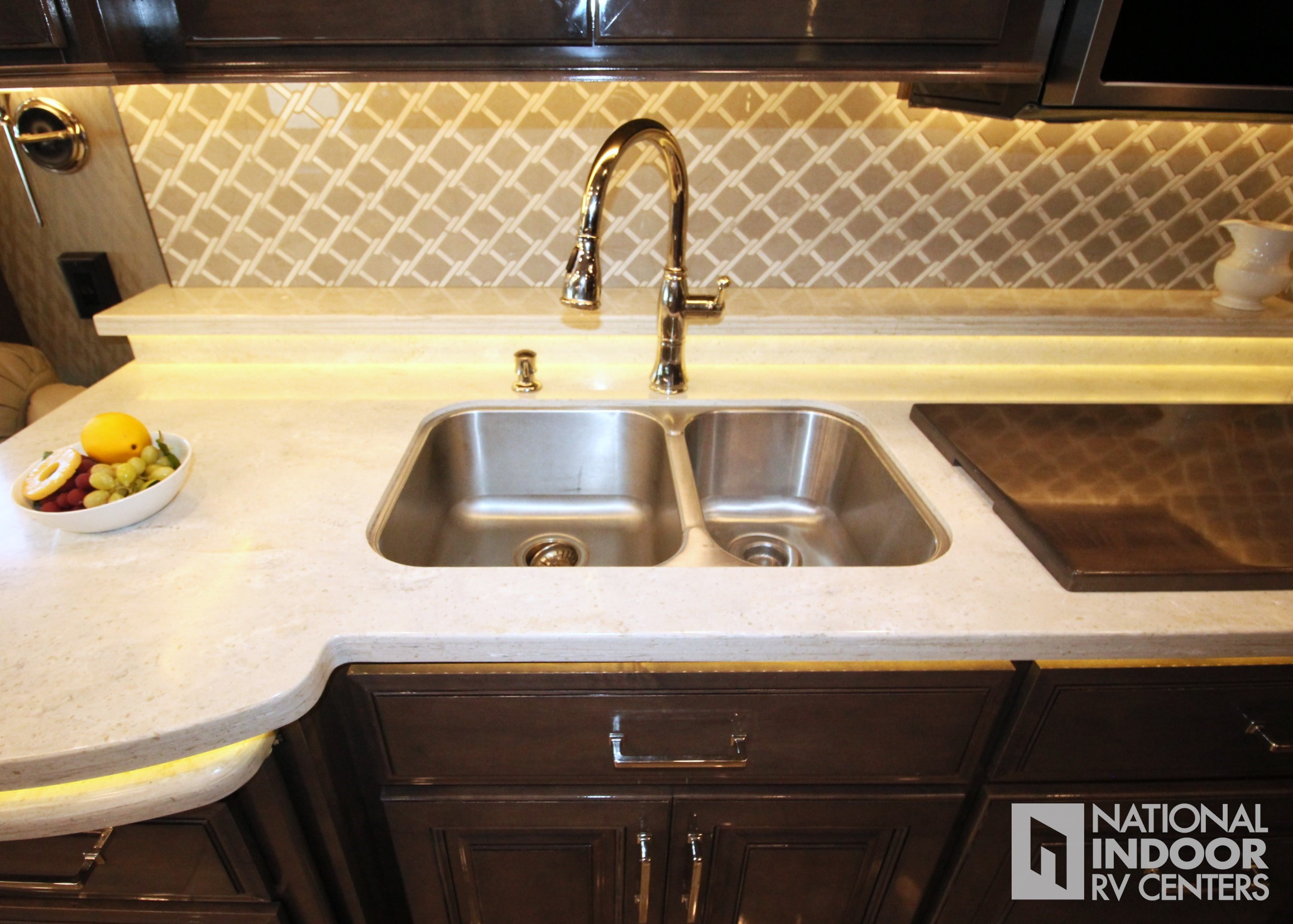

Countertops |
Solid surface countertops with stainless steel sink and dimable LED accent lighting |
Backsplash |
Porcelain tile backsplash |
Waste Basket |
Large deep drawer for waste basket with easy access trash chute (trash chute not available in 44F) |
Dishwasher |
Dishwasher with wood raised panel door front |
Cooktop |
Induction cooktop |
Microwave |
Whirlpool Gold 1.9 cu. ft. convection microwave oven |
Refrigerator |
Whirlpool residential refrigerator with ice maker and water dispenser |
Vent |
Maxxair power vent |

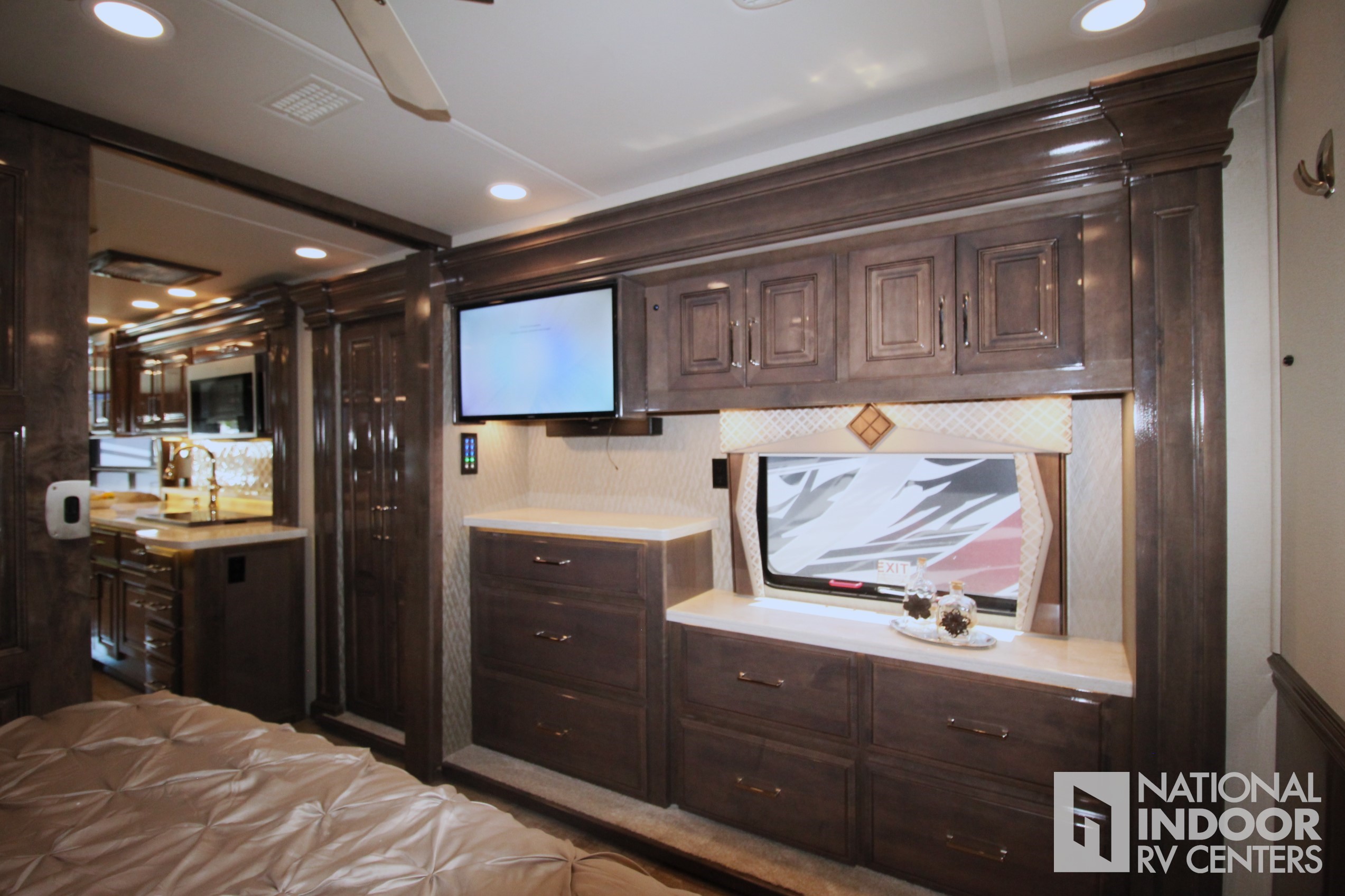

Television |
Samsung 32" LED Slim 1080P Smart TV |
Sound |
Bose Solo 5 sound bar |

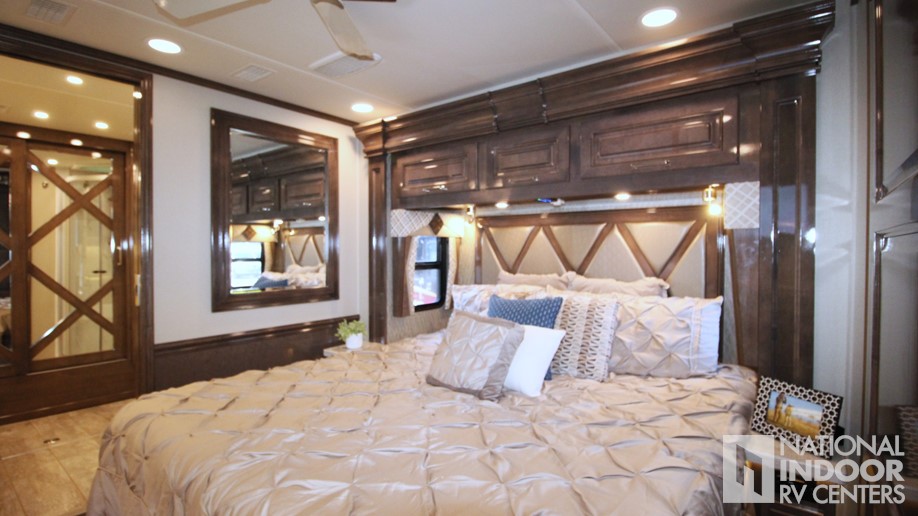

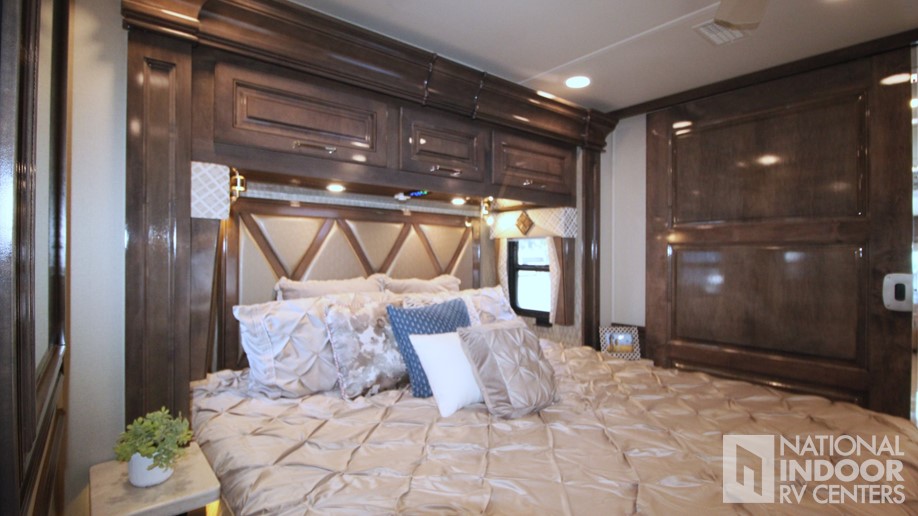

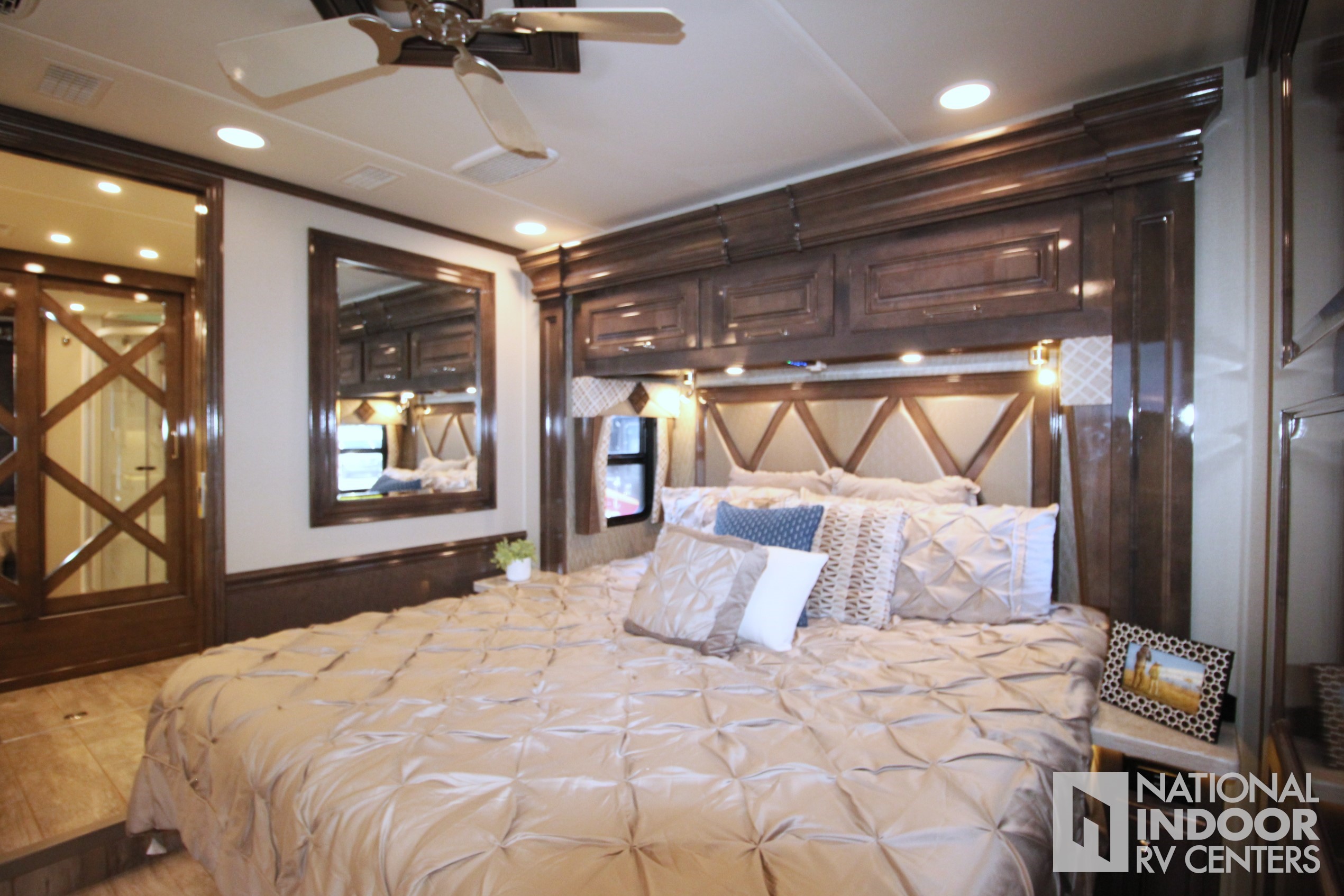

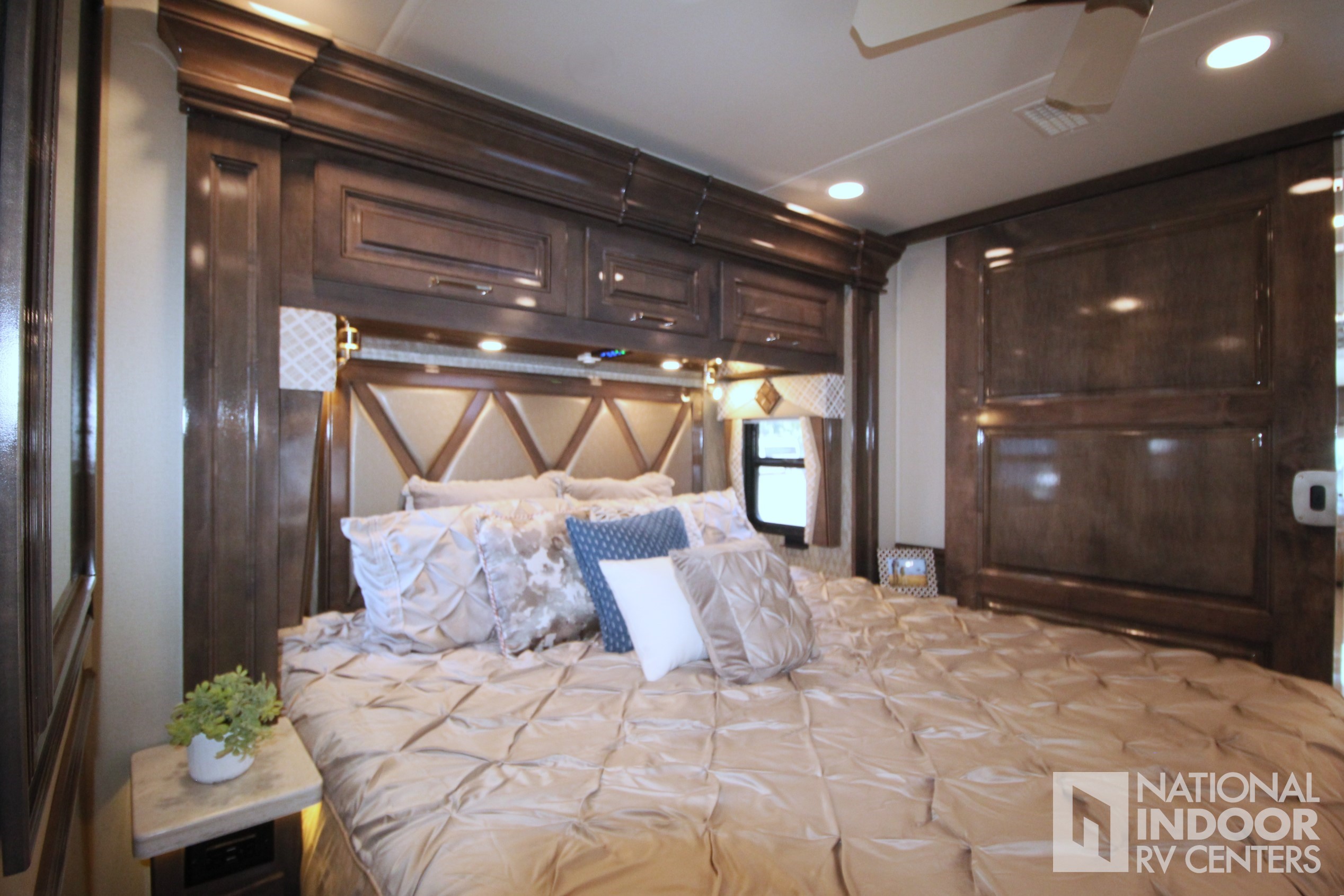

Bed |
Select Comfort Sleep Number king size mattress |
Nightstands |
Nightstands with USB ports and solid surface tops |
Ceiling Fan |
Ceiling fan |

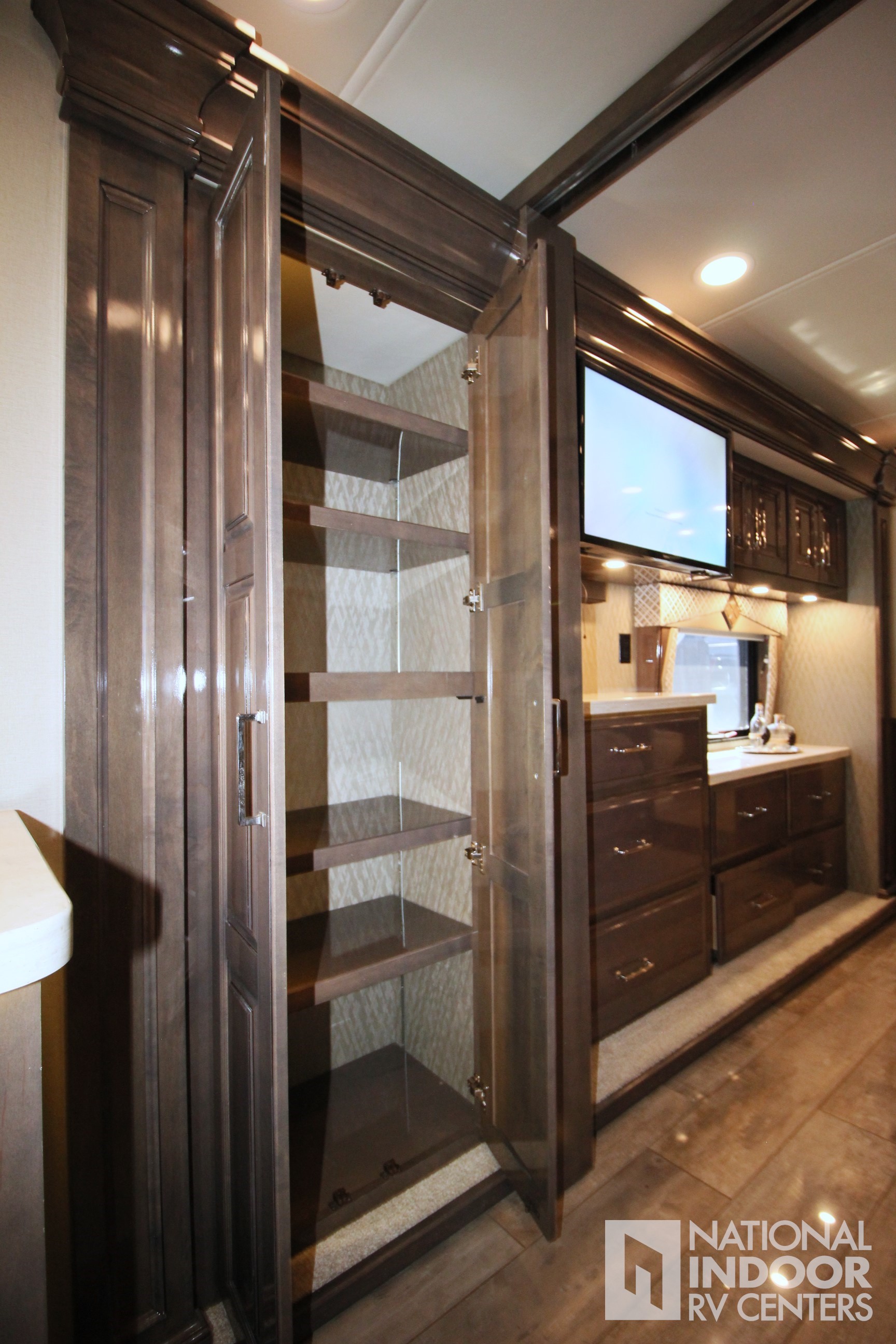

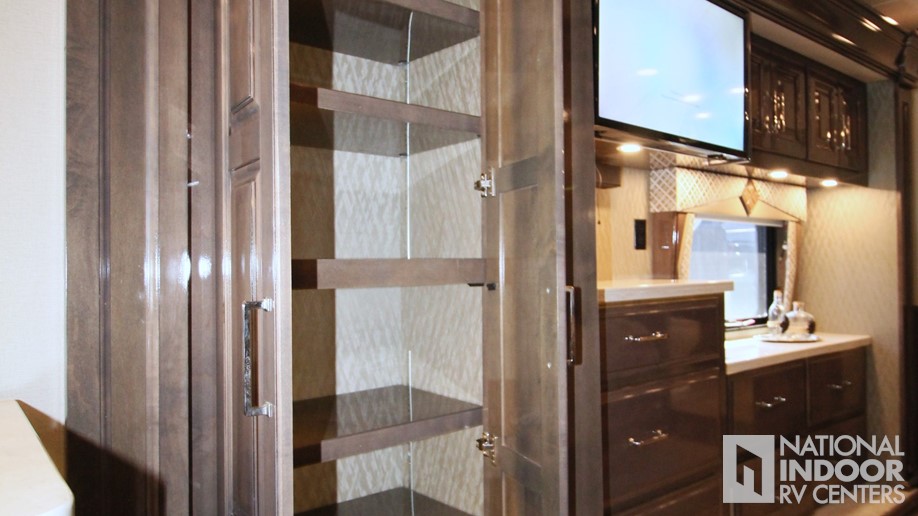

Wardrobe |
Large cedar-lined wardrobe with LED lit, motion activated closet rod |
DVD Systems |
Samsung Blu-ray player |

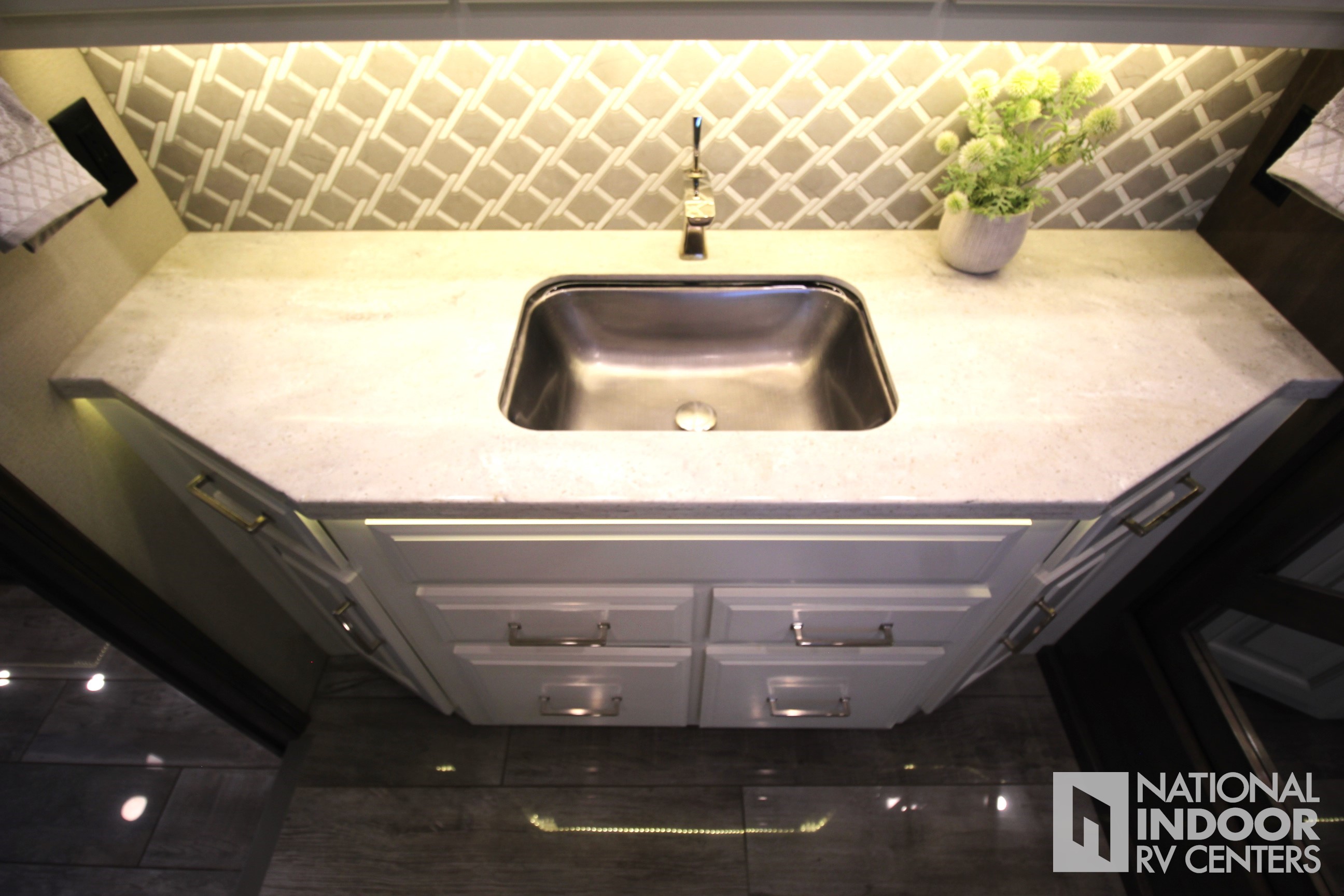

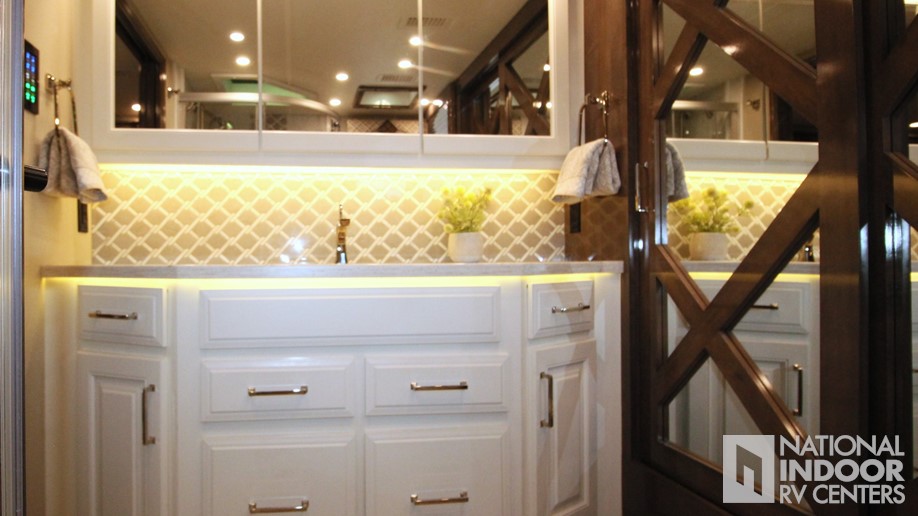

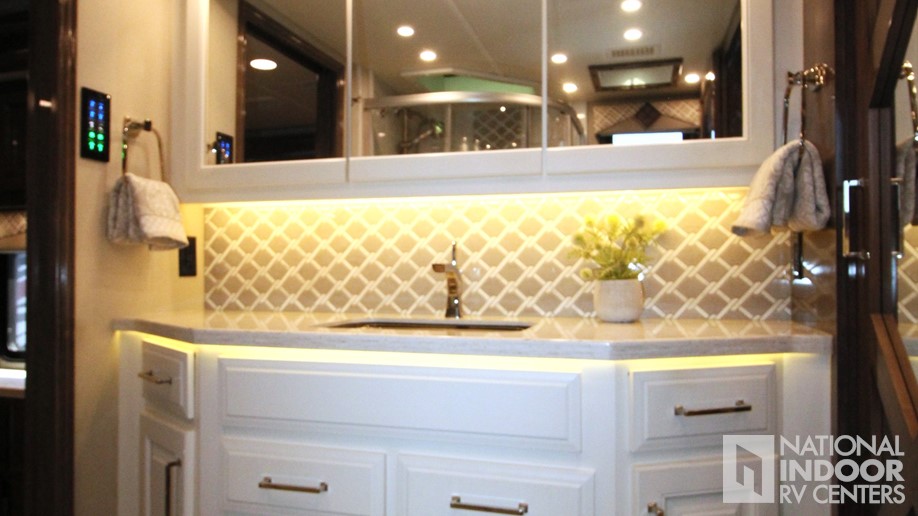

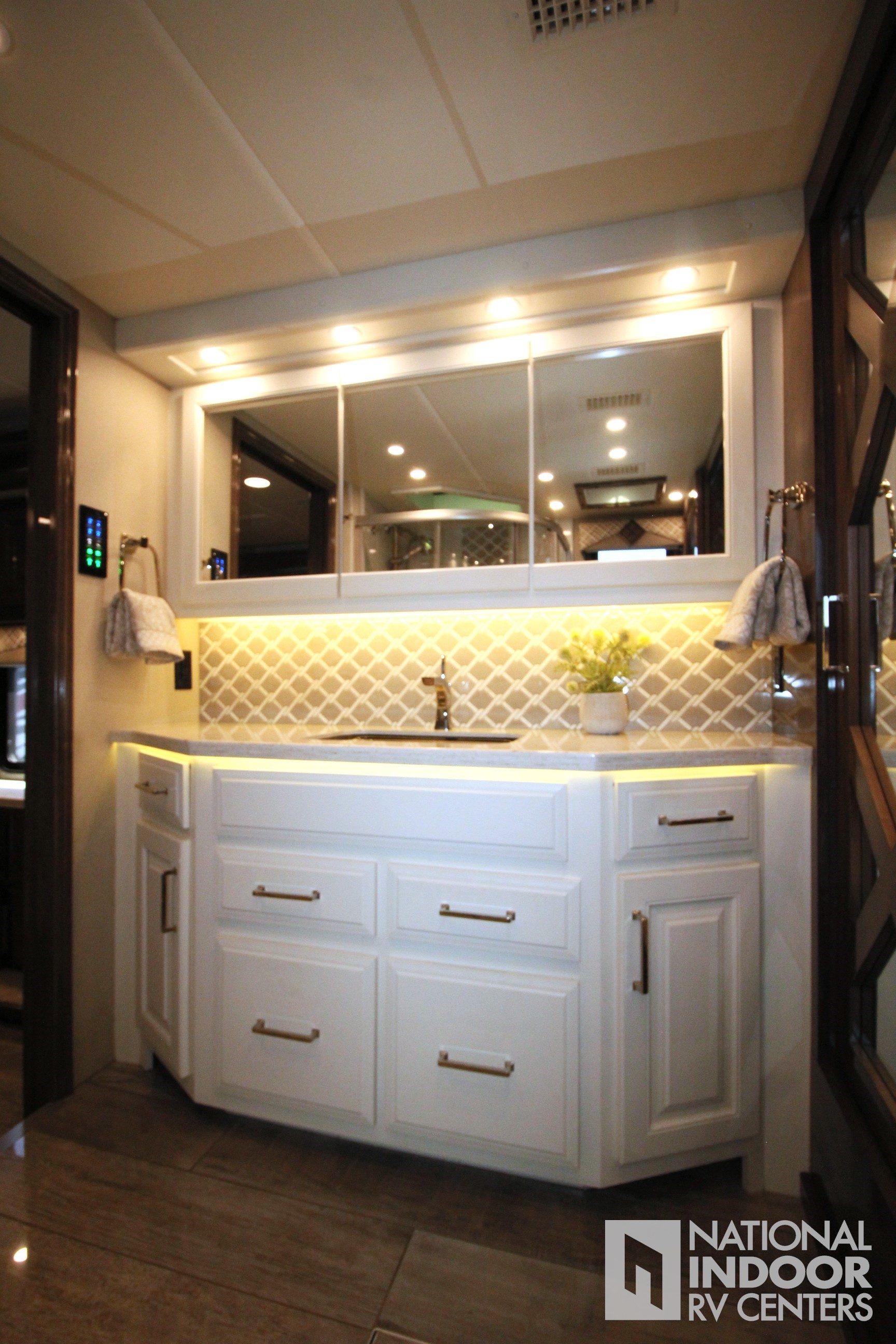

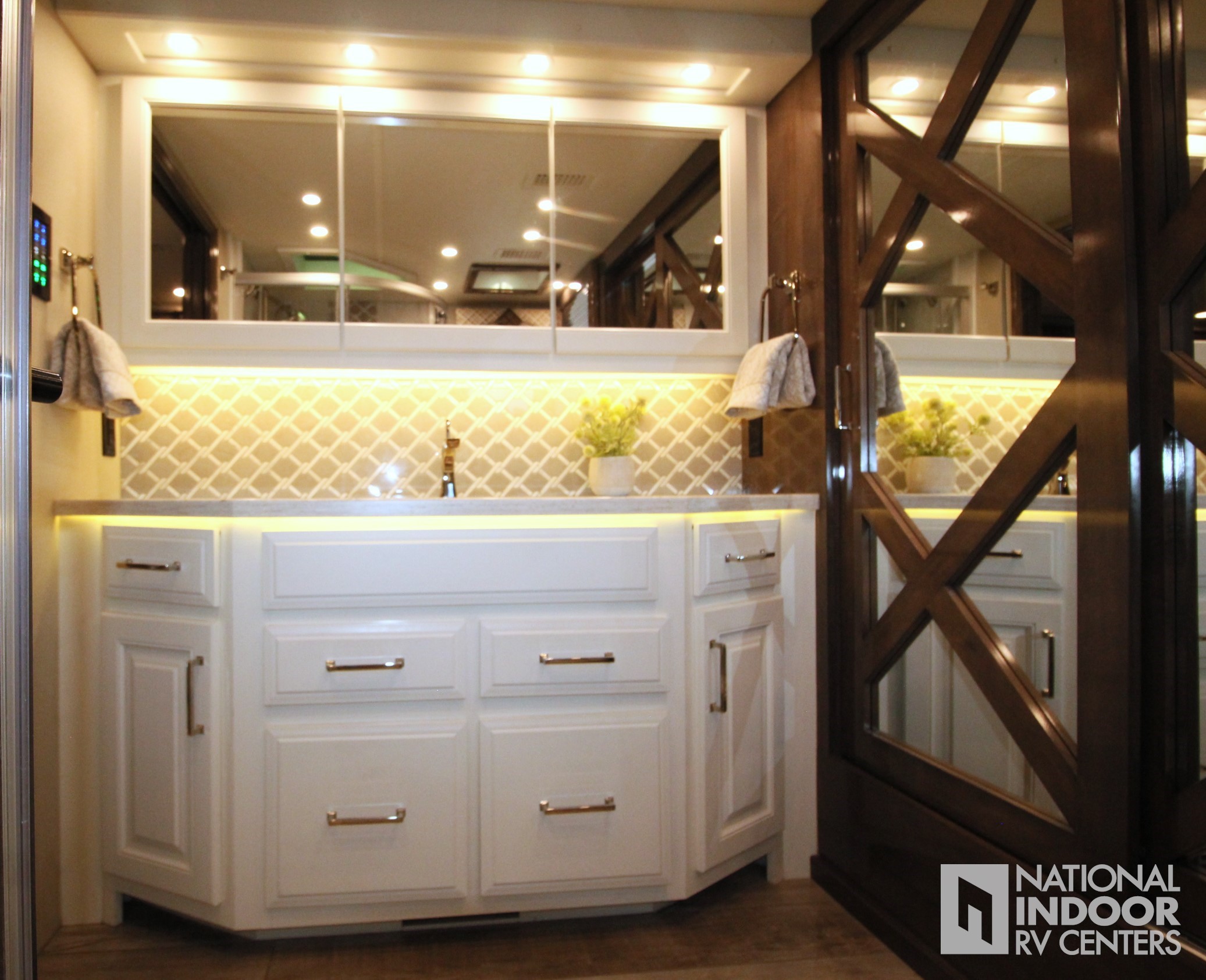

Countertop(s) |

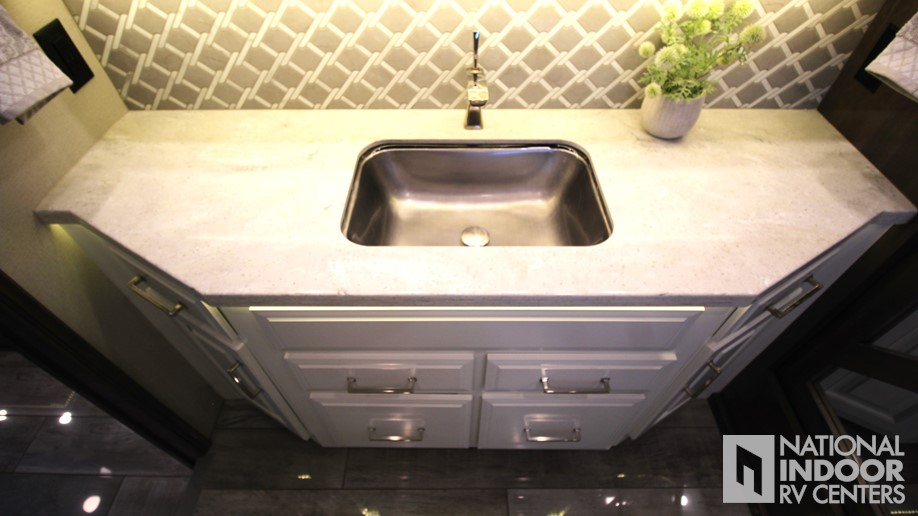

Solid surface countertops with integrated glass sink and LED accent lighting |

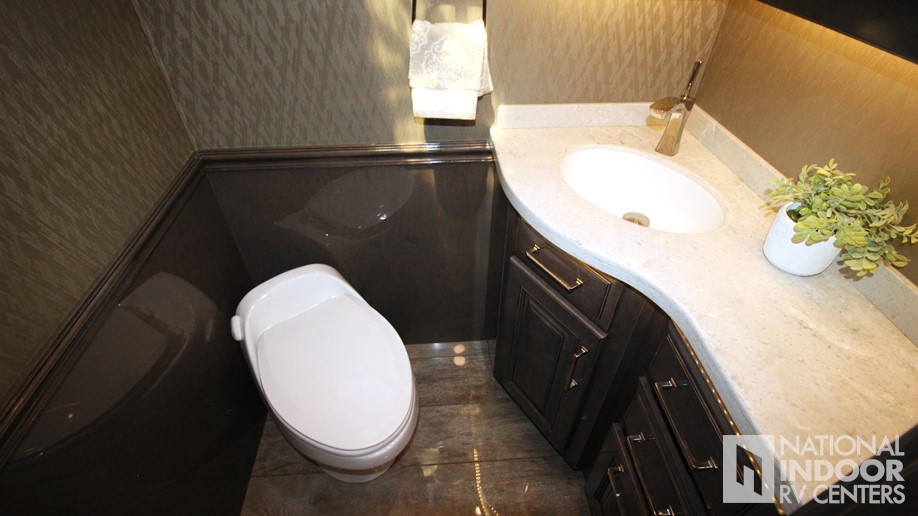

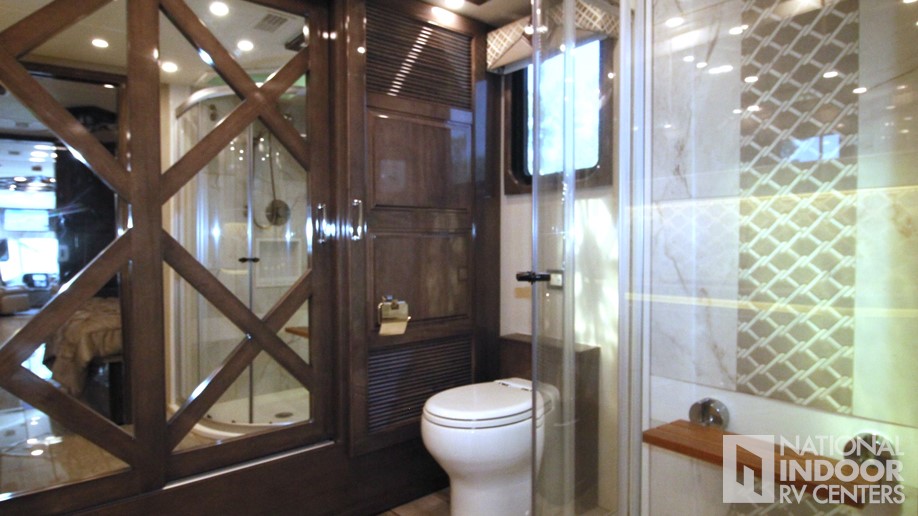

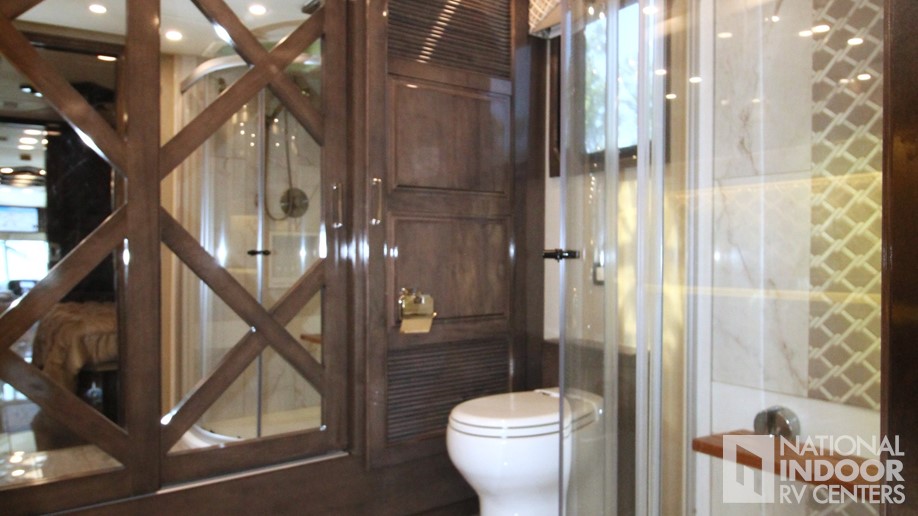

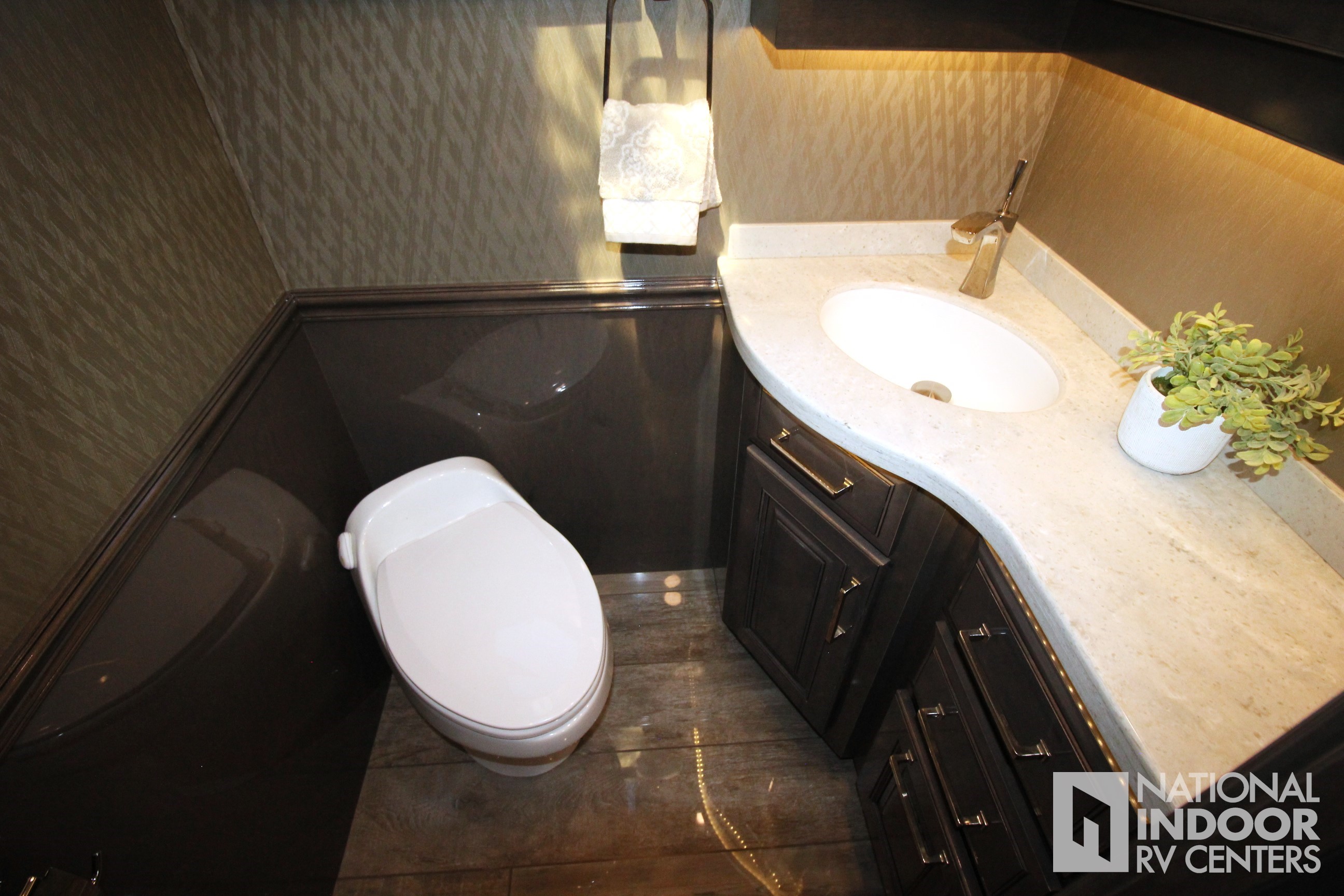

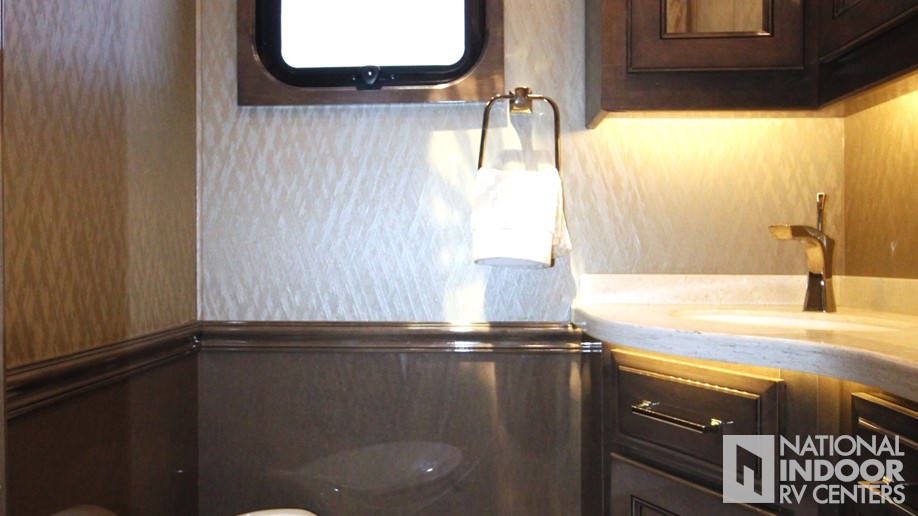

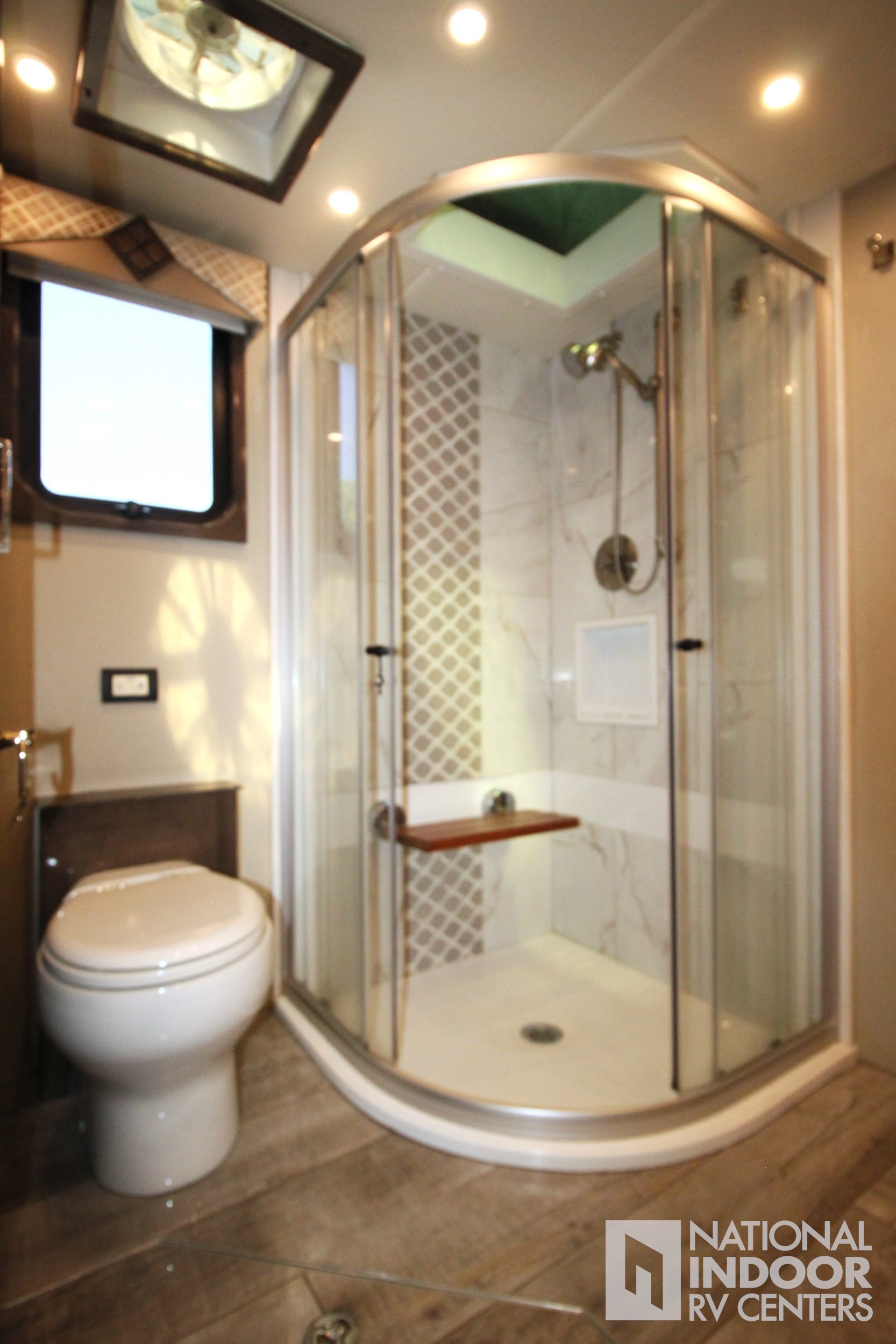

Toilet |
Thetford Tecma china toilet(s) with push button flush 44A, 44F, 42H, 44W); Tecma in Master Bath & Aria in stool room (44B) |

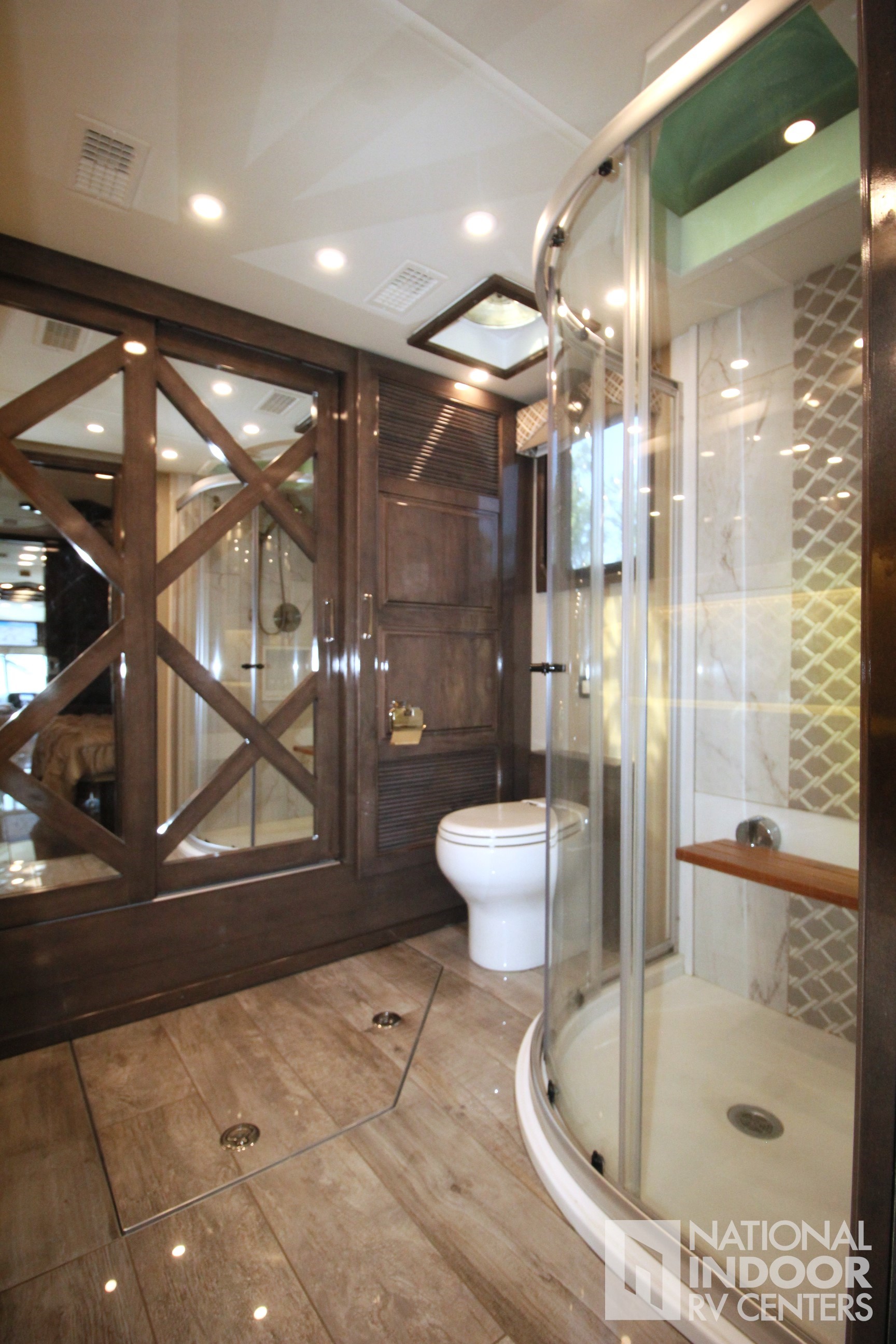

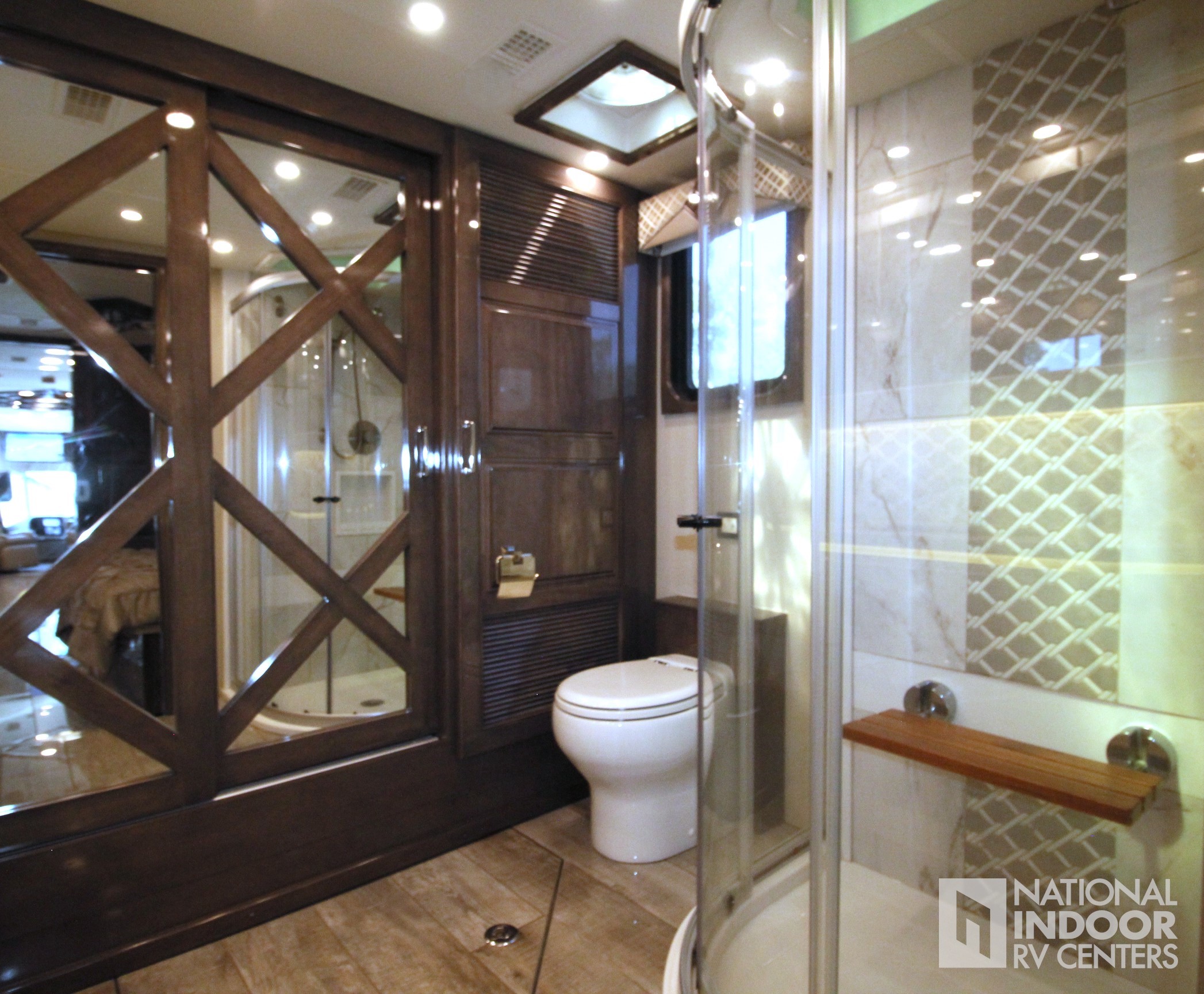

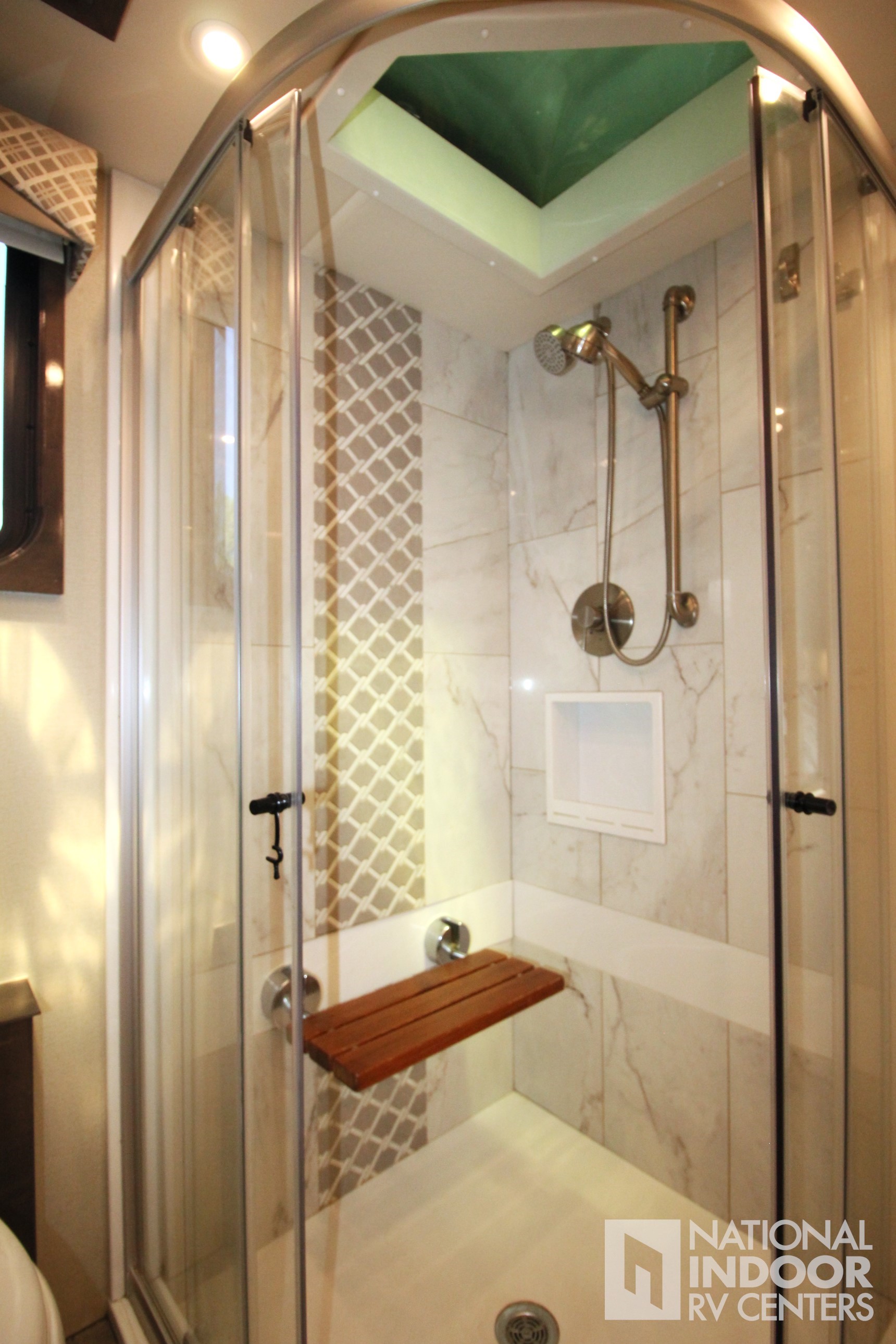

Shower |
Porcelain tiled shower wall with skylight |
Shower Seat |
Teakwood shower seat (Not available in 44F) |
Vent |
Maxxair Deluxe power exhaust vent fan with intake |

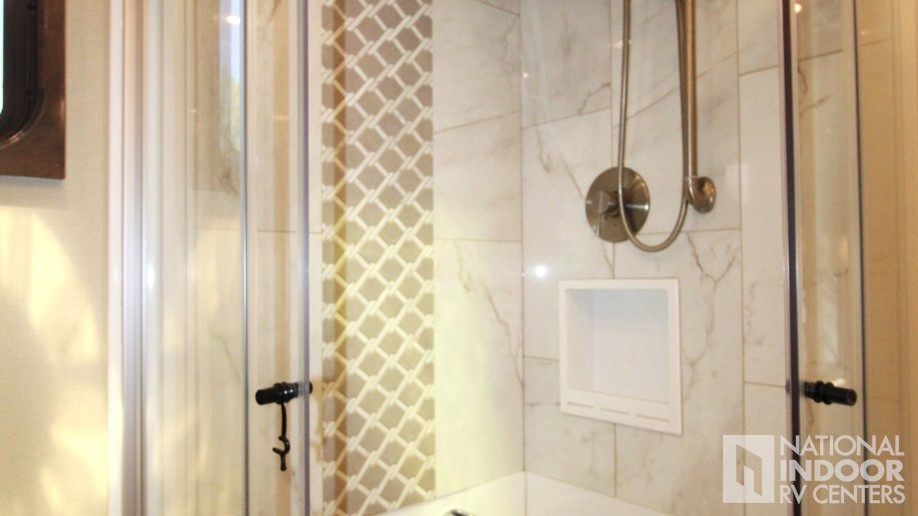

Shower Head |
Fixed shower head with separate hand held spray wand |
Security System |
Security system with glass shatter sensors |
Smoke Alarm |
Smoke alarm |
Carbon Monoxide Detector |
Combination carbon monoxide detector and gas alarm |
Security Safe |
Safe |
Canadian Standards |
CSA Optional |

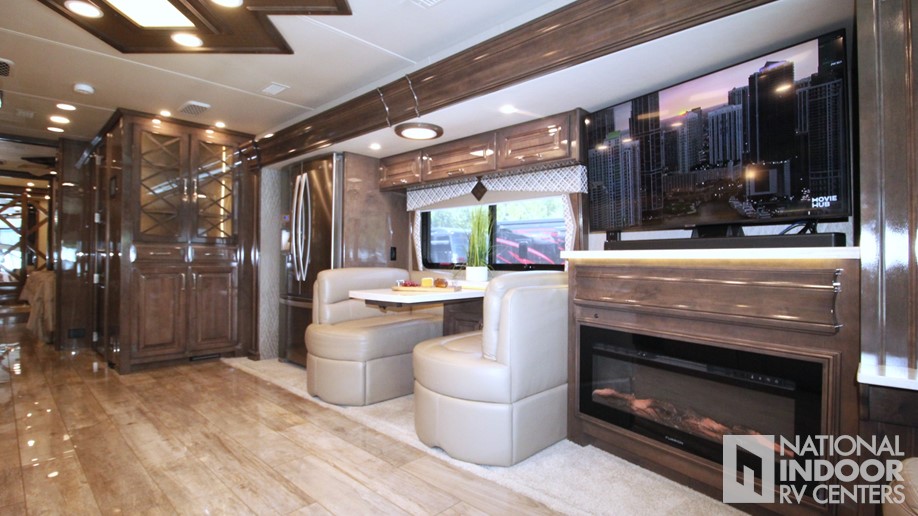

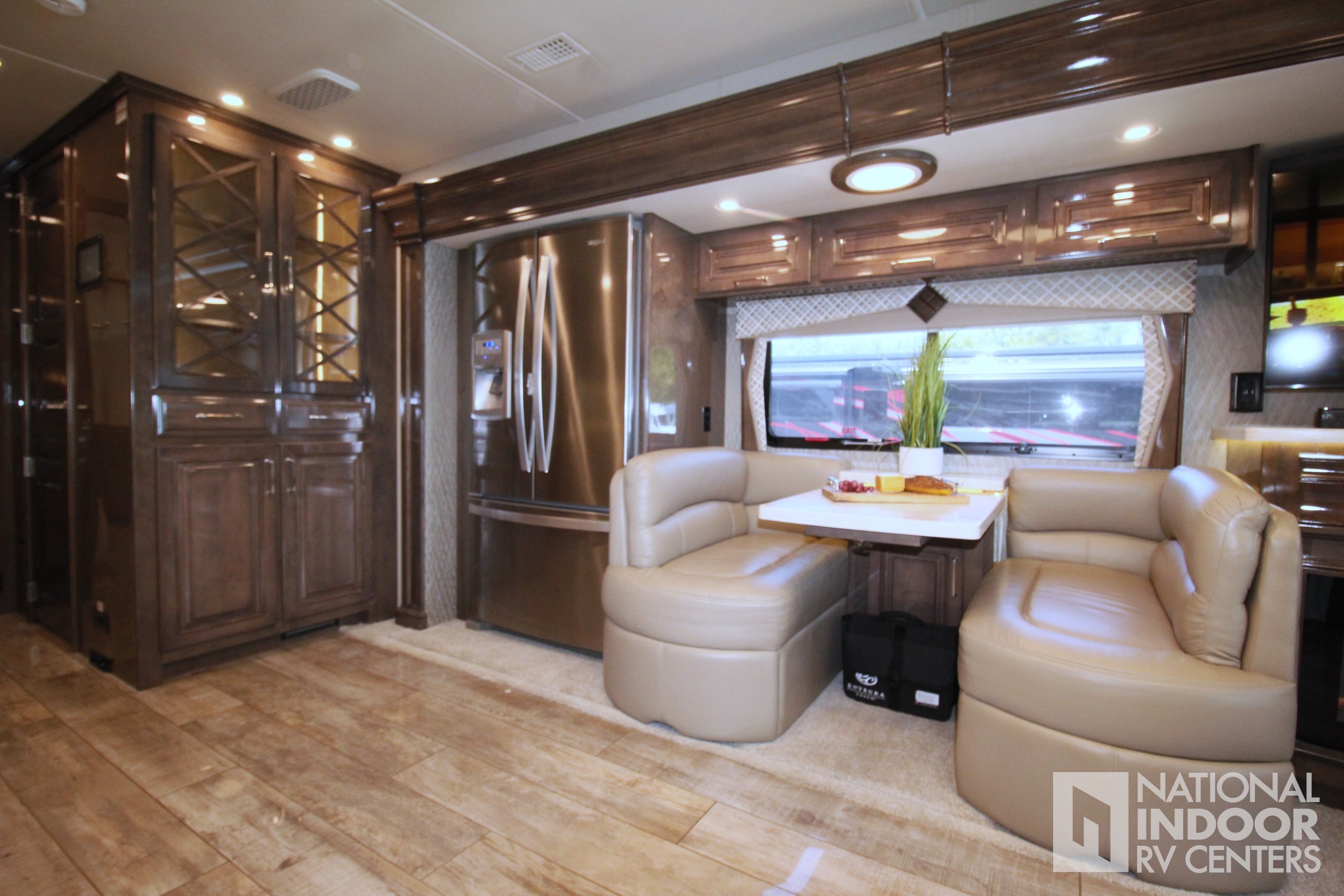

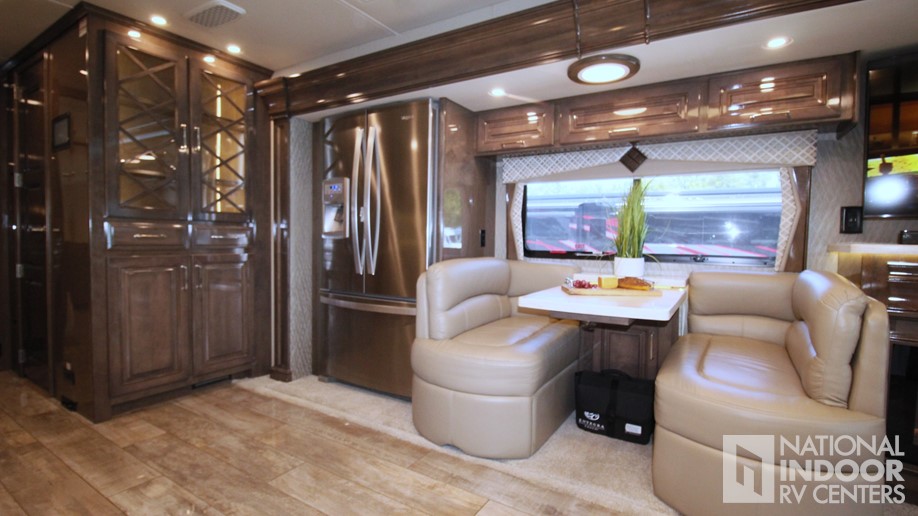

Dinette |
Booth dinette passenger side (44A) |
Theater Seating |
100" theater seat passenger side (44B and 42DEQ) |
Solar |
Solar panels (Dual-100 watt) with Morningstar SunSaver Duo solar panel charge controller |
WiFi Extender Antenna |
Winegard WIFI extender with 4G/LTE |
Dinette Option 2 |
Booth dinette driver side (44B, 44W, and 42DEQ) |

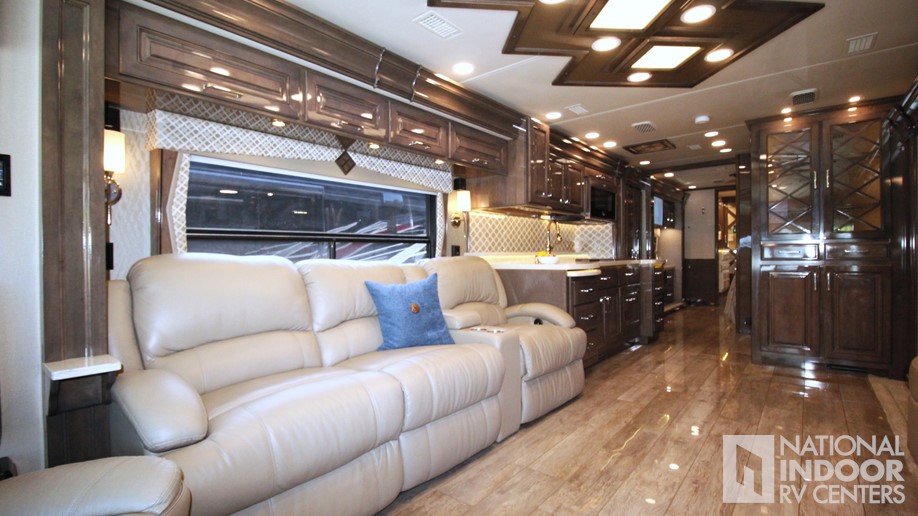

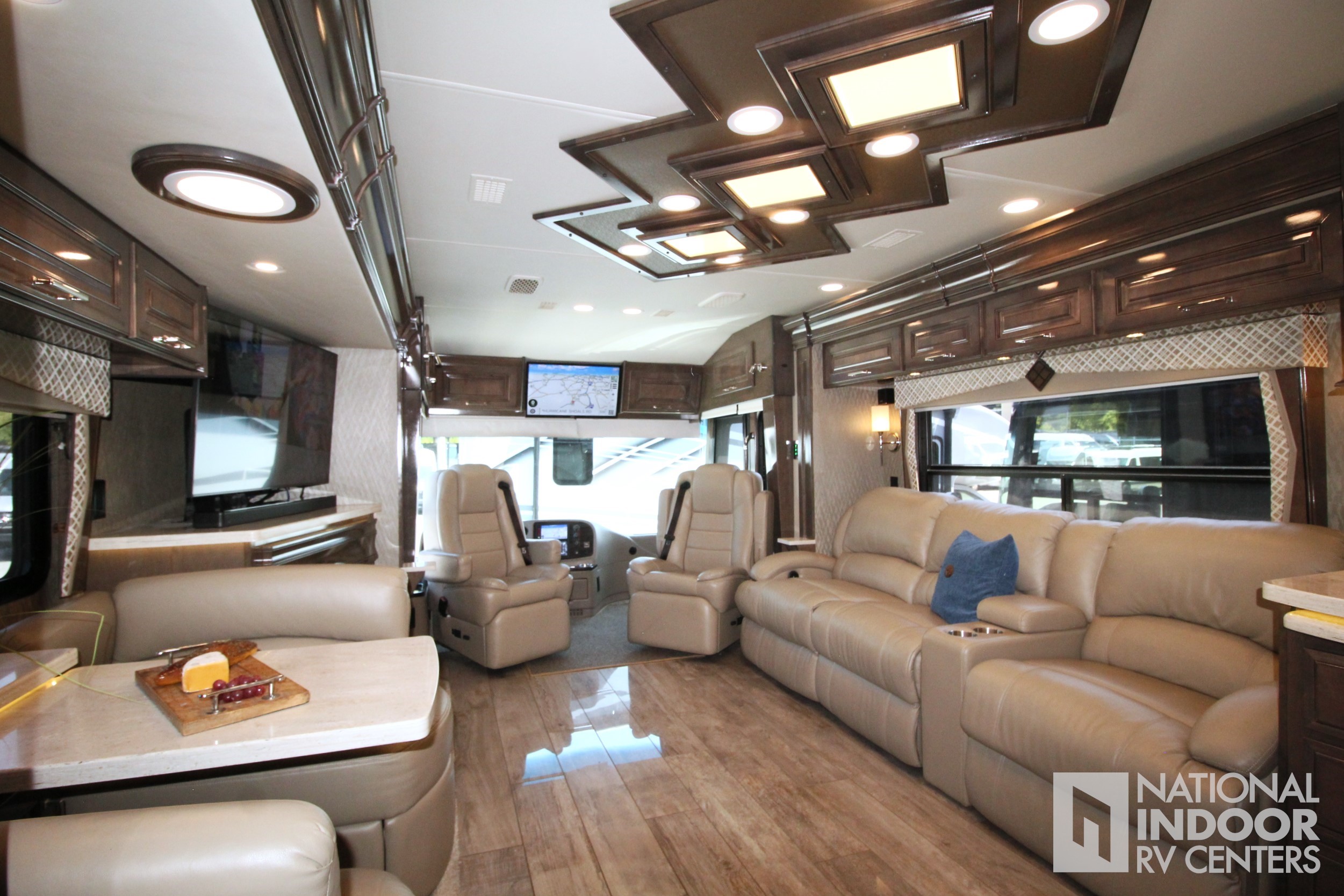

Reclining Sofa |
100" reclining sofa passenger side (44B and 42DEQ) |
Theater Seating Option 2 |
82" theater seat passenger side (44A) |
Theater Seating Option 3 |
82" theater seat driver side (44W) |
Theater Seating Option 4 |
74" theater seat passenger side (44F) |
Satellite Dish |
Winegard in-motion dome, roof mounted satellite dish |
