Chassis |
Spartan K3 raised rail chassis |
Engine |
Cummins X15 turbocharged 605HP engine 1,950-lb. ft. torque at 1,200 RPM |
Transmission |
Allison 4000 MH 6-speed transmission |
Engine Block Heater |
1,500 watt engine block heater |
Front Suspension |
Reyco Granning IFS independent front air suspension |
Rear Suspension |
Reyco Granning rear suspension |
Front Axle |
Reyco Granning IFS independent 20,000-lb. front axle and air suspension |
Rear Axle |
Dana rear axle 20,000-lb., tag axle 14,000-lb. |
Rear Axle Ratio |
4.30 rear axle ratio |
Hitch |
20,000-lb. hitch with 7/4-pin plug |
Tag Axle |
Reyco Granning Passive Steer Tag Axle and Tag axle air dump |
Leveling System |
Hadley air leveling system with auxiliary air compressor |
Radiator |
Side-mounted radiator |
Braking System |
All-wheel ABS disc brakes |
Engine Brake |
Three-stage engine brake |
Traction Control |
Automatic traction control |
Shocks |
Bilstein shocks - 60MM front & 46MM on rear/tag |
Fuel Tank |
150-gal. fuel tank (dual fill) |
DEF Tank |
15-gal DEF tank (dual fill) |
Tires |
Michelin® 365/70R 22.5" tires (front) and 315/80R 22.5" tires (rear) |
Turning Radius |
55-degree turning radius |
Chassis Battery |
Chassis batteries 2-12 volt |
Alternator |
210-amp alternator |
Air Connection |
Remote air connection |
Tow Air Brake System |
Safehaul tow air brake system |
Tire Pressure Monitoring |
Tire pressure monitor system |
Frame |
X-Bridge frames welded into chassis frame |
Underbelly |
Insulated, enclosed, thermostat controlled storage area with heated floor |
Insulation |
Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
Floor |
2" x 4" floor truss construction |
Floor Decking |
3/4" 7-ply plywood main floor decking |
Walls |
Aluma-Tru Superstructure construction on 12"-16" centers |
Slideouts |
Flush-mounted electric-powered slideout rooms with VegaTouch control |
Roof |
One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss |
Heating System |
Aqua-Hot® 450 diesel hydronic water and heating system with in-floor heat throughout and engine preheat |
Air Conditioning |
15,000-BTU low profile A/Cs (3) with heat pumps and condensation drain system |
Electrical Hookup |
50-amp power cord with electric reel |
Generator |
Onan 12,500-watt diesel generator with auto gen start, on powered slide-out tray |
Inverter |
3,000 watt pure sine wave inverters (2) |
Batteries |
L16 AGM batteries (4), (6v/390 amp hrs. ea.), Battery boost system |
Power Management |
Premium surge protector transfer switch |
Water Hose w/ Electric Reel |
Water hose with electric reel |
Tank Flush |
Black holding tank sprayer |
Black Tank Management |
Sani-Con® Turbo macerator holding tank dump system with electric gate valves & manual back-up system |
Water Monitoring |
SeeLevel™ tank monitoring system |
Water Filtration |
City and tank water filtration system |
Winterization Drain System |
Winterizing drain system |
Exterior Walls |
2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
Front/Rear Cap |
Steel-reinforced front cap and windshield frame |
Stainless Steel Accents |
Executive Bus Armor 10" stainless steel trim |
Clearance Accent |
Lighted, chrome clearance accent |
Exterior |
3M front protective film mask |
Headlights |
LED high and low beam headlights |
Fog Lights |
LED fog lights |
Daytime Running Lights |
Daytime running lights |
LED Lights |
LED marker lights, turn lights and license plate light |
Docking Lights |
LED docking lights |
Accent Lights |
LED accent lights on underside of slideout rooms passenger side |
Third Brake Light |
LED third brake light |
Keypad |
Lighted grab handle with keypad system |
Entrance Steps |
Deluxe concealed entry step / Lighted Entegra step |
Entrance Door |
Aire-Secure™ travel locks for all pocket doors |
Door Awning |
Girard power entrance door awning with LED lights |
Window Awnings |
Girard Ultra window shades and slide-out awnings |
Patio Awnings |
Roof mounted Girard Vision dual pitched patio awning w/ LED lights |
Mirrors |
Chrome, heated, remote control, side-view Ramco mirrors with blind-spot indicators |
Windows |
Frameless, tinted, dual-pane, Hehr safety-glass windows |

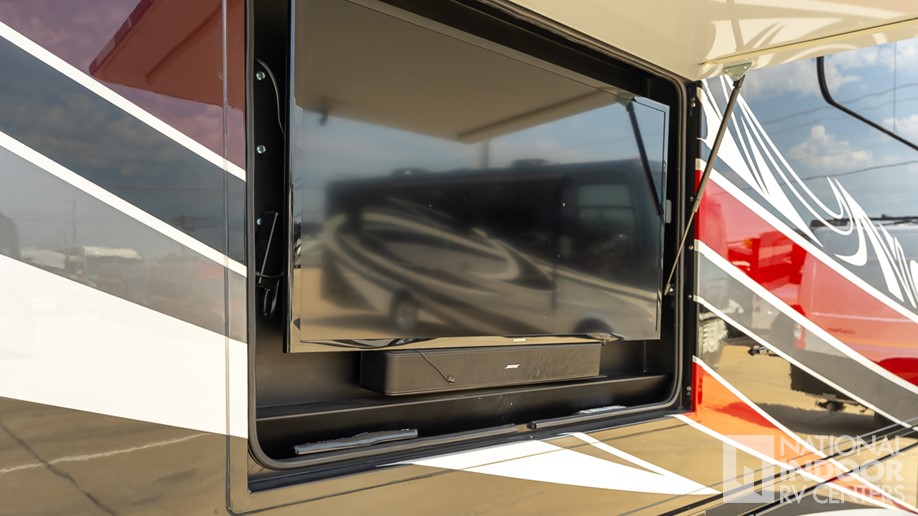

Entertainment |

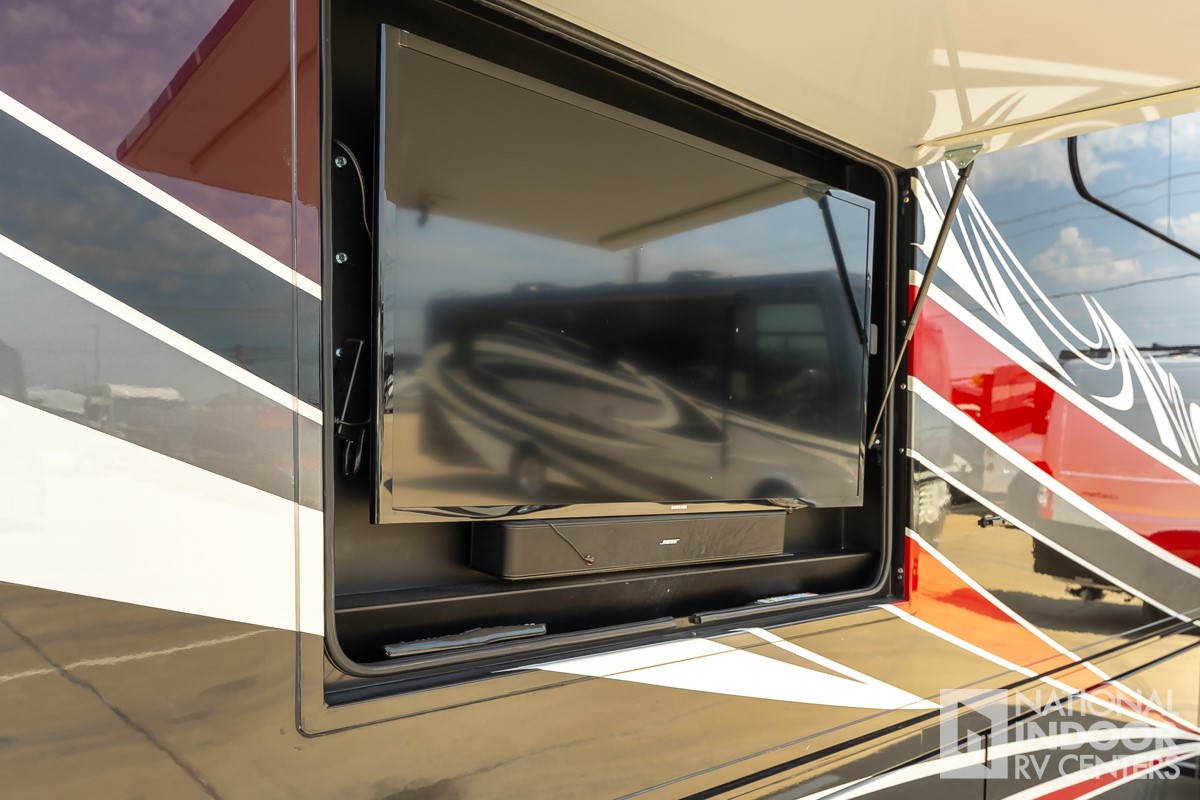

40" Samsung LED HDTV and Bose Solo 5 sound bar on TV bracket with extend, tilt and swivel arm |
Utility Center |
Exterior utility center, heated and enclosed with system monitor panel |
Cargo Features |
Power Slideout cargo trays |
Satellite Dish |
Winegard in-motion satellite dome with prep for Trav'ler satellite dish |
TV Antenna |
Winegard Rayzar Automatic powered TV antenna |
Engine Door |
Power engine door with manual override |

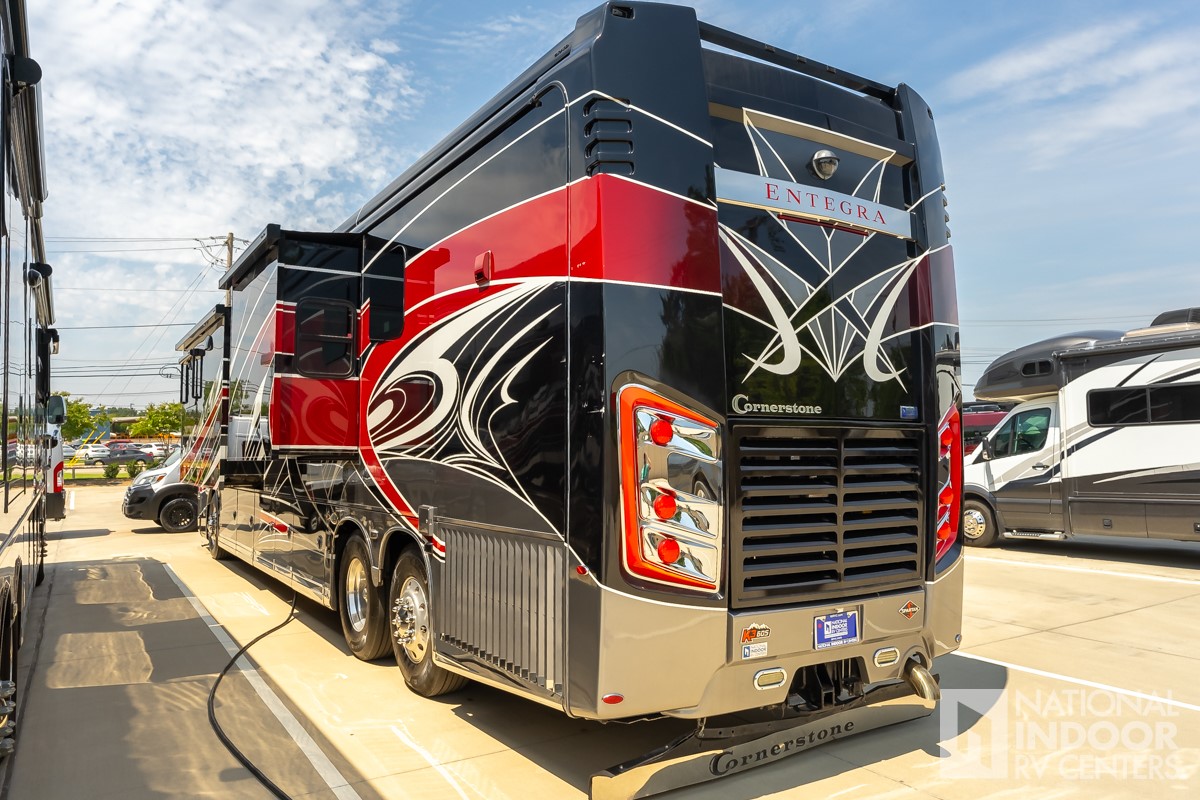

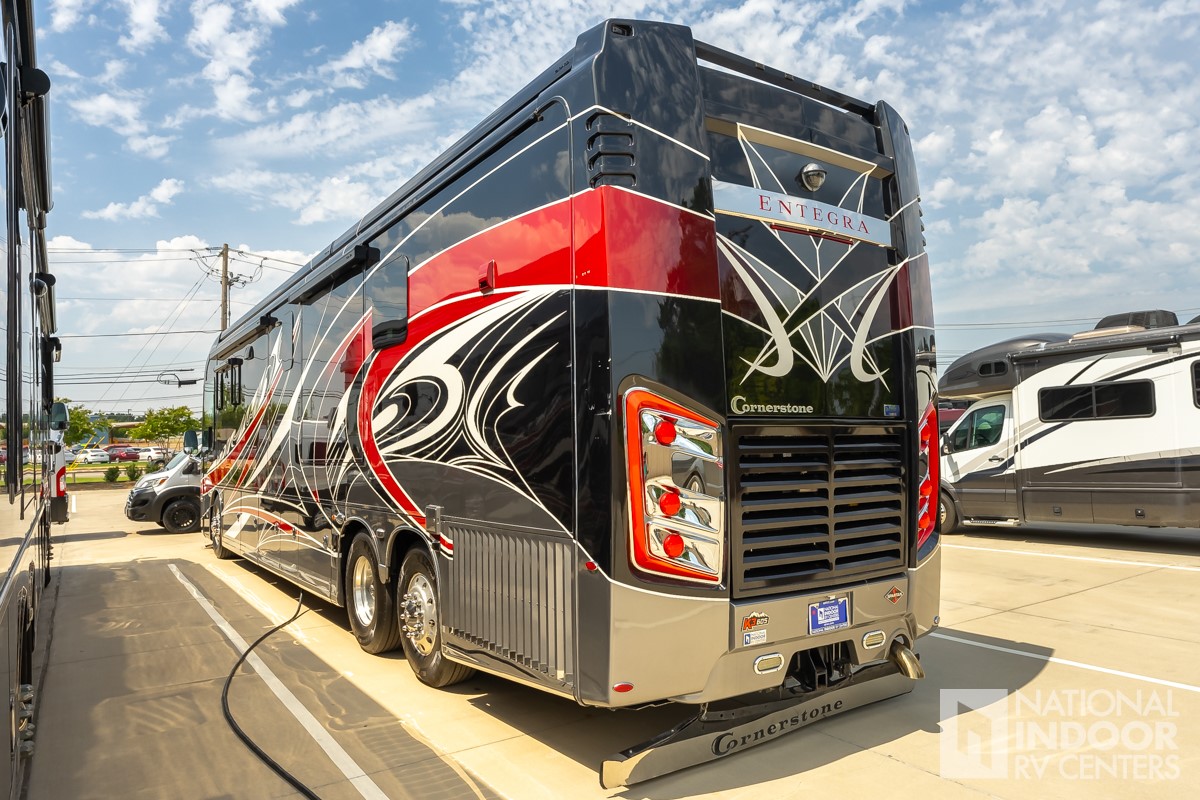

Rear Mudflap |
Full-width rear mudflap, with chrome "Cornerstone" nameplate |
Lights |
Porch light and motion sensor security lights |
Flooring |
Power flush stepwell cover |
Visors & Privacy Shade |
Power front sun visors and privacy shade |
Windshield |
Ultra-Vision one-piece wrap-around tinted windshield |
Driver / Passenger Seats |
6-way power, lumbar, air cooled, heated, leather driver and passenger seats with integrated 3-point belt |
Start |
Push button start |
Steering Wheel |
Wood-grain, leather-wrapped, tilt and telescoping steering wheel with integrated controls for radio, cruise, and wipers |
Side Consoles |
Molded side consoles |

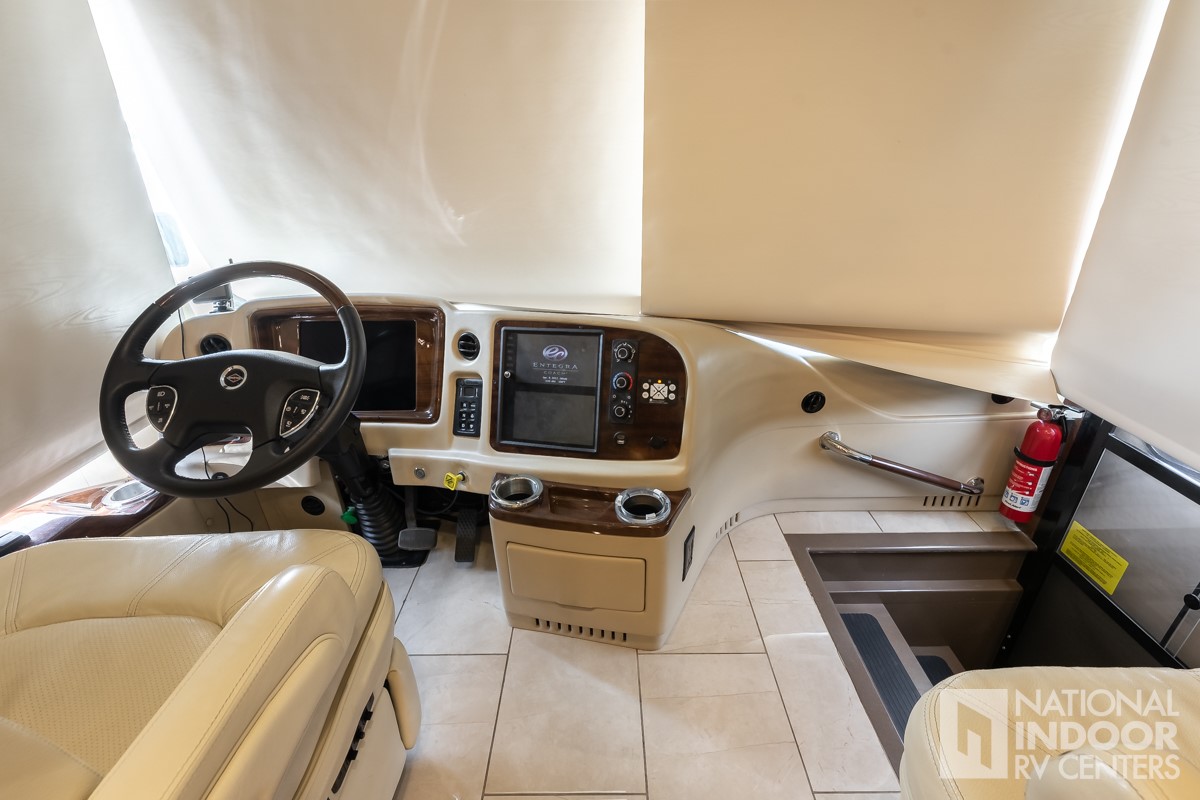

Dash |

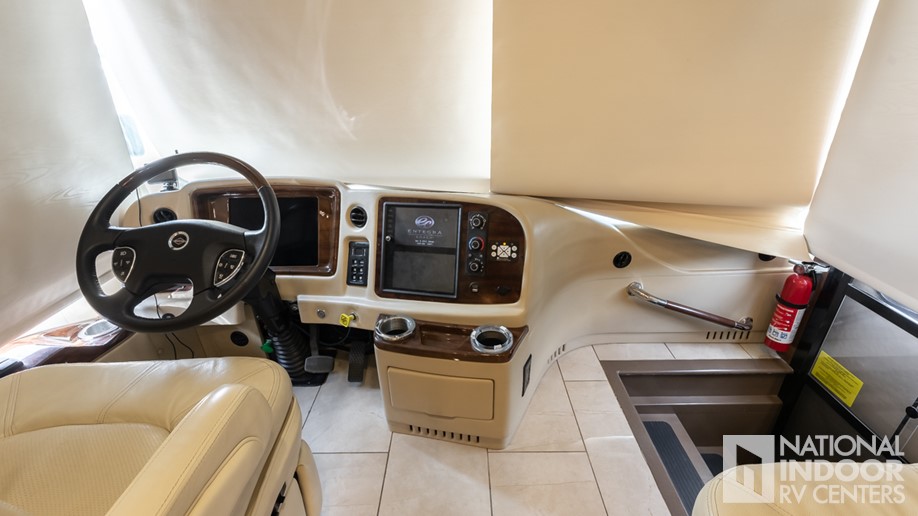

Valid 15" digital dash with selector knob |
Monitoring System(s) |
Message center and monitoring systems included in Valid digital dash |
Infotainment System(s) |
Glass panel, dual 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control, house mode whole coach audio distribution, and integrated VegaTouch coach control |
Sound System |
JBL® premium audio sound system with amplifier, speakers and subwoofer |
Leveling System |
Equalizer hydraulic automatic leveling system |
Power Features |
Battery boost system |
Pedals |
Powered adjustable foot pedals |
Cameras |
"Total Vision" rear camera and digital side cameras |
Additional Amenities |
Two dual USB ports |
Collision Mitigation |
Spartan Advanced Protection System equipped with collision mitigation, adaptive cruise control & electronic stability control |
Blind Spot Monitoring |
Blind Spot Monitoring System, tuned to detect objects within the lane of traffic on either side of the vehicle |
Lighting System |
VegaTouch pad system, for complete integration of coach controls |
Lighting |
Dimmable LED recessed 12V lighting |
Flooring |
High Gloss 12" x 24" porcelain tile hand laid with granite inlay design |
Window Treatments |
Powered solar day and black out night shades |
Television - Living Room |
Samsung® 50" HDTV |
Television - Front Overhead |
Samsung® 32" LED HDTV in front overhead |
Sound - Living Room |
Bose SoundTouch 300 sound system |
DVD Systems |
Blu-ray players in living area & bedroom |
Furniture |
Leather hide-a-bed(s) |

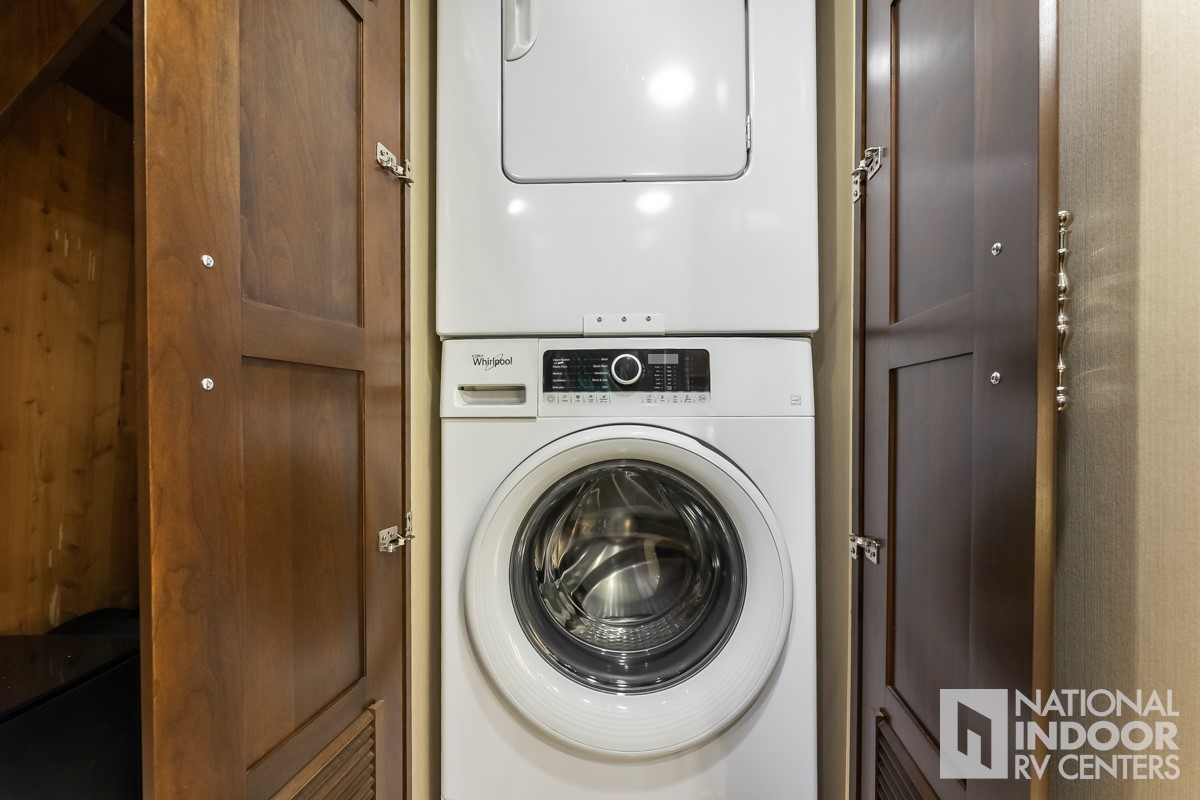

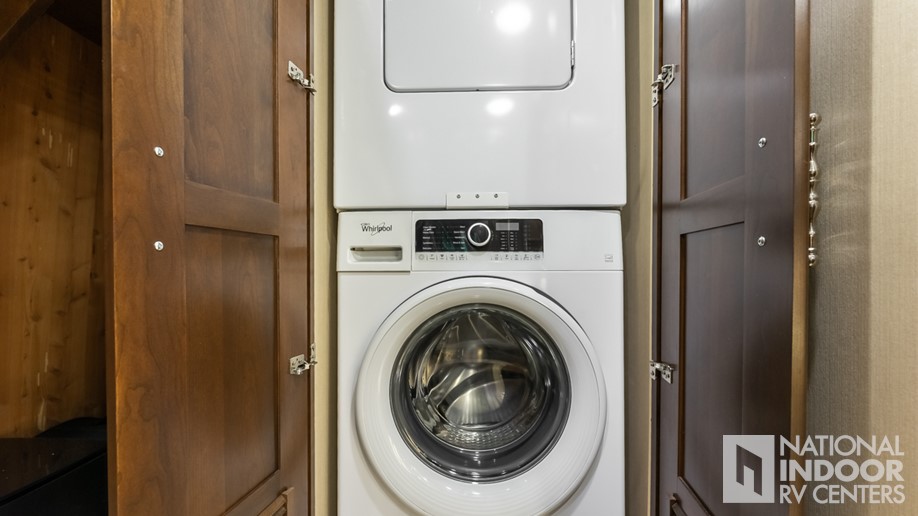

Washer/Dryer |
Stacked washer and dryer |
Central Vacuuming System |
Central vacuum system |
Additional Storage |
In-step storage with pull-out tray |
Electric Fireplace |
LED lit fireplace (45B and 45Y) |

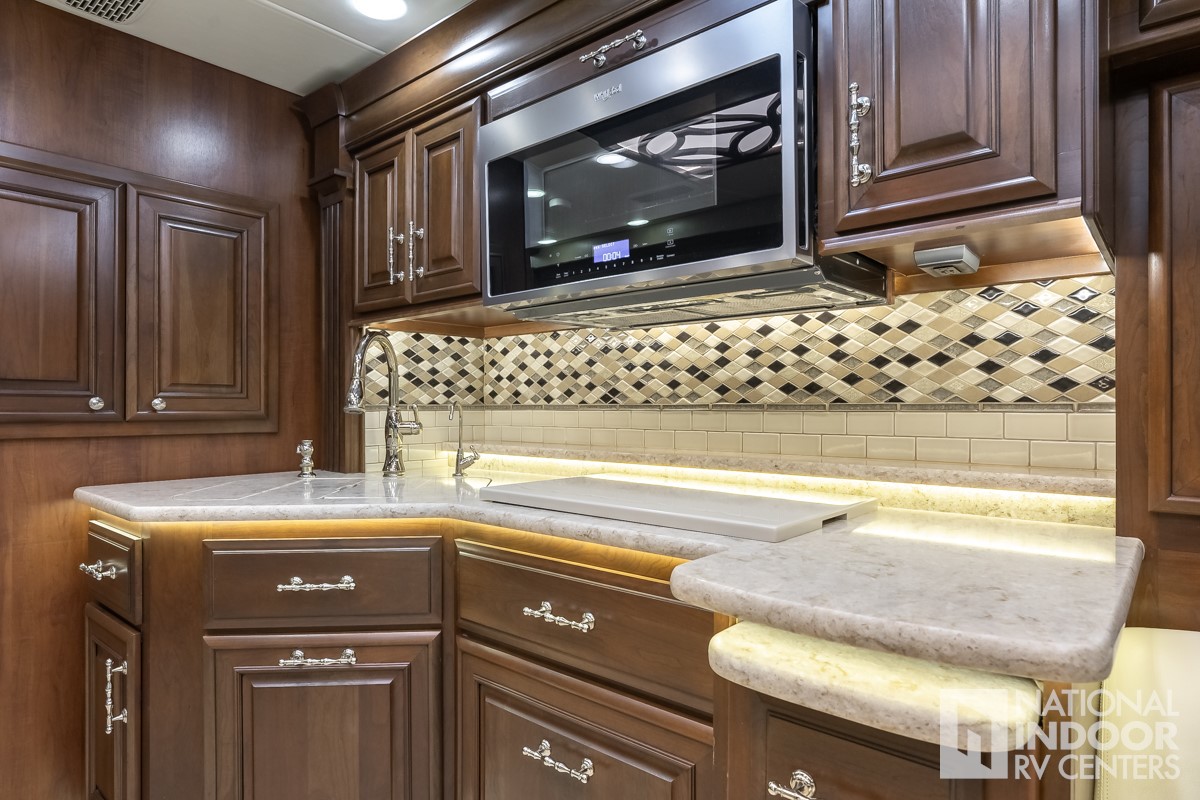

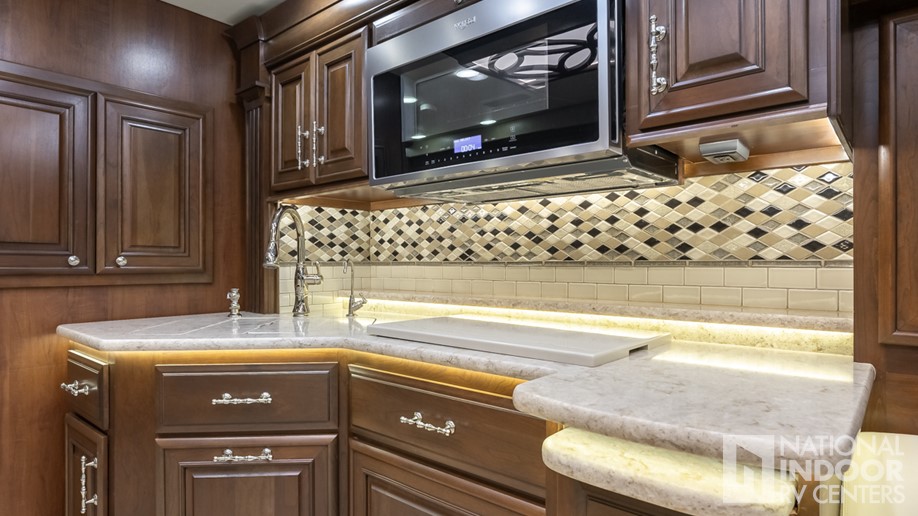

Countertops |
Quartz countertops with stainless steel sink and dimmable LED accent lighting |
Cabinet Extension |
Pullout countertop extension with drawers |
Backsplash |
Porcelain tile backsplash with glass design inlays and a ceramic border |
Waste Basket |
Large deep drawer for waste basket with easy access trash chute (trash chute not available in 45F) |
Dishwasher |
Dishwasher with wood raised panel door front |
Cooktop |
Induction cooktop |
Microwave |
Whirlpool Gold 1.9 cu. ft. convection microwave oven |

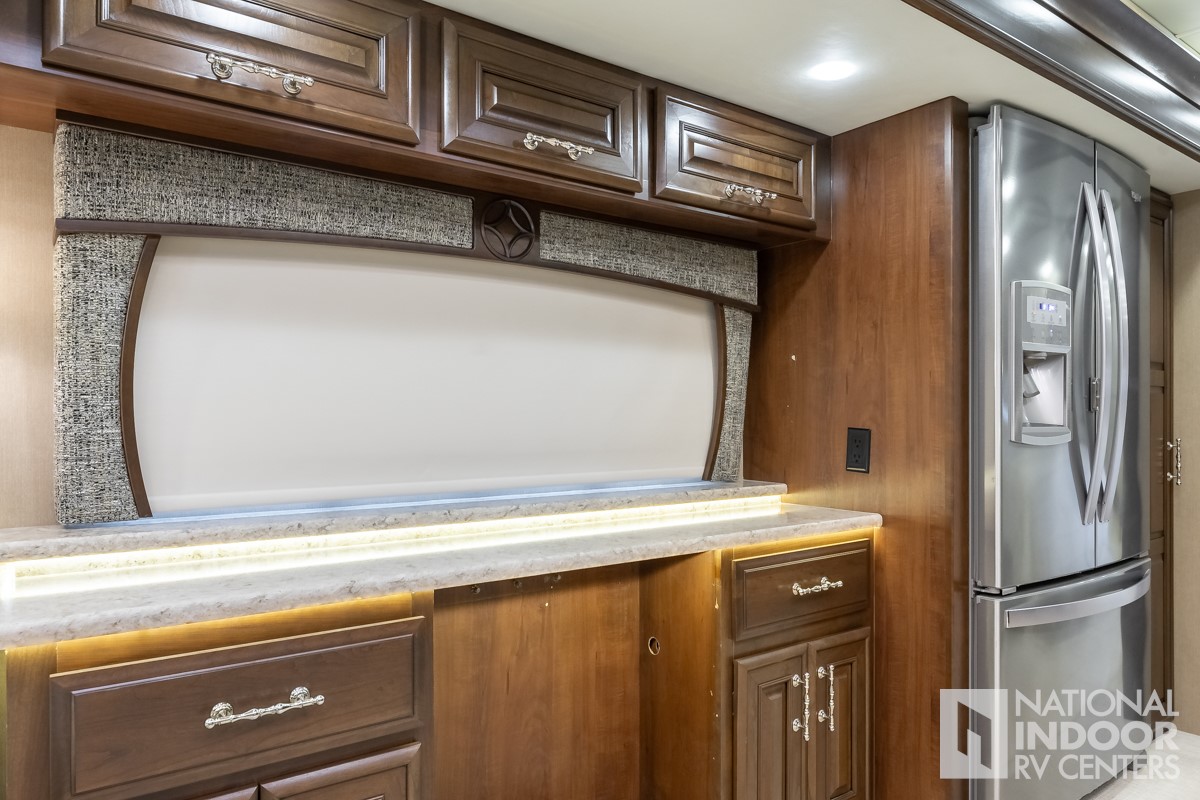

Refrigerator |

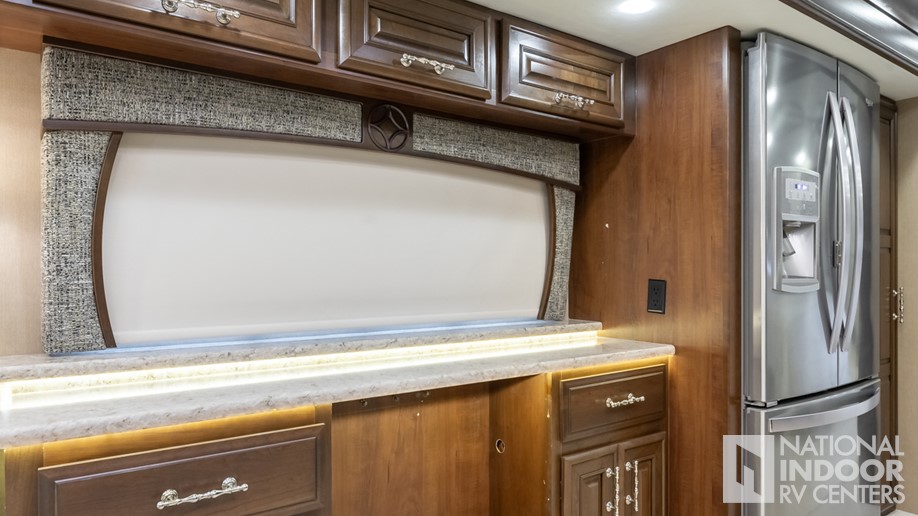

Whirlpool residential refrigerator with ice maker and water dispenser |
Vent |
Maxxair power vent |

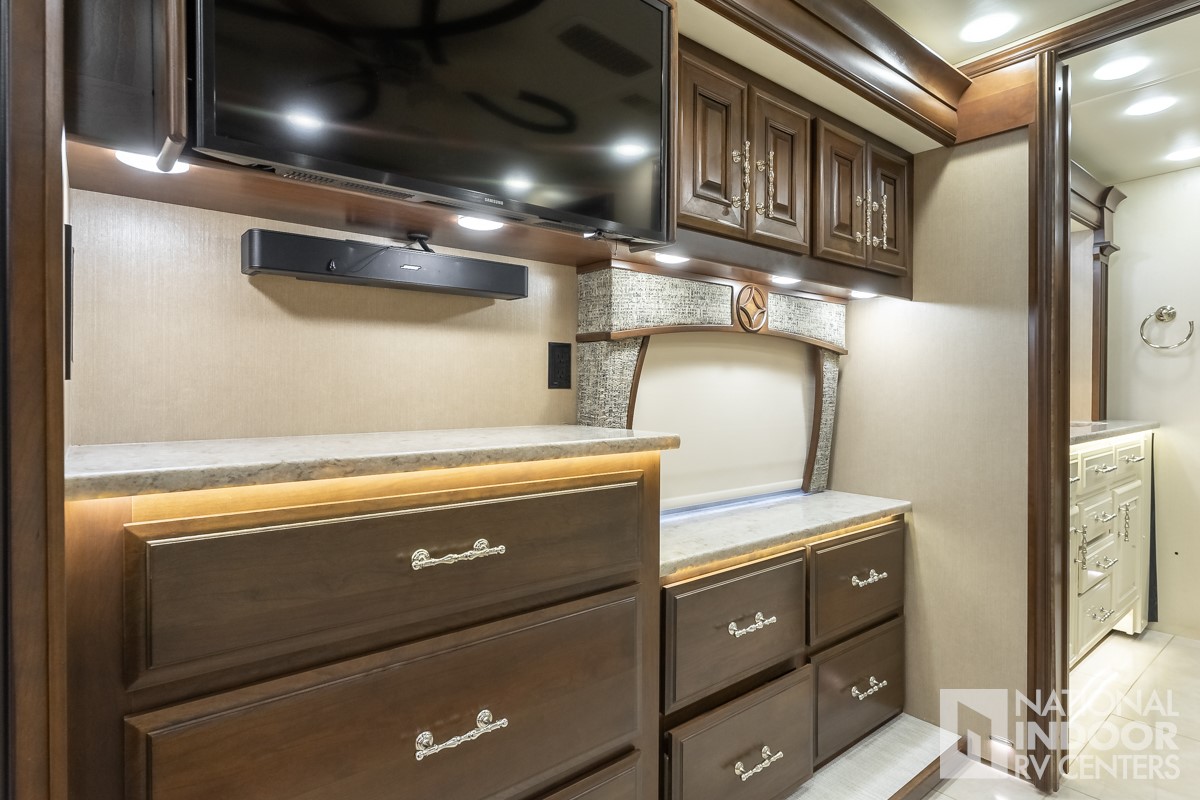

Television |
Samsung 32" LED HDTV in bedroom |
Sound |
Bose Solo 5 sound bar in bedroom |

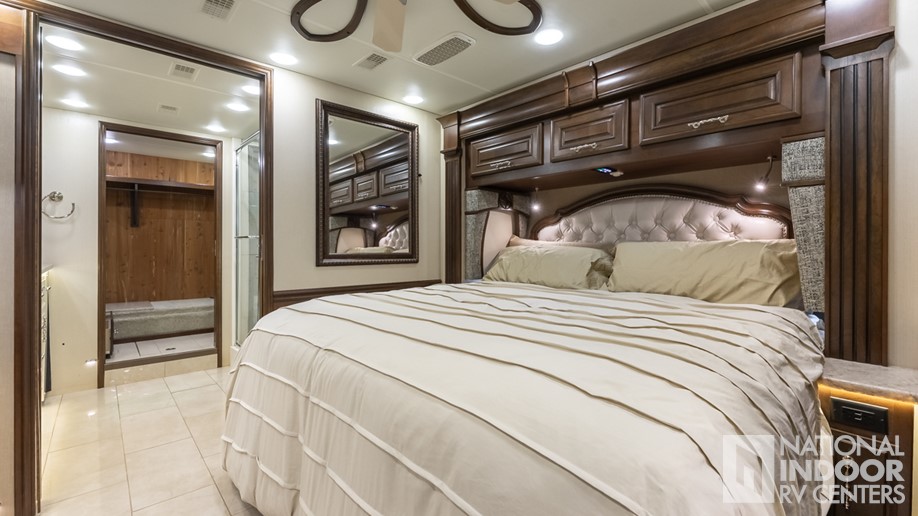

Bed |
Select Comfort® Sleep Number® king size mattress |
Ceiling Fan |
Ceiling fan |
Wardrobe |
Large cedar-lined wardrobe with automatic lights (automatic light not available in 45F) |
Nightstands |
Nightstands with USB ports and solid surface tops |

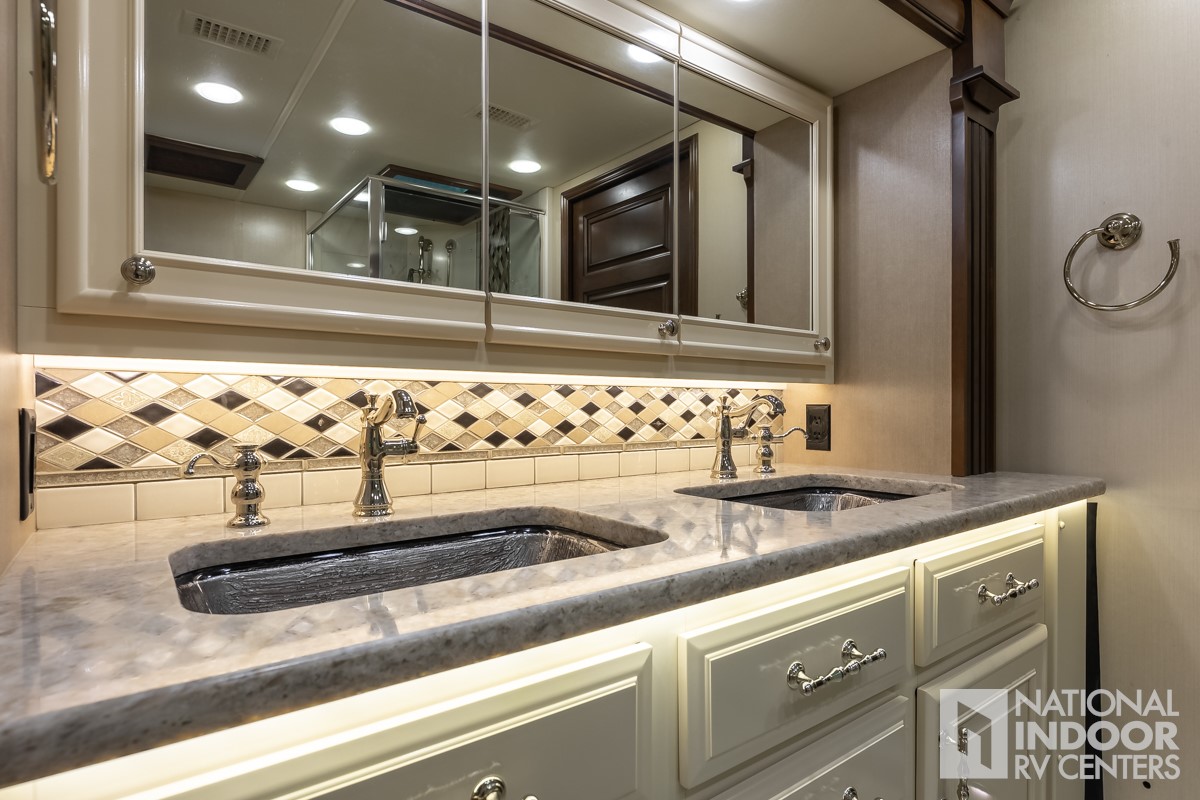

Countertop(s) |

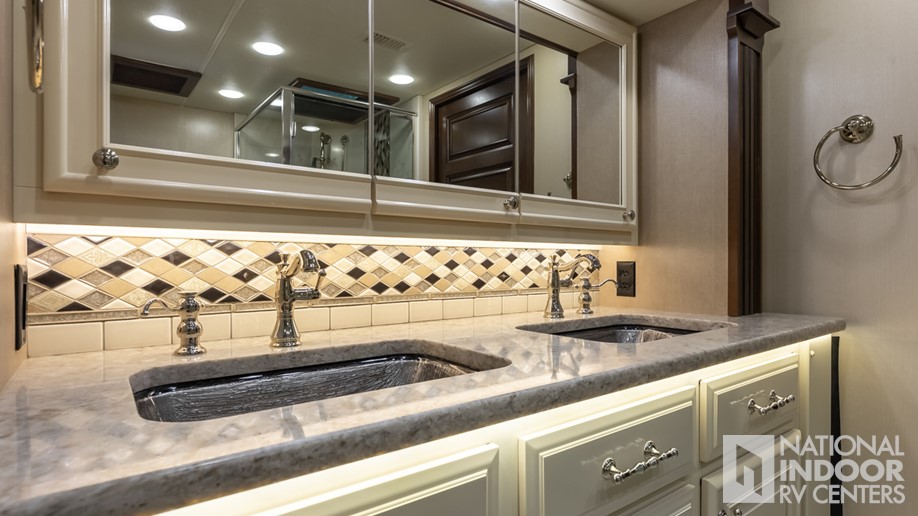

Quartz countertop with integrated sinks and LED accent lighting |
Toilet |
Thetford Tecma china toilets with push button flush |

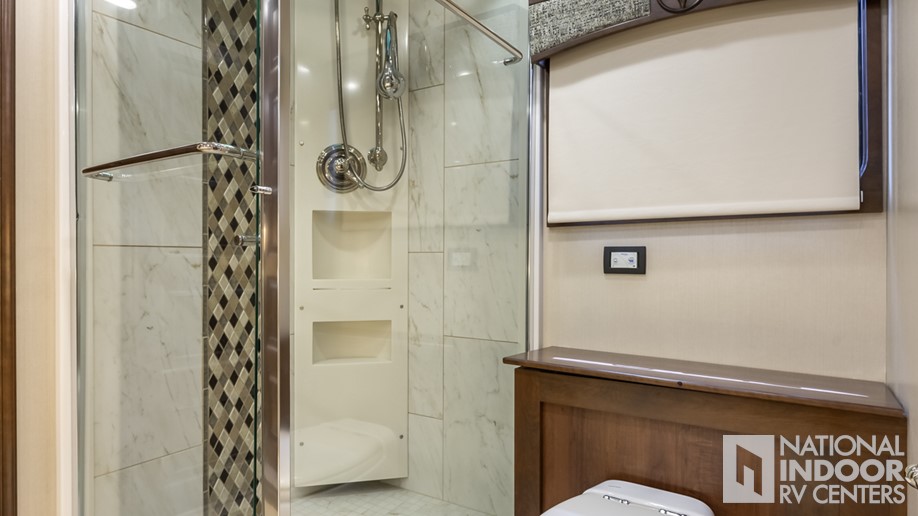

Shower |
Porcelain tiled shower walls and floor with skylight and frameless glass shower door |
Shower Seat |
Teak wood shower seat (Not available in 45F) |
Vent |
Maxxair Deluxe power vents |
Security System |
Security system with glass shatter sensors |
Smoke Alarm |
Smoke alarm |
Carbon Monoxide Detector |
Carbon monoxide alarm |
Security Safe |
Safe |
Canadian Standards |
Optional |
Fireplace |
LED lit fireplace standard (45B, 45Y) |
Dishwasher Drawer |
Dishwasher Drawer Standard |
Dinette |
Leather dinette booth (45A, 45B, 45W and 45Y) |
Dinette Option 2 |
Leather Dinette Booth standard (45X) |
Freestanding Table |
Freestanding table with 4 chairs standard (N/A 45X) |
Freestanding Table Option 2 |
Freestanding table with 4 chairs (45X) |

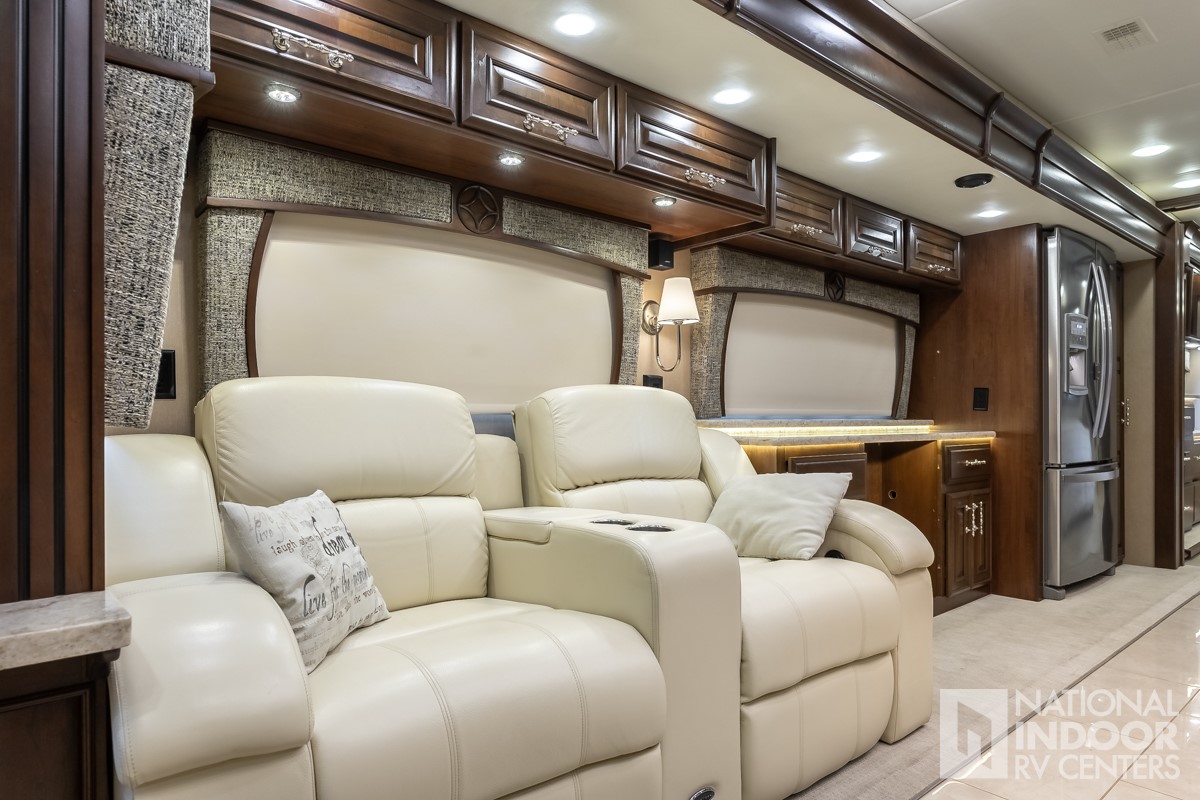

Theater Seating |
Theater seating with power recliners and fixed center console |
Satellite Dish - US |
Winegard Trav'ler satellite dish - DIRECTV |
Satellite Dish - CA |
Winegard Trav'ler satellite dish - Shaw Direct |
Solar |
Solar panels (Dual-100 watt) |
Freezer |
Optional exterior freezer |
Front Overhead TV |
Standard |
Central Vacuum System |
Standard |
WiFi Extender Antenna |
Winegard WIFI Extender with 4G/LTE |
