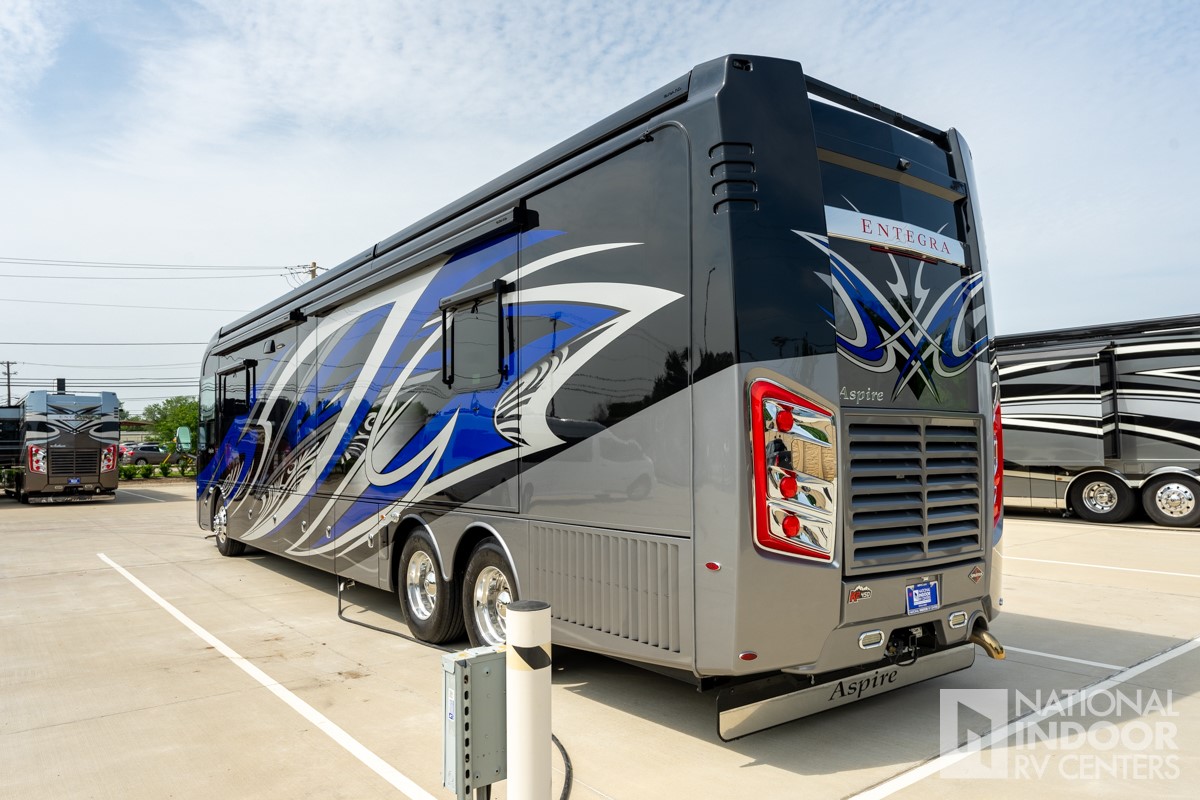

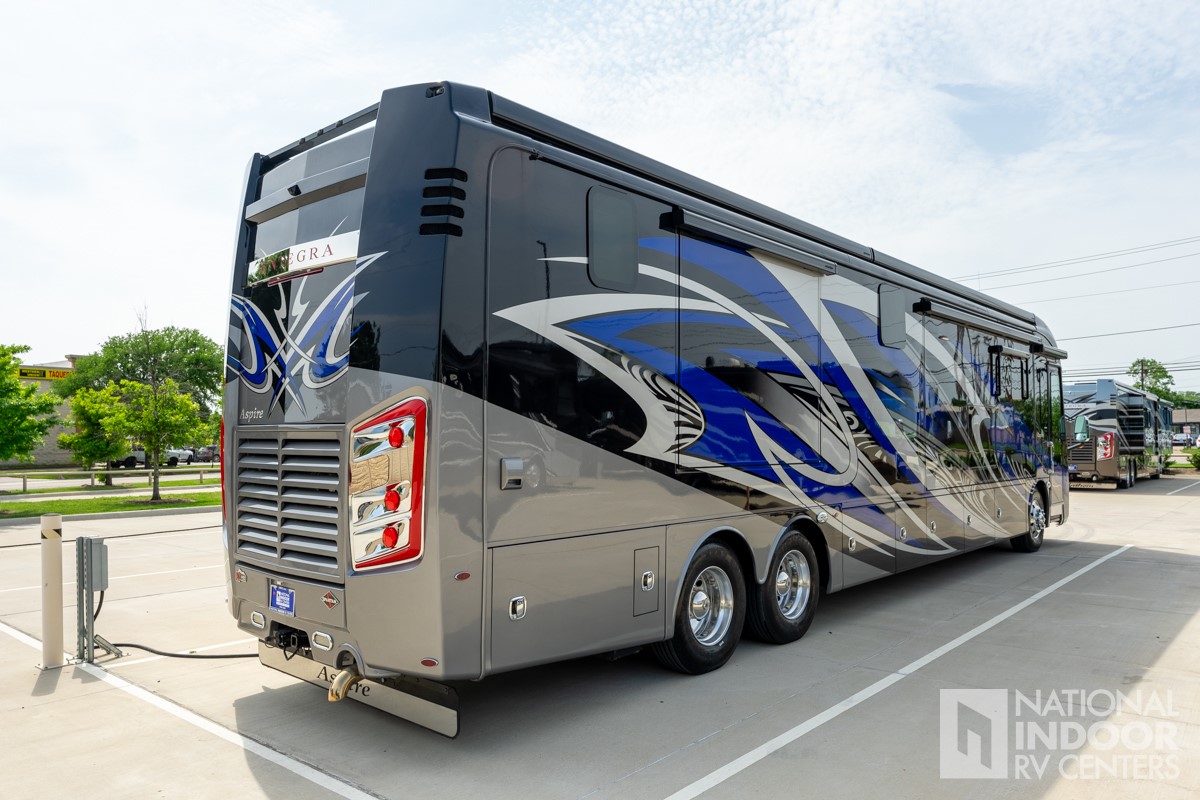

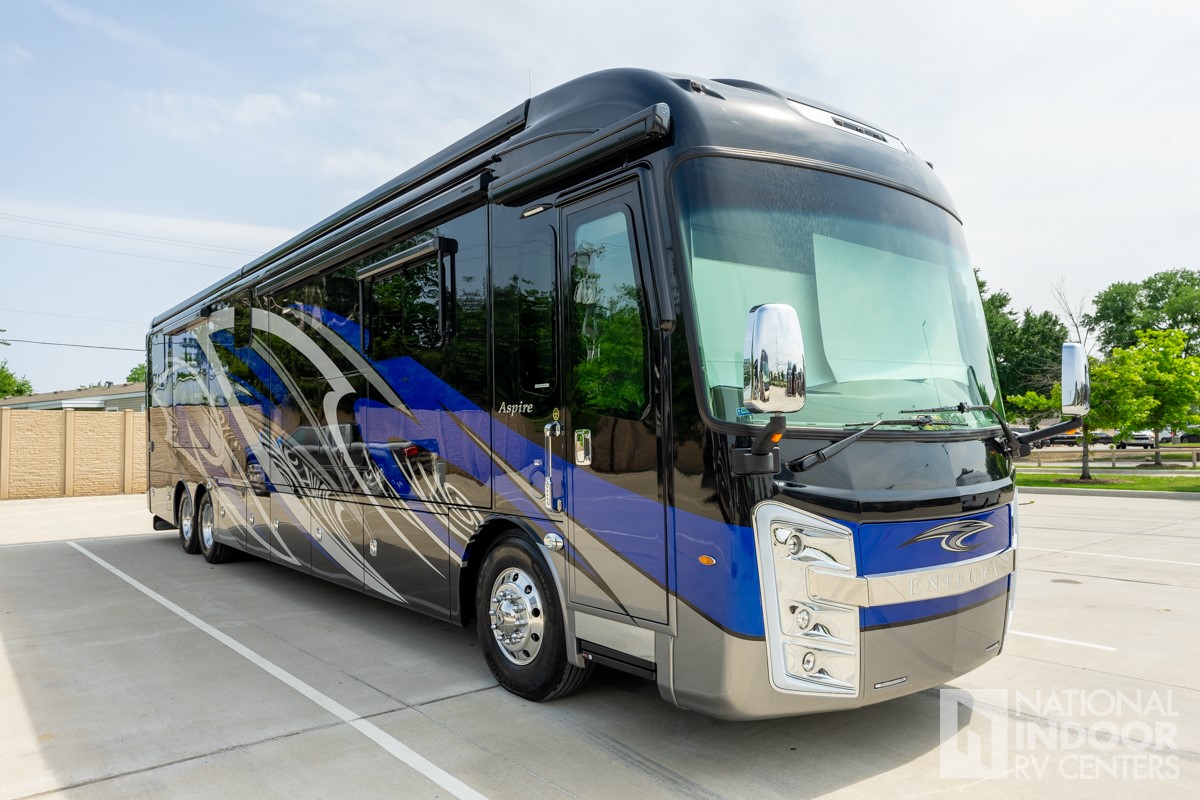

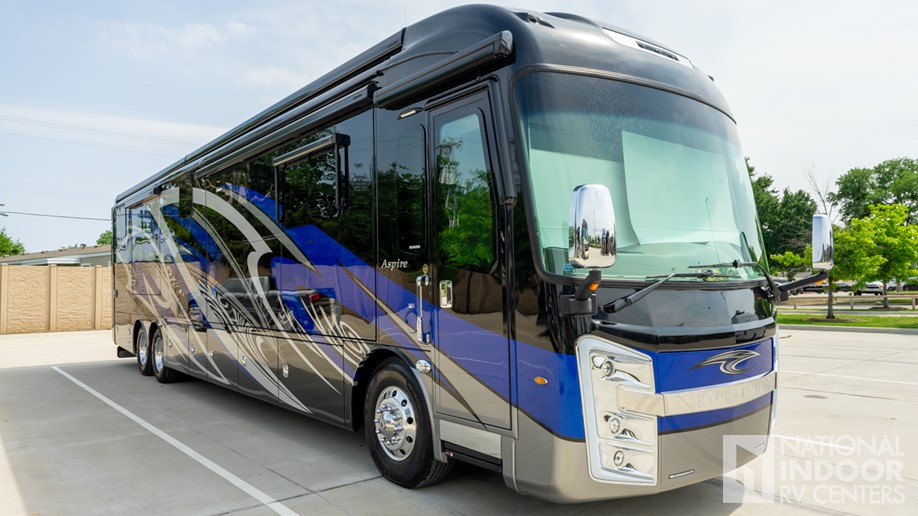

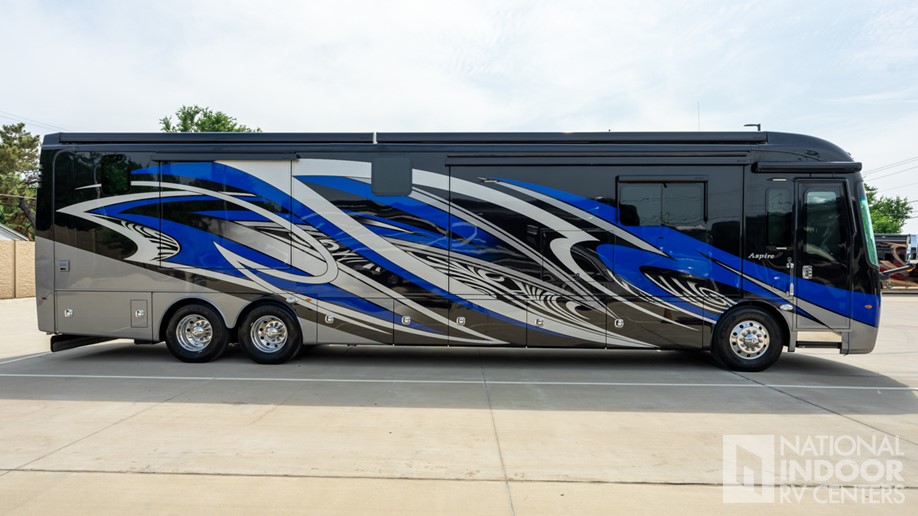

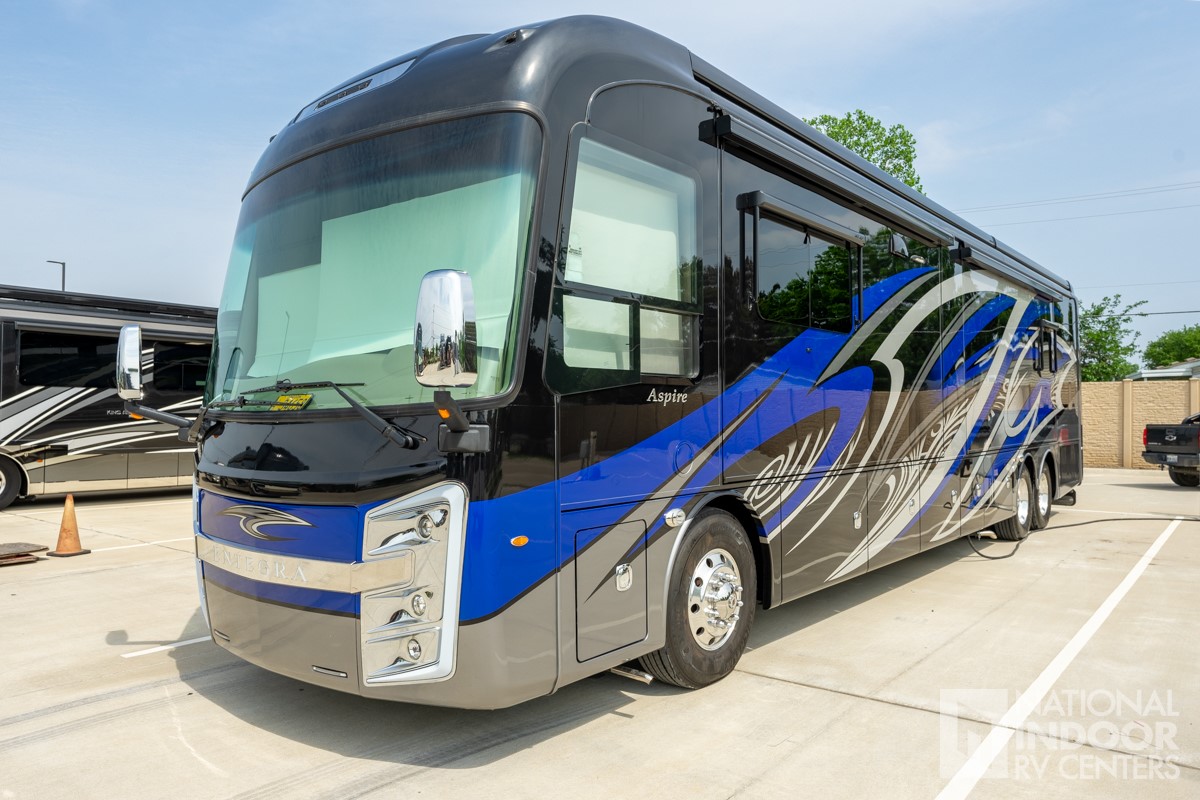

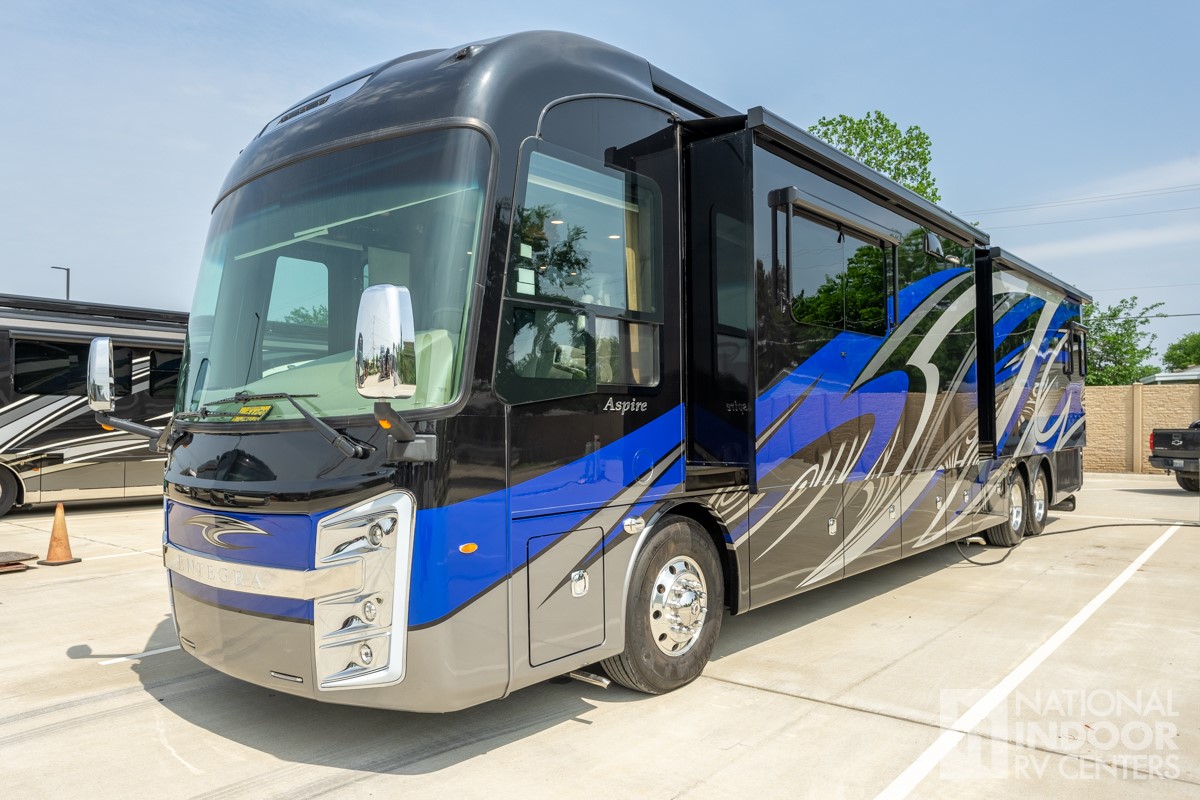

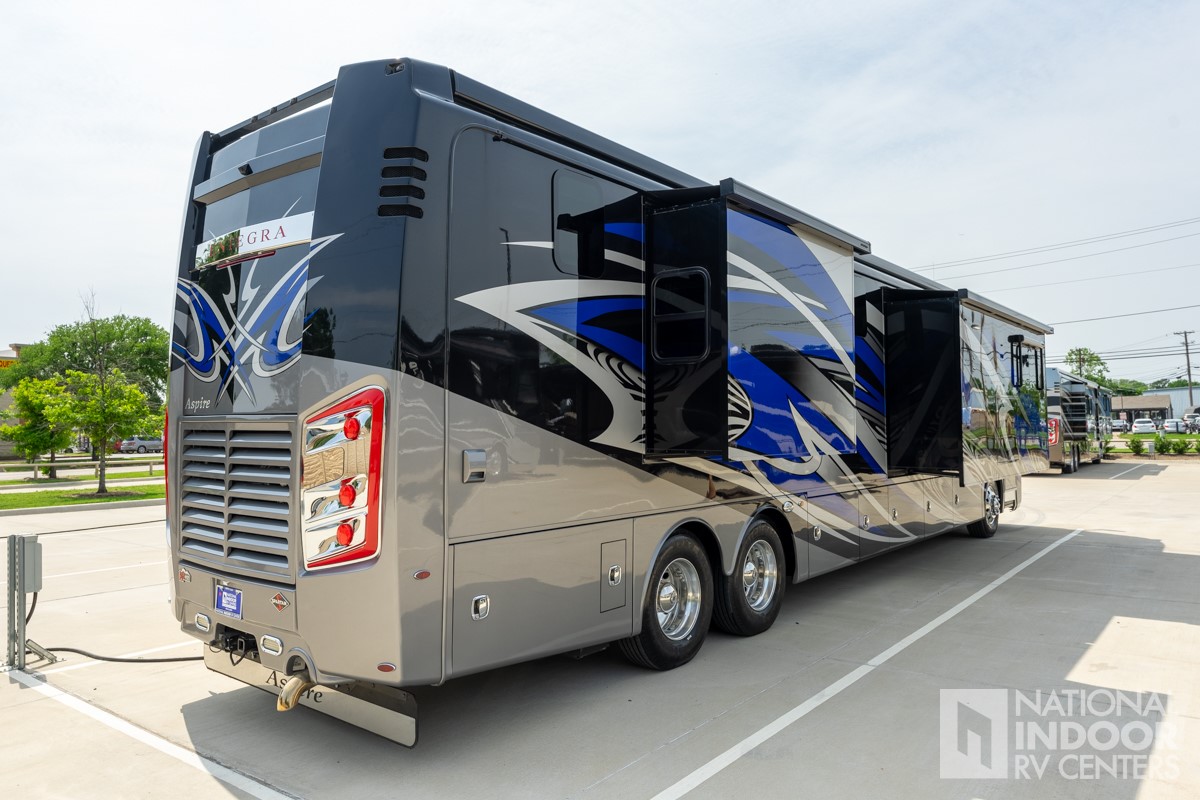

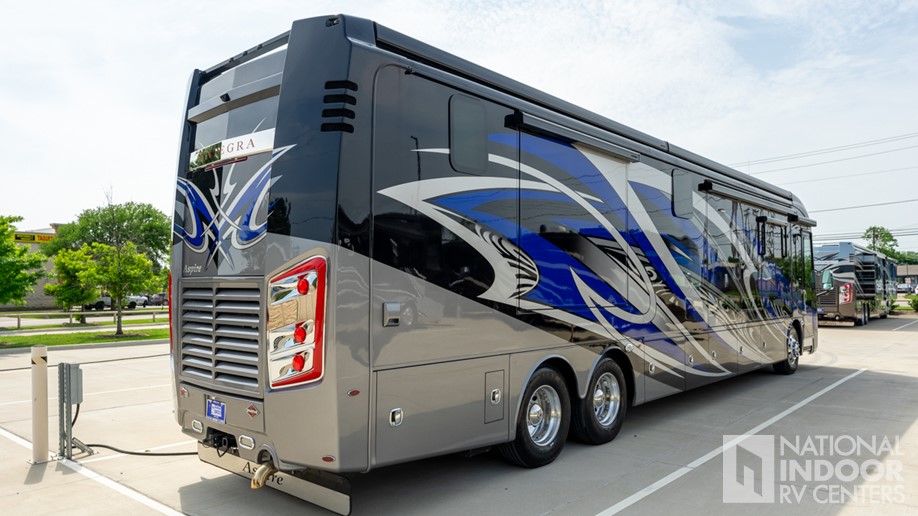

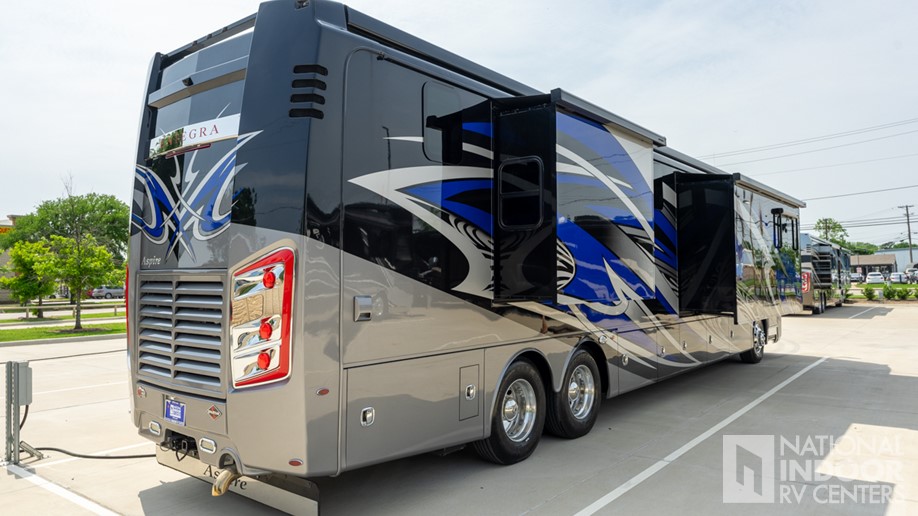

2020 Entegra Aspire 44R

$284,995
Payments (wac)
Class A Diesel
  • Stock #12108CC
  • LocationDallas
  • ConditionUsed

Contact Us Now

$284,995
Payments (wac)
Class A Diesel
  • Stock #12108CC
  • LocationDallas
  • ConditionUsed

Contact Us Now

Unit Details

Stock Number:12108CC Status:Available VIN:4VZAU1D90LC087777 Class:Class A Condition:Used
Mileage:10101 Length:45 Exterior:Iris Interior:Cobblestone Slides:4
Fuel Type:Diesel

Options & Standards

Chassis

Chassis
Spartan K2 raised rail chassis
Engine
Cummins L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM
Transmission
Allison 3000 MH 6-speed transmission
Engine Block Heater
1,000 watt engine block heater
Front Suspension
Reyco Granning IFS independent front air suspension
Rear Suspension
Dana rear suspension
Front Axle
Reyco Granning independent 17,000-lb. front axle with air suspension
Rear Axle
Dana rear axle 20,000-lb., tag axle 12,000-lb. (Rear axle 24,000-lb. and no tag on 38M and 40P)
Rear Axle Ratio
4.88 rear axle ratio
Hitch
15,000-lb. hitch with 7/4-pin plug, (10,000-lb hitch on 38M and 40P)
Tag Axle
Tag axle air dump (Not available on 38M and 40P)
Radiator
Side-mounted radiator
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 38M and 40P)
Engine Brake
Two-stage engine brake
Shocks
Bilstein 46mm shocks
Fuel Tank
150-gal. fuel tank (100-gal. fuel tank on 38M and 40P) dual fill
DEF Tank
15 gallon DEF tank (dual fill except on 38M, 40P, 44R)
Tires
Michelin 315/80R 22.5" tires (front) and 295/80R 22.5" tires (rear)
Turning Radius
55-degree turning radius
Chassis Battery
Chassis batteries 2-12 volt
Alternator
170-amp alternator
Air Connection
Remote air connection
Tow Air Brake System
Safehaul tow air brake system
Leveling System
Equalizer hydraulic automatic leveling

Construction

Frame
X-bridge frames welded into chassis frame
Underbelly
Heated basement storage area
Insulation
Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22)
Floor
2" x 4" floor truss construction
Floor Decking
3/4" 7-ply plywood main floor decking
Walls
Aluma-Tru superstructure construction on 12"-16" centers
Slideouts
Flush-mounted electric-powered slideout rooms with with both VegaTouch and separate rocker switch controls
Roof
One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss

Heat, AC, Water & Power

Heating System
Aqua-Hot 400 diesel hydronic water and heating system with in-floor heat throughout
Air Conditioning
15,000-BTU low profile A/Cs (3) with heat pumps and condensation drain system
Electrical Hookup
50-amp power cord with electric reel
Generator
Onan 10,000-watt diesel generator with auto gen start on slide-out tray
Inverter
3,000 watt pure sine wave inverter
Batteries
L16 AGM batteries (2),(6V/390 amp hrs. each)
Power Management
Premium surge protector with smart transfer switch
Water Hose w/ Electric Reel
Water hose with electric reel
Tank Flush
Black holding tank sprayer
Black Tank Management
Macerator holding tank dump system with manual gate valves
Water Monitoring
Trutank ultrasonic tank monitoring system
Water Filtration
City and tank water filtration system
Winterization Drain System
Winterizing drain system

Exterior

Exterior Walls
2- 1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass
Front/Rear Cap
Steel-reinforced front cap and windshield frame
Exterior
3M front protective film mask
Headlights
LED low beam headlights, Halogen high beam headlights
Fog Lights
Halogen fog lights
Daytime Running Lights
Daytime running lights
LED Lights
LED marker lights, turn lights, accent lights and license plate light
Docking Lights
LED docking lights
Keypad
Lighted grab handle with keypad system
Door Awning
Girard power entrance door awning with LED lights
Window Awnings
Girard window shade awnings
Patio Awnings
Roof mounted Girard Vision dual pitched patio awnings with LED lights
Mirrors
Chrome, heated, remote control, Ramco side-view mirrors with integrated cameras
Entertainment

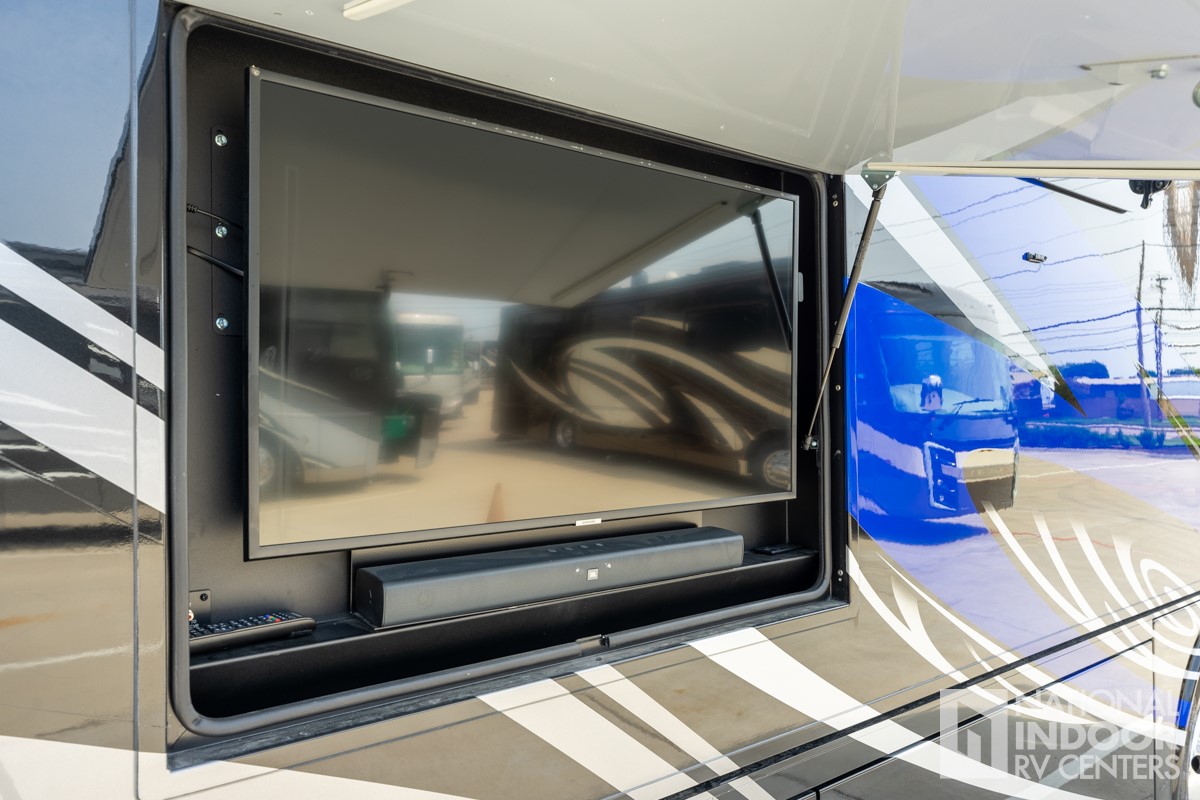

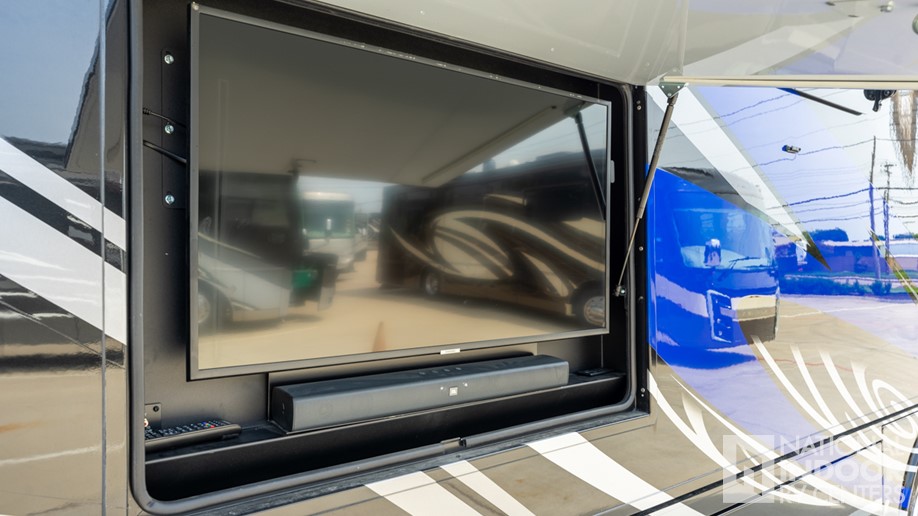

Samsung 40" 4K UHD Smart tv w/ JBL Bar Studio sound bar on TV bracket with extend, tilt and swivel arm
Utility Center
Exterior heated utility center with 5" Firefly system monitor panel
TV Antenna
Winegard Rayzar Z1 TV antenna
Engine Door
Power rear engine door with manual override
Rear Mudflap
Full-width rear mudflap, with chrome "Aspire" nameplate
Lights
Porch light and motion sensor security lights
Cargo Features
Slideout storage tray
Windows
Hehr frameless, dual-pane, tinted safety-glass windows
Satellite Dish - CA
Winegard Trav'ler satellite dish Shaw TV - standard w/ CSA option
Satellite Dish - US
Winegard Trav'ler satellite dish DIRECTV - standard w/ USA option

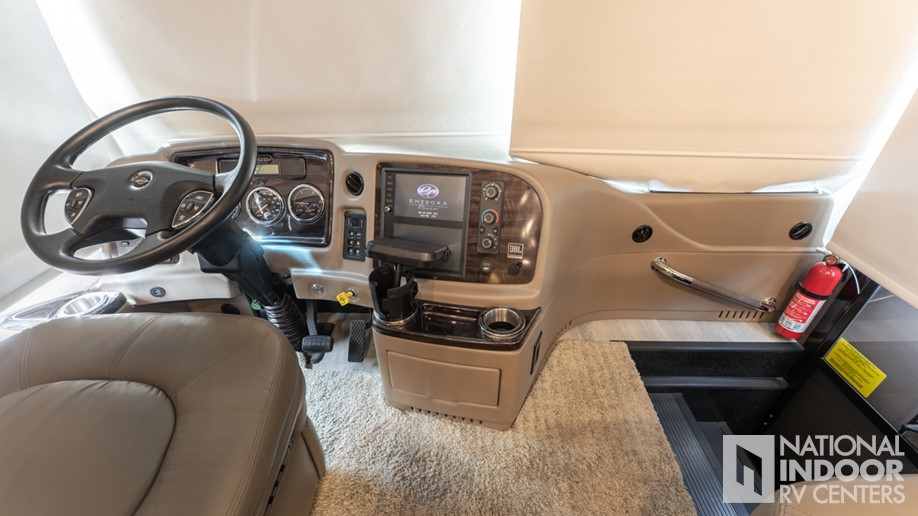

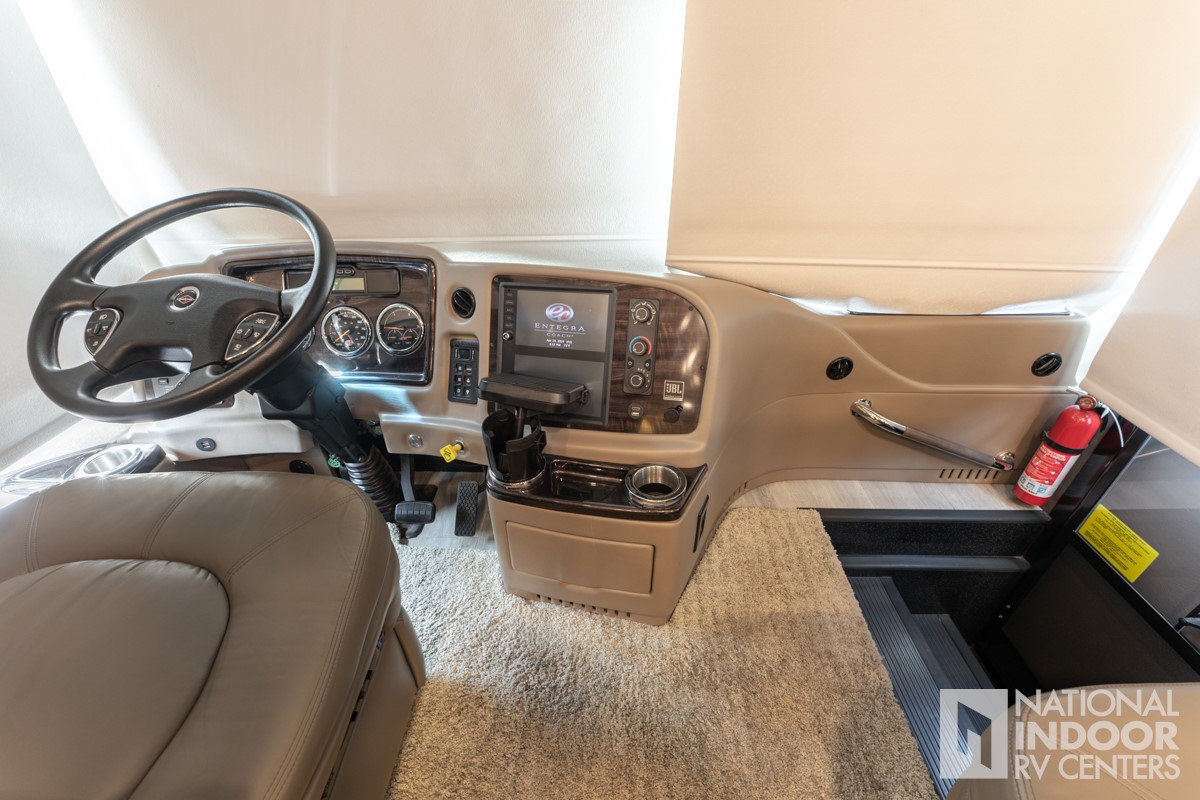

Cockpit

Flooring
Powered flush stepwell cover
Visors & Privacy Shade
Powered front sun visors and privacy shade
Windshield
Ultra-Vision one-piece wrap-around tinted windshield
Driver / Passenger Seats
6-way power, lumbar, Ultra-leather driver and passenger seats with integrated 3-point belt
Start
Push button start
Steering Wheel
VIP, tilt and telescoping steering wheel with integrated controls for cruise and wipers
Side Consoles
Wrapped dash with molded side consoles
Monitoring System(s)
Spartan Message Center with LCD display featuring: odometer, tachometer, fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, trip meter, speed and voltage
Infotainment System(s)
Dual 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control
Sound System
JBL premium audio sound system with speakers, amplifier and DVC sub-woofer
Pedals
Power adjustable brake and accelerator pedals
Cameras
Camera system with two side cameras and digital rear camera
Additional Amenities
Two dual USB ports and 12v socket for charging

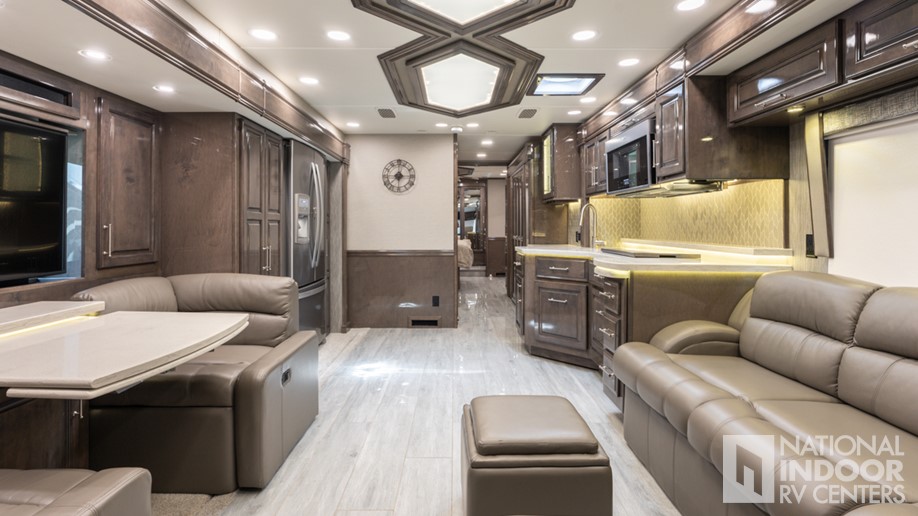

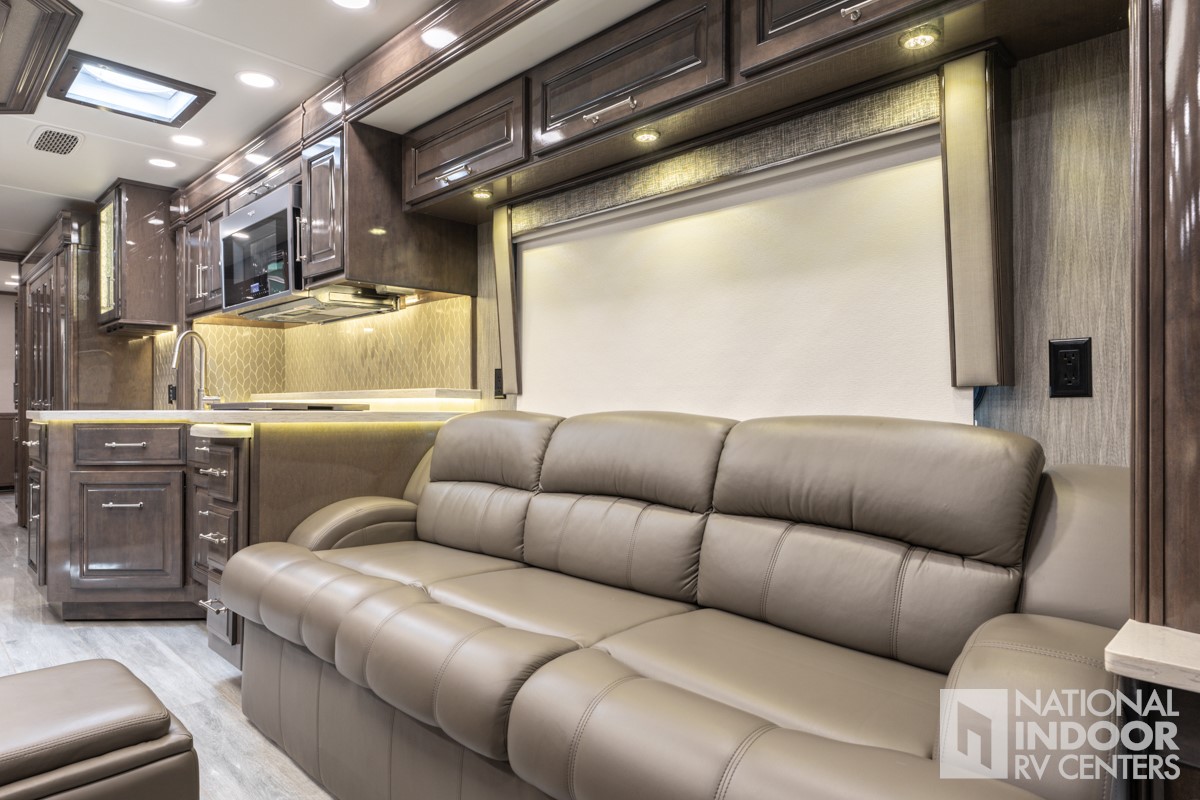

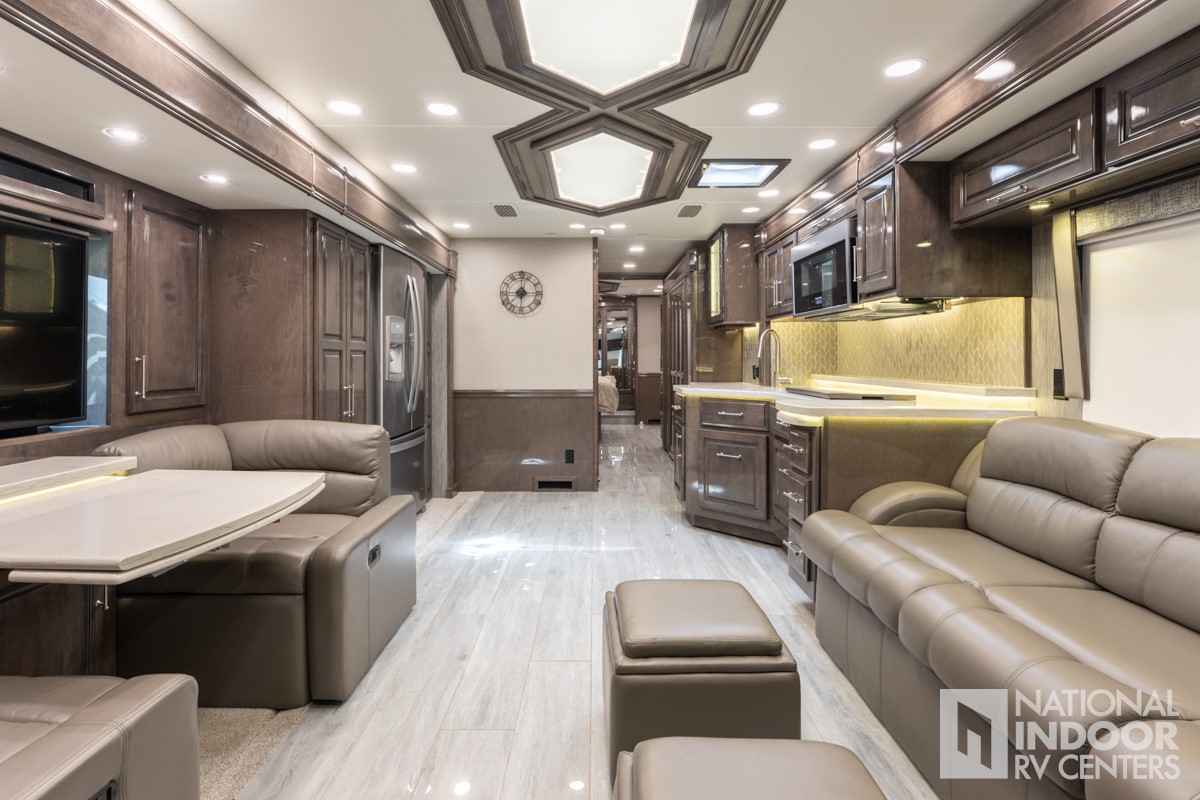

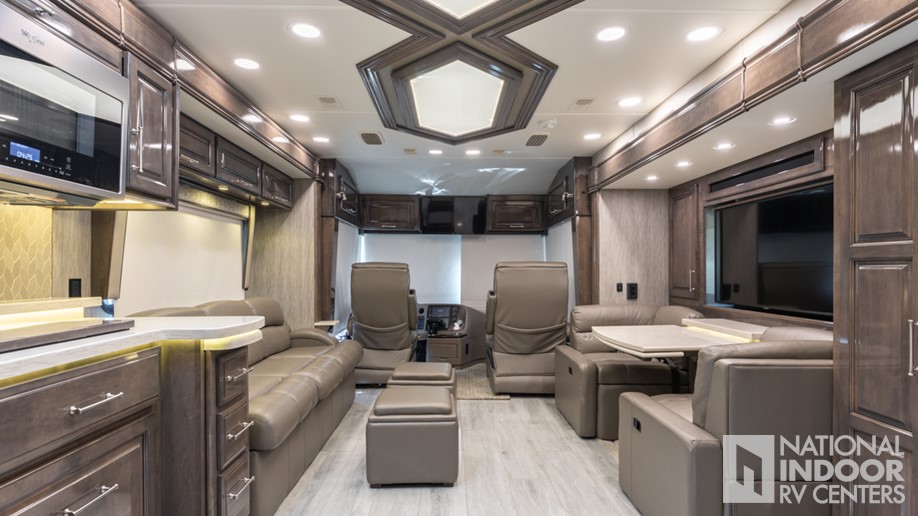

Interior

Lighting
Premium recessed LED 12V lighting
Flooring
Hand laid high gloss 8" x 48" porcelain tile floor
Window Treatments
Manual solar day and blackout night shades
Television - Living Room
Samsung 50" 4K UHD Smart TV
Television - Front Overhead
Samsung 32" LED Slim 1080P Smart TV in front overhead
Sound - Living Room
Samsung HW-M360 sound bar with sub-woofer in living area
DVD Systems
Samsung HD Blu-ray player in living area
Furniture
Flexsteel furniture

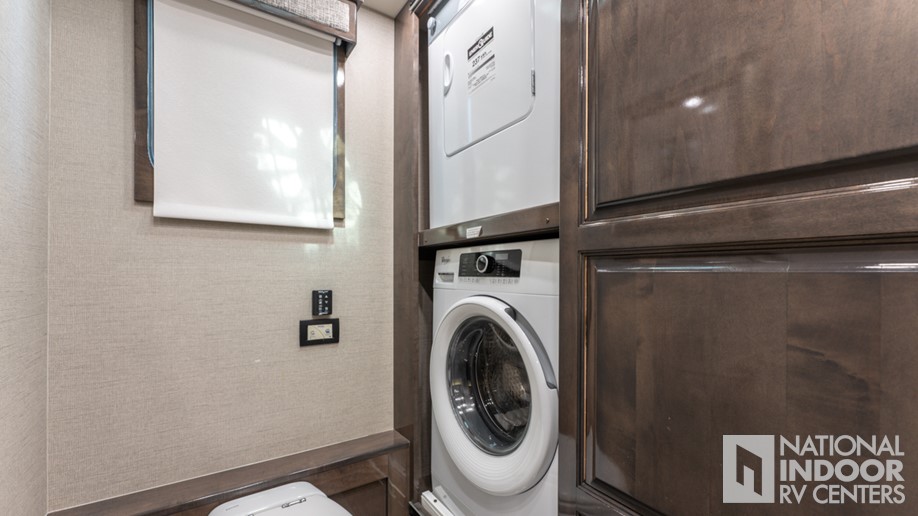

Washer/Dryer

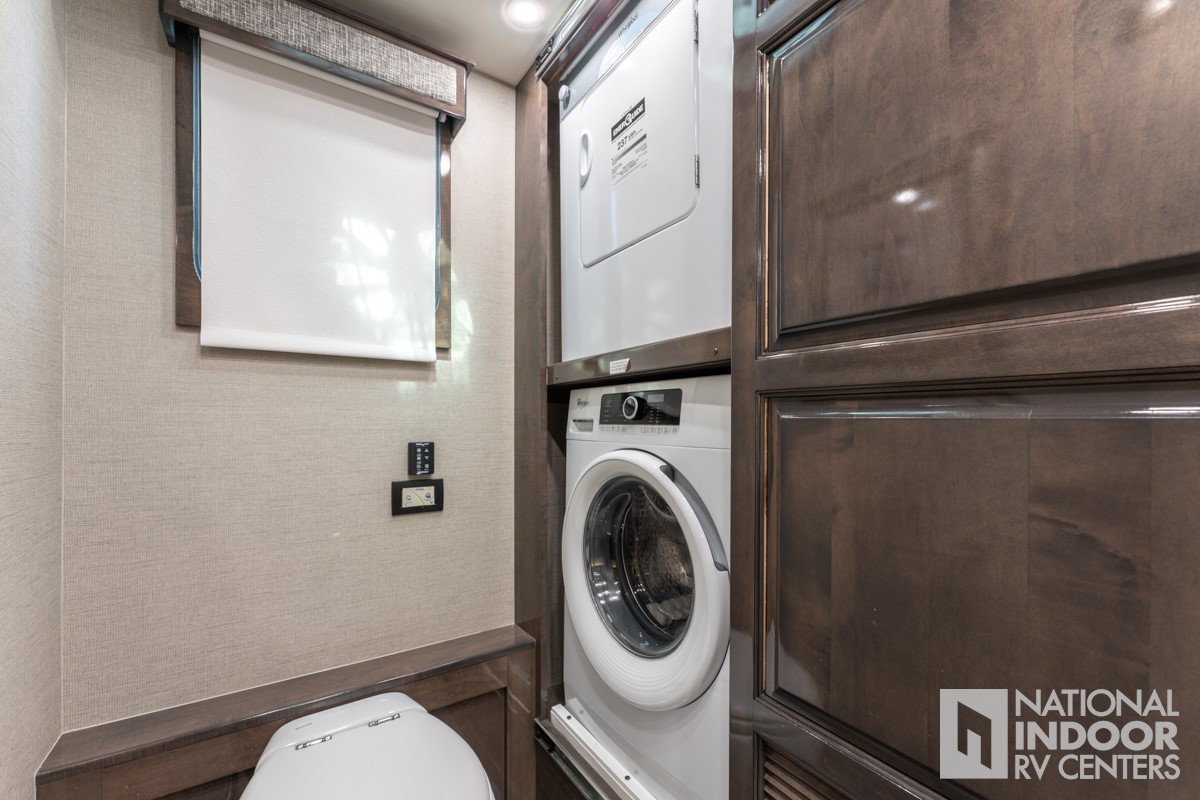

Whirlpool stacked washer and dryer
Central Vacuuming System
Central vacuum system
Interior Doors
Aire-Secure travel locks for all pocket doors
Command Center
10" VegaTouch touch screen coach systems control panel
Bar
Bar area with beverage chiller, rain glass door on upper cabinet w/ LED accent lighting (44R)

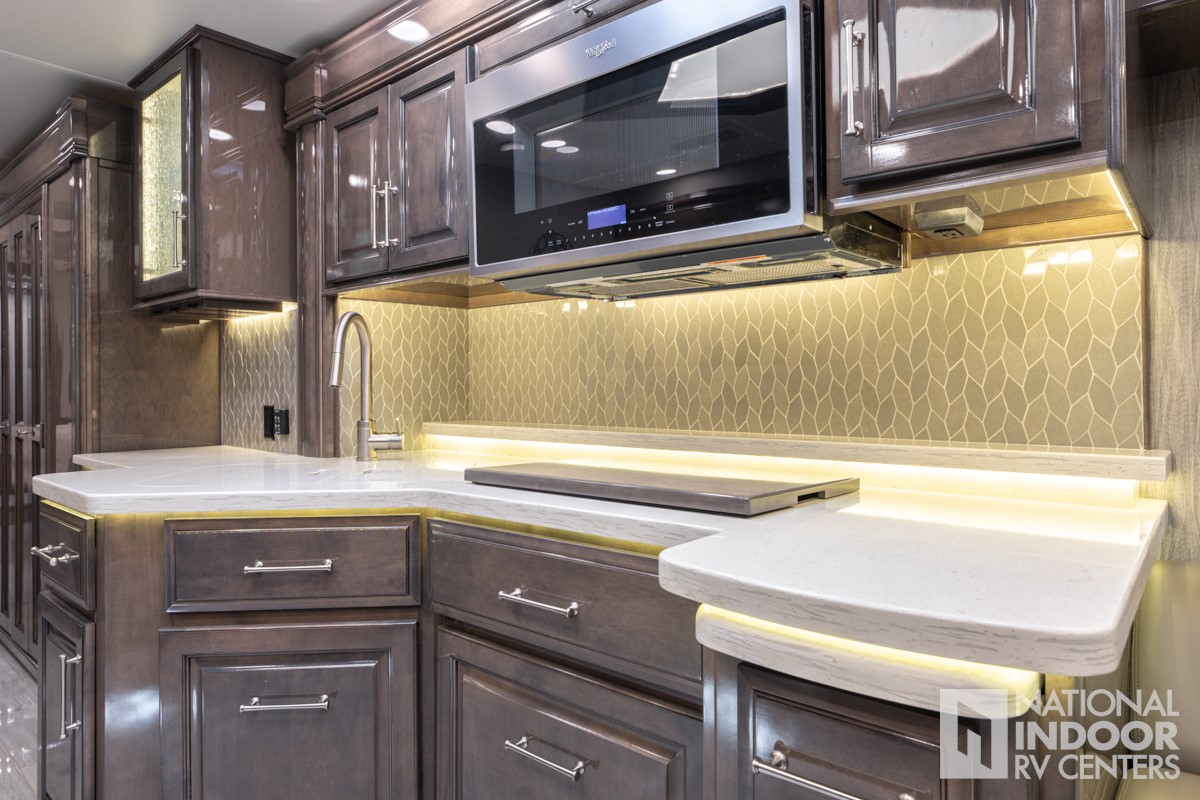

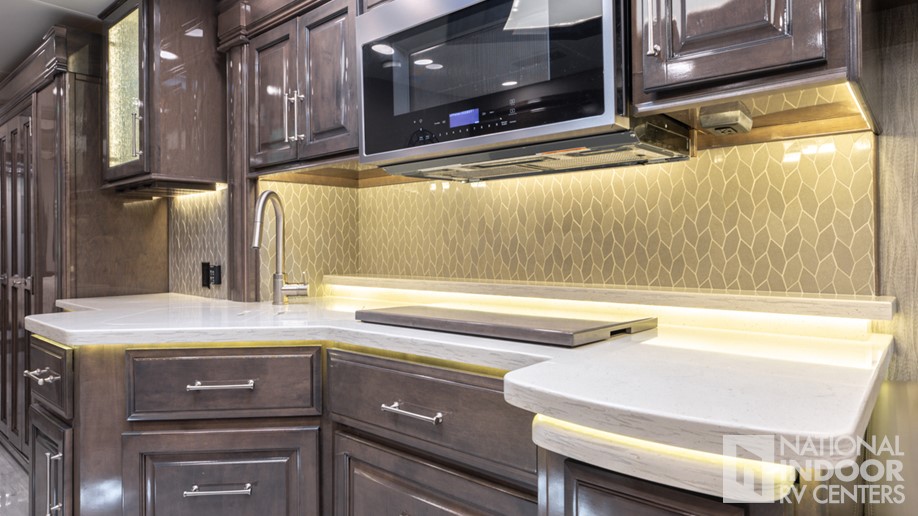

Kitchen

Countertops
Solid surface countertops with stainless steel sink and dimable LED accent lighting
Waste Basket
Large deep drawer for waste basket with easy access trash chute (trash chute not available on 40P and 44R)
Dishwasher
Dishwasher drawer with wood raised panel drawer front
Cooktop
Induction cooktop with matching wood cover
Microwave
Whirlpool 1.9 cu. ft. convection microwave oven
Refrigerator

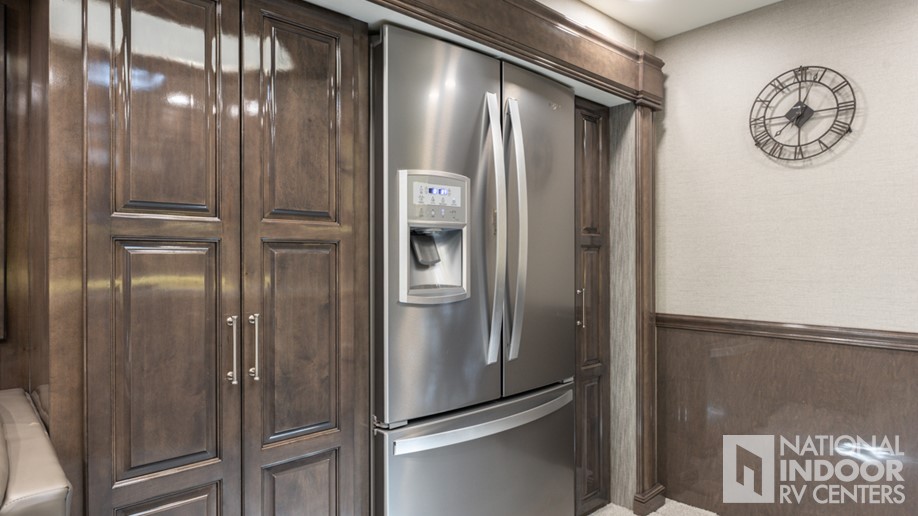

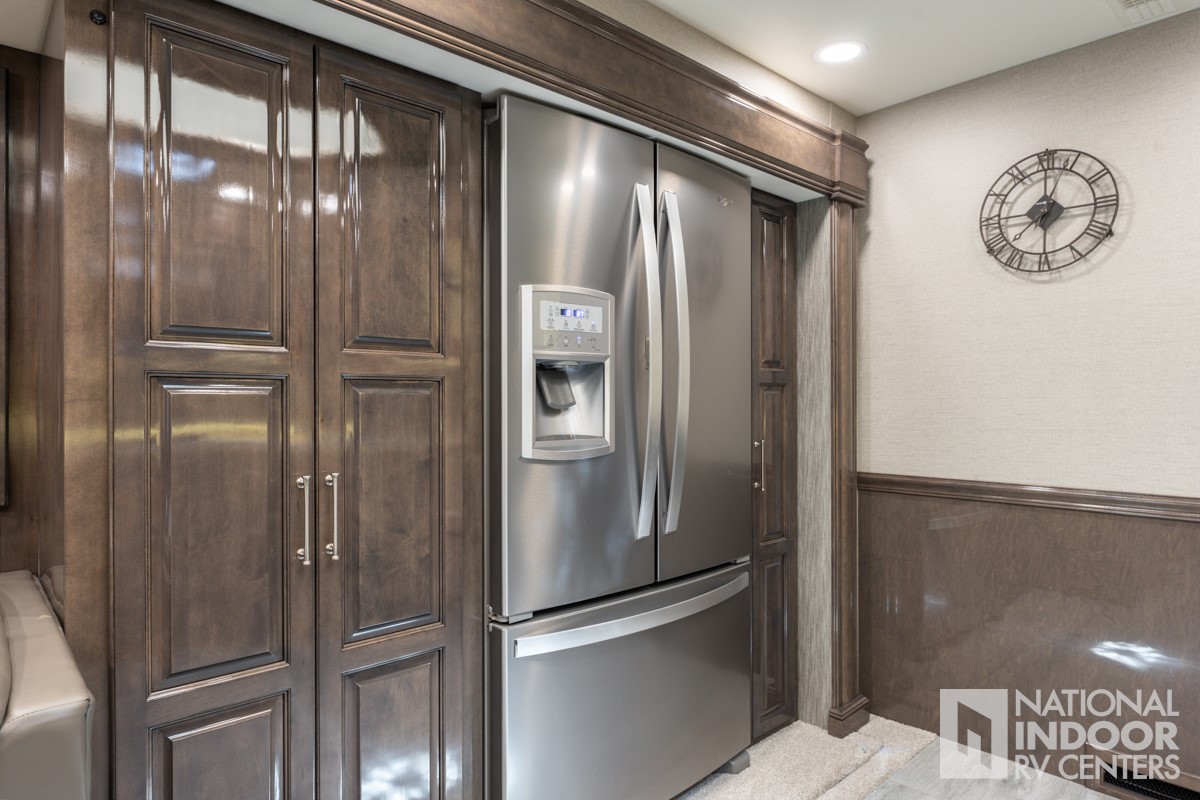

Whirlpool stainless steel residential refrigerator with ice maker and water dispenser
Vent
Maxxair power vent exhaust fan

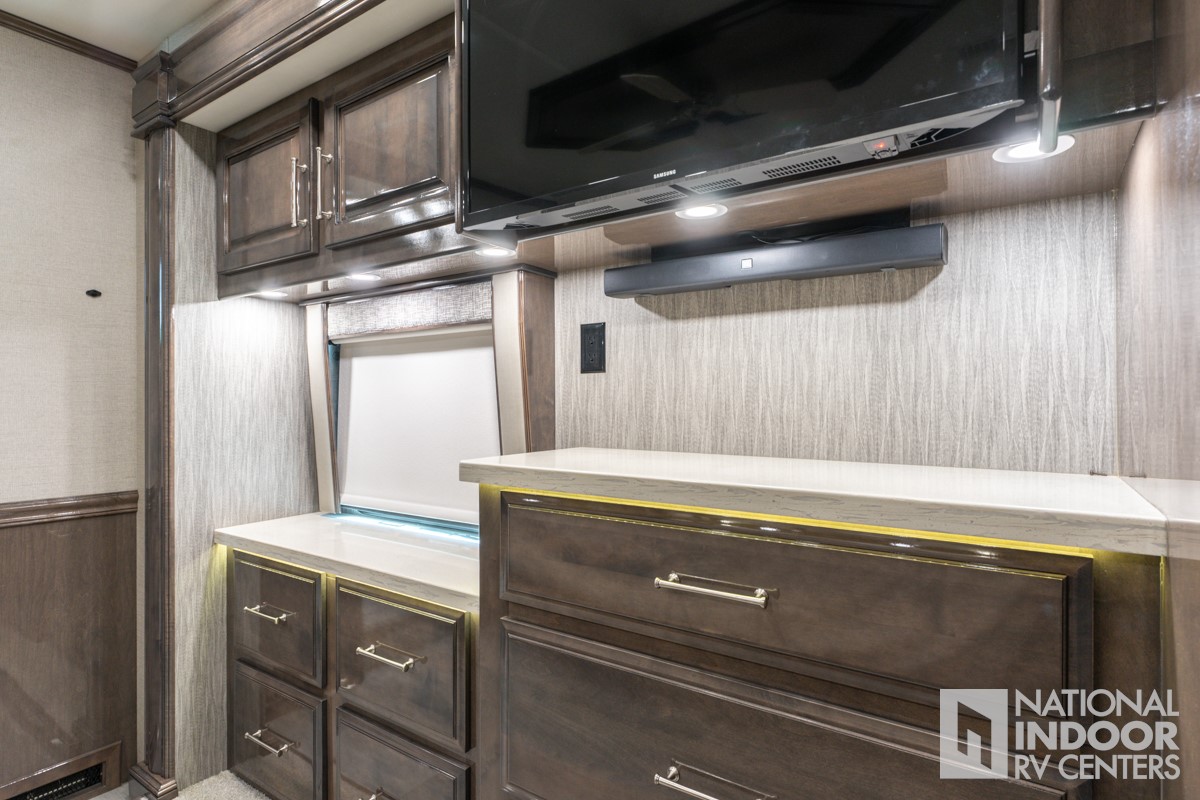

Bedroom

Television

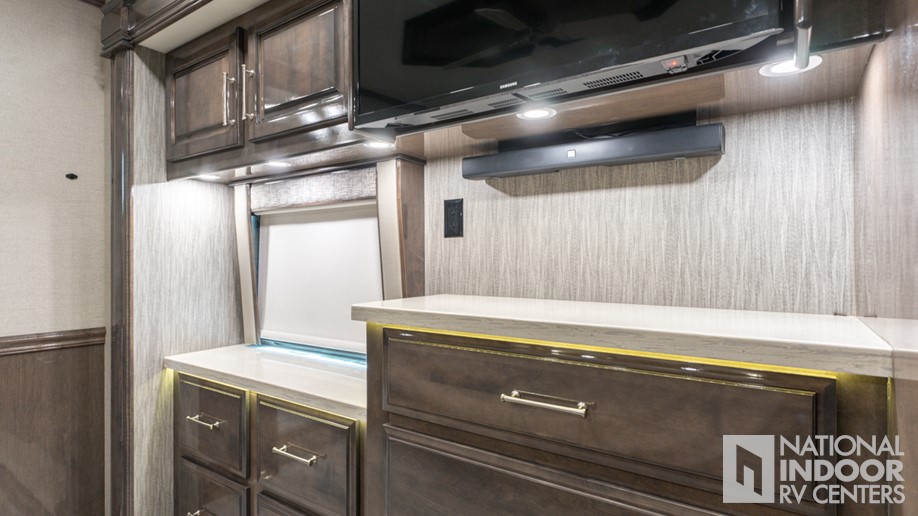

Samsung 32" LED Slim 1080P Smart TV
Sound
JBL Studio sound bar

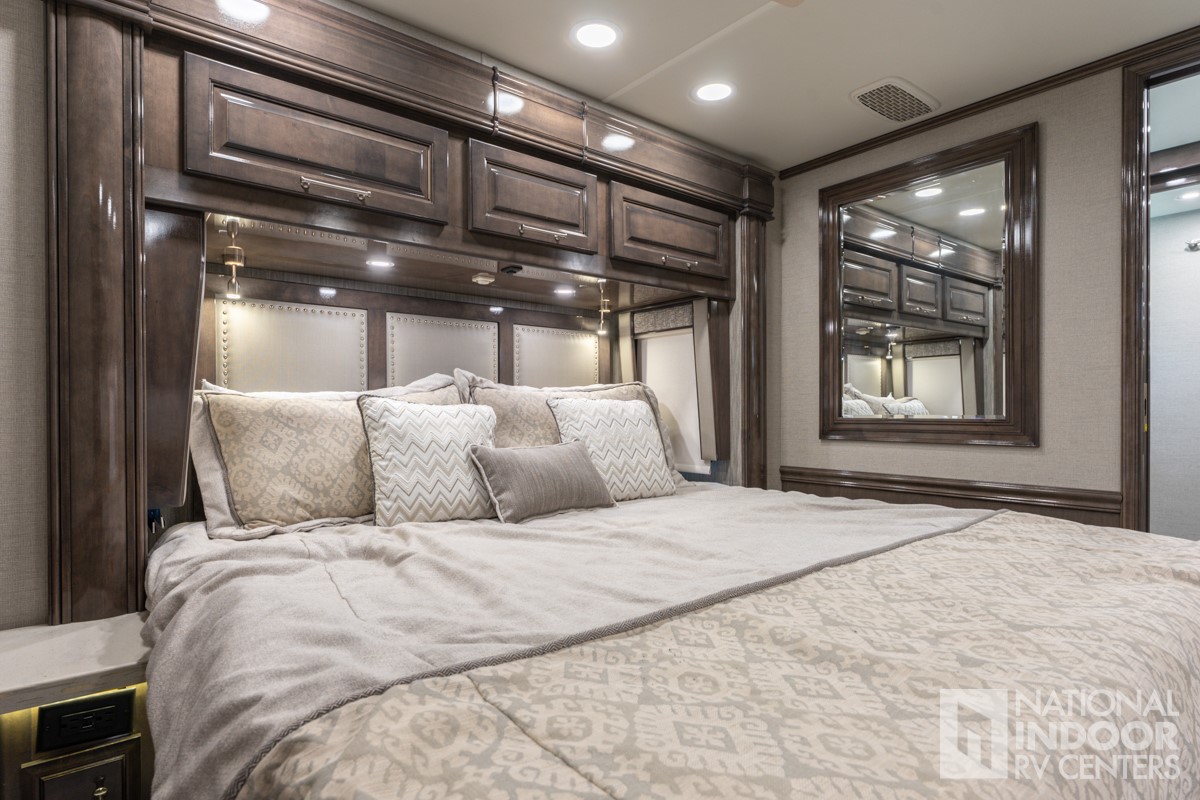

Bed

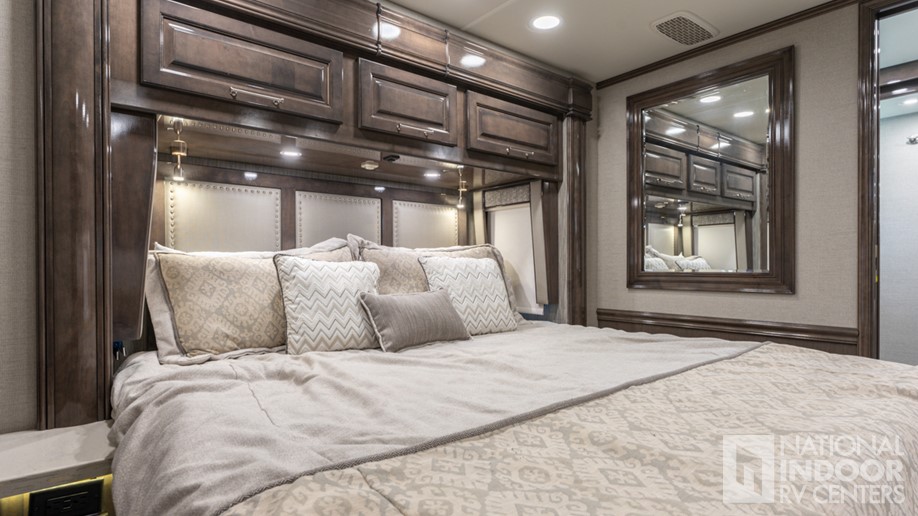

King size gel memory foam mattress
Nightstands
Nightstands with USB ports and solid surface tops
Ceiling Fan
Ceiling fan
Wardrobe
Motion activated LED light in wardrobe
DVD Systems
Samsung Blu-ray player

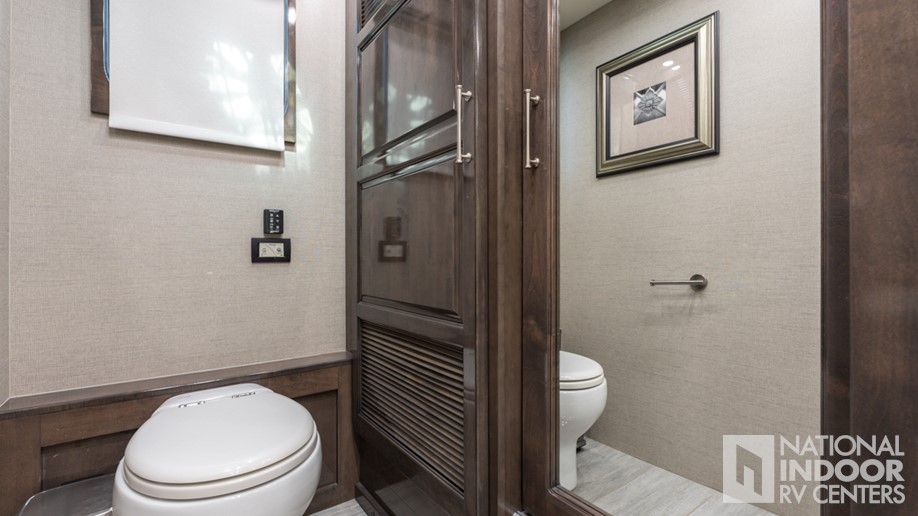

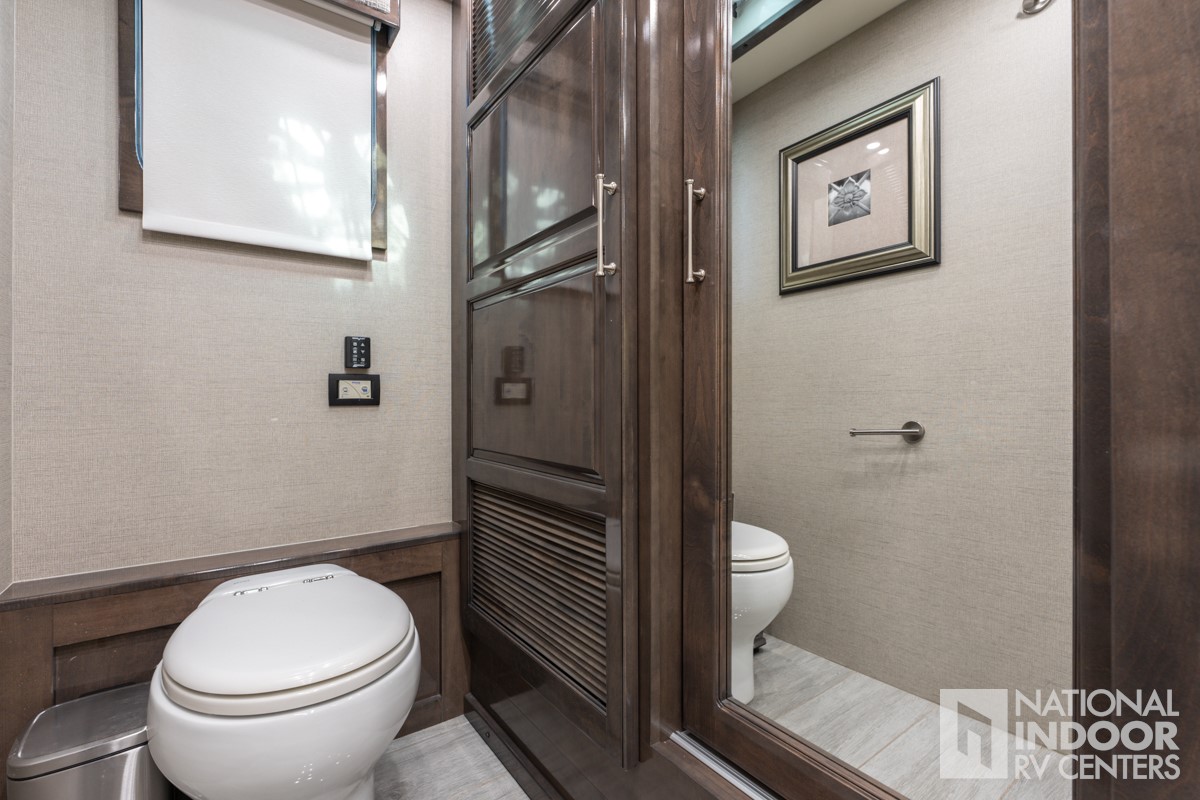

Bathroom

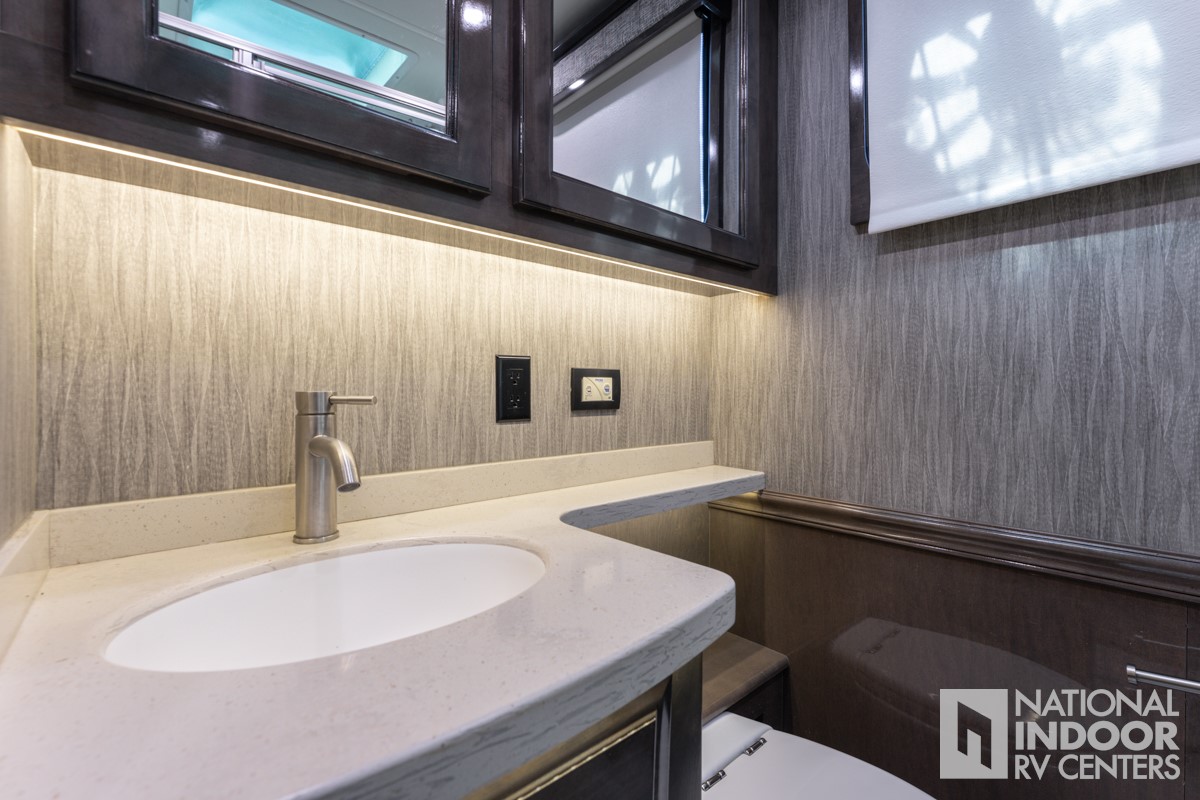

Countertop(s)

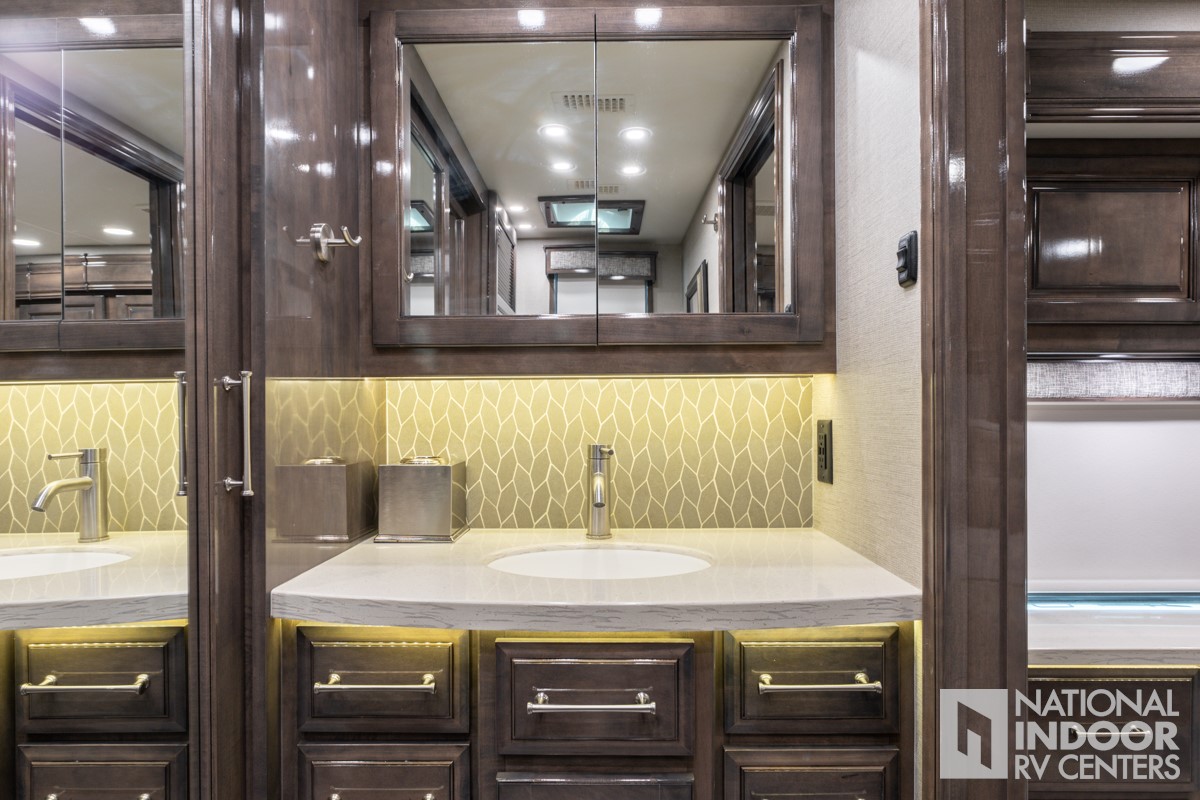

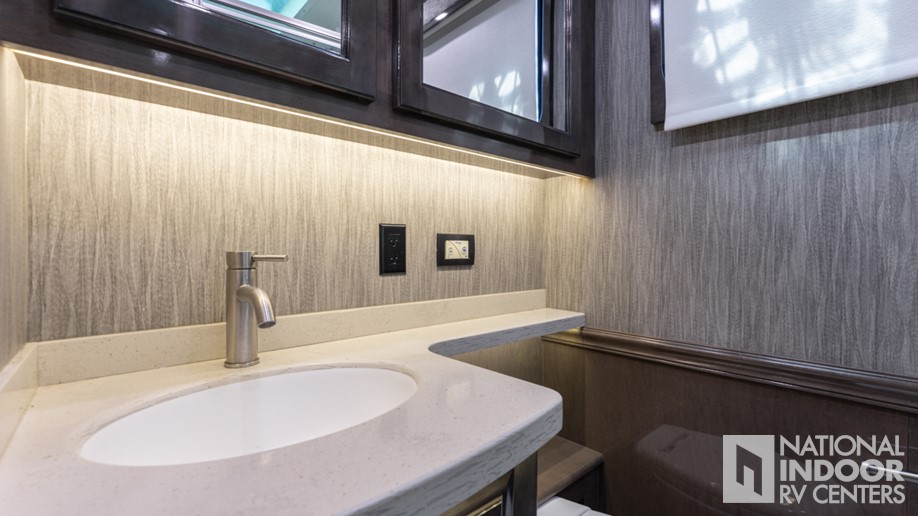

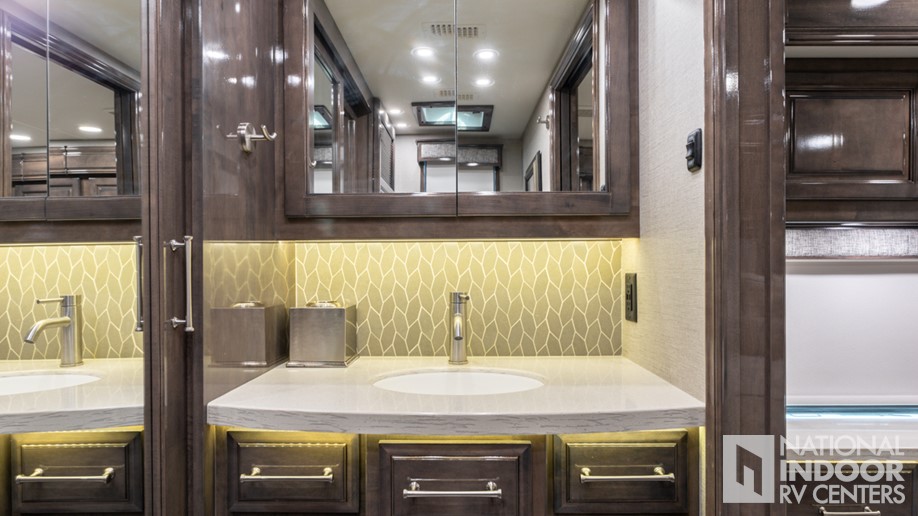

Solid surface countertops with integrated sink and dimmable LED accent lighting

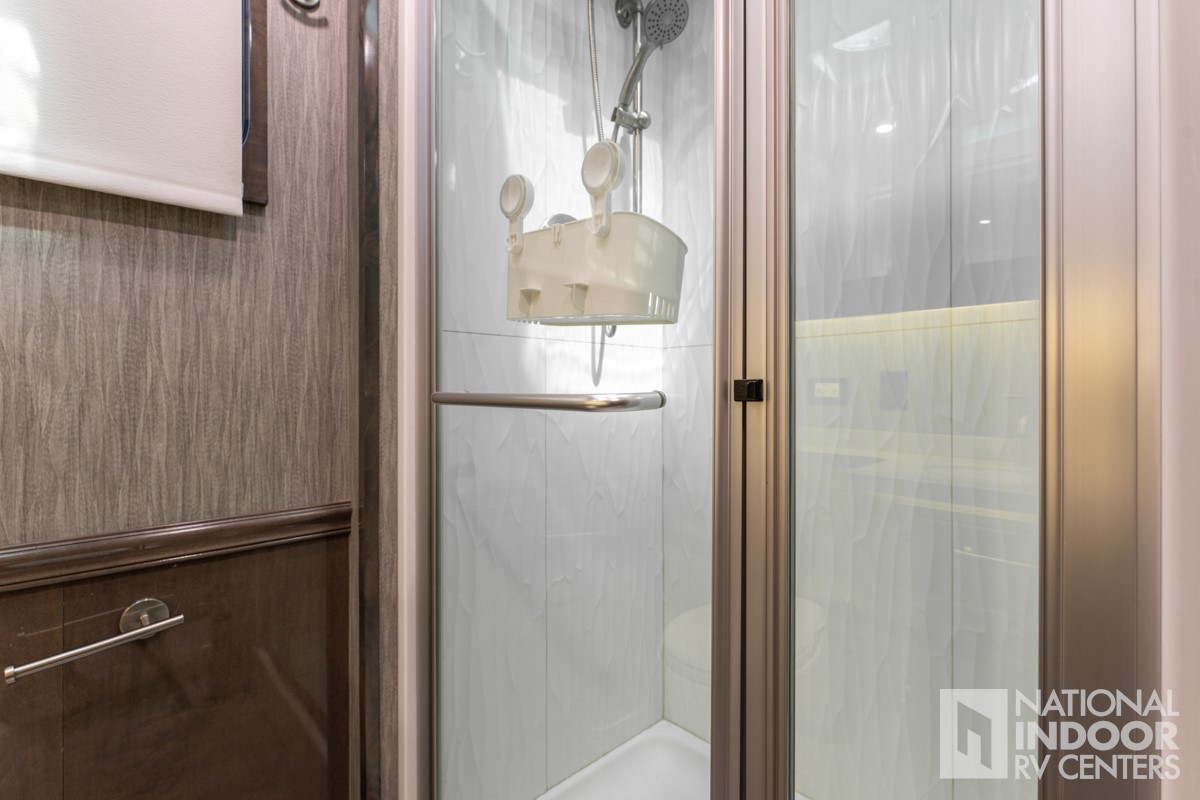

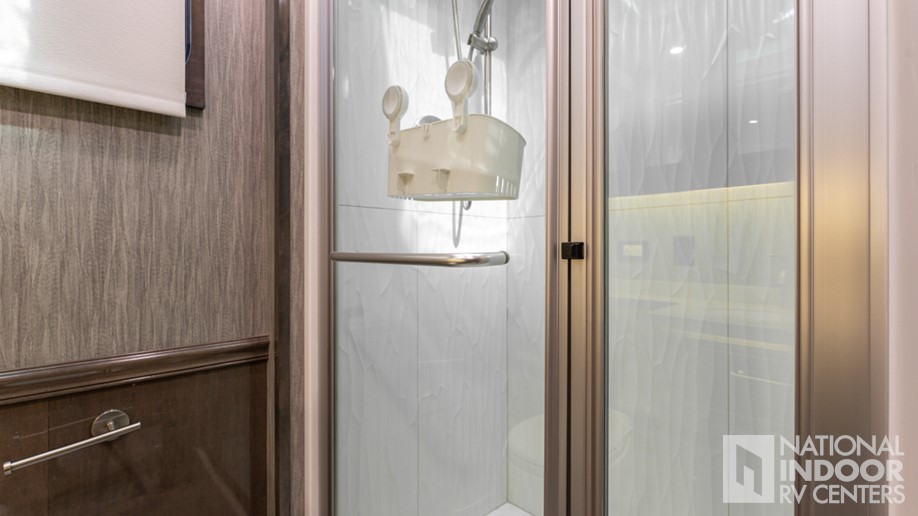

Shower
Marble patterned shower with skylight and clear glass shower door
Vent
Maxxair power exhaust fan with intake

Safety

Security System
Security system with glass shatter sensors
Smoke Alarm
Smoke alarm
Carbon Monoxide Detector
Combination carbon monoxide detector and gas alarm

Options

Canadian Standards
CSA Optional
Fireplace
LED lit fireplace with 1500w heating element (38M, 44B and 42DEQ)

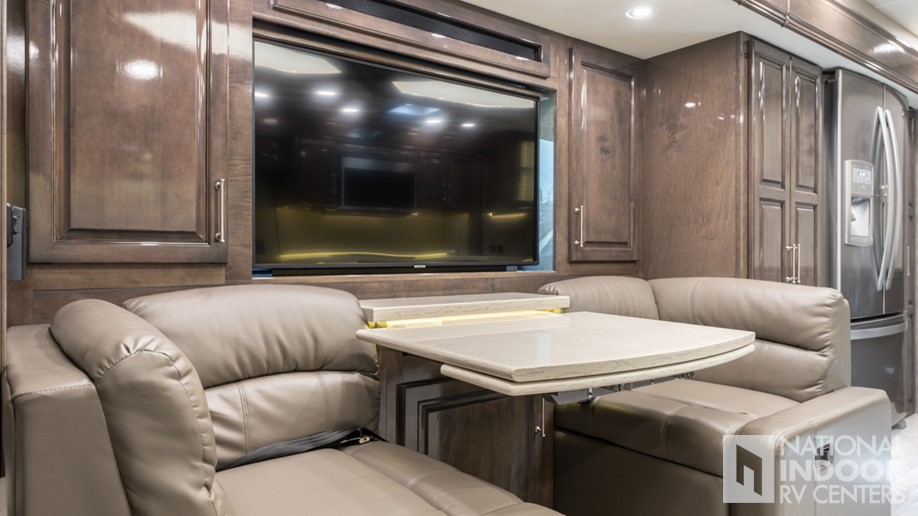

Dinette
Booth dinette driver side (44B, 42DEQ, 40P and 44W)
Theater Seating
100" reclining theater seat & fixed console passenger side (44B and 42DEQ)
Theater Seating Option 2
82" reclining theater seat & fixed consolde driver side (38M, 44R and 44W)
Solar
Solar panels (Dual-100 watt) with Morningstar Sunsaver Duo solar panel charge controller
WiFi Extender Antenna
Winegard WIFI extender with 4G/LTE
Batteries
Batteries- 2 additional AGM, 4 total (N/A on 38M and 40P)
Reclining Sofa
100" reclining sofa passenger side (44B and 42DEQ)
Theater Seating Option 3
74" reclining theater seating, driver side and 60" hide a bed, passenger side (40P)
Satellite Dish
Winegard in-motion dome, roof mounted satellite dish
Baggage Doors
Power Locking Baggage Doors
