| Chassis | Spartan® K3 raised-rail chassis |
| Engine | Cummins® 15 liter X15 turbocharged 605 HP engine with 1,950 lb. ft. torque at 1,150 RPM |
| Transmission | Allison® 4,000 MH 6-speed transmission |
| Radiator | Side-mounted, parallel-airflow radiator |
| Alternator | 210 amp alternator |
| Engine Block Heater | 1,500W engine block heater |
| Engine Brake | Three-stage engine brake |
| Front Axle | Meritor® front axle with independent front suspension, integrated anti-sway bar and custom-tuned Koni® shocks- 20,000 lb. rating |
| Rear Axle | Dana® rear axle - 20,000 lb. rating |
| Tag Axle | Reyco® Granning® passive-steer tag axle with onee-touch manual air dump - 14,000 lb. rating |
| Braking System | All-wheel ABS disc brakes |
| Rear Axle Ratio | 4.30 rear axle ratio |
| Tires | Michelin® 365/70R 22.5 in. tires (front) and 315/80R 22.5 in. tires (rear) |
| Tire Pressure Monitoring | Tire pressure monitoring system (TPMS) with temperature monitoring |
| Traction Control | Automatic traction control |
| Leveling System | Equalizer™ hydraulic automatic coach leveling |
| Air Leveling | Valid™ Truline air leveling system with auxiliary air compressor |
| Air Connection | Remote air connection |
| Chassis Battery | (2) 12V chassis batteries |
| Fuel Tank | 175 gal. fuel tank with dual fills |
| DEF Tank | 15 gal. DEF tank with dual fills |
| Tow Air Brake System | Spartan® Safehaul tow vehicle air brake system |
| Hitch | 20,000 lb. hitch with 7-pin plug |
| Roof | 4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then one-piece fiberglass |
| Walls | 2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16) |
| Floor | 2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped with 3/4 in. 7-ply plywood decking (R-33) |
| Frame | X-Bridge™ bracing welded into chassis frame |
| Slideouts | Entegra-exclusive Relia-Torque flush-mounted 12V slideout system |
| Heated Tanks | Aqua-Hot® heated basement storage |
| Generator | Onan® 12,500W diesel generator, with automatic start, on powered slide-out tray |
| Batteries | (4) L16 AGM batteries (6V/390 amp hrs. ea.) |
| Solar | (2) 200W solar panels |
| Electrical Hookup | 50 amp power cord on electric powered reel |
| Transfer Switch | Smart automatic transfer switch with surge protection |
| Air Conditioning | (3) 15,000 BTU A/C units with heat pumps and condensation drain system |
| Heating System | Aqua-Hot® 600D hydronic water and heating system with in-floor heat throughout and engine preheat |
| Black Tank Management | Sani-Con® macerator holding tank dump system with power gate valves and manual backup |
| Tank Flush | Black tank flush; Grey tank flush |
| Tank Assist | Tilt tank dump |
| Water Filtration | City and tank water filtration system |
| Water Hook-Up | Hot and cold water hook-up in front cap area with 30 ft. quick-disconnect hose |
| Water Hose w/ Electric Reel | Water hose with electric reel |
| Inverter | Victron 3,000W pure sine wave inverter with LED screen |
| Water Softner | Water softener prep in driver-side compartment |
| Front/Rear Cap | Insulated front and rear caps (R-24) |
| Utility Center | Heated exterior utility center with 5 in. LED Firefly® tank monitoring panel |
| Stainless Steel Accents | Executive Bus Armor 10 in stainless steel trim |
| Engine Door | Power rear engine door with manual override |
| Patio Awnings | Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights |
| Door Awning | Girard® power entrance door awning with LED lights |
| Slideout Awnings | Girard® Ultra slideout awnings |
| Window Awnings | Girard® Ultra power window awnings |
| Windows | Frameless, dual-pane, tinted, safety-glass windows |
| Keypad | Lit grab handle with doorbell and keypad system for keyless entry |
| Entertainment | 43 in. Samsung® QLED 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL® radio and speakers with USB port and receptacle |
| Mirrors | Blind-spot monitoring indicators in chrome, heated, remote-control side-view mirrors |
| Exterior | Diamond Shield™ front protective film mask |
| Headlights | Automatic LED high and low beam headlights |
| Fog Lights | Halogen fog lights |
| Daytime Running Lights | Automatic daytime running lights |
| LED Lights | LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights |
| Accent Lights | LED accent lights under all slideout rooms |
| Lights | Porch light and motion sensor security lights |
| Rear Mudflap | Mudflap with chrome “Entegra Coach” nameplate |
| Satellite Internet | Starlink satellite internet system |
| Satellite Dish - US | Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option |
| Satellite Dish - CA | Winegard® TRAV’LER Pro satellite dish Shaw TV - standard with CSA option |
| Antenna | Winegard® Rayzar Automatic powered TV antenna |
| Wi-Fi | Winegard® WiFiRanger™ Wi-Fi extender |
| Cargo Features | (2) power slideout basement storage trays |
| Freezer | 2.8 cu. ft. exterior refrigerator/freezer on slideout tray |
| Baggage Doors | Push-button, power-unlatching baggage doors with LED indicator light |
| Exterior Walls | Sikkens custom full-body paint |
| Chrome Accents | LED-lit chrome clearance accent light |
| Entrance Door | Removable screen on entry door |

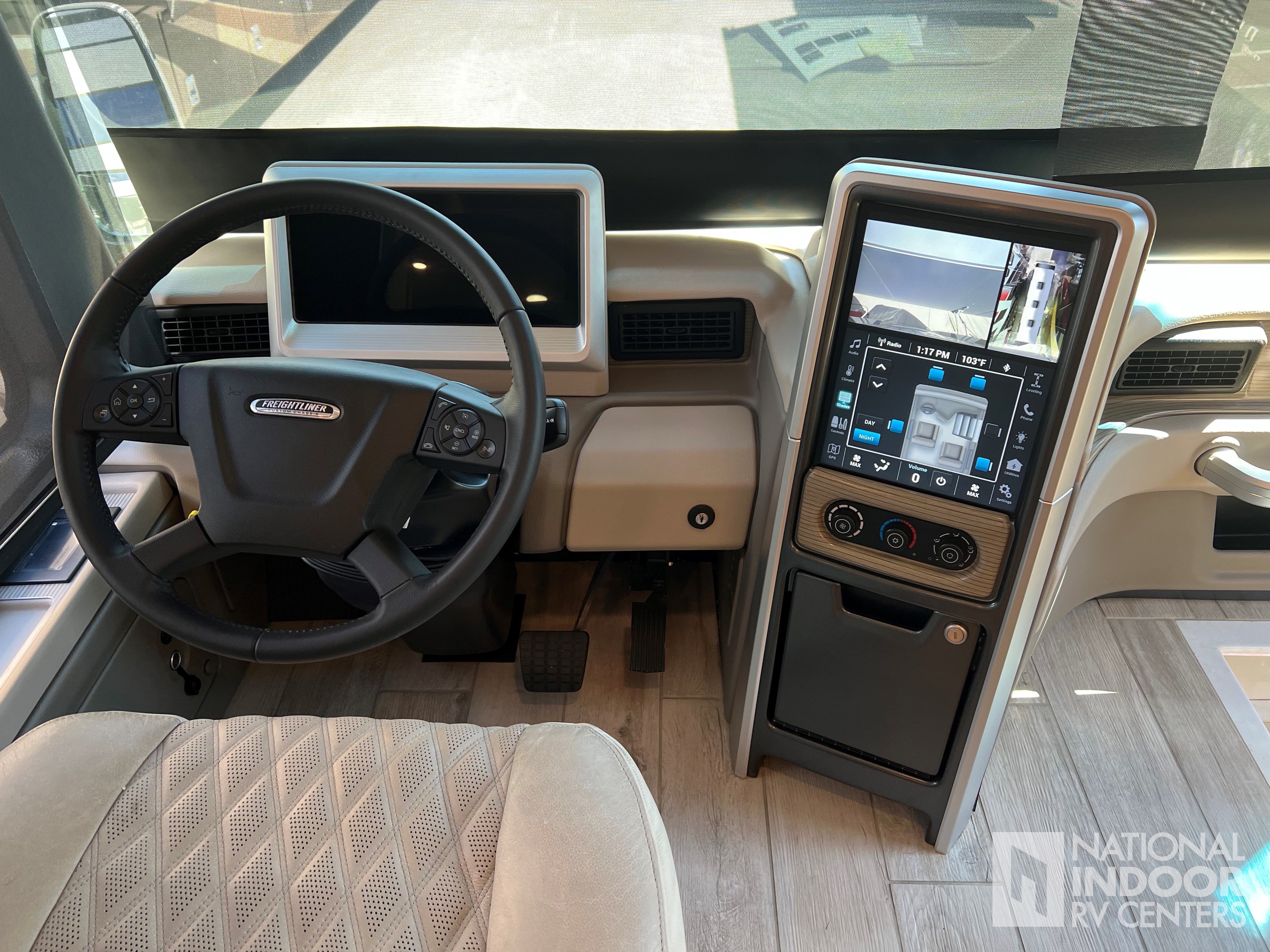

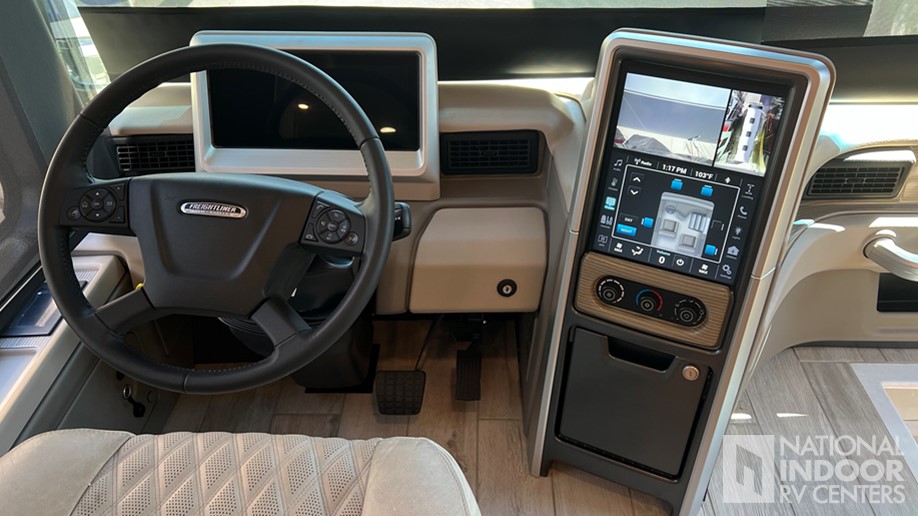

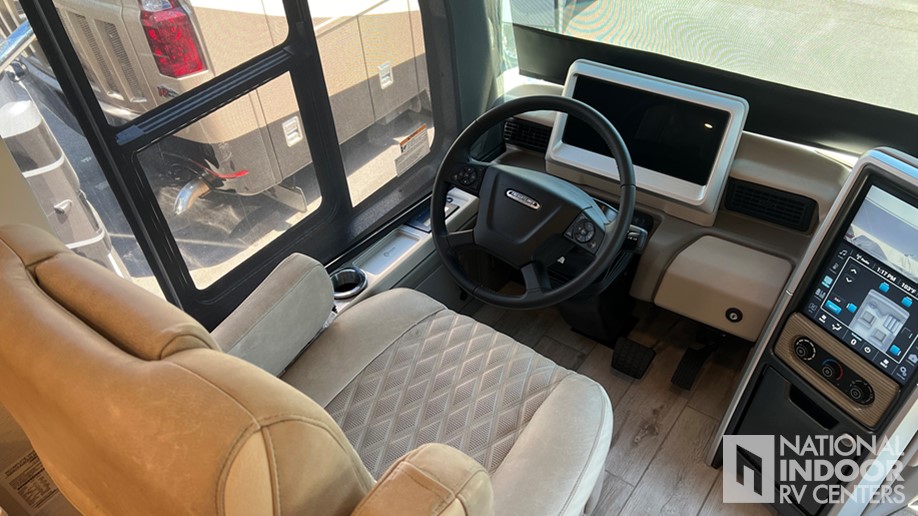

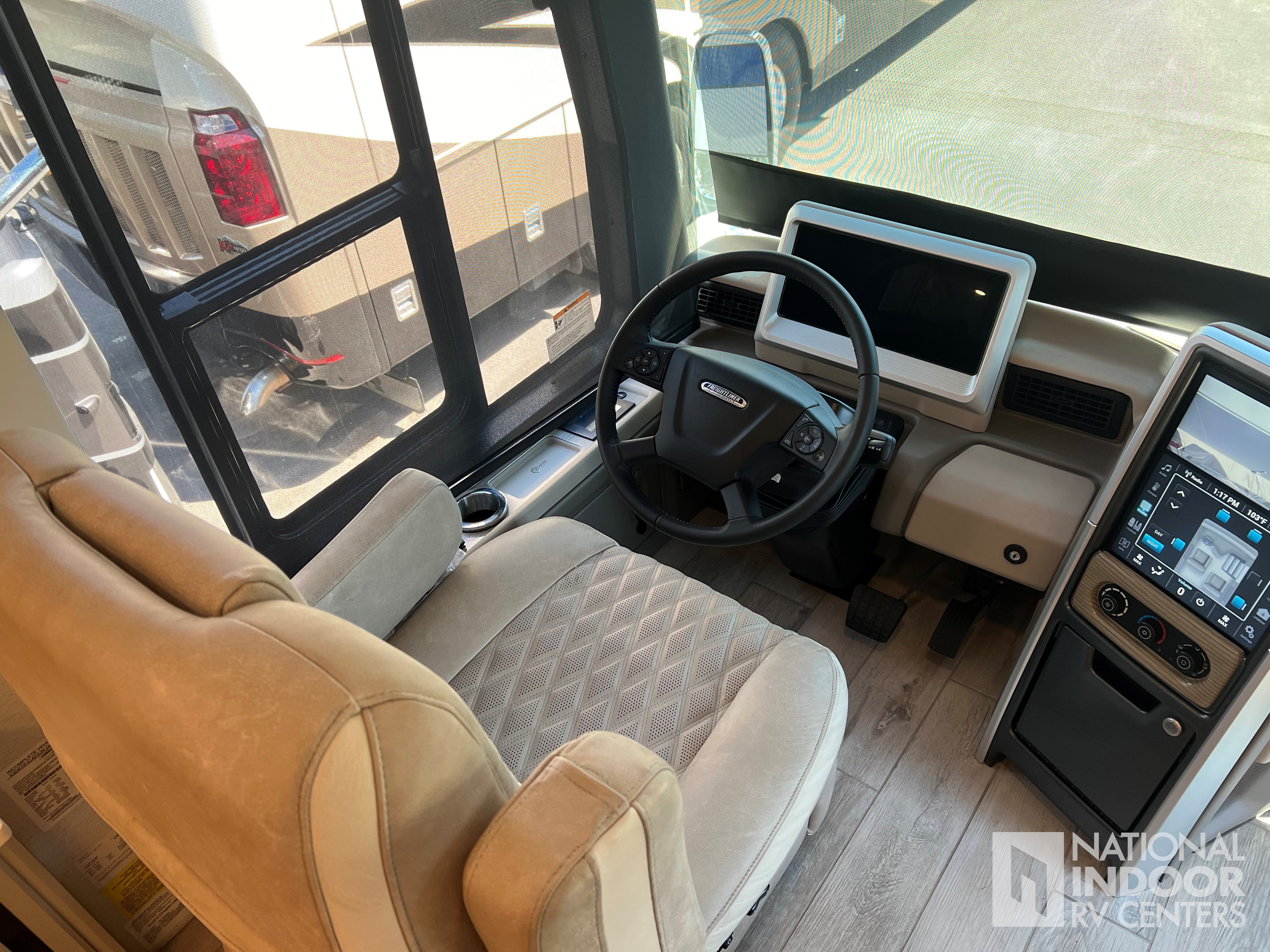

| Dash | Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument cluster, 360° camera system or GPS navigation |
| Cameras | Delta Mobile Systems® aiDARS™ 1X active 360° surround view system with 14 smart radar sensors and 6 HD cameras displayed on digital dash screen |
| Infotainment System(s) | Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, house mode whole-coach audio distribution and integrated VegaTouch coach control |
| Side Consoles | 4.3 in. infotainment control touchscreen in passenger console |
| Driving Features | E-Z Steer™ adjustable power steering assist |
| Steering Wheel | Leather steering wheel with integrated controls for screen selection, instrument cluster navigation, media source selection, cruise, wipers and Bluetooth® phone functionality |
| Steering Column | Power tilt and telescoping steering column |
| Sound System | JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer |
| Antenna | All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system |

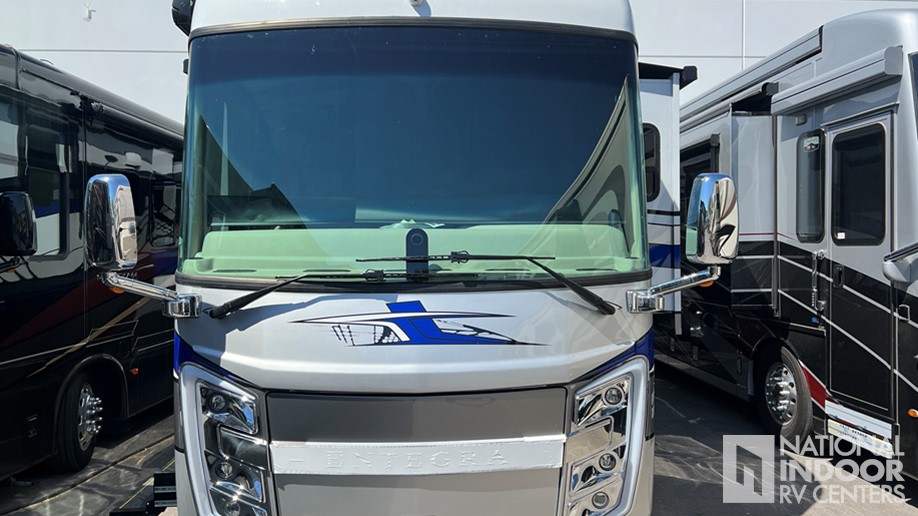

| Windshield | Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers |

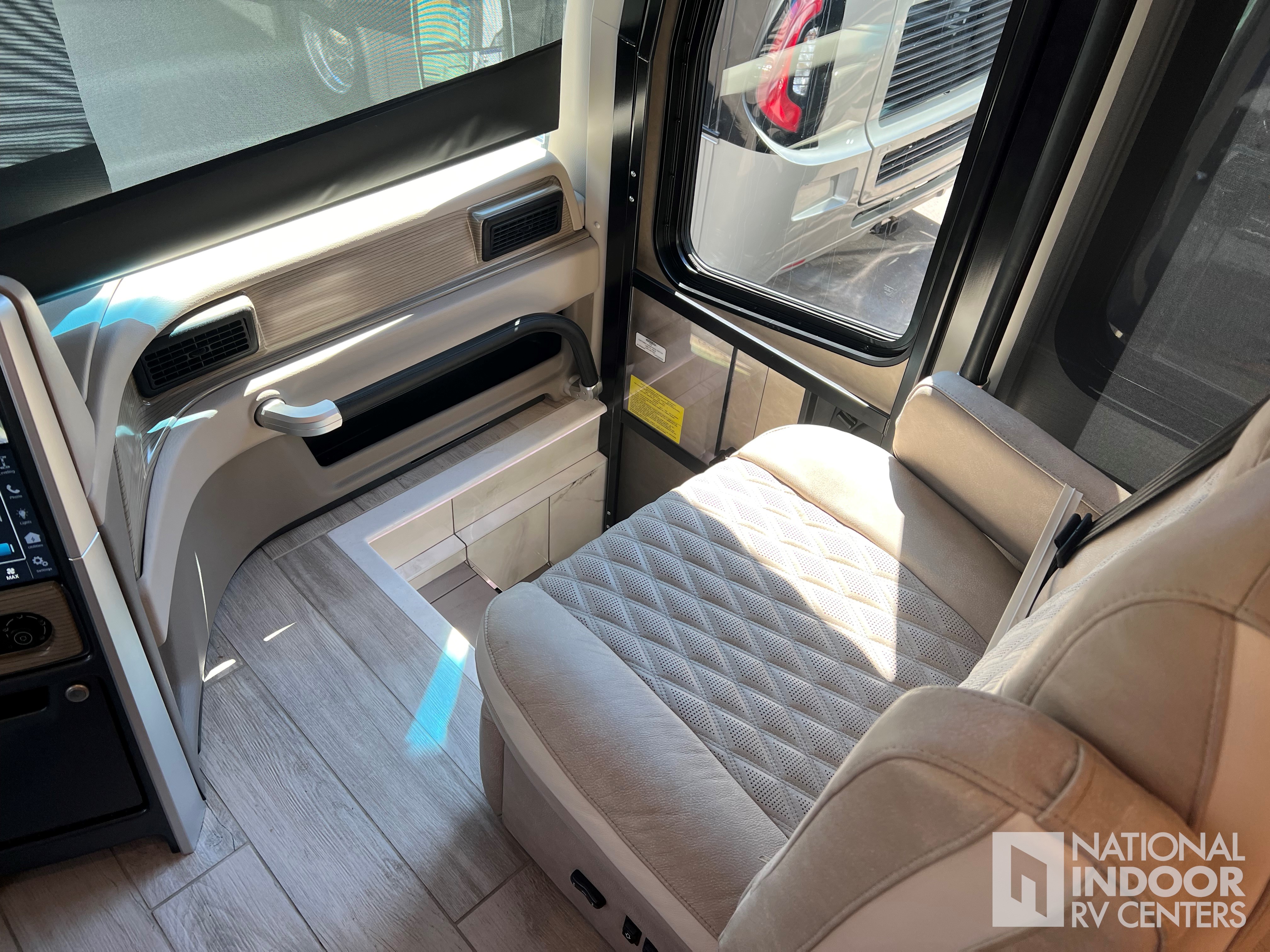

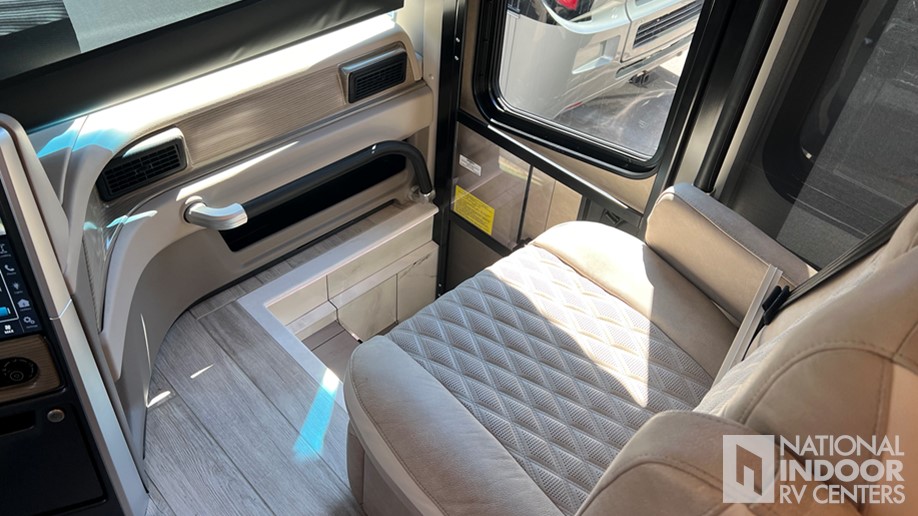

| Driver / Passenger Seats | Heated and cooled leather driver and passenger seats with powered 6-way adjustment, lumbar, recline, footrest and massage functions |
| Power Features | Powered driver's window; Powered flush stepwell cover |
| Pedals | Powered adjustable brake and accelerator pedals |
| Visors & Privacy Shade | Powered front sun visors and privacy shades |
| Collision Mitigation | Collision avoidance system with collision warning, adaptive cruise control and electronic stability control |
| Additional Amenities | Bergstrom dual-zone HVAC system; Dual USB port and one 12V socket for charging |

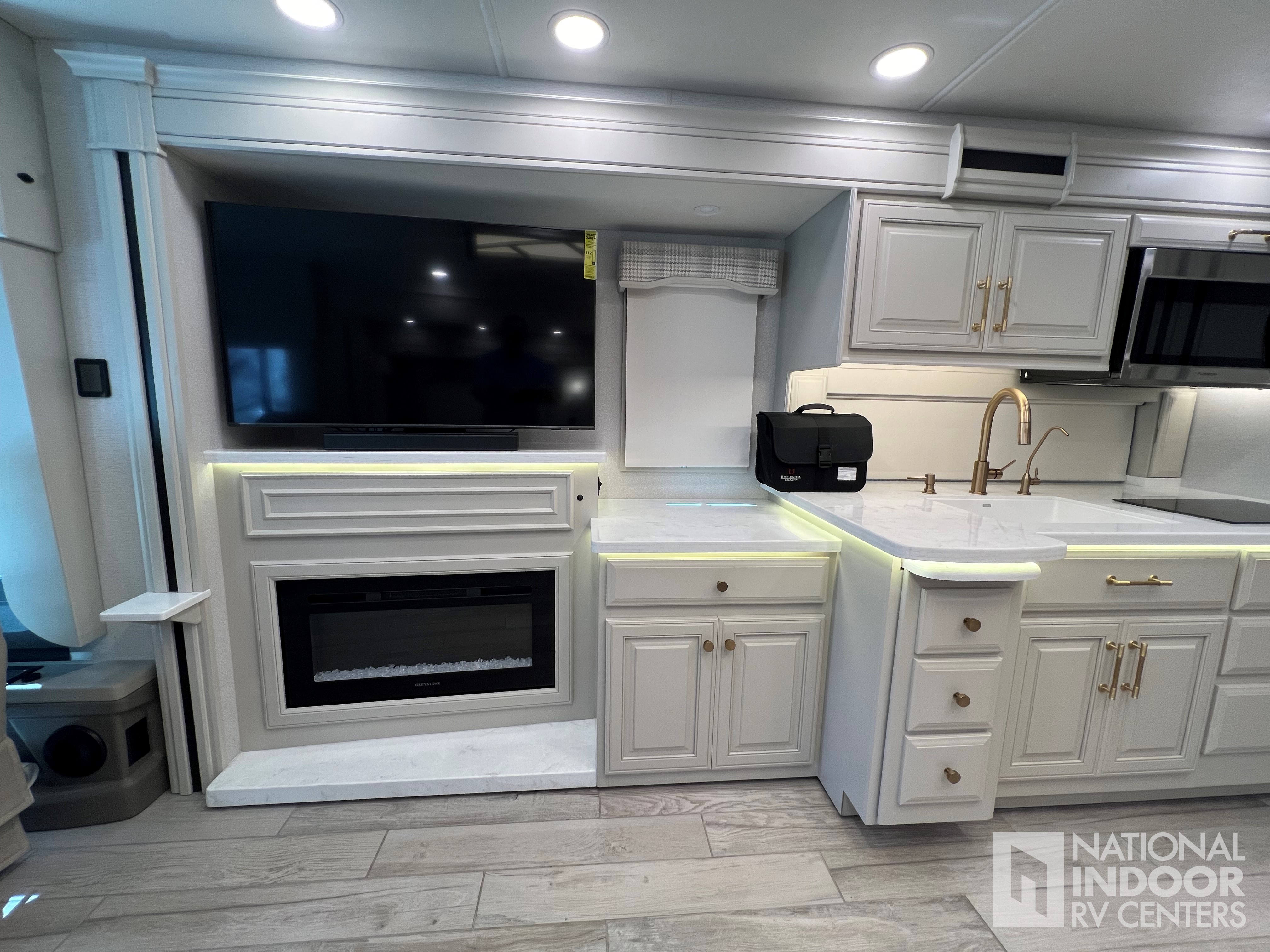

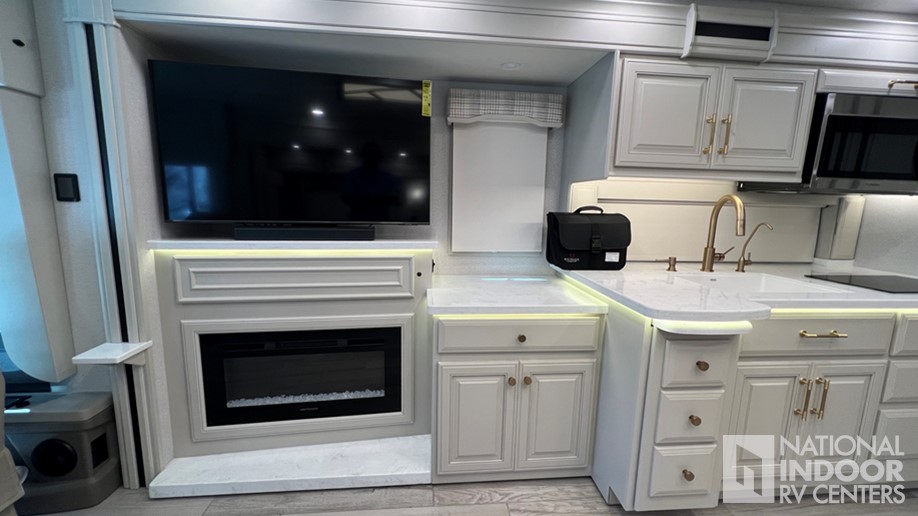

| Electric Fireplace | LED-lit fireplace with 5,000 BTU heating element (45B, 45Z) |
| Television - Front Overhead | 32 in. Samsung® QLED 4K UHD Smart TV in front overhead |

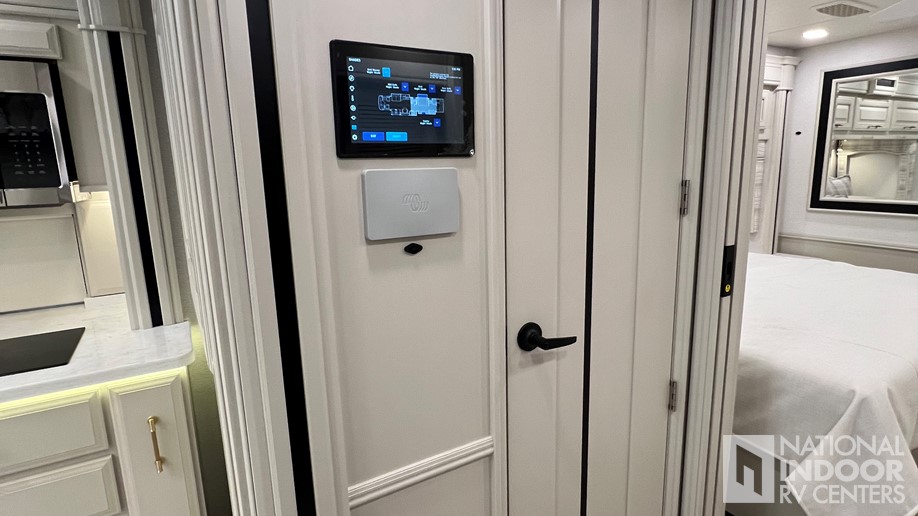

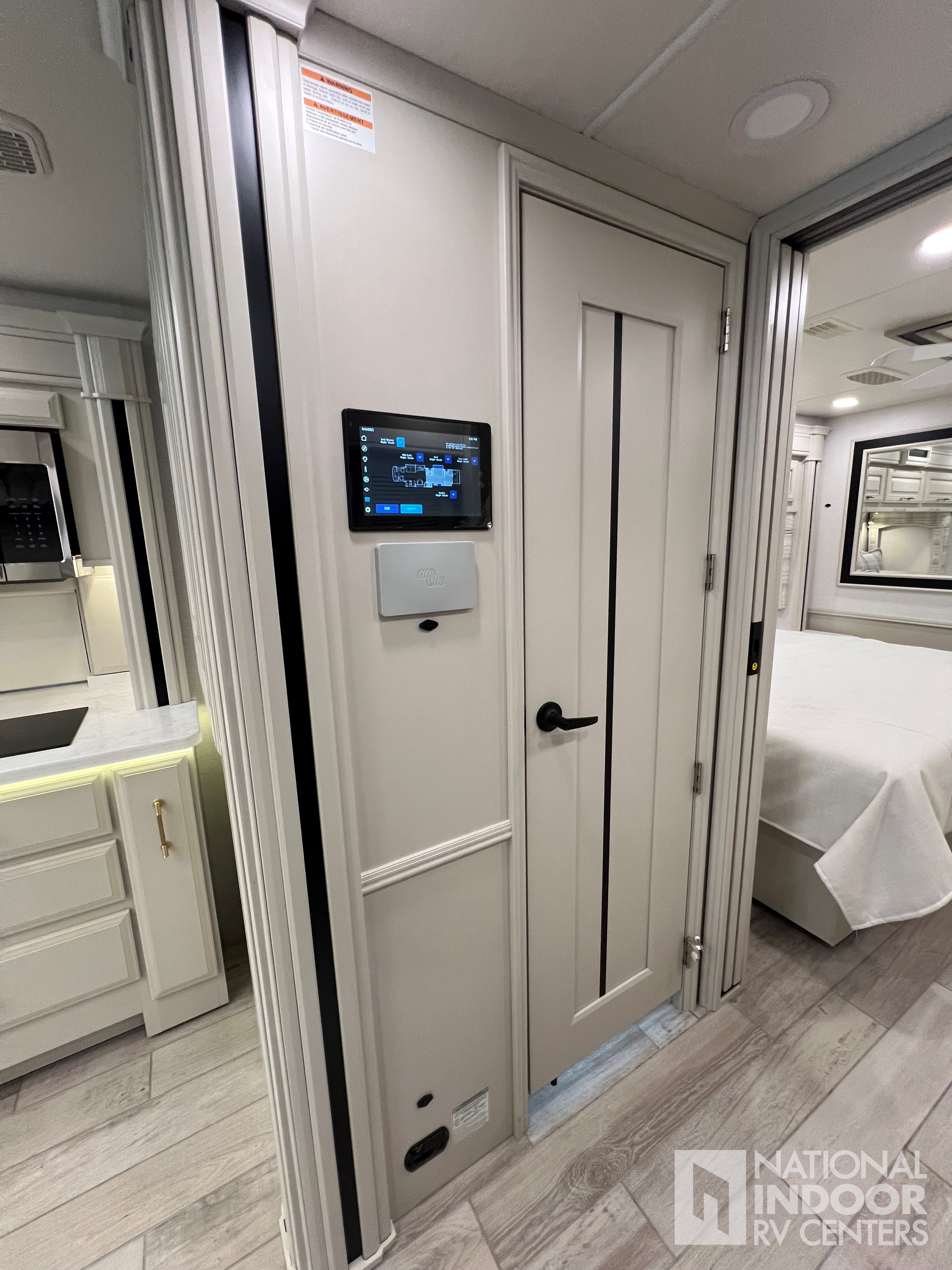

| Command Center | Firefly multiplex system with 10 in. VegaTouch touchscreen for complete integration of coach controls, with remote monitoring and control (mobile app available) |
| Switches | Spyder 3.5 in. touchscreen switches throughout |
| Television - Living Room | 50 in. Samsung® QLED 4K UHD Smart TV |
| Sound - Living Room | Bose® sound bar with subwoofer and universal remote control |
| DVD Systems | Sony® Blu-ray™ player |

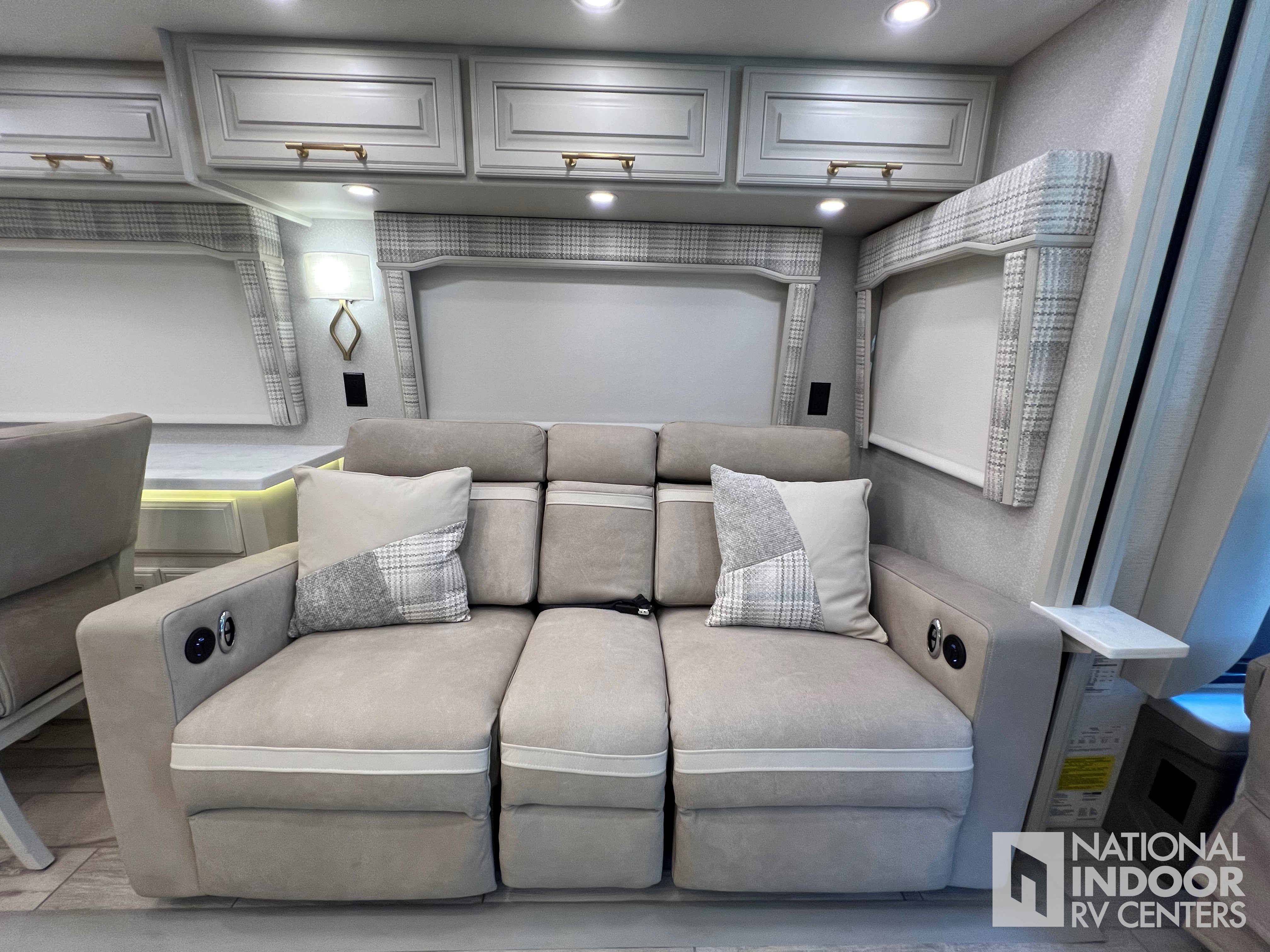

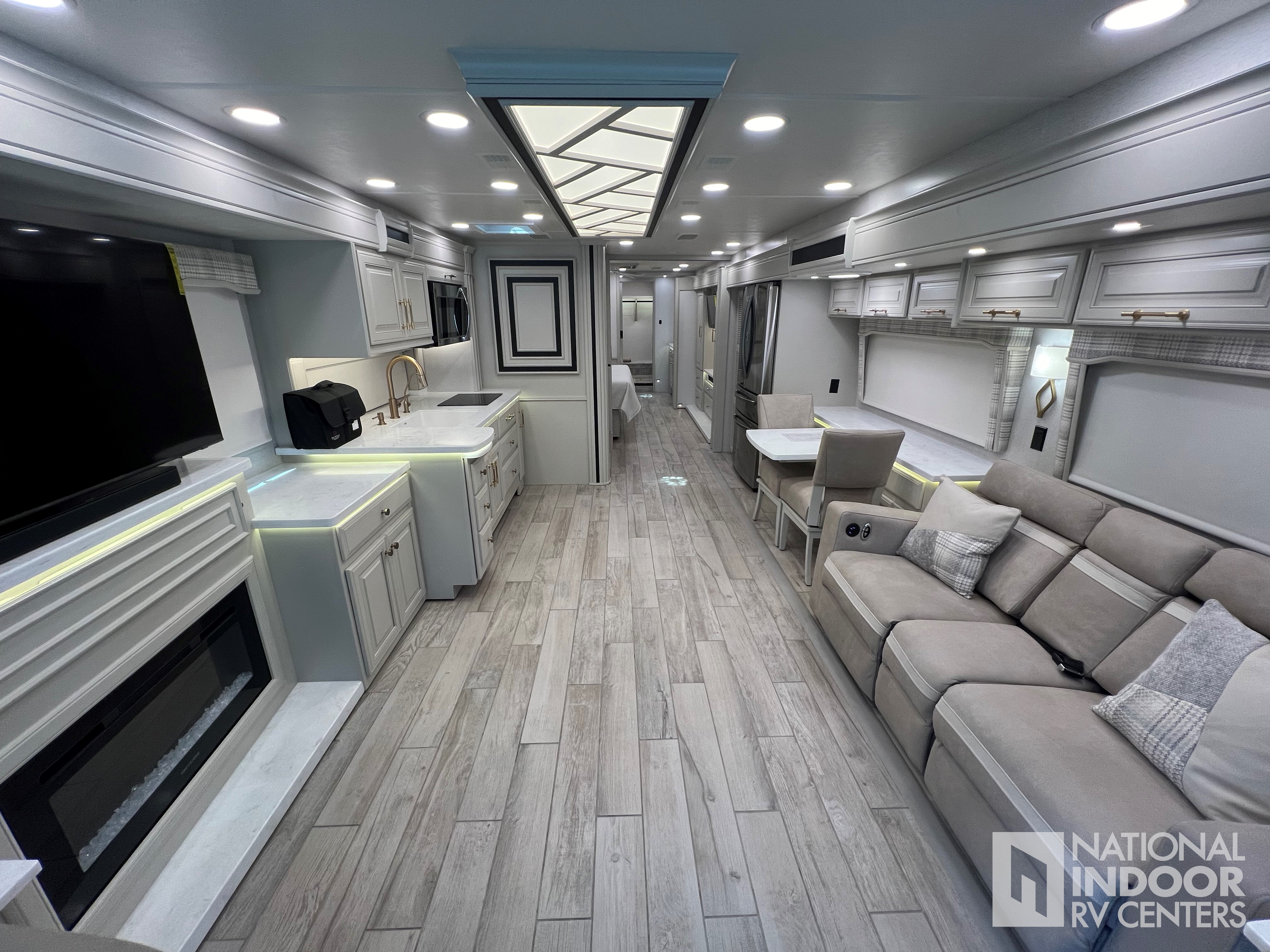

| Furniture | Premium leather Crown Compass furniture |
| Flooring | Hand-laid porcelain tiled floors |
| Lighting | LED interior lighting |
| Ceiling | Decorative ceiling feature with integrated accent lighting |
| Window Treatments | Powered solar day and blackout night shades |
| Central Vacuuming System | Portable Shark® vacuum cleaner |
| Interior Doors | Aire-Secure™ travel locks for all pocket doors |
| Bar | Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (45R only) |
| Bunks | Bunks with industry-exclusive 300 lb. capacity each (45R) |

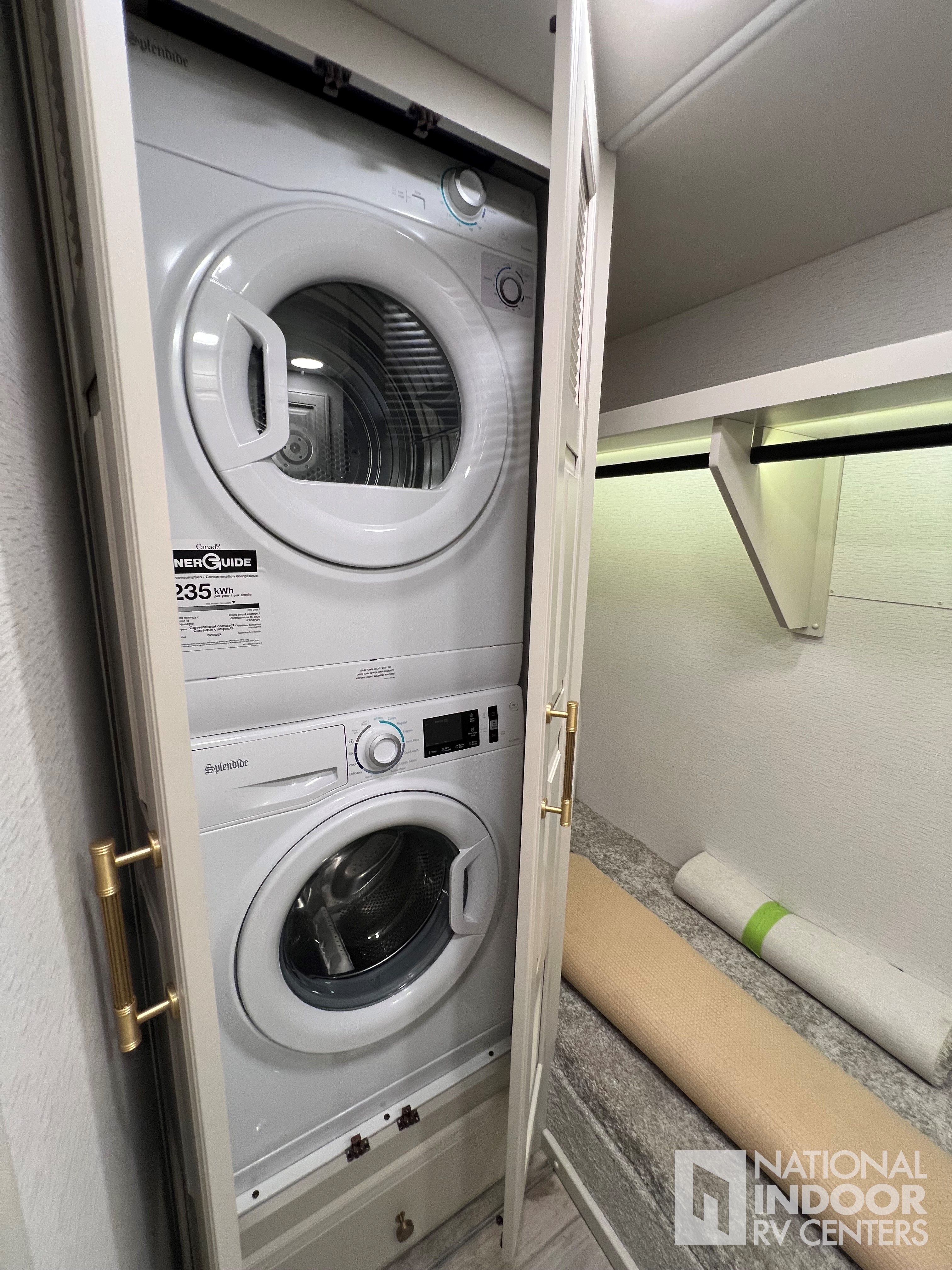

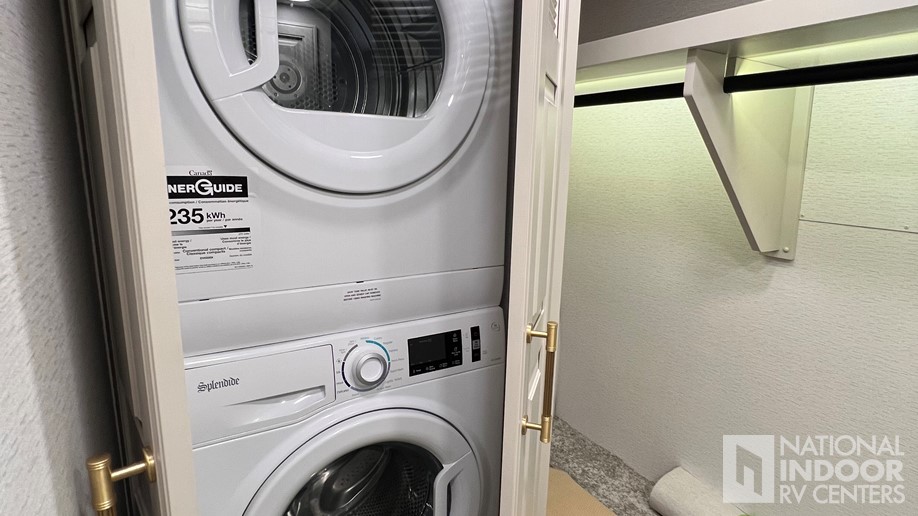

| Washer/Dryer | Splendide stackable washer and dryer |
| Window | Window with push out lever operation and screen |

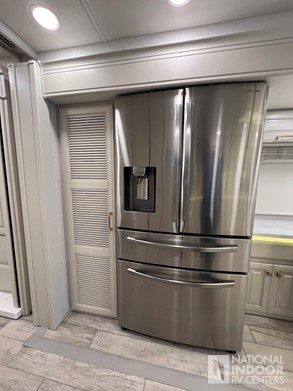

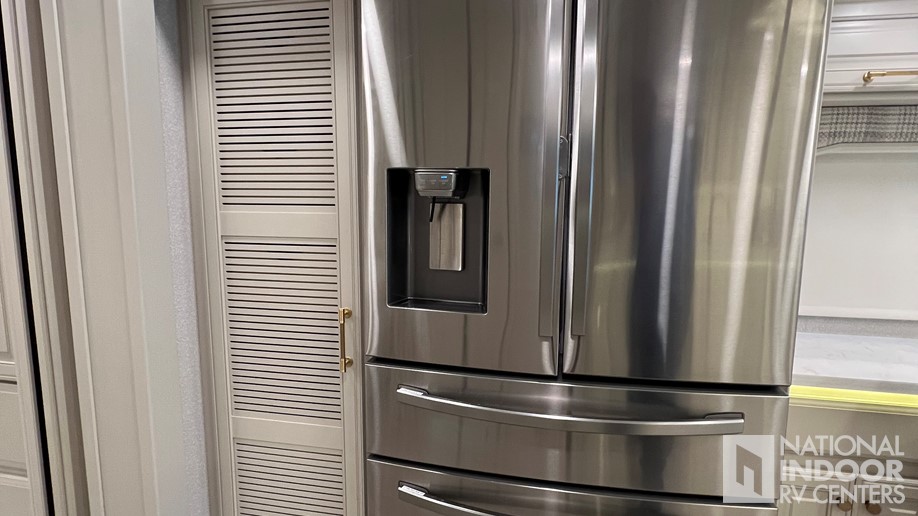

| Refrigerator | Stainless steel residential refrigerator |

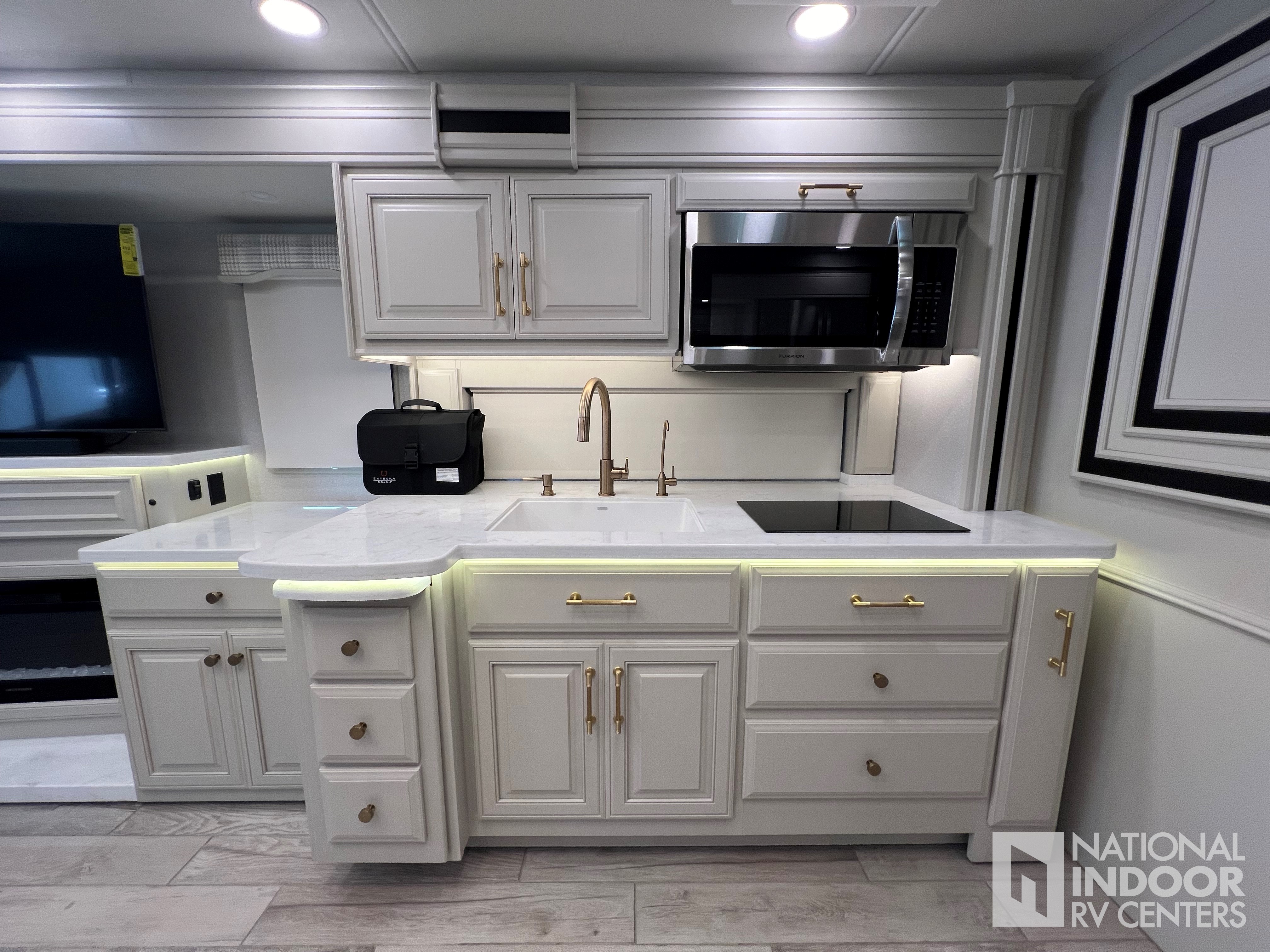

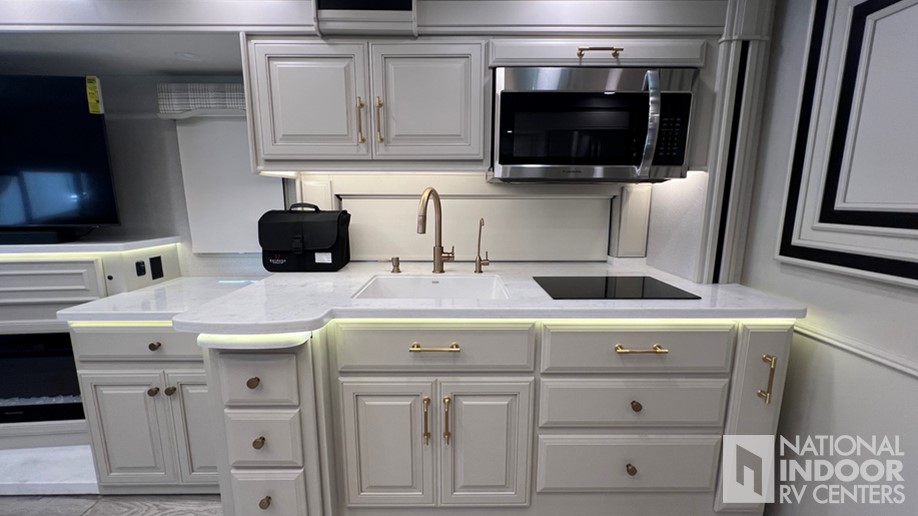

| Cooktop | Induction cooktop with matching wood cover |
| Microwave | 1.9 cu. ft. convection microwave oven |
| Dishwasher | Fisher & Paykel dishwasher |
| Countertops | Solid-surface countertops with Blanco single-bowl granite sink and dimmable LED accent lighting |
| Water Dispenser | Filtered water dispenser at kitchen sink |
| Vent | Maxxair® power vent exhaust fan with intake and touch screen control |
| Waste Basket | Large, deep drawer for waste basket with easy access trash chute (trash chute not available in 45D, 45R) |
| Storage | Pantry with pull-out shelves; Slide-out storage tray(s) in overhead cabinet |

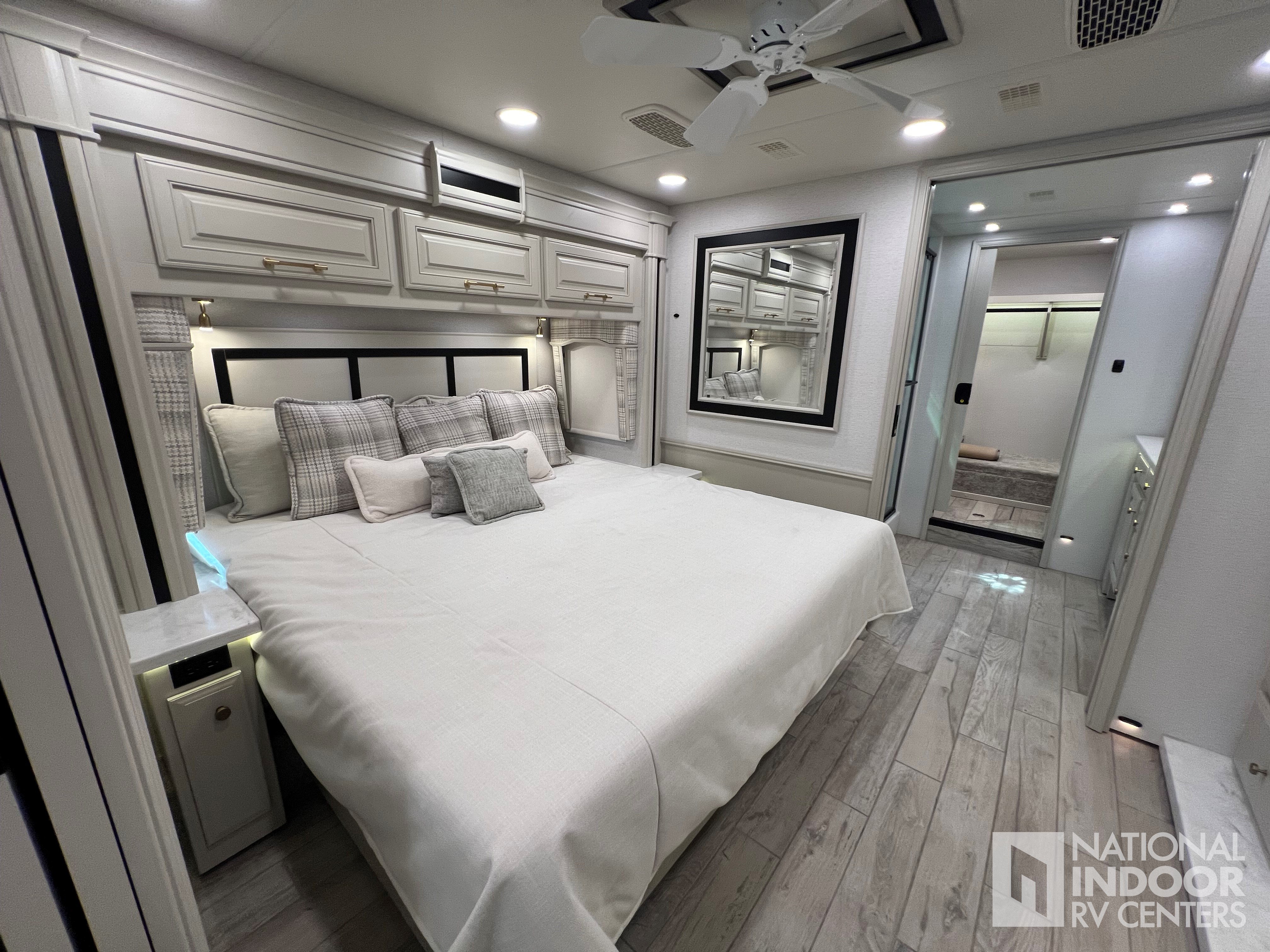

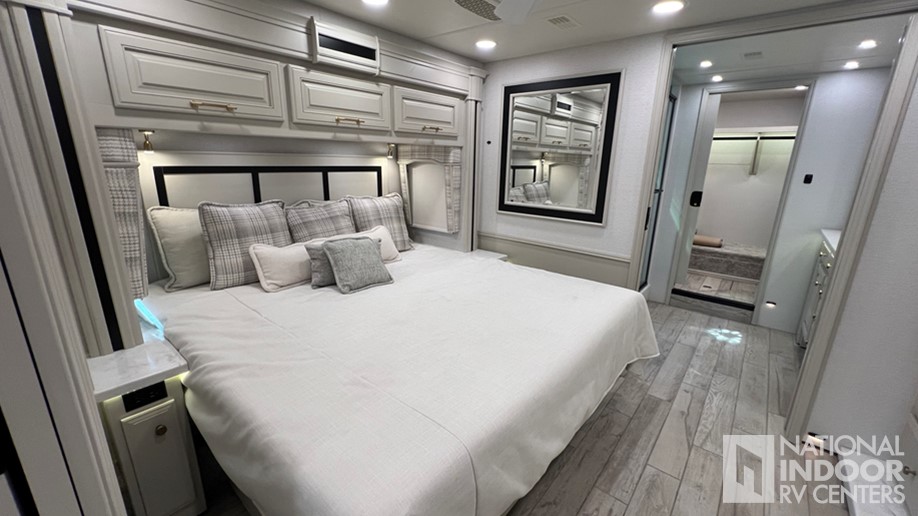

| Bed | Personal Comfort® A5 king-size mattress |

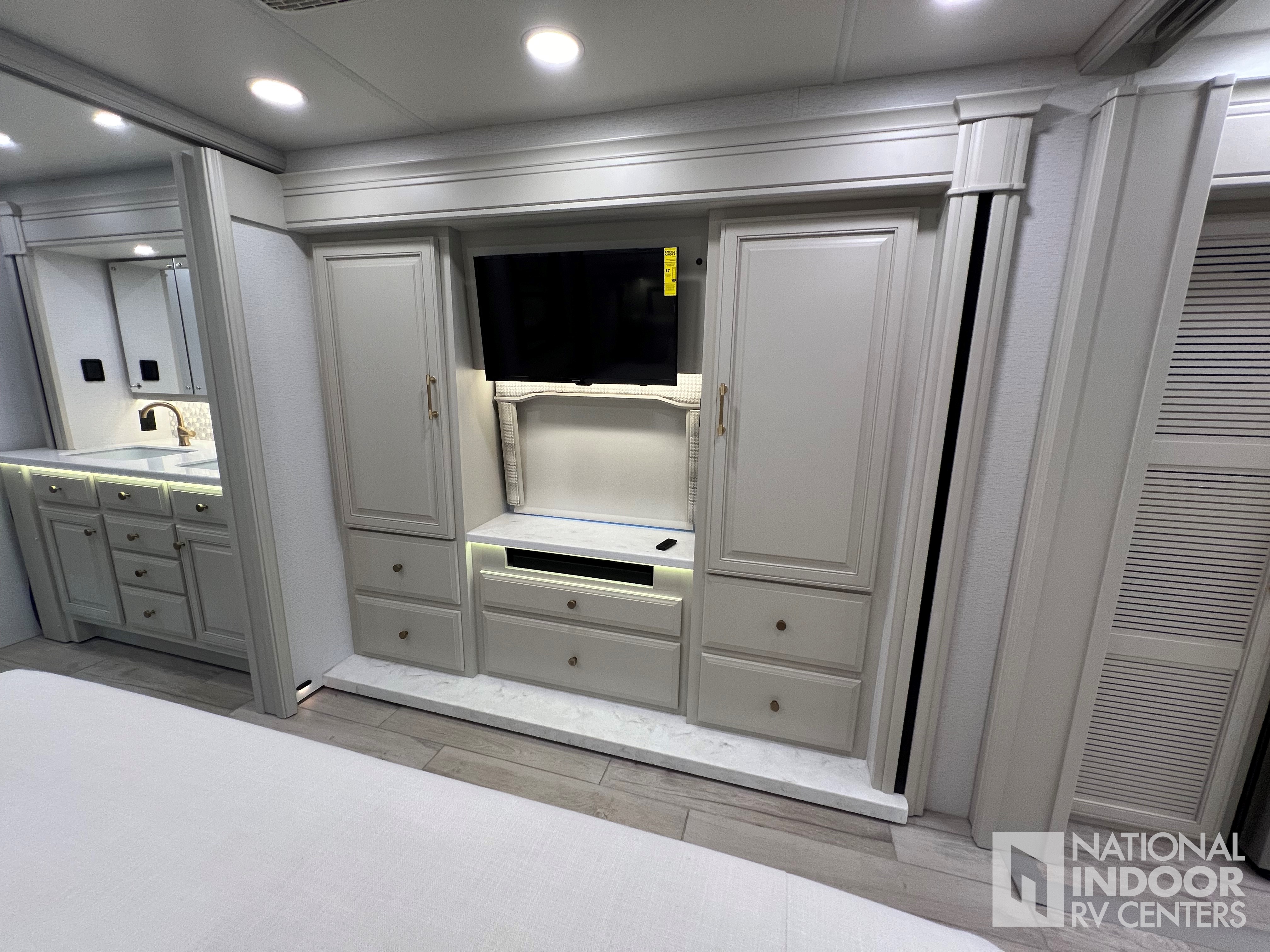

| Television | 32 in. Samsung® LED 4K UHD Smart TV |
| Sound | Bose® sound bar with universal remote control |
| DVD Systems | Sony® Blu-ray™ player |
| Ceiling Fan | Ceiling fan |
| Nightstands | Nightstands with solid-surface tops |

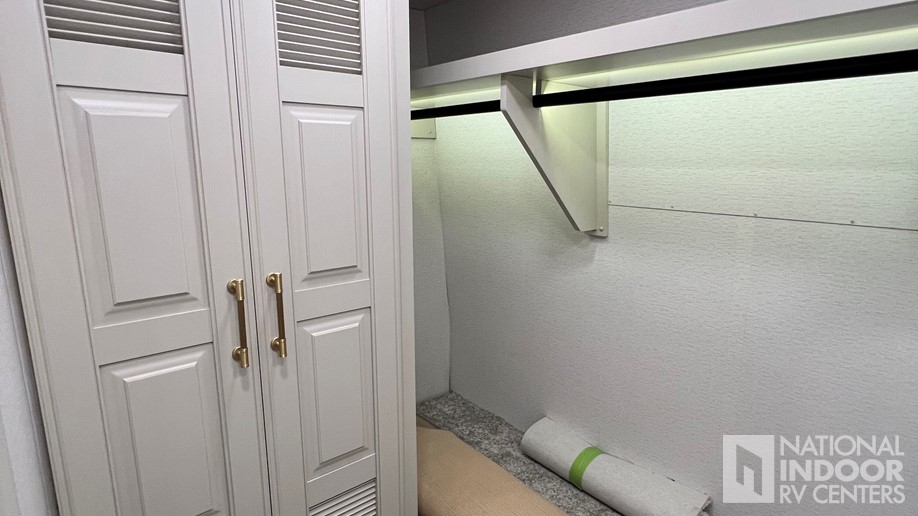

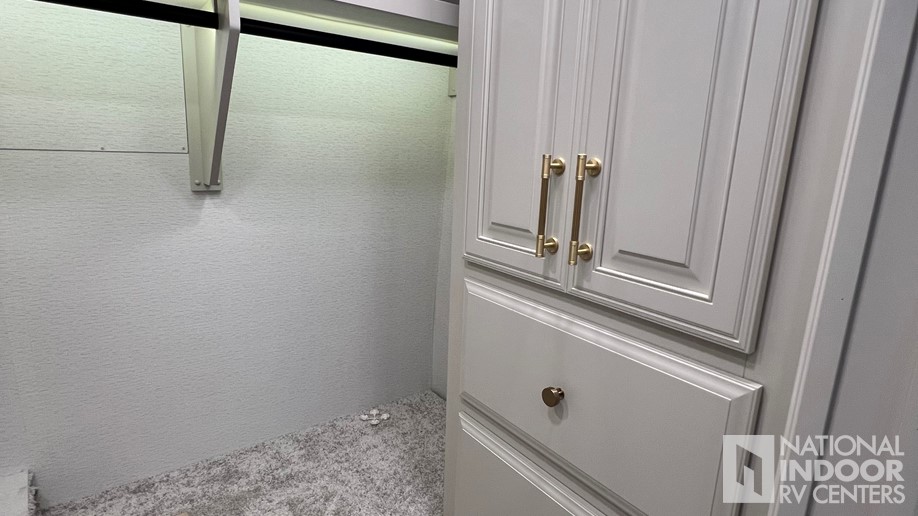

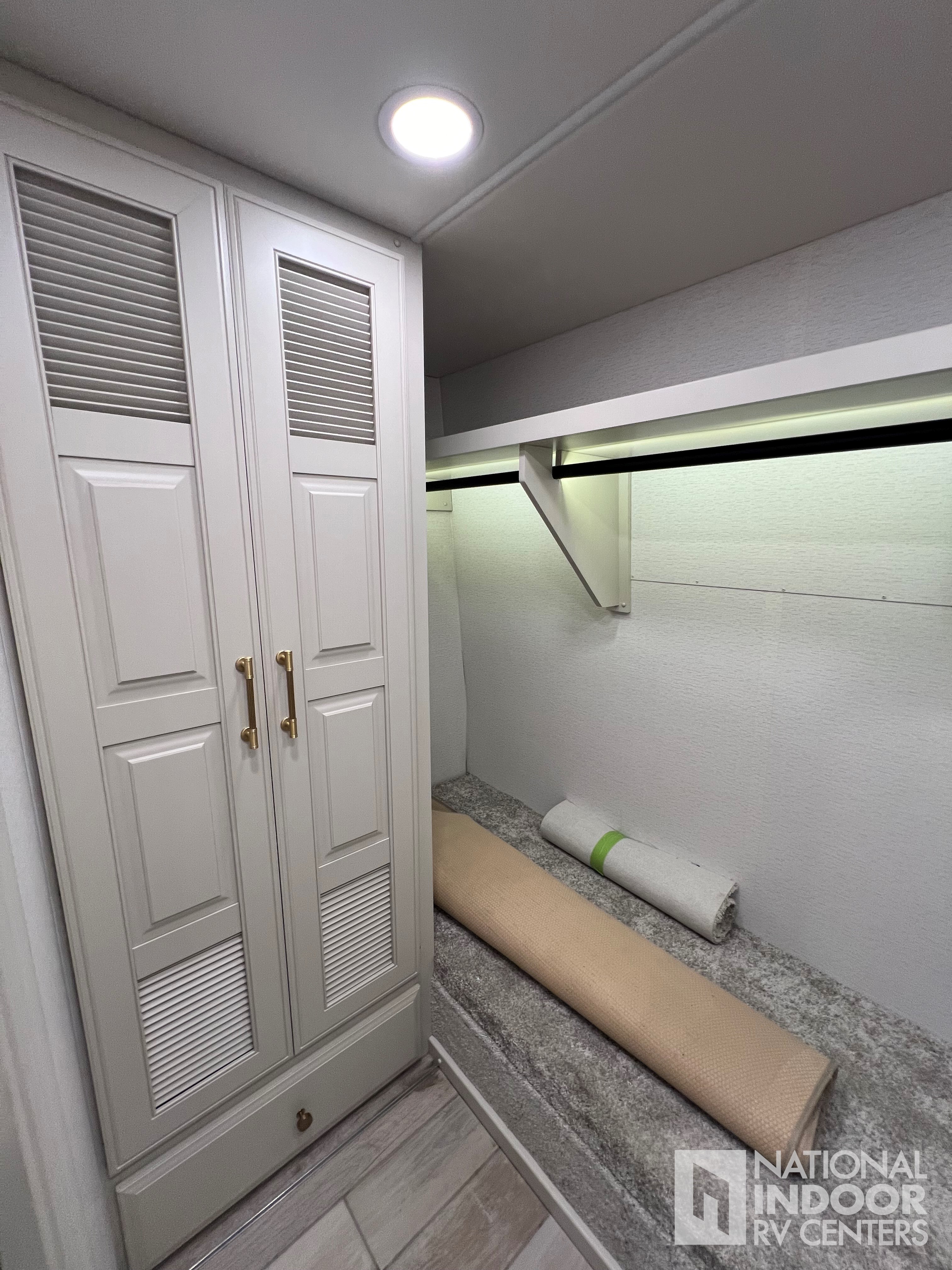

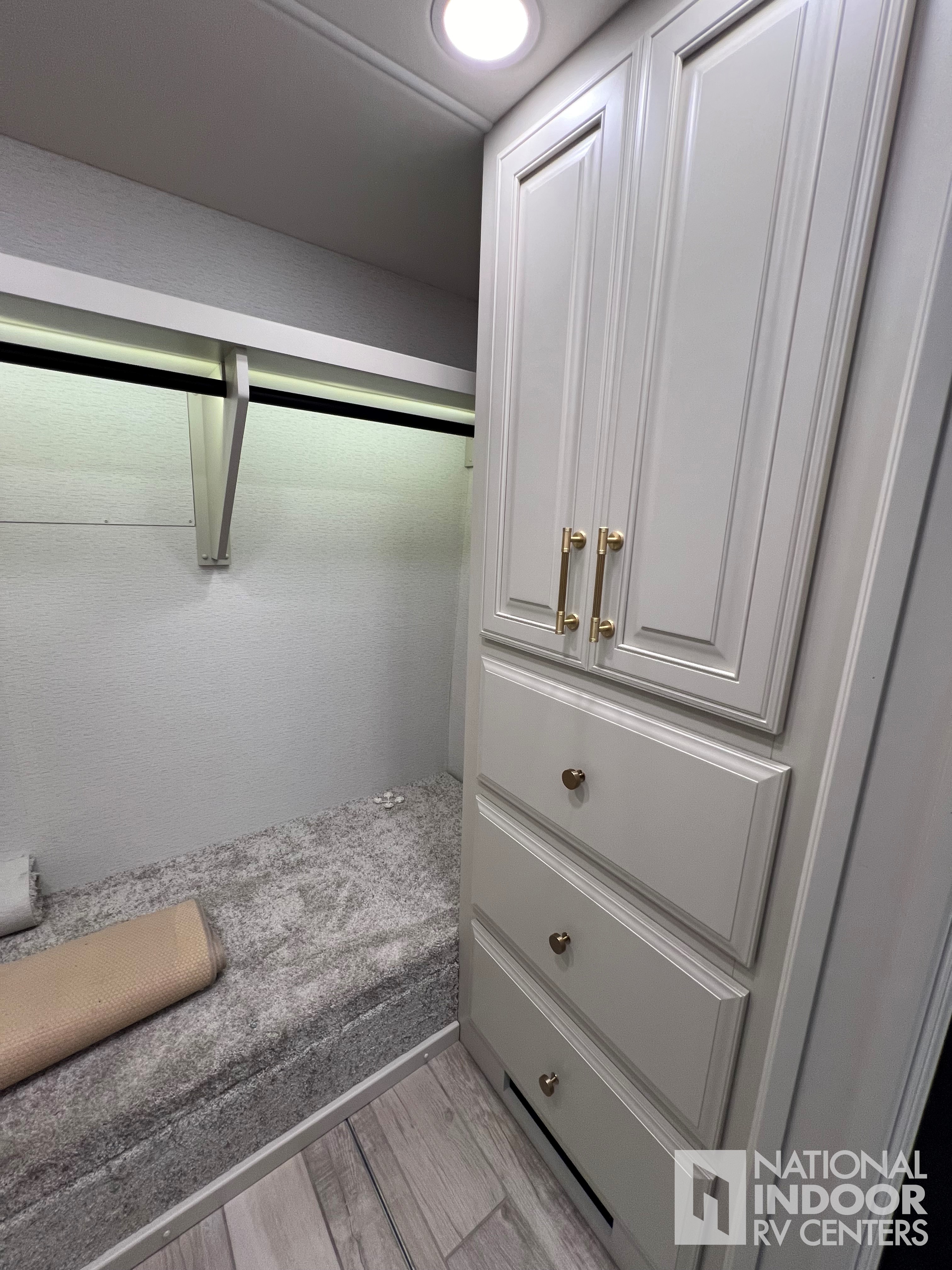

| Wardrobe | Automatic light in rear closet |

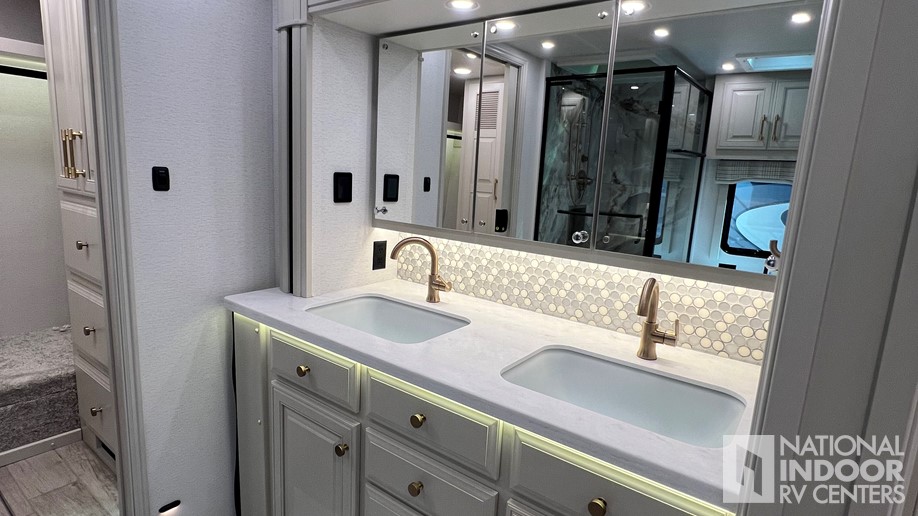

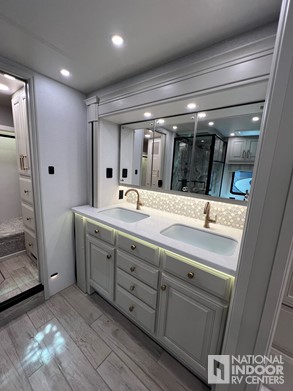

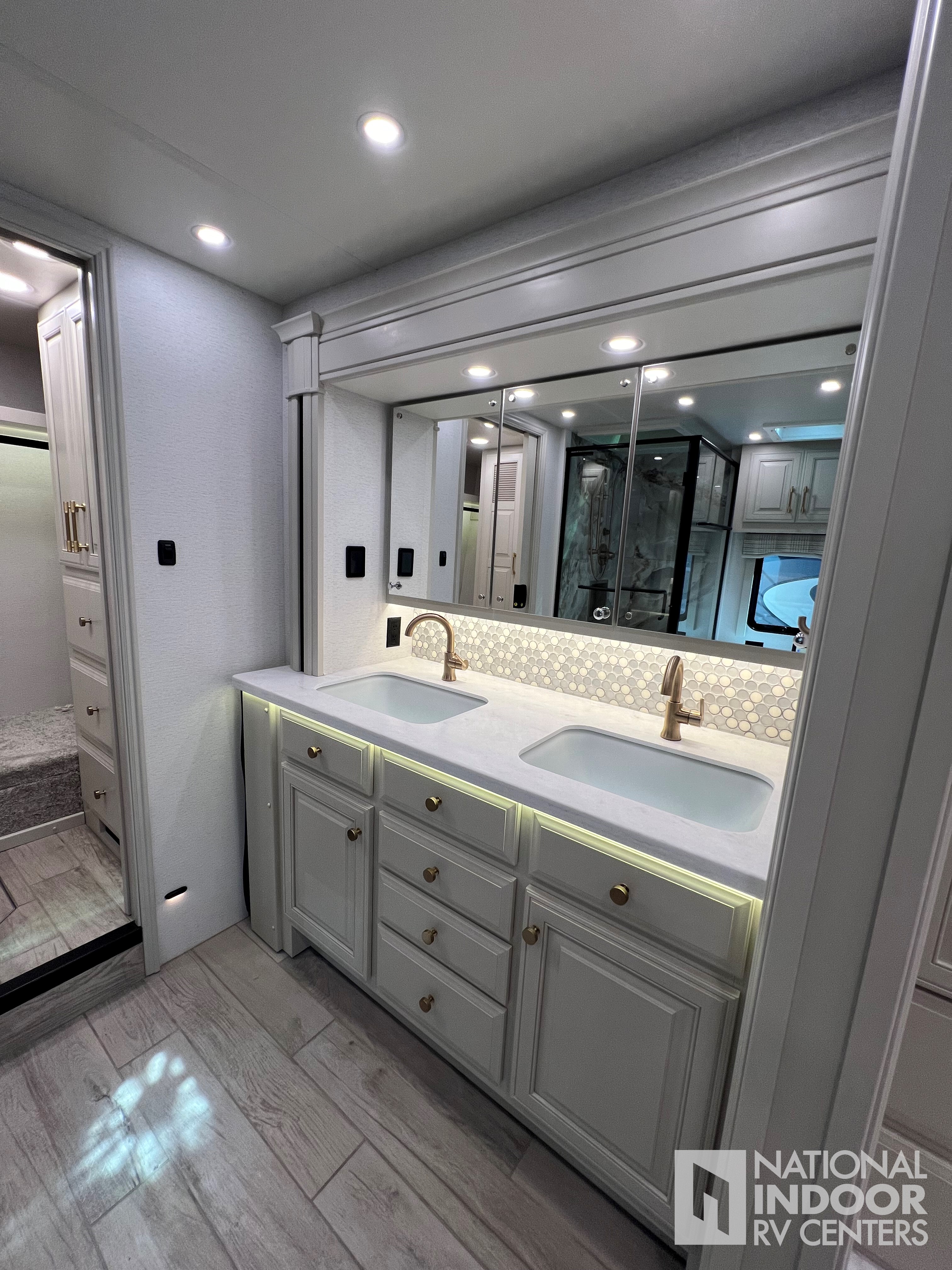

| Countertop(s) | Solid-surface countertops with integrated glass sink and dimmable LED accent lighting |

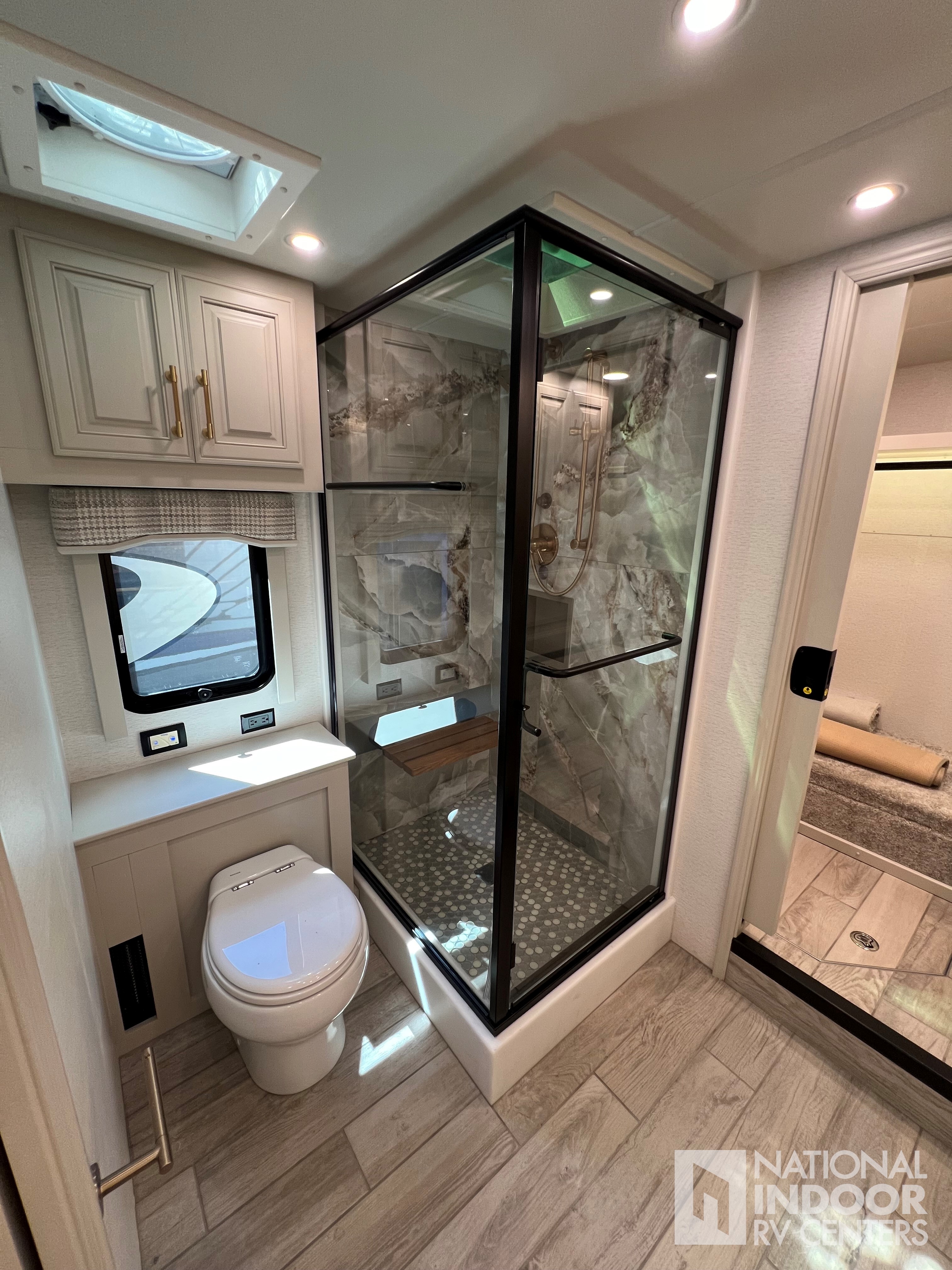

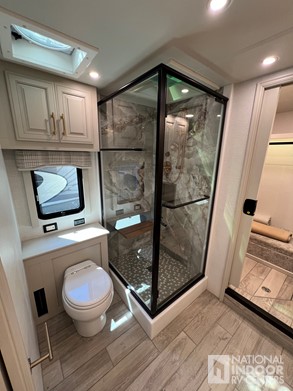

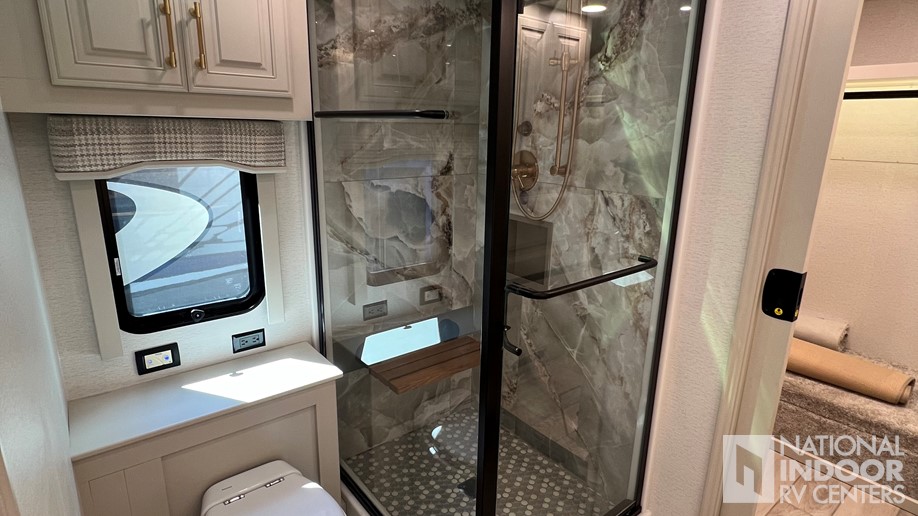

| Shower | Porcelain tile shower walls and floor with skylight and frameless glass shower door |
| Shower Seat | Teakwood shower seat |
| Shower Head | Pivoting shower head and separate hand-held spray wand |
| Water Saving System | Aqua View SHOWERMI$ER™ water saving system |

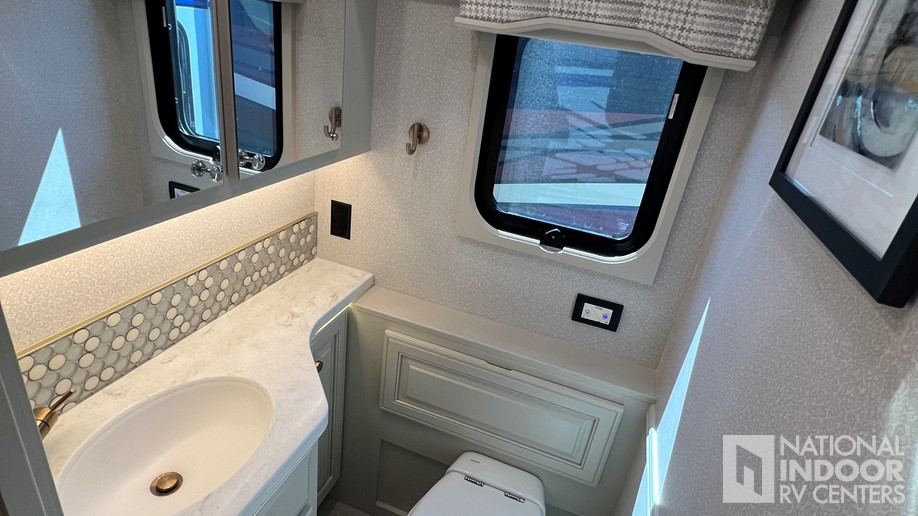

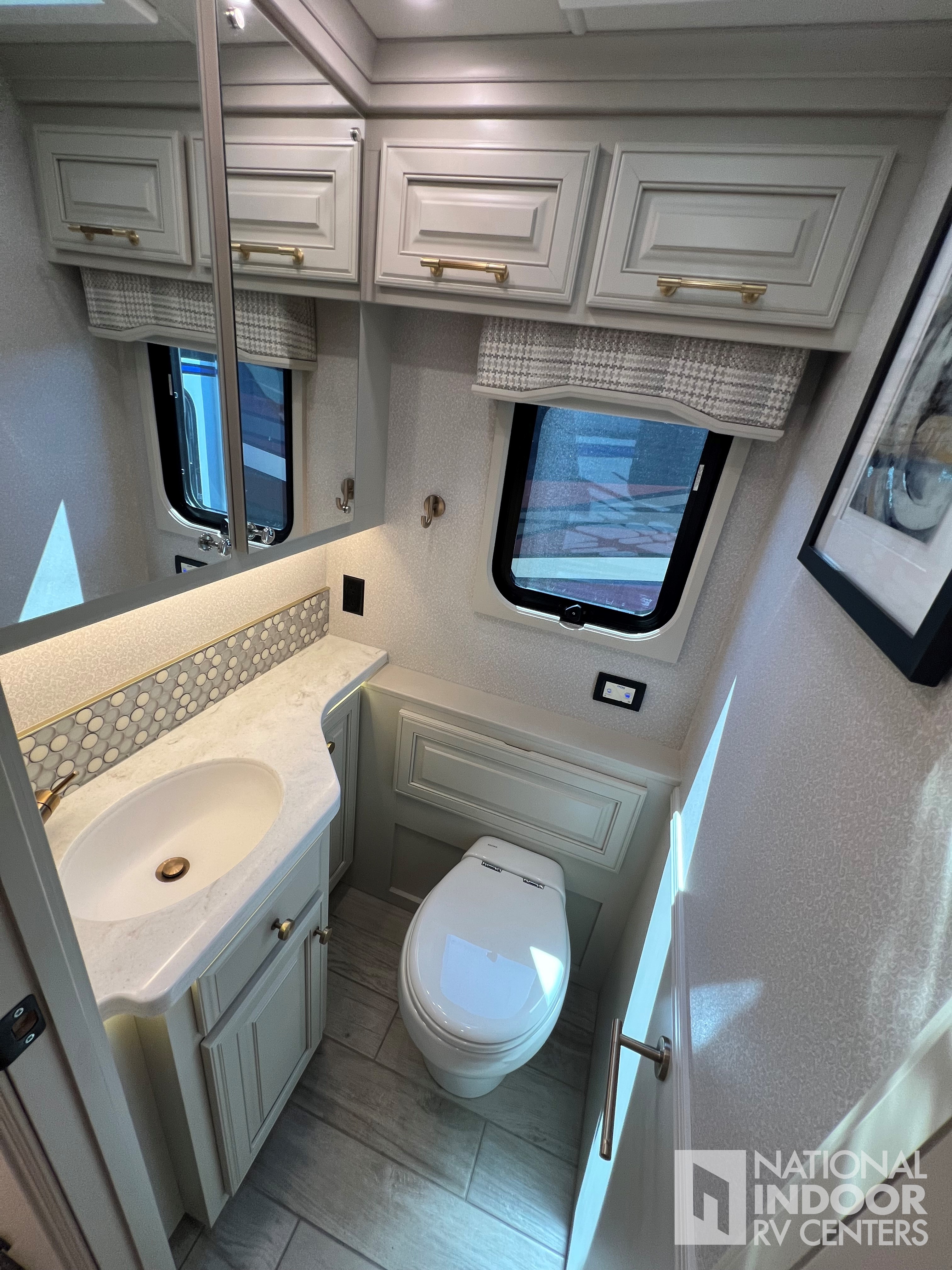

| Toilet | Thetford® macerator toilet in main bath; Thetford® macerator toilet in mid bath (45D, 45R, 45W); Thetford® toilet in mid bath (45B) |
| Vent | Maxxair® Deluxe power exhaust vent fan with intake |
| Carbon Monoxide Detector | Carbon monoxide detector |
| Smoke Alarm | Smoke alarm |
| Security Safe | Storage safe |

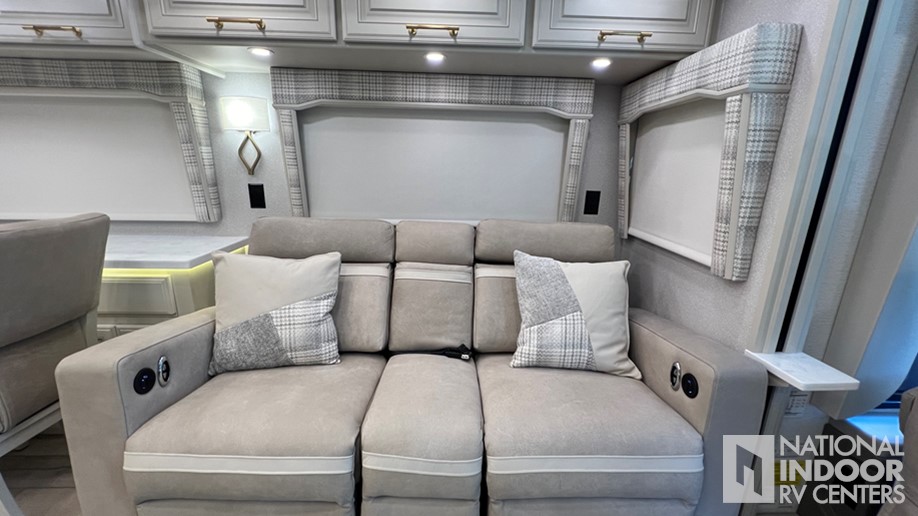

| Theater Seating | Theater seating with power recliners and fixed center console (45R) |
| Hide-a-Bed Sofa | 100 in. hide-a-bed sofa ILO 100" power reclining 3-cushion sofa (45B, 45Z ) |

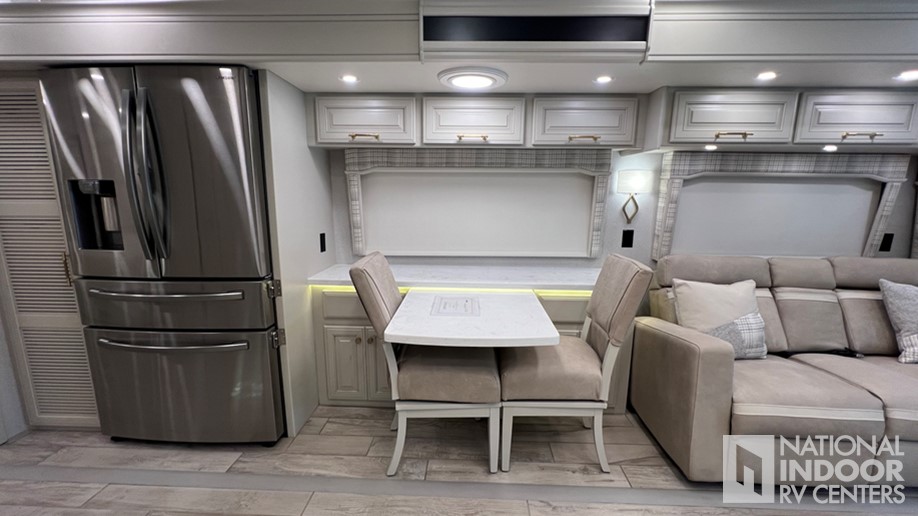

| Dinette | Dinette booth ILO free-standing table and chairs (45B, 45D, 45W, 45Z) |
| Fireplace/TV/entertainment center and work station ILO sofa | Fireplace/TV/entertainment center and work station IPO sofa (45D, 45W) |
| Mattress | Sleepmade memory foam mattress |
| Satellite Dish | Winegard® in-motion satellite dome ILO Winegard® TRAV’LER |
| Satellite Dish - US | Winegard® TRAV’LER satellite dish Dish Network® ILO DIRECTV® |
| Chasis | Freightliner SL chassis ILO Spartan K3 chassis |
| Dishwasher Drawer | Cabinet with two drawers ILO dishwasher |
| Area Rug | Living Room and Bathroom Area Rugs |
| Headboard | Wood headboard |
| Canadian Standards | Canadian standards (CSA) |
| Hide-a-Bed Sofa 2 | Hide-a-bed sofa and standard sofa ILO power theater seating and hide-a-bed sofa (45D, 45W) |
