| Chassis |
| Spartan K2 Mountain Master raised rail chassis |
| Engine |
| Cummins ISL turbocharged 450 HP engine 1,250 lb. ft. torque at 1,400 RPM |
| Transmission |
| Allison 3000 MH 6-speed transmission |
| Engine Block Heater |
| 1,000 watt engine block heater |
| Front Suspension |
| Reyco Granning IFS independent front air suspension |
| Rear Suspension |
| Hendrickson rear air suspension |
| Front Axle |
| Reyco Granning front axle 17,000-lb. wide track |
| Rear Axle |
| Rear axle 20,000-lb., tag axle 12,000-lb. |
| Rear Axle Ratio |
| 4.88 rear axle ratio |
| Hitch |
| 15,000-lb. hitch with 7/4-pin plug |
| Tag Axle |
| Tag axle air dump |
| Radiator |
| Side-mounted radiator |
| Braking System |
| ABS disc brakes on front and drive axle/drum brakes on tag axle & two-stage engine brake |
| Traction Control |
| Automatic traction control |
| Shocks |
| Bilstein shocks- 60MM front & 46MM rear/tag |
| Fuel Tank |
| 150-gal. fuel tank (dual fill) |
| DEF Tank |
| Dual DEF fill |
| Tires |
| Michelin 315/80R 22.5" tires (front) and 295/80R 22.5" tires (rear) |
| Turning Radius |
| 55-degree turning radius |
| Chassis Battery |
| Chassis batteries (2) |
| Alternator |
| 170-amp alternator |
| Air Connection |
| Remote air connection |
| Frame |
| X-Bridge frames welded into chassis frame |
| Underbelly |
| Enclosed, insulated and heated floor and thermostat controlled heating in storage area |
| Insulation |
| Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
| Floor |
| 2" x 4" floor truss construction |
| Floor Decking |
| 3/4" 7-ply plywood main floor decking |
| Walls |
| Aluma-Tru superstructure construction on 12"-16" centers |
| Slideouts |
| Flush-mounted electric-powered slideout rooms with Vegatouch control |
| Roof |
| One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss |
| Propane |
| Heating System |
| Aqua-Hot 450 diesel hydronic water and heating system with in-floor heat throughout |
| Air Conditioning |
| 15,000-BTU low profile A/Cs (3) with heat pump, Vegatouch thermostat, and roof to ground condensation drain tubes |
| Electrical Hookup |
| 50-amp power cord with electric reel |
| Generator |
| Onan 12,500-watt diesel generator with auto gen start on powered slide-out tray |
| Inverter |
| 2,800-watt and 2,000-watt pure sine wave inverter |
| Batteries |
| L16 AGM batteries (4), (6v/390 amp hrs. ea.) |
| Power Management |
| Premium surge protector transfer switch |
| Water Hose w/ Electric Reel |
| Water hose with electric reel |
| Tank Flush |
| Black holding tank sprayer |
| Black Tank Management |
| Macerator holding tank dump system with manual gate valves, & manual back-up system |
| Water Monitoring |
| SeeLevel tank monitoring system |
| Water Filtration |
| City and tank water filtration system |
| Winterization Drain System |
| Winterizing drain system |
| Tank Vents |
| 360 Siphon tank vent(s) |
| Exterior Walls |
| 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
| Front/Rear Cap |
| Steel-reinforced front cap and windshield frame |
| Exterior |
| 3M front protective film mask |
| Headlights |
| LED high and low beam headlights |
| Fog Lights |
| LED fog lights |
| Daytime Running Lights |
| Daytime running lights |
| LED Lights |
| LED marker and turn lights the full length of the coach |
| Docking Lights |
| LED docking lights |
| Accent Lights |
| LED accent lights on underside of slideout rooms curbside |
| Keypad |
| Lighted grab handle with keypad system |
| Keyless Fob |
| Keyless entry with key fob |
| Entrance Steps |
| Entrance Door |
| Aire-Secure travel locks for all pocket doors |
| Door Awning |
| Girard power entrance door awning with LED lights |
| Window Awnings |
| Girard Ultra window shade awning and Ultra slideout awnings |
| Patio Awnings |
| Roof mounted Girard Vision dual pitched patio awning with LED lights |
| Mirrors |
| Chrome, heated, remote control, side-view mirrors with integrated cameras & blind-spot indicators |
| Windows |
| Frameless, tinted, dual-pane, safety-glass windows |

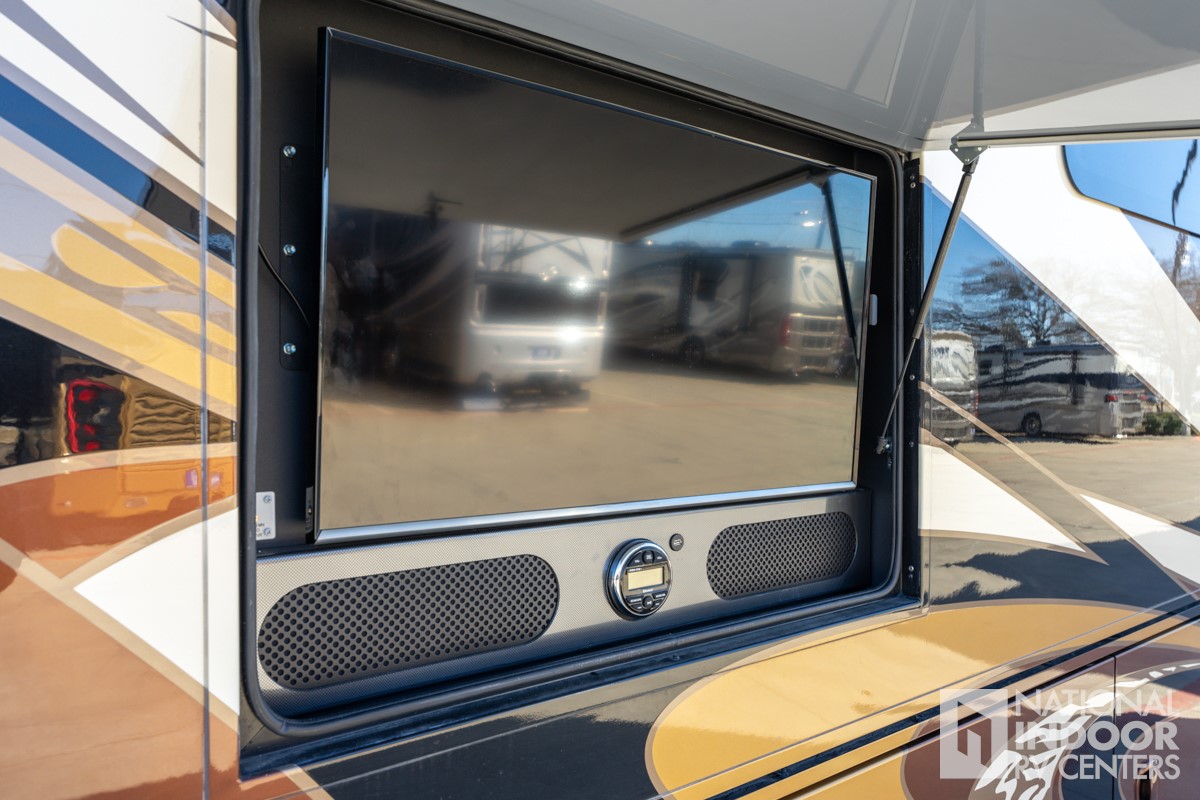

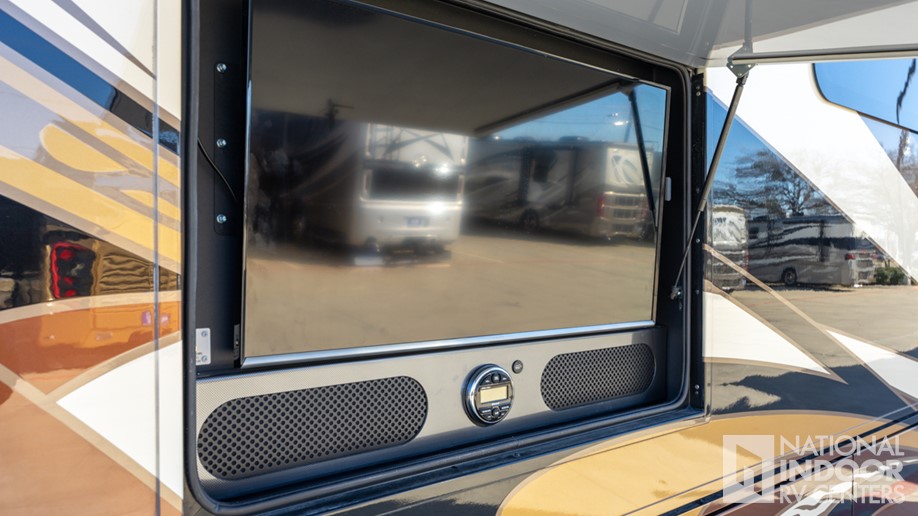

| Entertainment |
| 40" Samsung LED HDTV on TV bracket with extend, tilt and swivel arm and JBL multimedia stereo receiver with Bluetooth audio streaming |
| Utility Center |
| Exterior utility center, heated and enclosed with system monitor panel |
| Cargo Features |

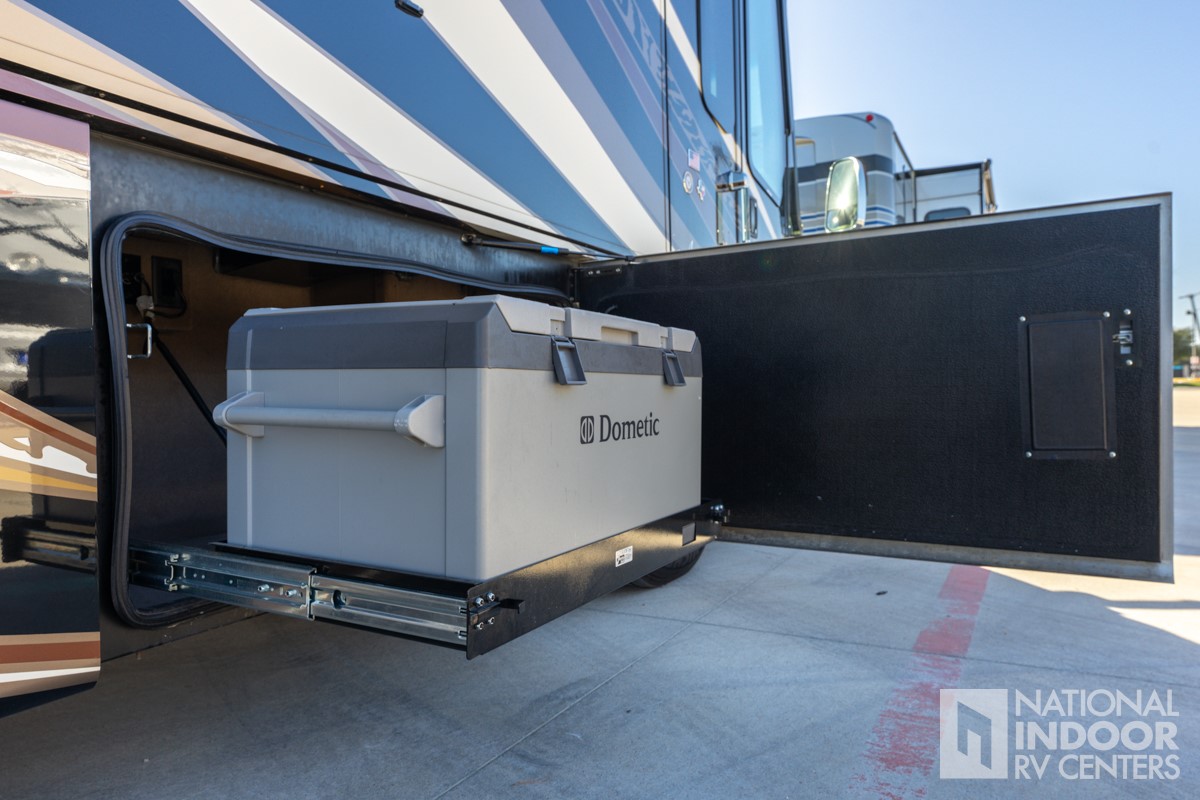

| Manual slideout cargo tray |
| Satellite Dish |
| Winegard in-motion, dome, roof-mounted satellite dish with prep for Trav'ler satellite dish |
| TV Antenna |
| Winegard Rayzar powered TV atenna |
| Engine Door |
| Power engine door |

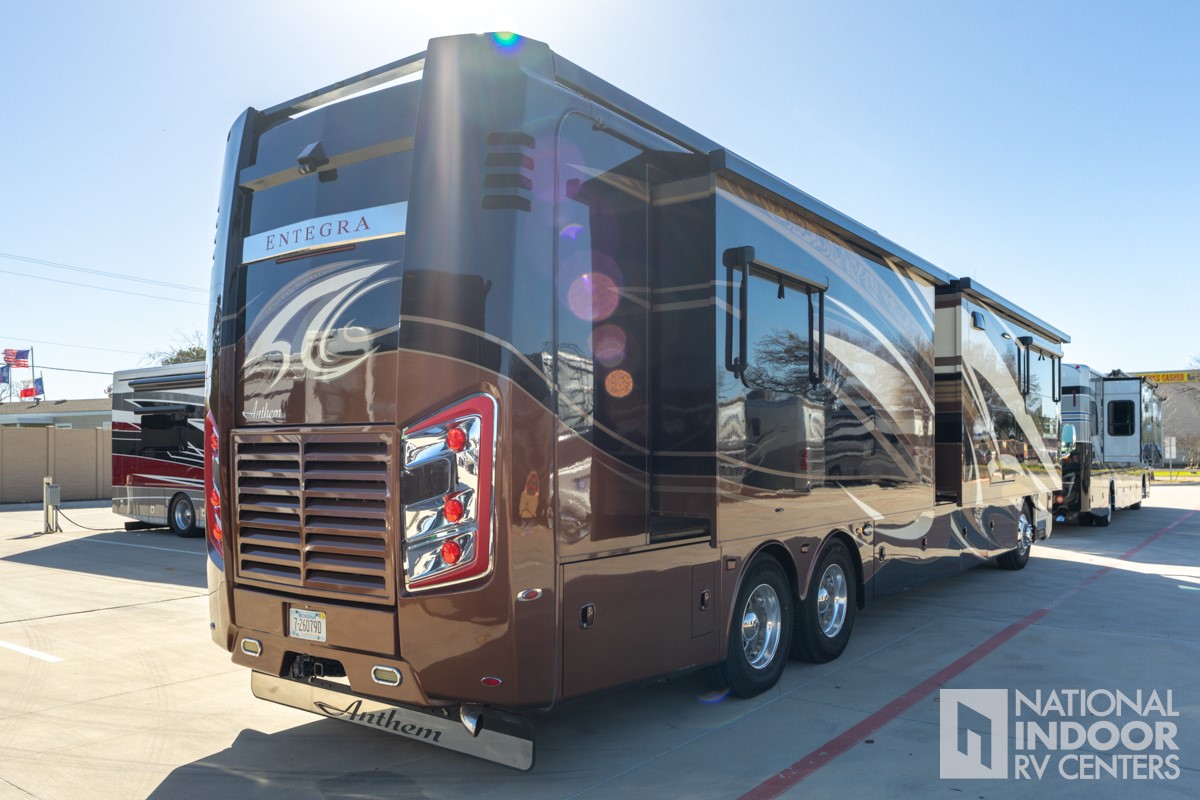

| Rear Mudflap |

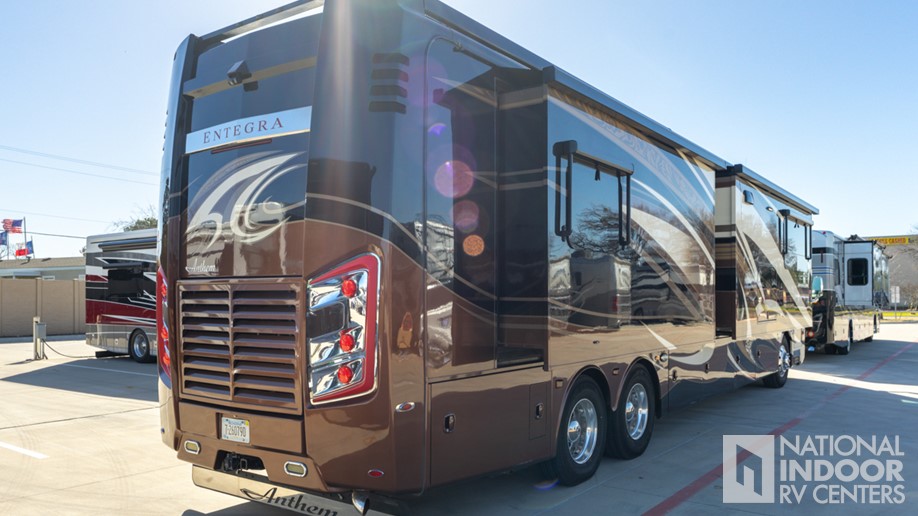

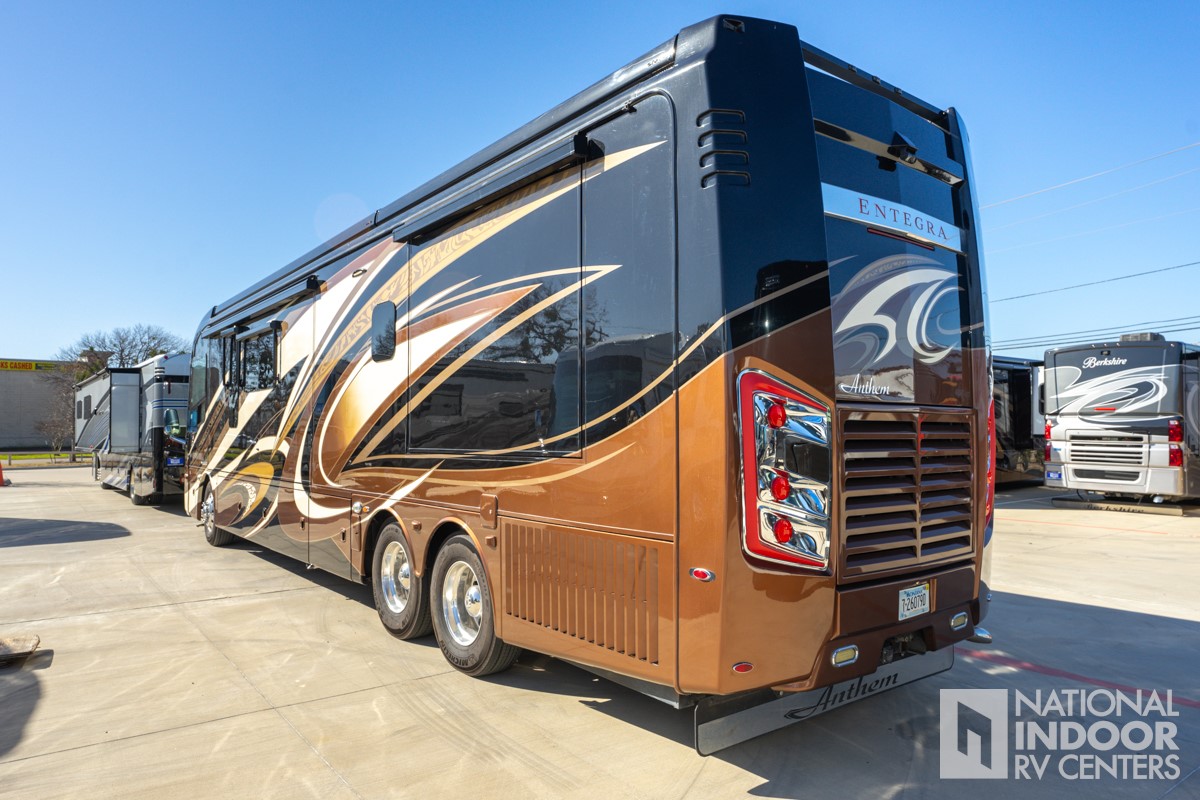

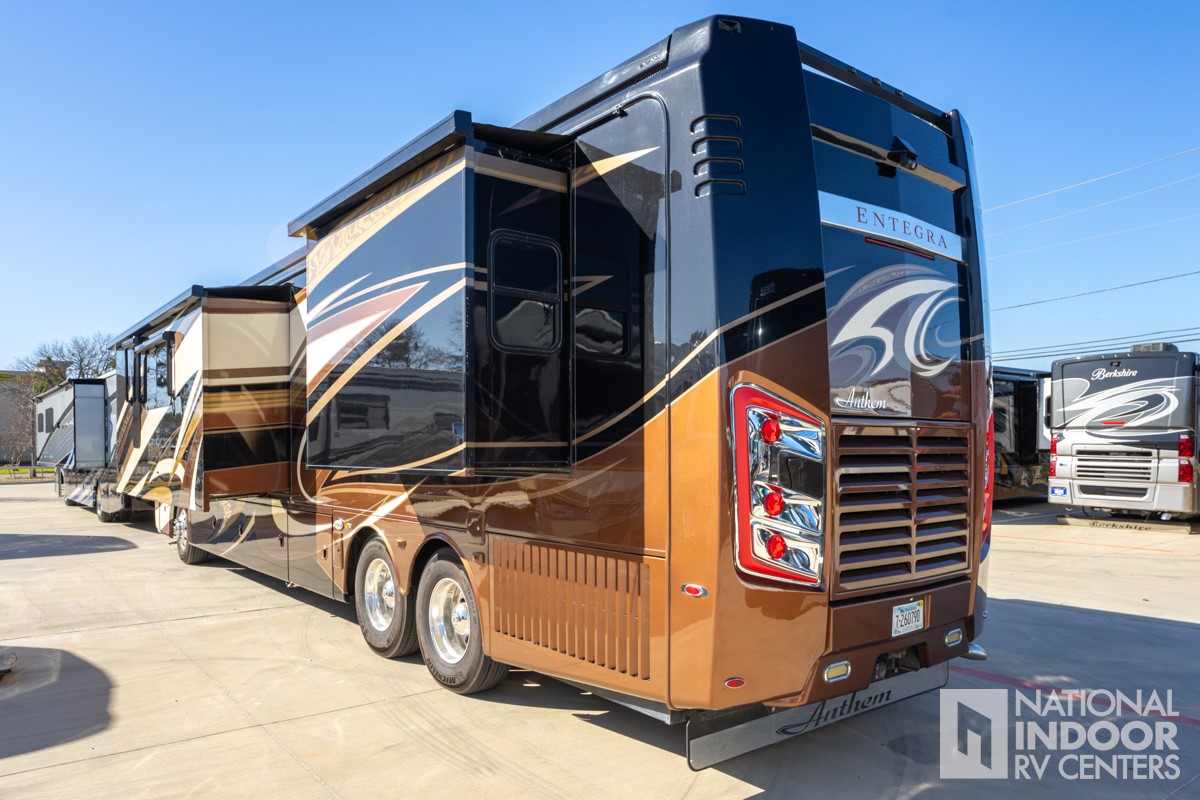

| Full-width rear mudflap, with chrome "Anthem" nameplate |
| Lights |
| Motion sensor security lights (2) |
| Third Brake Light |
| Pulsing Third Brake Light |
| Flooring |
| Powered flush stepwell cover |
| Visors & Privacy Shade |
| Powered front sun visors and privacy shade |
| Windshield |
| Ultra-Vision one-piece wrap-around tinted windshield |
| Driver / Passenger Seats |
| 6-way power, lumbar, ultraleather leather driver and passenger seats with integrated 3-point lap and shoulder safety belts |
| Steering Wheel |
| VIP soft-touch, wood-grain, leather-wrapped, tilt and telescoping steering wheel with integrated controls for radio, cruise, and wipers |
| Monitoring System(s) |
| Spartan Message Center with LCD display featuring: odometer, tachometer, fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, trip meter, speed and voltage |
| Infotainment System(s) |
| All-glass paneled, dual 9" capacitive touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, DVD, integrated camera control, House Mode whole coach audio distribution, and integrated VegaTouch coach control |
| Sound System |
| JBL premium audio with calibrated 360-watt DSP amplifier and 11 speakers including subwoofer |
| Leveling System |
| Hydraulic automatic leveling jack system |
| Power Features |
| Battery boost system |
| Pedals |
| Powered adjustable foot pedals |
| Cameras |
| Color, dual back-up camera and monitor system with side and rear view cameras |
| Trip Management System |
| Additional Amenities |
| Chrome, LED lit cup holders and dual USB ports in dash |
| Blind Spot Monitoring |
| En-telligent™ Blind Spot Monitoring System, tuned to detect objects within the lane of traffic on either side of the vehicle |
| Lighting System |
| En-telligent™ Vegatouch pad system, for complete integration of coach controls |
| Lighting |
| LED recessed 12V lighting |

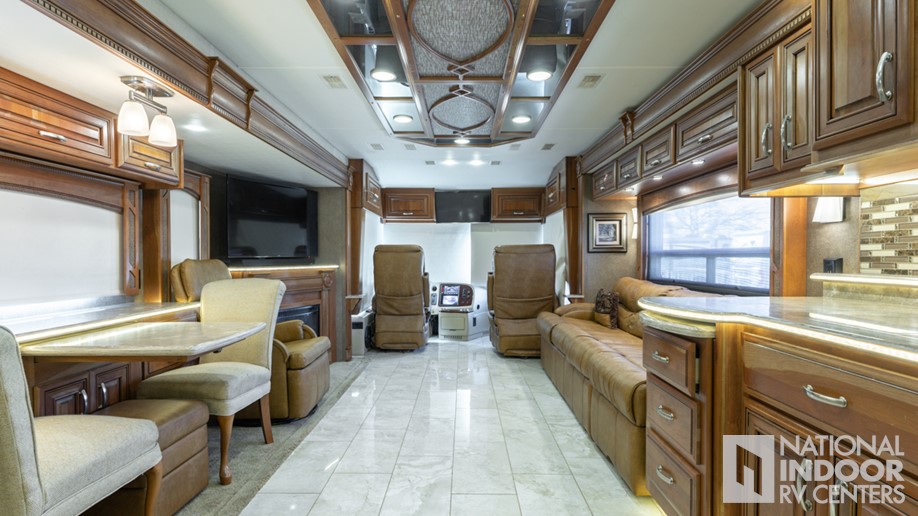

| Flooring |

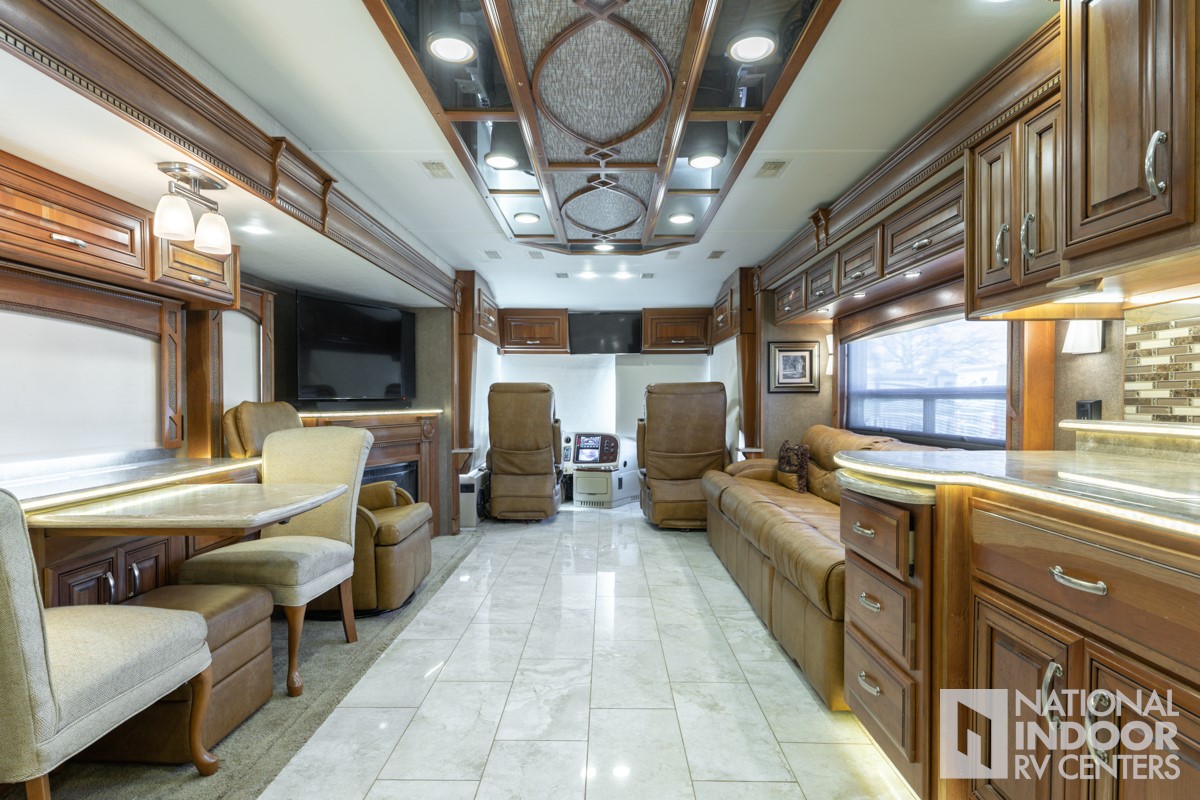

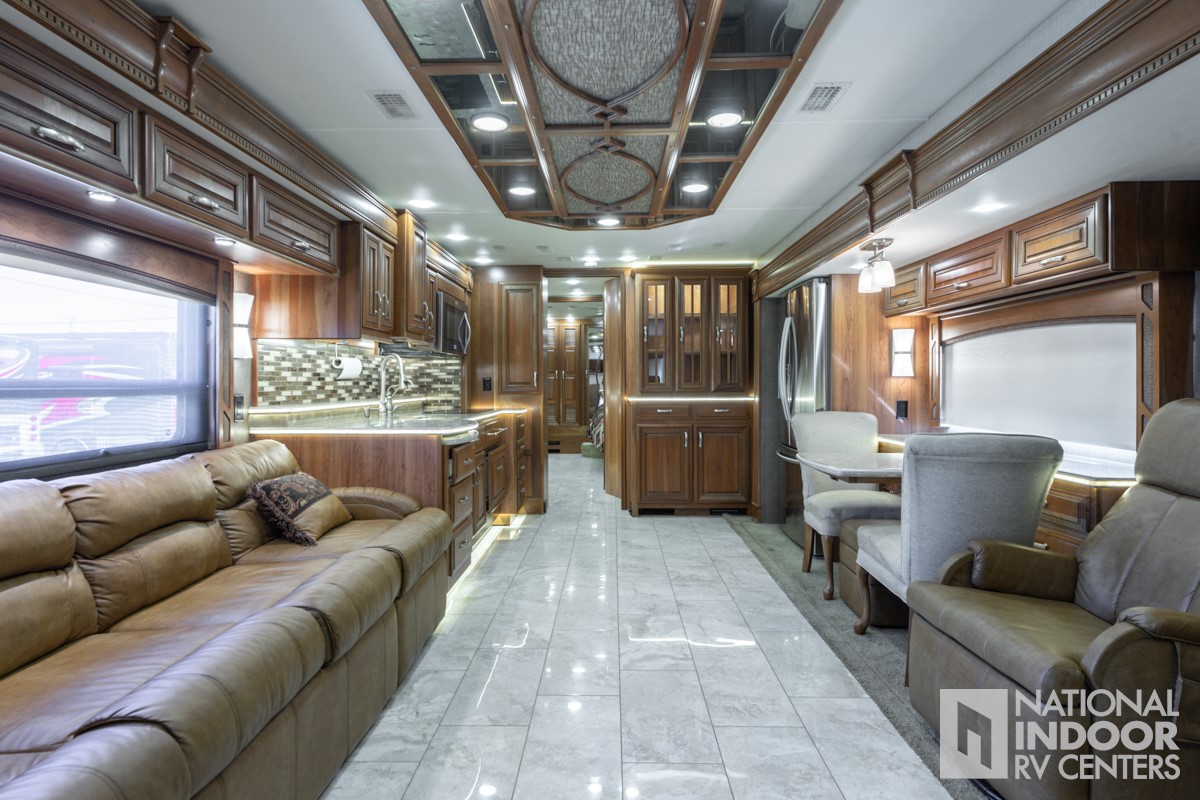

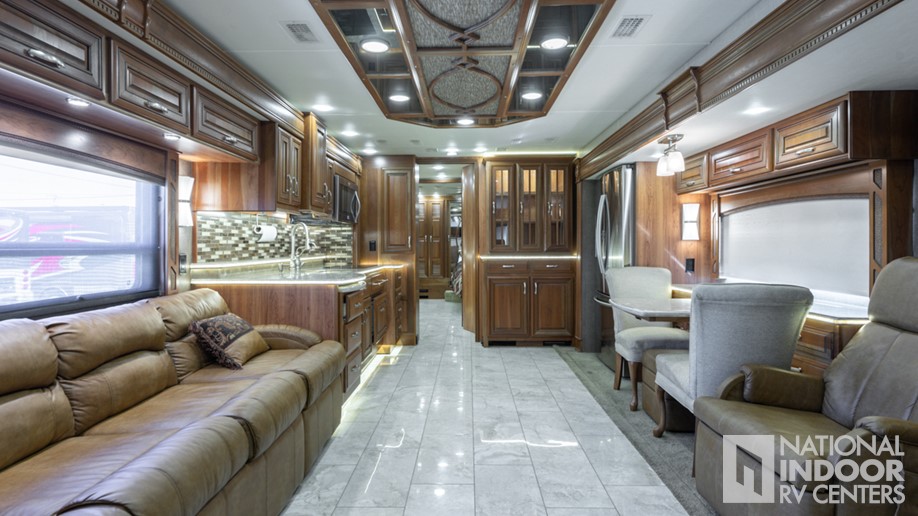

| High gloss 12" x 24" porcelain tile floor |
| Window Treatments |
| Powered solar day and black out night shades |
| Television - Living Room |
| Samsung 50" 4K UHDTV (42DEQ, 44B, 44A) / Samsung 48" 4K UHDTV (44DLQ, 42RBQ) |
| Television - Front Overhead |
| Samsung 32" LED HDTV in front overhead |
| Sound - Living Room |
| Bose SoundTouch 130 home theater system with bluetooth in living area |

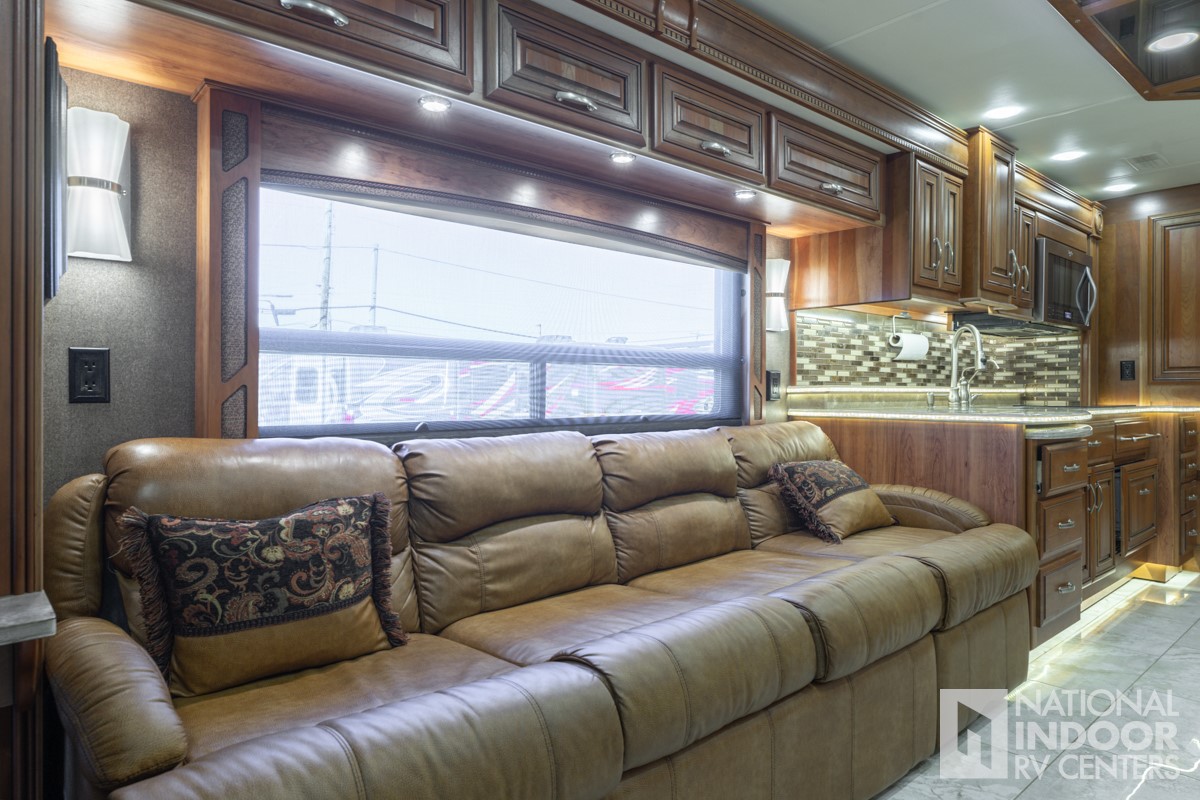

| Furniture |

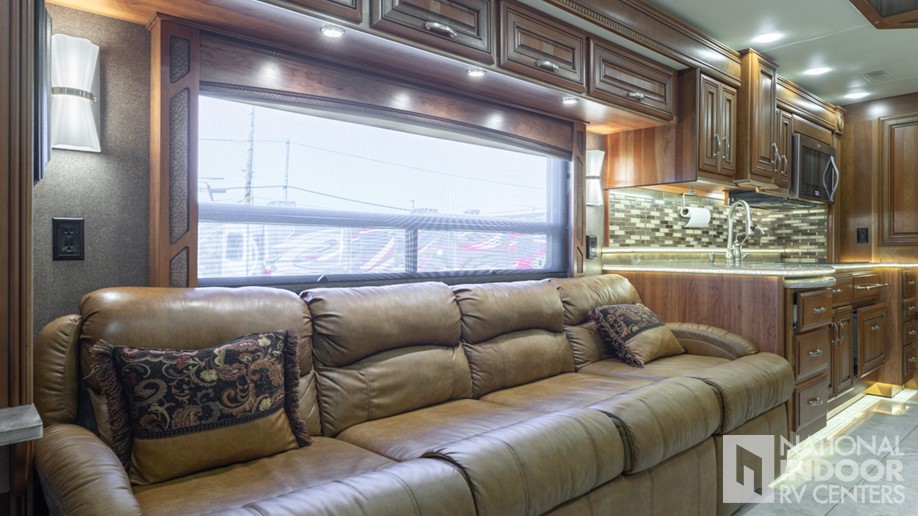

| Ultraleather hide-a-bed(s) |

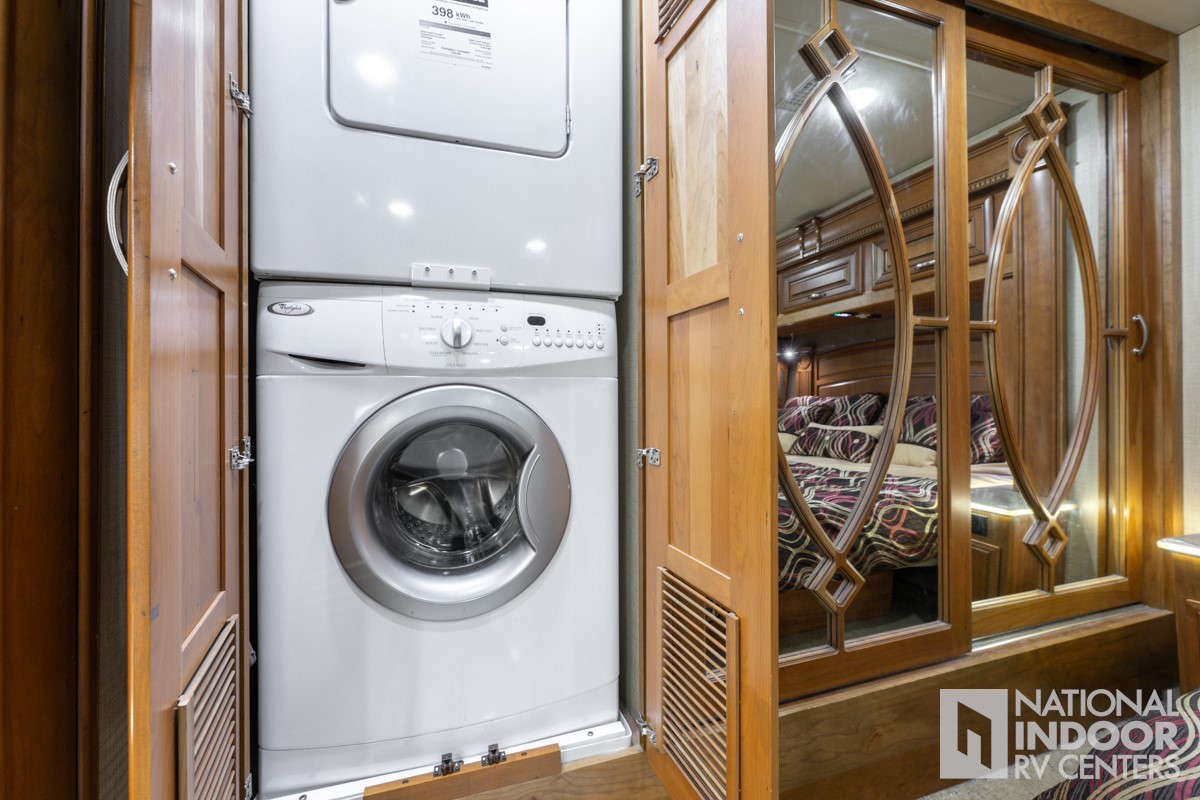

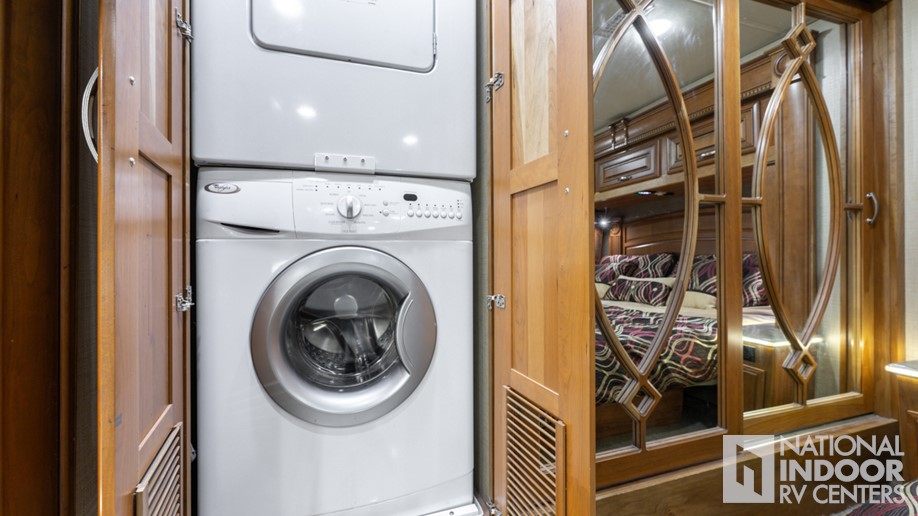

| Washer/Dryer |
| Stacked washer and dryer |
| Central Vacuuming System |
| Central vacuum system |

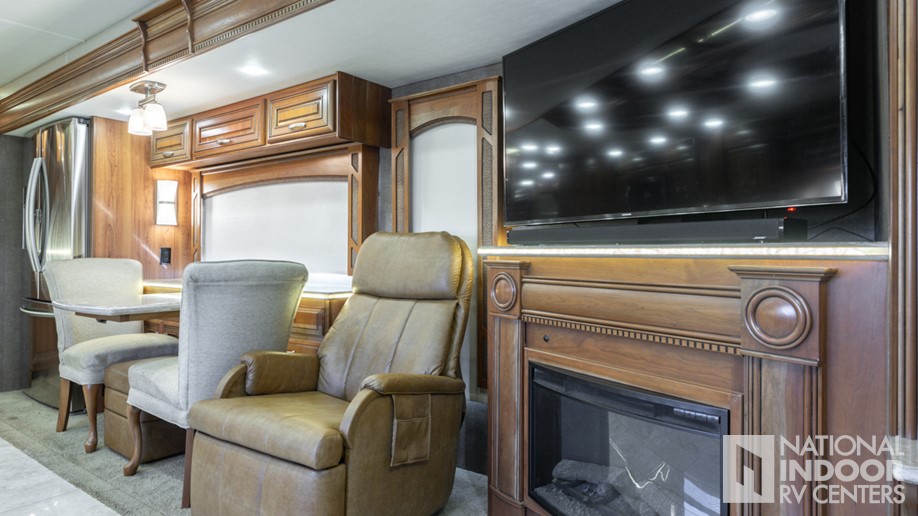

| Electric Fireplace |

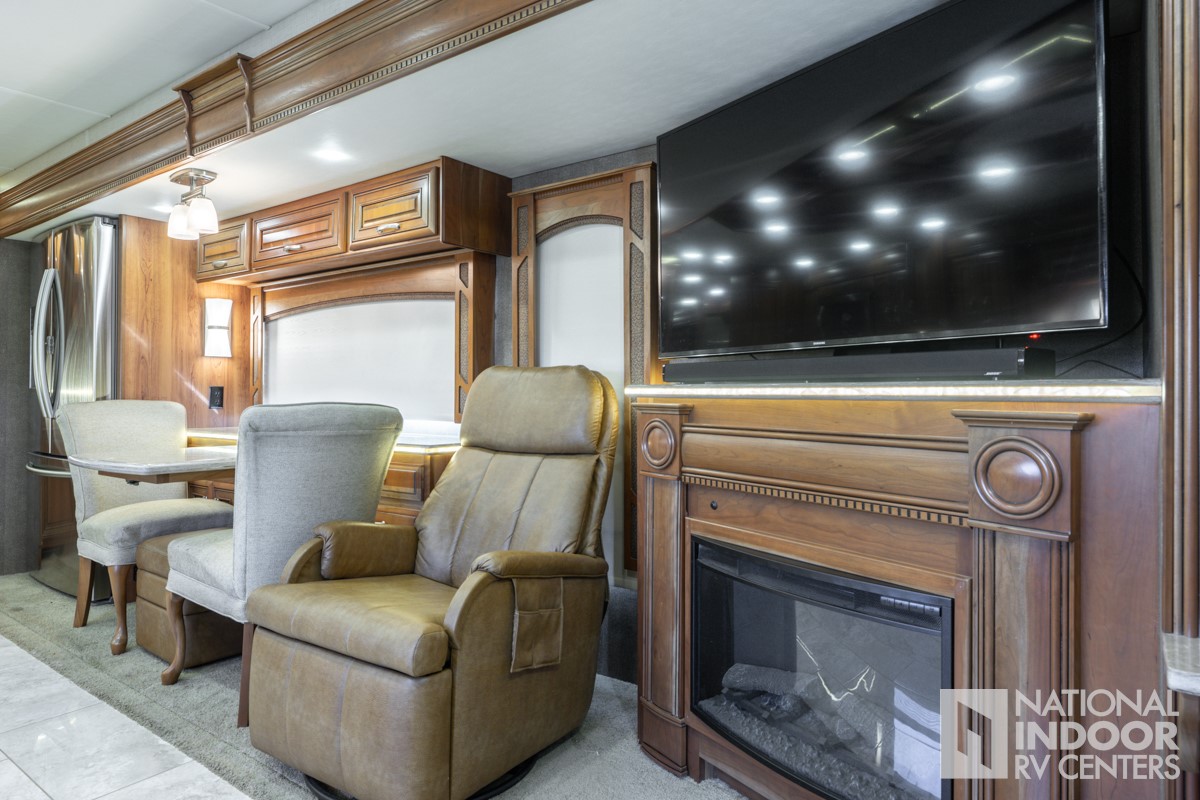

| LED lit electric fireplace |
| DVD Systems |
| Blu-ray players in living area & bedroom |
| Additional Storage |
| In-step storage with pull-out tray |

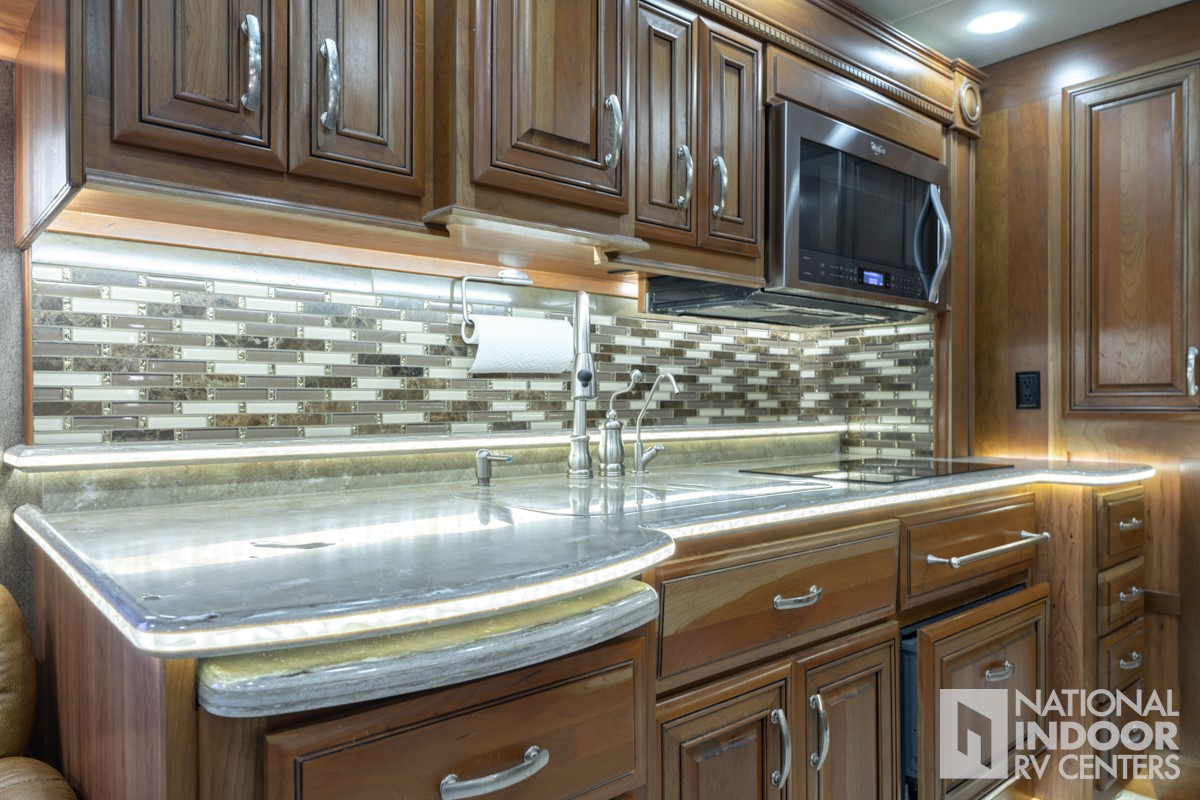

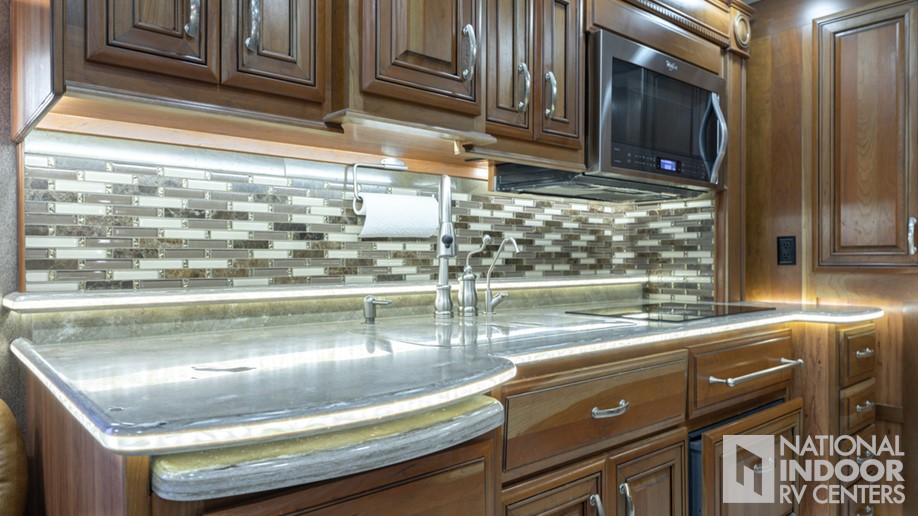

| Countertops |
| Dimmable LED lit solid surface countertops with stainless steel sink |
| Cabinet Extension |
| Backsplash |
| Porcelain tile backsplash with glass design inlays |
| Cutting Board |
| Cutting board |
| Silverware Drawer |
| Silverware drawer |
| Waste Basket |
| Large deep drawer with waste basket |
| Dishwasher |
| Dishwasher with wood raised panel door front |
| Cooktop |
| Induction cooktop |
| Microwave |
| Whirlpool Gold 1.9 cu. ft. convection microwave oven |

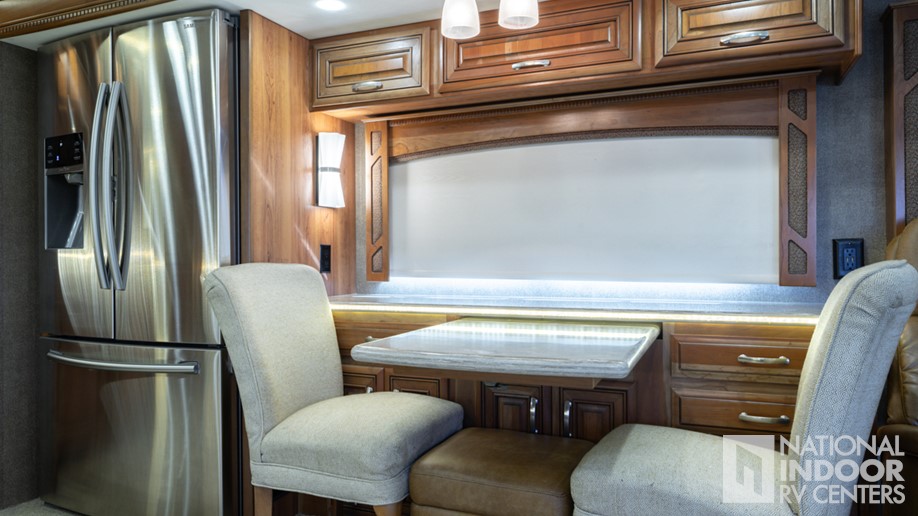

| Refrigerator |

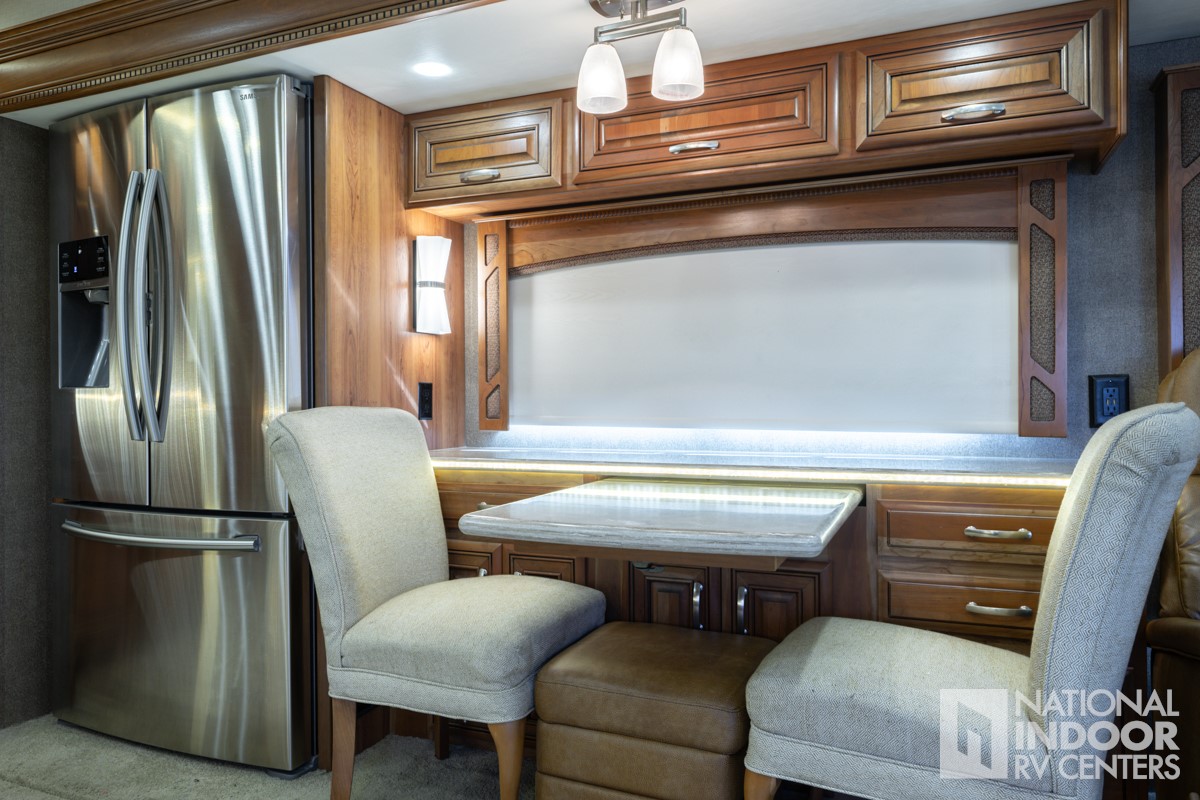

| Samsung residential 23 cu. ft. refrigerator with ice maker and water dispenser |
| Television |
| Samsung 32" LED HDTV in bedroom |
| Sound |
| Bose Solo 15 sound bar in bedroom |

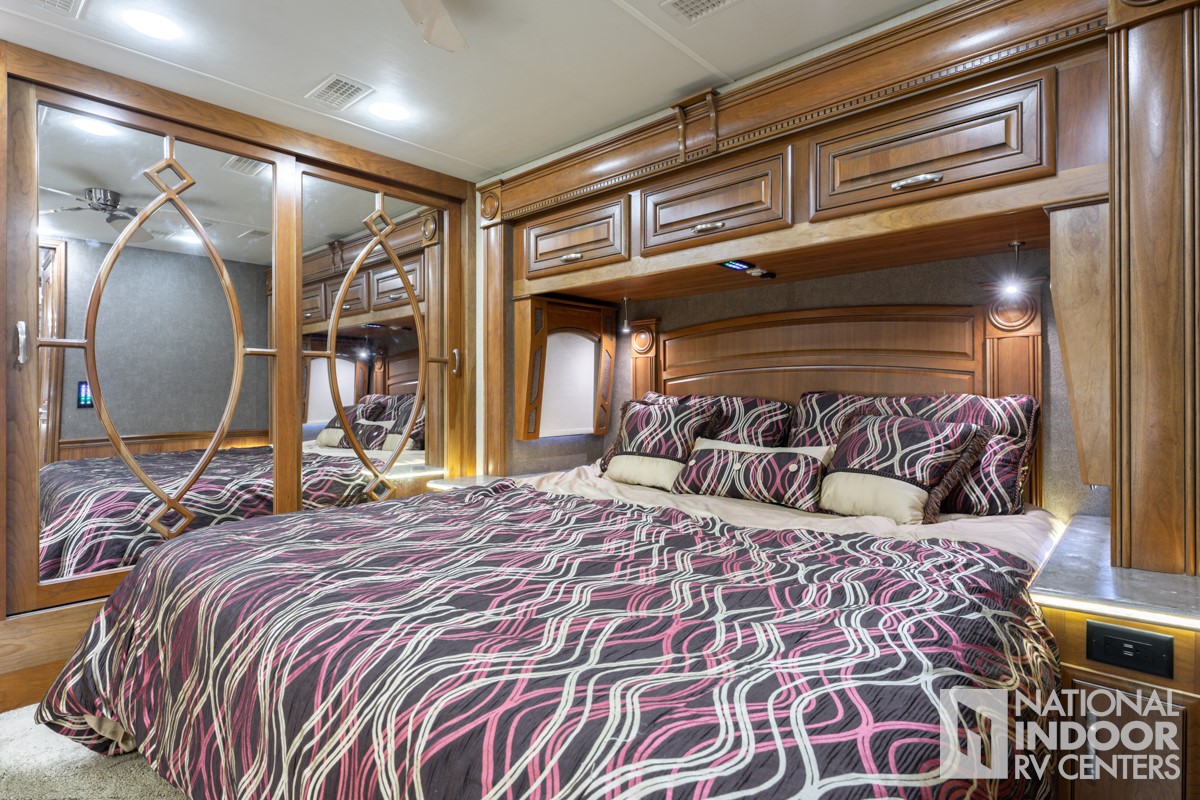

| Bed |

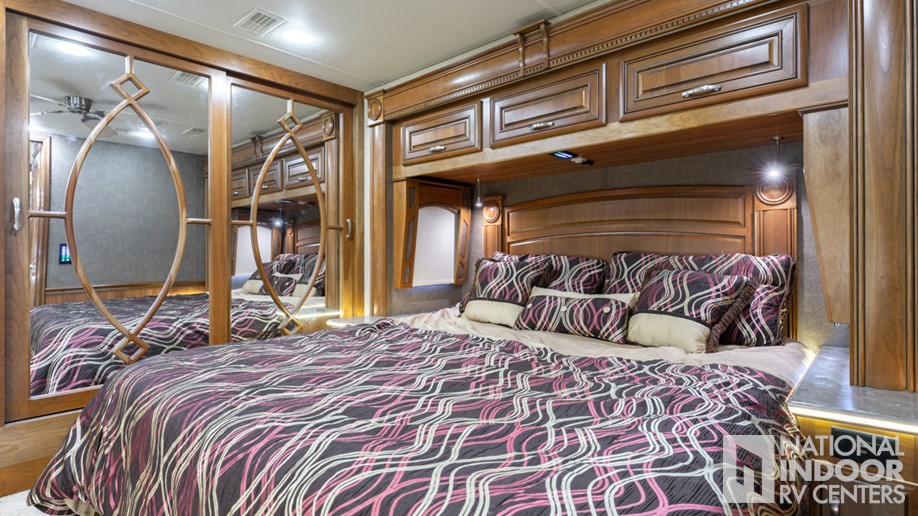

| Select Comfort Sleep Number mattress |
| Ceiling Fan |
| Ceiling fan |

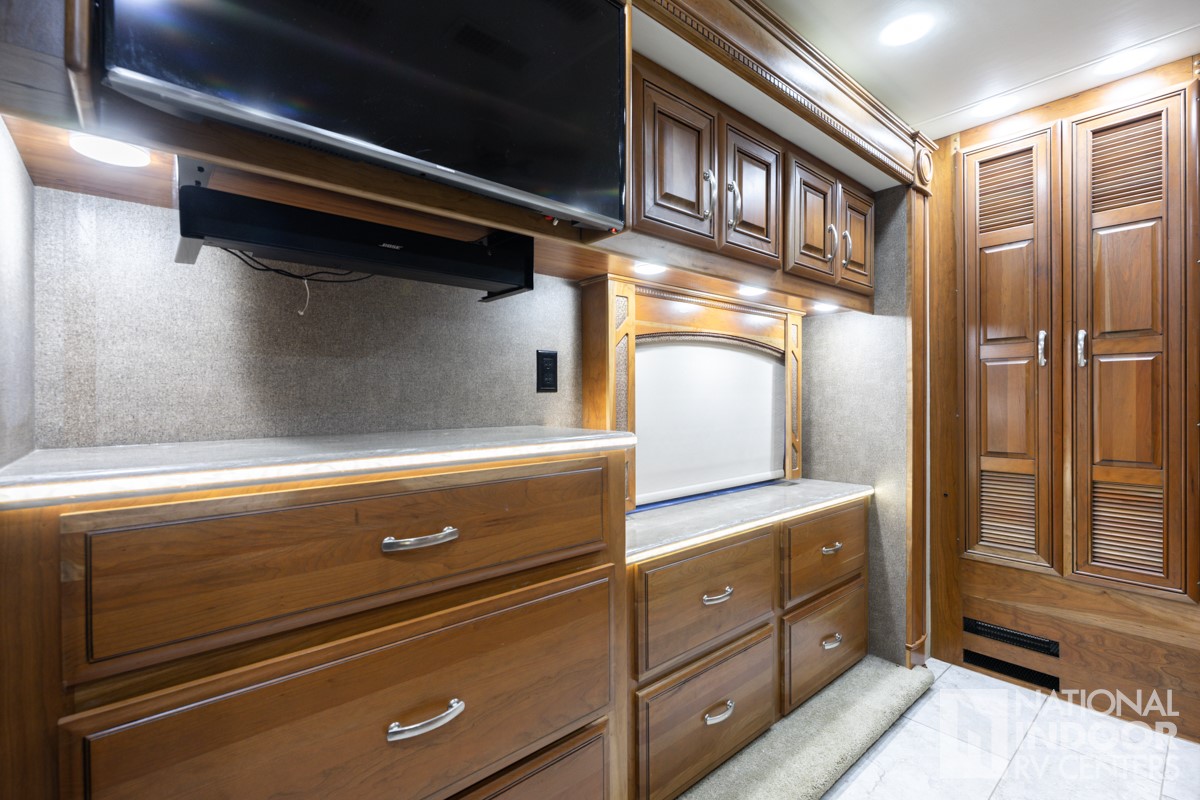

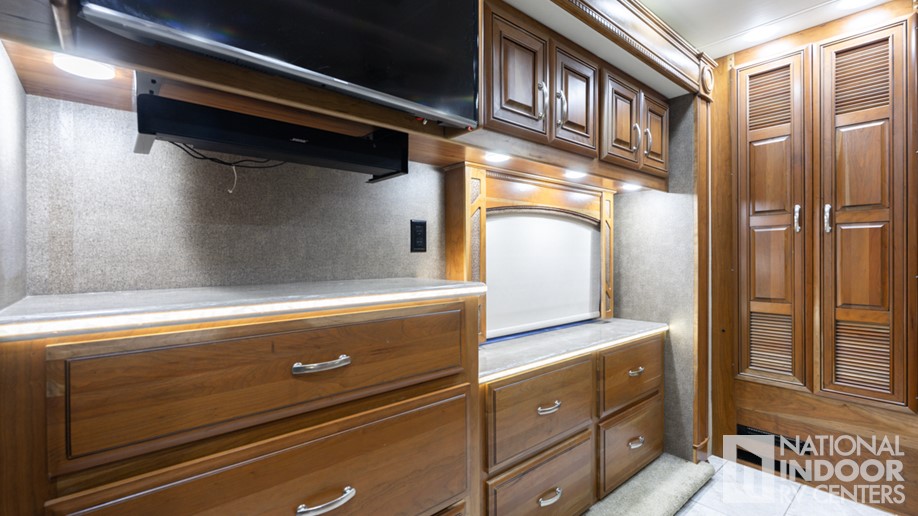

| Wardrobe |
| Large cedar-lined wardrobe with automatic lights |
| Countertop(s) |

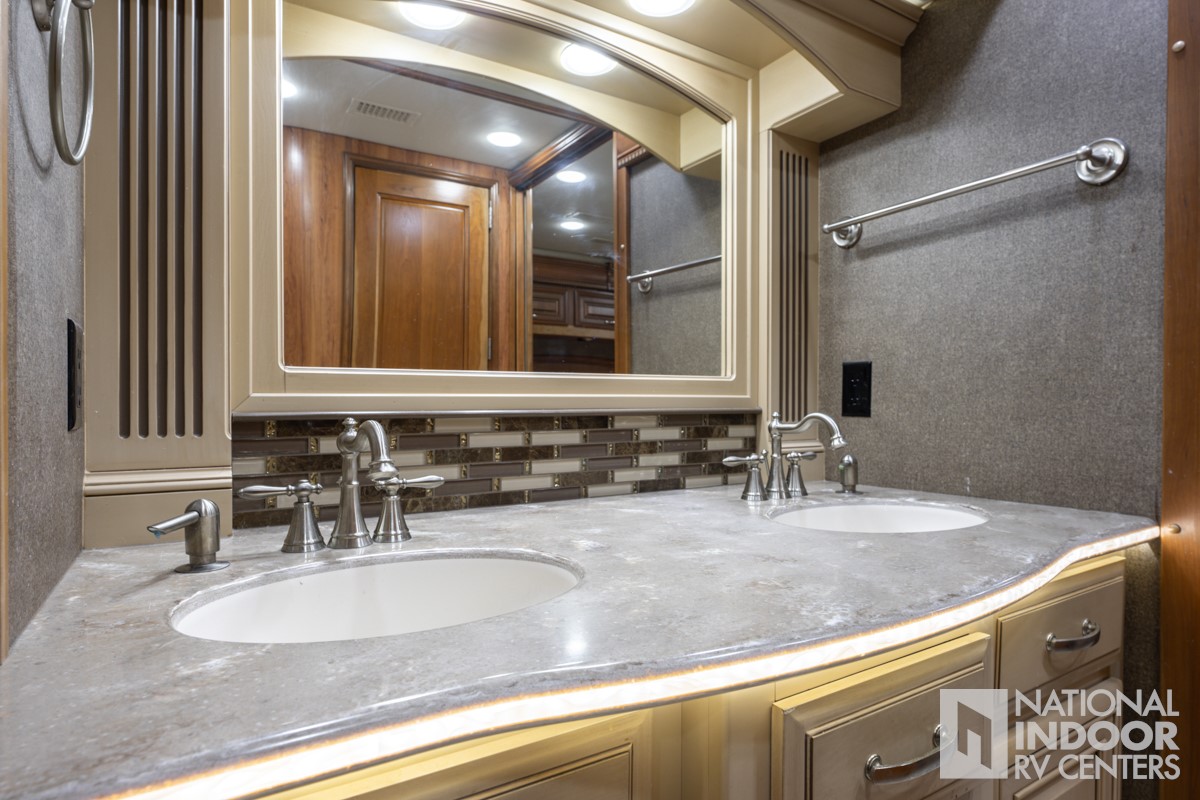

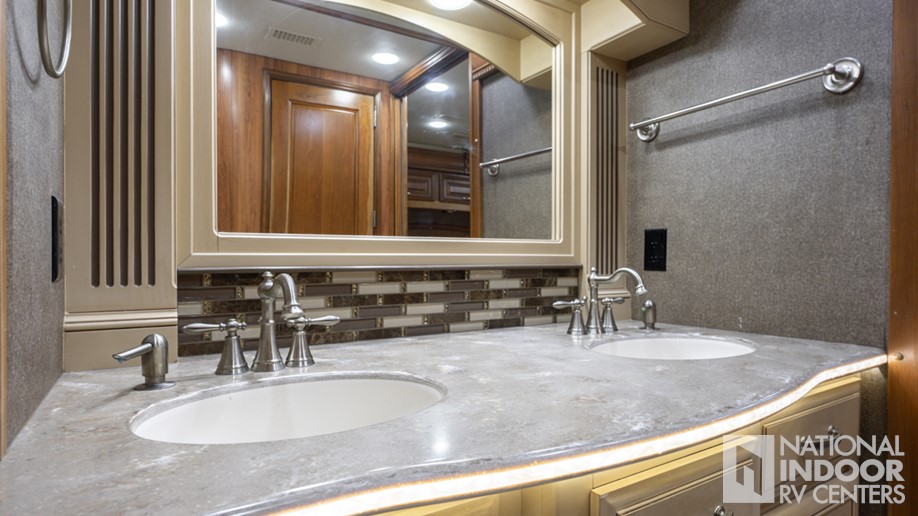

| LED lit solid surface countertop(s) with integrated sink |
| Toilet |
| Porcelain toilets with push button flush |
| Shower Door |
| Shower |

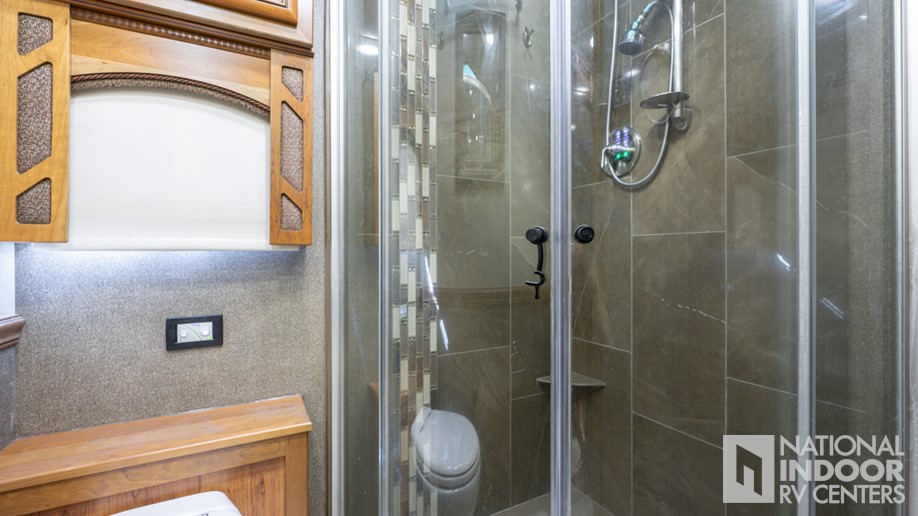

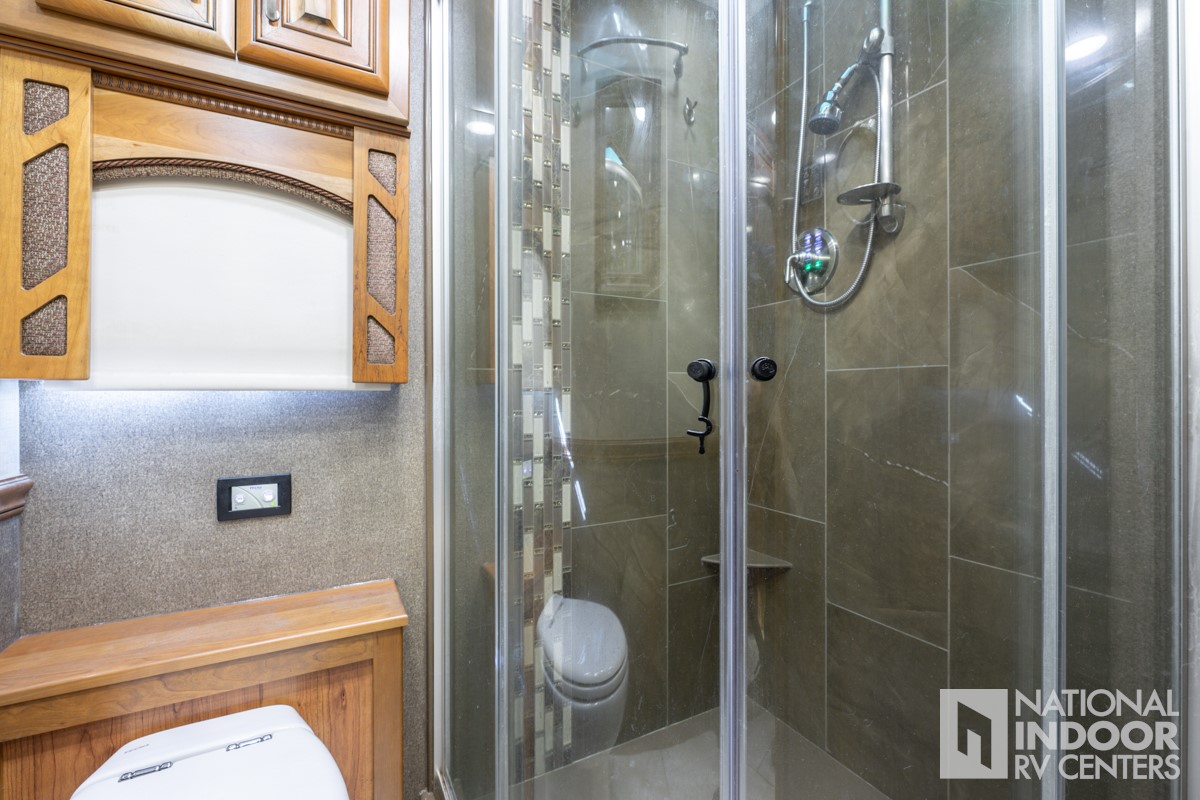

| Porcelain tiled shower with skylight |
| Vent |
| Power vent |
| Security System |
| Security system with glass shatter sensors |
| Smoke Alarm |
| Smoke alarm |
| Carbon Monoxide Detector |
| Carbon monoxide alarm |
| Propane Alarm |
| Security Safe |
| Security safe |
| Canadian Standards |
| Optional |
| Satellite Dish - US |
| Winegard Trav'ler satellite dish - DIRECTV |
| Satellite Dish - CA |
| Winegard Trav'ler satellite dish - Shaw Direct |
| Solar |
| Solar panels (Dual-100 watt) with Morningstar SunSaver Duo solar panel charge controller |

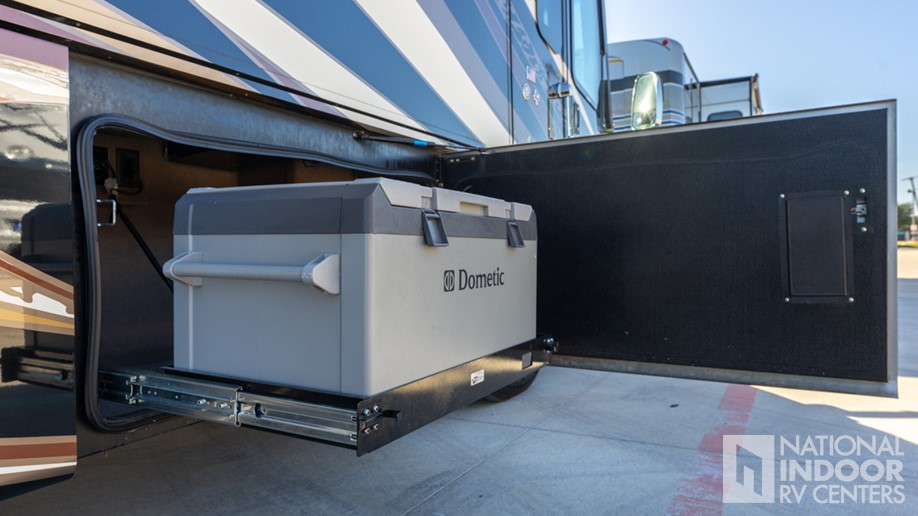

| Freezer |
| 2.8 cu.ft. exterior freezer |
| 100" Sofa with Incliner & Hide-A-Bed |
| (N/A w/Premium Villa Pkg Opt) (44B & 42DEQ ONLY) |
| L-Sofa Lounger with Hide-A-Bed |
| (N/A w/Premium Villa Pkg Opt) (44B & 42DEQ ONLY) |
| Sofa w/TV Lift |
| (N/A w/Premium Villa Pkg Opt) (44A ONLY) |
| Desk |
| Desk w/TV Lift & Fireplace |
| Dishwasher Drawer |
| Fireplace |
